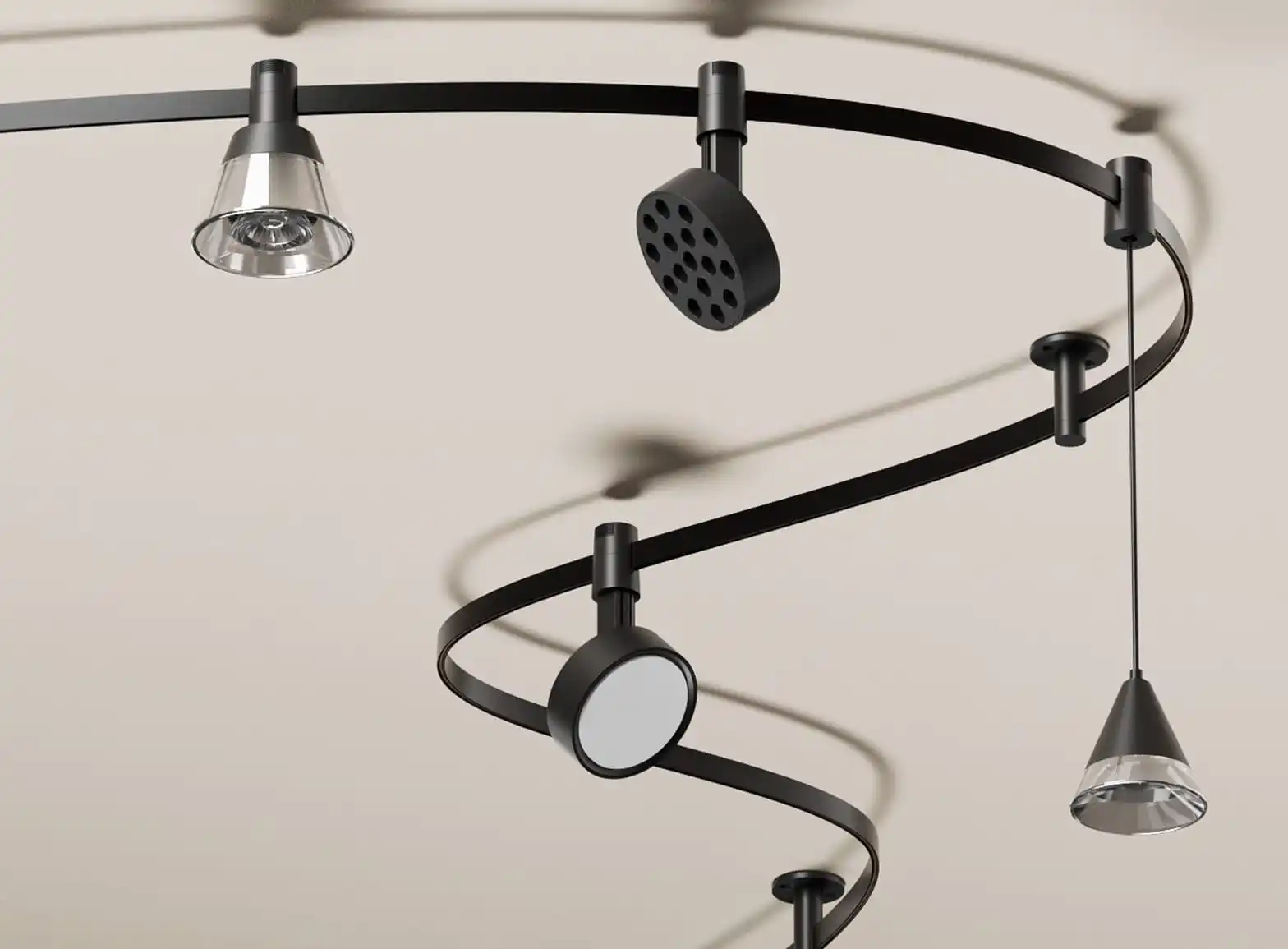

Bendable. Colorful. Brilliant. – The 48V R18 Semi-Flexible Magnetic Track Light System
In lighting design, light is never just about illumination – it defines the lines, mood and atmosphere of a space. While traditional track lights are locked into straight lines and fixed angles, the 48V R18 semi-flexible magnetic track light system (Colorful Series 2025) breaks those boundaries: a track you can simply bend on site, turning lighting into free-form creation.
1. Semi-Flexible Track: Let Light Follow the Architecture

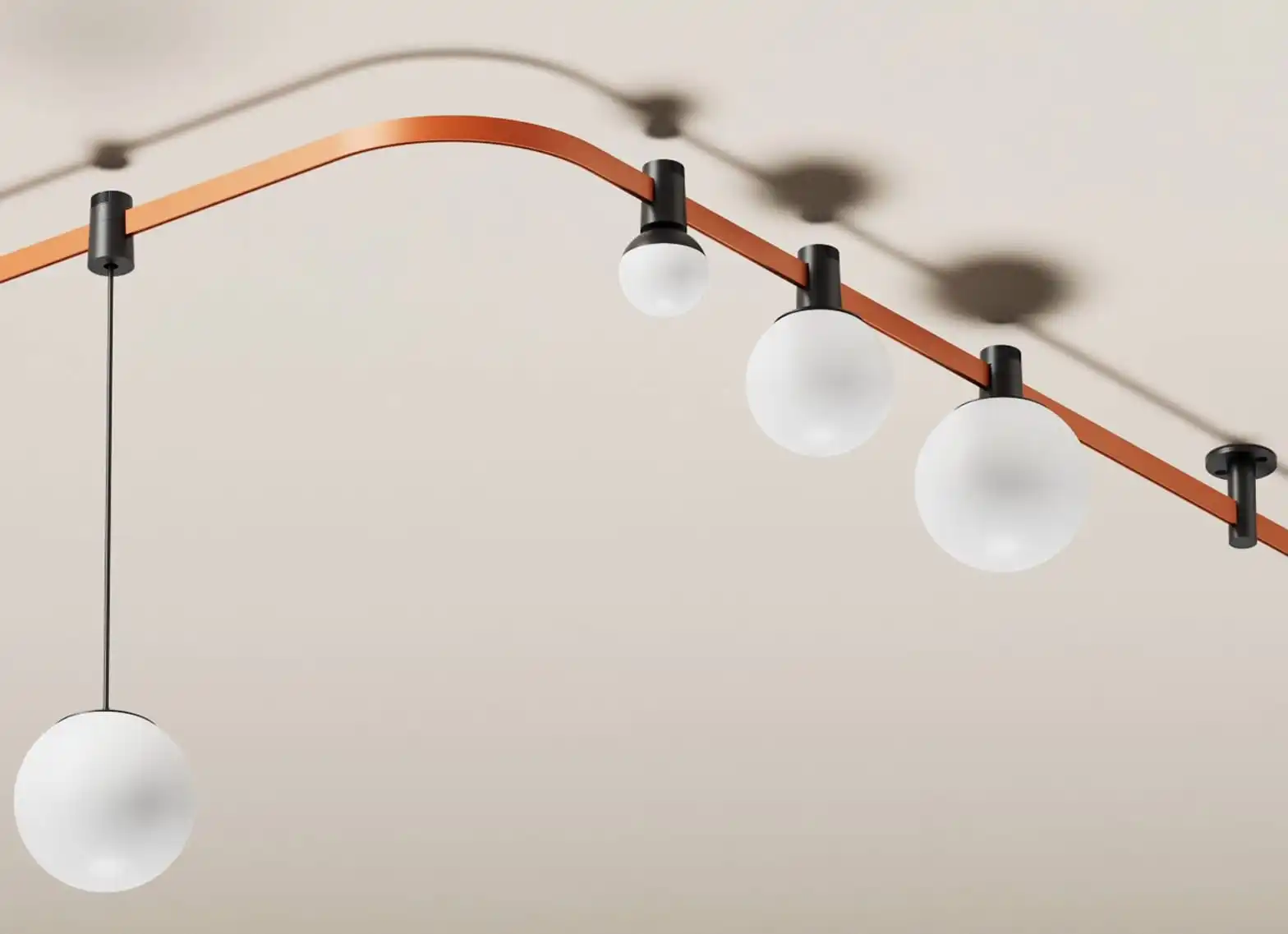

The breakthrough of the R18 system lies in the track itself. Dual copper conductors are co-extruded with thermoplastic elastomer (TPE) in a minimalist cross-section of just 18mm x 5mm, while a slender harmonic steel band runs along the back to form the outline and hold any geometry you weave. The track becomes a band that can be bent at the construction site to adapt to any shape determined by lighting requirements and architecture.
- Minimum bend radius approximately 300mm according to the referenced catalogue – cut and form on site without sharp folding
- Free-flowing curves and smooth shapes combined with rich light performance
- Delivered in 5 / 10 / 20 meter rolls – cut to length, minimal waste
From crisp lines to graceful arcs, from walls to ceilings, the track works like a brush of light, drawing the space exactly the way you want it.
2. 48V Low Voltage + Specified Light Quality
The R18 operates at DC 48V, but system safety still depends on the approved power supply, protection class, wiring, connectors and installation method. Confirm whether the complete installation meets SELV or other applicable requirements for the destination market.
- DC 48V operating voltage – use only compatible power supplies and system components
- CRI >= 90 – true-to-life color rendering, ideal for retail and display spaces
- Catalogue flicker figure: <3% – confirm the test metric, dimming condition and driver configuration for the ordered model
- CCT options within 3000K–6000K, depending on model and configuration; do not assume continuous tunable-white operation unless specified
- IP20 protection, operating ambient temperature -20°C to 40°C
3. Color Your Way: The Track Is the Decoration
The R18 system breaks the "black or white" stereotype of track lighting:

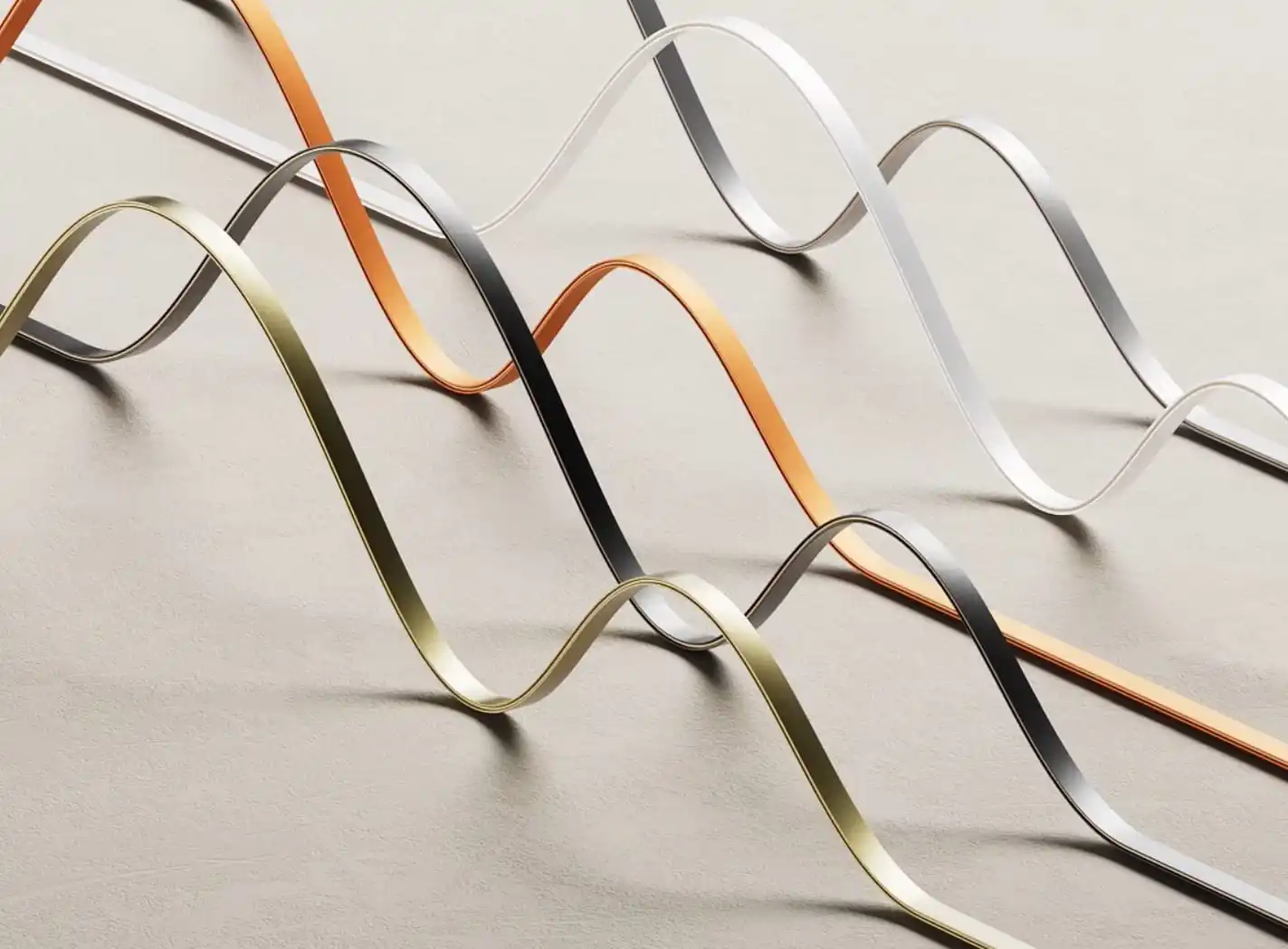

- Track available in 5 colors: Black, Gray, Green, Khaki and Orange – free selection and combination
- Luminaires available in Black / White / Gold
- Track and strip colour combinations are available by configuration; only replace decorative parts where the manufacturer documents a compatible procedure
4. Modular Accessories: One Track, Every Installation Style
A complete accessory range lets you choose the installation method you like:
- Concealed pendant hardware (BR1801) – concealed wire cover for ceiling-mounted external power
- Exposed pendant hardware (BR1802) – ceiling exposed wire cover
- Input module (BR1803) – track conductive conversion and power supply
- Plastic fixation (BR1804) – semi-flexible track fixing head
- Track plug (BR1806) – clean aesthetic end caps
- Adapter module (BR1807) – track connectors that change track direction
- Hardware extension rod (WJ1801) – 300 / 600 / 900mm, custom lengths available
- Double-layer rotating hanging wire rod (WJ1804) – joins upper and lower tracks, rotates 350 degrees
- Dual-head input conductive module (WJ1805) – conductive connection between tracks, works with the power supply
- Circular conductive / hardware hanging wire accessories (YQ1801 / YQ1802) – hanging lines and ceiling plates for circular layouts
5. 20+ Luminaires: One Track for Every Space
The referenced R18 catalogue lists more than 20 compatible luminaire configurations. Confirm voltage, CRI, flicker performance, material, rotation range and driver options on the datasheet for each ordered model rather than applying one specification to the entire family.
Flood lighting:
- Semi-soft floodlight FG1803 / FG1804 – 10W / 20W, 120 degrees
- Semi-flexible D25 floodlight DG1813 / DG1814 – 10W / 20W, 280 degrees
- Semi-flexible circular disc floodlight YF1819 – 10W, 105 degrees
- Semi-flexible acrylic floodlight YQ1821 – 6W, 120 degrees
- Spliced rotating floodlight PJ1826 – 15W, 105 degrees
Accent lighting (spotlights & grille lamps):
- Semi-soft spotlights GD1805 / GD1806 – 9W / 15W, 24 degrees
- Spotlight B GD1807 / GD1808 / GD1809 – 10W / 20W / 30W, 24 degrees
- Folding spotlight GD1810 – 7W, 24 degrees; Folding grille lamp GS1801 / GS1802 – 12W / 18W, 24 degrees
- Focus folding spotlights GD1811 / GD1812 – 10W / 20W, focus adjustable 15-55 degrees
- Semi-flexible tube spotlight MZ1817 – 7W, 24 degrees; Semi-flexible disc grille lamp YS1818 – 12W, 24 degrees
- Semi-flexible conical spotlight YJ1828 – 7W, 50 degrees; Semi-flexible conical acrylic spotlight BL1829 – 7W, 24 degrees
- Spliced rotating spotlight PJ1827 – 15W, 24 degrees
Linear & decorative lighting:
- Semi-flexible silicone light strips DG1824 / DG1825 – 10W / 20W, 360 degrees
- Semi-flexible D12 long tube lamp XS1822 – 2-10W, 120 degrees
- Semi-soft small ball YQ1815 – 7W; Semi-flexible bulb lamp YQ1816 – 10W; A ball within a ball YQ1820 – 5W
- Spherical and universal hanging-wire lamps are listed at 7W in the referenced material; confirm the final model identifiers because the source catalogue repeats DX1832. Acrylic hanging line lamp DX1830 – 7W
- Circular lamp YH1823 – 8W, 18 degrees
6. Applications: Commercial, Leisure & Home

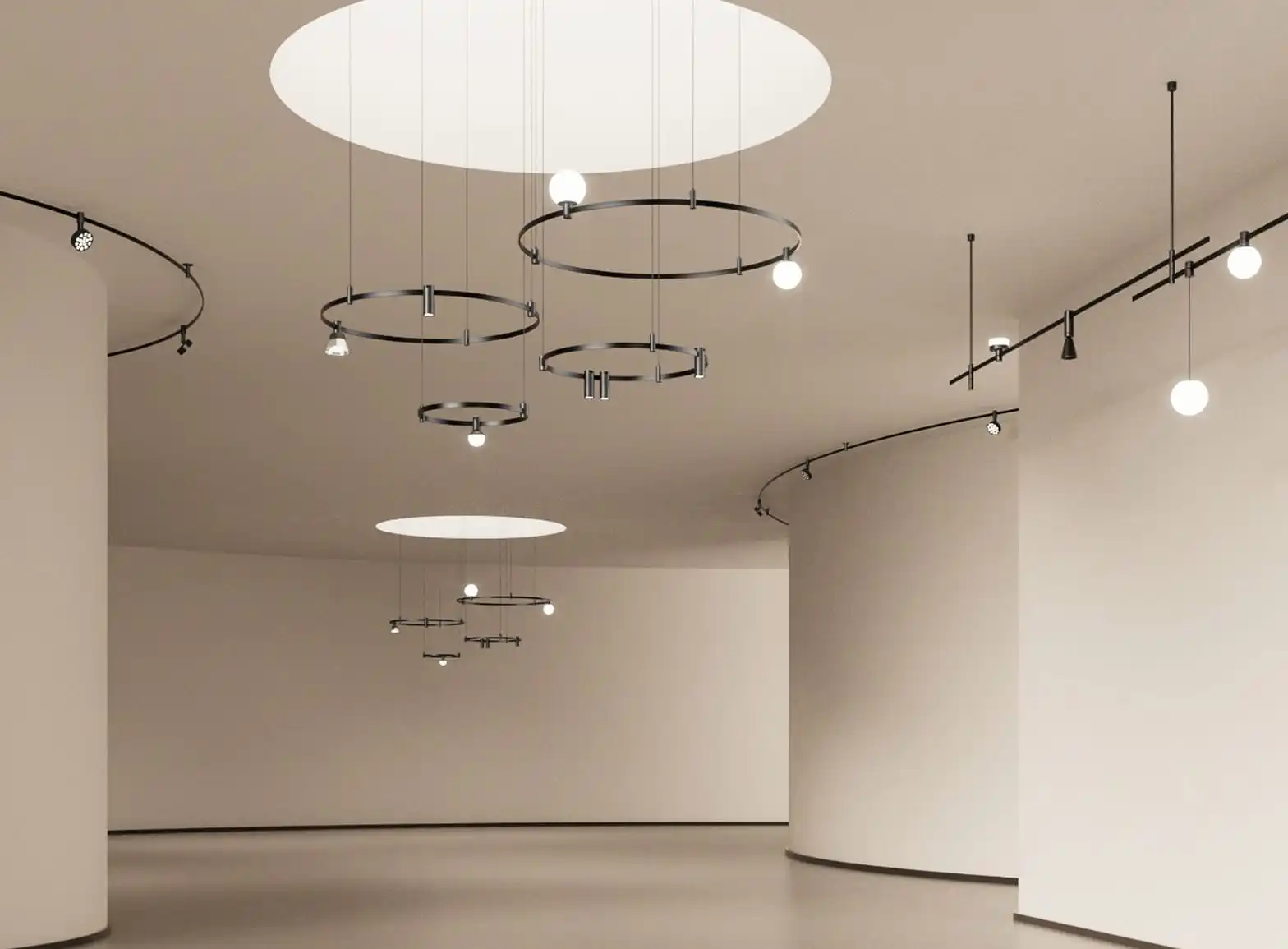

- Commercial spaces: retail stores, showrooms and galleries – connect tracks to create the shapes you need, highlighting products and artworks

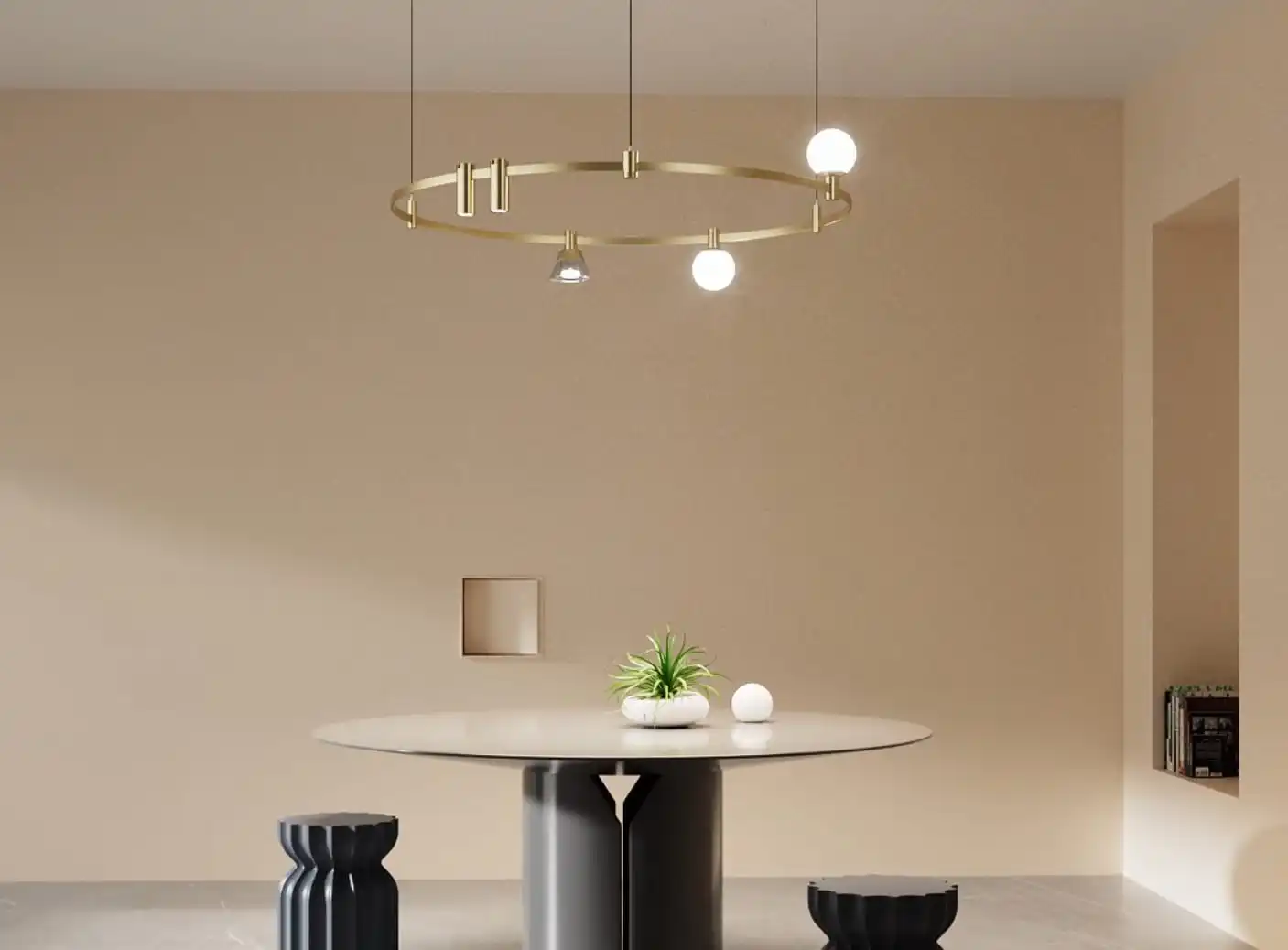

- Leisure spaces: restaurants, cafes and hotels – circles and curves in different colors add a beautiful decoration to the space
- Home: living rooms and hallways – circles of different colors bring a distinct feeling to any home
- DIY splicing on walls and ceilings for unique, on-site lighting solutions
7. Light & Space: With the Power of Light, Complementing Art
"As the power of light complements art, the fusion of light brings rich vitality to the space. Through subtle tones, it transforms the atmosphere of the entire space from day to night."
The 48V R18 semi-flexible magnetic track light system turns lighting from a function into a creation – a bendable track that lets designers bring imagination directly onto ceilings and walls.
Ready to design a bendable track lighting solution for your project? Contact us for the full catalog and sample quotation.
FAQ
Can the R18 magnetic track be bent on site?
Yes. The referenced catalogue describes a semi-flexible track with an approximate minimum bend radius of 300mm. Form smooth curves without sharp folding, kinking or damaging the conductors, and follow the latest installation instructions and approved fixing spacing.
Are all 48V magnetic track luminaires compatible with the R18 system?
No. Matching voltage does not guarantee compatibility. Track dimensions, contacts, polarity, adapters, mechanical retention and controls must match the R18 system series. Use only components that the manufacturer documents as compatible.
Is a 48V magnetic track system safe to touch?
DC 48V is a low operating voltage, but safety depends on the complete installation, including the power supply, protection class, wiring, connectors and local electrical requirements. Do not describe the system as SELV unless the complete configuration is designed, documented and installed to meet the applicable requirements.
Does every R18 luminaire support CRI 90 and flicker below 3%?
The referenced catalogue presents CRI and flicker claims for the product family, but each ordered model and driver configuration should be confirmed by its current datasheet or test report. For flicker, verify the reported metric, test condition and performance at the intended dimming levels.
Is the R18 system continuously tunable from 3000K to 6000K?
Not necessarily. A stated 3000K–6000K range may describe available fixed-CCT options rather than continuous tunable-white control. Confirm the exact CCT option and control method for each luminaire before ordering.
Where can the R18 semi-flexible magnetic track system be used?
The IP20 system is intended for suitable dry indoor locations such as retail, showrooms, galleries, hospitality and residential interiors. Confirm structural support, power-feed capacity, environmental conditions, local approvals and maintenance access for the actual installation.
Based on the 48V R18 Magnetic Track Light System (Colorful Series 2025) product catalog. Specifications are subject to the latest catalog version.
