Choose the form. Match the mounting. Define the light.
Explore IP65 spike lights with LED and GU10/G5.3 versions, alongside wall, column and bracket-mounted spotlights. Compare the exact item number, light source, dimensions and electrical data before building your project brief.
Spike-model LED entries span 3W–30W. Related ground spotlights extend to 72W. Individual technical rows determine the specification.

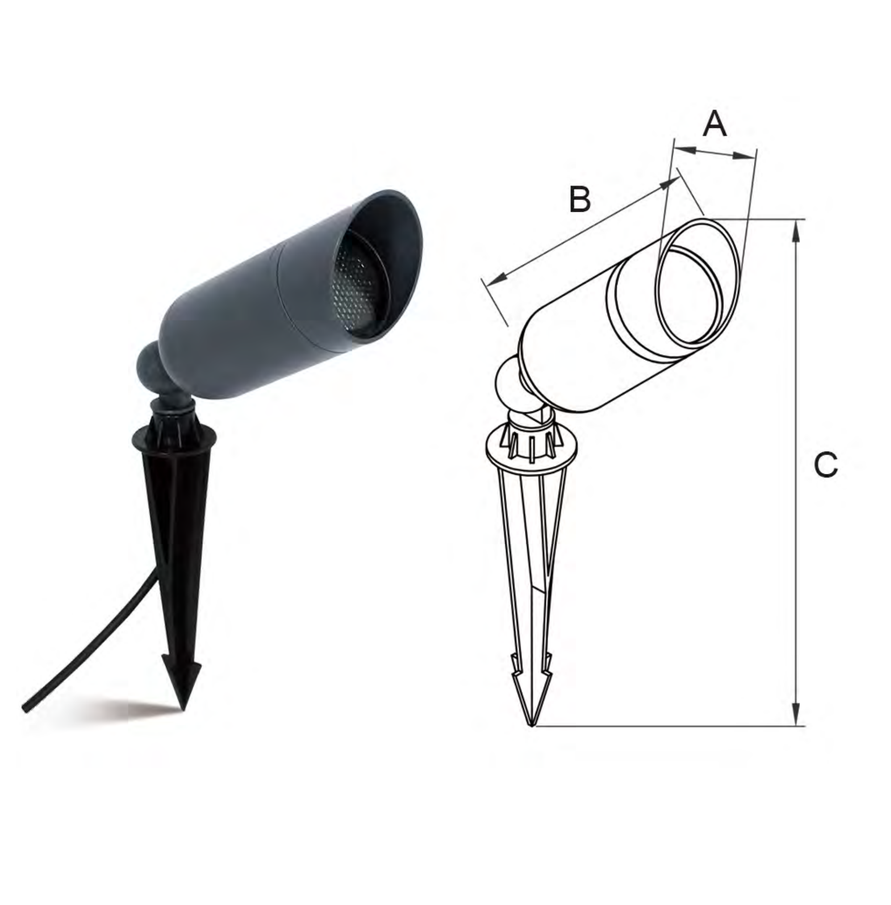

MB23-0101 / Spike-mounted
LED and GU10/G5.3 versions Original product illustration and drawing
32Product groups
126Technical variants
IP65Listed across the cards
4Mounting groups
01 / Understand the collection
One collection. Different ways to mount.
Start with the fixing method, then choose the item number and light source. Related spotlights are included without relabelling them as spike lights.
Spike lights
Ground spikes suit landscape positioning where an inserted mounting arrangement is required. Compare the illustrated body and exact A / B / C dimensions before specifying the location.
LED or GU10/G5.3
LED rows include electrical and optical values. GU10/G5.3 rows use dashes for several fields; these values are not inherited from the LED version.
Related outdoor spots

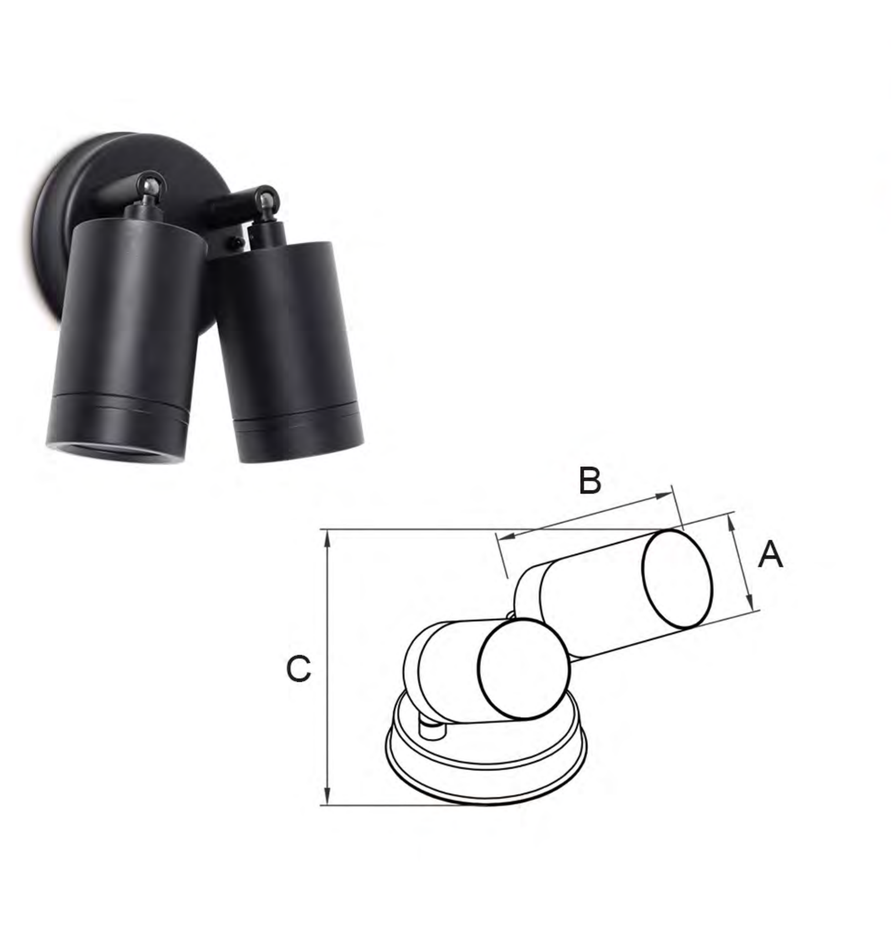

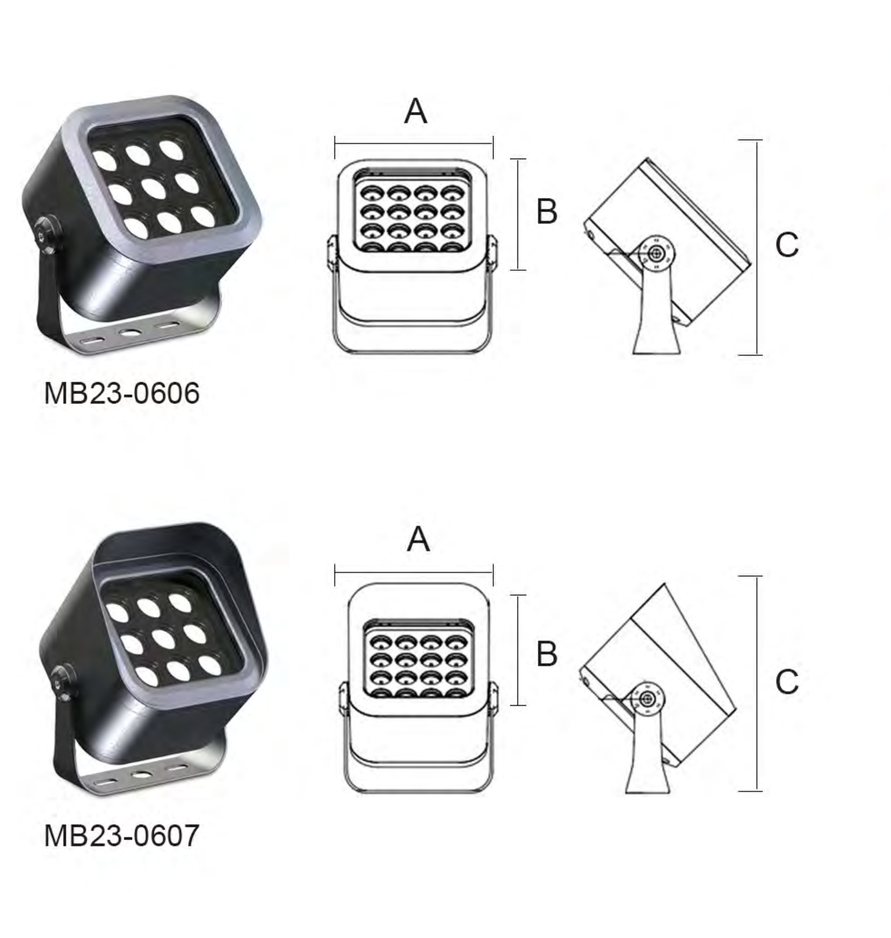

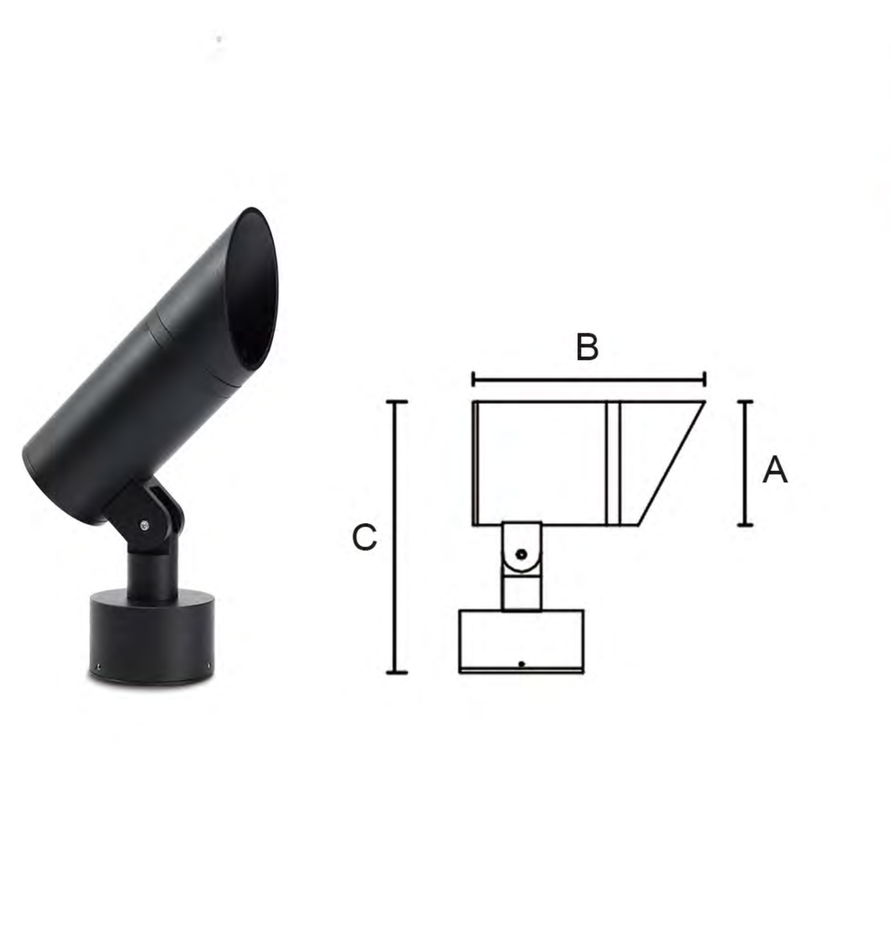

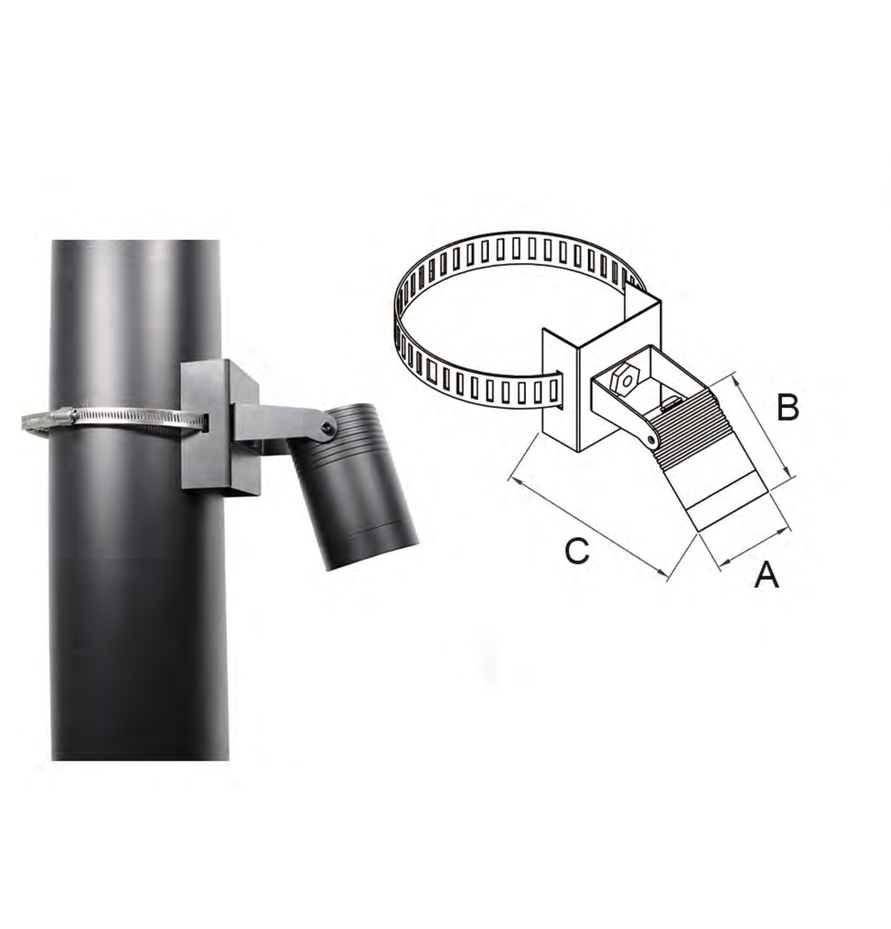

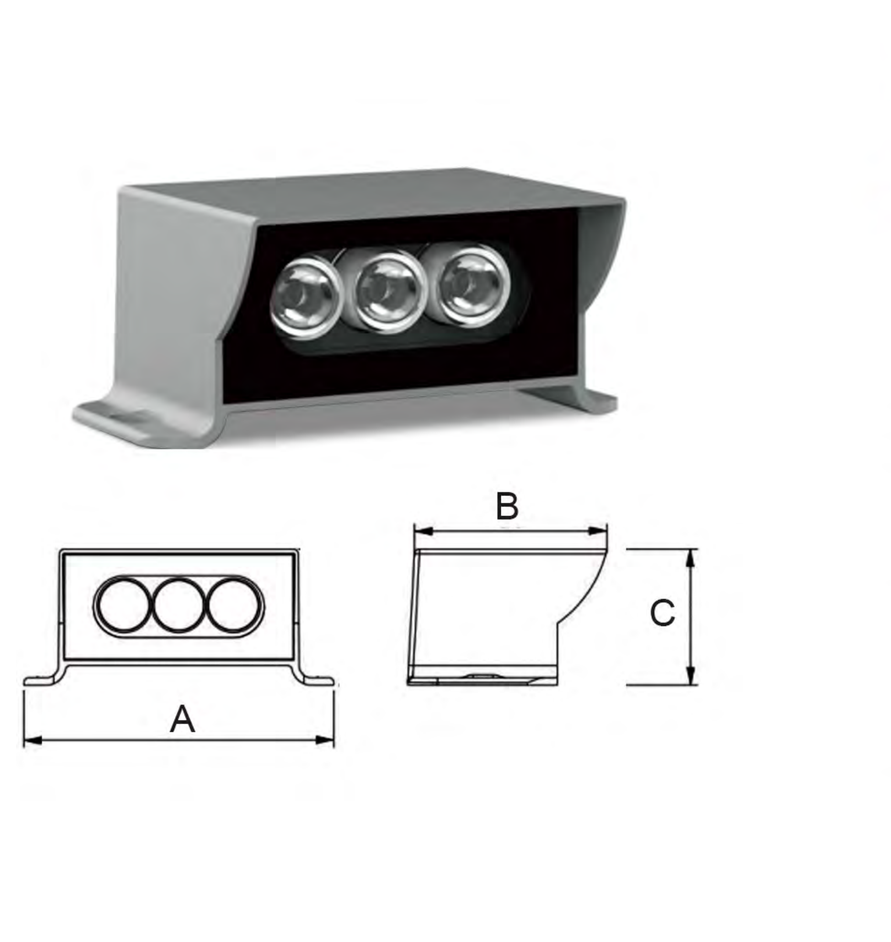

Wall/base, column/hoop and ground/bracket options support other mounting positions. The product filter keeps these separate from the spike group.
02 / The complete collection
Find the right fixture
Browse all 32 product groups. Each card contains product illustrations, dimension drawings and complete technical specifications.
32 product cards · 126 technical variants
MB23-0101
Spike light
5W / 10W
IP65 · 3 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-010150
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø50
183
250
MB23-010163
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø63
183
262
MB23-010160
GU10/G5.3
-
-
-
-
-
-
Ø60
183
262
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

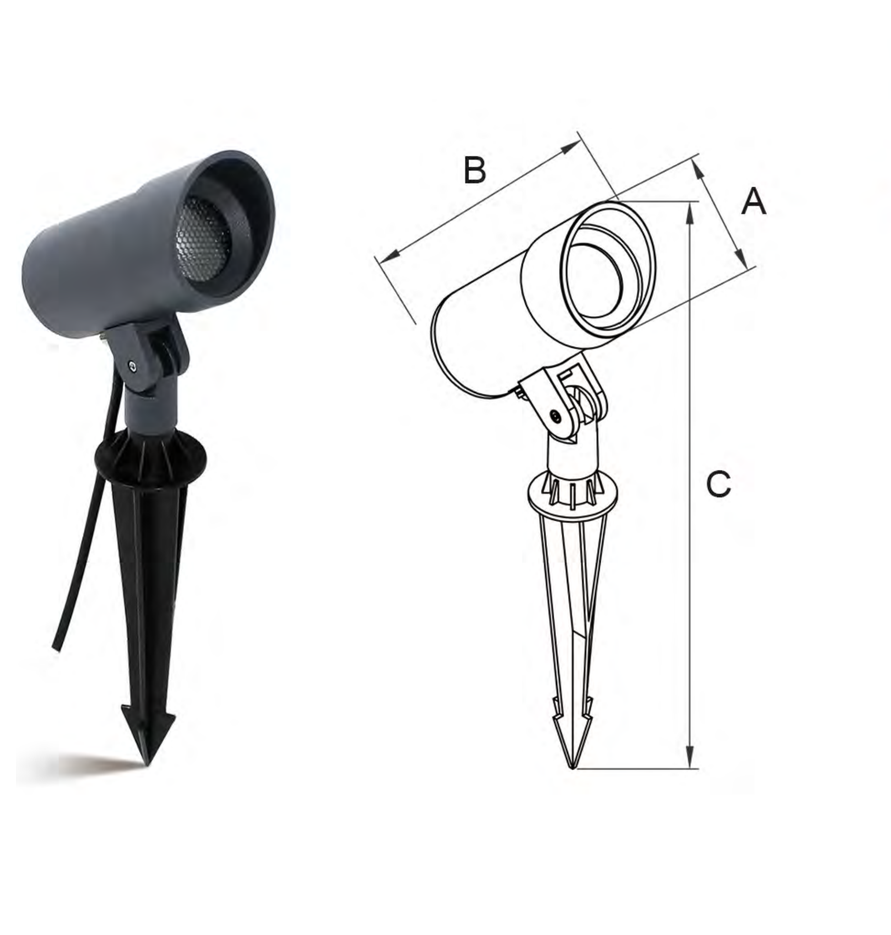

MB23-0102
Spike light
10W / 15W / 20W
IP65 · 4 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-010270
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø70
132
312
MB23-010280
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø80
164
377
MB23-010295
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø95
165
400
MB23-010266
GU10/G5.3
-
-
-
-
-
-
Ø66
132
312
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

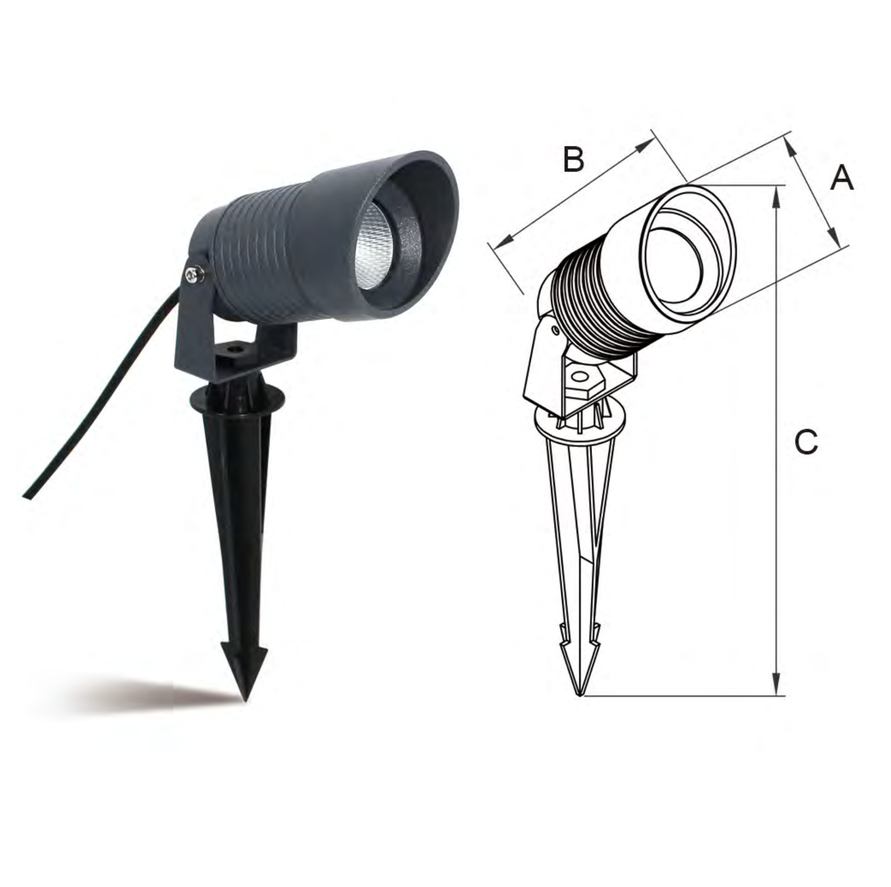

MB23-0103
Spike light
5W / 10W / 15W / 20W
IP65 · 5 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-010354
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø54
110
294
MB23-010370
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø70
132
312
MB23-010380
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø80
164
377
MB23-010395
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø95
165
400
MB23-010366
GU10/G5.3
-
-
-
-
-
-
Ø66
132
312
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

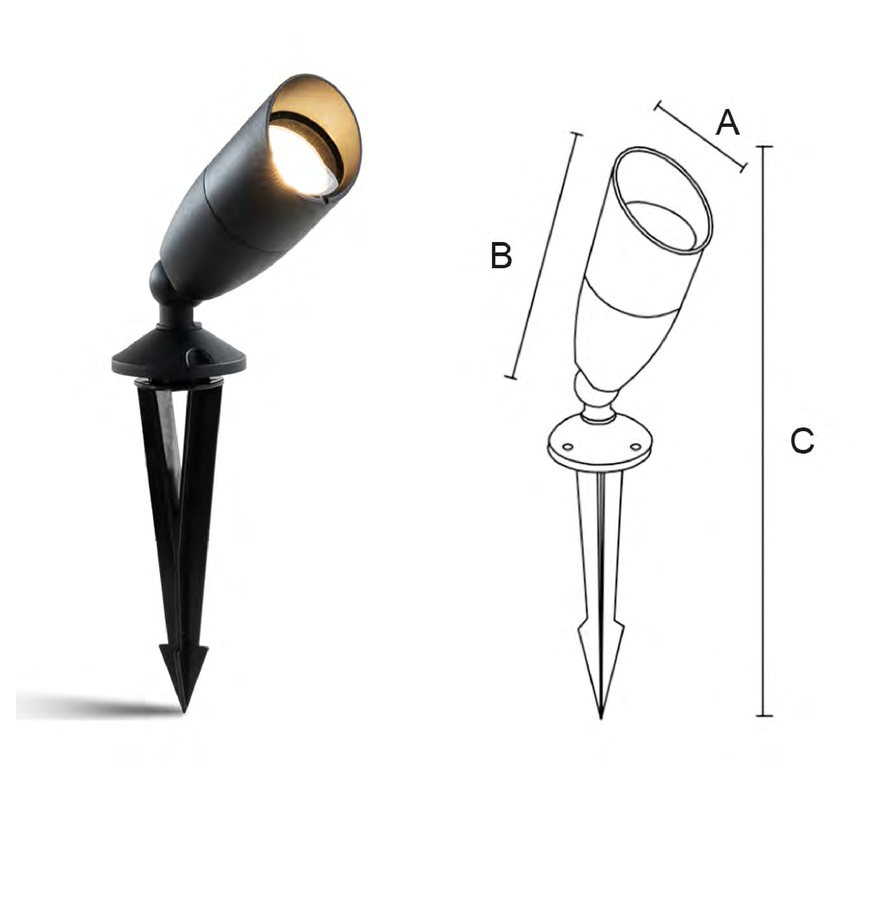

MB18-601
Spike light
7W
IP65 · 2 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-601
LED
7W
490
2700K-6000K
0.6
AC110-265V
80-90
Ø65
145
400
MB18-601
GU10/G5.3
-
-
-
-
-
-
Ø65
145
400
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

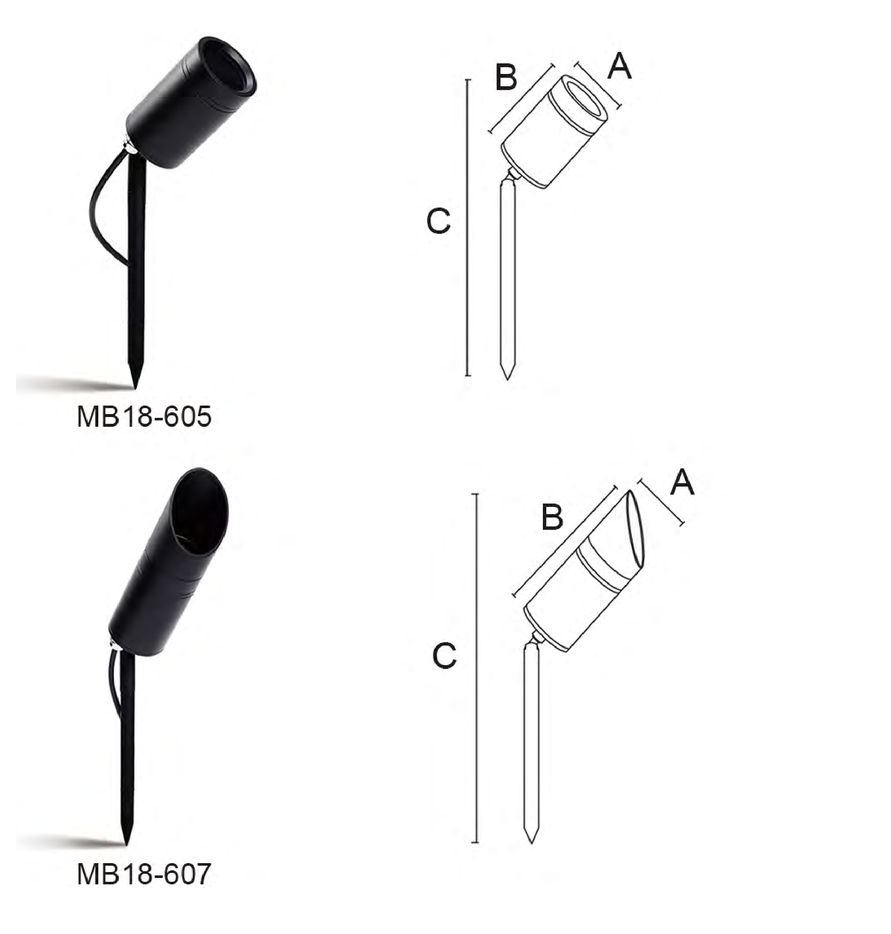

MB18-605 / MB18-607
Spike light
10W
IP65 · 4 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-605
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø58
95
315
MB18-607
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø58
175
400
MB18-605
GU10/G5.3
-
-
-
-
-
-
Ø58
95
315
MB18-607
GU10/G5.3
-
-
-
-
-
-
Ø58
175
400
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

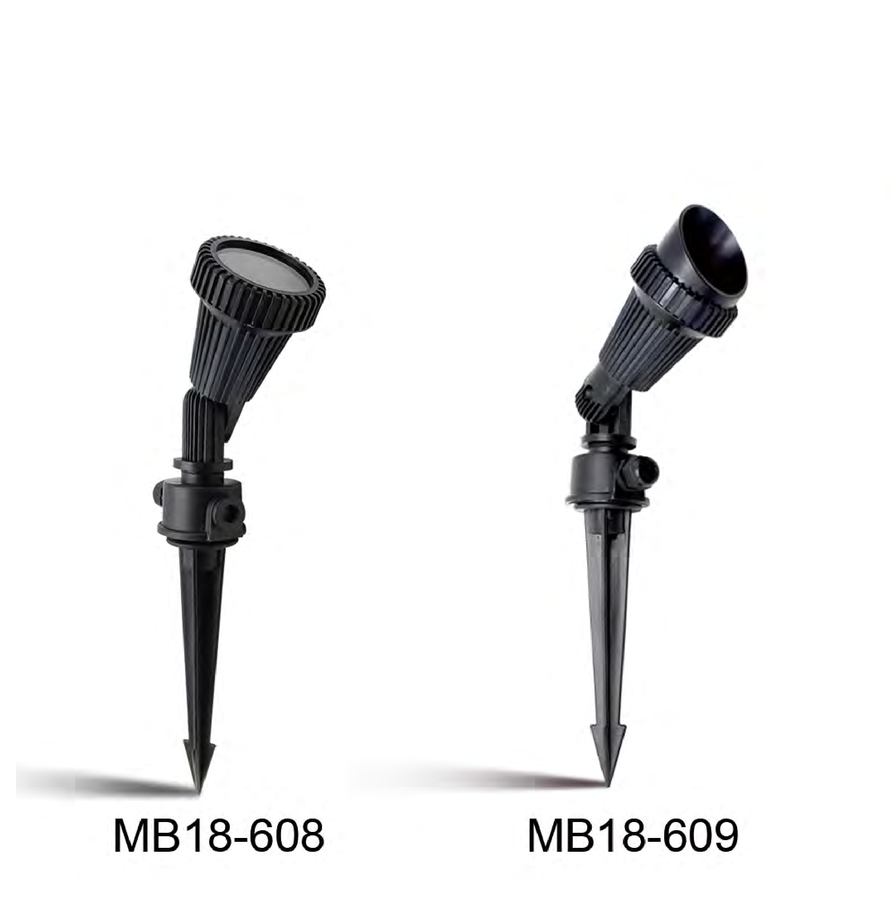

MB18-608 / MB18-609
Spike light
GU10/G5.3 version
IP65 · 2 technical variants
GU10/G5.3 · Plastic
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-608
GU10/G5.3
-
-
-
-
-
-
Ø75
135
395
MB18-609
GU10/G5.3
-
-
-
-
-
-
Ø75
175
430
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Plastic
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black

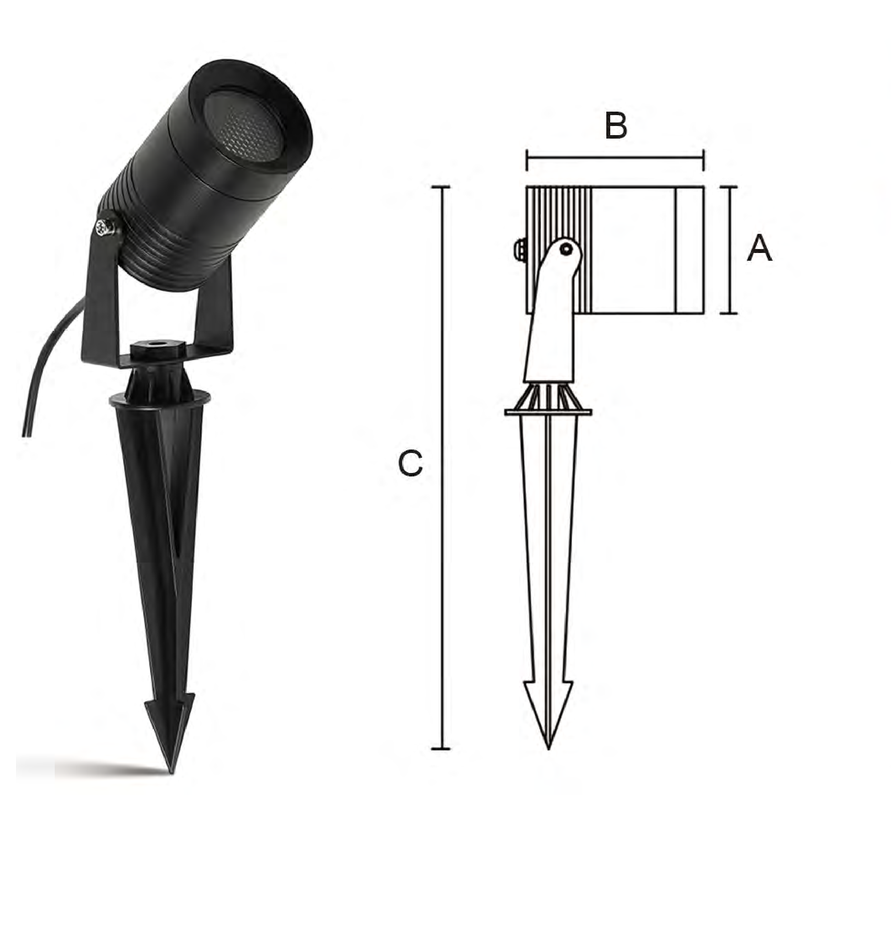

MB18-612
Spike light
5W / 10W / 15W / 20W / 30W
IP65 · 6 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-612S
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø50
94
293
MB18-612M
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
105
311
MB18-612L
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
123
371
MB18-612XL
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
123
398
MB18-612XXL
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
146
407
MB18-612M
GU10/G5.3
-
-
-
-
-
-
Ø60
94
308
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

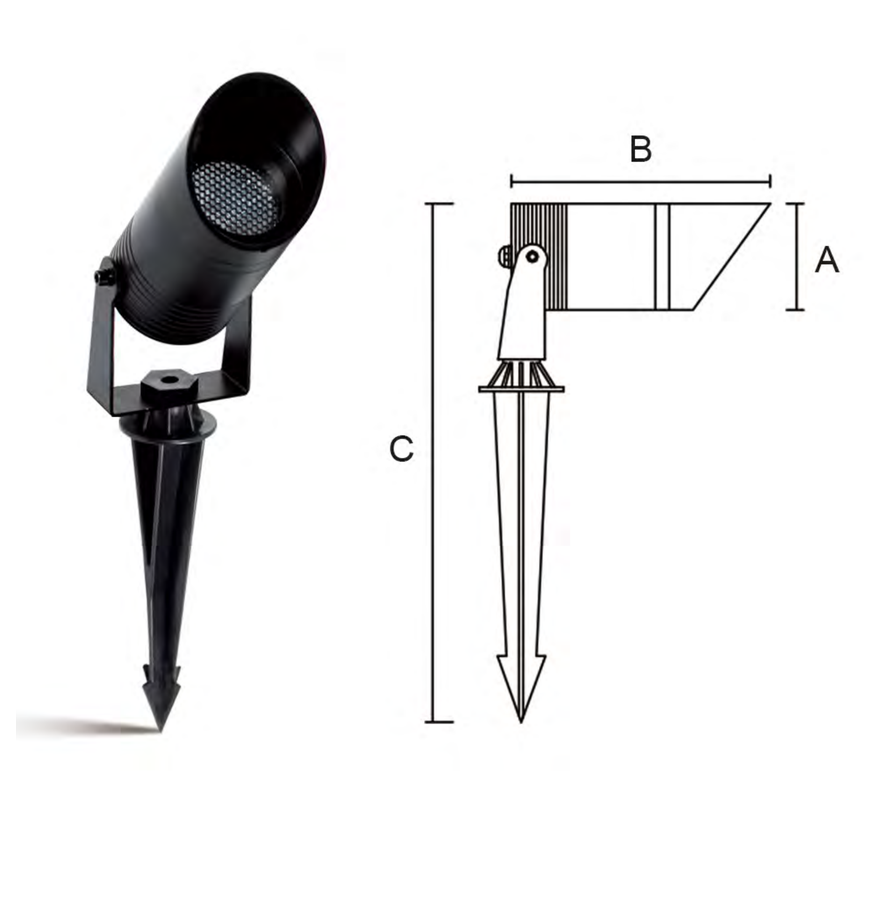

MB18-614
Spike light
5W / 10W / 15W / 20W / 30W
IP65 · 6 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-614S
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø50
127
293
MB18-614M
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
146
311
MB18-614L
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
166
371
MB18-614XL
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
170
398
MB18-614XXL
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
215
407
MB18-614M
GU10/G5.3
-
-
-
-
-
-
Ø60
144
308
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

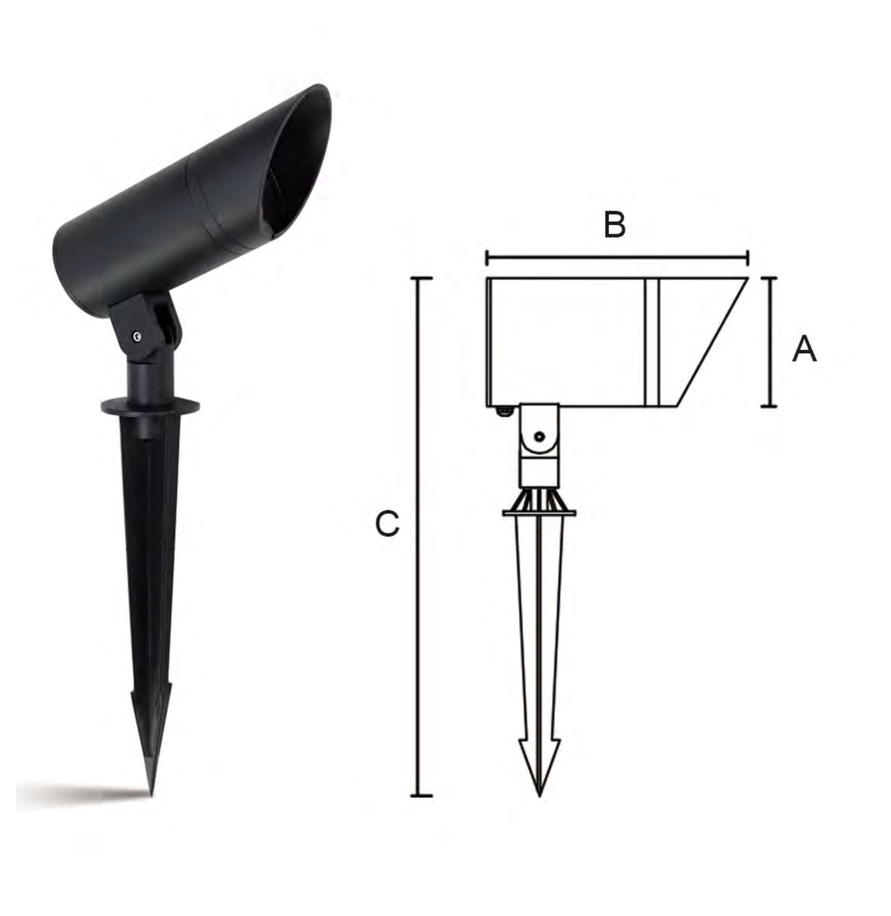

MB18-616
Spike light
10W / 15W / 20W / 30W
IP65 · 5 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-616-64
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
183
389
MB18-616-76
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
166
401
MB18-616-90
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
170
415
MB18-616-108
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
215
433
MB18-616-60
GU10/G5.3
-
-
-
-
-
-
Ø60
171
385
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

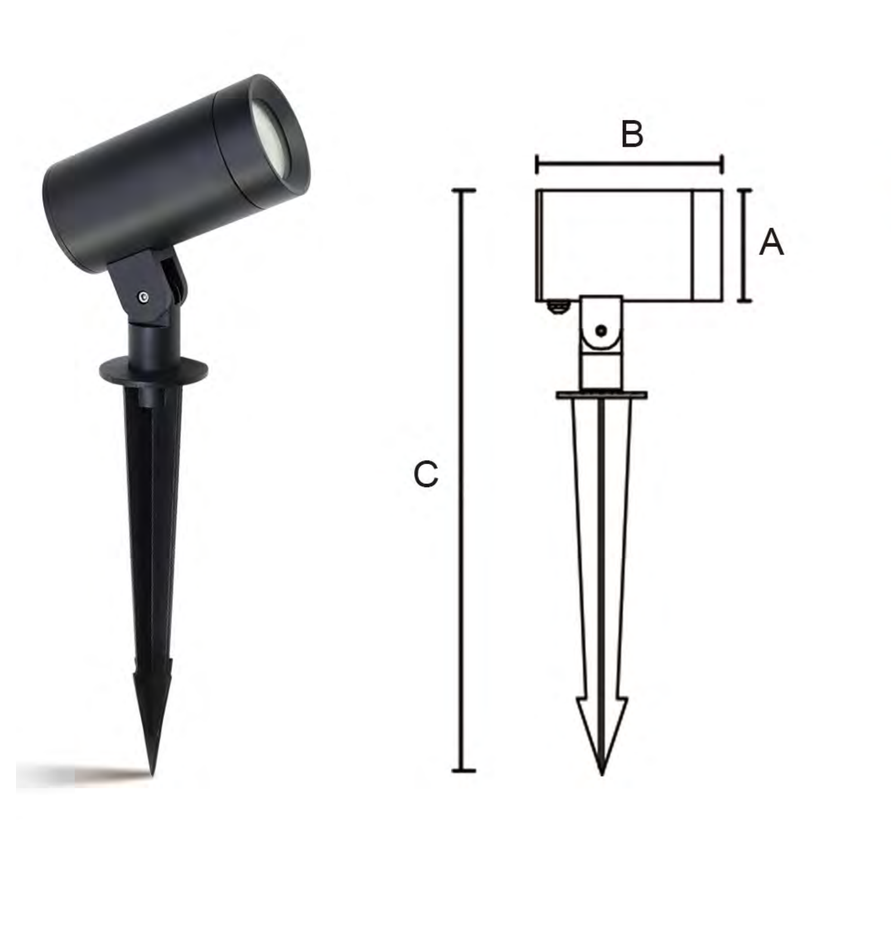

MB18-617
Spike light
10W / 15W / 20W / 30W
IP65 · 5 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-617-64
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
125
398
MB18-617-76
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
123
401
MB18-617-90
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
123
415
MB18-617-108
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
146
433
MB18-617-60
GU10/G5.3
-
-
-
-
-
-
Ø60
121
385
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
MB-60129
Spike light
3W / 5W
IP65 · 3 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB-60129S
LED
3W
210
2700K-6000K
0.6
AC110-265V
80-90
Ø50
120
340
MB-60129L
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø65
140
360
MB-60129L
GU10/G5.3
-
-
-
-
-
-
Ø65
140
360
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Acrylic
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

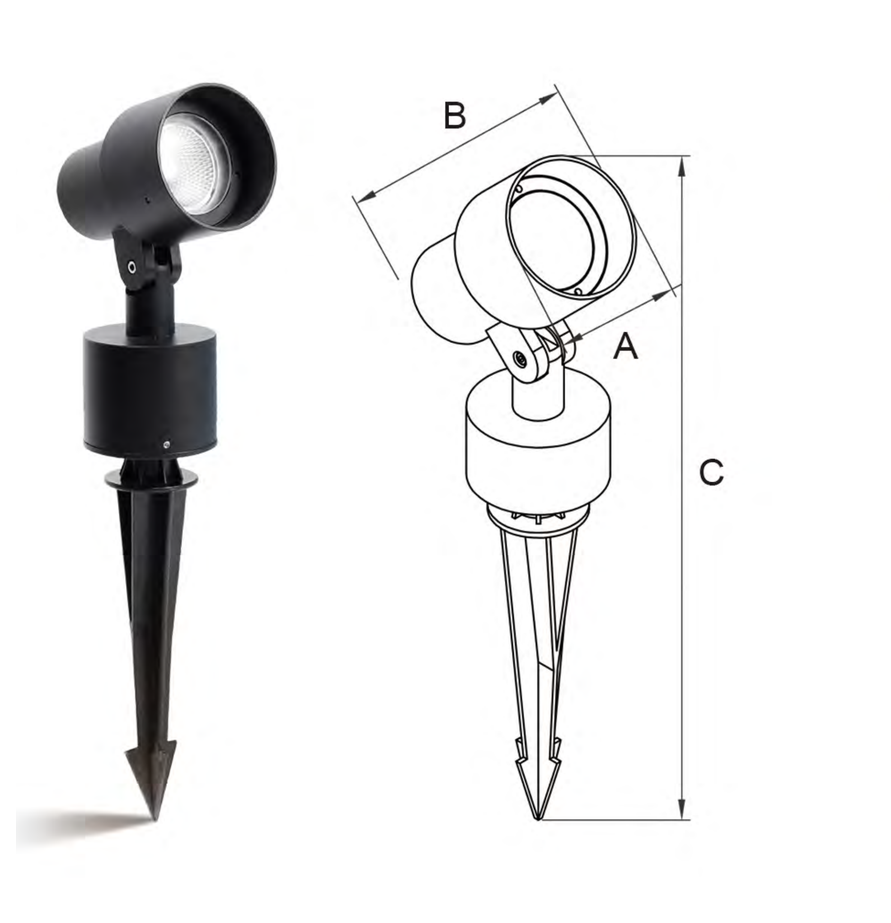

MB23-0113
Spike light
10W
IP65 · 1 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0113
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø73
110
380
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

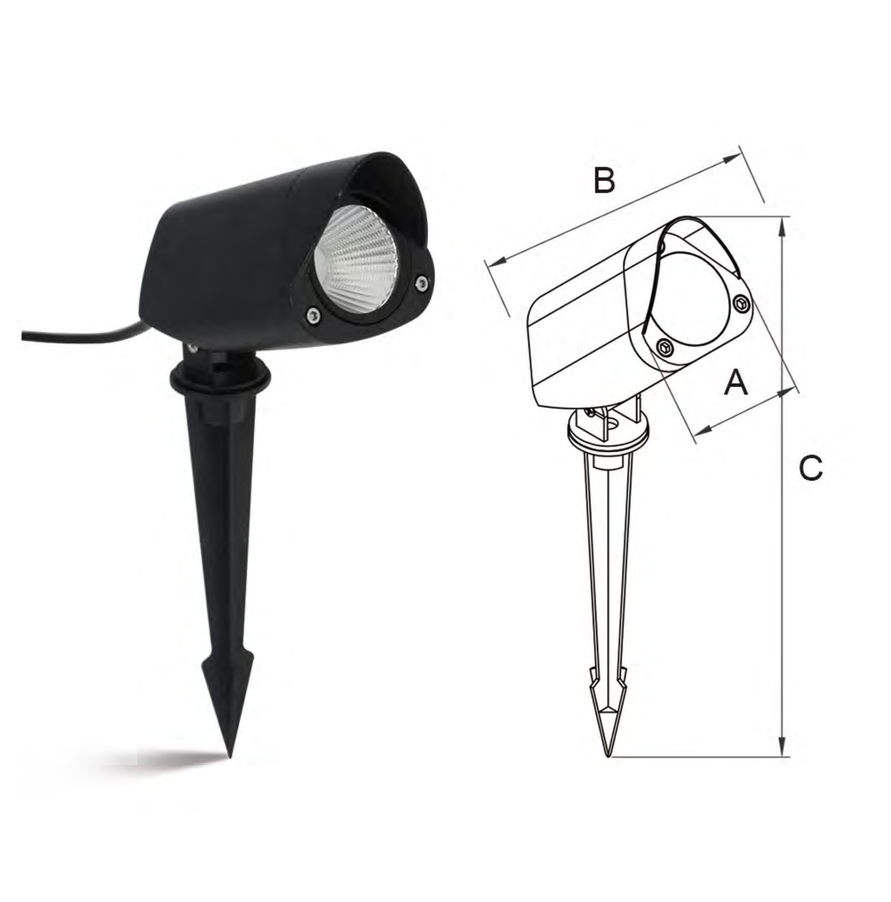

MB23-0114
Spike light
10W
IP65 · 1 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0114
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
72
135
290
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

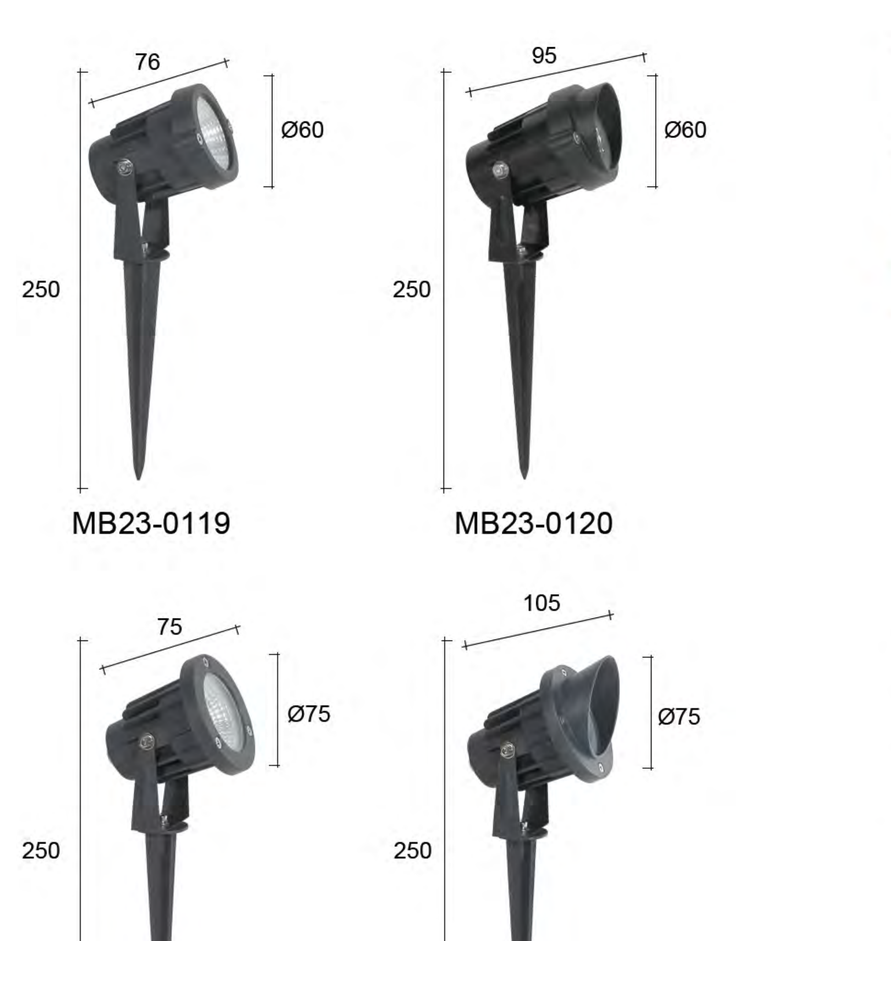

MB23-0119 / MB23-0120 / MB23-0122 / MB23-0123
Spike light
3W / 10W
IP65 · 4 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0119
LED
3W
210
2700K-6000K
0.6
AC110-265V
80-90
Ø60
76
250
MB23-0120
LED
3W
210
2700K-6000K
0.6
AC110-265V
80-90
Ø60
95
250
MB23-0122
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø75
75
250
MB23-0123
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø75
105
250
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The illustration shows a spike, while the source lists mounting type “Put” and location “Overground”. Confirm the supplied mounting arrangement before ordering.

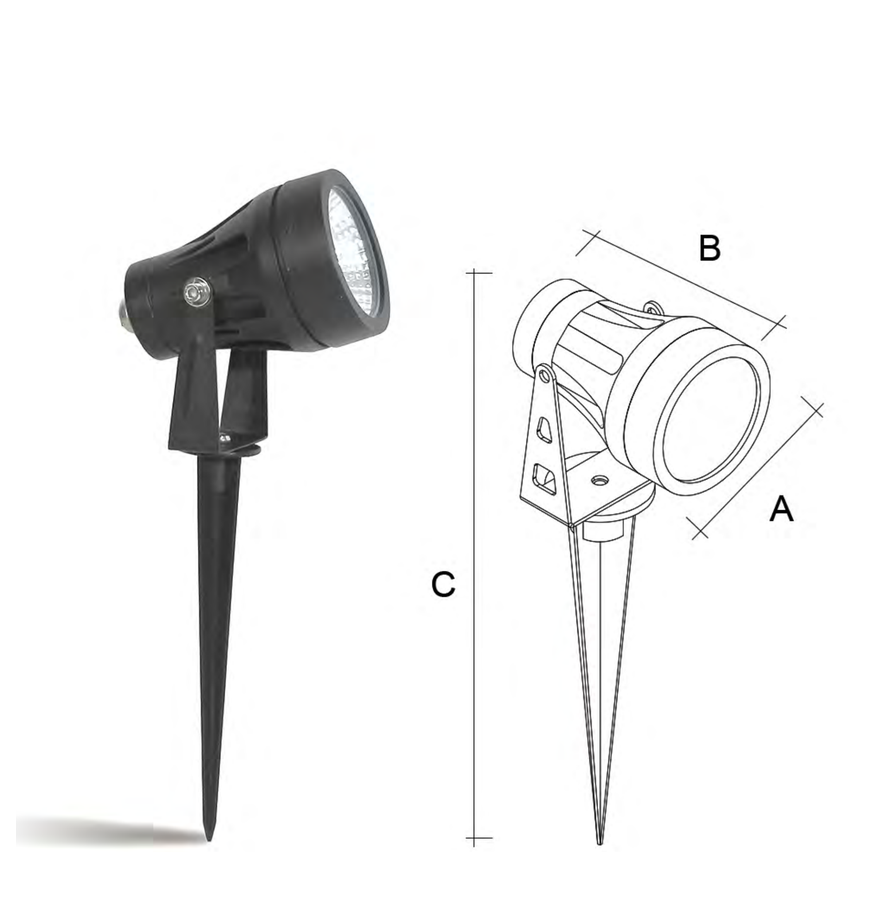

MB23-0121
Spike light
3W / 5W / 7W
IP65 · 3 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-012140
LED
3W
210
2700K-6000K
0.6
AC110-265V
80-90
Ø40
68
250
MB23-012160
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø60
82
255
MB23-012180
LED
7W
490
2700K-6000K
0.95
AC110-265V
80-90
Ø80
110
285
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

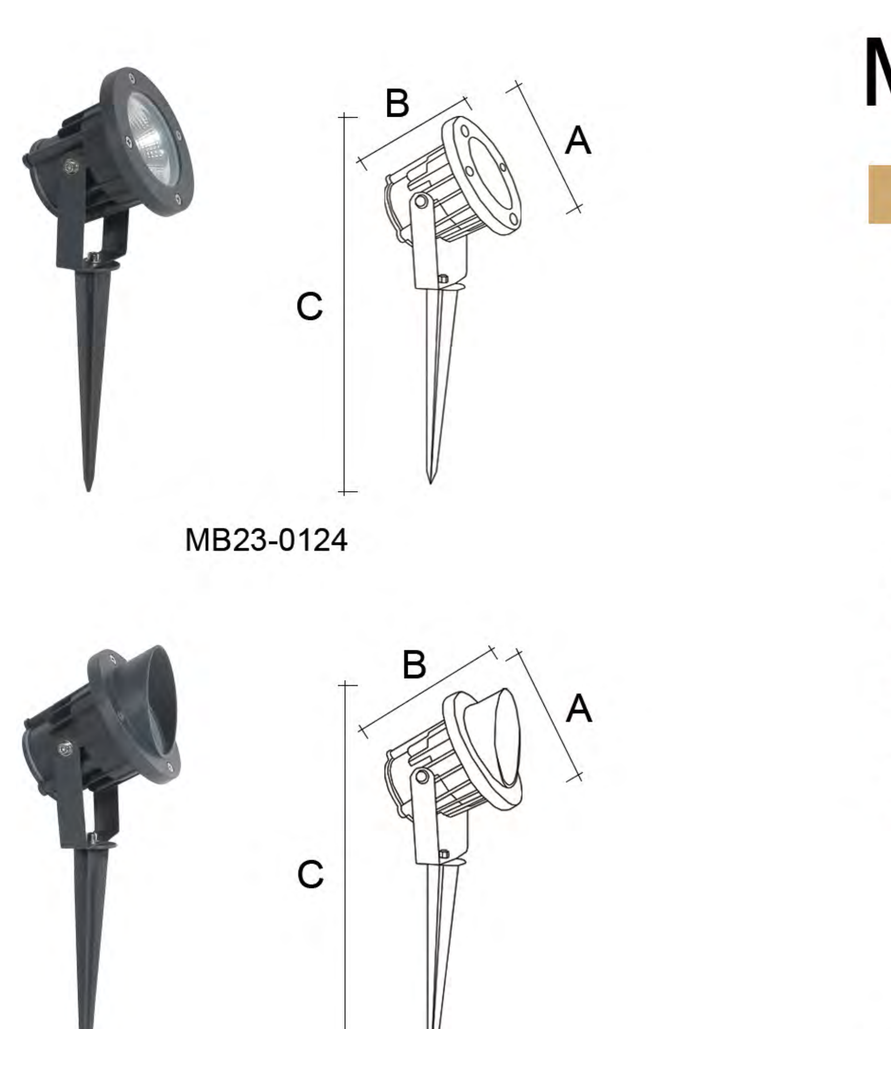

MB23-0124 / MB23-0125
Spike light
10W
IP65 · 2 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0124
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø95
75
260
MB23-0125
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø95
105
260
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The illustration shows a spike, while the source lists mounting type “Put” and location “Overground”. Confirm the supplied mounting arrangement before ordering.
MB23-0126 / MB23-0127 / MB23-0128 / MB23-0129
Spike light
10W
IP65 · 4 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0126
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø80
110
360
MB23-0127
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø80
150
360
MB23-0128
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø85
110
360
MB23-0129
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø85
150
360
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The illustration shows a spike, while the source lists mounting type “Put” and location “Overground”. Confirm the supplied mounting arrangement before ordering.

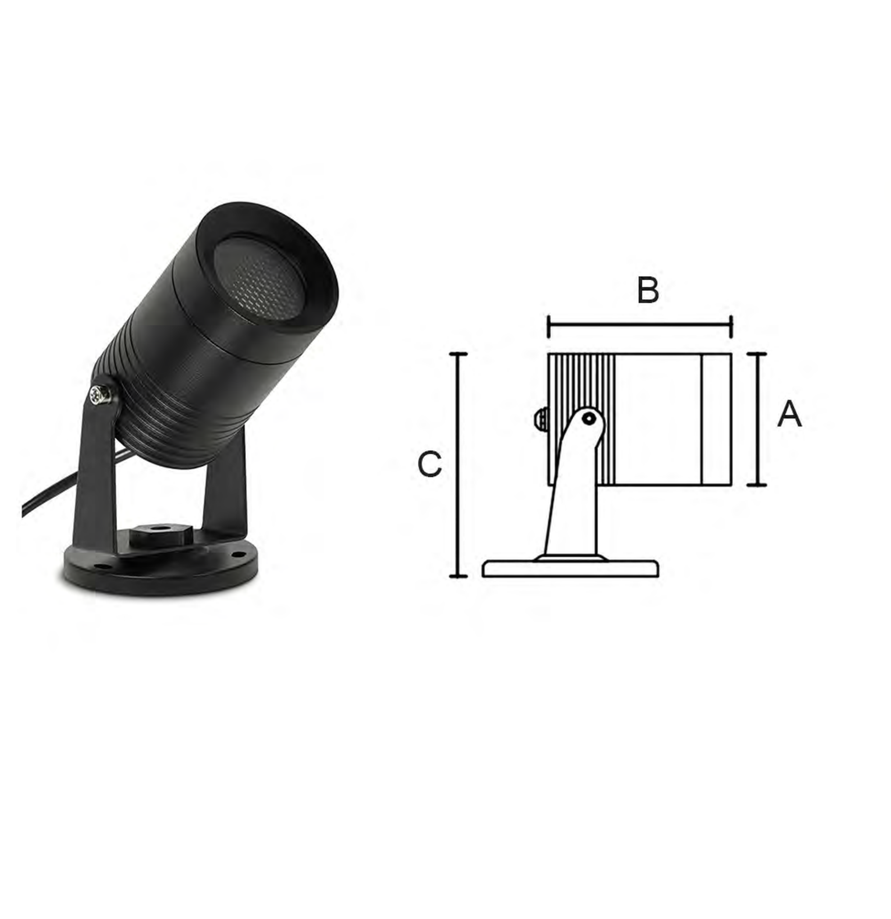

MB18-613
Wall / base light
5W / 10W / 15W / 20W / 30W
IP65 · 6 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-613S
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø50
94
94
MB18-613M
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
105
114
MB18-613L
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
123
124
MB18-613XL
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
123
153
MB18-613XXL
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
146
162
MB18-613M
GU10/G5.3
-
-
-
-
-
-
Ø60
94
111
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Wall mounted
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

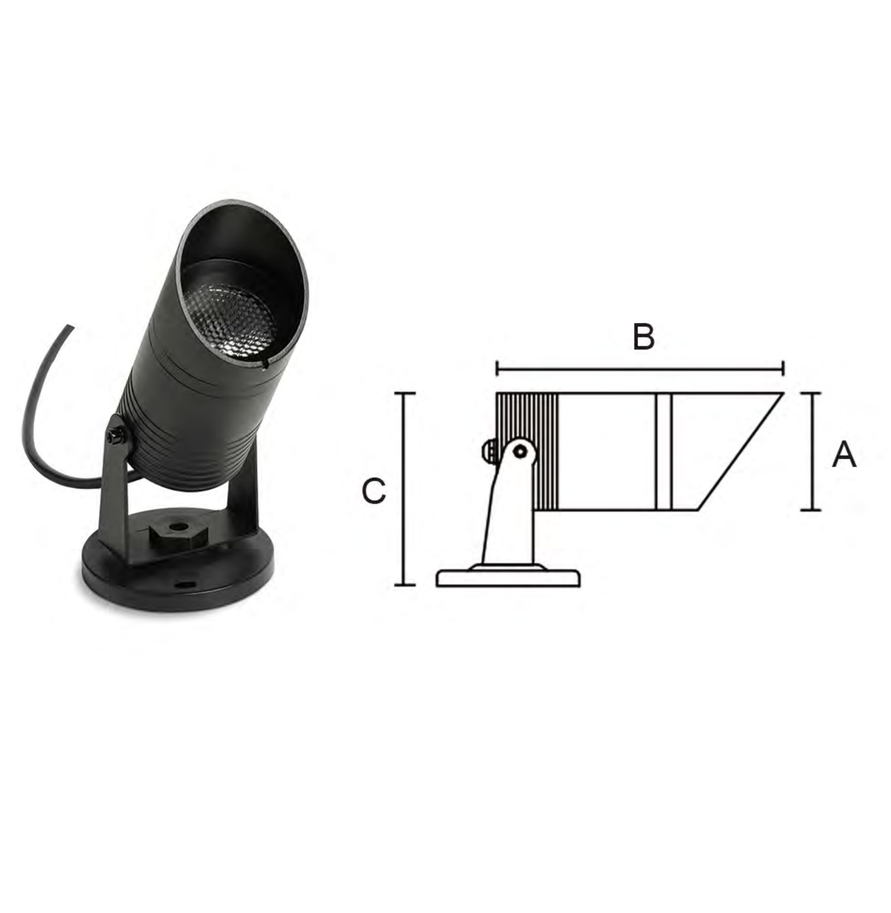

MB18-615
Wall / base light
5W / 10W / 15W / 20W / 30W
IP65 · 6 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-615S
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø50
127
94
MB18-615M
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
145
114
MB18-615L
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
166
124
MB18-615XL
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
170
153
MB18-615XXL
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
215
162
MB18-615M
GU10/G5.3
-
-
-
-
-
-
Ø60
144
111
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Wall mounted
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
MB18-616Z
Wall / base light
10W / 15W / 20W / 30W
IP65 · 5 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-616Z-64
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
183
173
MB18-616Z-76
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
166
185
MB18-616Z-90
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
170
200
MB18-616Z-108
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
215
220
MB18-616Z-60
GU10/G5.3
-
-
-
-
-
-
Ø60
171
169
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Wall mounted
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

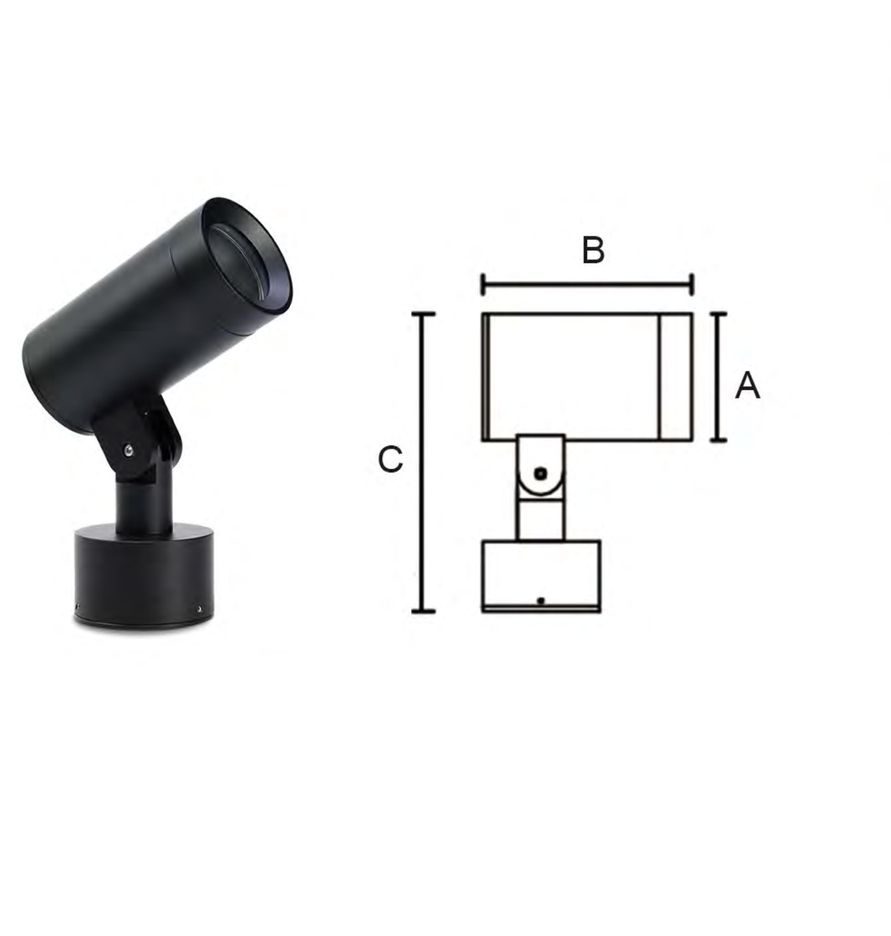

MB18-617Z
Wall / base light
10W / 15W / 20W / 30W
IP65 · 5 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-617Z-64
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
125
173
MB18-617Z-76
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
123
185
MB18-617Z-90
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
123
200
MB18-617Z-108
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
146
220
MB18-617Z-60
GU10/G5.3
-
-
-
-
-
-
Ø60
121
169
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Wall mounted
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

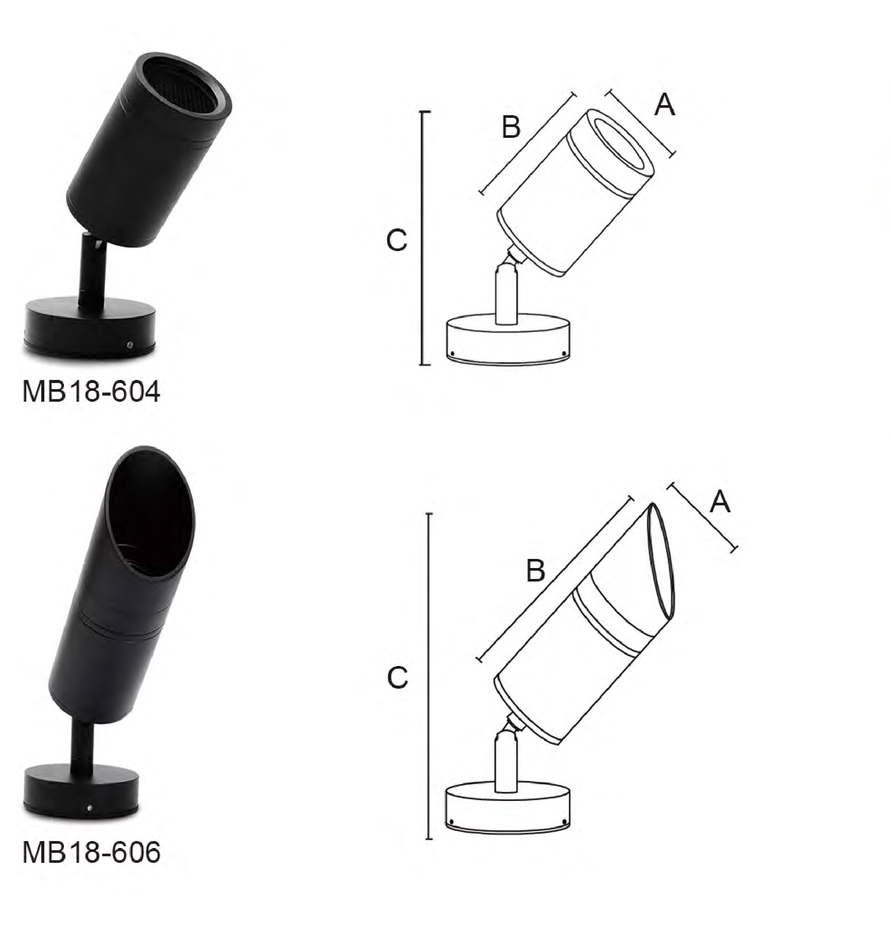

MB18-604 / MB18-606
Wall / base light
10W
IP65 · 4 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-604
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø58
95
180
MB18-606
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø58
175
260
MB18-604
GU10/G5.3
-
-
-
-
-
-
Ø58
95
180
MB18-606
GU10/G5.3
-
-
-
-
-
-
Ø58
175
260
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Wall mounted
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
MB23-0108
Wall / base light
2*10W
IP65 · 2 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0108
LED
2*10W
1400
2700K-6000K
0.6
AC110-265V
80-90
Ø58
100
94
MB23-0108
GU10/G5.3
-
-
-
-
-
-
Ø58
100
94
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Wall mounted
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
MB23-0109
Column / hoop light
5W / 10W / 15W / 20W / 30W
IP65 · 6 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-010950
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø50
94
122
MB23-010964
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
105
140
MB23-010976
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
123
152
MB23-010990
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
123
178
MB23-0109108
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
146
190
MB23-010964
GU10/G5.3
-
-
-
-
-
-
Ø60
94
140
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Hoop
Mounting location (source)
Column
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

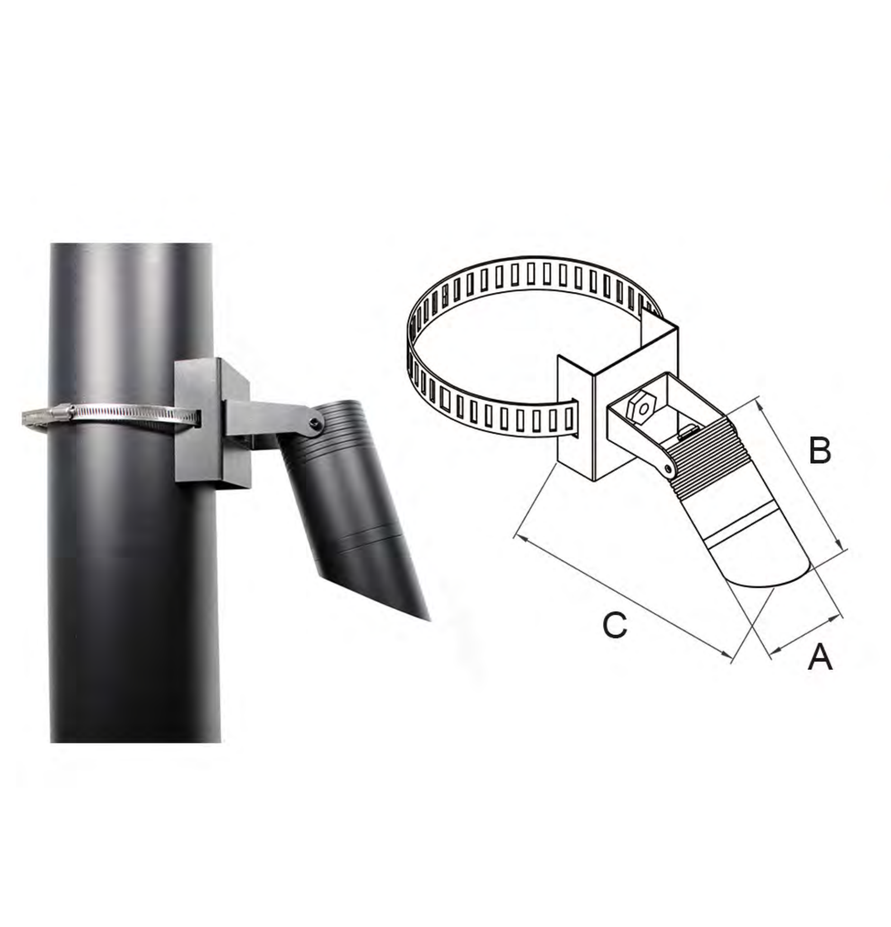

MB23-0110
Column / hoop light
5W / 10W / 15W / 20W / 30W
IP65 · 6 technical variants
LED + GU10/G5.3 · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-011050
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø50
127
122
MB23-011064
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø64
146
140
MB23-011076
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø76
166
152
MB23-011090
LED
20W
1400
2700K-6000K
0.95
AC110-265V
80-90
Ø90
170
178
MB23-0110108
LED
30W
2100
2700K-6000K
0.95
AC110-265V
80-90
Ø108
215
190
MB23-011064
GU10/G5.3
-
-
-
-
-
-
Ø60
144
140
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Hoop
Mounting location (source)
Column
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

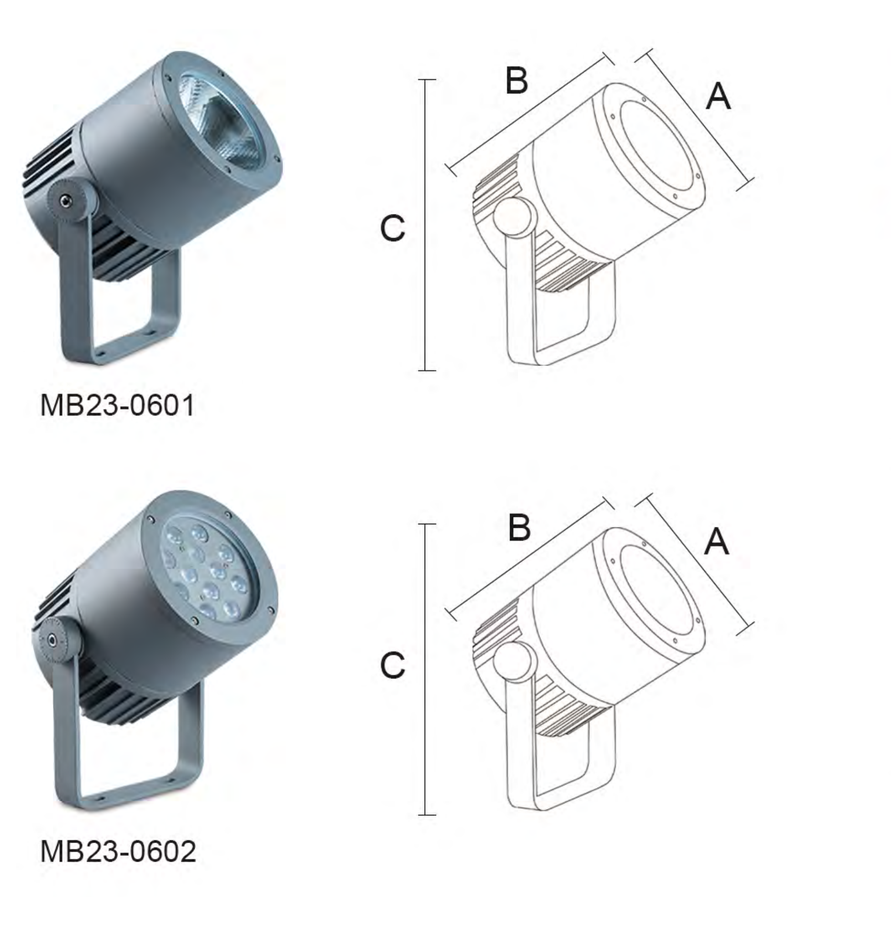

MB23-0601 / MB23-0602
Ground / bracket light
30W / 24W
IP65 · 2 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0601
LED
30W
2100
2700K-6000K
0.9
AC110-265V
80-90
Ø150
180
270
MB23-0602
LED
24W
1680
2700K-6000K
0.9
AC110-265V
80-90
Ø150
180
270
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

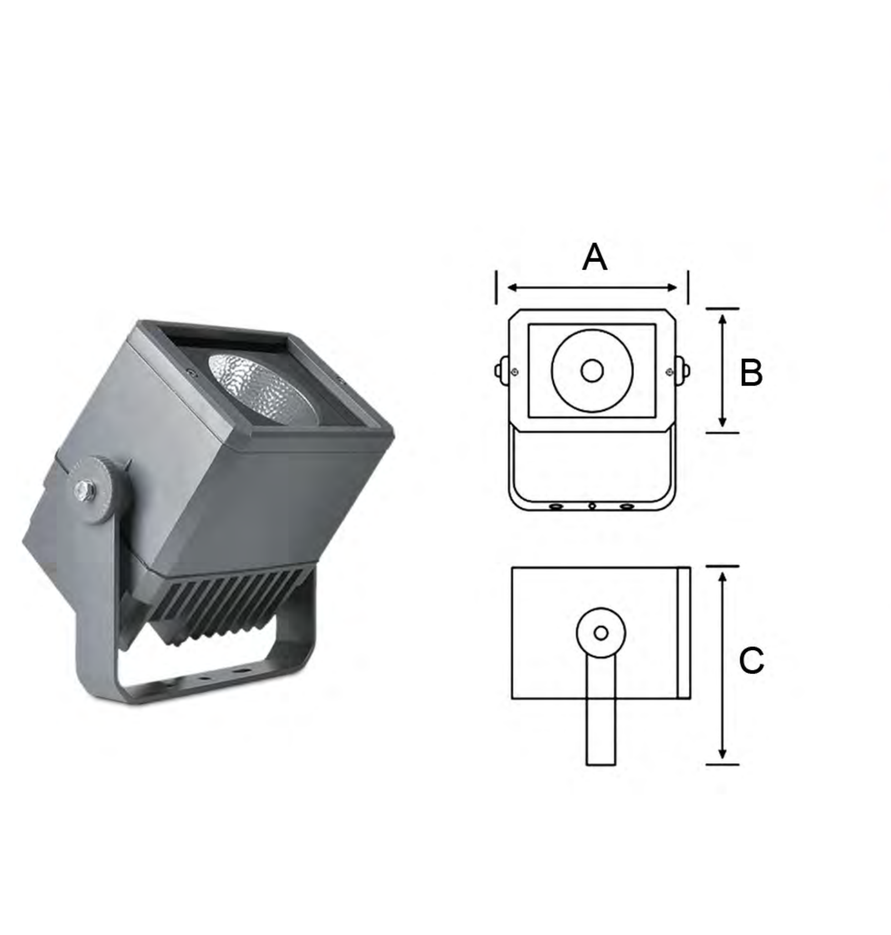

MB23-0603
Ground / bracket light
20W / 30W / 50W
IP65 · 3 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0603A
LED
20W
1400
2700K-6000K
0.9
AC110-265V
80-90
135
125
175
MB23-0603B
LED
30W
2100
2700K-6000K
0.9
AC110-265V
80-90
170
160
195
MB23-0603C
LED
50W
3500
2700K-6000K
0.9
AC110-265V
80-90
210
190
230
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The source table labels A, B and C without a unit. Confirm dimension units on the installation drawing.
MB23-0604
Ground / bracket light
6W / 18W
IP65 · 2 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0604A
LED
6W
420
2700K-6000K
0.6
AC110-265V
80-90
125
80
55
MB23-0604B
LED
18W
1260
2700K-6000K
0.6
AC110-265V
80-90
172
100
66
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

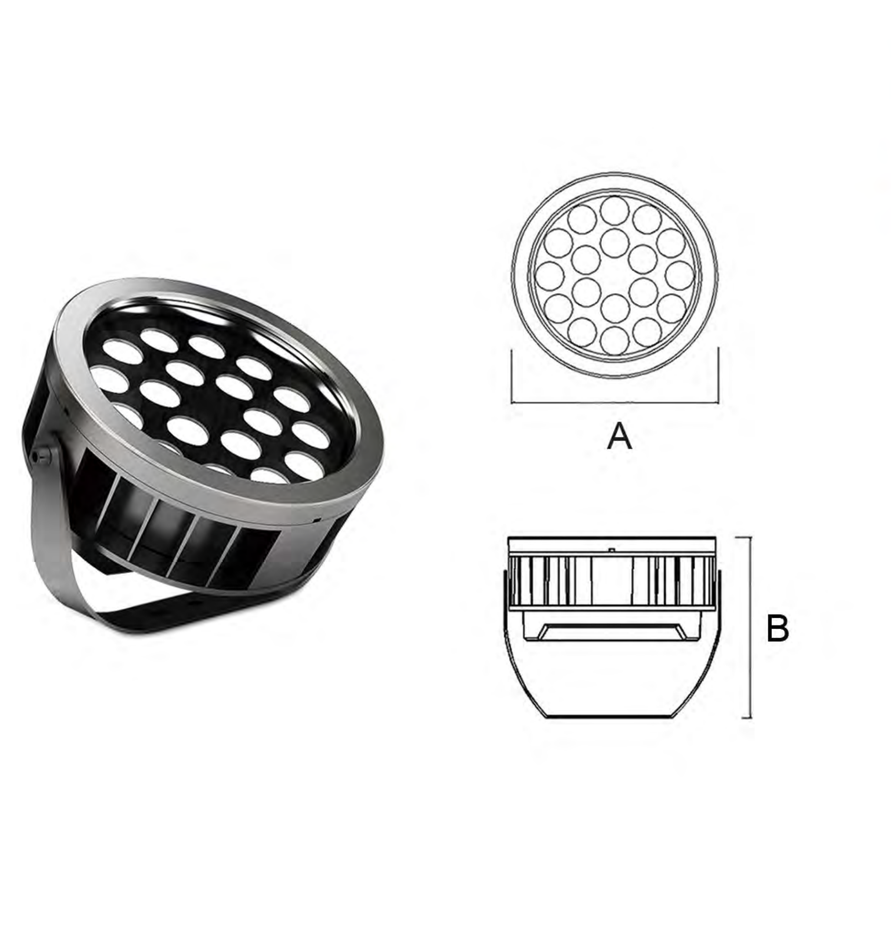

MB23-0605
Ground / bracket light
12W / 18W / 24W / 36W / 50W
IP65 · 5 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0605129
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
Ø129
120
-
MB23-0605154
LED
18W
1260
2700K-6000K
0.6
AC110-265V
80-90
Ø154
135
-
MB23-0605178
LED
24W
1680
2700K-6000K
0.9
AC110-265V
80-90
Ø178
148
-
MB23-0605203
LED
36W
2520
2700K-6000K
0.9
AC110-265V
80-90
Ø203
165
-
MB23-0605232
LED
50W
3500
2700K-6000K
0.9
AC110-265V
80-90
Ø232
175
-
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
MB23-0606 / MB23-0607
Ground / bracket light
8W / 18W / 32W / 72W
IP65 · 8 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-060690
LED
8W
560
2700K-6000K
0.6
AC110-265V
80-90
90
90
110
MB23-0606120
LED
18W
1260
2700K-6000K
0.6
AC110-265V
80-90
120
120
160
MB23-0606145
LED
32W
2240
2700K-6000K
0.9
AC110-265V
80-90
145
145
180
MB23-0606200
LED
72W
5040
2700K-6000K
0.9
AC110-265V
80-90
200
200
210
MB23-060790
LED
8W
560
2700K-6000K
0.6
AC110-265V
80-90
90
90
110
MB23-0607120
LED
18W
1260
2700K-6000K
0.6
AC110-265V
80-90
120
120
160
MB23-0607145
LED
32W
2240
2700K-6000K
0.9
AC110-265V
80-90
145
145
180
MB23-0607200
LED
72W
5040
2700K-6000K
0.9
AC110-265V
80-90
200
200
210
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

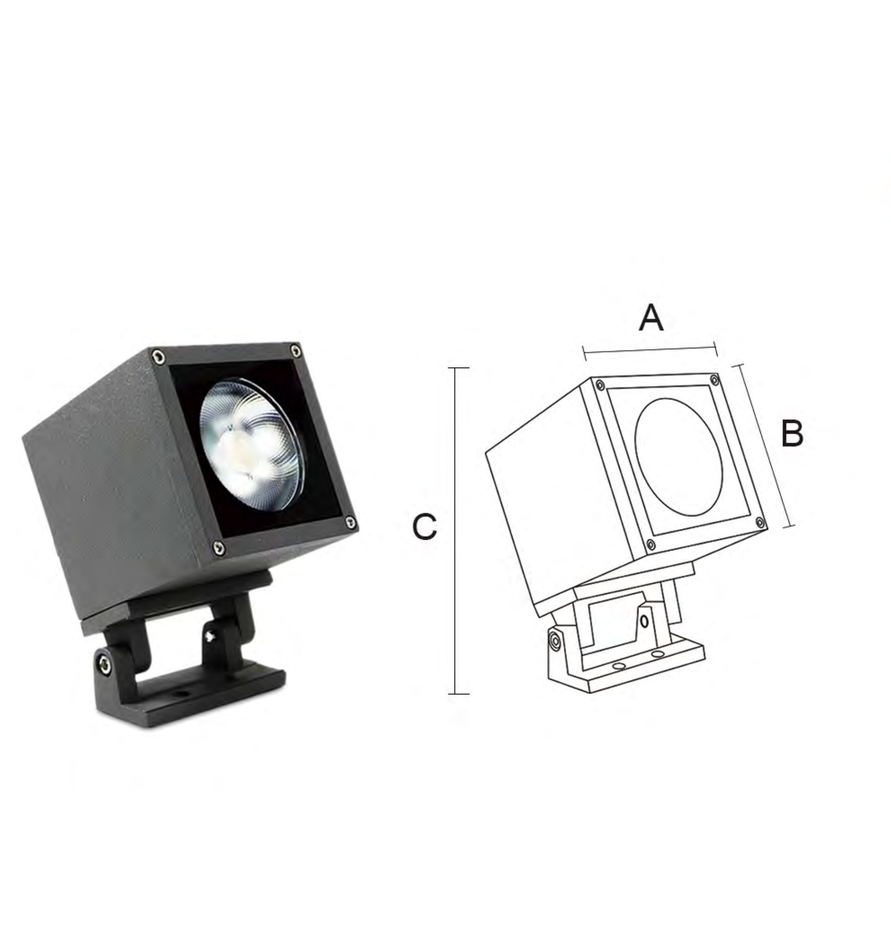

MB23-0609
Ground / bracket light
15W / 20W
IP65 · 2 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-060990
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
90
90
140
MB23-0609125
LED
20W
1400
2700K-6000K
0.9
AC110-265V
80-90
125
125
165
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

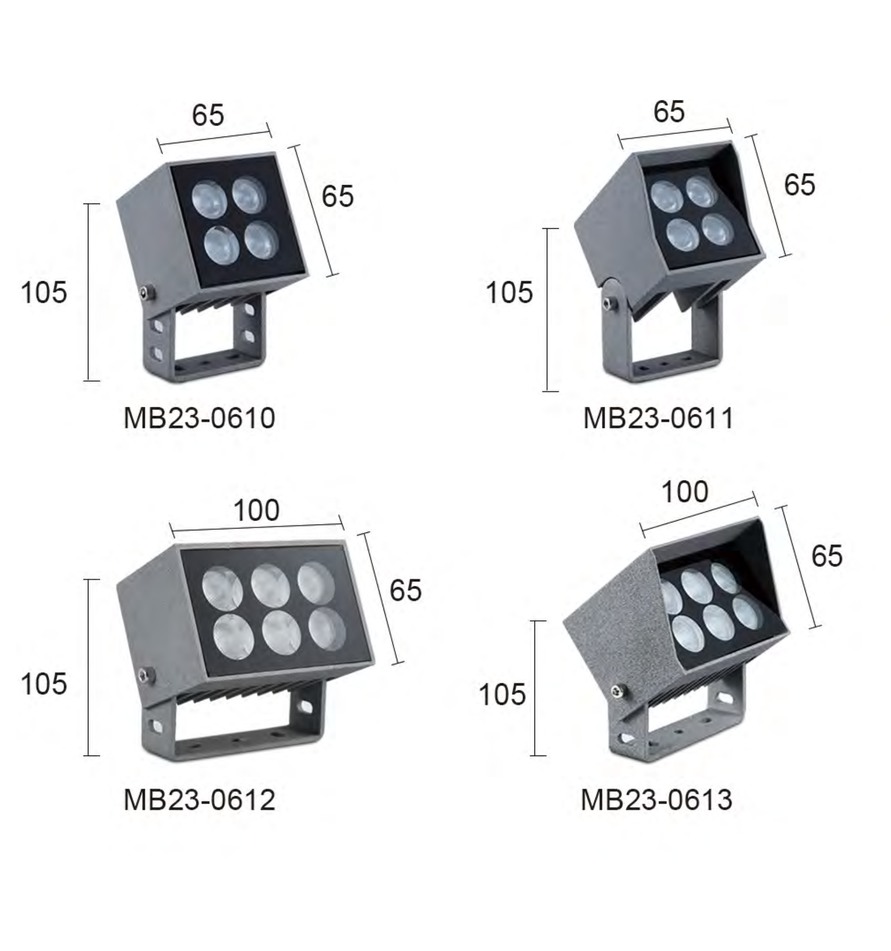

MB23-0610 / MB23-0611 / MB23-0612 / MB23-0613
Ground / bracket light
8W / 12W
IP65 · 4 technical variants
LED · Aluminum
Specifications
Original technical values · A / B / C refer to the source drawing
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0610
LED
8W
560
2700K-6000K
0.6
AC110-265V
80-90
65
65
105
MB23-0611
LED
8W
560
2700K-6000K
0.6
AC110-265V
80-90
65
65
105
MB23-0612
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
100
65
105
MB23-0613
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
100
65
105
Dimensions are in mm unless the card omits the unit. “-” is retained from the source and does not mean zero.
Category
Spot Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
65
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
No matching products. Reset the filters to see the complete collection.
03 / Compare & specify
Match the fixture to the mounting detail.
Keep the illustrated mounting group and the original mounting fields together. Where they disagree, request confirmation before placing an order.
Mounting guide for this collection
Group
Original card language
What to confirm
Spike
Usually Insert / Underground
Spike, ground conditions, cable routing and final installed height
Wall / base
Put / Wall mounted
Fixing surface, base dimensions and installation orientation
Column / hoop
Hoop / Column
Column dimensions and supplied fastening arrangement
Ground / bracket
Put / Overground
Bracket fixing, mounting surface and aiming requirements
The MB23-0119/0120/0122/0123, MB23-0124/0125 and MB23-0126/0127/0128/0129 cards illustrate spikes but list Put / Overground. Both are preserved; confirm the mounting arrangement for your order.
Read the exact row
LED entries list AC110-265V, 2700K-6000K and CRI 80-90. PF varies by item. The CCT range is not described as user-adjustable; request the required color temperature and confirm supply.
Keep versions separate
A model code can appear twice with different lamp types. The quotation builder includes the item number, LED or GU10/G5.3 designation and original values so the requested version remains clear.
Confirm the light distribution
The supplied technical tables do not list beam angles. Share the target, distance and desired effect, and request suitable optics and photometric data rather than selecting an invented beam option.
04 / Your project, one quotation
Build your lighting brief
Choose exact technical variants and finishes, then review quantities and project requirements. Nothing is sent automatically.
Email opens your mail app. For long briefs, attach the downloaded TXT. The inquiry page opens separately; paste your brief into the message. Nothing is submitted automatically.
Drafts are saved in this browser when storage is available. Download a copy to keep or share.
05 / Questions, answered
Clear specifications. Fewer assumptions.
Answers based on the supplied Spot Light product cards.
What is included in this spike light collection?
The collection contains 32 original product cards and 126 technical rows. Spike models are presented first, with related wall/base, column/hoop and ground/bracket spotlights grouped separately.
What power range is available for spike lights?
The illustrated spike group includes LED entries from 3W to 30W, plus GU10/G5.3 rows without a stated wattage. Related ground/bracket spotlights include entries up to 72W. Use the exact item row for ordering.
Are the LED and GU10/G5.3 versions electrically identical?
No such equivalence is stated. LED rows list AC110-265V and other technical values. GU10/G5.3 rows retain dashes for power, LM, CCT, PF, voltage and CRI. Confirm the lamp, socket and supply arrangement for that version.
Are these outdoor lights IP65?
All supplied cards list IP 65 and Indoor/Outdoor application. Match the mounting and cable connection details to the intended installation; the cards do not describe these models as underwater lights.
Which body materials and finishes are listed?
Most cards list an Aluminum cover and Glass diffuser with Black/Dark Gray/Silver Gray body colors. MB18-608/609 lists Plastic and Black only. MB-60129 lists an Acrylic diffuser.
Can I select a color temperature within 2700K-6000K?
LED rows list the range 2700K-6000K. Enter your required value in the configuration request so the sales team can confirm availability. The cards do not state that the fixture is tunable or that every intermediate value is offered.
Are dimming and beam angles specified?
The feature tables state On/Off. No numerical beam angles are listed in the supplied technical tables. Request beam information, photometric files and any control requirements for confirmation.
Why do some spike images have Put / Overground in the specification?
Those labels are present in the source cards for several MB23 models. The page keeps both the illustrated spike grouping and the original labels, and flags the difference for mounting confirmation.
What do A, B and C mean?
They refer to dimension labels on each original drawing. Their meaning depends on the drawing, so they are not renamed universally as diameter, length or height. Values and diameter symbols are retained. The MB23-0603 table omits the unit, which requires confirmation.
How do I request several fixtures in one quotation?
Choose Configure & add on a card, select the exact technical row, finish and quantity, and add any CCT or beam request. Review the shared brief, then copy it, download TXT or open an email draft. Different configurations remain separate entries.
Source: the 32 supplied “01 Spot Light” product cards. Original cards are available in each product panel. Exact item numbers and source values are retained; final configurations and installation details require confirmation.
