Zoomable LED Landscape Spike Light | WB3060R-WB3150R
No.VOC-WB3060R-WB3150R-SPIKE
Professional IP66 zoomable LED landscape spike light with adjustable 15°-60° beam control. Available in 6W, 12W, 20W and 40W CREE COB versions for trees, gardens, villas, façades and commercial landscape lighting.

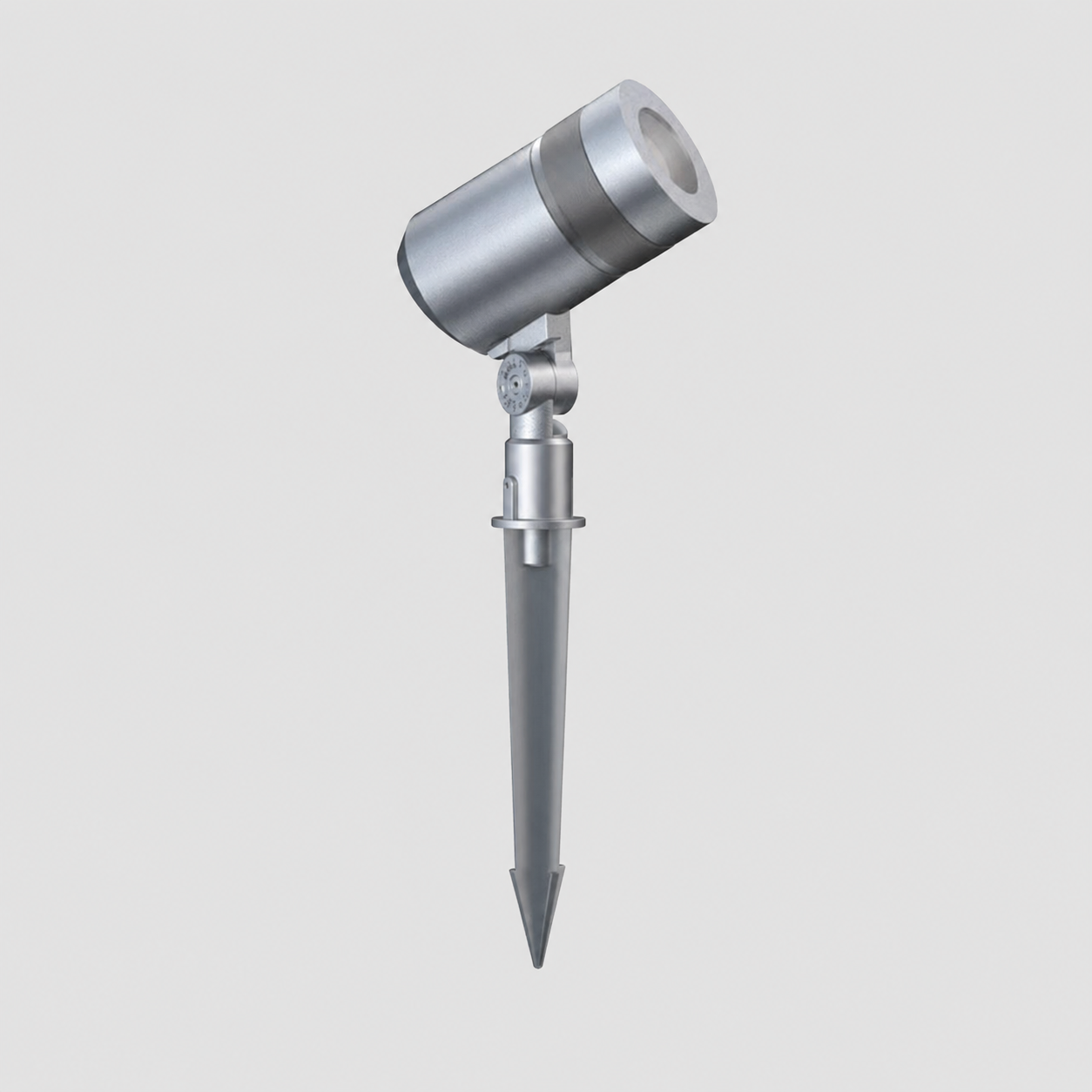

WB3060R-WB3150R is a professional zoomable LED landscape spike light series for gardens, trees, façades and architectural outdoor lighting.
Four power options from 6W to 40W cover small planting areas through larger commercial landscape applications.
Ground-spike installation, adjustable aiming and zoomable optics provide flexible positioning and precise beam control.
KEY FEATURES

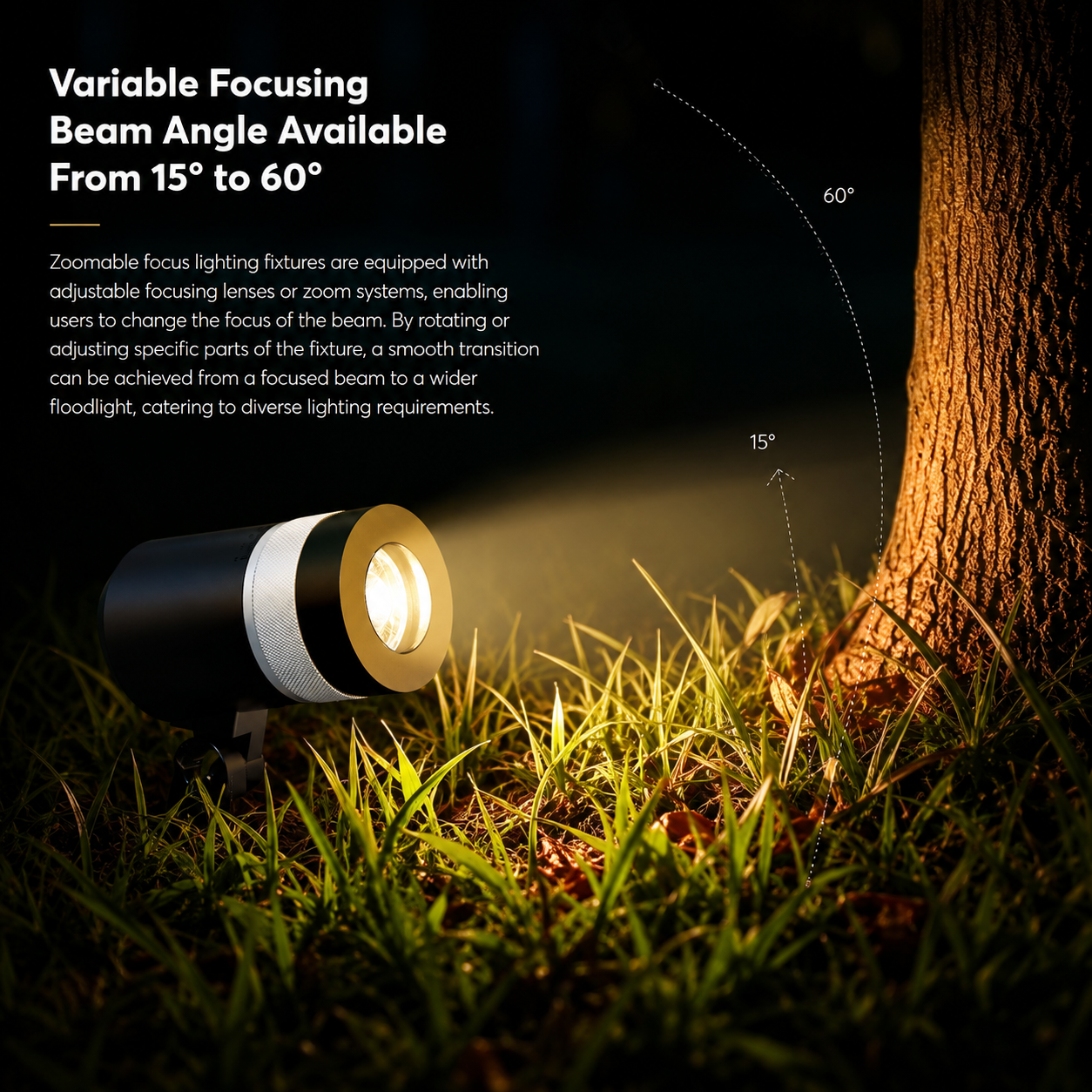

15°-60° Zoomable Beam Adjustable beam spread provides focused spot lighting or wider flood illumination from the same fixture.
Adjustable Lighting Direction Pivoting spotlight head enables precise aiming for trees, plants, façades and landscape features.
IP66 Outdoor Protection Designed for reliable outdoor landscape and garden environments.
CREE COB LED High-quality COB light source provides concentrated output and stable performance.
6W / 12W / 20W / 40W Options Multiple output levels support residential and commercial landscape projects.
Up to 2500 lm Output Wide output range supports different mounting distances and target surfaces.
MODEL & SIZE OPTIONS
Model
Power
LED
Luminous Flux
Beam Angle
Input Voltage
WB3060R
6W
CREE COB
380 lm
15°-60°
12/24VDC / 220-240VAC
WB3080R
12W
CREE COB
940 lm
15°-60°
12/24VDC / 220-240VAC
WB3100R
20W
CREE COB
1420 lm
15°-60°
12/24VDC / 220-240VAC
WB3150R
40W
CREE COB
2500 lm
15°-60°
12/24VDC / 220-240VAC
OPTICAL OPTIONS
Zoom Beam Range: 15°-60°
Light Distribution: Narrow Spot to Wide Flood
Beam Direction: Adjustable
TECHNICAL OPTIONS
LED: CREE COB
Protection: IP66 / IK05
Input Voltage: 12/24VDC / 220-240VAC
CCT: Single Color
Dimming Options: 1-10V / TRIAC / PWM / DALI
Installation: Ground Spike
RECOMMENDED APPLICATIONS
Tree & Plant Accent Lighting
Garden & Landscape Lighting
Villa & Residential Landscapes
Building Façades
Hotels & Resorts
Commercial Landscape Projects
