Recessed and embedded track
The 45 × 23 mm recessed profile sits flush with a plaster ceiling, with a second profile adding a 12.5 mm internal detail. Recessed connectors and corners complete the run.
Explore track profiles ↗Home / DR5 5mm collection
DR5 / Complete 24V 5mm collection
DR5 24V 5mm Magnetic
DR5 24V 5mm Magnetic
Track Lighting
DR5 24V 5mm Magnetic Track Lighting System
Explore VOC Lighting DR5 track profiles, linear lights, floodlights, spotlights, downlights, decorative luminaires, strip light and matching components. Compare the supplied specifications and bring your complete layout into one quotation brief.
DC 24VTrack and luminaire system
25 product listingsFive product categories
5 track profilesRecessed / surface / round / supendant
5 mm profileLinear, flood and strip bodies
01 / One system, three approaches
Choose how your DR5 lighting takes shape
Start with the installation format, then select the luminaires, track profile and the components the layout requires.
Surface, round and suspended track
Surface / supendant (12 × 25 mm), round supendant (Ø28 mm) and supendant (12 × 42 mm) profiles, supported by suspension kits, hanging-wire bags and connecting modules.
Explore connectors & modules ↗Ten luminaires on the same 5 mm track
Linear lights, floodlights, spotlights, downlights, a 360° tube light, ball surface and pendant lights and a strip light all share the DR5 24V magnetic interface.
Build a combined project brief ↗24V only: DR5 is a 24V system. VOC Lighting also publishes the MT26 48V range; a shared voltage, a similarly thin profile or a comparable magnetic interface does not establish compatibility between them. Confirm the track, connector, module and driver set as one package for the project.
02 / The complete product collection
Find your DR5 tracks, lights & accessories
Search a model, select a category, or filter by product role. Every product card carries the specifications printed on its supplied card and the original supplied image.
25 product listings shownCompare track profiles ↓
No matching products
Try a different model or reset the filters.
Track profiles
Track profile formats for recessed (plaster-in), surface, round-suspended and suspended installation.

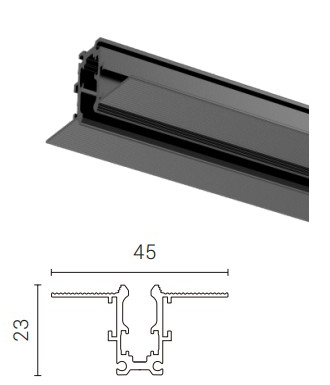

DR5-RECESSED
Recessed Magnetic Track Profile
45 × 23 mm · recessed / plaster-in
Track profile · code require confirmationView specifications
Recessed 5 mm magnetic track profile for plaster-in installation, so the track sits flush with the finished ceiling.
| Format | Recessed (plaster-in) |
|---|---|
| Profile | 45 × 23 mm |
| Voltage | require confirmation |
| Material | require confirmation |
| Finish | require confirmation |
| Lengths | require confirmation |
| Product code | require confirmation |
No product code, voltage, material or length list is printed for the profile range.

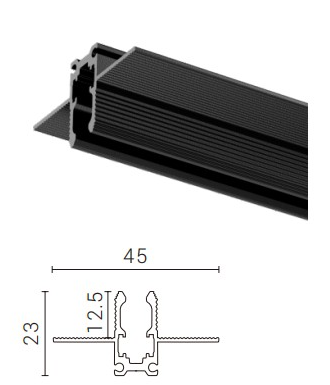

DR5-RECESSED-12.5
Recessed Track Profile (12.5mm Detail)
45 × 23 mm with 12.5 mm detail · plaster-in
Track profile · code require confirmationView specifications
Recessed 5 mm magnetic track profile for plaster-in installation, with a 12.5 mm internal slot/detail.
| Format | Recessed (plaster-in, 12.5 mm detail) |
|---|---|
| Profile | 45 × 23 mm |
| Drawing detail | 12.5 mm internal slot/groove dimensioned on drawing |
| Voltage | require confirmation |
| Material | require confirmation |
| Finish | require confirmation |
| Lengths | require confirmation |
| Product code | require confirmation |
No product code, voltage, material or length list is printed for the profile range.

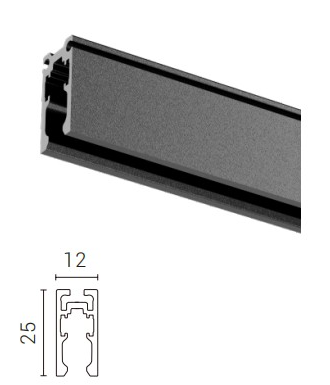

DR5-SURFACE
Surface / Supendant Track Profile
12 × 25 mm · surface or suspended
Track profile · code require confirmationView specifications
Ultra-thin 12 × 25 mm track profile for surface mounting or suspension. The supplied sheet lists it under caption “Surface / Supendant”.
| Format | Surface mounted or suspended |
|---|---|
| Profile | 12 × 25 mm |
| Card caption | Surface / Supendant |
| Voltage | require confirmation |
| Material | require confirmation |
| Finish | require confirmation |
| Lengths | require confirmation |
| Product code | require confirmation |
No product code, voltage, material or length list is printed for the profile range.

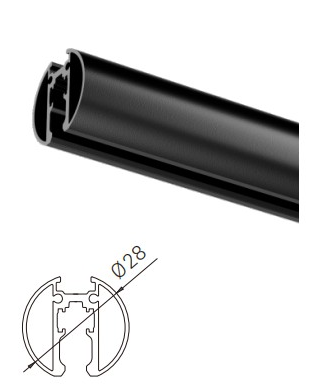

DR5-ROUND
Round Supendant Track Profile
Ø28 mm · round suspended
Track profile · code require confirmationView specifications
Round suspended track profile, dimensioned Ø28 mm on the supplied technical drawing under caption “Round Supendant”.
| Format | Round suspended |
|---|---|
| Profile | Ø28 mm |
| Card caption | Round Supendant |
| Voltage | require confirmation |
| Material | require confirmation |
| Finish | require confirmation |
| Lengths | require confirmation |
| Product code | require confirmation |
No product code, voltage, material or length list is printed for the profile range.

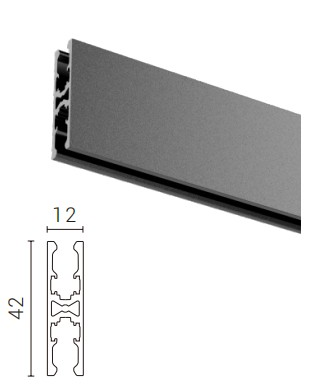

DR5-SUSPEND
Supendant Track Profile
12 × 42 mm · suspended
Track profile · code require confirmationView specifications
Suspended track profile dimensioned 12 × 42 mm on the supplied technical drawing under caption “Supendant”.
| Format | Suspended |
|---|---|
| Profile | 12 × 42 mm |
| Card caption | Supendant |
| Voltage | require confirmation |
| Material | require confirmation |
| Finish | require confirmation |
| Lengths | require confirmation |
| Product code | require confirmation |
No product code, voltage, material or length list is printed for the profile range.
Connectors, modules & corners
Track connectors, suspension kits, power and connecting modules, and corner pieces for layout changes.

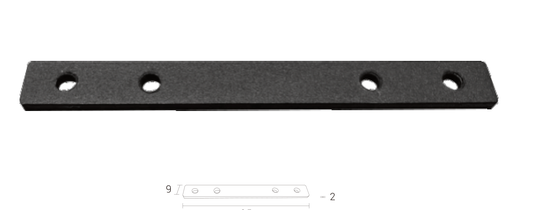

DR5-TP
Connector for Recessed Track
Iron · Black · 85 × 9 × 2 mm
System componentView specifications
Flat connector plate that joins recessed track sections end to end.
| Description | Connector for recessed track |
|---|---|
| Material | Iron |
| Finish | Black |
| Dimensions | 85 × 9 × 2 mm |
| Compatible track | Recessed profile (confirm) |
| Voltage | require confirmation |
The card does not list a rated current or voltage; confirm the electrical rating for your run.

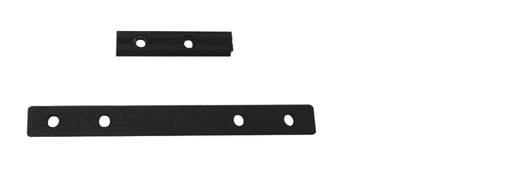

DR5-SX-TP
Upper & Lower Lifting Connector
Iron · Black · for recessed track
System componentView specifications
Upper and lower lifting connector used with the recessed track profile.
| Description | Upper & lower lifting connector for recessed track |
|---|---|
| Material | Iron |
| Finish | Black |
| Dimensions | require confirmation |
| Voltage | require confirmation |
No overall dimensions are printed on the card.
DR5-SXD
Hanging Wire Bag for Supendant Track
Iron · Black · suspension kit
System componentView specifications
Suspension kit bag for the suspended (supendant) track profile.
| Description | Hanging wire bag for supendant track |
|---|---|
| Material | Iron |
| Finish | Black |
| Contents | require confirmation |
| Rated load | require confirmation |
The card states no wire length or rated load; confirm the suspension detail and load for the layout.
DR5-YD
Hanging Wire Bag for Round Supendant Track
Iron · Black · suspension kit
System componentView specifications
Suspension kit bag for the round suspended (supendant) track profile.
| Description | Hanging wire bag for round supendant track |
|---|---|
| Material | Iron |
| Finish | Black |
| Contents | require confirmation |
| Rated load | require confirmation |
The card states no wire length or rated load; confirm the suspension detail and load for the layout.
DR5-PW
Input Module
68 × 5 × 18 mm · 150 mm wire
System componentView specifications
Input module that feeds power into the 5 mm track, supplied with a 150 mm wire.
| Description | Input module |
|---|---|
| Size | 68 × 5 × 18 mm |
| Material | Al+PC |
| Finish | Oxidation Black |
| Wire length | 150 mm |
| Voltage | DC 24V (confirm) |
Confirm the matching driver, transformer and rated current for the run.
DR5-CO
Connect Module
68 × 5 × 18 mm · 40 mm wire
System componentView specifications
Connect module that bridges track sections, supplied with a 40 mm wire.
| Description | Connect module |
|---|---|
| Size | 68 × 5 × 18 mm |
| Material | Al+PC |
| Finish | Oxidation Black |
| Wire length | 40 mm |
| Voltage | DC 24V (confirm) |
Confirm the maximum continuous run this module supports.
DR5-CL
Corner Connect Module
68 × 5 × 18 mm · 180 mm wire
System componentView specifications
Corner connect module for changing track direction, supplied with a 180 mm wire.
| Description | Corner connect module |
|---|---|
| Size | 68 × 5 × 18 mm |
| Material | Al+PC |
| Finish | Oxidation Black |
| Wire length | 180 mm |
| Voltage | DC 24V (confirm) |
Confirm the minimum bend radius and the supported run for the corner arrangement.
DR5-PCR
Track Corner
50 × 50 × 23 mm · Aluminum
System componentView specifications
Corner piece for recessed track layouts, in oxidation black aluminum.
| Description | Corner |
|---|---|
| Size | 50 × 50 × 23 mm |
| Material | Aluminum |
| Finish | Oxidation Black |
| Compatible profile | Recessed (confirm) |
Confirm which track profile this corner matches.
DR5-TCR
Track Corner
50 × 50 × 45 mm · Aluminum
System componentView specifications
Corner piece for 45 mm-high track layouts, in oxidation black aluminum.
| Description | Corner |
|---|---|
| Size | 50 × 50 × 45 mm |
| Material | Aluminum |
| Finish | Oxidation Black |
| Compatible profile | require confirmation |
Confirm which track profile this corner matches.
DR5-WCR
Outside Track Corner
50 × 50 × 45 mm · Aluminum
System componentView specifications
Outside corner piece that turns a track run outwards, in oxidation black aluminum.
| Description | Outside corner |
|---|---|
| Size | 50 × 50 × 45 mm |
| Material | Aluminum |
| Finish | Oxidation Black |
| Compatible profile | require confirmation |
Confirm which track profile this outside corner matches.
Linear & floodlights
Ultra-thin 5 mm linear lights in CSP and SMD 2025 versions, and SMD 3030 floodlights with 15°, 30° and 50° beam options.

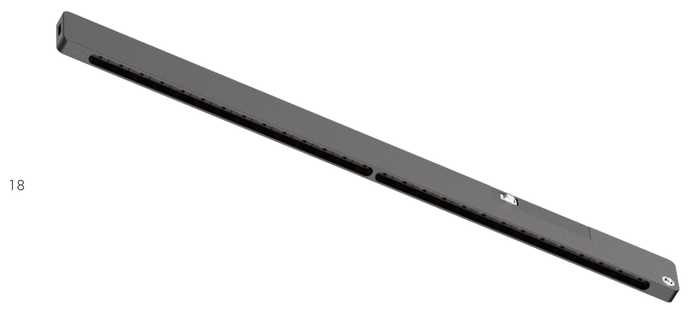

DR5-GS-200 / 300
Magnetic Track Linear Light (CSP)
6W / 10W · 50° · 220 or 320 mm
Magnetic track luminaireView specifications
Ultra-thin linear light on a CSP source, built to the same 5 mm profile as the DR5 magnetic track.
| Wattage | 6W · 10W |
|---|---|
| Voltage | 24V |
| Chips | CSP 6W / CSP 10W |
| CRI | >90 |
| Material | Al+PC |
| Size | 220 × 18 × 5 mm / 320 × 18 × 5 mm |
| Finish | Oxidation Black |
| Beam Angle | 50° |
| CCT | 3000K / 4000K / 6500K |

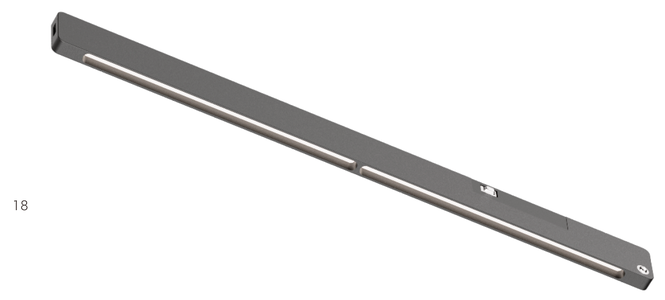

DR5-FG-200 / 300
Magnetic Track Linear Light (SMD 2025)
6W / 10W · 220 or 320 mm
Magnetic track luminaireView specifications
Ultra-thin linear light on an SMD 2025 source, sharing the 18 × 5 mm body of the CSP version.
| Wattage | 6W · 10W |
|---|---|
| Voltage | 24V |
| Chips | SMD 2025 |
| CRI | >90 |
| Material | Al+PC |
| Size | 220 × 18 × 5 mm / 320 × 18 × 5 mm |
| Finish | Oxidation Black |
| Beam Angle | require confirmation |
| CCT | 3000K / 4000K / 6500K |
The supplied card shows a CCT range but no beam-angle group, so no beam angle is stated here.

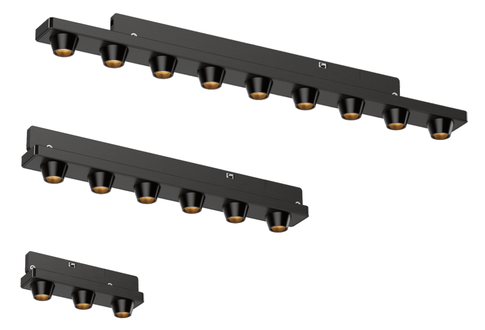

DR5-GS-3 / 6 / 9
Magnetic Track Floodlight
6W / 12W / 18W · 15° / 30° / 50°
Magnetic track luminaireView specifications
SMD 3030 floodlight with three sizes in one family, for wider washes from a slim magnetic body.
| Wattage | 6W · 12W · 18W |
|---|---|
| Voltage | 24V |
| Chips | SMD 3030 |
| CRI | >90 |
| Material | Al+PC |
| Size | 100 × 25 × 35 mm / 220 × 25 × 35 mm / 320 × 25 × 35 mm |
| Finish | Oxidation Black |
| Beam Angle | 15° · 30° · 50° |
| CCT | 3000K / 4000K / 6500K |
Spotlights & downlights
Adjustable COB spotlights and fixed surface downlights in COB and SMD versions.

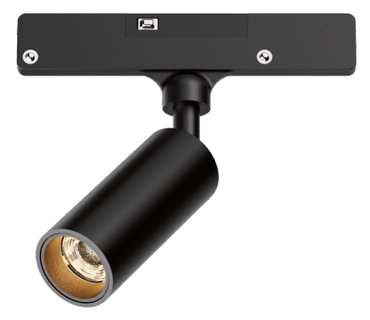

DR5-SP
Magnetic Track Spotlight
5W / 7W / 12W · 15° / 24° / 36° / 50° · adjustable head
Magnetic track luminaireView specifications
COB spotlight on the 5 mm magnetic track with an adjustable head for aiming accent light.
| Wattage | 5W · 7W · 12W |
|---|---|
| Voltage | 24V |
| Chips | COB |
| CRI | >90 |
| Material | Al+PC |
| Size | Ø25 × 60 mm / Ø35 × 90 mm / Ø45 × 110 mm |
| Finish | Oxidation Black |
| Beam Angle | 15° · 24° · 36° · 50° |
| CCT | 3000K / 4000K / 6500K |

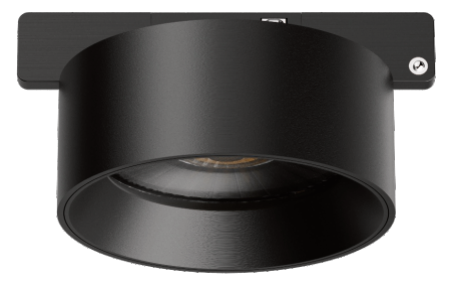

DR5-S80 / DR5-S100
Magnetic Track Surface Downlight
7W / 12W · 24° / 60° · Ø80 or Ø100 mm
Magnetic track luminaireView specifications
COB surface downlight that mounts to the track and throws light straight down, in two diameters.
| Wattage | 7W · 12W |
|---|---|
| Voltage | 24V |
| Chips | COB 5W / COB |
| CRI | >90 |
| Material | Al+PC |
| Size | Ø80 × 50 mm / Ø100 × 55 mm |
| Finish | Oxidation Black |
| Beam Angle | 24° · 60° |
| CCT | 3000K / 4000K / 6500K |

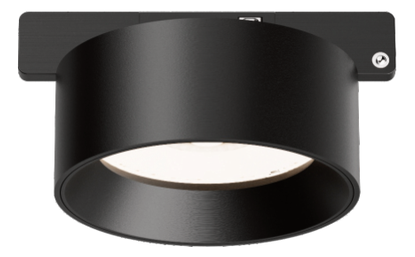

DR5-D80 / DR5-D100
Magnetic Track Downlight
7W / 12W · 120° · Ø80 or Ø100 mm
Magnetic track luminaireView specifications
SMD downlight with a wide 120° distribution, in the same two diameters as the COB version.
| Wattage | 7W · 12W |
|---|---|
| Voltage | 24V |
| Chips | SMD |
| CRI | >90 |
| Material | Al+PC |
| Size | Ø80 × 50 mm / Ø100 × 55 mm |
| Finish | Oxidation Black |
| Beam Angle | 120° |
| CCT | 3000K / 4000K / 6500K |
Decorative & strip lights
360° tube light, ball surface and pendant lights, and a customizable 1 m strip light.

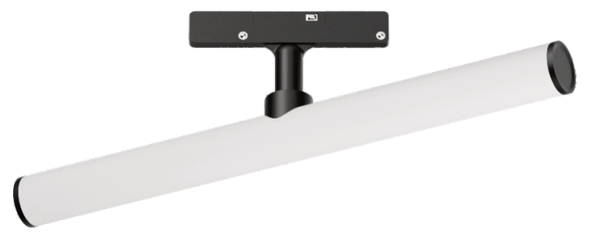

DR5-GF-300 / 600
360° Magnetic Track Tube Light
10W / 20W · 360° · Ø25 × 300 or 600 mm
Magnetic track luminaireView specifications
Ø25 mm tube light that emits through 360°, mounted on the 5 mm magnetic track.
| Wattage | 10W · 20W |
|---|---|
| Voltage | 24V |
| Chips | SMD |
| CRI | >90 |
| Material | Al+PC |
| Size | Ø25 × 300 mm / Ø25 × 600 mm |
| Finish | Oxidation Black |
| Beam Angle | 360° |
| CCT | 3000K / 4000K / 6500K |

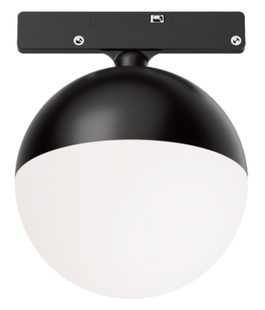

DR5-B100
Magnetic Track Ball Surface Light
7W · Ø100 × 130 mm
Magnetic track luminaireView specifications
Opal ball luminaire mounted directly to the track, for a visible decorative element.
| Wattage | 7W |
|---|---|
| Voltage | 24V |
| Chips | SMD 2835 |
| CRI | >90 |
| Material | Al+PC |
| Size | Ø100 × 130 mm |
| Finish | Oxidation Black |
| Beam Angle | require confirmation |
| CCT | 3000K / 4000K / 6500K |
The supplied card shows a CCT range but no beam-angle group, so no beam angle is stated here.

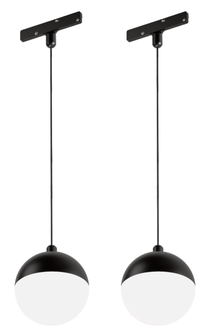

DR5-P100
Magnetic Track Ball Pendant Light
7W · 100 × 100 × 130 mm
Magnetic track luminaireView specifications
Opal ball pendant suspended from the 5 mm magnetic track, for drop lighting over a surface.
| Wattage | 7W |
|---|---|
| Voltage | 24V |
| Chips | SMD 2835 |
| CRI | >90 |
| Material | Al+PC |
| Size | 100 × 100 × 130 mm |
| Finish | Oxidation Black |
| Beam Angle | require confirmation |
| CCT | 3000K / 4000K / 6500K |
| Suspension length | require confirmation |
The supplied card shows a CCT range but no beam-angle group and no suspension length; confirm both.

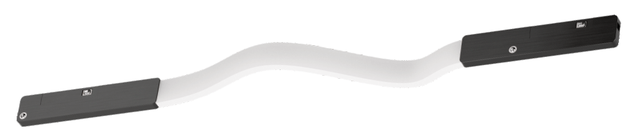

DR5-1M
5mm Magnetic Track Strip Light
7W · 1000 × 5 × 18 mm · 1 m, customizable
Magnetic track luminaireView specifications
Flexible 1 m strip light that bends along a run, supplied on the 5 mm track profile. The card states the length can be customized.
| Wattage | 7W |
|---|---|
| Voltage | 24V |
| Chips | SMD 2835 |
| CRI | >90 |
| Size | 1000 × 5 × 18 mm |
| Length | 1 m, can be customized |
| Material | require confirmation |
| Finish | require confirmation |
| Beam Angle | require confirmation |
| CCT | 3000K / 4000K / 6500K |
The supplied card has no Material or Finish column and no beam-angle group; confirm all three, and confirm the customized length and its minimum bend radius.
03 / Track profiles at a glance
Compare the five DR5 track profiles
Profile geometry, captions and installation formats are taken from the supplied sheet. Confirm codes, lengths and the connector set for your project.
| Track format | Card caption | Profile / size | Installation | Finish |
|---|---|---|---|---|
| Recessed track profile | Recessed | 45 × 23 mm | Plaster-in, flush with the ceiling | require confirmation |
| Recessed track profile (internal detail) | Recessed | 45 × 23 mm with 12.5 mm detail | Plaster-in, flush with the ceiling | require confirmation |
| Surface / supendant track profile | Surface / Supendant | 12 × 25 mm | Surface mounted or suspended | require confirmation |
| Round supendant track profile | Round Supendant | Ø28 mm | Round suspended | require confirmation |
| Supendant track profile | Supendant | 12 × 42 mm | Suspended | require confirmation |
The supplied sheet shows an orthographic cross section and 3D render of each profile but lists no product code, voltage, material, length or finish for the profile range, so length options start from the approved drawing.
Voltage, control and beam-angle differences across the cards
Every DR5 luminaire card lists DC 24V and the CCT range 3000K / 4000K / 6500K. No card prints a control option row, so ON-OFF, dimming and wireless control must be confirmed per model. Beam-angle groups appear on six cards; the SMD 2025 linear light, the ball surface light, the ball pendant light and the strip light show none, and are marked require confirmation here. No price, stock, lead time, certification or load capacity is inferred anywhere on this page.
04 / Your project, one quotation
Build a complete DR5 component brief
Add products from the collection, then review quantities and configuration details. Different configurations of the same model remain separate line items.
Selected products (0)
Your brief is empty. Choose “Configure & add to brief” on a product card to begin.
Project details
Ready for your inquiry
Review & share your brief
Copy the brief and paste it into your inquiry message. The inquiry page opens in a new tab. Email opens your mail app; for long briefs, attach the downloaded TXT. Nothing is sent automatically.
Download a copy before leaving this page.
05 / Questions, answered
Specify DR5 with the right information
Clear compatibility, configuration and quotation guidance for the VOC Lighting DR5 5mm magnetic track collection.
What is the VOC Lighting DR5 5mm magnetic track system?
VOC Lighting DR5 is a 24V magnetic track lighting system built around an ultra-thin 5 mm track profile. The supplied sheets cover five track profile formats (recessed 45 × 23 mm, recessed with 12.5 mm detail 45 × 23 mm, surface / supendant 12 × 25 mm, round supendant Ø28 mm and supendant 12 × 42 mm), connectors, connecting modules, corners and ten luminaire families. This page brings together 25 product listings across five categories.
Is the DR5 system 24V or 48V?
DR5 is listed as 24V on every supplied luminaire card. VOC Lighting also publishes the MT26 48V range, which is a separate system. A shared voltage, a similarly thin profile or a comparable magnetic interface does not establish compatibility between the two ranges — confirm the track, connector, module and driver set for the project before specifying.
How do I choose a track profile?
The supplied sheet lists recessed, surface / supendant, round supendant and supendant formats. Recessed uses a 45 × 23 mm plaster-in outline, with a second profile adding a 12.5 mm internal detail. Surface / supendant measures 12 × 25 mm, round supendant is Ø28 mm and supendant is 12 × 42 mm. The sheet does not state voltage, material or available lengths for the profile range, so request the approved code, length list and drawing.
Can every DR5 luminaire be mounted on every track profile?
The supplied cards do not state per-profile compatibility. All ten luminaire families are 24V magnetic track luminaires, but the sheets do not confirm which of the four profiles each one accepts. Ask for a compatibility review covering the luminaire, profile, connector, module and driver as one set.
What colour temperatures and beam angles are listed?
Every luminaire card lists a 3000K / 4000K / 6500K range. Beam-angle groups appear on the floodlight (15° / 30° / 50°), the CSP linear light (50°), the spotlight (15° / 24° / 36° / 50°), the surface downlight (24° / 60°), the downlight (120°) and the 360° tube light (360°). The SMD 2025 linear light, the ball surface light, the ball pendant light and the strip light show no beam-angle group and are marked require confirmation.
Does a luminaire include its track and accessories?
No. Track profiles, connectors, modules, corners, suspension kits and luminaires are separate items in the quotation brief. Select every component the layout needs and ask for a compatibility review before ordering.
Are the track profile codes and lengths confirmed?
No. The supplied track-profile sheet shows geometry and installation captions but prints no product code, voltage, material or length list for the profile range. Request the approved code, length options and technical drawing for your layout.
Are control options listed for DR5 luminaires?
The supplied luminaire cards do not print a control option row. Request ON-OFF, phase dimming or wireless control confirmation per model, together with the matching driver and the maximum run length it supports.
Can I combine different products in one quotation?
Yes. Configure each model, choose its quantity and add it to the same project brief. The same model can be added more than once with a different variant, colour temperature or beam angle, and grouped component cards let you select individual parts.
How do I submit the quotation brief, and what should be confirmed first?
Copy or download your completed brief, open the VOC Lighting inquiry page and paste the text into your message, or open an email draft to sales@voclighting.com. Nothing is sent automatically from this page. Before ordering, confirm mounting details, profile and suspension loading, electrical capacity, run length, control hardware, applicable certificates, required drawings, price, lead time and warranty, and include the destination country.
