MT26 48V Magnetic
& Woven Track Lighting

MT26 48V Magnetic & Woven Track Lighting System
Explore VOC Lighting tracks, linear lights, spotlights, pendants and matching components. Compare specifications and bring your complete lighting layout into one quotation brief.

Explore all 71 product listings ↓Choose your system

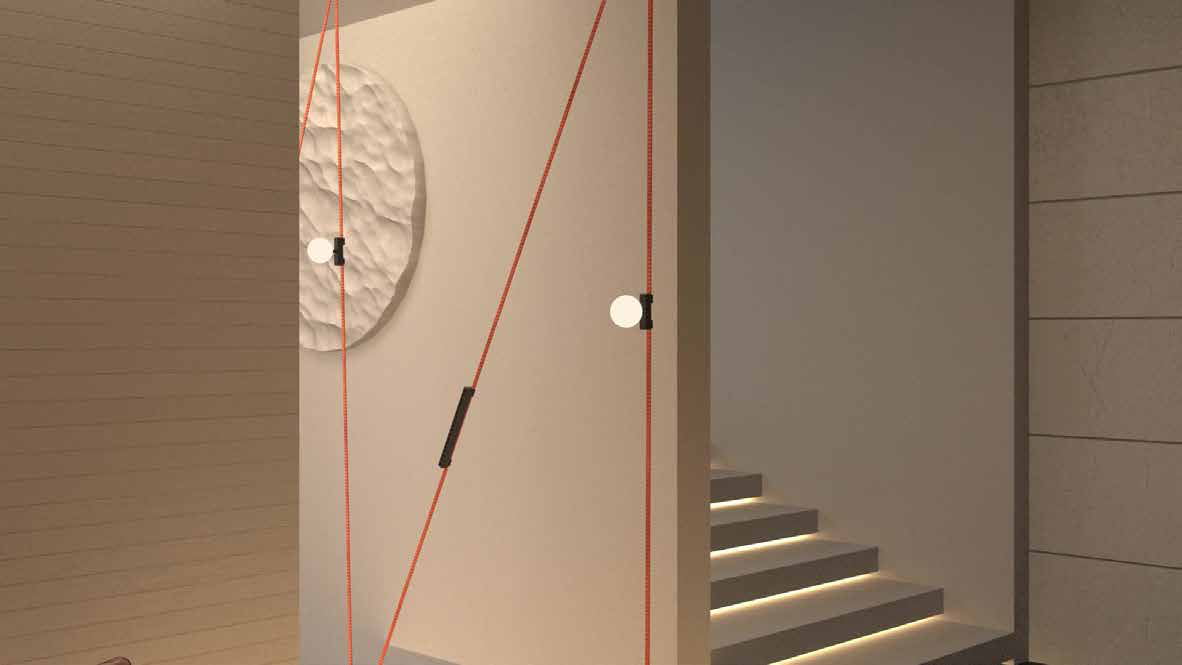

VOC Lighting MT26 PD-10M / PD-20M Woven Track — FLEXIBLE WOVEN TRACK / MT26Original supplied image ↗

DC 48VTrack and luminaire system

71 product listingsSeven product categories

5 rigid profilesA / B / C / D / RM

10 m / 20 mPD woven-track formats

01 / One system, three approaches

Choose how your MT26 lighting takes shape

Start with the installation format, then select the light distribution, model and components needed for the layout.

01 / RIGID

Ultra-thin magnetic track

Choose a profile for surface, plaster-in, suspended or embedded installation. Magnetic luminaires attach directly to the compatible rigid track.

Compare tracks & connections ↗

02 / FLEXIBLE

Woven track

PD-10M and PD-20M woven tracks work with fixed nodes, power-input components and lamp buckles. Dedicated woven-track pendants are included in this range.

Explore woven-track products ↗

03 / COMBINED

Rigid + woven layouts

The catalogue describes combined layouts using rigid tracks and woven track with conversion components. Confirm the electrical and mechanical arrangement for the project.

Build a combined project brief ↗

Installation matters: PDMD330, PDTK300 and PD-P95 are woven-track-only lamps. Other magnetic luminaires require the appropriate buckle when used on woven track. A common 48V rating does not establish compatibility with other track systems.

02 / The complete product collection

Find your MT26 tracks, lights & accessories

Search a model, select a category, or filter luminaires by mounting format. Every product card includes its supplied specifications and original image.

Search model or product

Product category

Luminaire installation

71 product listings shownCompare track specifications ↓

All products and specifications are available below. Enable JavaScript for filtering and the quotation builder, or send model codes and quantities through the inquiry link.

Woven track & dedicated luminaires

Flexible track, fixing nodes, conversion parts and woven-only pendant lamps.

PD-10M / PD-20M

Woven Track

10000 × 16.5 × 3 mm / 20000 × 16.5 × 3 mm

Woven-track component

View specifications

Flexible woven track for free-form lighting design. Can be used independently or combined with any MT26 aluminum track.

Color	Black Gray Green Khaki Orange
Product Code	PD-10M / PD-20M
Max Power	200W (Max)
Voltage	DC 48V
Dimensions	10000 × 16.5 × 3 mm / 20000 × 16.5 × 3 mm
Material	Hessian + Copper

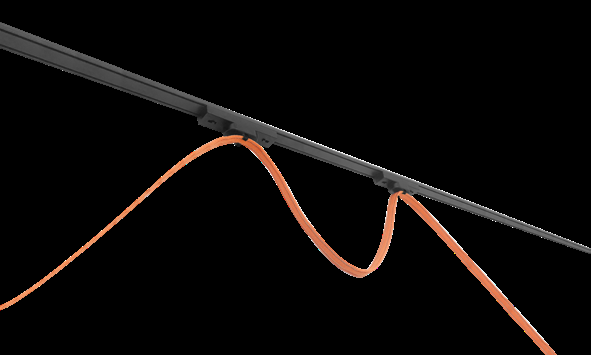

GDH

Woven Track Connection Power Box

112 × 26 × 25 mm

Woven-track component

View specifications

Power feed box that allows a variety of linear tracks to be spliced and used together with the woven track.

Product Code	GDH
Dimensions	112 × 26 × 25 mm
Features	Track conductive conversion function Braided track steering installation Suitable for all kinds of tracks

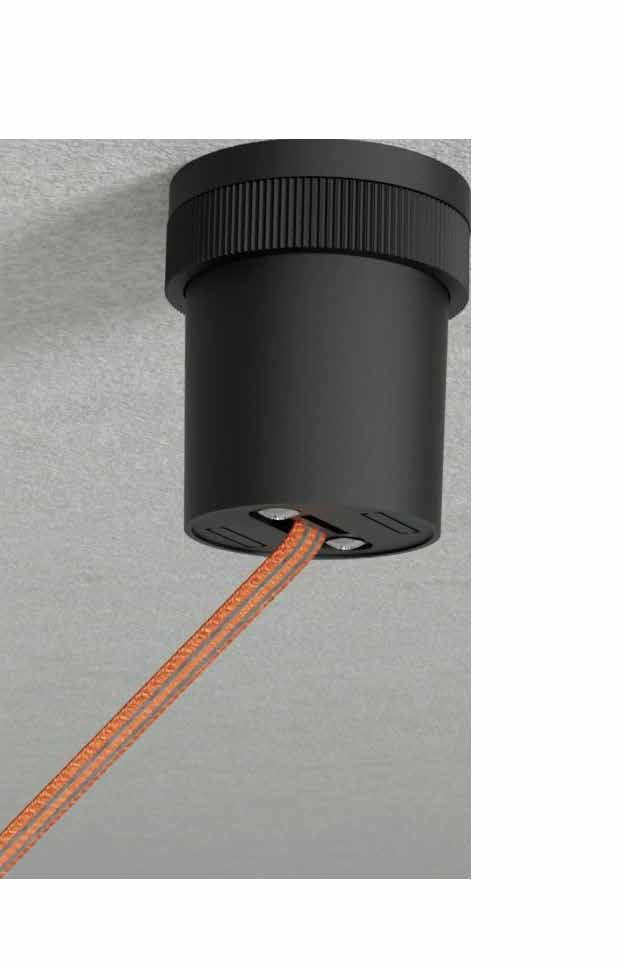

PDYT

Large Fixed Node

69 × 60 × 50 mm

Woven-track component

View specifications

Woven track positioning column for fixing and steering installation of the braided track.

Product Code	PDYT
Dimensions	69 × 60 × 50 mm
Features	Conductive conversion function Braided track steering installation Suitable for ceiling, wall and ground installation

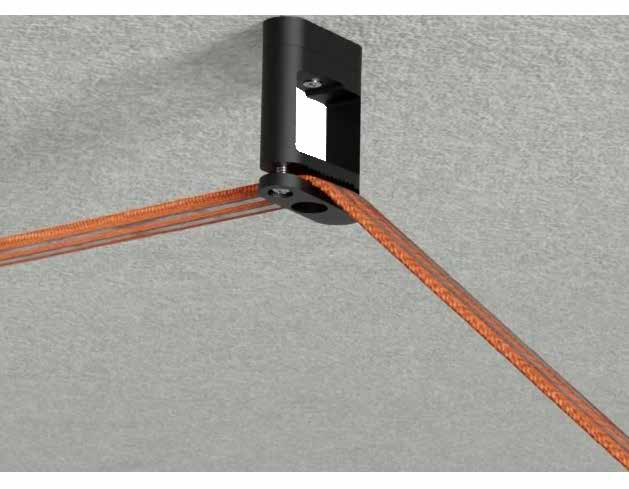

PDGK

Small Fixed Node

40 × 30 × 11 mm

Woven-track component

View specifications

Braided track holding adjuster bracket for fixing and adjusting the woven track.

Product Code	PDGK
Dimensions	40 × 30 × 11 mm
Features	Braided track fixing and adjusting bracket

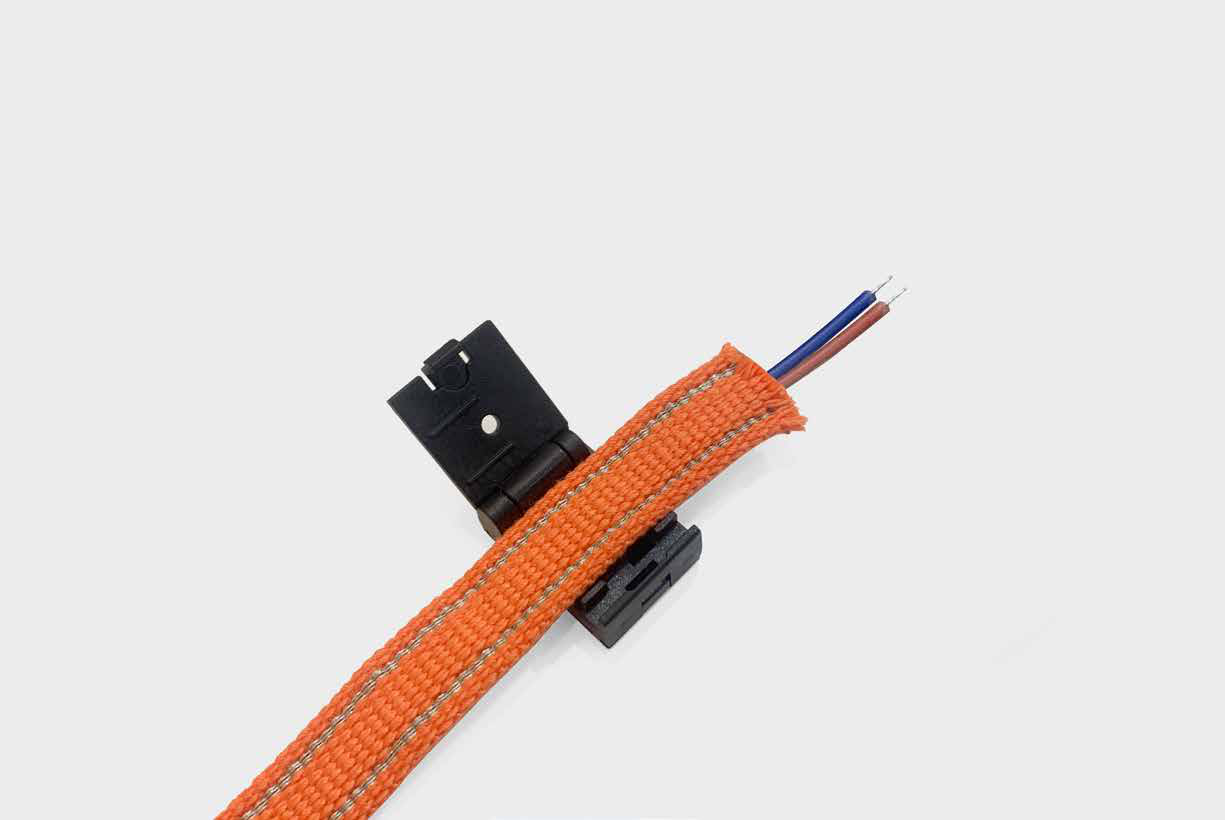

PDSR

Woven Track Input Module

65 × 31 × 22 × 22 mm

Woven-track component

View specifications

Power supply input module for the braided track.

Product Code	PDSR
Dimensions	65 × 31 × 22 × 22 mm
Features	Braided track power supply module

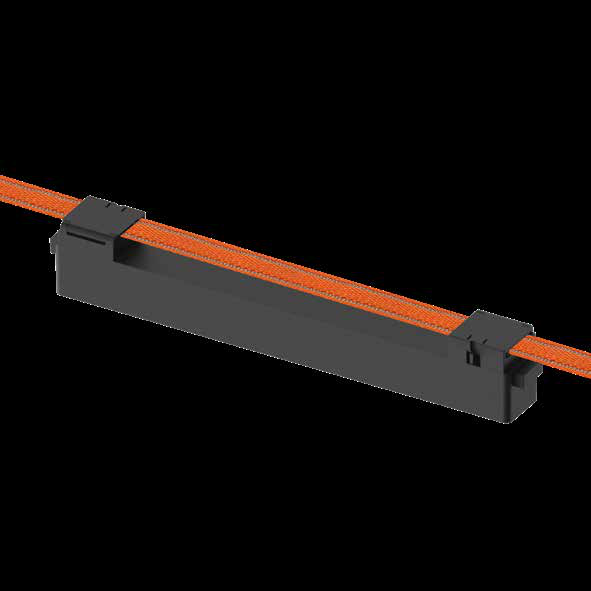

PDDK

Woven Track Lamp Linker

27 × 27 × 10 mm

Woven-track component

View specifications

Connects MT26 luminaires to the woven track.

Product Code	PDDK
Dimensions	27 × 27 × 10 mm
Features	Connects the luminaire to the woven track

Can be used on all MT26 series lamps and power supplies

SJK

Woven Buckle (Double Clip)

26 × 10 × 6 mm

Woven-track component

View specifications

Double clip buckle used to shape the woven track at the end, for both large fixed nodes and luminaire mounting ends.

Product Code	SJK
Dimensions	26 × 10 × 6 mm
Features	End shaping of the woven track Works with large fixed nodes and luminaire mounting ends

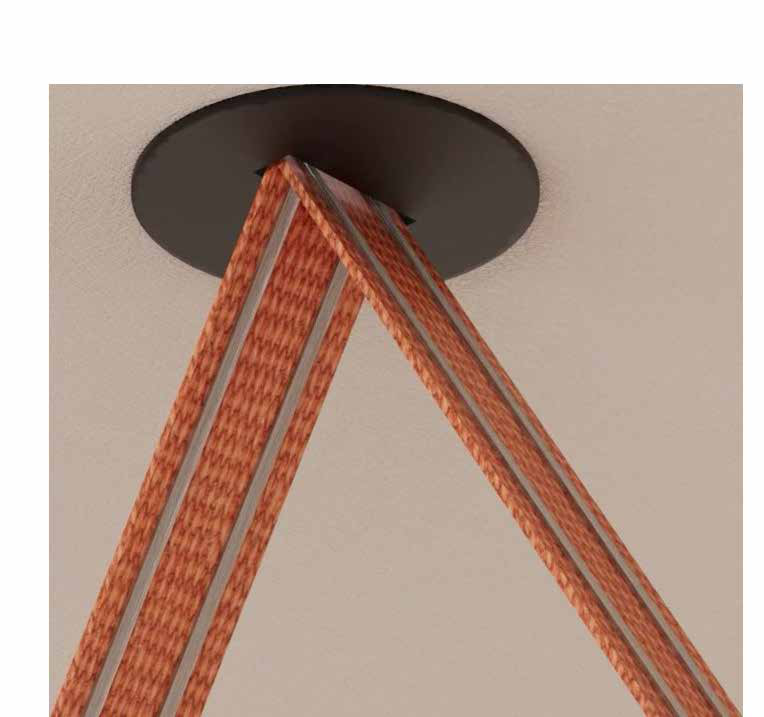

PDQR

Recessed Fixed Node

Recessed holding adjuster bracket for the woven track; used together with the Small Fixed Node (PDGK).

Woven-track component

View specifications

Recessed holding adjuster bracket for the woven track; used together with the Small Fixed Node (PDGK).

Product Code	PDQR
Features	Holding adjuster bracket for woven track Can be used in conjunction with the Small Fixed Node

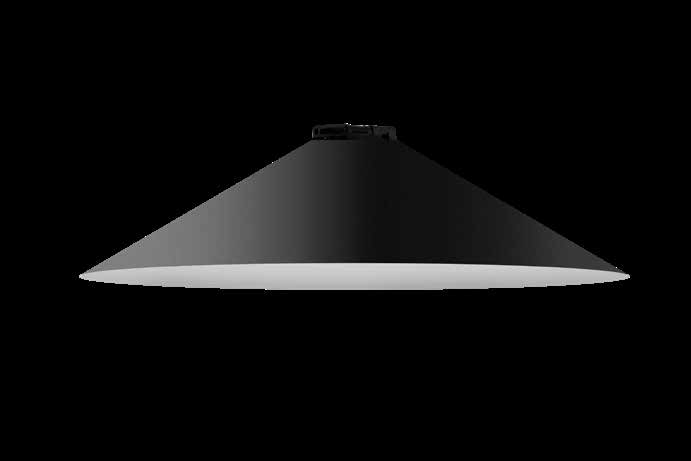

PDMD330

Conical Pendant Lamp

18W · 80° · Φ330 × 110 mm

Woven track only

View specifications

Woven track matching luminaire with conical shade.

Wattage	18W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ330 × 110 mm
Material	Aluminum + Plastic
Beam Angle	80°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

This lamp can only be installed on the woven track

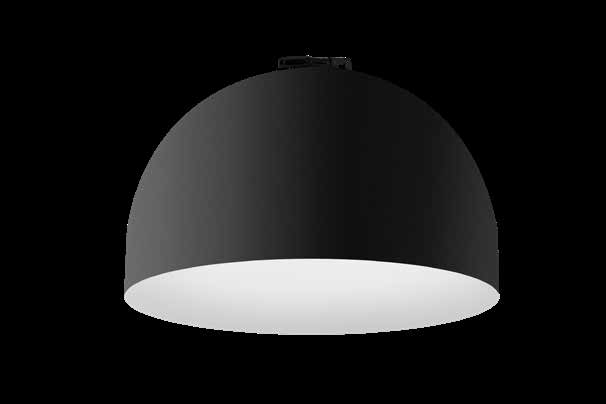

PDTK300

Semicircular Pendant Lamp

18W · 80° · Φ300 × 165 mm

Woven track only

View specifications

Woven track matching luminaire with semicircular shade.

Wattage	18W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ300 × 165 mm
Material	Aluminum + Plastic
Beam Angle	80°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

This lamp can only be installed on the woven track

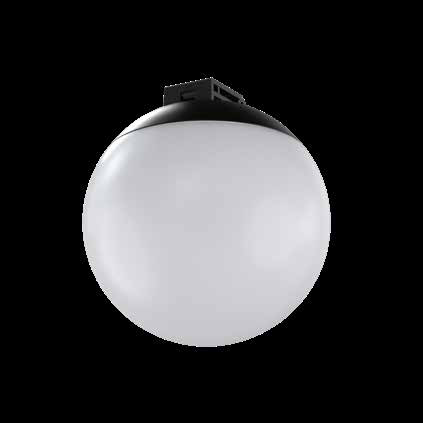

PD-P95

Ball Pendant Lamp

6W · 180° · Φ95 × 100 mm

Woven track only

View specifications

A 6W spherical luminaire for woven track, with an Aluminum + Plastic body.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ95 × 100 mm
Material	Aluminum + Plastic
Beam Angle	180°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

This lamp can only be installed on the woven track

Magnetic tracks, power & connectors

Five rigid profiles plus power supplies, cable management and electrical connections.

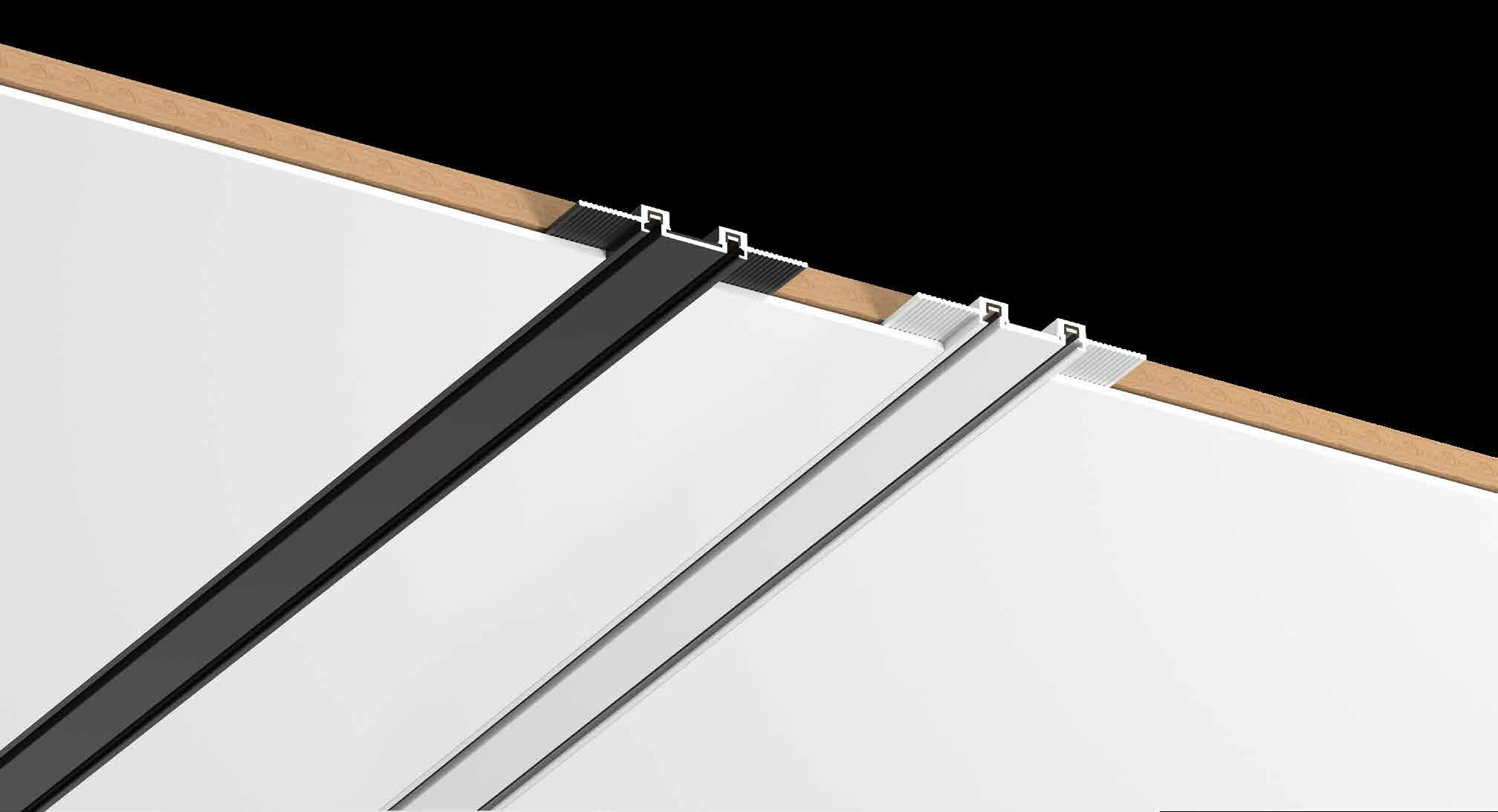

Track A

Surface Mounted Magnetic Track

26 × 6 mm

System component

View specifications

6 mm ultra-thin surface mounted track. Can be integrated into non-main-light solutions; simple DIY splicing for a cleaner space aesthetic.

Color	Black White
Product Code	A
Voltage	DC 48V
Material	Aluminum
Profile	26 × 6 mm
Lengths	1000 mm / 1500 mm / 2000 mm
Features	Matching connectors: A-LV, A-L, A-T, A-+, A-LHX, A-I

Track B

Recessed / Plaster-in Magnetic Track

56 × 26 × 6 mm

System component

View specifications

Ultra-thin recessed track for plaster-in installation. Can be integrated into non-main-light solutions; simple DIY splicing.

Color	Black White
Product Code	B
Voltage	DC 48V
Material	Aluminum
Profile	56 × 26 × 6 mm
Slotting	32 mm
Lengths	1000 mm / 1500 mm / 2000 mm
Features	Matching connectors: B-LV, B-L, B-T, B-+, B-I

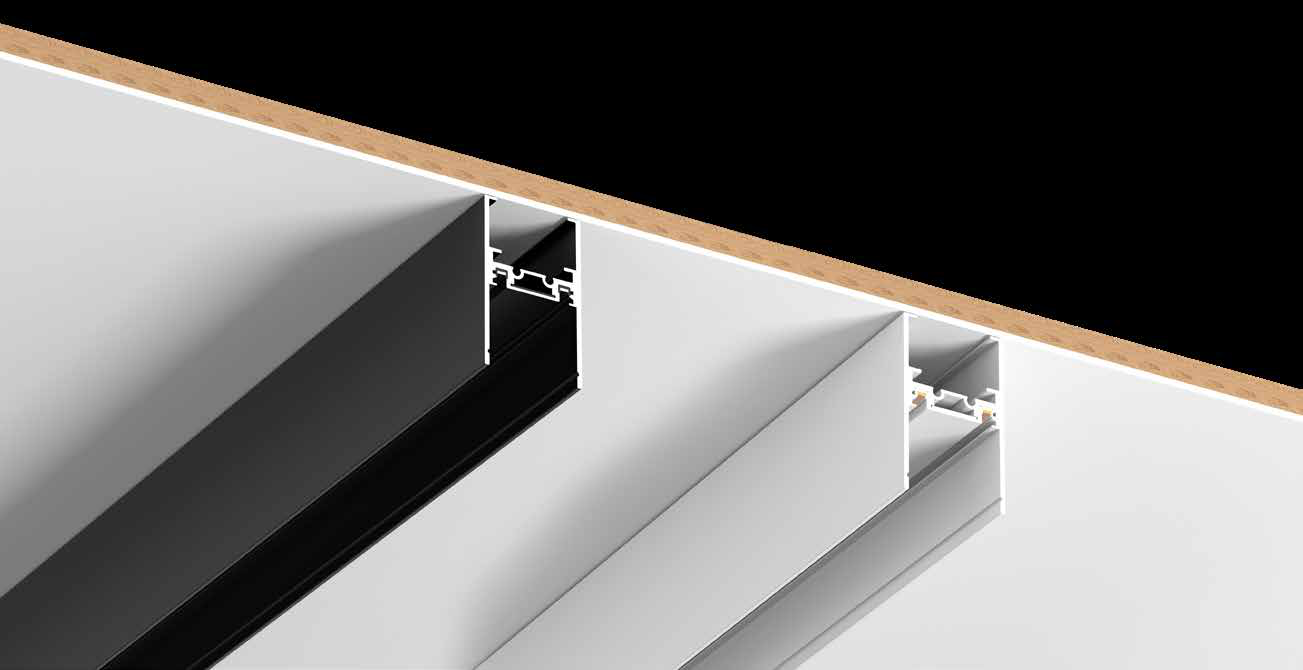

Track C

Suspended Magnetic Track

29.5 × 50 mm

System component

View specifications

Suspended (hoisting) ultra-thin magnetic track with pendant cables.

Color	Black White
Product Code	C
Voltage	DC 48V
Material	Aluminum
Profile	29.5 × 50 mm
Lengths	1000 mm / 2000 mm / 3000 mm
Features	Matching modules: ZJ (I-type), RJ (L-type), C-LV, C-L

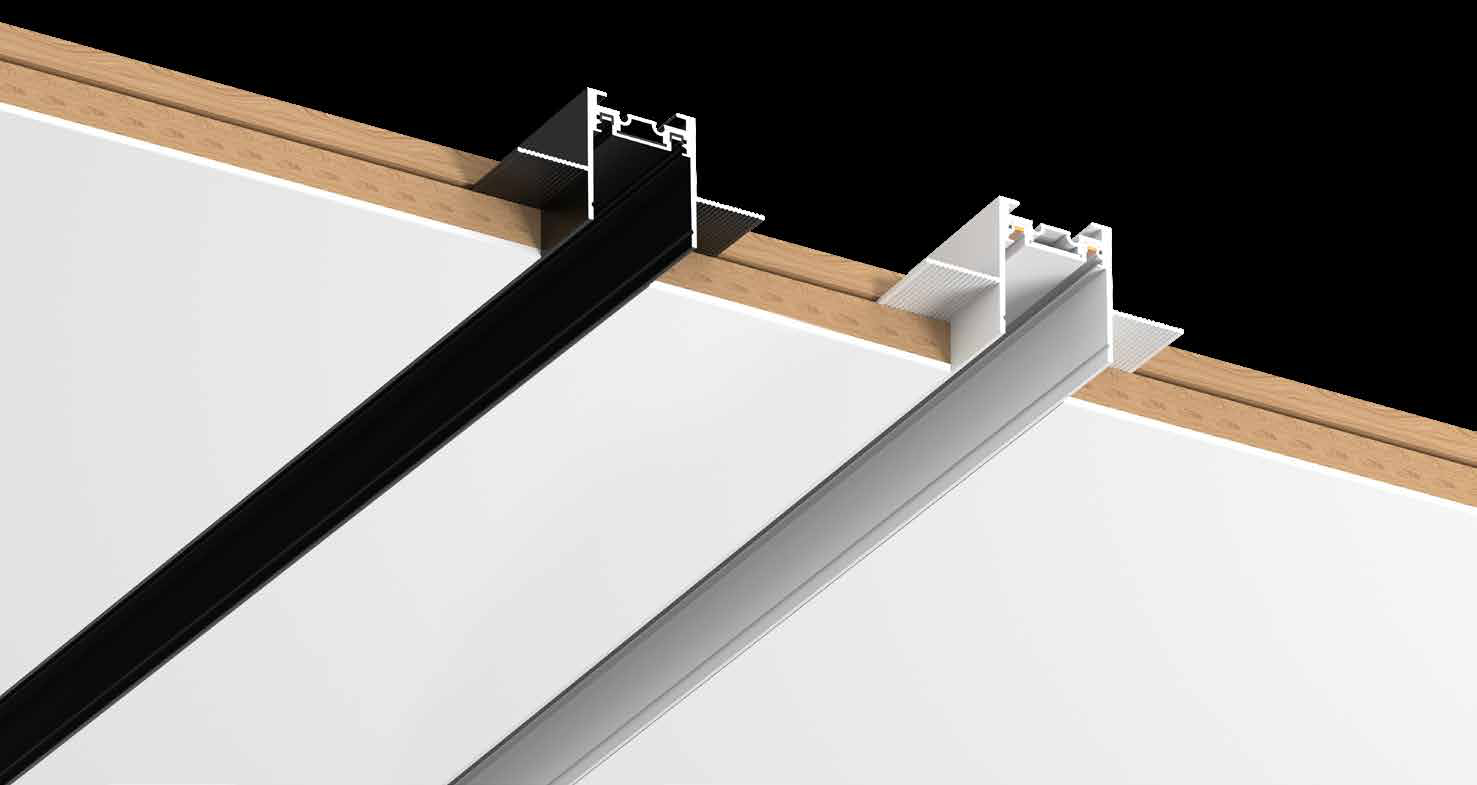

Track D

Embedded Magnetic Track

29 × 67 × 35 mm

System component

View specifications

Embedded (flush) ultra-thin magnetic track for pre-embedded installation.

Color	Black White
Product Code	D
Voltage	DC 48V
Material	Aluminum
Profile	29 × 67 × 35 mm
Slotting	32 mm
Lengths	1000 mm / 2000 mm / 3000 mm
Features	Matching modules: ZJ (I-type), RJ (L-type), D-LV, D-L

The card lists 1000 / 2000 / 3000 mm. Catalogue page 26 also lists 1.5 m; request confirmation before specifying 1500 mm.

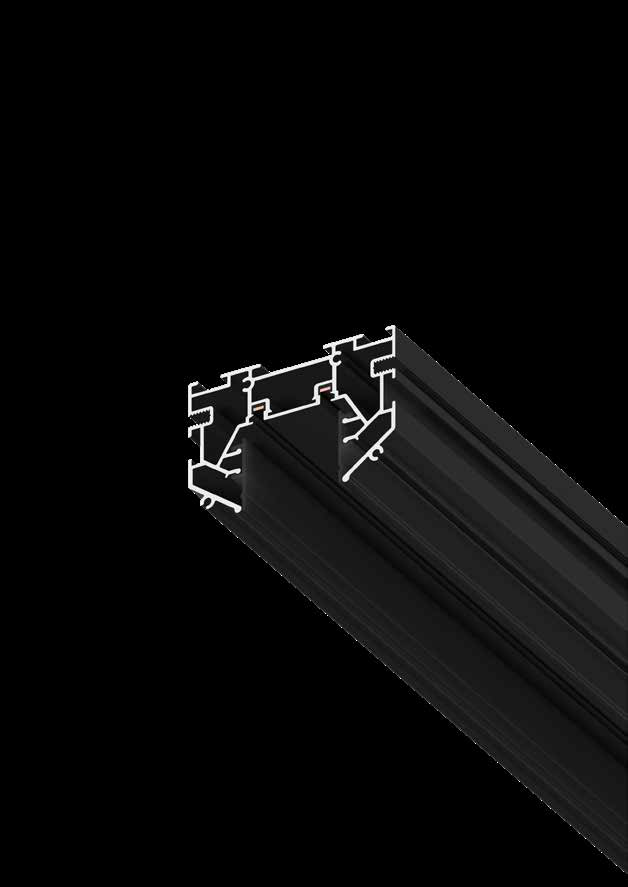

Track RM

RM Magnetic Track

29 × 26.6 × 59.5 × 41 mm

System component

View specifications

RM track profile with dedicated accessories. Confirm the mounting arrangement for the ceiling system.

Color	Black
Product Code	RM
Voltage	DC 48V
Material	Aluminum
Profile	29 × 26.6 × 59.5 × 41 mm
Lengths	1000 mm / 2000 mm / 3000 mm
Features	Matching accessories: RM-DT, RM-SPJG, RM-CZJG, RM-JG, RM-JM, RM-GJT, RM-L

The card labels RM as surface mounted; the full catalogue also introduces a soft-membrane ceiling track. Confirm the exact RM mounting detail. Black only. The catalogue also includes a 1.5 m length entry; this option requires confirmation.

A-LV / A-L / A-T / A-+ / A-LHX / A-I

Track Connector Set (A & B Tracks)

Vertical 90° Corner / Horizontal Corner / T-Type / Cross / Arc Corner / Straight

System component

View specifications

Connector set applied to the Track A and Track B rails: vertical corner, horizontal corner, T-type, cross, arc corner and straight connectors.

Product Codes	A-LV, A-L, A-T, A-+, A-LHX, A-I
Types	Vertical 90° Corner / Horizontal Corner / T-Type / Cross / Arc Corner / Straight

100W / 200W

Transformer & Cable Box

DC 48V

System component

View specifications

220V to 48V DC transformer and cable box that hides exposed wires at the installation point.

Product Codes	100W-Transformer / 200W-Transformer / Cable Box
Output	DC 48V
Function	Converts 220V AC to 48V DC; the cable box hides exposed wires

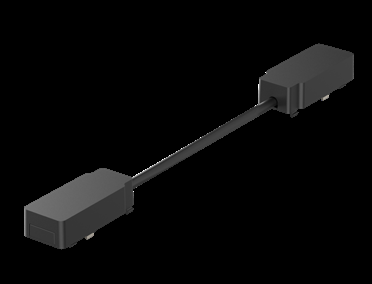

SRMK / ZJ / RJ

Conductive Modules

Power and splicing modules: input module for external transformers, I-type module for straight splicing, L-type module for corner splicing.

System component

View specifications

Power and splicing modules: input module for external transformers, I-type module for straight splicing, L-type module for corner splicing.

Product Codes	SRMK / ZJ / RJ
SRMK Input Module	Energizes the track when an external transformer is used
ZJ I-Type Module	Straight splicing of suspended or embedded tracks
RJ L-Type Module	Corner splicing of suspended or embedded tracks

Linear grille & flood lights

Fixed and folding formats for concentrated or wider light distribution.

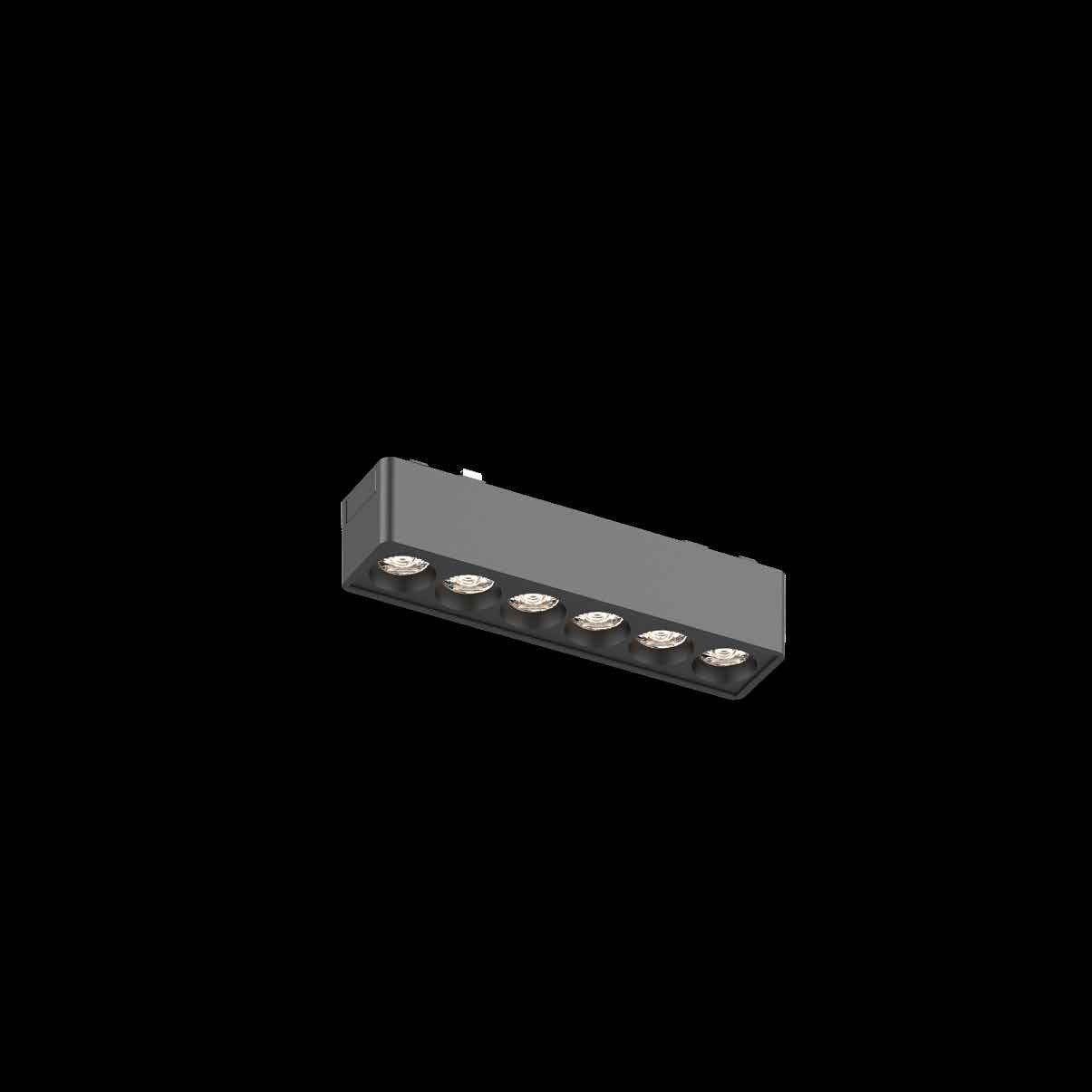

Linear Grille Light

6W · 24° · 122 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear grille light with anti-glare lens, for ultra-thin magnetic linear track.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	122 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

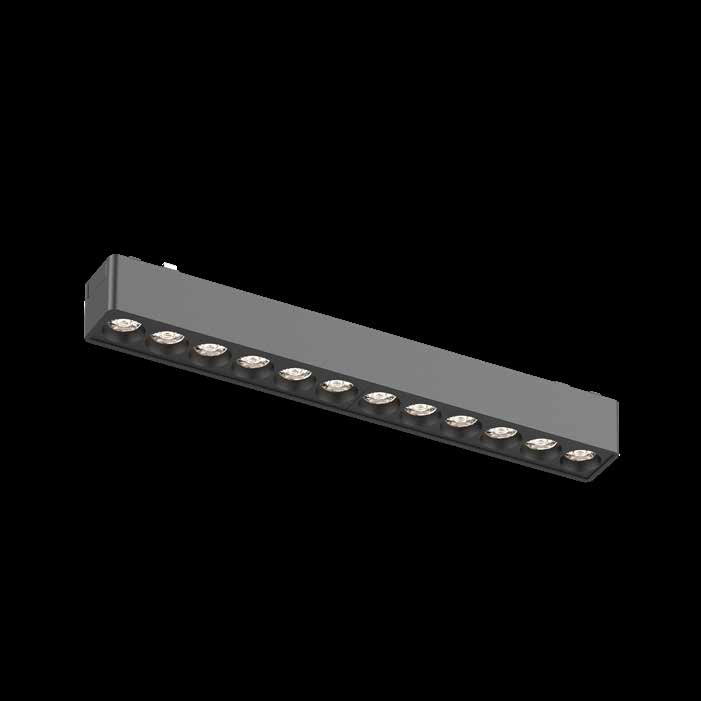

12T

Linear Grille Light

12W · 24° · 230 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear grille light with anti-glare lens, for ultra-thin magnetic linear track.

Wattage	12W
CRI	Ra90
Voltage	DC 48V
Dimensions	230 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

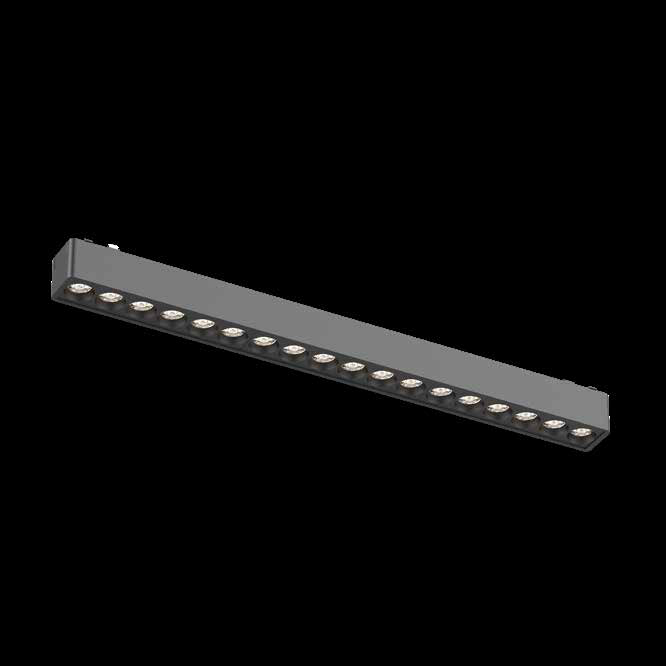

18T

Linear Grille Light

18W · 24° · 338 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear grille light with anti-glare lens, for ultra-thin magnetic linear track.

Wattage	18W
CRI	Ra90
Voltage	DC 48V
Dimensions	338 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

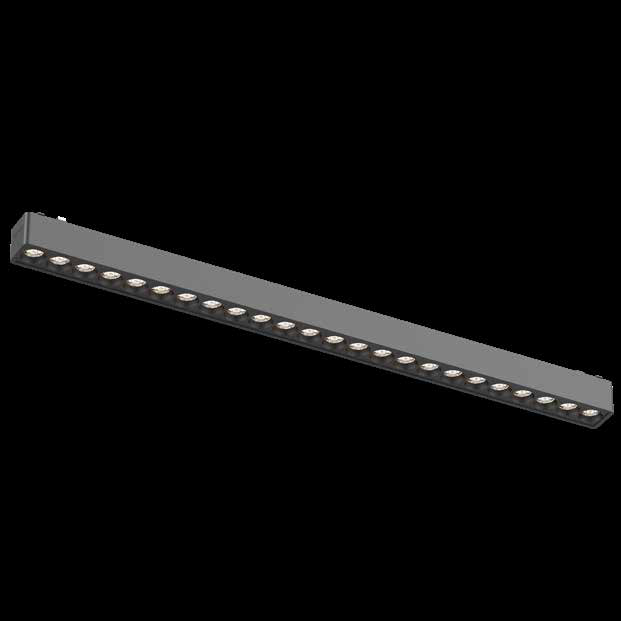

24T

Linear Grille Light

24W · 24° · 445 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear grille light with anti-glare lens, for ultra-thin magnetic linear track.

Wattage	24W
CRI	Ra90
Voltage	DC 48V
Dimensions	445 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

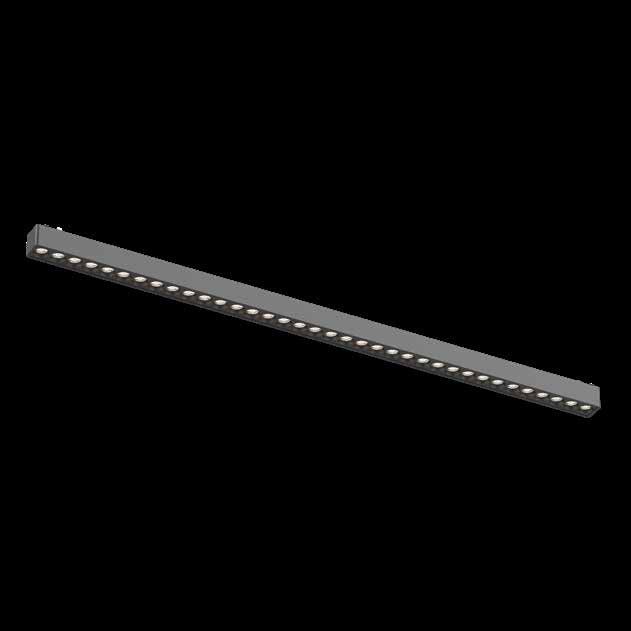

30T

Linear Grille Light

30W · 24° · 555 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear grille light with anti-glare lens, for ultra-thin magnetic linear track.

Wattage	30W
CRI	Ra90
Voltage	DC 48V
Dimensions	555 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

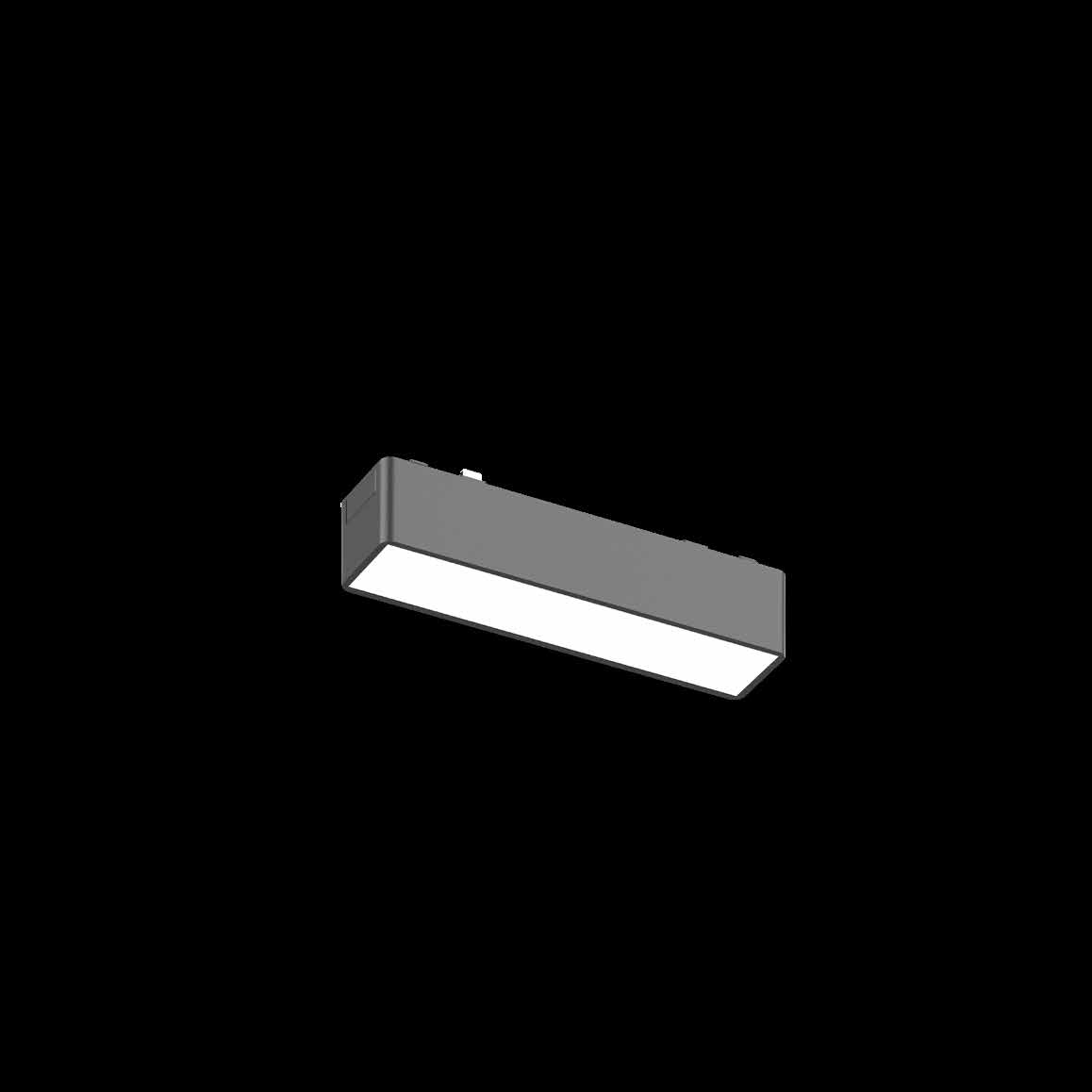

Linear Flood Light

5W · 150° · 122 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear flood light for even ambient washing on the ultra-thin magnetic linear track.

Wattage	5W
CRI	Ra90
Voltage	DC 48V
Dimensions	122 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

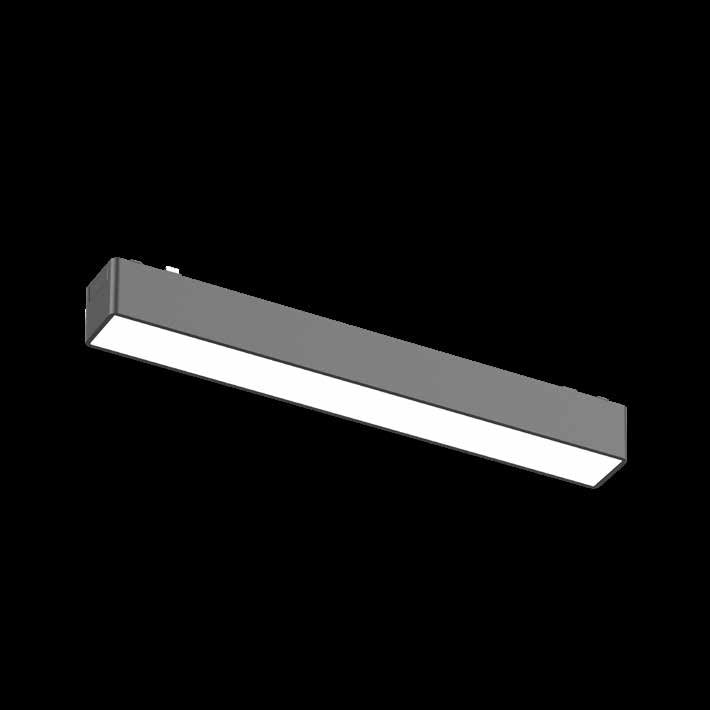

12F

Linear Flood Light

10W · 150° · 230 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear flood light for even ambient washing on the ultra-thin magnetic linear track.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	230 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

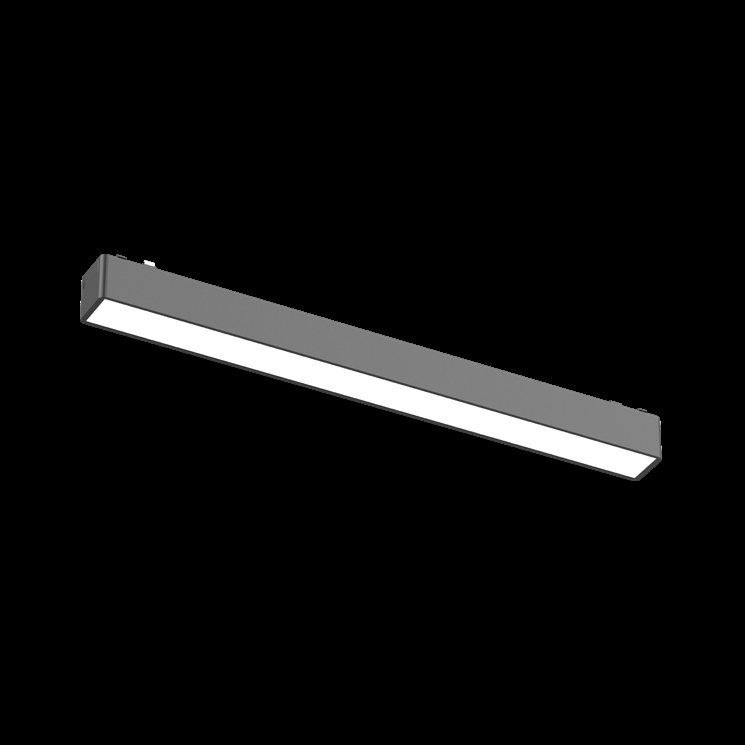

300F

Linear Flood Light

10W · 150° · 315 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear flood light for even ambient washing on the ultra-thin magnetic linear track.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	315 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

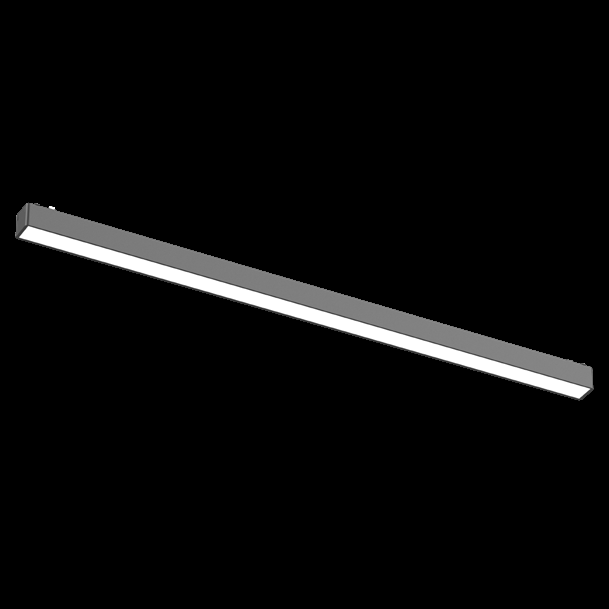

600F

Linear Flood Light

20W · 150° · 615 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear flood light for even ambient washing on the ultra-thin magnetic linear track.

Wattage	20W
CRI	Ra90
Voltage	DC 48V
Dimensions	615 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

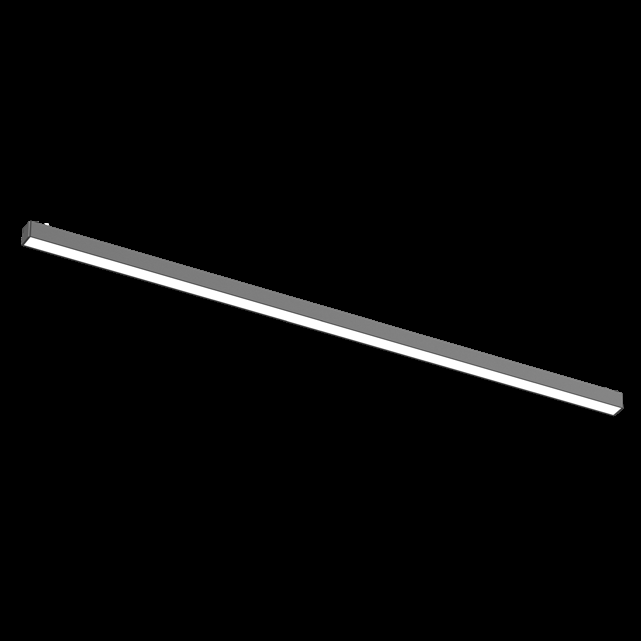

900F

Linear Flood Light

30W · 150° · 915 × 26 × 24 mm

Rigid track / woven track with buckle

View specifications

MT26 linear flood light for even ambient washing on the ultra-thin magnetic linear track.

Wattage	30W
CRI	Ra90
Voltage	DC 48V
Dimensions	915 × 26 × 24 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

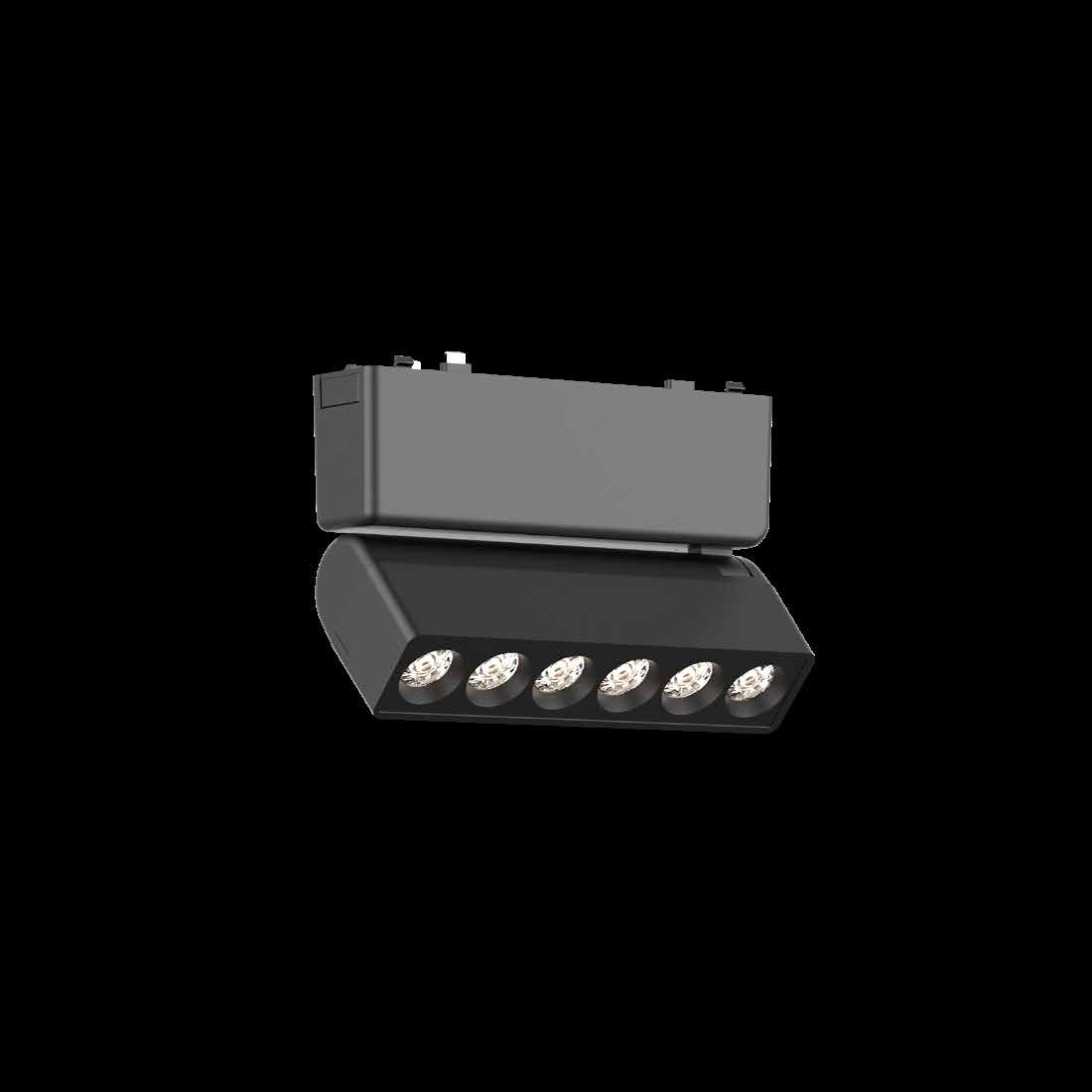

ZD-6T

Folding Grille Light

6W · 24° · 122 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Foldable linear grille light with adjustable beam direction.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	122 × 26 × 80 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

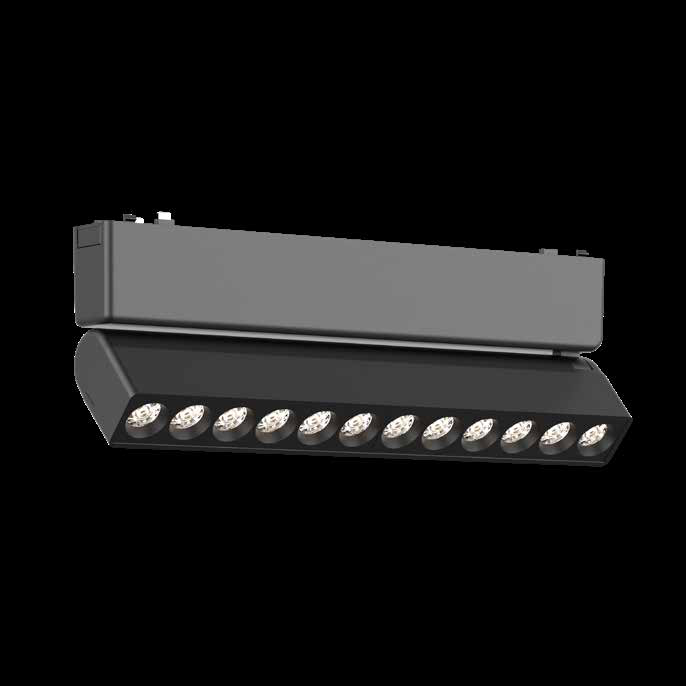

ZD-12T

Folding Grille Light

12W · 24° · 230 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Foldable linear grille light with adjustable beam direction.

Wattage	12W
CRI	Ra90
Voltage	DC 48V
Dimensions	230 × 26 × 80 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

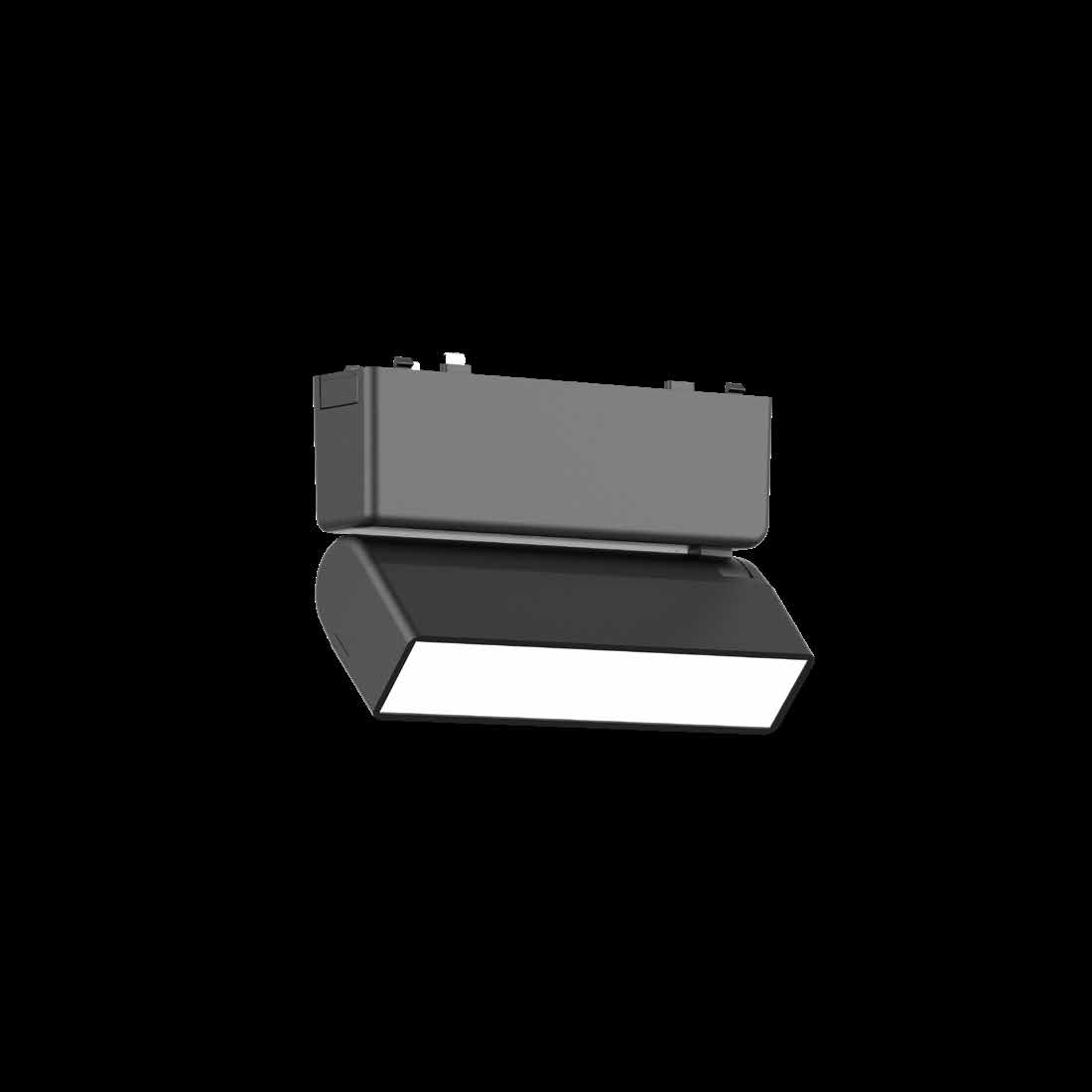

ZD-6F

Folding Flood Light

5W · 150° · 122 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Foldable linear flood light with adjustable beam direction.

Wattage	5W
CRI	Ra90
Voltage	DC 48V
Dimensions	122 × 26 × 80 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

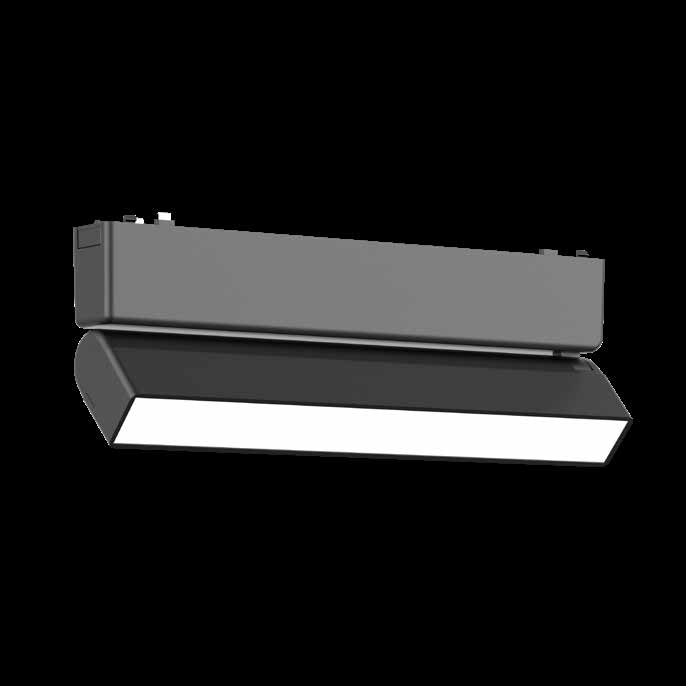

ZD-12F

Folding Flood Light

10W · 150° · 230 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Foldable linear flood light with adjustable beam direction.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	230 × 26 × 80 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

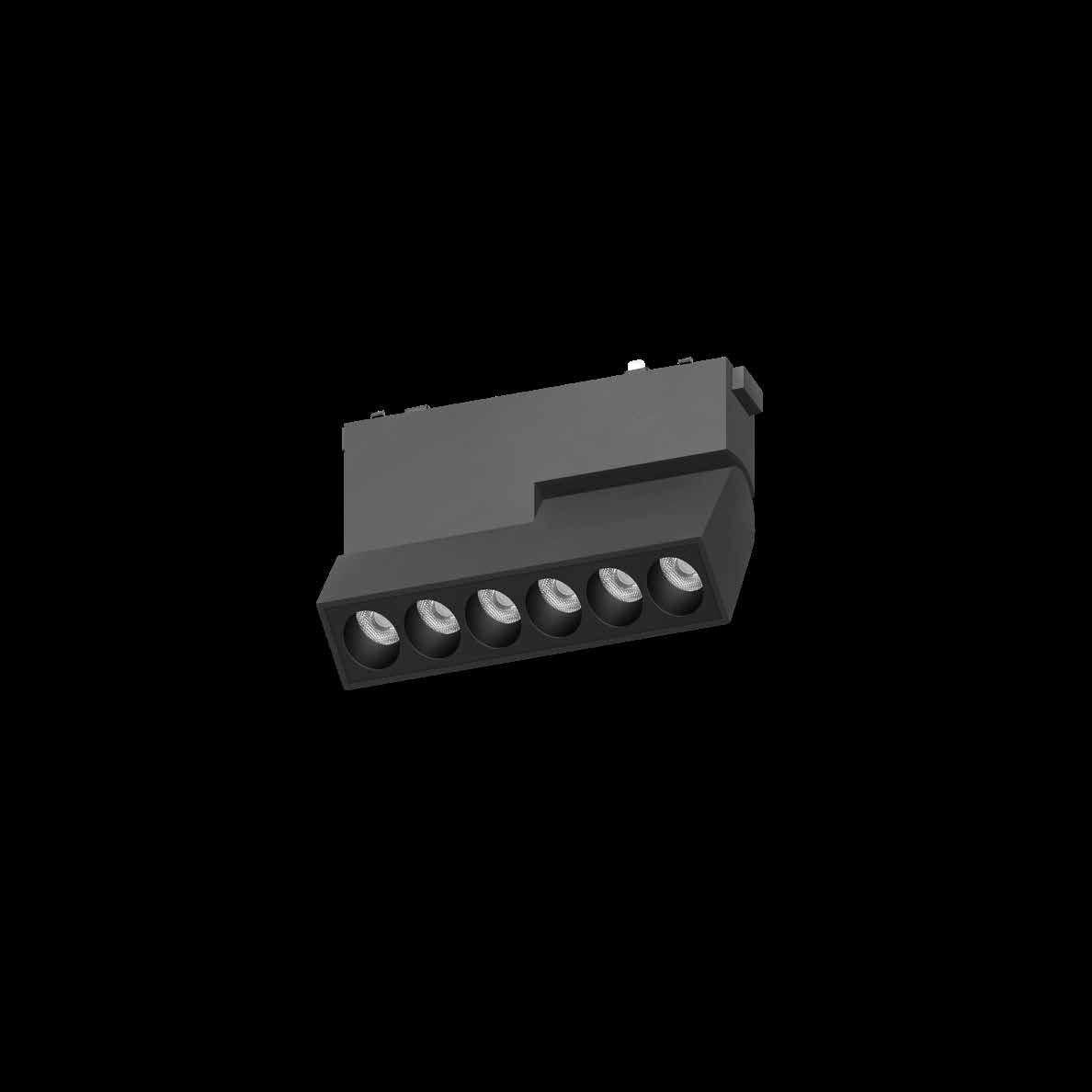

ZDYZ-6T

Die-Cast Folding Grille Light

10W · 24° · 122 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Die-cast aluminum folding grille light with adjustable beam direction.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	122 × 26 × 80 mm
Material	Aluminum
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

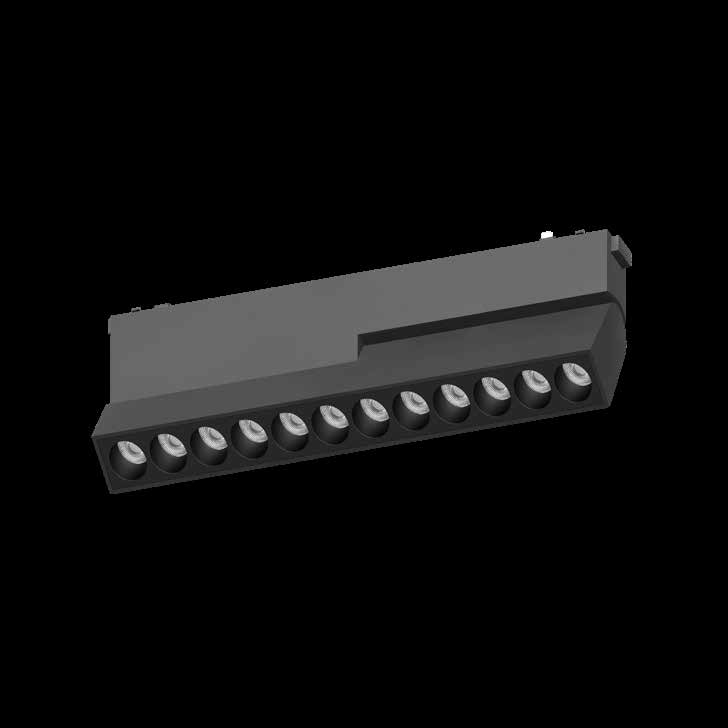

ZDYZ-12T

Die-Cast Folding Grille Light

20W · 24° · 230 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Die-cast aluminum folding grille light with adjustable beam direction.

Wattage	20W
CRI	Ra90
Voltage	DC 48V
Dimensions	230 × 26 × 80 mm
Material	Aluminum
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

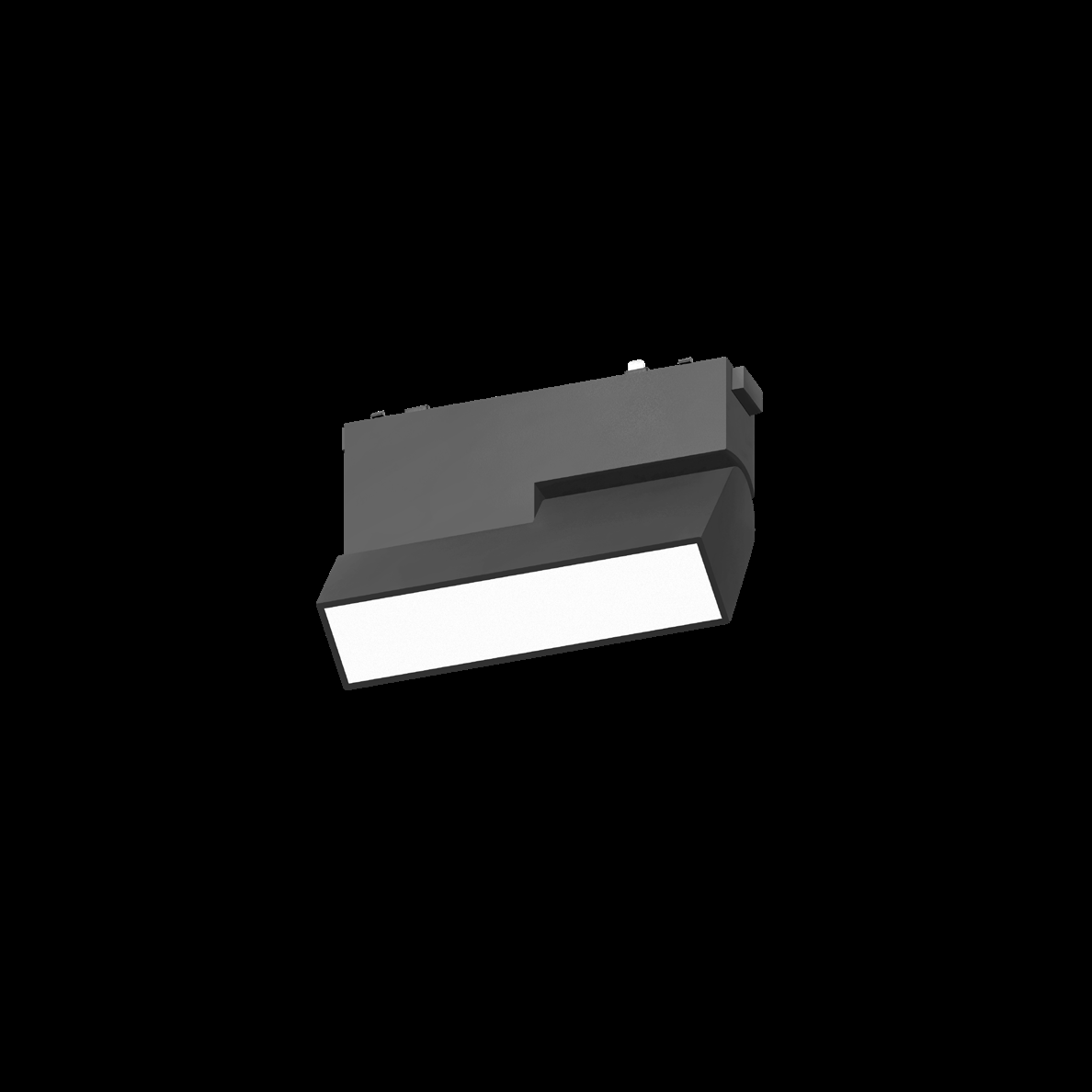

ZDYZ-6F

Die-Cast Folding Flood Light

10W · 150° · 122 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Die-cast aluminum folding flood light with adjustable beam direction.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	122 × 26 × 80 mm
Material	Aluminum
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

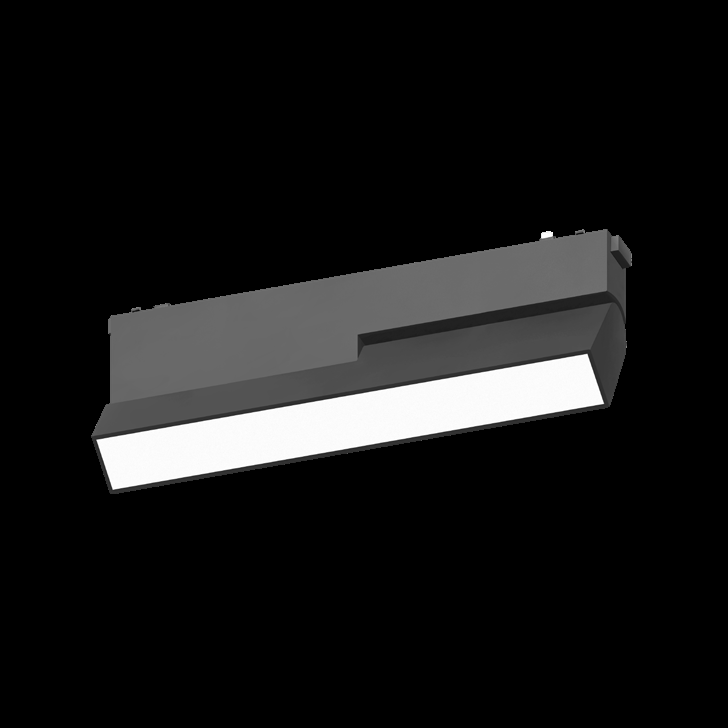

ZDYZ-12F

Die-Cast Folding Flood Light

20W · 150° · 230 × 26 × 80 mm

Rigid track / woven track with buckle

View specifications

Die-cast aluminum folding flood light with adjustable beam direction.

Wattage	20W
CRI	Ra90
Voltage	DC 48V
Dimensions	230 × 26 × 80 mm
Material	Aluminum
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

Track spotlights

Round, square, adjustable and multi-head formats with model-specific beam angles.

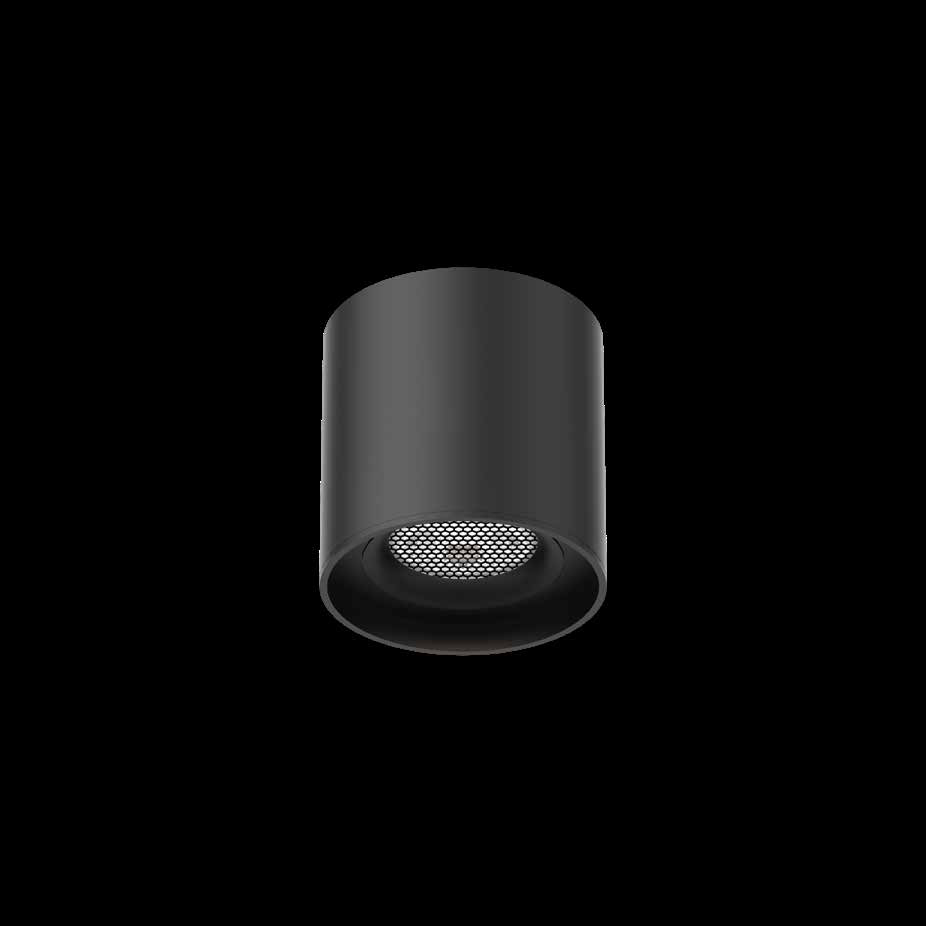

Y80

Round Spot Light

6W · 24° · Φ75 × 75 mm

Rigid track / woven track with buckle

View specifications

Compact round magnetic spot light for the MT26 track system.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ75 × 75 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

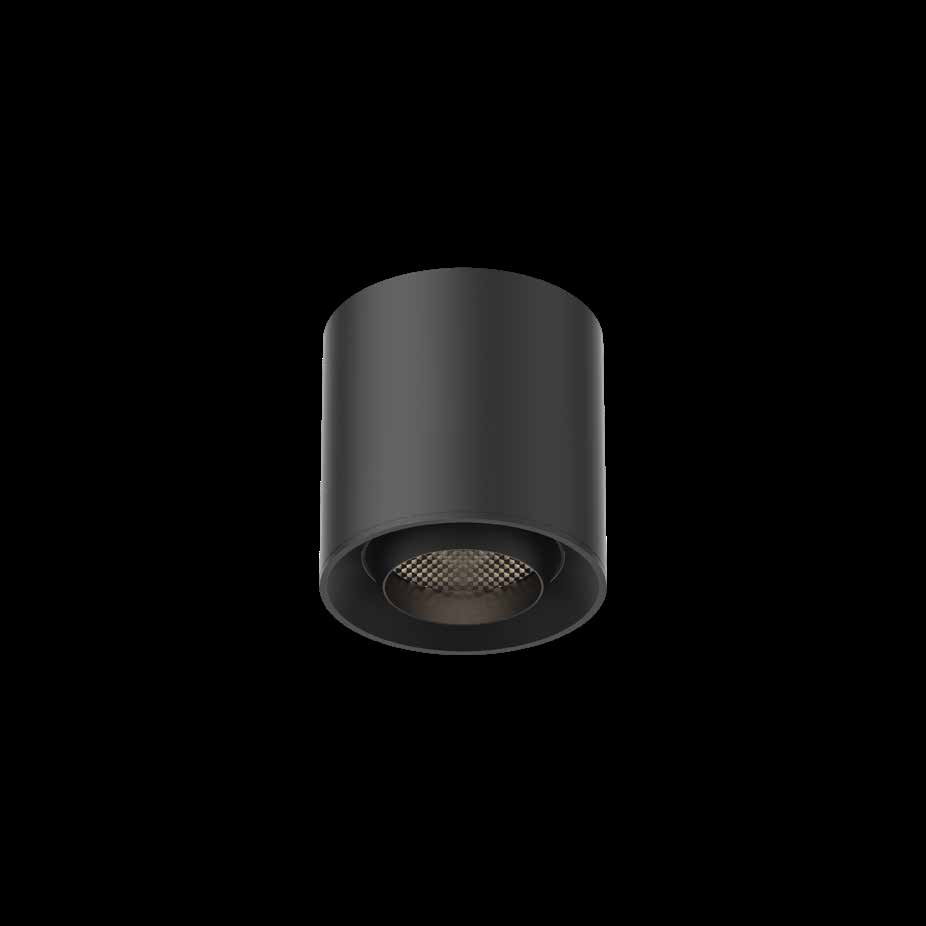

YT80

Adjustable Round Spot Light

6W · 24° · Φ75 × 75 mm

Rigid track / woven track with buckle

View specifications

Round magnetic spot light with adjustable head for flexible aiming.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ75 × 75 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

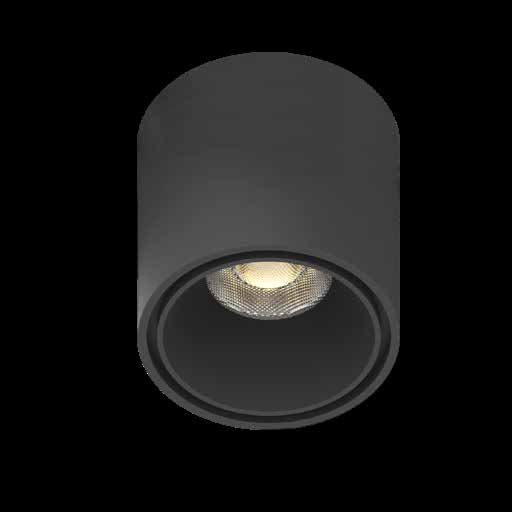

Y62

Round Spot Light

6W · 24° · Φ62 × 67 mm

Rigid track / woven track with buckle

View specifications

Compact round magnetic spot light for the MT26 track system.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ62 × 67 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

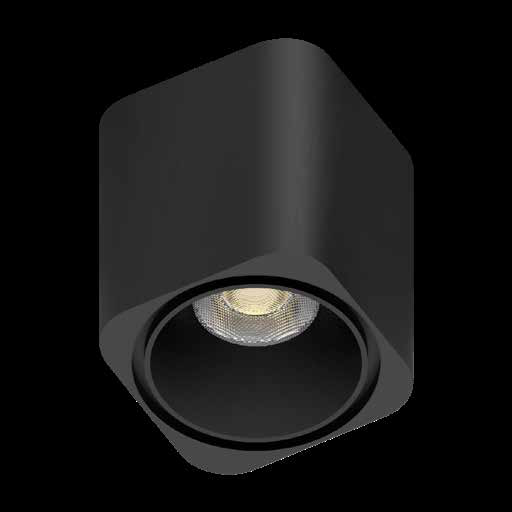

F62

Square Spot Light

6W · 24° · 62 × 62 × 67 mm

Rigid track / woven track with buckle

View specifications

Compact square magnetic spot light for the MT26 track system.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	62 × 62 × 67 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

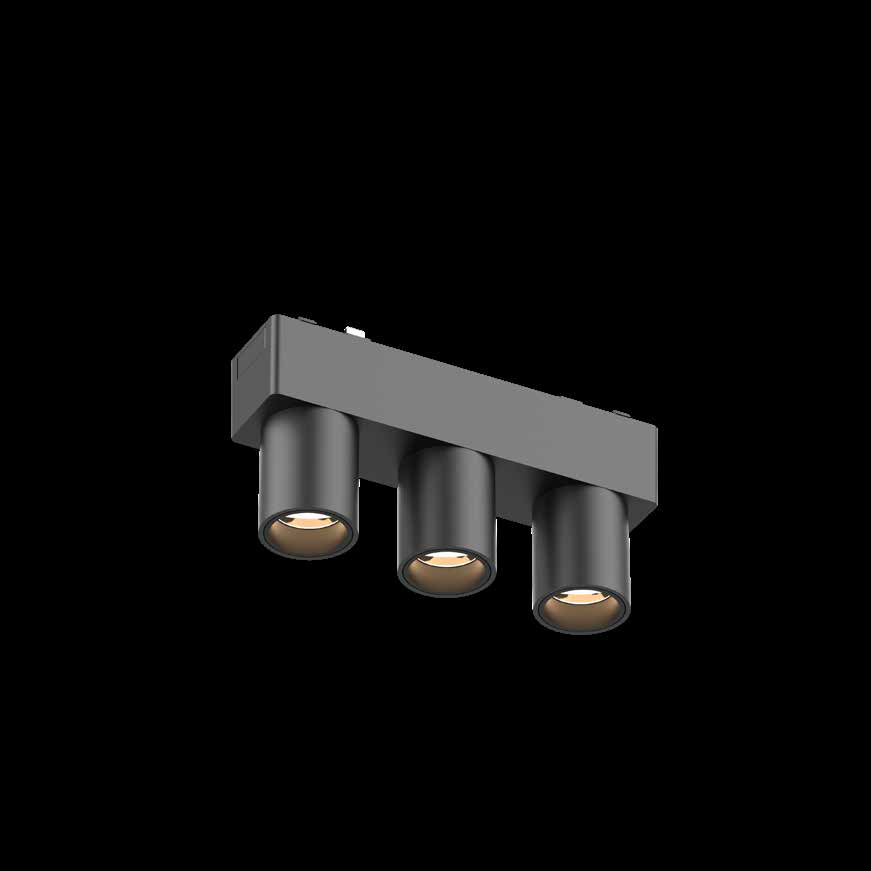

3TY

Grille Spot Light

6W · 24° · 122 × 26 × 55 mm

Rigid track / woven track with buckle

View specifications

Linear magnetic grille spot light with precise accent lighting.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	122 × 26 × 55 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

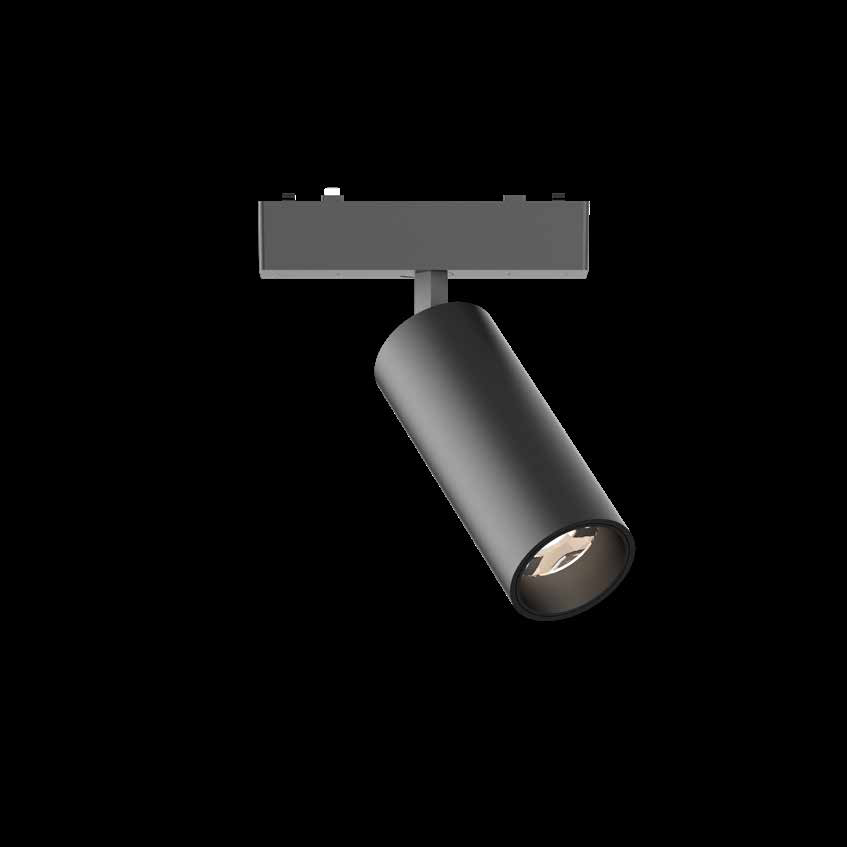

T44

Track Spot Light

9W · 24° · 44 × 110 mm

Rigid track / woven track with buckle

View specifications

Slim cylinder track spot light for the MT26 track system.

Wattage	9W
CRI	Ra90
Voltage	DC 48V
Dimensions	44 × 110 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

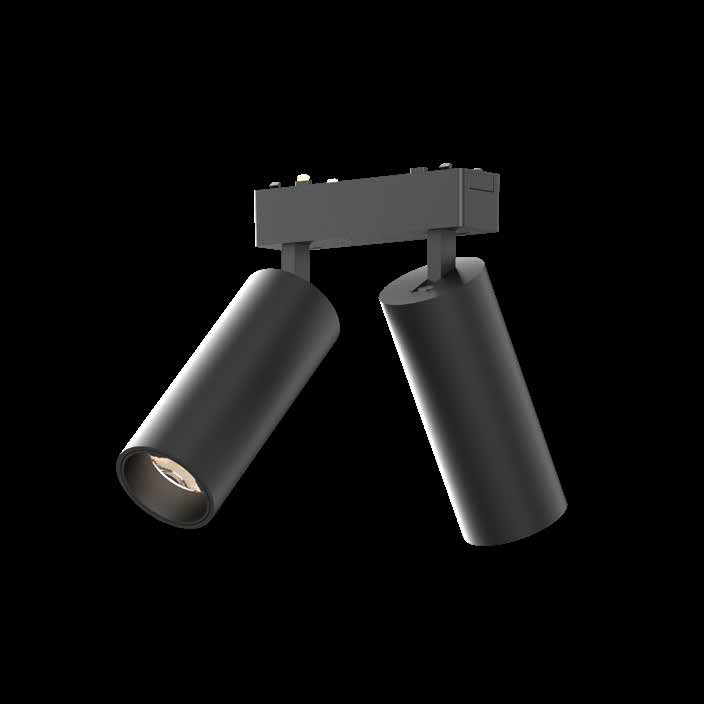

T44-2

Double-Head Track Spot Light

9W × 2 · 24° · 44 × 110 mm

Rigid track / woven track with buckle

View specifications

Double-head cylinder track spot light for dual-direction accent lighting.

Wattage	9W × 2
CRI	Ra90
Voltage	DC 48V
Dimensions	44 × 110 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

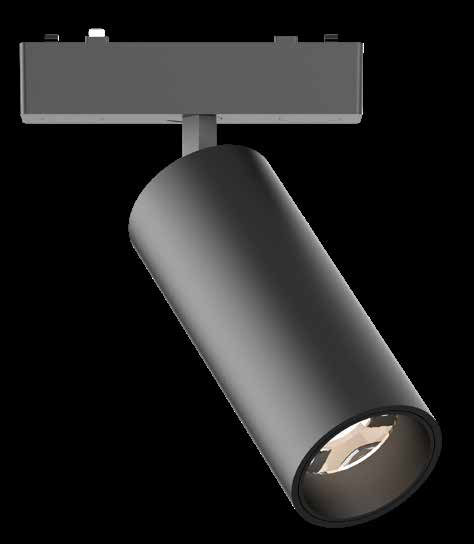

T55

Track Spot Light

18W · 24° · 55 × 135 mm

Rigid track / woven track with buckle

View specifications

Cylinder track spot light for the MT26 track system.

Wattage	18W
CRI	Ra90
Voltage	DC 48V
Dimensions	55 × 135 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

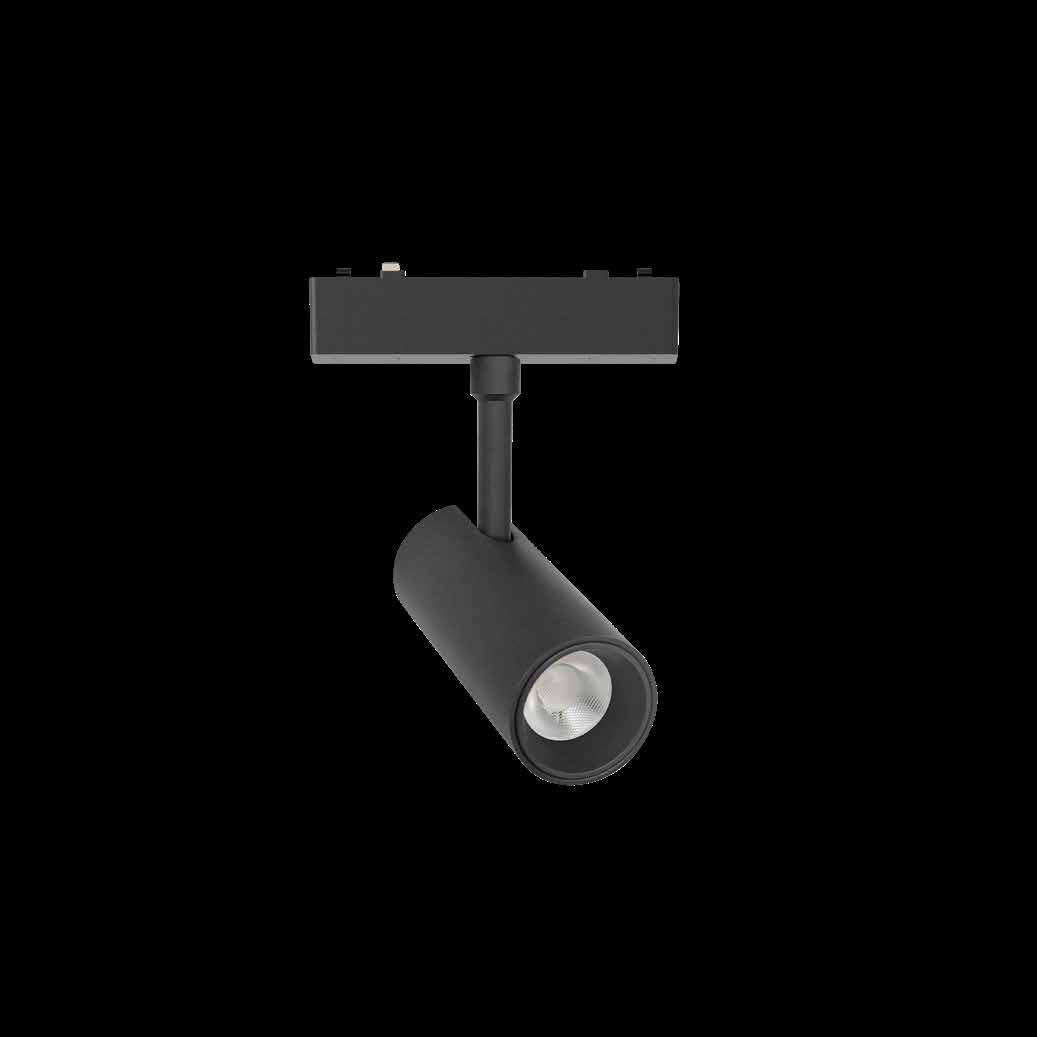

035

Track Light

6W · 24° 36° · 35 × 80 mm

Rigid track / woven track with buckle

View specifications

Magnetic track light with selectable beam angle.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	35 × 80 mm
Material	Aluminum + Plastic
Beam Angle	24° 36°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

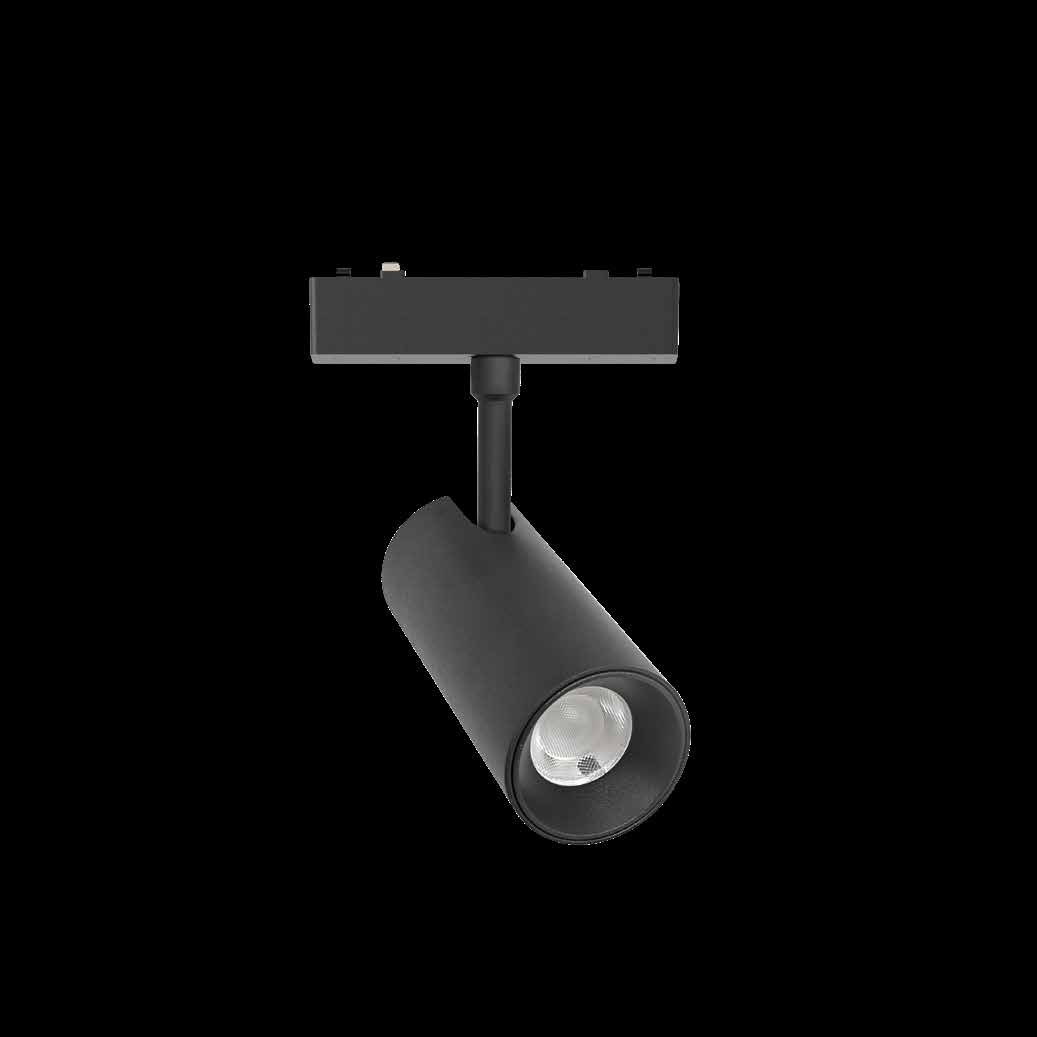

045

Track Light

10W · 24° 36° · 45 × 100 mm

Rigid track / woven track with buckle

View specifications

Magnetic track light with selectable beam angle.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	45 × 100 mm
Material	Aluminum + Plastic
Beam Angle	24° 36°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

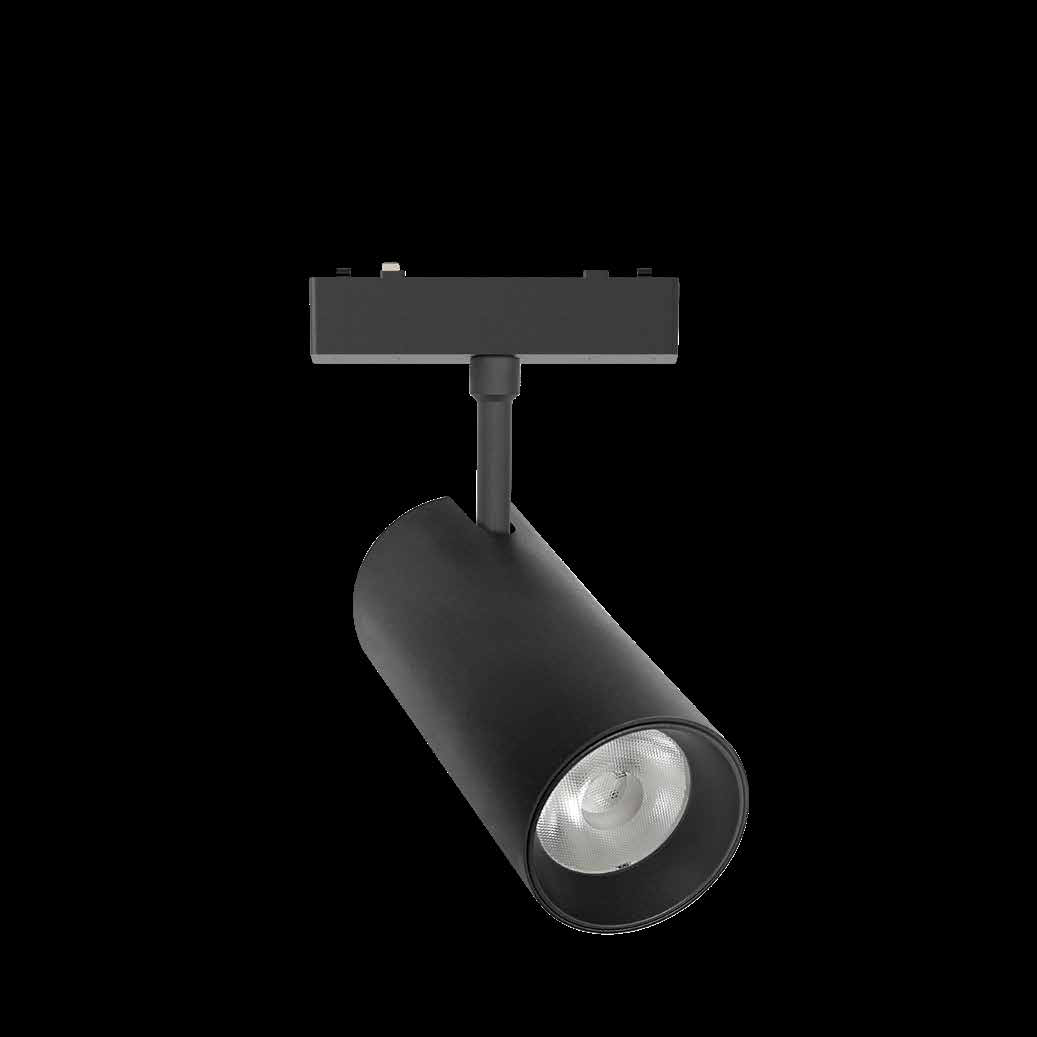

055

Track Light

18W · 24° 36° · 55 × 120 mm

Rigid track / woven track with buckle

View specifications

Magnetic track light with selectable beam angle.

Wattage	18W
CRI	Ra90
Voltage	DC 48V
Dimensions	55 × 120 mm
Material	Aluminum + Plastic
Beam Angle	24° 36°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

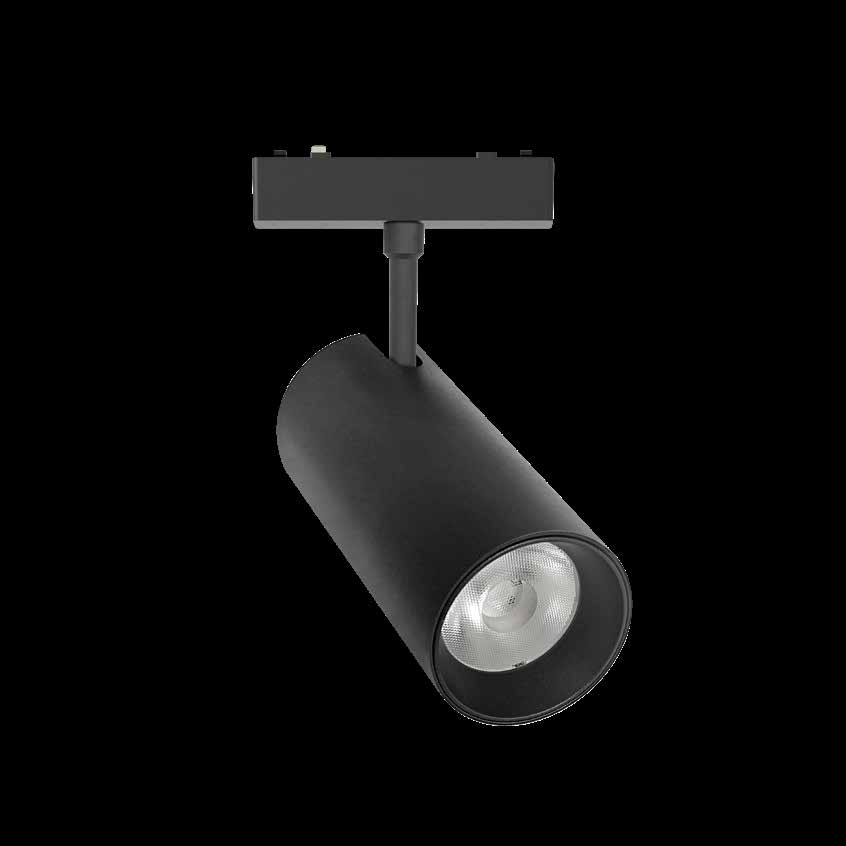

065

Track Light

24W · 24° 36° · 65 × 140 mm

Rigid track / woven track with buckle

View specifications

Magnetic track light with selectable beam angle.

Wattage	24W
CRI	Ra90
Voltage	DC 48V
Dimensions	65 × 140 mm
Material	Aluminum + Plastic
Beam Angle	24° 36°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

Card dimension: 65 × 140 mm. Catalogue page 78 shows 65 / 140 mm in the drawing but 55 × 120 mm in the specification text. Confirm the approved drawing.

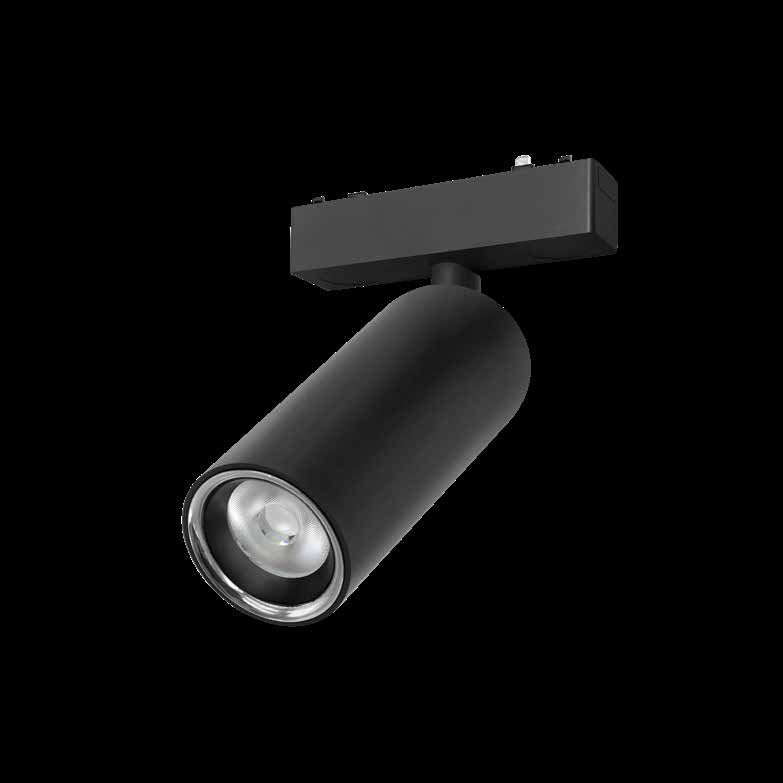

U045

U-Bar Track Light

12W · 24° · 45 × 110 mm

Rigid track / woven track with buckle

View specifications

U-bar magnetic track light with modern industrial look.

Wattage	12W
CRI	Ra90
Voltage	DC 48V
Dimensions	45 × 110 mm
Material	Aluminum
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

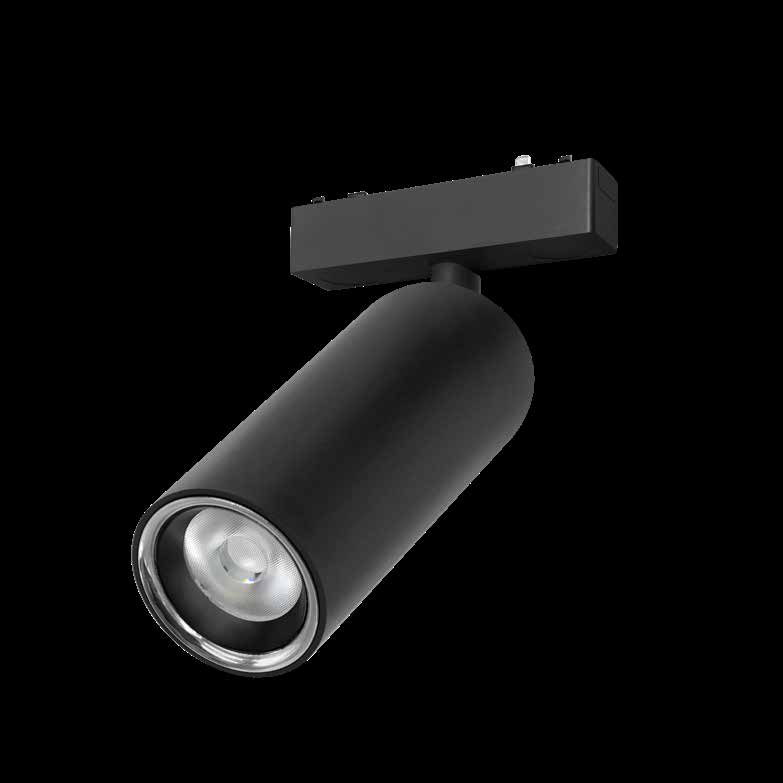

U055

U-Bar Track Light

18W · 24° · 55 × 130 mm

Rigid track / woven track with buckle

View specifications

U-bar magnetic track light with modern industrial look.

Wattage	18W
CRI	Ra90
Voltage	DC 48V
Dimensions	55 × 130 mm
Material	Aluminum
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

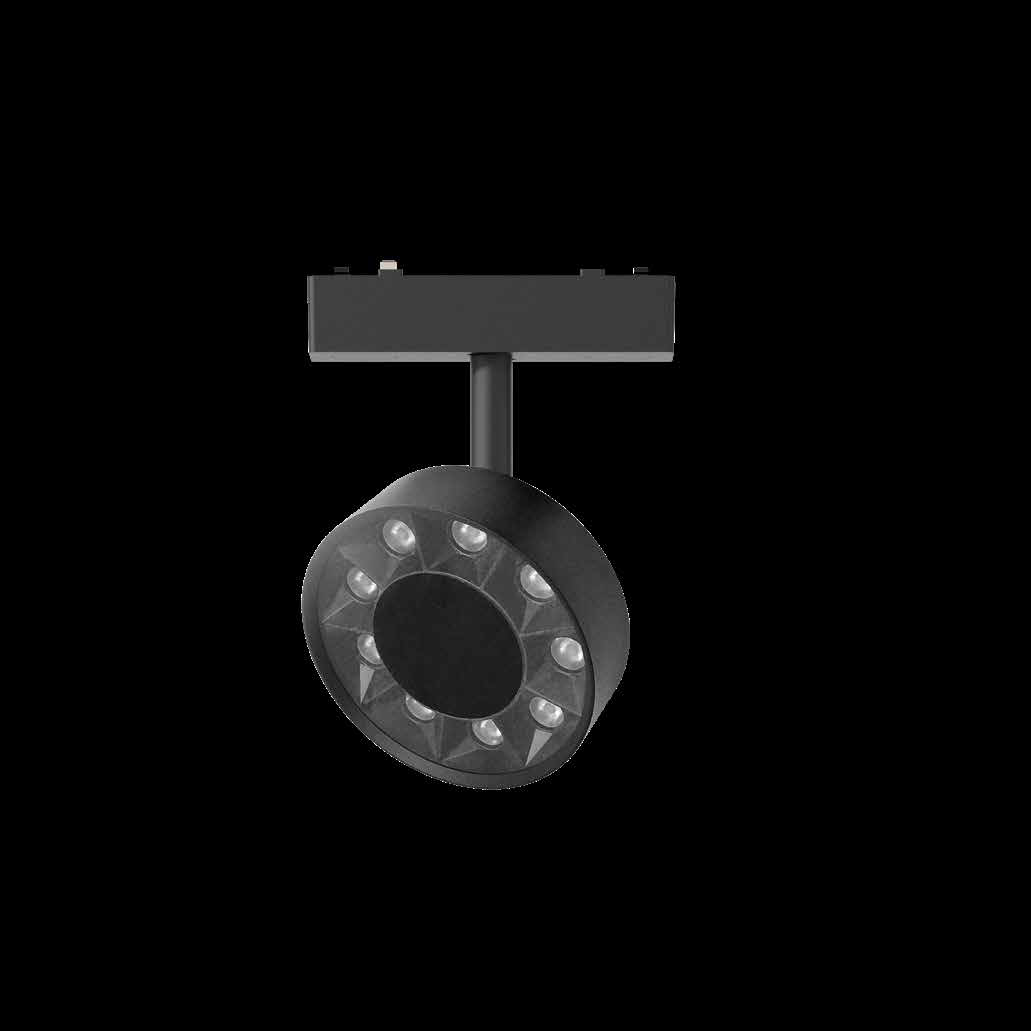

G90

Track Grille Spot Light

9W · 24° · 95 × 30 mm

Rigid track / woven track with buckle

View specifications

Rail-mounted grille spot light with anti-glare performance.

Wattage	9W
CRI	Ra90
Voltage	DC 48V
Dimensions	95 × 30 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

Card dimension: 95 × 30 mm. Catalogue page 85 labels 40 mm in the drawing; confirm the applicable dimension before ordering.

Decorative track lights

Globe, moon, earth and sculptural luminaires for a visible decorative element.

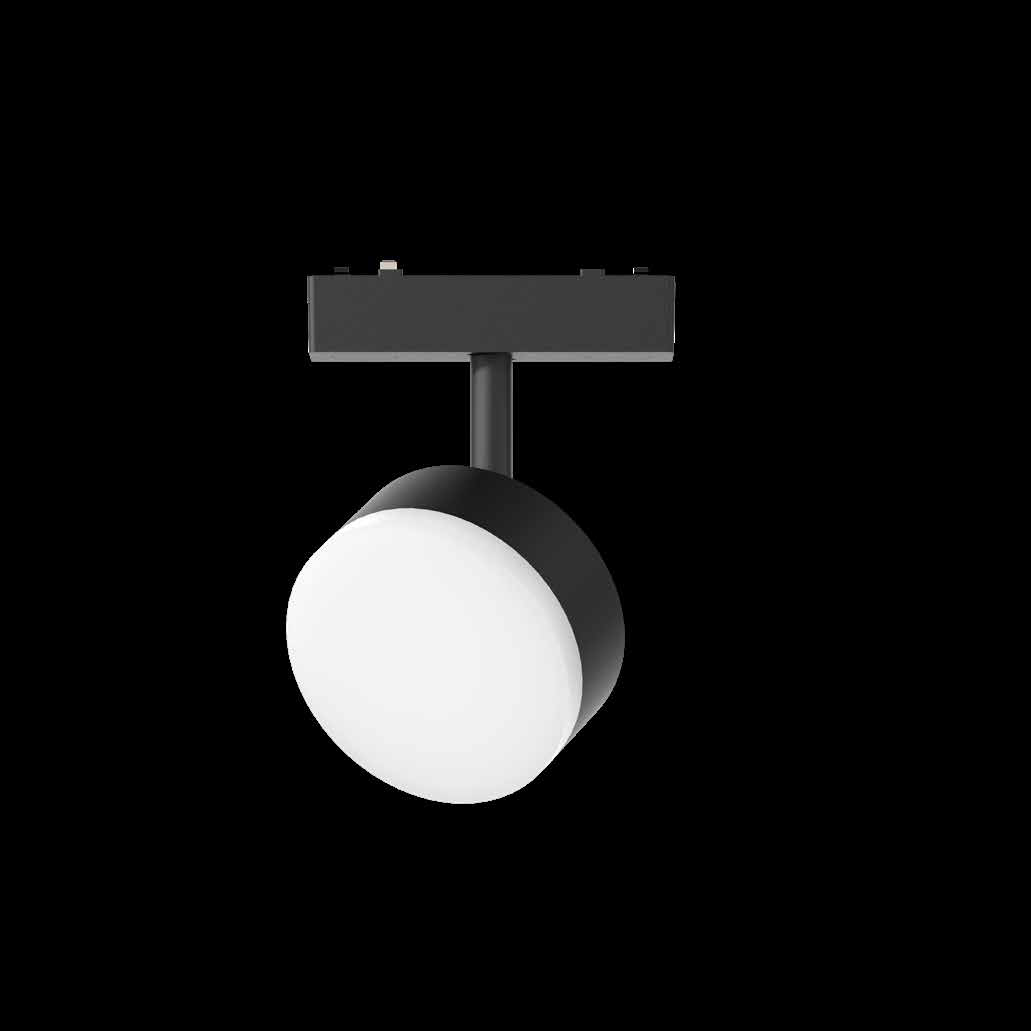

Z90

Track Soft Light

9W · 180° · 95 × 40 mm

Rigid track / woven track with buckle

View specifications

Rail-mounted soft light for diffused wall washing.

Wattage	9W
CRI	Ra90
Voltage	DC 48V
Dimensions	95 × 40 mm
Material	Aluminum + Plastic
Beam Angle	180°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

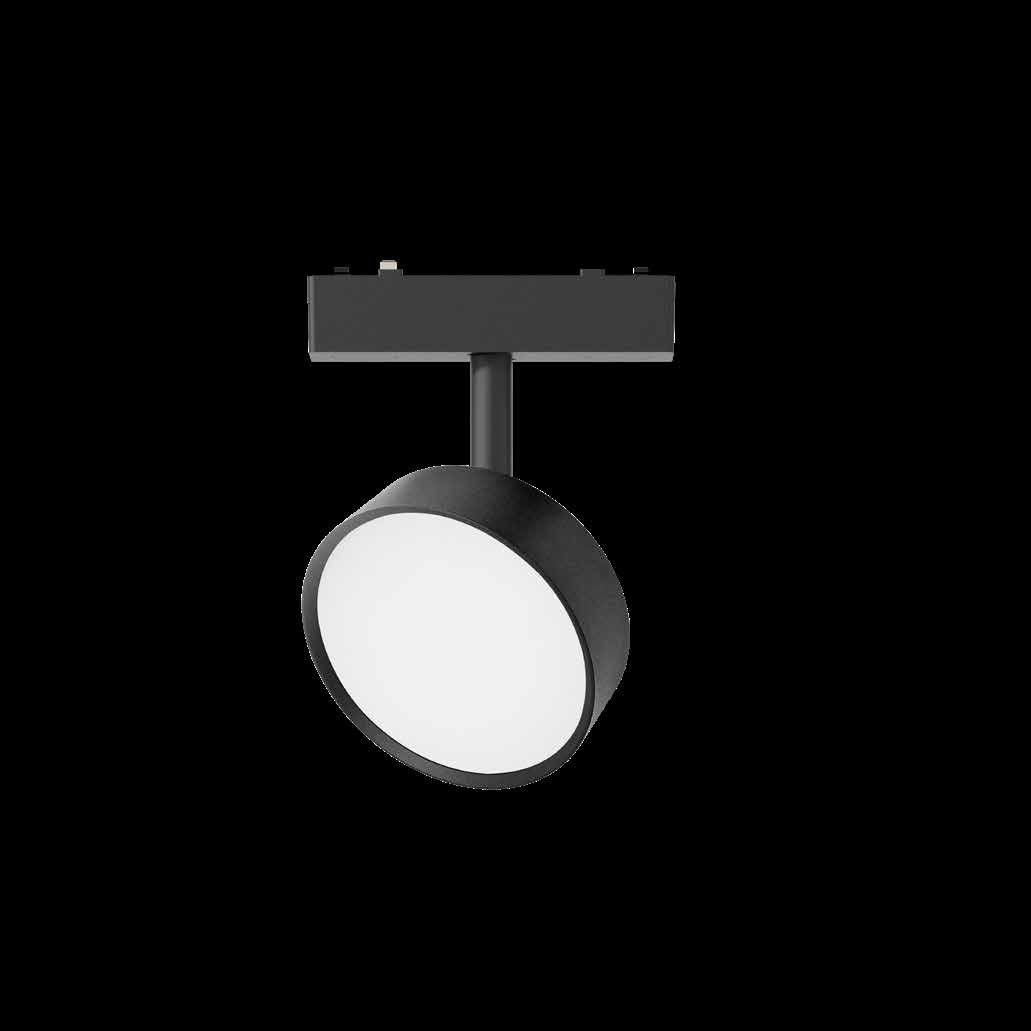

B90

Track Flood Light

9W · 150° · 95 × 30 mm

Rigid track / woven track with buckle

View specifications

Rail-mounted flood light for wide ambient lighting.

Wattage	9W
CRI	Ra90
Voltage	DC 48V
Dimensions	95 × 30 mm
Material	Aluminum + Plastic
Beam Angle	150°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

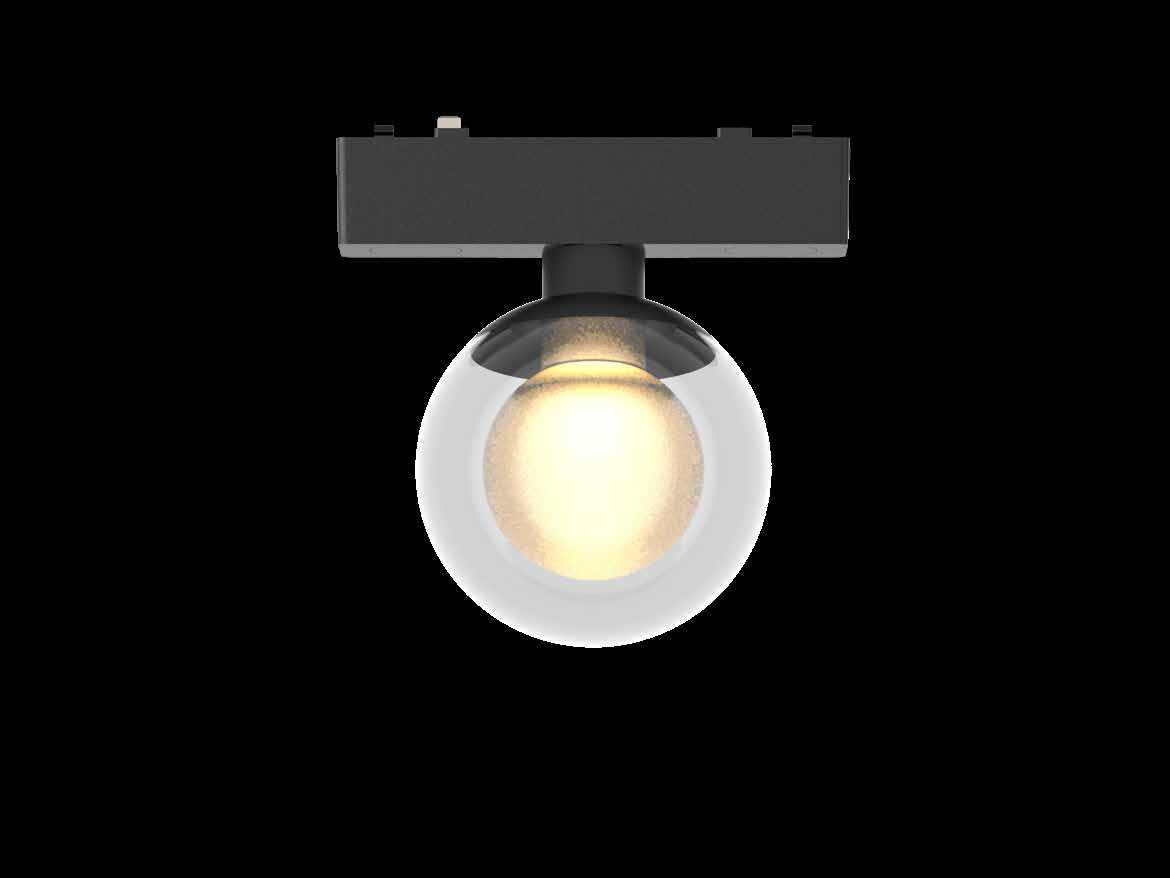

B80

Glass Bulb Lamp

6W · 80° · Φ80 × 115 mm

Rigid track / woven track with buckle

View specifications

Decorative glass bulb lamp for the MT26 track system.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ80 × 115 mm
Material	Aluminum + Glass
Beam Angle	80°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

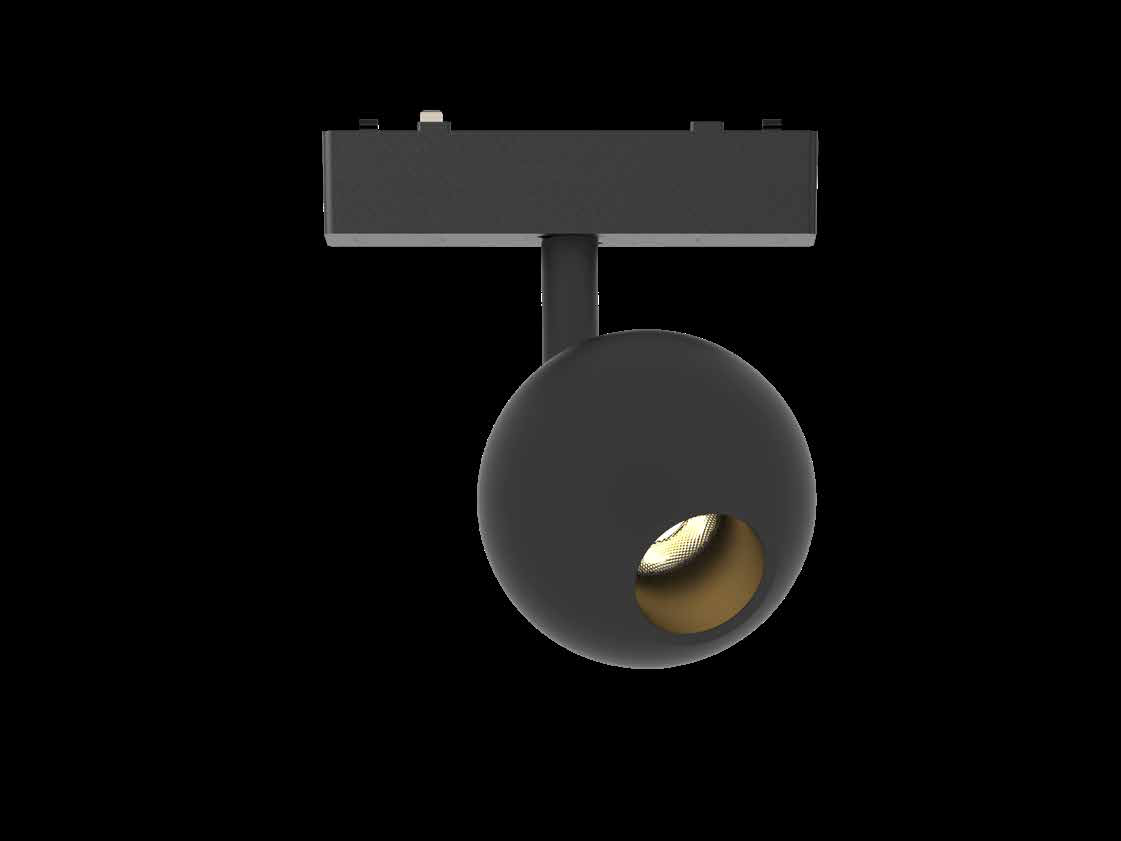

Q80

Bowling Track Light

10W · 24° · Φ80 × 148 mm

Rigid track / woven track with buckle

View specifications

Bowling-shaped decorative track light.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ80 × 148 mm
Material	Aluminum + Plastic
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

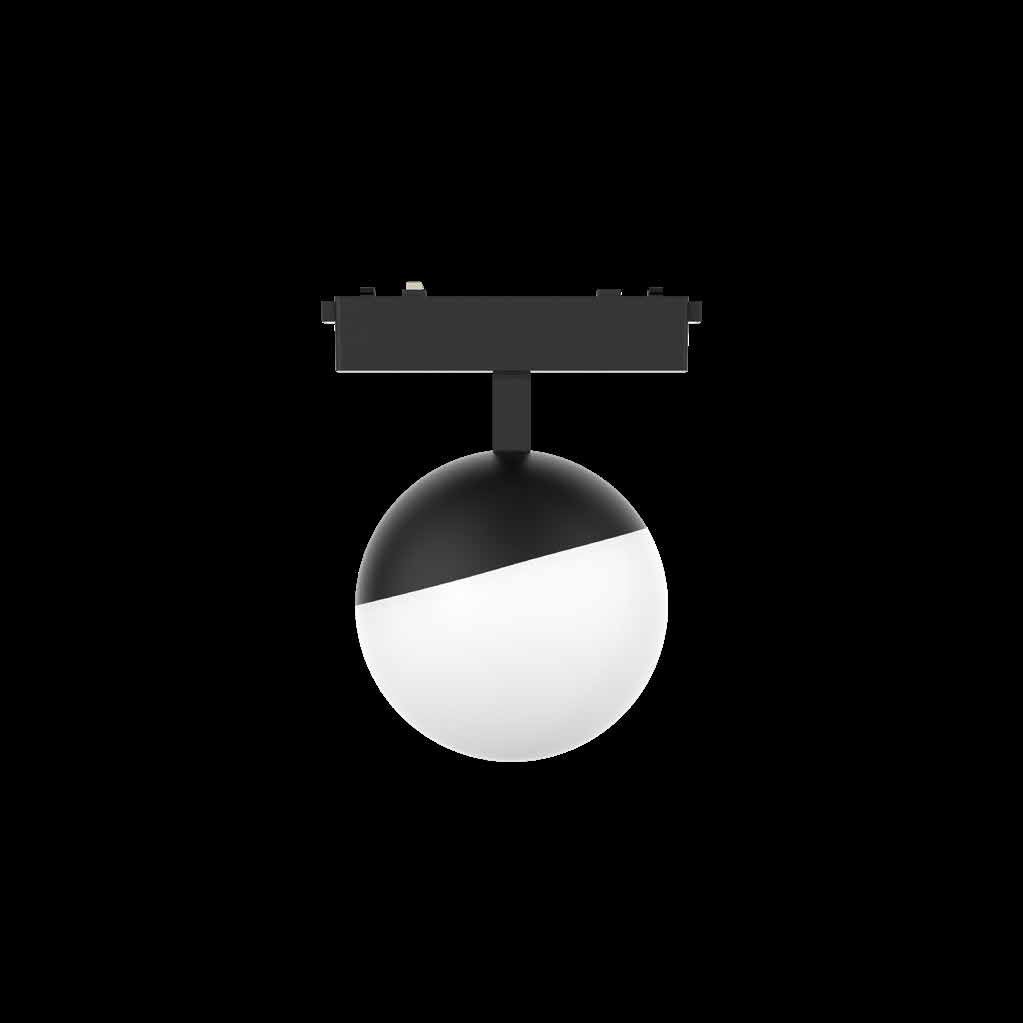

100F

Eclipse Flood Light

6W · 180° · 100 × 100 mm

Rigid track / woven track with buckle

View specifications

Eclipse-shaped rail-mounted flood light.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	100 × 100 mm
Material	Aluminum + Plastic
Beam Angle	180°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

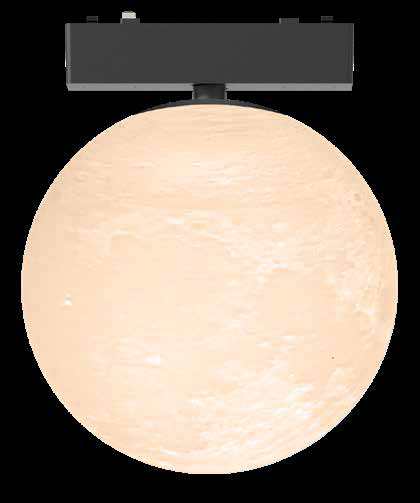

GDY150

Moon Track Light

6W · 360° · 150 × 150 mm

Rigid track / woven track with buckle

View specifications

Planet series decorative track light with glowing moon shade.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	150 × 150 mm
Material	Aluminum + Plastic
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

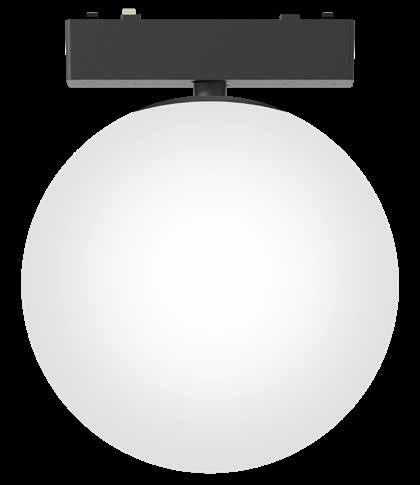

BL150

Glass Ball Track Light

9W · 360° · 150 × 150 mm

Rigid track / woven track with buckle

View specifications

Planet series decorative track light with glass ball shade.

Wattage	9W
CRI	Ra90
Voltage	DC 48V
Dimensions	150 × 150 mm
Material	Aluminum + Plastic
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

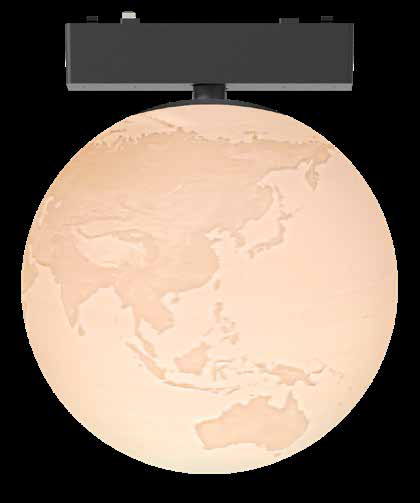

GDD150

Earth Track Light

6W · 360° · 150 × 150 mm

Rigid track / woven track with buckle

View specifications

Planet series decorative track light with earth-pattern shade.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	150 × 150 mm
Material	Aluminum + Plastic
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

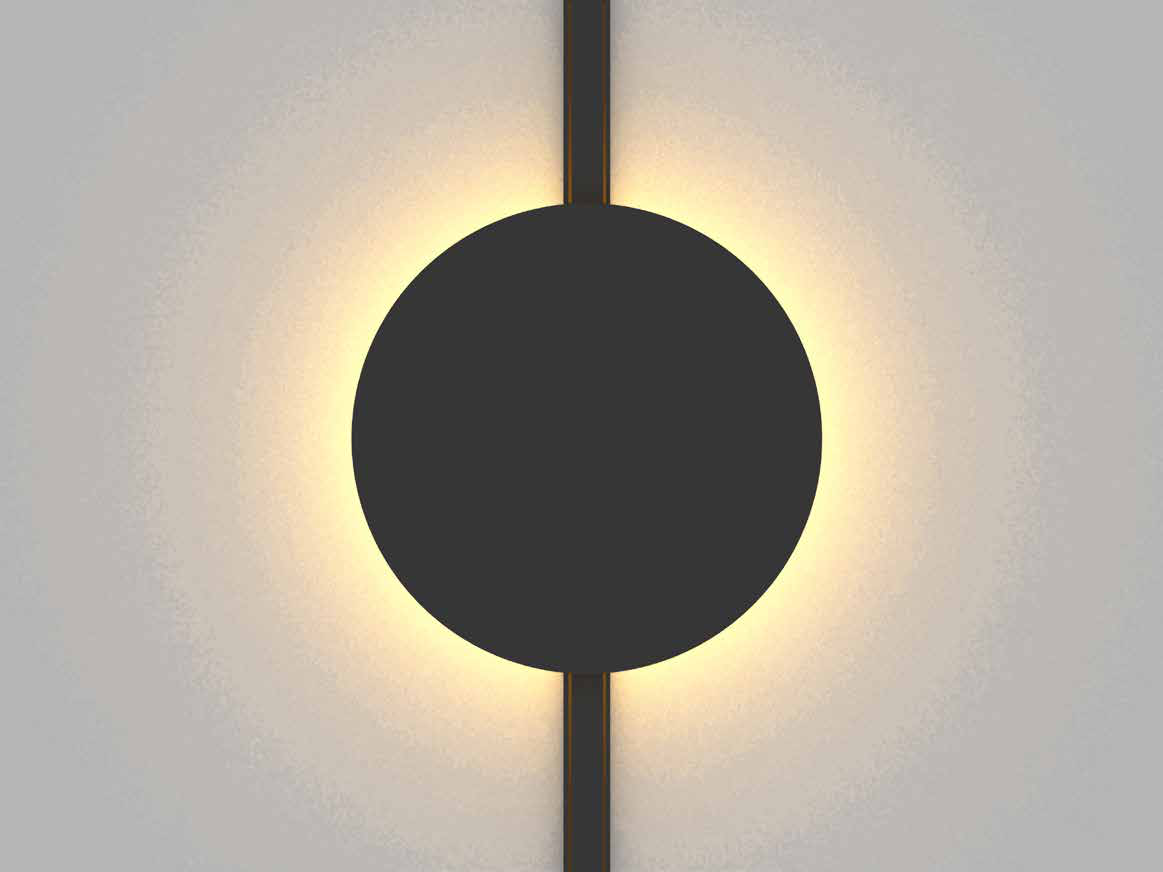

YSBD

Eclipse Lamp

9W · 80° · Φ168 × 48 mm

Rigid track / woven track with buckle

View specifications

Eclipse-shaped decorative lamp for the MT26 track system.

Wattage	9W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ168 × 48 mm
Material	Aluminum + Plastic
Beam Angle	80°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

Pendant lights

Suspended luminaires in straight, dome, globe and eclipse designs.

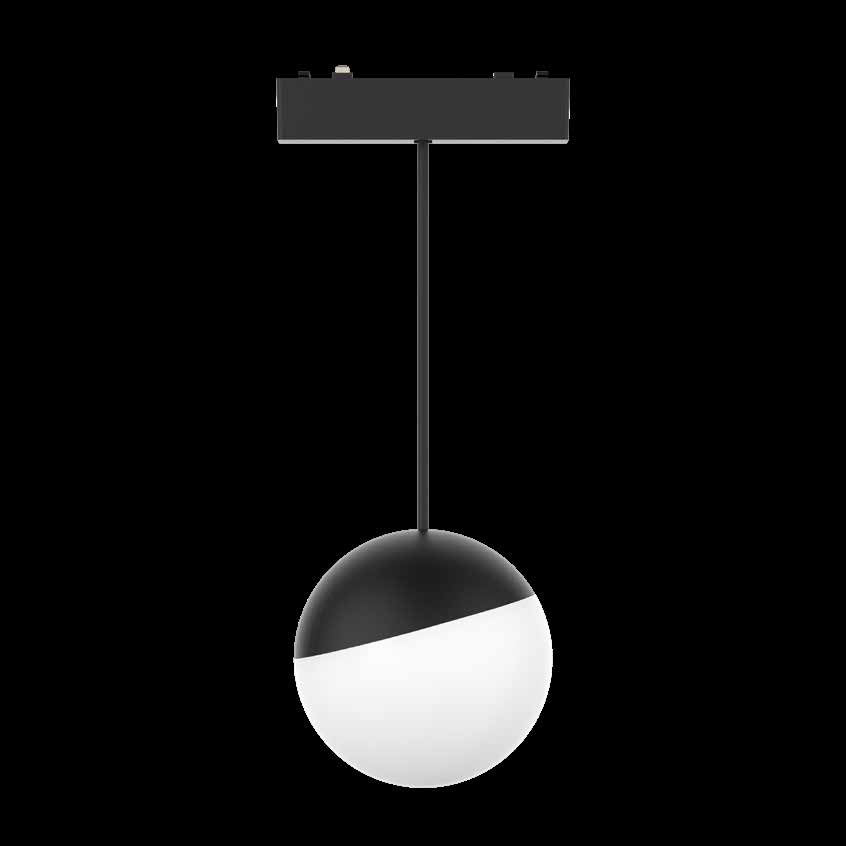

D100F

Pendant Eclipse Flood Light

6W · 180° · 100 × 100 mm

Rigid track / woven track with buckle

View specifications

Suspended eclipse-shaped flood light for the MT26 system.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	100 × 100 mm
Material	Aluminum + Plastic
Beam Angle	180°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

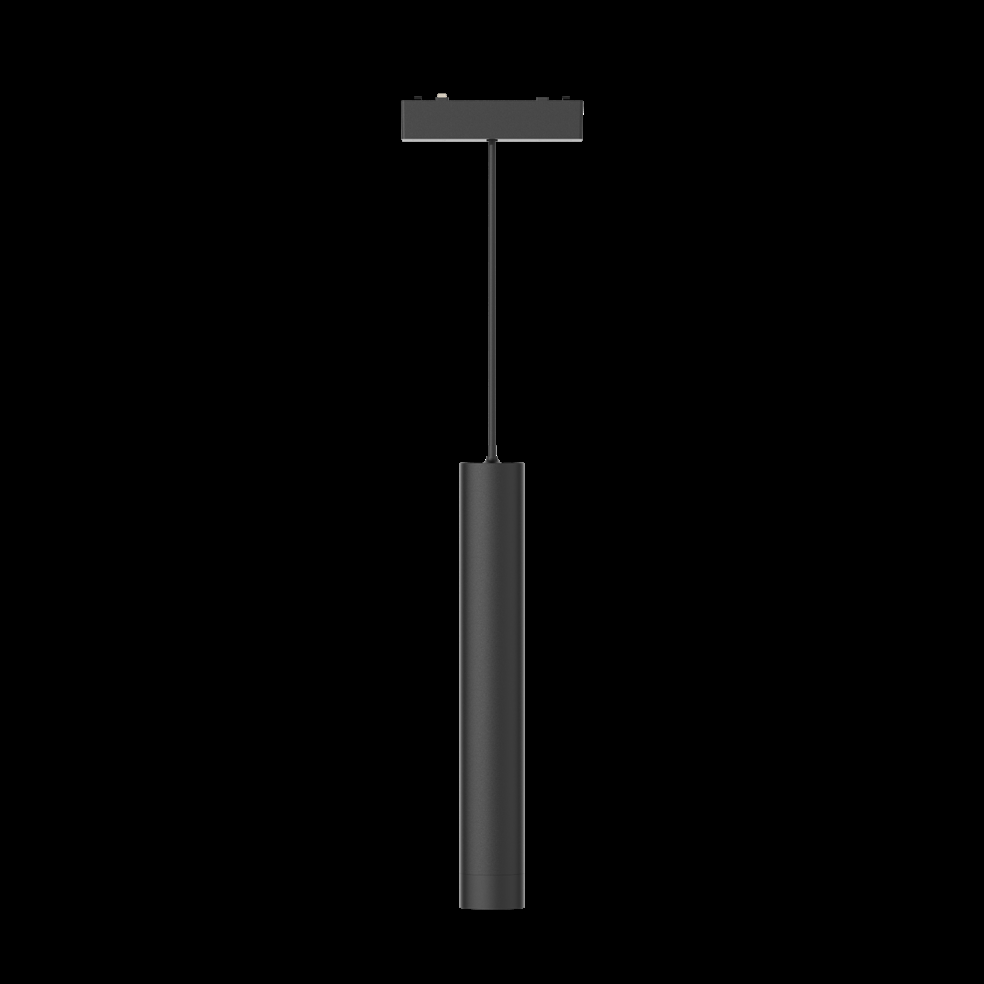

D300

Straight Pendant Light

6W · 24° · 30 × 300 mm

Rigid track / woven track with buckle

View specifications

Slim straight pendant light with adjustable suspension.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	30 × 300 mm
Material	Aluminum + Plastic
Suspension Length	100 – 1000 mm
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

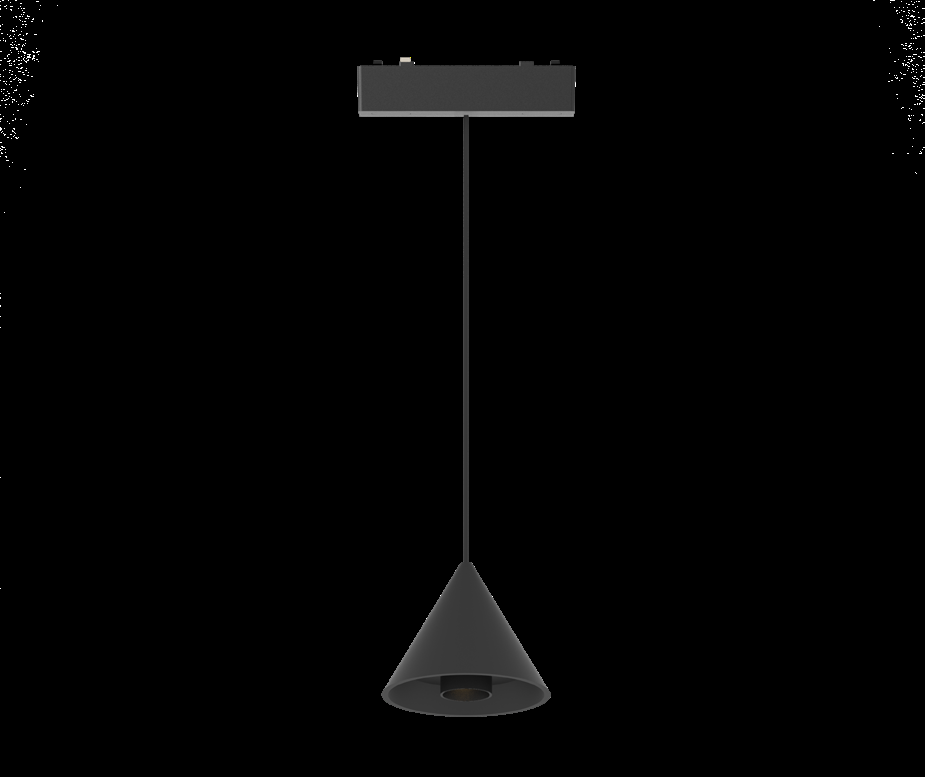

MD90

Pendant Light

6W · 24° · Φ90 × 72 mm

Rigid track / woven track with buckle

View specifications

Compact pendant light with adjustable suspension.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	Φ90 × 72 mm
Material	Aluminum + Plastic
Suspension Length	100 – 1000 mm
Beam Angle	24°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

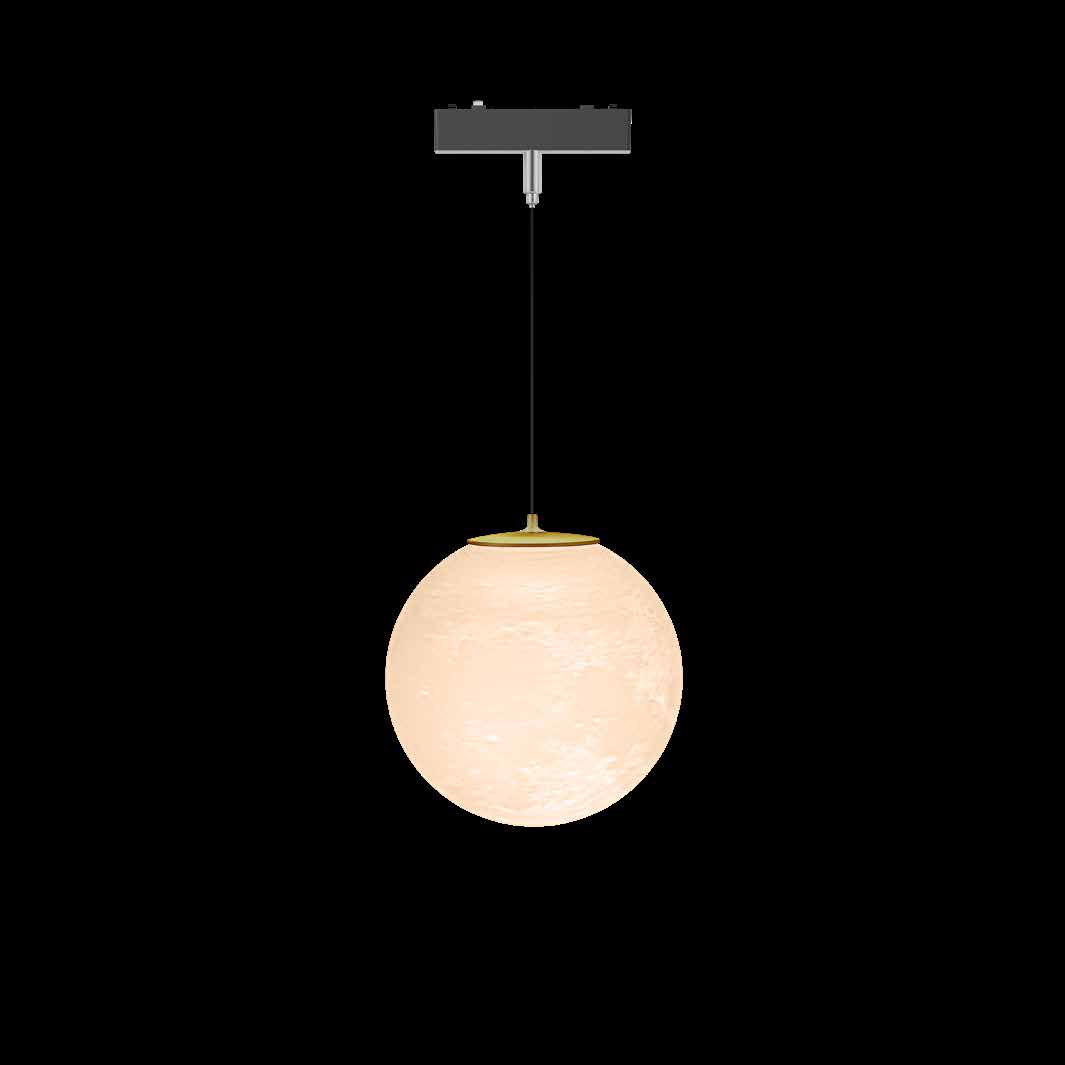

DY150

Moon Pendant Light

6W · 360° · 150 × 150 mm

Rigid track / woven track with buckle

View specifications

Planet series pendant light with glowing moon shade.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	150 × 150 mm
Material	Aluminum + Plastic
Suspension Length	100 – 1000 mm
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

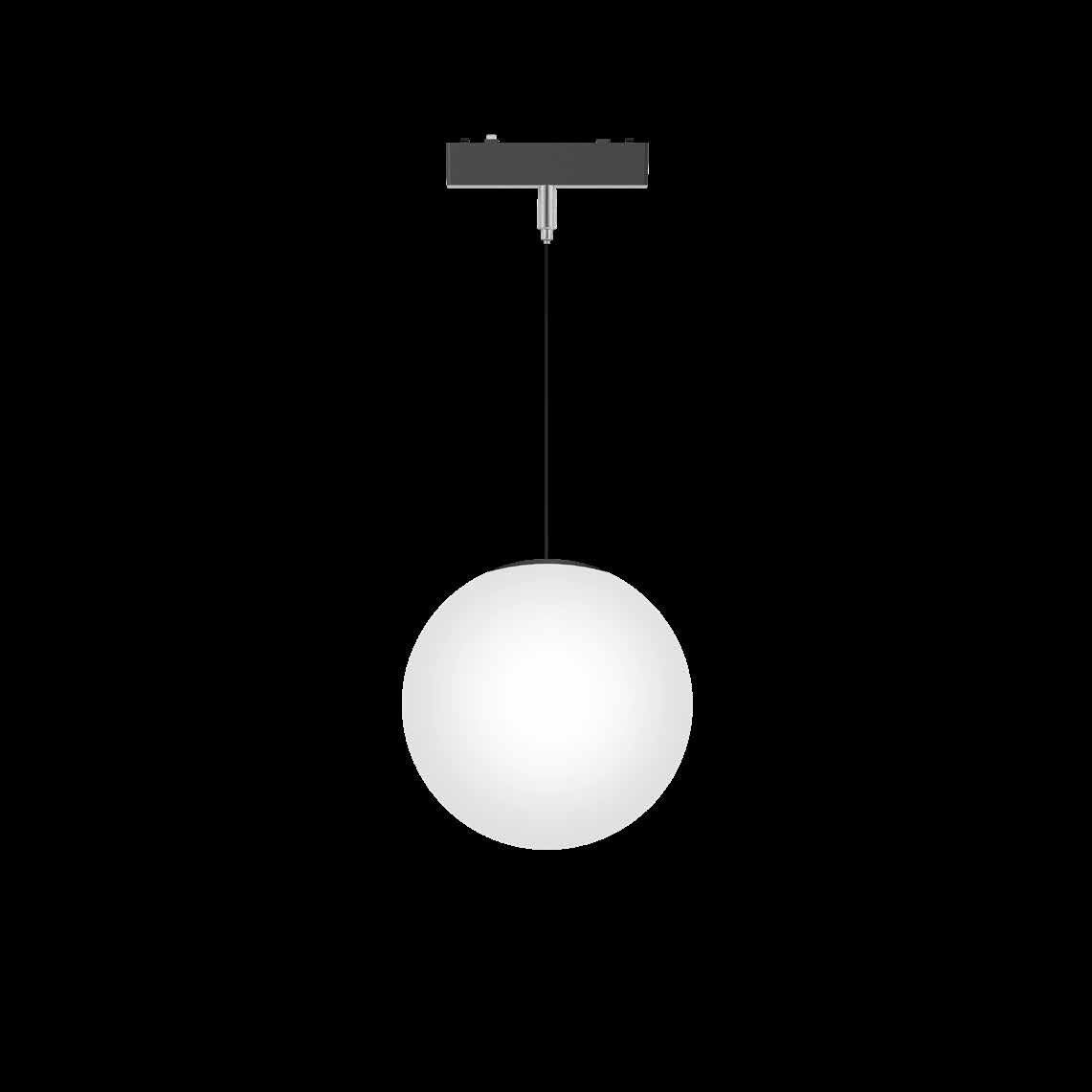

DBL150

Glass Ball Pendant Light

9W · 360° · 150 × 150 mm

Rigid track / woven track with buckle

View specifications

Planet series pendant light with glass ball shade.

Wattage	9W
CRI	Ra90
Voltage	DC 48V
Dimensions	150 × 150 mm
Material	Aluminum + Plastic
Suspension Length	100 – 1000 mm
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

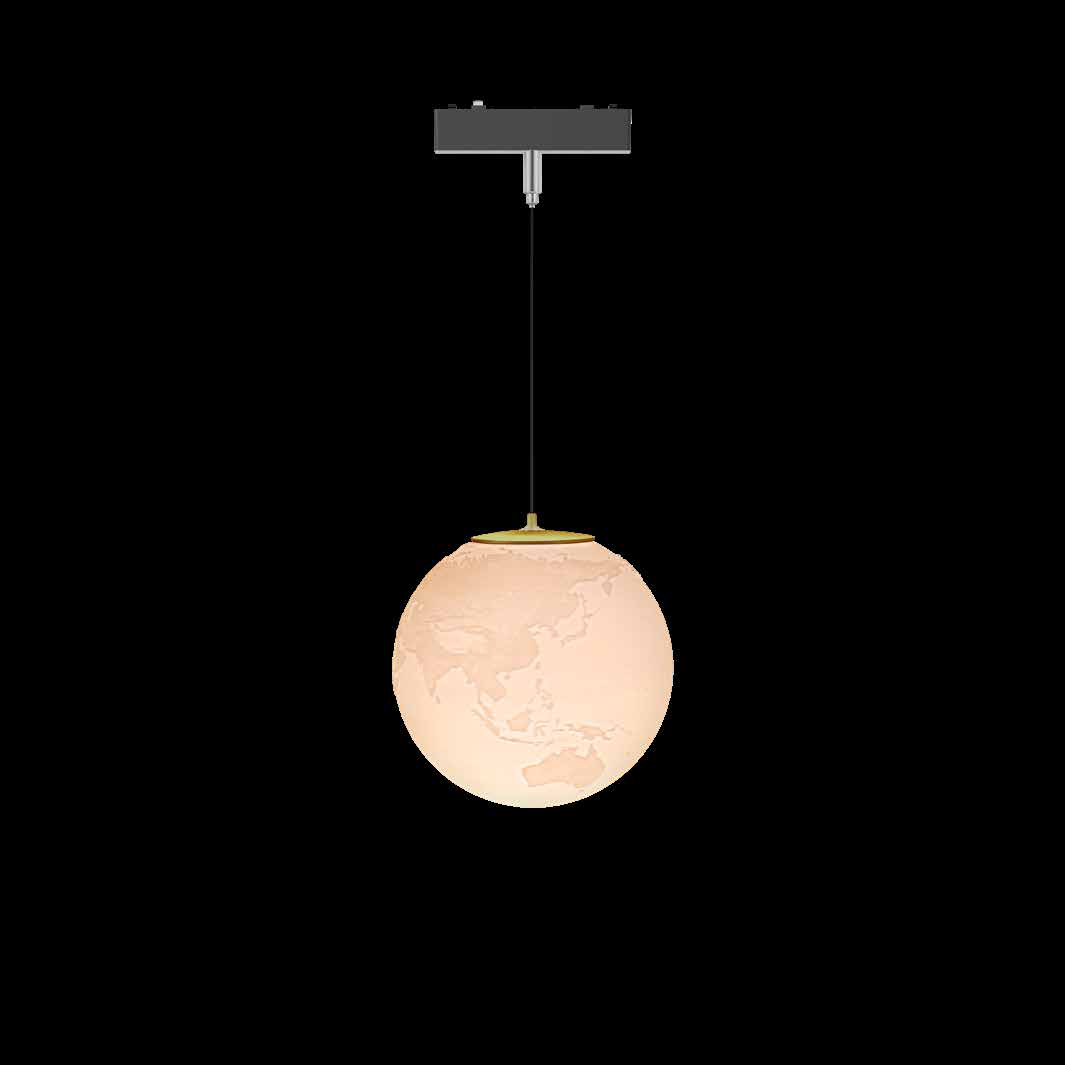

DD150

Earth Pendant Light

6W · 360° · 150 × 150 mm

Rigid track / woven track with buckle

View specifications

Planet series pendant light with earth-pattern shade.

Wattage	6W
CRI	Ra90
Voltage	DC 48V
Dimensions	150 × 150 mm
Material	Aluminum + Plastic
Suspension Length	100 – 1000 mm
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

Light tubes & bars

Flexible flood-light tubes and linear bars with a listed 360° beam.

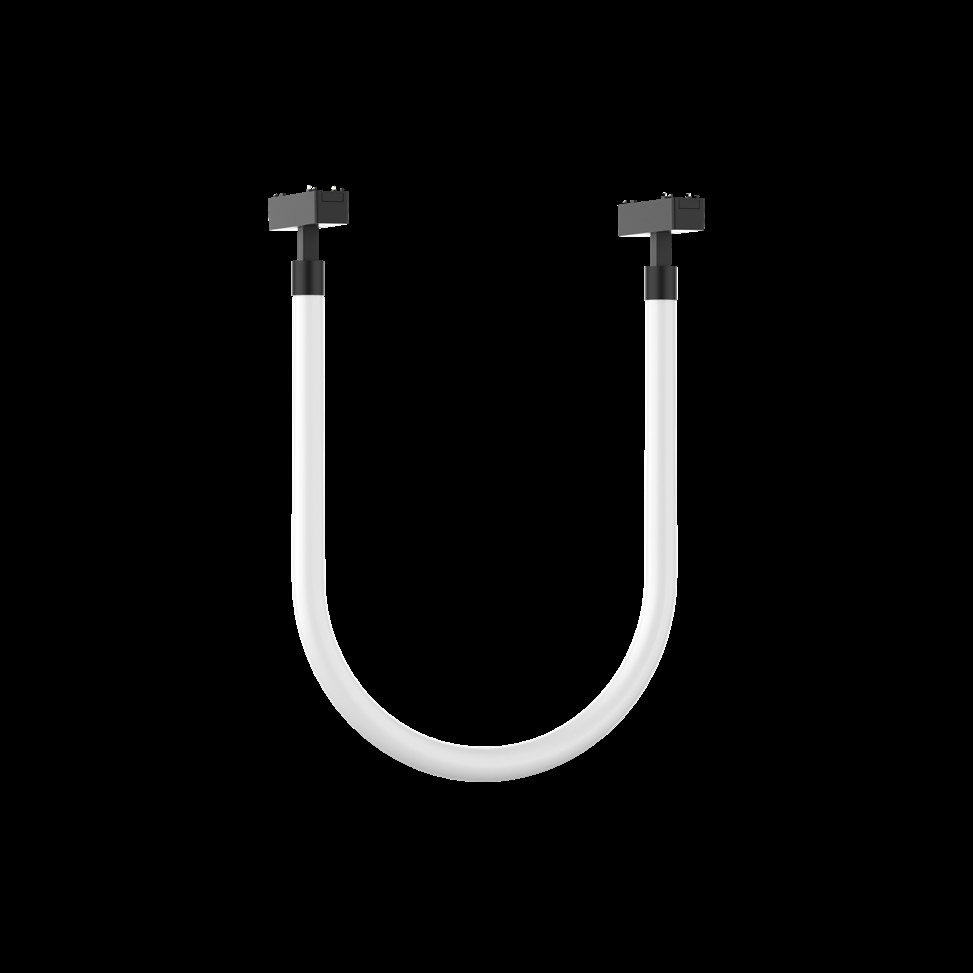

Flexible Flood Light Tube

8W – 80W · 360° · 500 – 4000 mm

Rigid track / woven track with buckle

View specifications

Soft flexible decorative flood tube. Lengths: 500 / 1000 / 1500 / 2000 / 3000 / 4000 mm.

Wattage	8W – 80W
CRI	Ra90
Voltage	DC 48V
Dimensions	500 – 4000 mm
Material	Aluminum + Plastic
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

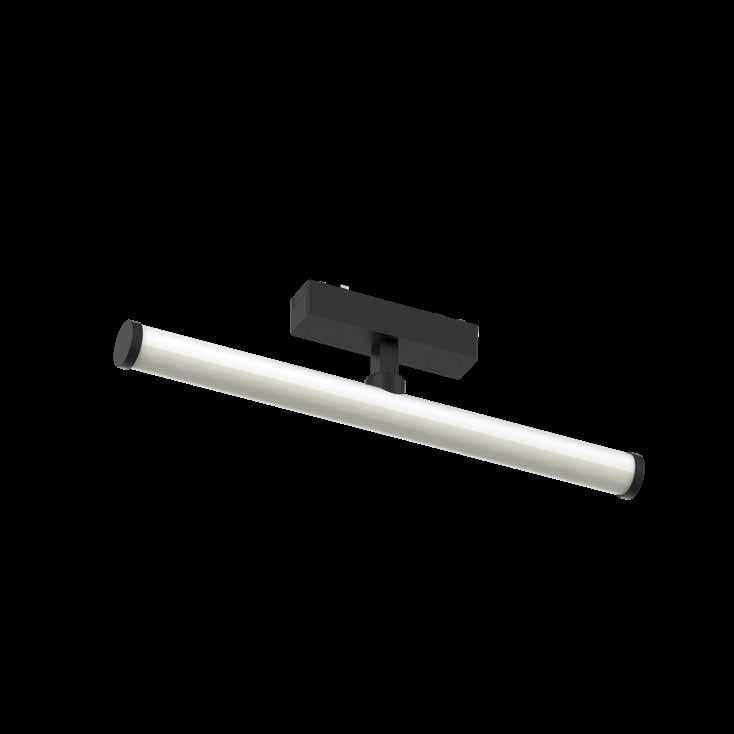

SS300F

Magic Light Bar

10W · 360° · 300 × 25 × 87 mm

Rigid track / woven track with buckle

View specifications

360° illuminating decorative light bar.

Wattage	10W
CRI	Ra90
Voltage	DC 48V
Dimensions	300 × 25 × 87 mm
Material	Aluminum + Plastic
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

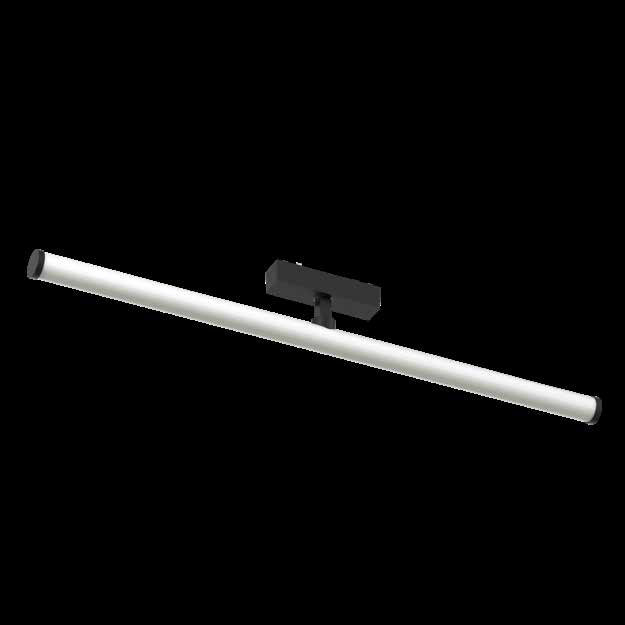

SS600F

Magic Light Bar

20W · 360° · 600 × 25 × 87 mm

Rigid track / woven track with buckle

View specifications

360° illuminating decorative light bar.

Wattage	20W
CRI	Ra90
Voltage	DC 48V
Dimensions	600 × 25 × 87 mm
Material	Aluminum + Plastic
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

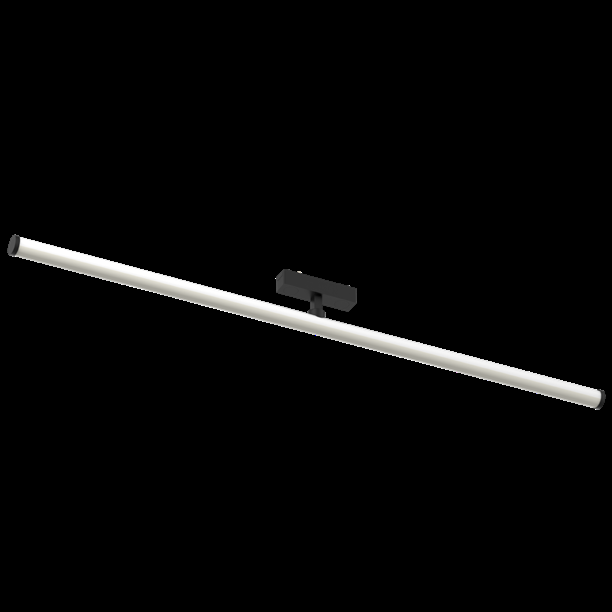

SS900F

Magic Light Bar

30W · 360° · 900 × 25 × 87 mm

Rigid track / woven track with buckle

View specifications

360° illuminating decorative light bar.

Wattage	30W
CRI	Ra90
Voltage	DC 48V
Dimensions	900 × 25 × 87 mm
Material	Aluminum + Plastic
Beam Angle	360°
CCT	3000K / 4000K / 5700K
Control Options	ON-OFF 2.4GHz

03 / Compare before you specify

MT26 track profiles & woven-track specifications

Dimensions and lengths below retain the supplied card values. The full catalogue provides the installation context; known source differences are noted.

Product	Installation	Profile / dimensions	Lengths	Finish
Track A	Surface mounted	26 × 6 mm	1000 mm / 1500 mm / 2000 mm	Black White
Track B	Plaster-in / recessed	56 × 26 × 6 mm	1000 mm / 1500 mm / 2000 mm	Black White
Track C	Suspended	29.5 × 50 mm	1000 mm / 2000 mm / 3000 mm	Black White
Track D	Embedded / recessed	29 × 67 × 35 mm	1000 mm / 2000 mm / 3000 mm	Black White
Track RM	Confirm RM ceiling detail	29 × 26.6 × 59.5 × 41 mm	1000 mm / 2000 mm / 3000 mm	Black
PD-10M / PD-20M	Flexible woven track	10000 × 16.5 × 3 mm / 20000 × 16.5 × 3 mm	10 m / 20 m	Black / Gray / Green / Khaki / Orange

D and RM: 1500 mm appears in an additional catalogue length list and requires confirmation. RM: confirm mounting details because the card title and catalogue context differ. Woven-track 200W (Max) is an electrical rating, not a mechanical load rating.

Control options and source differences

Luminaire cards list ON-OFF / 2.4GHz and 3000K / 4000K / 5700K. Some catalogue illustrations also show mijia and ZigBee; request model-specific confirmation in your brief. The 065 and G90 dimensional differences are noted on their cards. No price, stock, lead time, certification or load capacity is inferred.

04 / Your project, one quotation

Build a complete MT26 component brief

Add products from the collection, then review quantities and configuration details. Different configurations of the same model remain separate line items.

Selected products (0)

Your brief is empty. Choose “Configure & add to brief” on a product card to begin.

Add more products ↑

Project details

Country / region

Ceiling / mounting surface

Layout & requirements

Ready for your inquiry

Review & share your brief

Generated quotation brief

Open email draft ↗Open inquiry page ↗

Copy the brief and paste it into your inquiry message. The inquiry page opens in a new tab. Email opens your mail app; for long briefs, attach the downloaded TXT. Nothing is sent automatically.

Download a copy before leaving this page.

05 / Questions, answered

Specify MT26 with the right information

Clear compatibility, configuration and quotation guidance for the VOC Lighting MT26 collection.

What is the VOC Lighting MT26 system?

VOC Lighting MT26 combines 48V ultra-thin magnetic linear tracks and flexible woven tracks with compatible luminaires and installation components. Rigid track, woven track and combined layouts are described in the catalogue. This page brings together 71 product listings across seven categories.

Can every MT26 light be installed directly on a rigid track?

No. PDMD330, PDTK300 and PD-P95 are explicitly listed for woven-track installation only. Other magnetic luminaires can mount on the rigid track; woven-track use requires the appropriate lamp buckle and installation components. Confirm the complete arrangement for the project.

How do I choose a rigid track profile?

A is surface mounted, B is plaster-in / recessed, C is suspended, and D is embedded / recessed. RM has dedicated accessories and is listed in black only. The supplied sources differ in how RM mounting is described, so confirm the installation drawing before specifying it.

What woven-track lengths and colors are listed?

PD-10M measures 10000 × 16.5 × 3 mm and PD-20M measures 20000 × 16.5 × 3 mm. The product card lists Black, Gray, Green, Khaki and Orange. Its electrical rating is DC 48V and 200W (Max); this does not establish a mechanical load rating or an approved fixture quantity.

Which color temperatures and controls can I request?

The supplied luminaire cards list 3000K, 4000K and 5700K, with ON-OFF and 2.4GHz control options. Some catalogue illustrations also show mijia and ZigBee. These additional options must be confirmed for the exact model and hardware; request them in the configuration notes.

Are all dimensions and lengths consistent across the sources?

No. D and RM have an additional 1.5 m entry in the catalogue, while their cards list 1000 / 2000 / 3000 mm. The 065 and G90 catalogue drawings also differ from some written dimensions. Product-card values are retained here, with the known differences marked on the affected products.

Can I combine different products in one quotation?

Yes. Configure each model, select its quantity, and add it to the same project brief. You can add the same model more than once with different finishes, color temperatures or installation requirements. Grouped power, connector and module cards let you select an individual component.

Does adding a light automatically include its track and accessories?

No. Track, luminaires, buckles, connectors and power supplies are separate items in the brief. Select the components required for your layout and request a compatibility review before ordering.

How do I submit the quotation brief?

Copy or download your completed brief, open the VOC Lighting inquiry page, and paste the text into your message. You can also open an email draft addressed to sales@voclighting.com. No inquiry is sent automatically from this page.

What should be confirmed before ordering?

Confirm mounting details, track and strap loading, electrical capacity, run length, control hardware, applicable certificates, required drawings, pricing, delivery and warranty. Include the destination country and project layout in your inquiry.

Quotation brief · 0

48V MT26 Woven Track Lighting

MT26 48V Magnetic& Woven Track Lighting

Choose how your MT26 lighting takes shape

Ultra-thin magnetic track

Woven track

Rigid + woven layouts

Find your MT26 tracks, lights & accessories

No matching products

Woven track & dedicated luminaires

Woven Track

Woven Track Connection Power Box

Large Fixed Node

Small Fixed Node

Woven Track Input Module

Woven Track Lamp Linker

Woven Buckle (Double Clip)

Recessed Fixed Node

Conical Pendant Lamp

Semicircular Pendant Lamp

Ball Pendant Lamp

Magnetic tracks, power & connectors

Surface Mounted Magnetic Track

Recessed / Plaster-in Magnetic Track

Suspended Magnetic Track

Embedded Magnetic Track

RM Magnetic Track

Track Connector Set (A & B Tracks)

Transformer & Cable Box

Conductive Modules

Linear grille & flood lights

Linear Grille Light

Linear Grille Light

Linear Grille Light

Linear Grille Light

Linear Grille Light

Linear Flood Light

Linear Flood Light

Linear Flood Light

Linear Flood Light

Linear Flood Light

Folding Grille Light

Folding Grille Light

Folding Flood Light

Folding Flood Light

Die-Cast Folding Grille Light

Die-Cast Folding Grille Light

Die-Cast Folding Flood Light

Die-Cast Folding Flood Light

Track spotlights

Round Spot Light

Adjustable Round Spot Light

Round Spot Light

Square Spot Light

Grille Spot Light

Track Spot Light

Double-Head Track Spot Light

Track Spot Light

Track Light

Track Light

Track Light

Track Light

U-Bar Track Light

U-Bar Track Light

Track Grille Spot Light

Decorative track lights

Track Soft Light

Track Flood Light

Glass Bulb Lamp

Bowling Track Light

Eclipse Flood Light

Moon Track Light

Glass Ball Track Light

Earth Track Light

Eclipse Lamp

Pendant lights

Pendant Eclipse Flood Light

Straight Pendant Light

Pendant Light

Moon Pendant Light

Glass Ball Pendant Light

MT26 48V Magnetic
& Woven Track Lighting
