Compare LED bollards, solar models and garden lights in one collection. Explore exact dimensions, supply options and finishes, then build a project quotation brief.
The collection brings together 21 product groups and 61 technical variants. Each supplied specification lists IP54; electrical and dimensional details vary by model.
Start with the fixture form, then check the exact electrical version and dimensions. The supplied range includes more than conventional bollards.
LED bollards
Cylindrical, square, open-frame and capped designs. Many groups offer 300, 600 and 900 mm variants; use the table for the selected model.
Solar & garden options

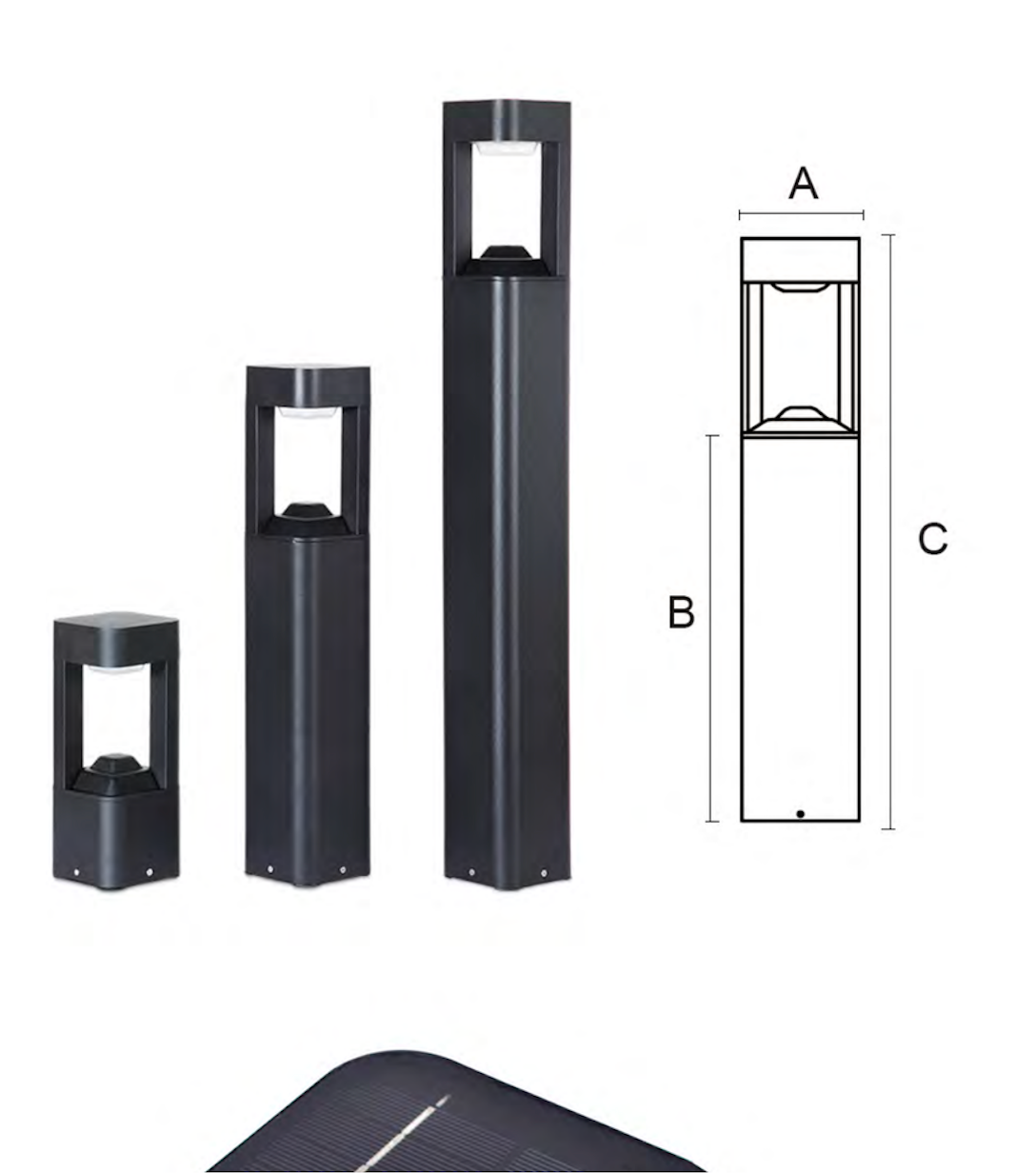

MB16-080-SL lists a solar panel and 8 Hours working time. Separate spike and decorative groups provide additional garden formats.
Specify the supply

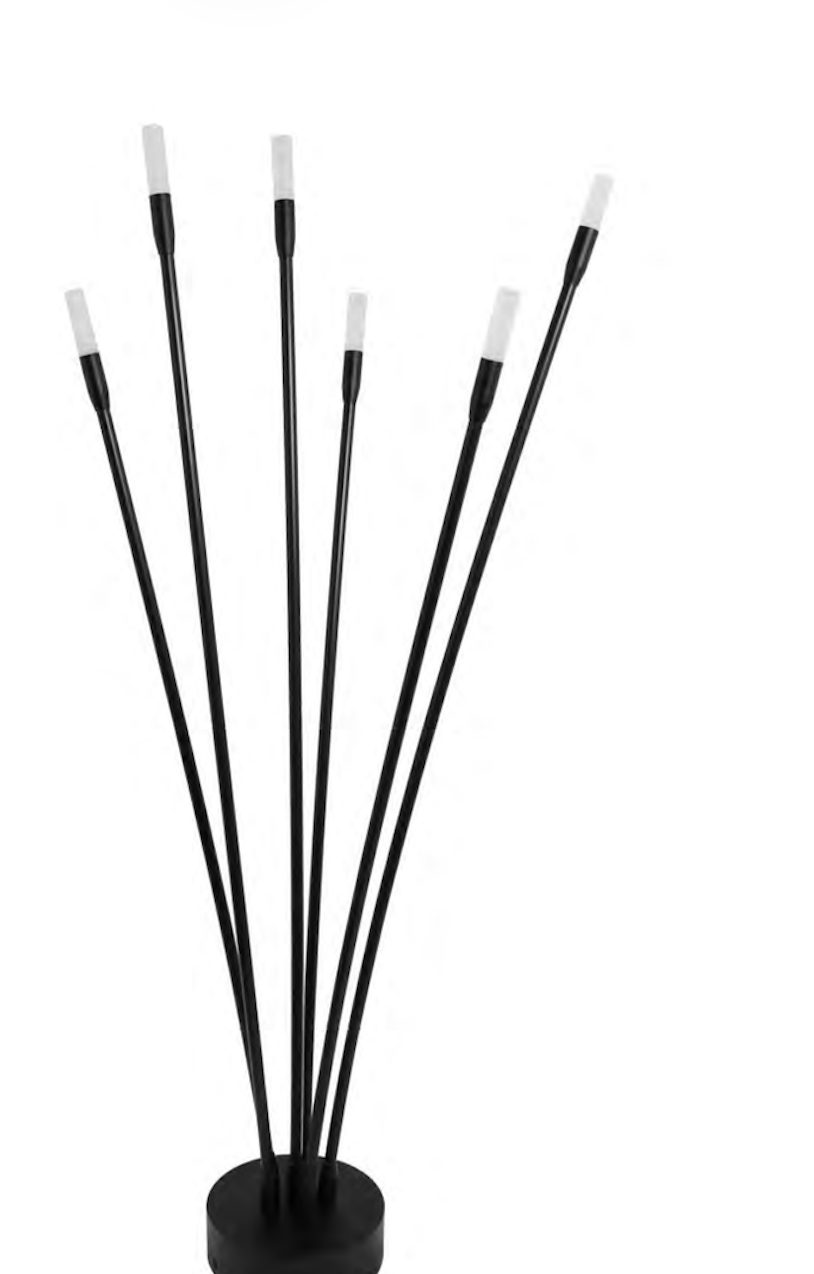

Most wired rows list AC110-265V. MB23-0201 lists AC12V, while MB19-C014 has separate AC110-265V and DC12/24V versions.
02 / Product collection
Find the right form. Check every dimension.
Browse product images and expandable specifications. Exact item numbers, dimension labels and source values are retained.
21 product groups · 61 technical variants
No matching products. Try another model or clear the filters.

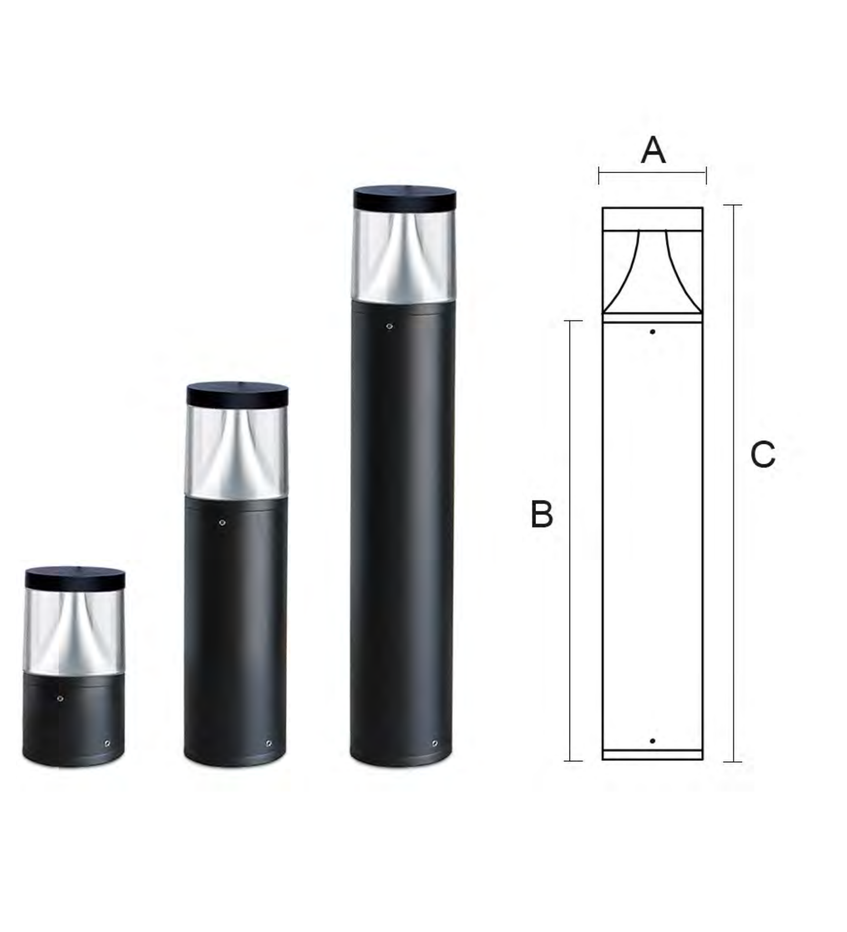

MB18-C001
Bollard lights
6W / 9W / 12W
IP54 · 9 technical variants
Aluminum · PC diffuser
Specifications
MB18-C001 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-C001A-300
LED
6W
420
2700K-6000K
0.6
AC110-265V
80-90
Ø90
180
300
MB18-C001A-600
LED
6W
420
2700K-6000K
0.6
AC110-265V
80-90
Ø90
480
600
MB18-C001A-900
LED
6W
420
2700K-6000K
0.6
AC110-265V
80-90
Ø90
780
900
MB18-C001B-300
LED
9W
630
2700K-6000K
0.6
AC110-265V
80-90
Ø108
175
300
MB18-C001B-600
LED
9W
630
2700K-6000K
0.6
AC110-265V
80-90
Ø108
475
600
MB18-C001B-900
LED
9W
630
2700K-6000K
0.6
AC110-265V
80-90
Ø108
775
900
MB18-C001C-300
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
Ø150
155
300
MB18-C001C-600
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
Ø150
455
600
MB18-C001C-900
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
Ø150
755
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

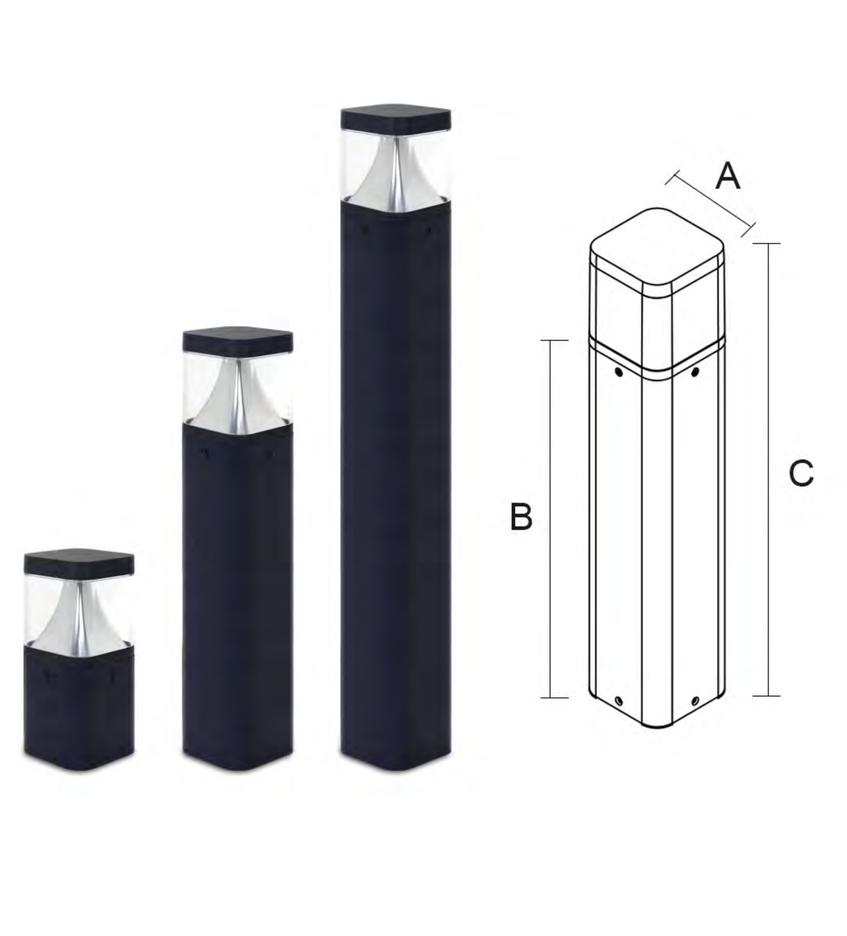

MB23-0212
Bollard lights
10W
IP54 · 6 technical variants
Aluminum · PC diffuser
Specifications
MB23-0212 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-021203
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
90
200
300
MB23-021206
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
90
500
600
MB23-021209
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
90
800
900
MB23-021303
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
120
170
300
MB23-021306
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
120
470
600
MB23-021309
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
120
770
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

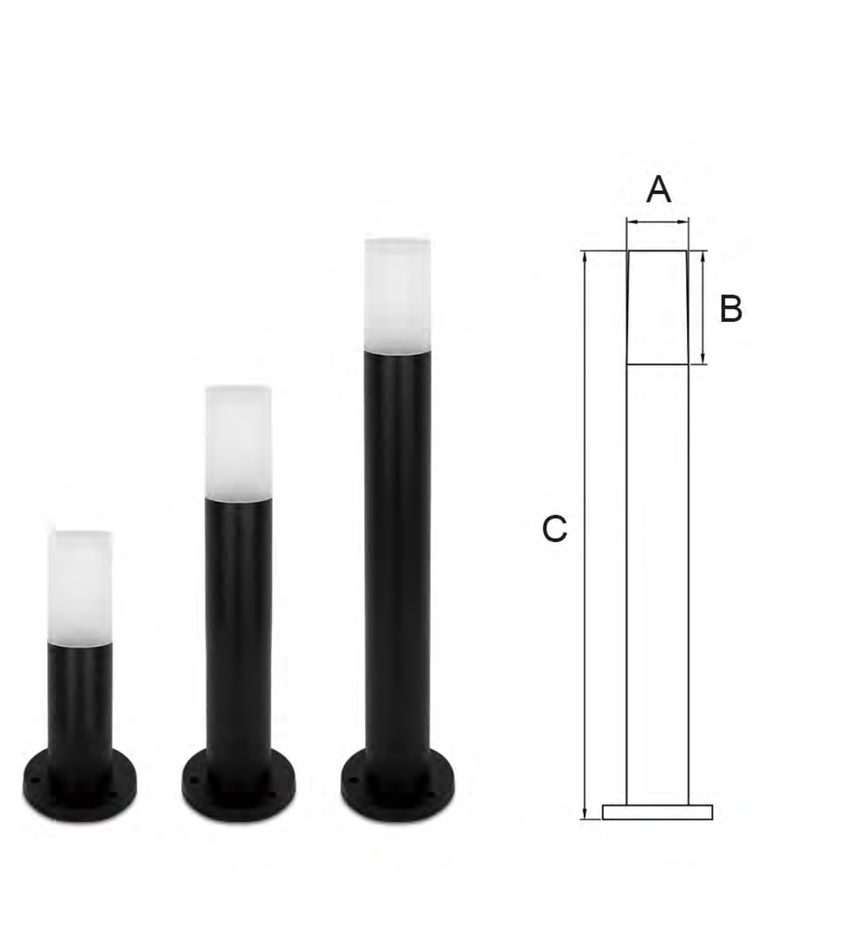

MB23-0222
Bollard lights
5W / 10W / 12W
IP54 · 9 technical variants
Aluminum · Acrylic diffuser
Specifications
MB23-0222 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-022203
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø65
120
300
MB23-022206
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø65
120
600
MB23-022209
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø65
120
900
MB23-022303
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø90
120
300
MB23-022306
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø90
120
600
MB23-022309
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø90
120
900
MB23-022403
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
Ø108
120
300
MB23-022406
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
Ø108
120
600
MB23-022409
LED
12W
840
2700K-6000K
0.6
AC110-265V
80-90
Ø108
120
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Acrylic
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

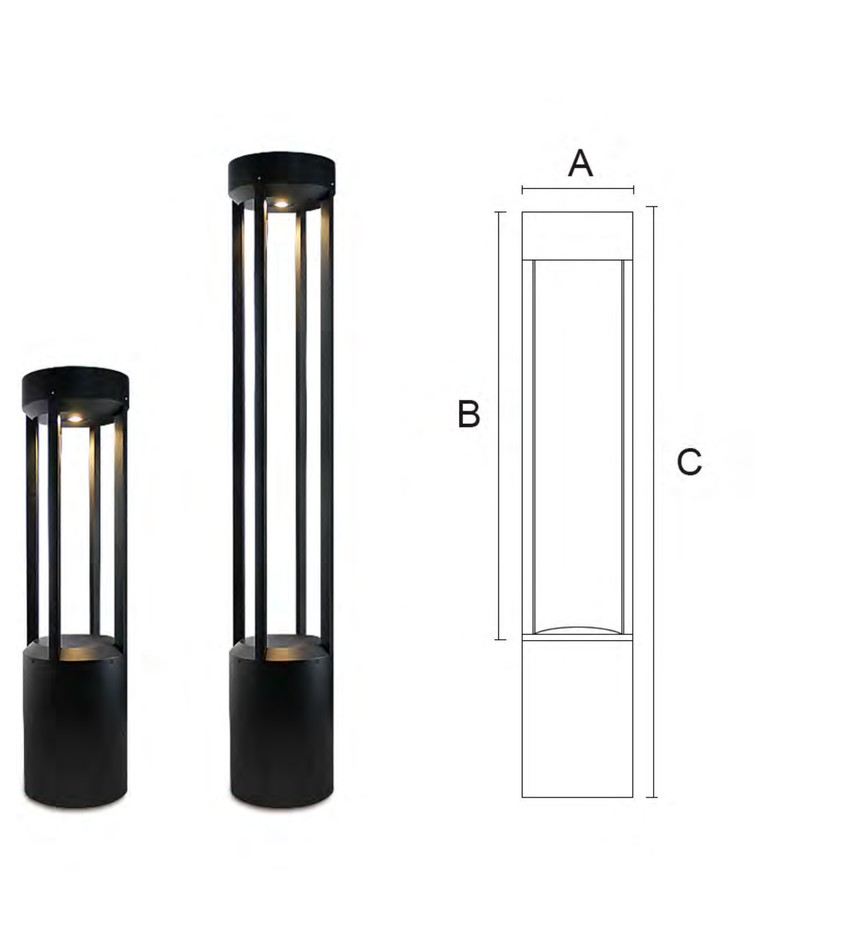

MB21-BL08
Bollard lights
15W
IP54 · 2 technical variants
Aluminum · Glass diffuser
Specifications
MB21-BL08 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB21-BL08A
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø200
400
600
MB21-BL08B
LED
15W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø200
700
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

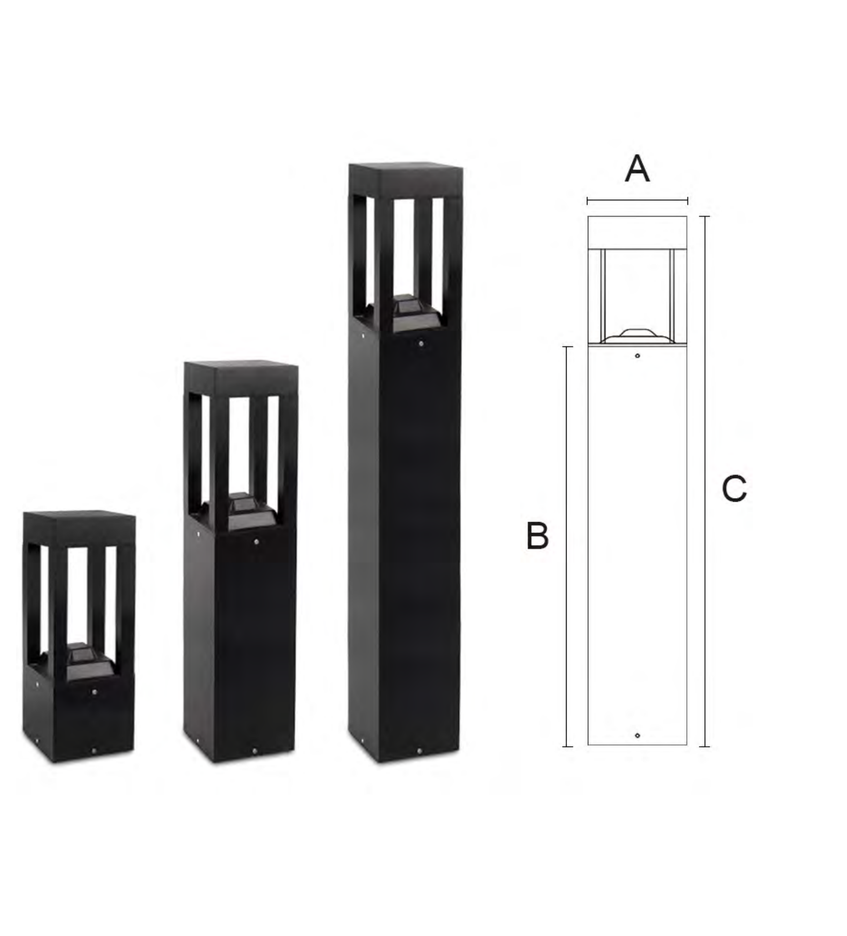

MB21-BL09
Bollard lights
10W
IP54 · 3 technical variants
Aluminum · Glass diffuser
Specifications
MB21-BL09 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB21-BL09A
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
150
100
300
MB21-BL09B
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
150
400
600
MB21-BL09C
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
150
700
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

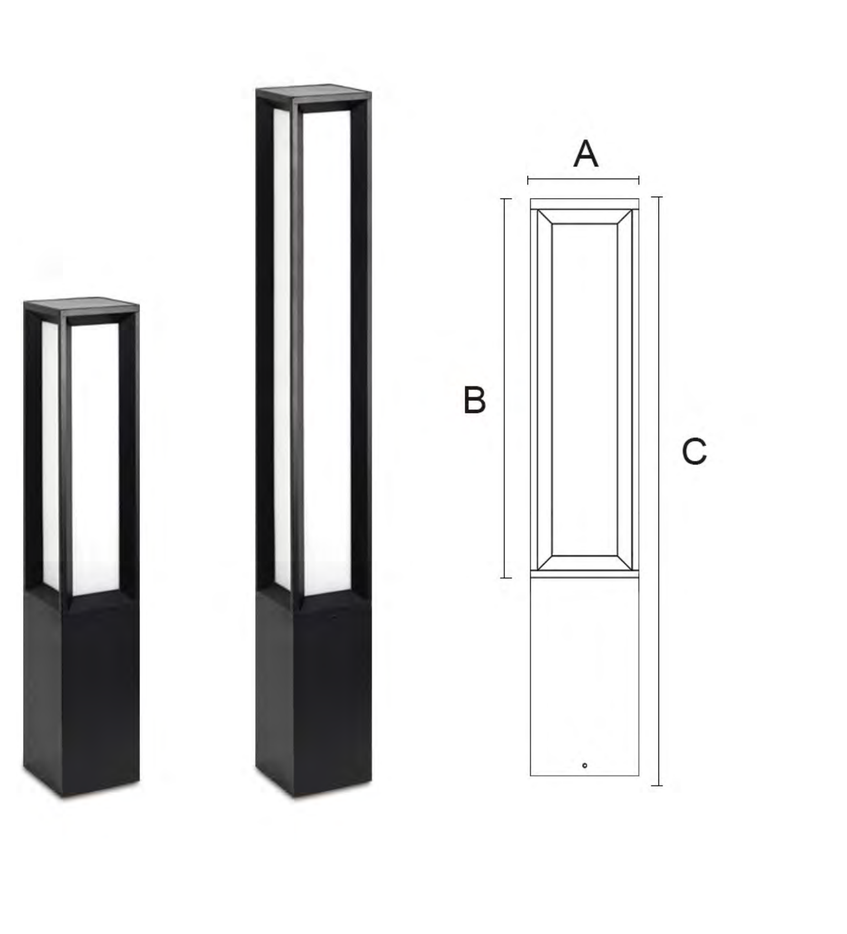

MB21-BL12
Bollard lights
20W
IP54 · 2 technical variants
Aluminum · Acrylic diffuser
Specifications
MB21-BL12 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB21-BL12A
LED
20W
1400
2700K-6000K
0.6
AC110-265V
80-90
150
400
600
MB21-BL12B
LED
20W
1400
2700K-6000K
0.6
AC110-265V
80-90
150
700
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Acrylic
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

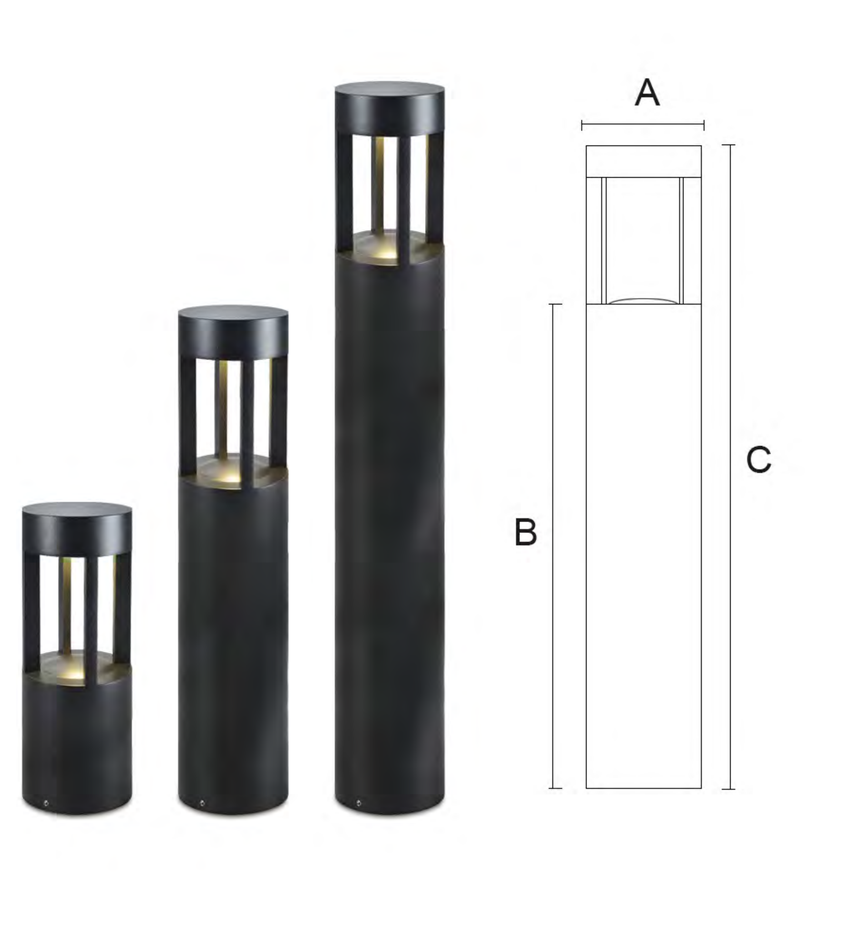

MB23-0230
Bollard lights
10W
IP54 · 3 technical variants
Aluminum · Glass diffuser
Specifications
MB23-0230 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-023003
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø90
150
300
MB23-023006
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø90
430
600
MB23-023009
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø90
750
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

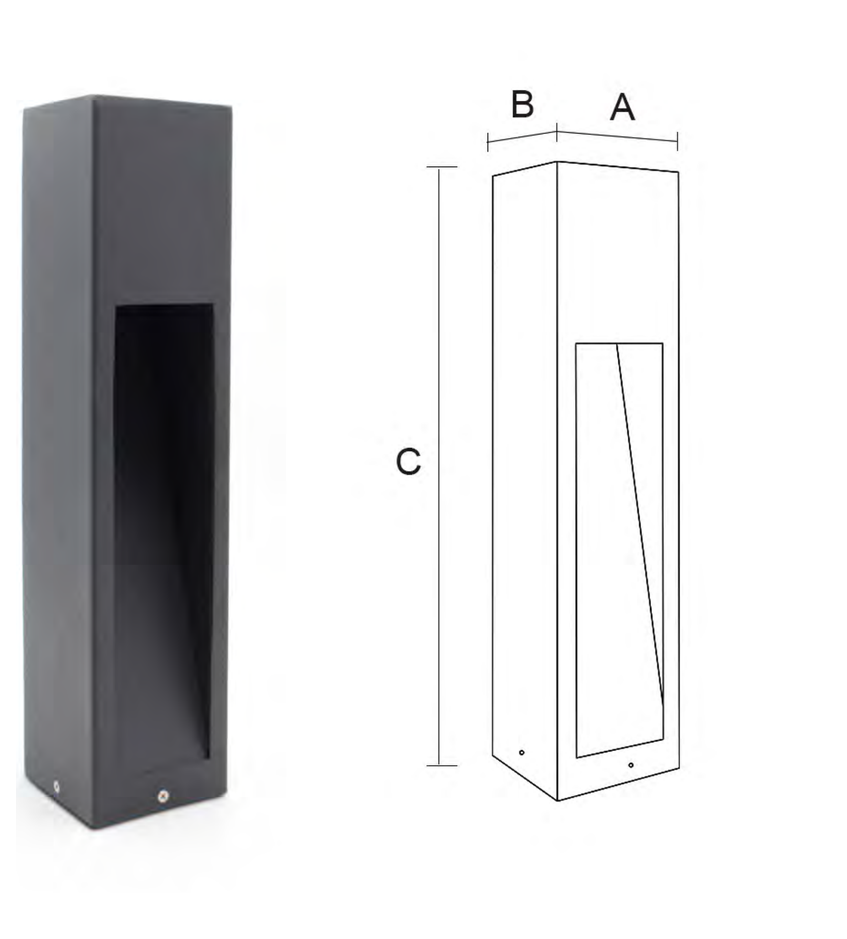

MB18-C015
Bollard lights
10W
IP54 · 2 technical variants
Aluminum · Glass diffuser
Specifications
MB18-C015 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB19-C015A
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
120
120
600
MB19-C015B
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
150
150
600
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The source heading is MB18-C015, but the technical item numbers are MB19-C015A and MB19-C015B. Both are retained; confirm the ordering code.
MB24-0201 / MB24-0202
Bollard lights
10W / 2*10W
IP54 · 2 technical variants
Aluminum · Glass diffuser
Specifications
MB24-0201 / MB24-0202 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
D
MB24-0201
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
100
28
100
600
MB24-0202
LED
2*10W
1400
2700K-6000K
0.6
AC110-265V
80-90
100
28
170
600
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The source heading and technical rows use MB24-0201 / MB24-0202; image captions use MB23-0233 / MB23-0234. Confirm the model-to-image correspondence before ordering.

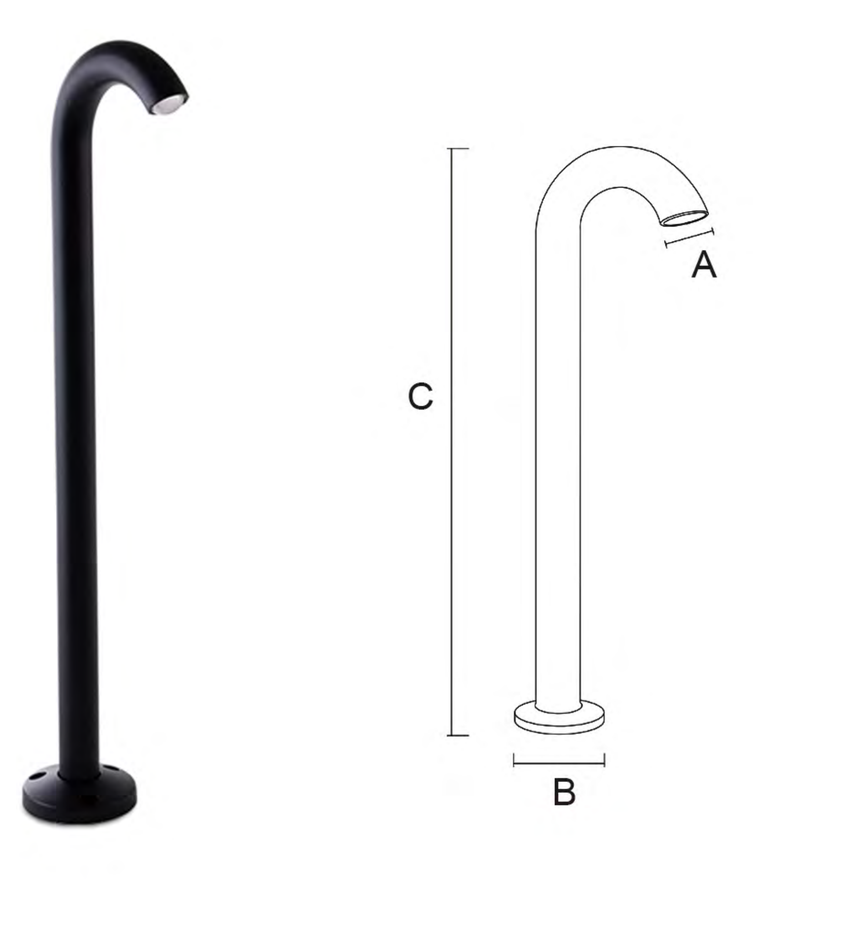

MB18-C014
Bollard lights
5W
IP54 · 1 technical variants
Aluminum · PC diffuser
Specifications
MB18-C014 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB18-C014
LED
5W
350
2700K-6000K
0.6
AC110-265V
80-90
Ø30
Ø90
600
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

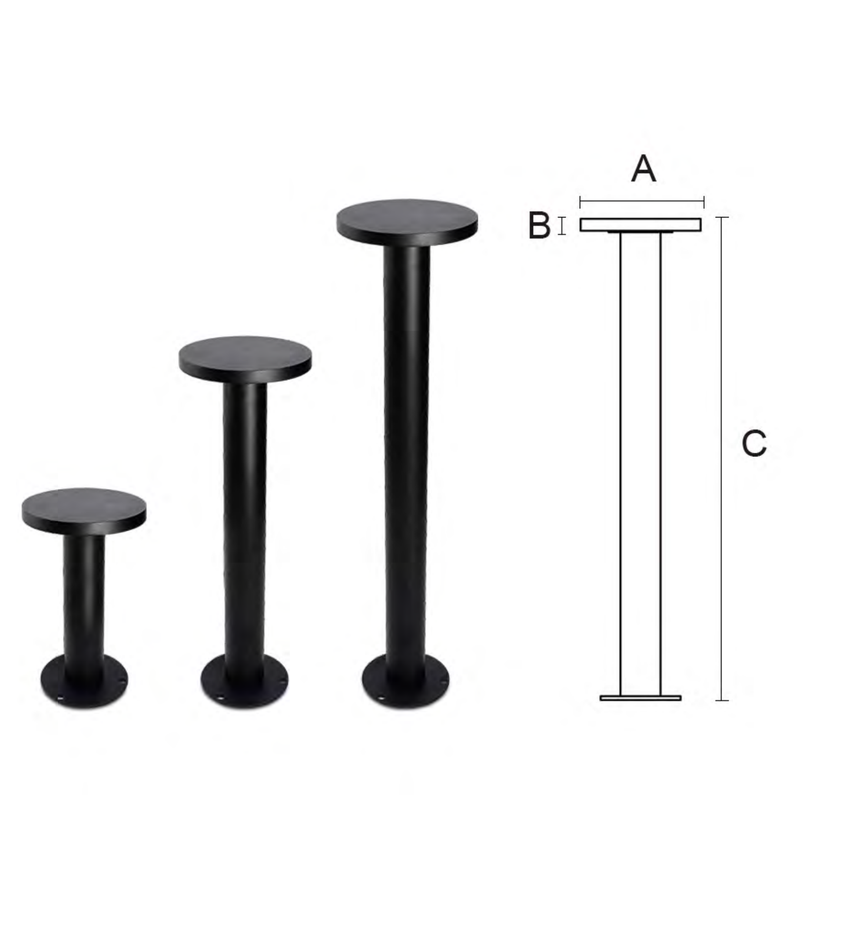

MB21-BL24
Bollard lights
10W
IP54 · 3 technical variants
Aluminum · PC diffuser
Specifications
MB21-BL24 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB21-BL24A
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø150
15
400
MB21-BL24B
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø150
15
600
MB21-BL24C
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø150
15
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

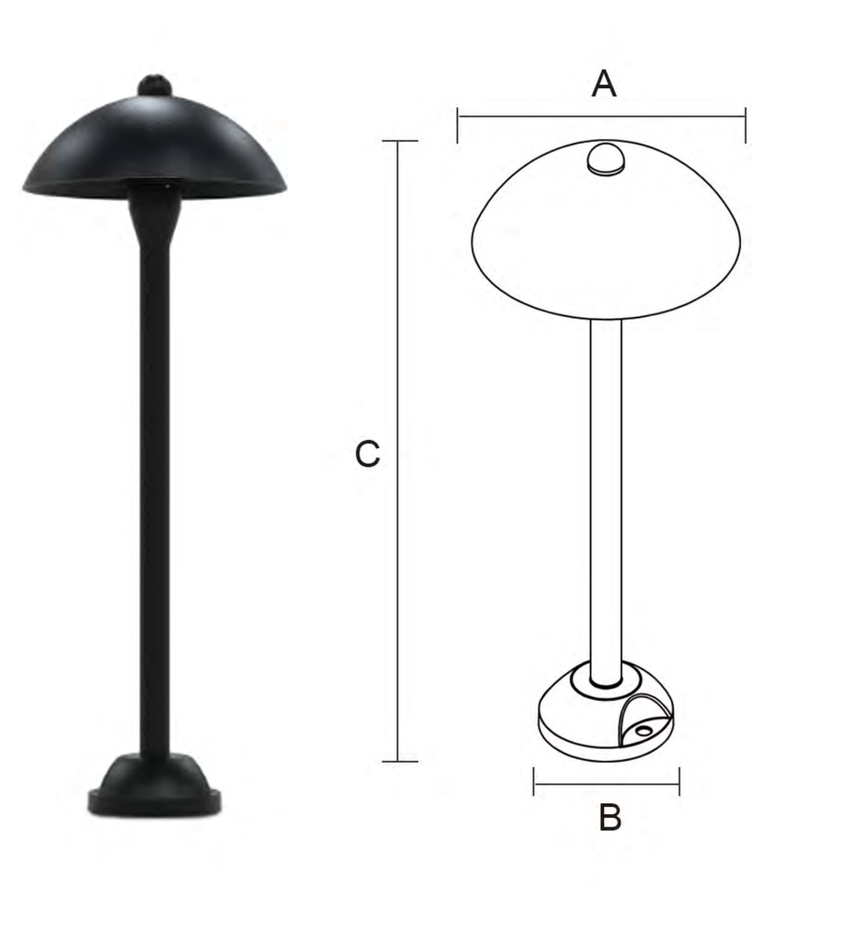

MB23-0203
Bollard lights
7W
IP54 · 1 technical variants
Aluminum · PC diffuser
Specifications
MB23-0203 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0203
LED
7W
490
2700K-6000K
0.6
AC110-265V
80-90
Ø200
Ø100
550
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
MB16-080-SL
Solar bollards
3W
IP54 · 3 technical variants
Aluminum+Solar Panel · PC diffuser
Specifications
MB16-080-SL technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
CRI
A
B
C
MB16-080A-SL
LED
3W
210
2700K-6000K
80-90
120
100
300
MB16-080B-SL
LED
3W
210
2700K-6000K
80-90
120
400
600
MB16-080C-SL
LED
3W
210
2700K-6000K
80-90
120
700
900
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum+Solar Panel
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
Working hours (source)
8 Hours
The source states 8 Hours working time. Battery capacity, panel output, charging conditions, voltage and PF are not stated. Confirm these for the project.
MB19-C014
Spike garden lights
7W / 5W
IP54 · 2 technical variants
Aluminum · PC diffuser
Specifications
MB19-C014 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB19-C014
LED
7W
490
2700K-6000K
0.6
AC110-265V
80-90
Ø200
702
-
MB19-C014
LED
5W
350
2700K-6000K
0.6
DC12/24V
80-90
Ø200
702
-
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The same item number has separate AC110-265V / 7W and DC12/24V / 5W rows. Select the required electrical version.

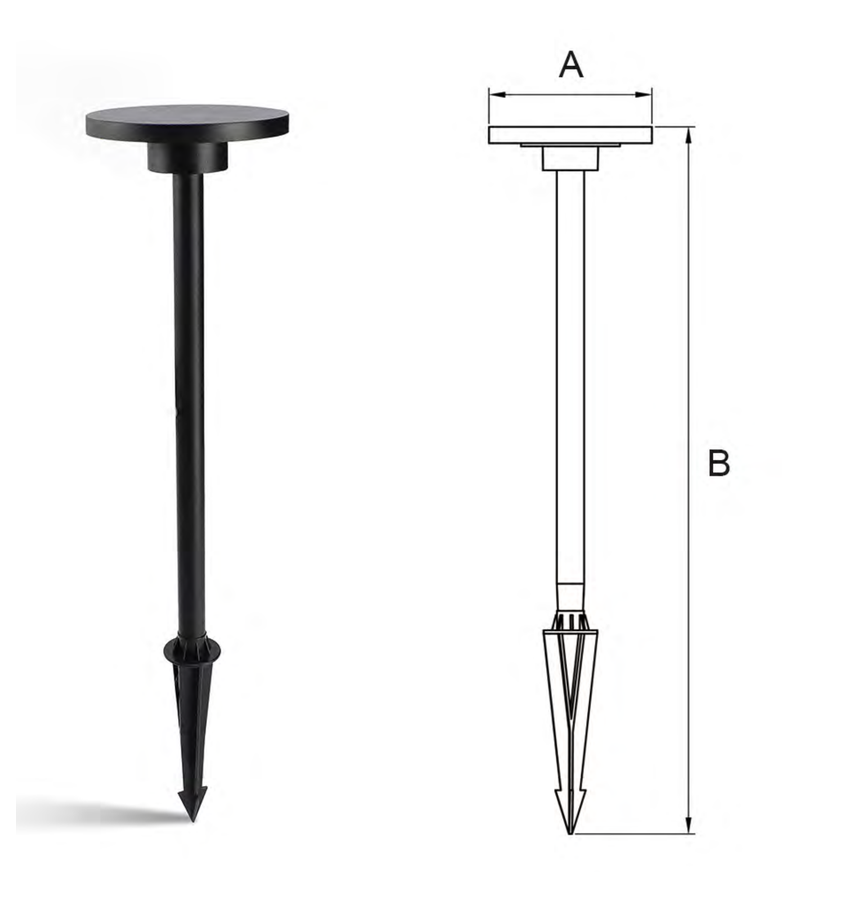

MB21-BL23
Spike garden lights
10W
IP54 · 1 technical variants
Aluminum · PC diffuser
Specifications
MB21-BL23 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB21-BL23
LED
10W
700
2700K-6000K
0.6
AC110-265V
80-90
Ø150
665
-
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

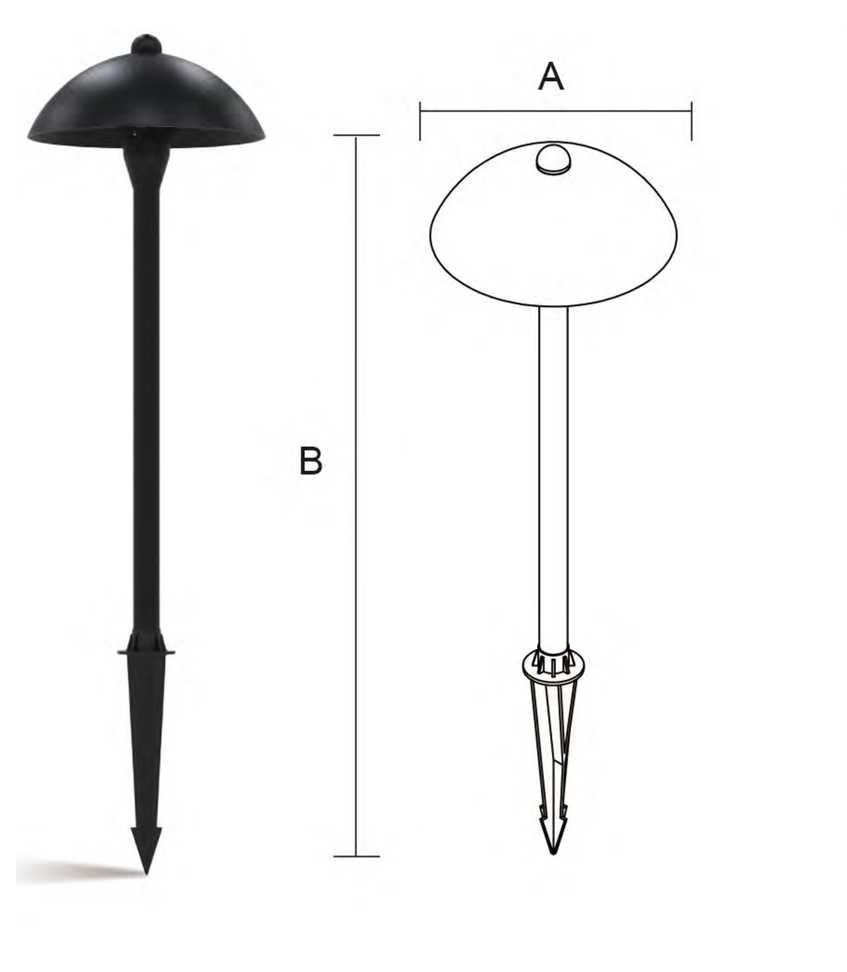

MB23-0204
Spike garden lights
7W
IP54 · 1 technical variants
Aluminum · PC diffuser
Specifications
MB23-0204 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0204
LED
7W
490
2700K-6000K
0.6
AC110-265V
80-90
Ø200
700
-
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

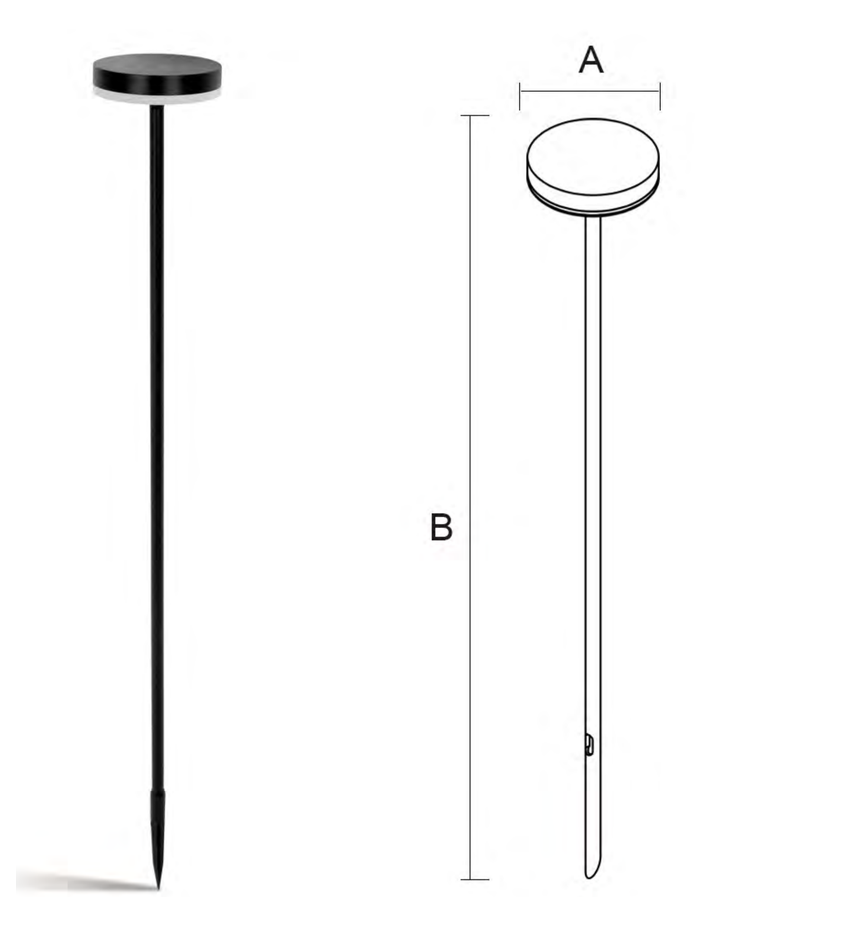

MB23-0226
Spike garden lights
9W
IP54 · 1 technical variants
Aluminum · PC diffuser
Specifications
MB23-0226 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-0226
LED
9W
630
2700K-6000K
0.6
DC24V
80-90
Ø105
810
-
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Insert
Mounting location (source)
Underground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
MB23-0201
Decorative garden lights
1W / 3*1W / 6*1W
IP54 · 3 technical variants
PVC · Acrylic diffuser
Specifications
MB23-0201 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
MB23-020101
LED
1W
70
2700K-6000K
0.6
AC12V
80-90
Ø18
-
700
MB23-020103
LED
3*1W
210
2700K-6000K
0.6
AC12V
80-90
Ø18
Ø150
700
MB23-020106
LED
6*1W
420
2700K-6000K
0.6
AC12V
80-90
Ø18
Ø150
800
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Acrylic
Cover material
PVC
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black

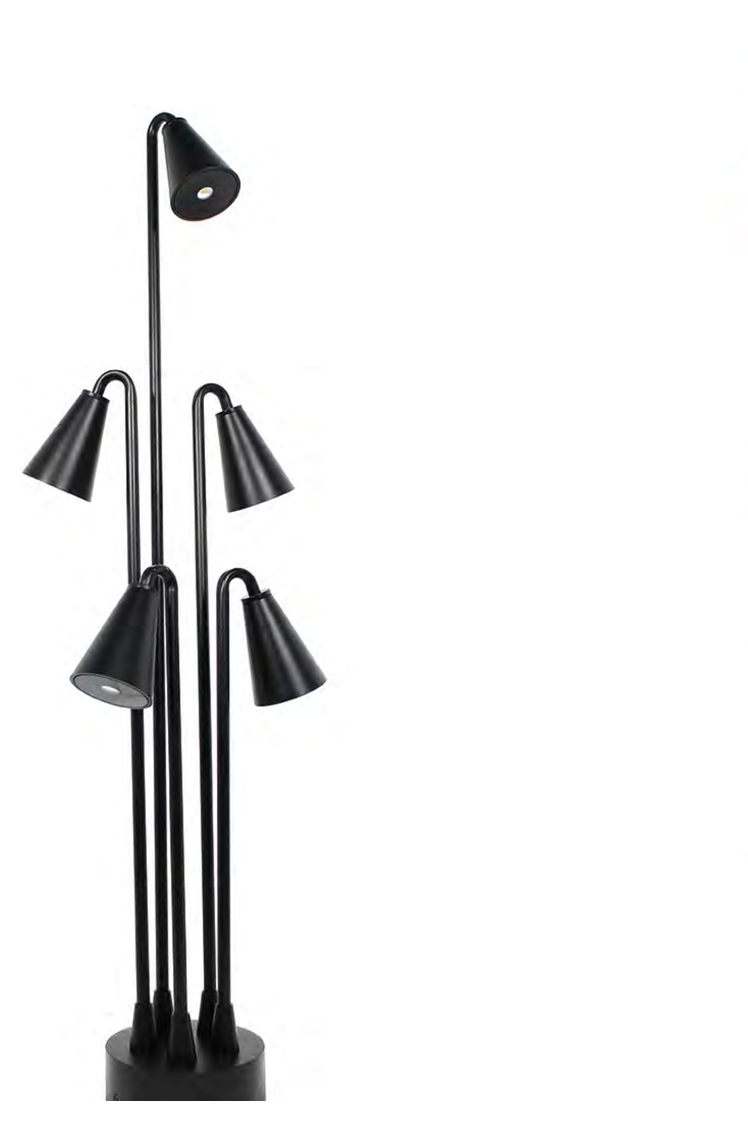

MB23-0202
Decorative garden lights
1*3W / 3*3W / 5*3W
IP54 · 3 technical variants
Aluminum · Glass diffuser
Specifications
MB23-0202 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C1
C2
C3
MB23-020201
LED
1*3W
210
2700K-6000K
0.6
AC110-265V
80-90
Ø75
Ø150
600
-
-
MB23-020203
LED
3*3W
630
2700K-6000K
0.6
AC110-265V
80-90
Ø75
Ø150
600
800
1000
MB23-020205
LED
5*3W
1050
2700K-6000K
0.6
AC110-265V
80-90
Ø75
Ø150
600
800
1000
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Glass
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray

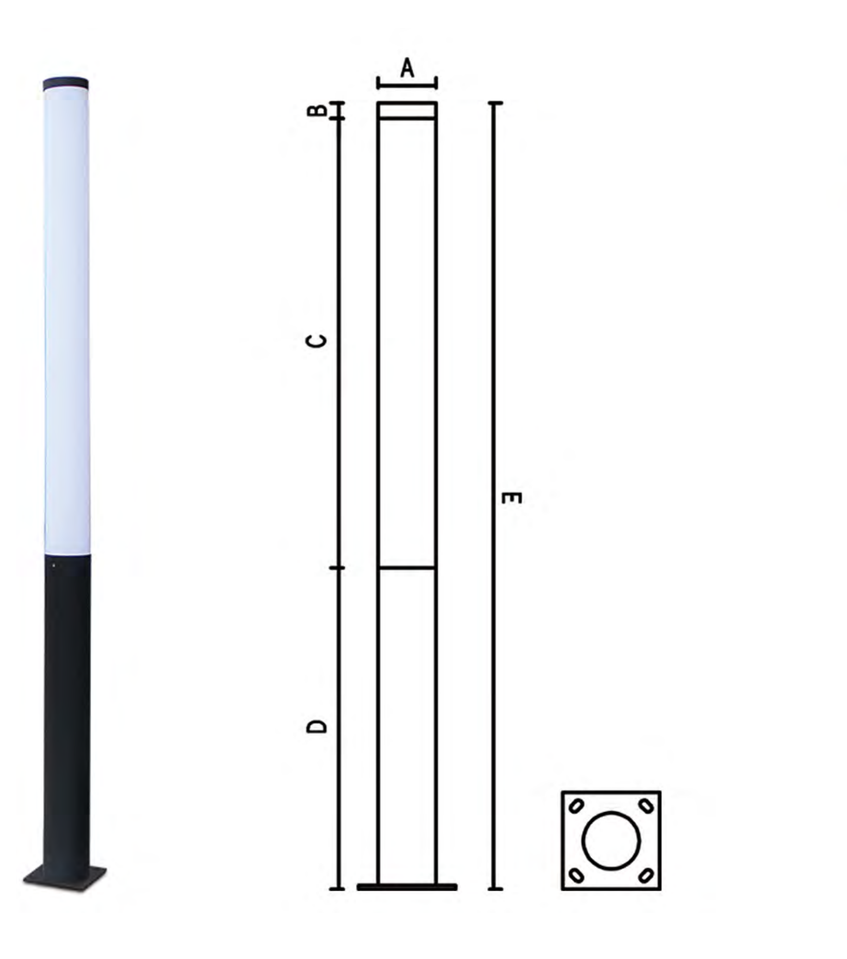

MB-T012
Light columns
40W
IP54 · 1 technical variants
Aluminum · PC diffuser
Specifications
MB-T012 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
D
E
MB-T012
LED
40W
2800
2700-6000K/RGB
0.9
AC110-265V
80-90
Ø145
30
1470
1000
2500
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
PC
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
The source lists 2700-6000K/RGB and On/Off. RGB control hardware and the exact white-light or RGB configuration require confirmation.

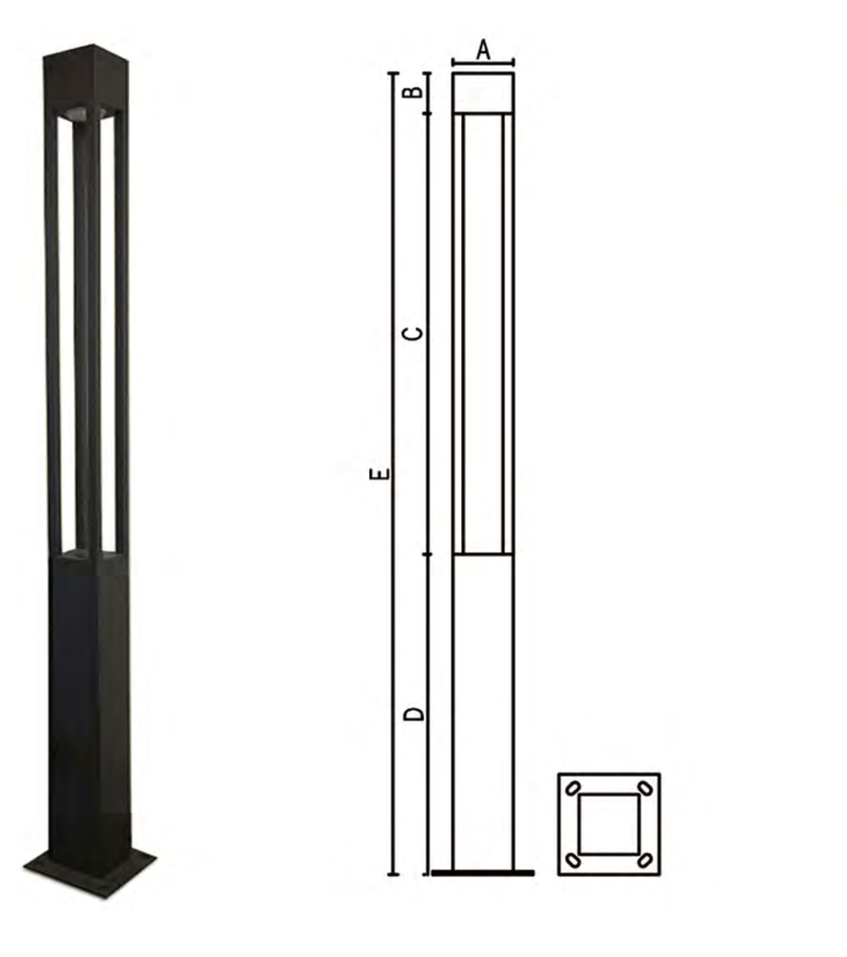

MB-T001
Light columns
30W / 40W / 50W
IP54 · 3 technical variants
Aluminum · Acrylic diffuser
Specifications
MB-T001 technical specifications · dimensions in mm
Item No.
Lamp type
Power
LM
CCT
PF
Voltage
CRI
A
B
C
D
E
MB-T001/150
LED
30W
2100
2700K-6000K
0.9
AC110-265V
80-90
150
150
1350
1000
2500
MB-T001/200
LED
40W
2800
2700K-6000K
0.9
AC110-265V
80-90
200
200
1800
1500
3500
MB-T001/250
LED
50W
3500
2700K-6000K
0.9
AC110-265V
80-90
250
250
1950
1800
4000
Dimension letters refer to the drawing where shown. A dash means no value is listed.
Category
Garden Light
Diffuser material
Acrylic
Cover material
Aluminum
Operating mode (source)
Built in
Control
On/Off
IP
54
Mounting type (source)
Put
Mounting location (source)
Overground
Application environment
Indoor/Outdoor
Body color
Black/Dark Gray/Silver Gray
03 / Selection guide
Match the fixture to the project.
Compare mounting, supply and dimensional requirements before requesting a quotation.
Product type
Source mounting
Selection detail
Bollard lights
Put / Overground
Compare shape, height and base dimensions for the intended surface.
Solar bollards
Put / Overground
MB16-080-SL: 3W, 210 LM and 8 Hours listed; confirm battery and charging conditions.
Spike garden lights
Insert / Underground
Check the drawing and supply row. MB19-C014 includes two different electrical versions.
Decorative garden lights
Put / Overground
MB23-0201 uses AC12V; MB23-0202 uses AC110-265V and C1/C2/C3 dimensions.
Light columns
Put / Overground
MB-T012 lists 40W and E = 2500 mm. MB-T001 lists 30W / 40W / 50W with E = 2500 / 3500 / 4000 mm. Confirm the required configuration.
Model references to confirm MB18-C015 is the source heading, while its technical rows read MB19-C015A/B. MB24-0201/0202 images carry MB23-0233/0234 captions. The page preserves these references without changing the ordering codes or images.
04 / Your project, one quotation
Build your lighting brief
Choose exact technical variants and finishes, then review quantities and project requirements. Nothing is sent automatically.
Email opens your mail app. For long briefs, attach the downloaded TXT. The inquiry page opens separately; paste your brief into the message. Nothing is submitted automatically.
Drafts are saved in this browser when storage is available. Download a copy to keep or share.
05 / Questions, answered
Details that support clear specifications.
Model-specific answers based on the supplied product data.
What is included in this bollard light collection?
VOC Lighting’s collection includes 21 product groups and 61 technical variants: LED bollards, solar bollards, spike garden lights, decorative garden lights and a light column. Specifications are presented by exact item number.
What IP rating is listed?
All 21 supplied product sheets list IP54 and Indoor/Outdoor application. Confirm the mounting and connection arrangement for the site; the collection is not described as underwater lighting.
Which heights are available?
Many bollard families list 300, 600 and 900 mm overall heights. Other designs have different values. MB-T012 lists E = 2500 mm; MB-T001 lists E = 2500, 3500 or 4000 mm. Use the dimension letters on the relevant drawing rather than treating C as overall height for every model.
Do all fixtures use the same voltage?
No. Most wired rows list AC110-265V. MB23-0201 lists AC12V. MB19-C014 has one 7W AC110-265V row and one 5W DC12/24V row. MB23-0226 lists DC24V. The solar sheet does not provide a voltage value.
What does the solar model specify?
MB16-080-SL lists LED, 3W, 210 LM, 2700K-6000K, CRI 80-90, an Aluminum+Solar Panel cover, PC diffuser and 8 Hours working time. The sheet does not state battery capacity, panel output or charging conditions; request confirmation.
What color temperatures and controls are listed?
Most rows list 2700K-6000K and the feature tables state On/Off. MB-T012 lists 2700-6000K/RGB. These labels do not establish tunable-white operation or a supplied RGB controller. State the required configuration in your request.
Which finishes and materials are available?
Most sheets list Black/Dark Gray/Silver Gray and an Aluminum cover. MB23-0201 lists Black only and a PVC cover. Diffusers vary between PC, Glass and Acrylic; the solar model lists Aluminum+Solar Panel.
Why do some model references differ?
The MB18-C015 heading differs from its MB19-C015A/B technical item numbers. MB24-0201/0202 image captions read MB23-0233/0234. These source differences are explicitly retained for confirmation before ordering.
How should I choose spacing and mounting accessories?
Provide the site layout, mounting surface, desired lighting effect and supply arrangement with your inquiry. The supplied sheets do not state universal fixture spacing, installation accessories or photometric layouts.
How do I request several models together?
Select an exact technical variant, finish and quantity for each product, then review the combined brief. Copy or download it, or open an email draft. An inquiry is only sent when you submit it yourself.
Source: 21 supplied VOC Lighting Garden Light product sheets. Exact item numbers and technical values are retained. Final configurations and installation details require confirmation.
