PRODUCT OVERVIEW

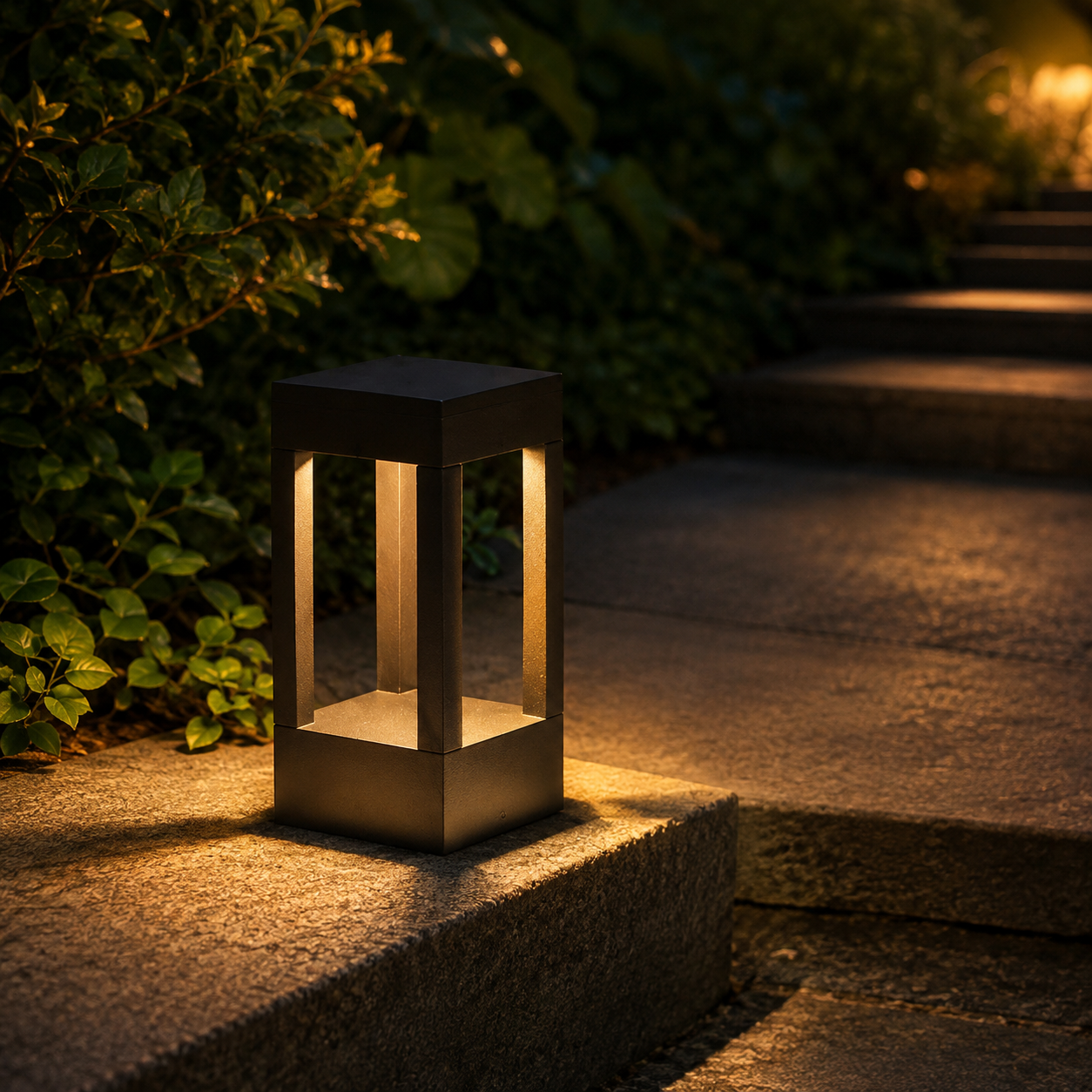

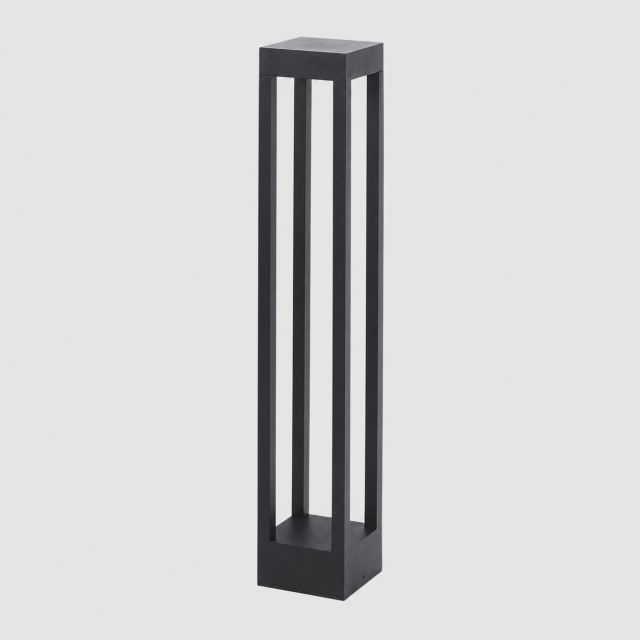

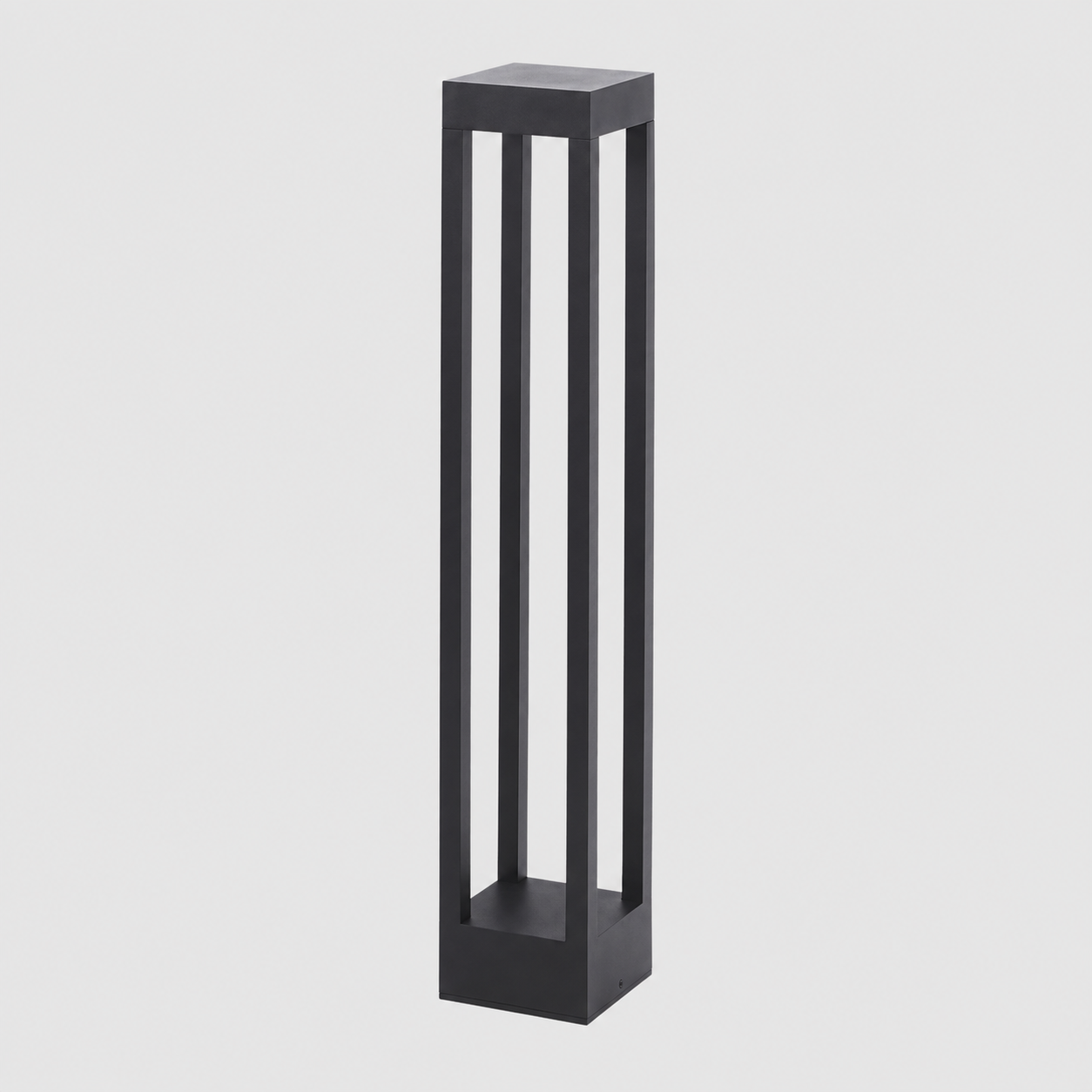

The MB16-077 Series is an IP54 outdoor LED bollard light designed for gardens, pathways, parks, villas, pedestrian streets and architectural landscapes. Its square open-frame structure creates a distinctive four-direction lighting effect while maintaining a clean contemporary appearance.
The series uses a built-in 10W LED light source with 700 lm output and is available in three overall heights: 300mm, 600mm and 900mm. This allows coordinated landscape lighting layouts with a consistent architectural design language.
KEY FEATURES
- IP54 Outdoor Protection
Suitable for gardens, pathways, parks, residential landscapes and other outdoor environments. - Four-Direction Decorative Lighting
Open square-frame structure creates a distinctive radial light pattern for pathways, lawns and landscape spaces. - Three Height Options
Available in 300mm, 600mm and 900mm heights for flexible landscape composition. - 10W Integrated LED
Built-in LED provides 700 lm output with consistent performance across all three sizes. - Square Architectural Design
Minimal square geometry integrates well with modern gardens, villas and commercial landscapes. - Durable Aluminum Housing
Aluminum construction provides structural durability and effective heat dissipation for outdoor use. - Glass Diffuser
Glass optical components support clean light transmission and reliable outdoor performance. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Lamp Type | Power | Luminous Flux | Width (A) | Body Height (B) | Overall Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB16-077A | LED | 10W | 700 lm | 110mm | 250mm | 300mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB16-077B | LED | 10W | 700 lm | 110mm | 550mm | 600mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB16-077C | LED | 10W | 700 lm | 110mm | 850mm | 900mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
LIGHTING EFFECT
- Four-direction decorative light distribution
- Suitable for pathway guidance and landscape ambiance
- Consistent visual effect across 300mm / 600mm / 900mm heights
TECHNICAL OPTIONS
- Protection Rating: IP54
- Input Voltage: AC110-265V
- Power: 10W
- Luminous Flux: 700 lm
- CCT: 2700K-6000K
- CRI: Ra80-90
- Power Factor: 0.6
- Housing Material: Aluminum
- Diffuser Material: Glass
- Operating Mode: Built-in LED
- Switch: On / Off
- Mounting Type: Surface Mounted
- Mounting Location: Above Ground
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Garden Paths & Lawns
- Parks & Public Landscapes
- Villa Gardens & Courtyards
- Pedestrian Streets & Walkways
- Residential Communities
- Hotels & Resort Landscapes
- Architectural Landscape Lighting
