Wall lights / The collection
VOC Lighting wall lights bring together 33 models, from compact geometric fixtures and adjustable heads to lanterns and decorative globe designs. Compare the listed power, materials and dimensions, then request a project quotation or OEM customization.
Listed supply: AC100-240V · Listed CCT: 3000K · WH / GY / BK finishes
Click the image to enlarge.
01 / At a glance
VOC Lighting lists 3000K and AC100-240V across this collection. Numeric power entries range from 6W to 24W; E27 and GU10 models instead carry maximum lamp ratings. CRI is listed as 80, with 85 for DFB-033C and DFB-W201.
Explore wall-light options for entrances, corridors, garden walls and architectural features. Confirm environmental suitability and the required IP rating for the selected model before specifying an exposed outdoor location.
Review the original dimension drawing beside each product. The supplied drawings do not explicitly state a universal dimension unit; confirm units and mounting dimensions with VOC Lighting before installation.
02 / Find your wall light
Click a product image to enlarge the original illustration and drawing. Open Specifications for selectable, readable technical details.
Click to enlarge

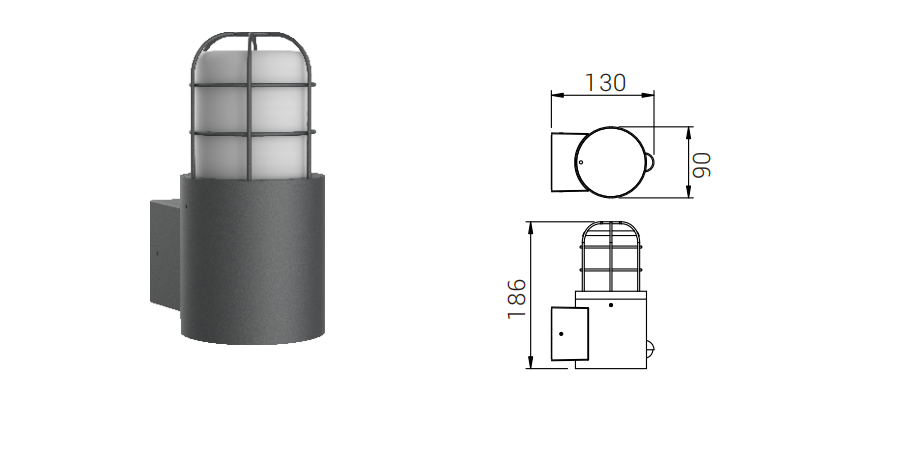

DFB-6216A
Aluminum+PC
| Model | DFB-6216A |
|---|---|
| Power / lamp rating | 8W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

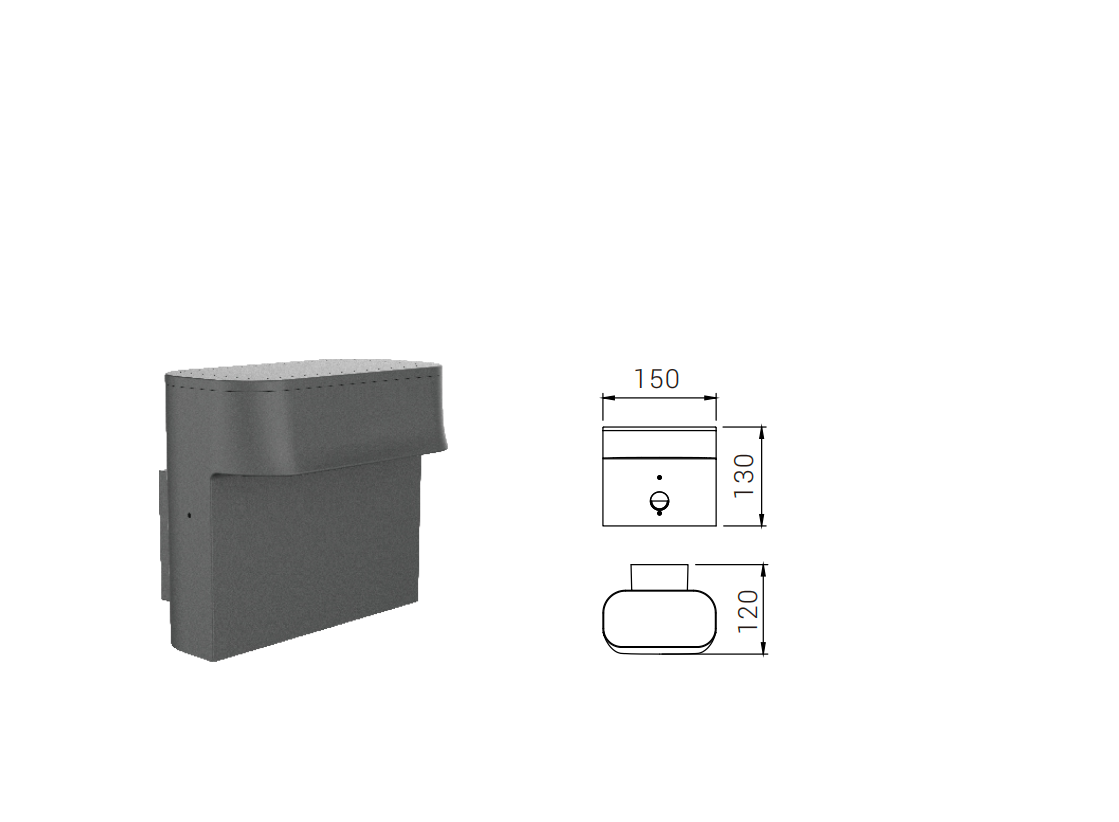

DFB-6217
Aluminum+Glass
| Model | DFB-6217 |
|---|---|
| Power / lamp rating | 10W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

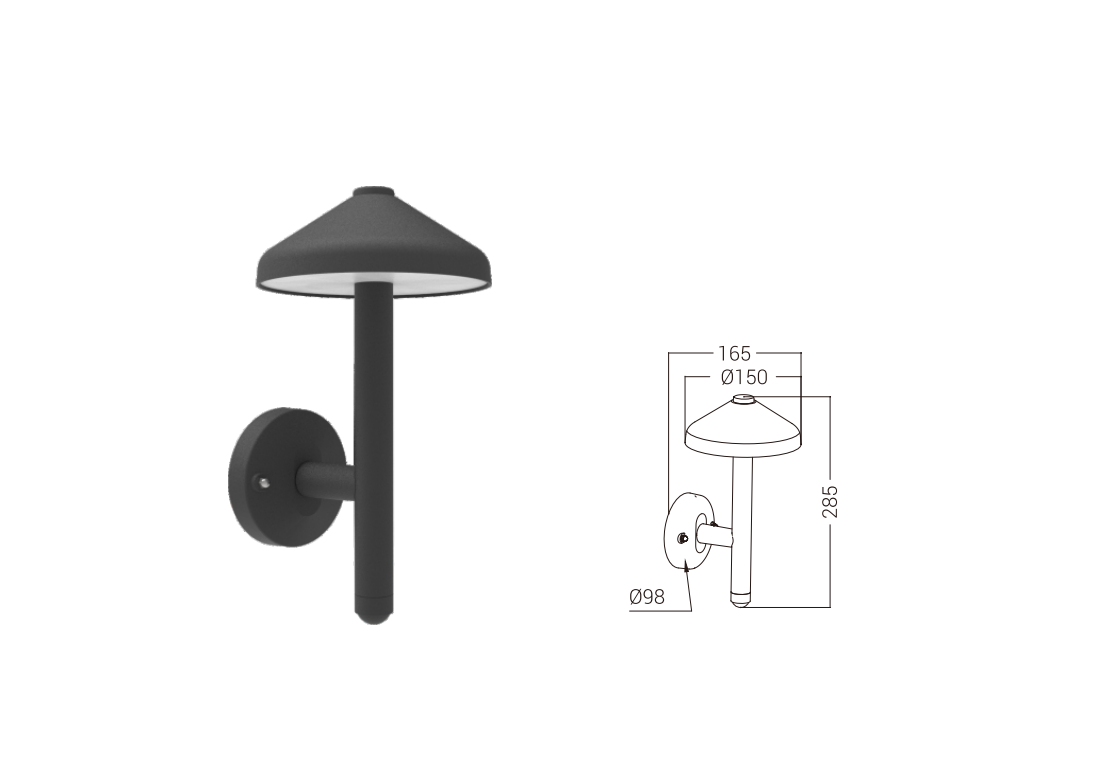

DFB-172
Aluminum+PC
| Model | DFB-172 |
|---|---|
| Power / lamp rating | 8W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

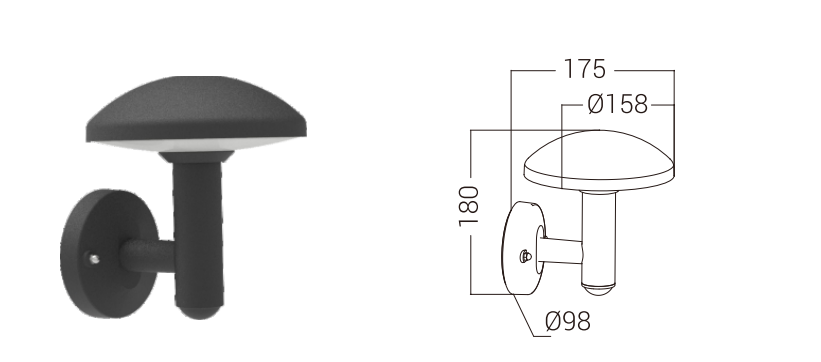

DFB-171
Aluminum+PC
| Model | DFB-171 |
|---|---|
| Power / lamp rating | 12W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

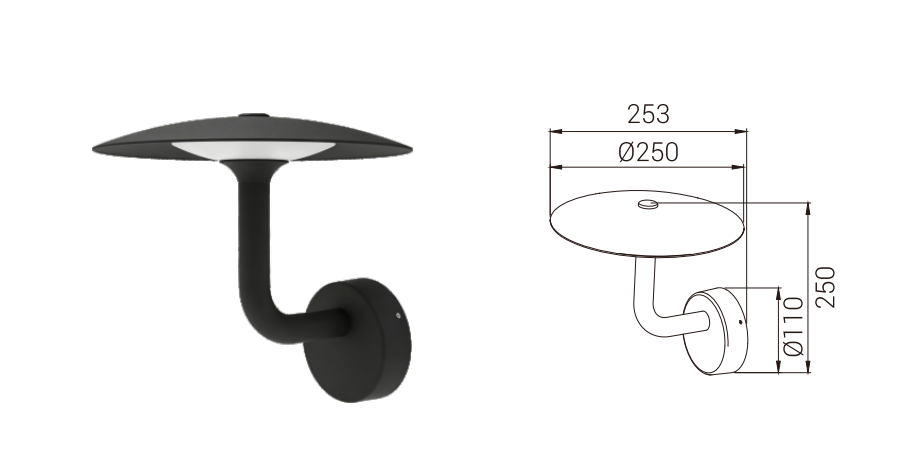

DFB-063-A
Aluminum+PC
| Model | DFB-063-A |
|---|---|
| Power / lamp rating | 6W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

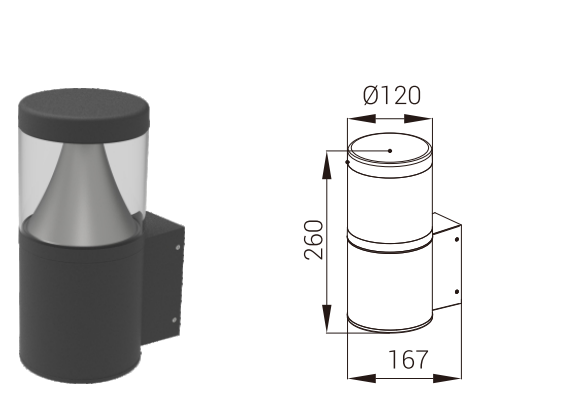

DFB-207L
Aluminum+Glass
| Model | DFB-207L |
|---|---|
| Power / lamp rating | 12W/15W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

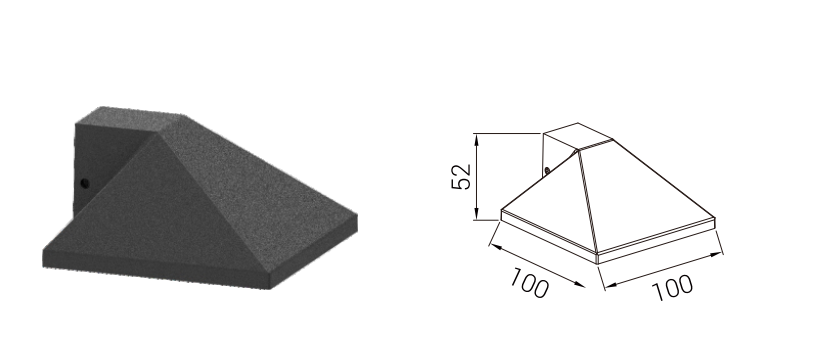

DFB-154
Aluminum+Glass
| Model | DFB-154 |
|---|---|
| Power / lamp rating | 7W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

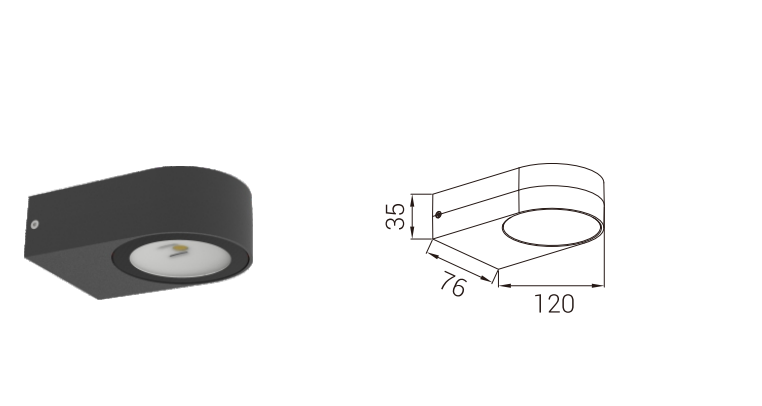

DFB-209
Aluminum+Glass
| Model | DFB-209 |
|---|---|
| Power / lamp rating | 10W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

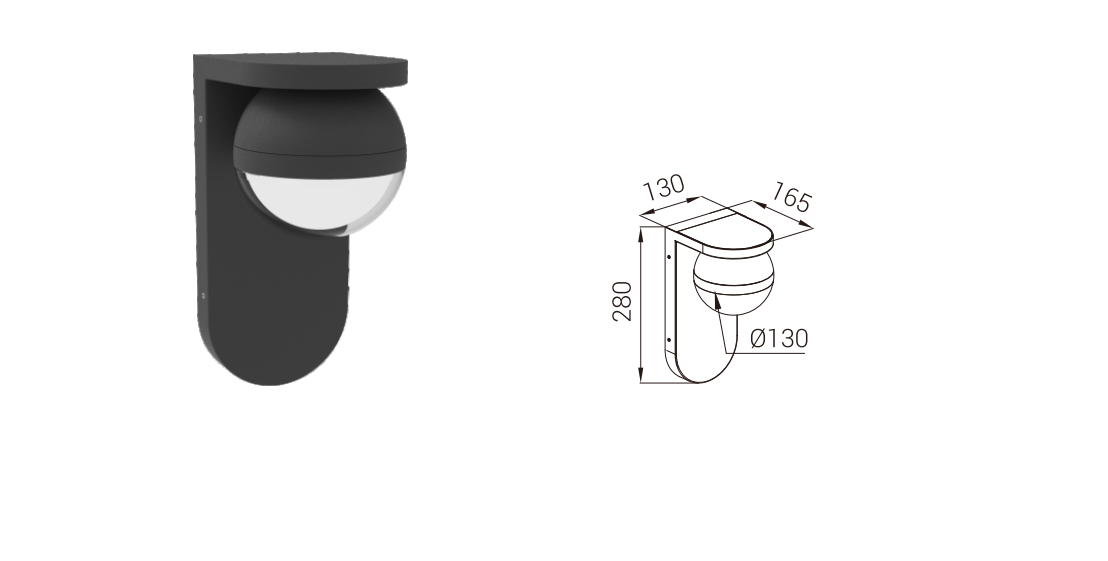

DFB-208B
Aluminum+PC
| Model | DFB-208B |
|---|---|
| Power / lamp rating | 6W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

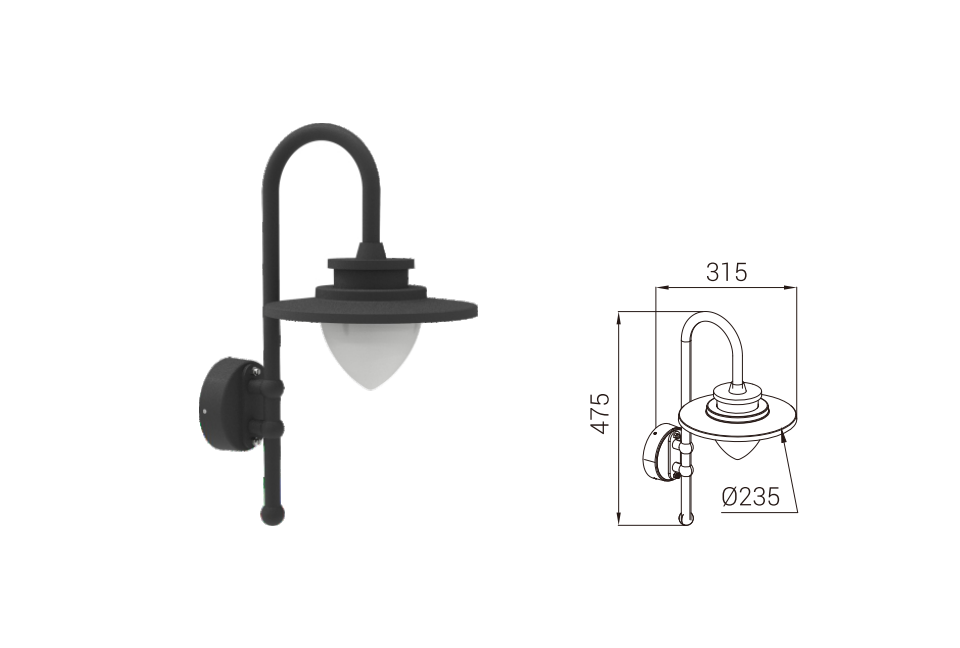

DFB-215
Aluminum+PC
| Model | DFB-215 |
|---|---|
| Power / lamp rating | 12W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

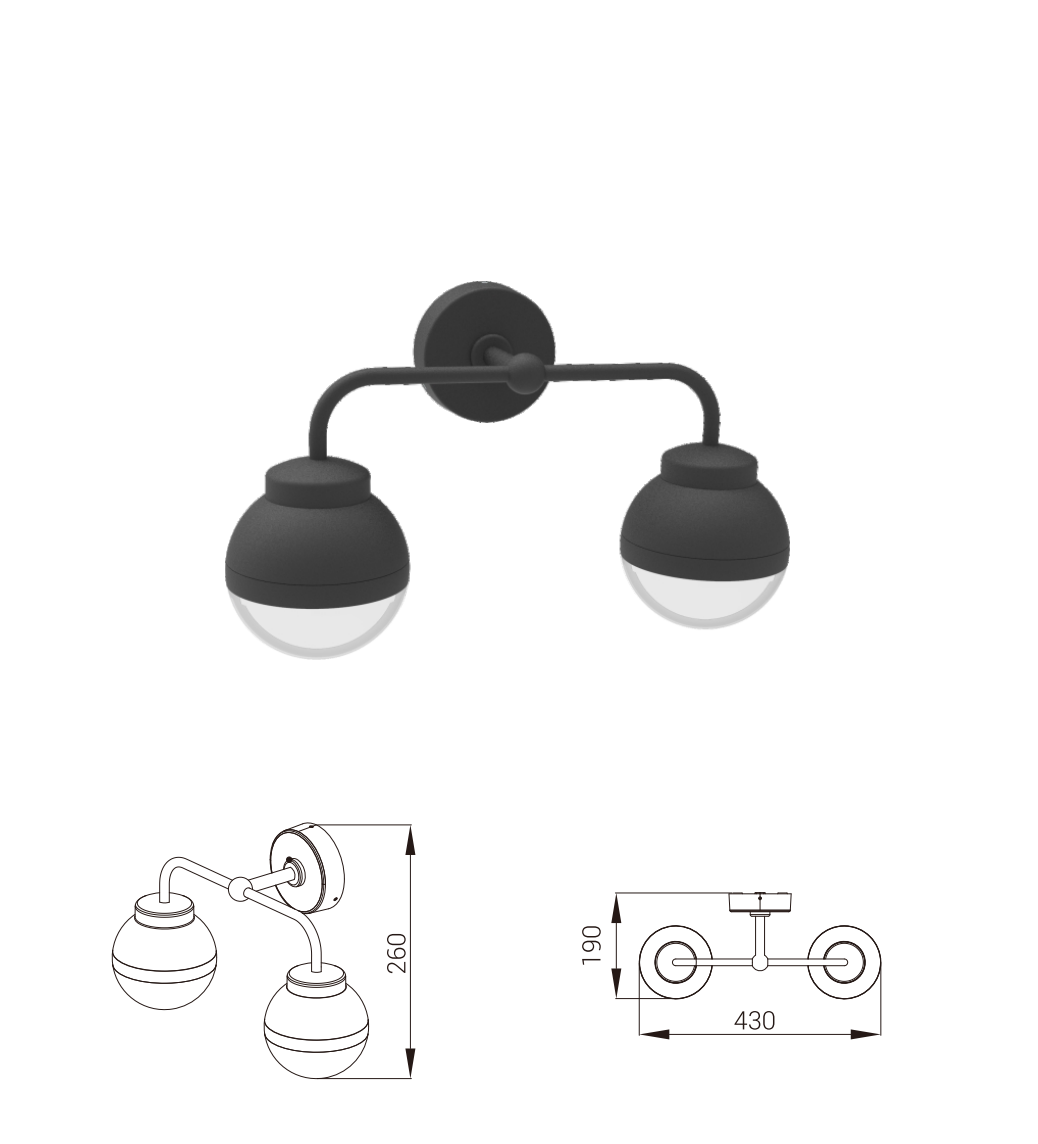

DFB-210A
Aluminum+PC
| Model | DFB-210A |
|---|---|
| Power / lamp rating | 12W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

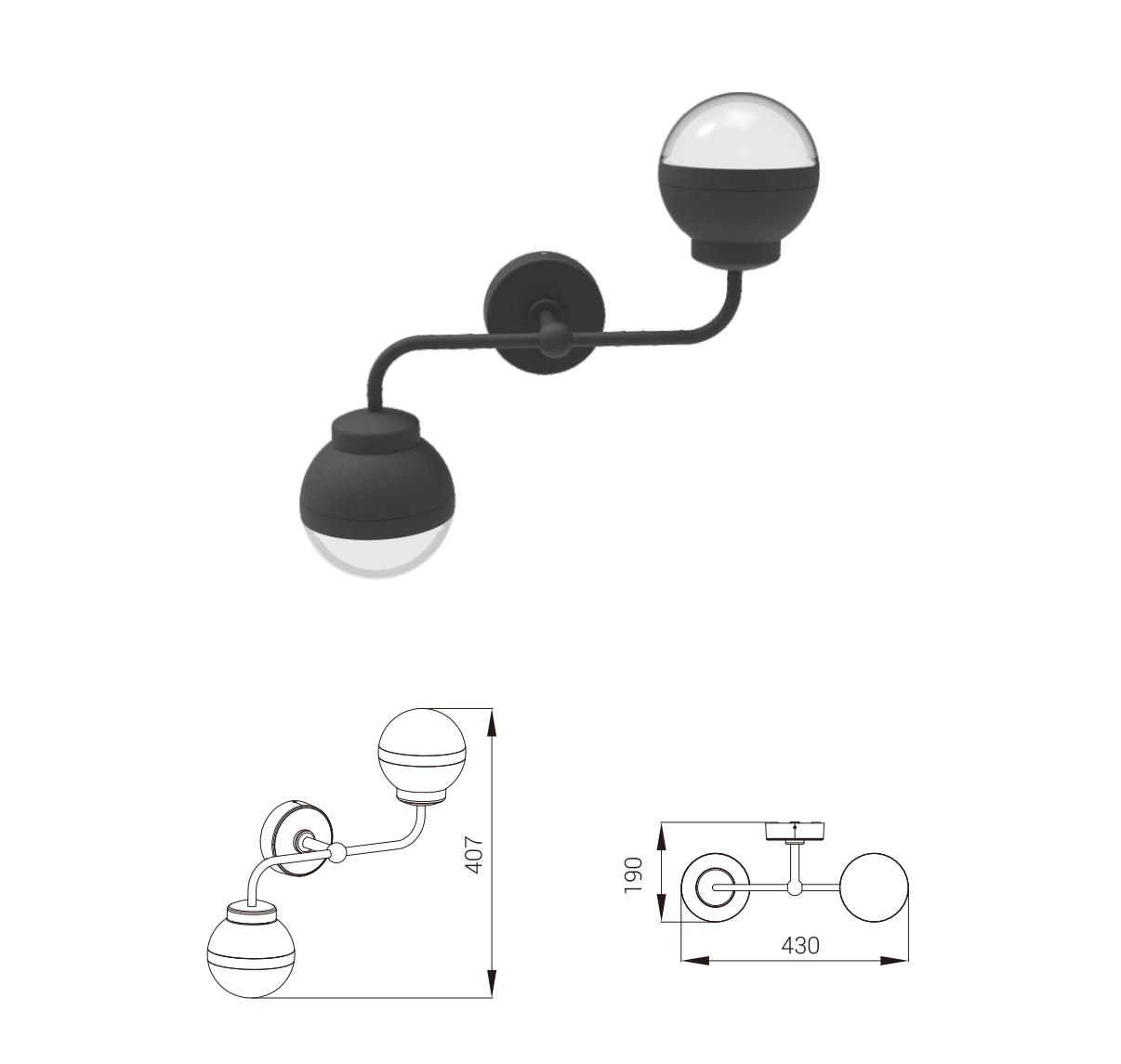

DFB-210B
Aluminum+PC
| Model | DFB-210B |
|---|---|
| Power / lamp rating | 12W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

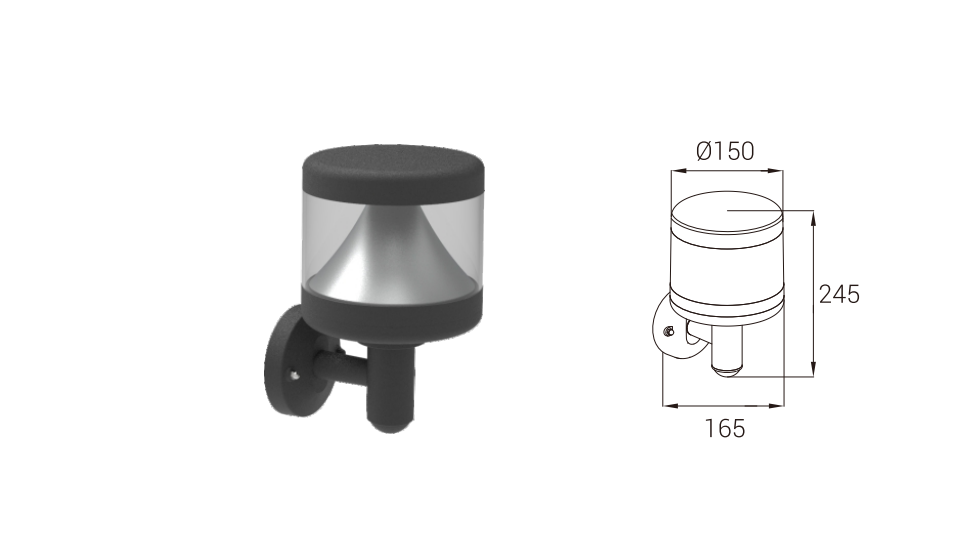

DFB-W201
Aluminum+PC
| Model | DFB-W201 |
|---|---|
| Power / lamp rating | 20W |
| CCT (listed) | 3000K |
| CRI (listed) | 85 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

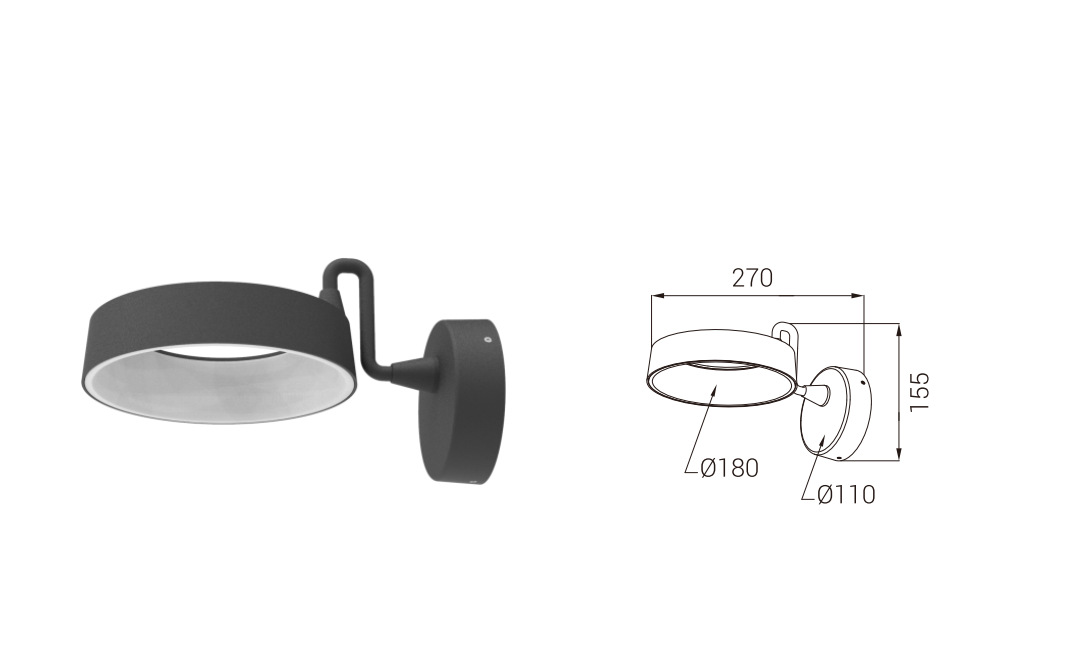

DFB-034
Aluminum+PC
| Model | DFB-034 |
|---|---|
| Power / lamp rating | 18W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

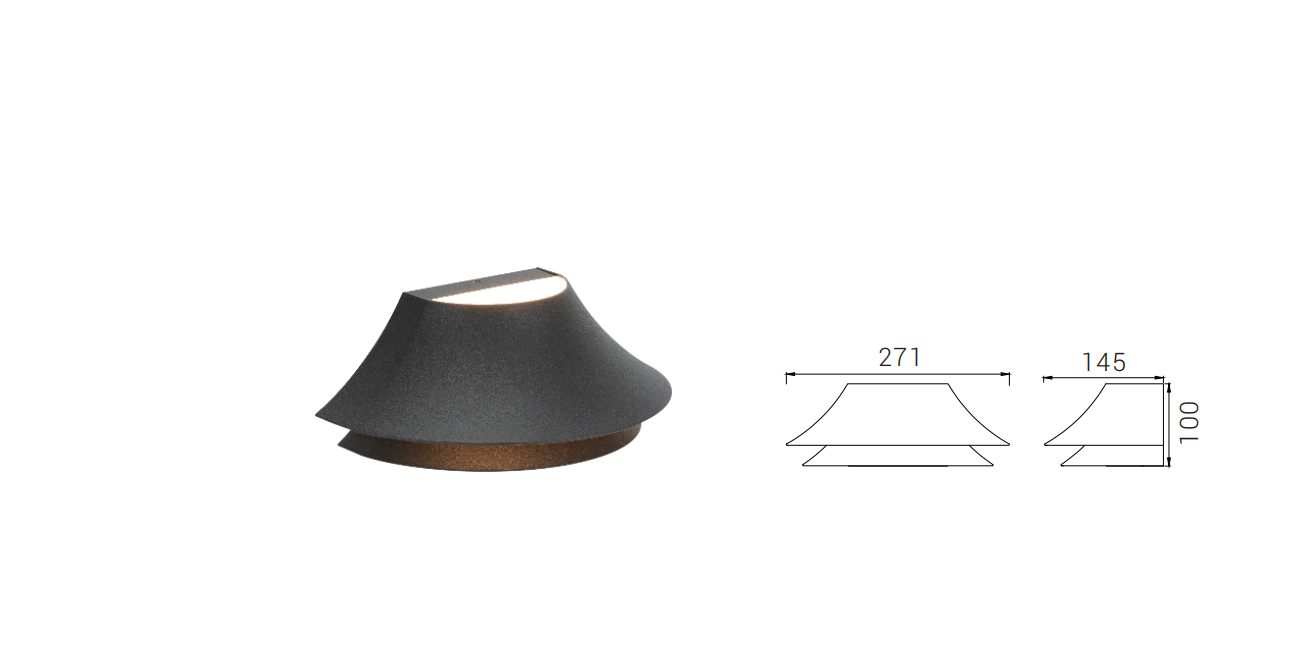

DFB-K411
Aluminum+Glass
| Model | DFB-K411 |
|---|---|
| Power / lamp rating | 12W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

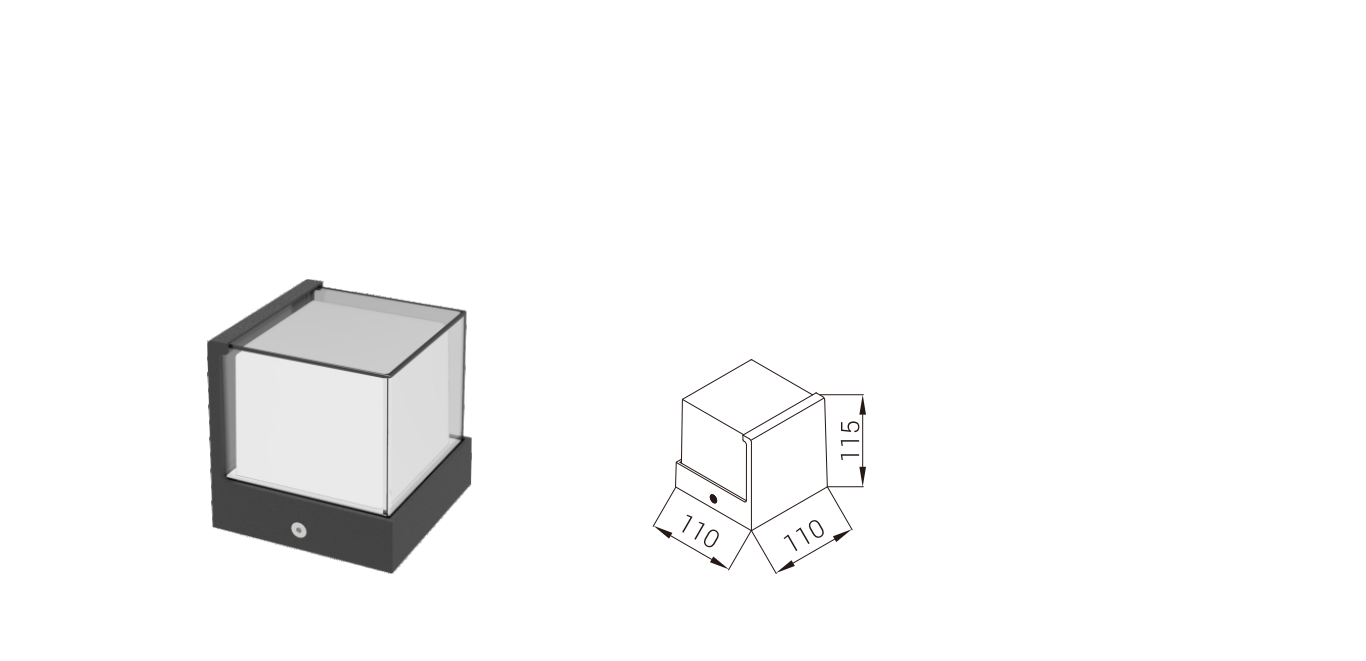

DFB-190-F
Aluminum+PC
| Model | DFB-190-F |
|---|---|
| Power / lamp rating | 7W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

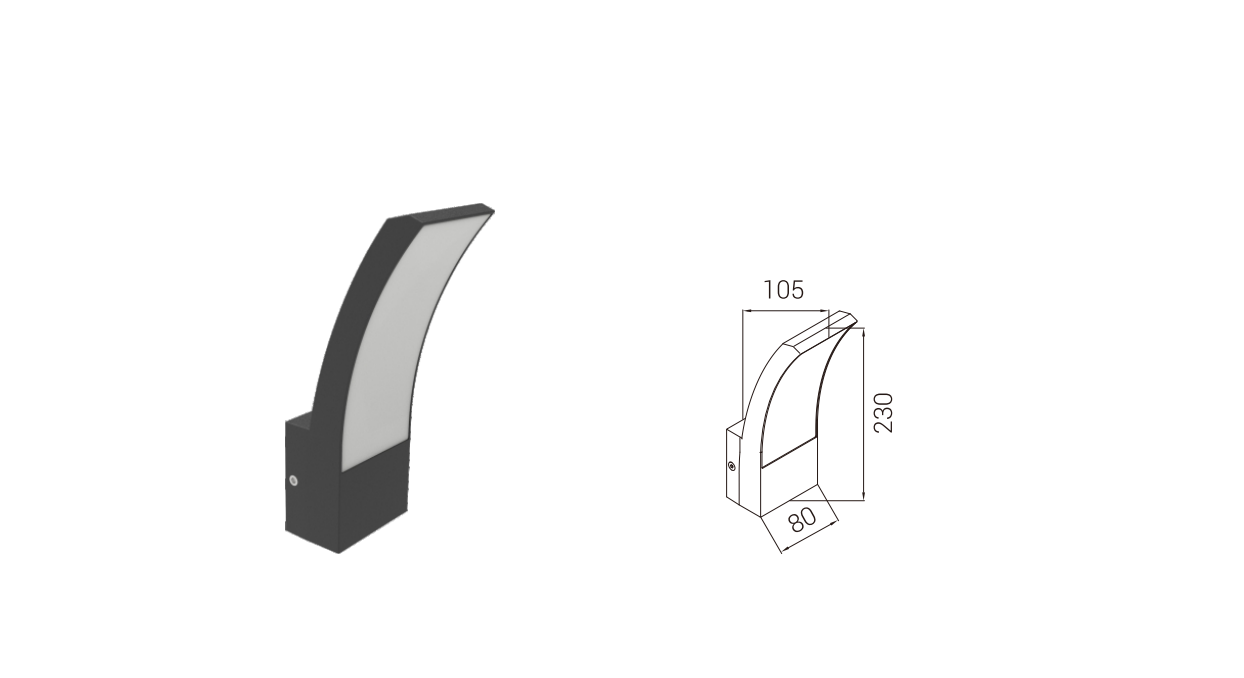

DFB-192
Aluminum+PC
| Model | DFB-192 |
|---|---|
| Power / lamp rating | 12W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

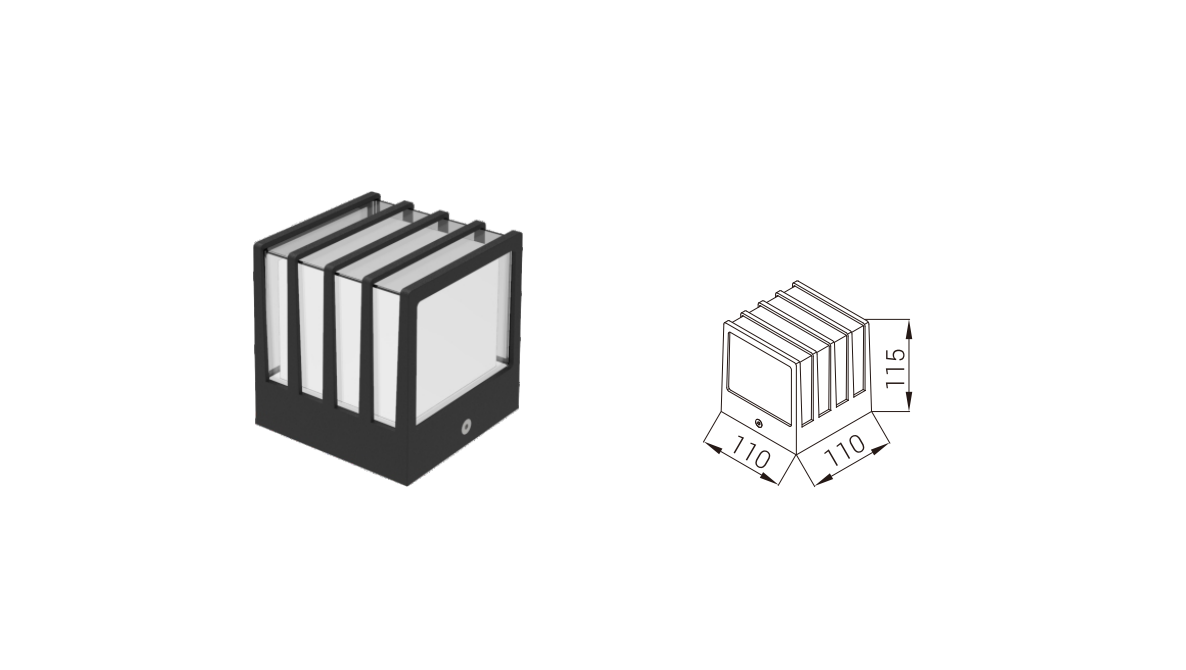

DFB-190-B
Aluminum+PC
| Model | DFB-190-B |
|---|---|
| Power / lamp rating | 7W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

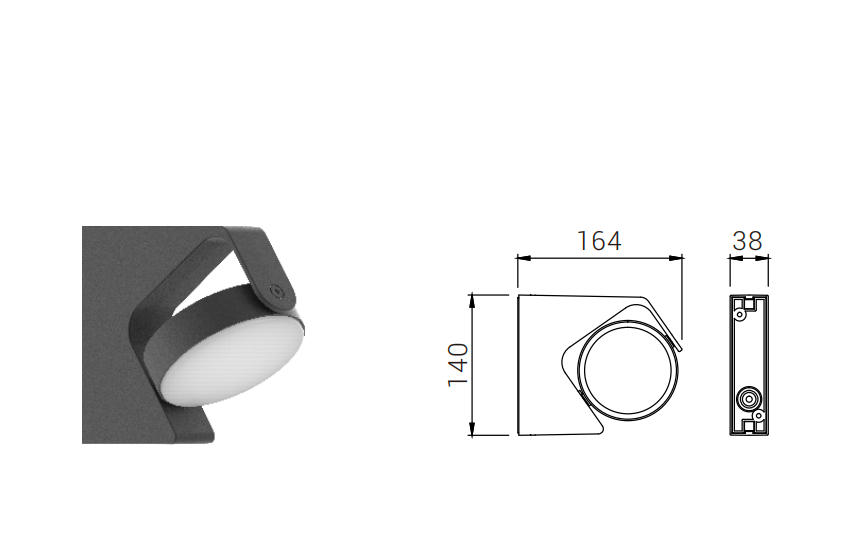

DFB-6220RD
Aluminum+PC
| Model | DFB-6220RD |
|---|---|
| Power / lamp rating | 9W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Left/right adjustable |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

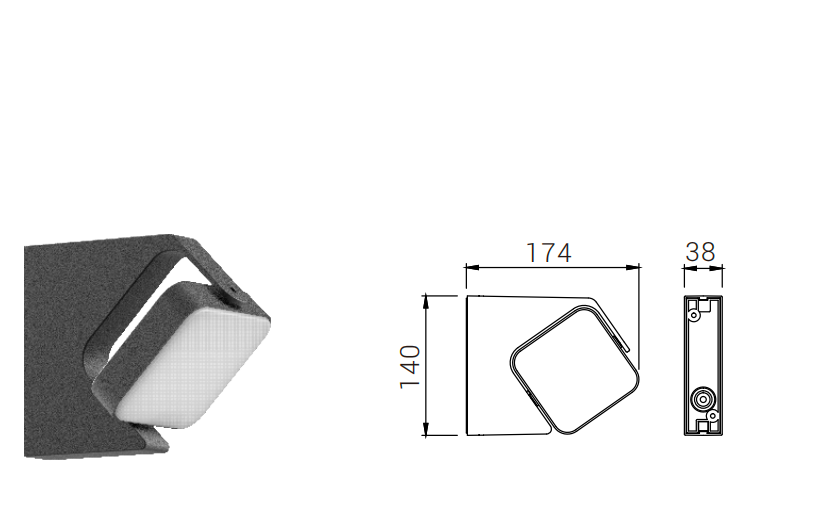

DFB-6220SQ
Aluminum+PC
| Model | DFB-6220SQ |
|---|---|
| Power / lamp rating | 9W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Left/right adjustable |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

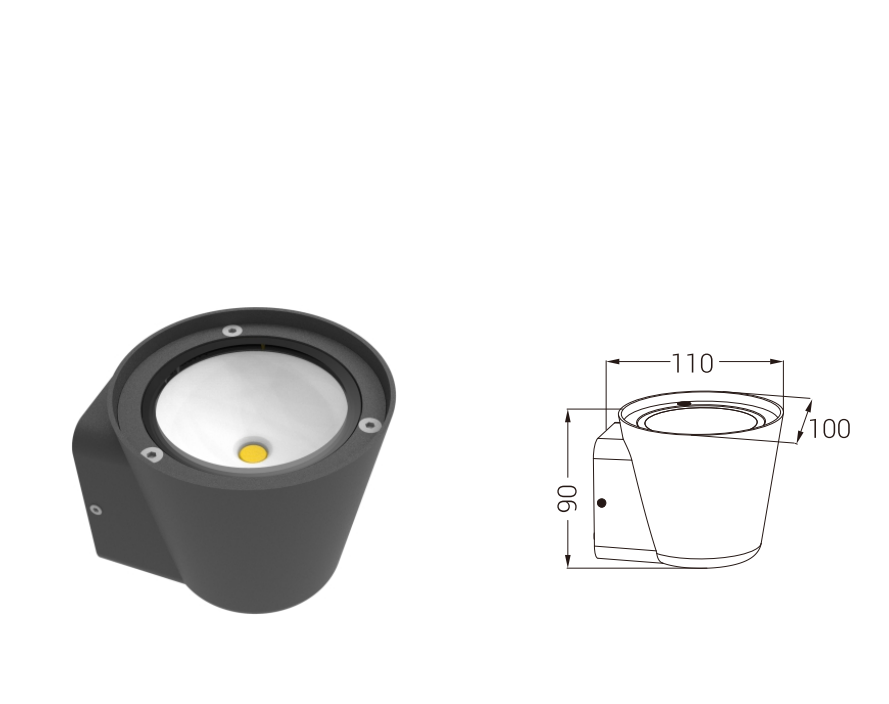

DFB-033C
Aluminum+Glass
| Model | DFB-033C |
|---|---|
| Power / lamp rating | 10W |
| CCT (listed) | 3000K |
| CRI (listed) | 85 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Vertical adjustable 90° |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

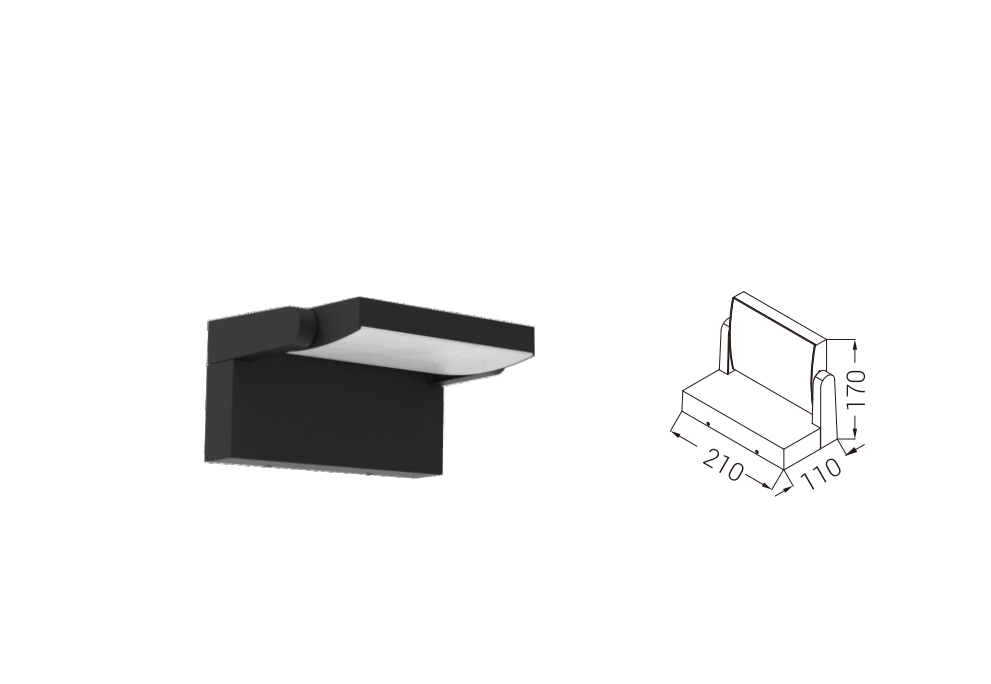

DFB-057
Aluminum+PC
| Model | DFB-057 |
|---|---|
| Power / lamp rating | 18W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Up/down adjustable |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

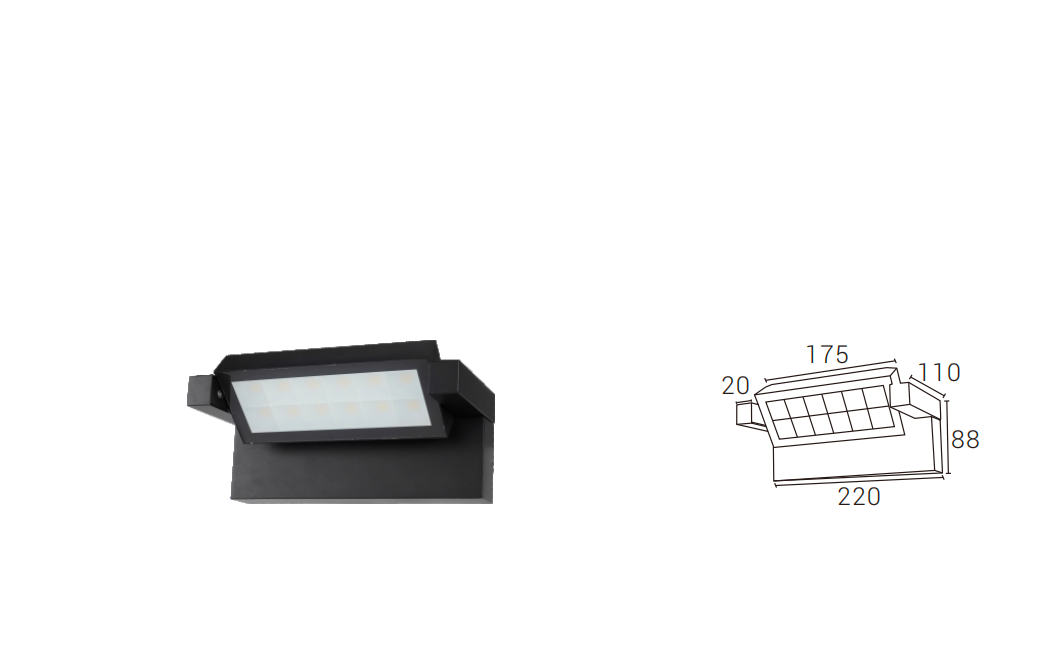

DFB-6225S
Aluminum + PC + Glass
| Model | DFB-6225S |
|---|---|
| Power / lamp rating | 12W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum + PC + Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Up/down adjustable |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

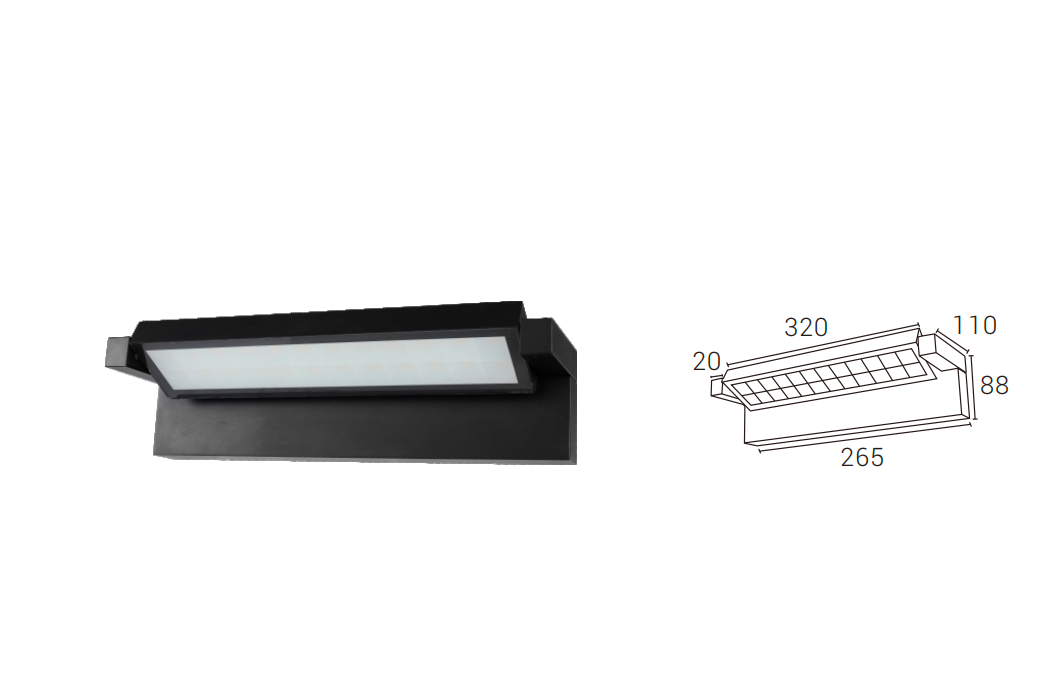

DFB-6226L
Aluminum + PC + Glass
| Model | DFB-6226L |
|---|---|
| Power / lamp rating | 24W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum + PC + Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Up/down adjustable |
Confirm the final configuration and mounting details when requesting a quotation.
Click to enlarge

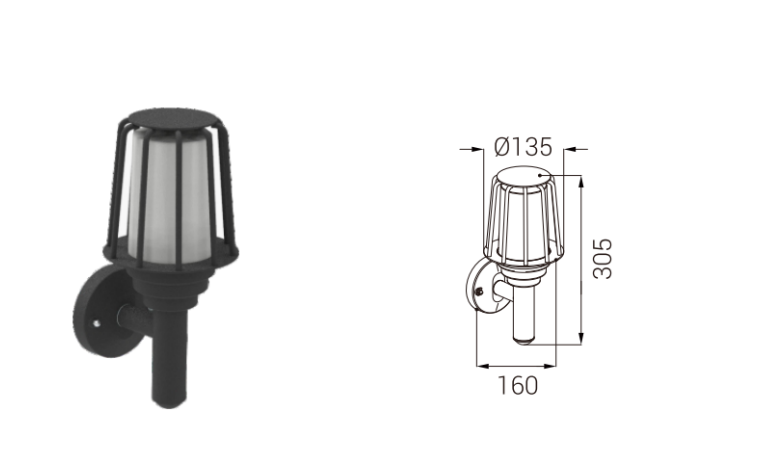

DFB-169
Aluminum+PC
| Model | DFB-169 |
|---|---|
| Power / lamp rating | E27 MAX20W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+PC |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

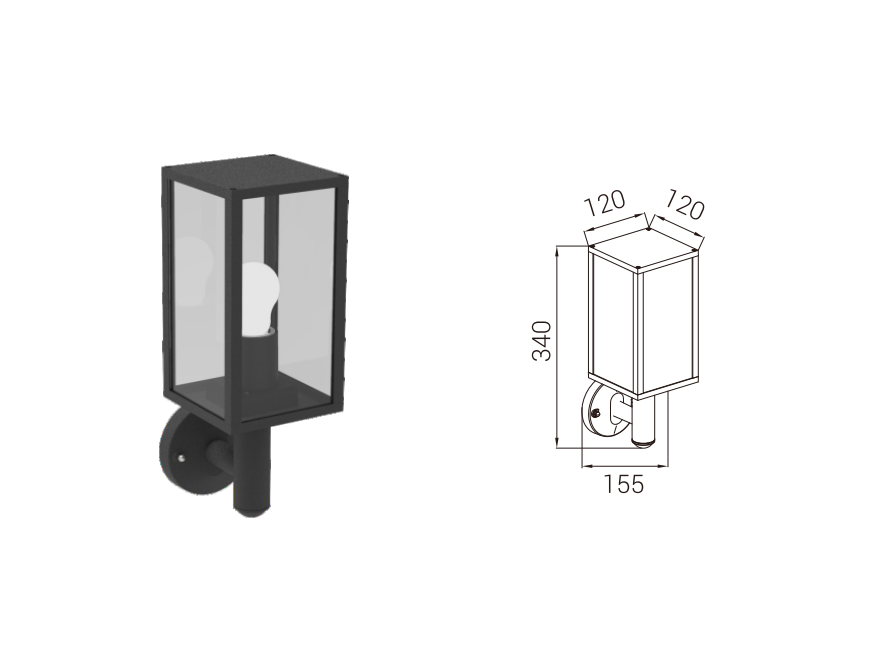

DFB-212B
Aluminum+Glass
| Model | DFB-212B |
|---|---|
| Power / lamp rating | E27 MAX20W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

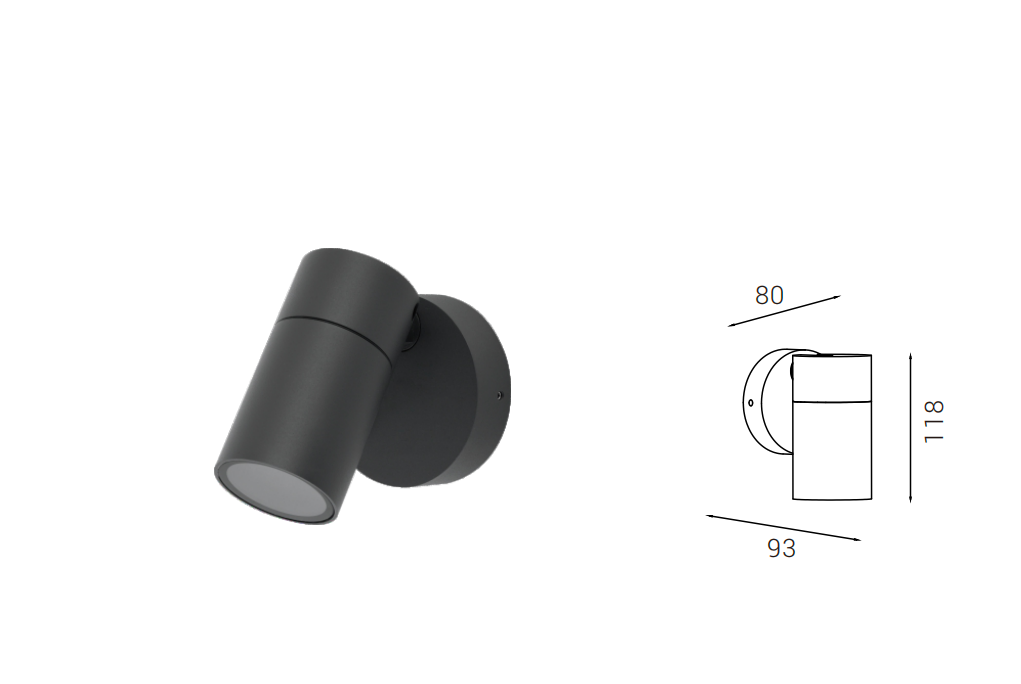

DFB-K585
Aluminum+Glass
| Model | DFB-K585 |
|---|---|
| Power / lamp rating | GU10 MAX.35W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Left/right adjustable |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

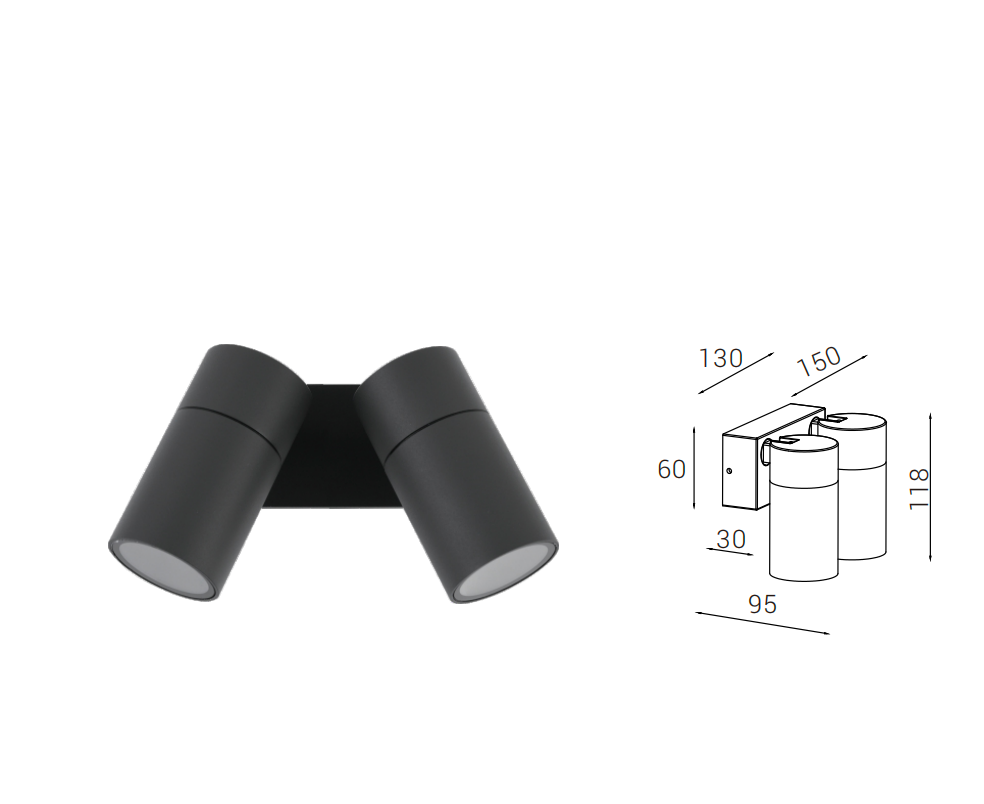

DFB-K586
Aluminum+Glass
| Model | DFB-K586 |
|---|---|
| Power / lamp rating | GU10 MAX.35W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| Adjustment | Left/right adjustable |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

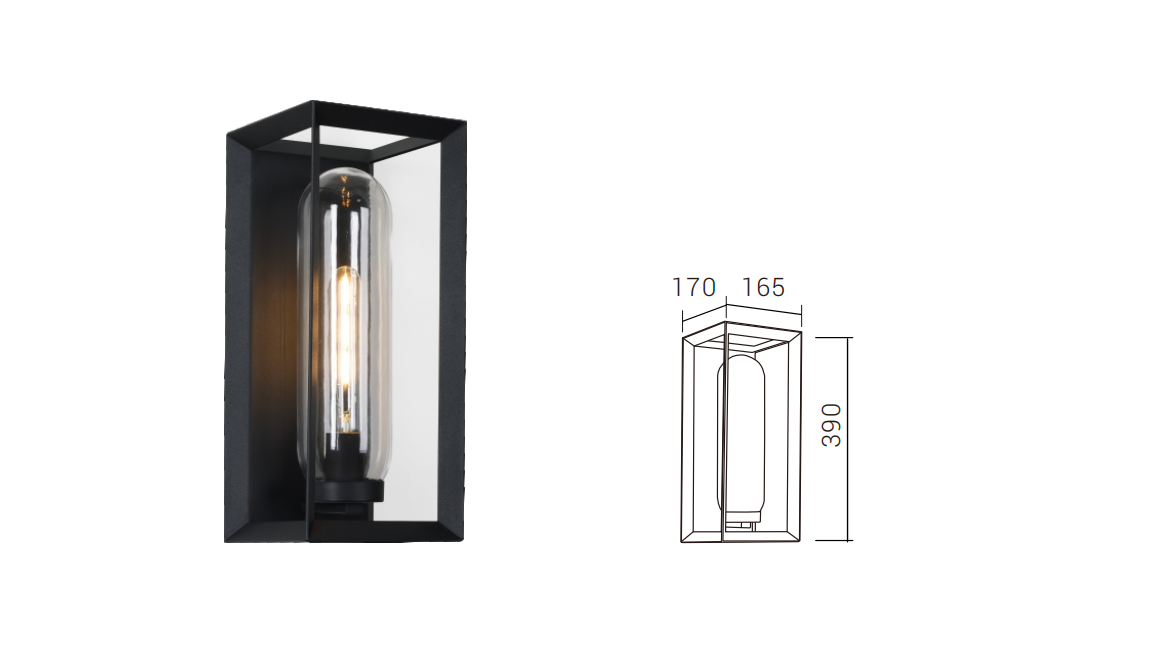

DFB-H0605
Aluminum+Glass
| Model | DFB-H0605 |
|---|---|
| Power / lamp rating | E27 MAX.60W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

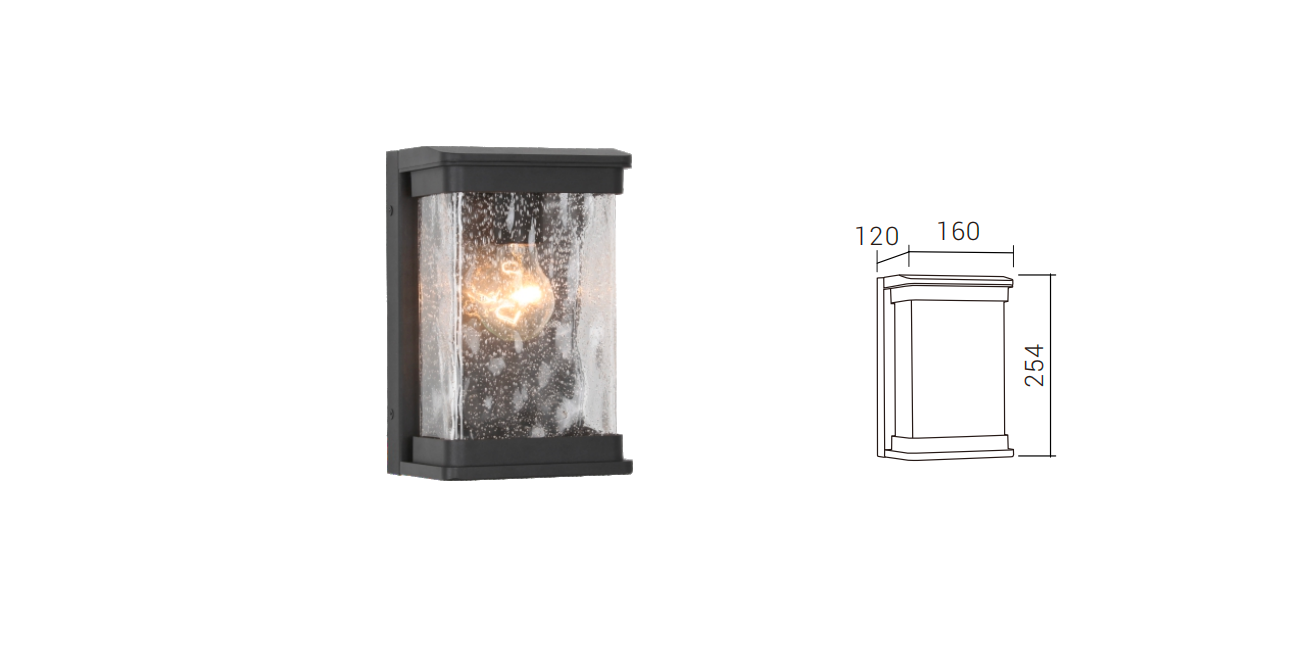

DFB-H9061
Aluminum+Glass
| Model | DFB-H9061 |
|---|---|
| Power / lamp rating | E27 MAX.60W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

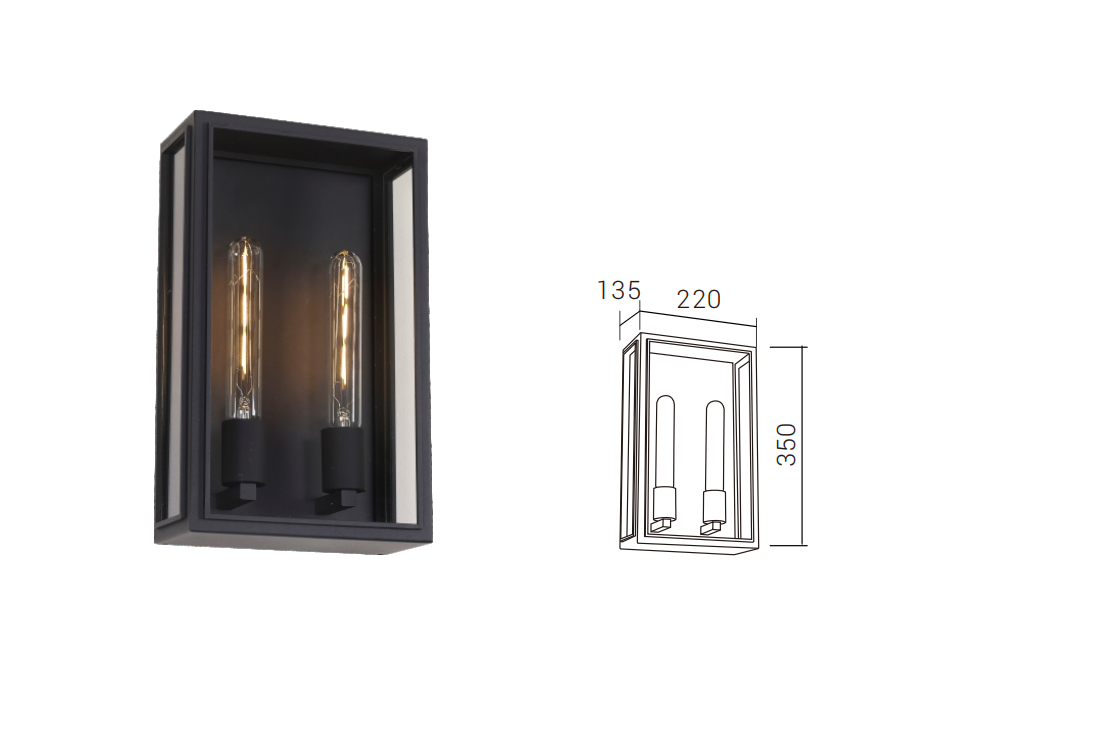

DFB-H1191-UP-L
Aluminum+Glass
| Model | DFB-H1191-UP-L |
|---|---|
| Power / lamp rating | E27 MAX.60W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

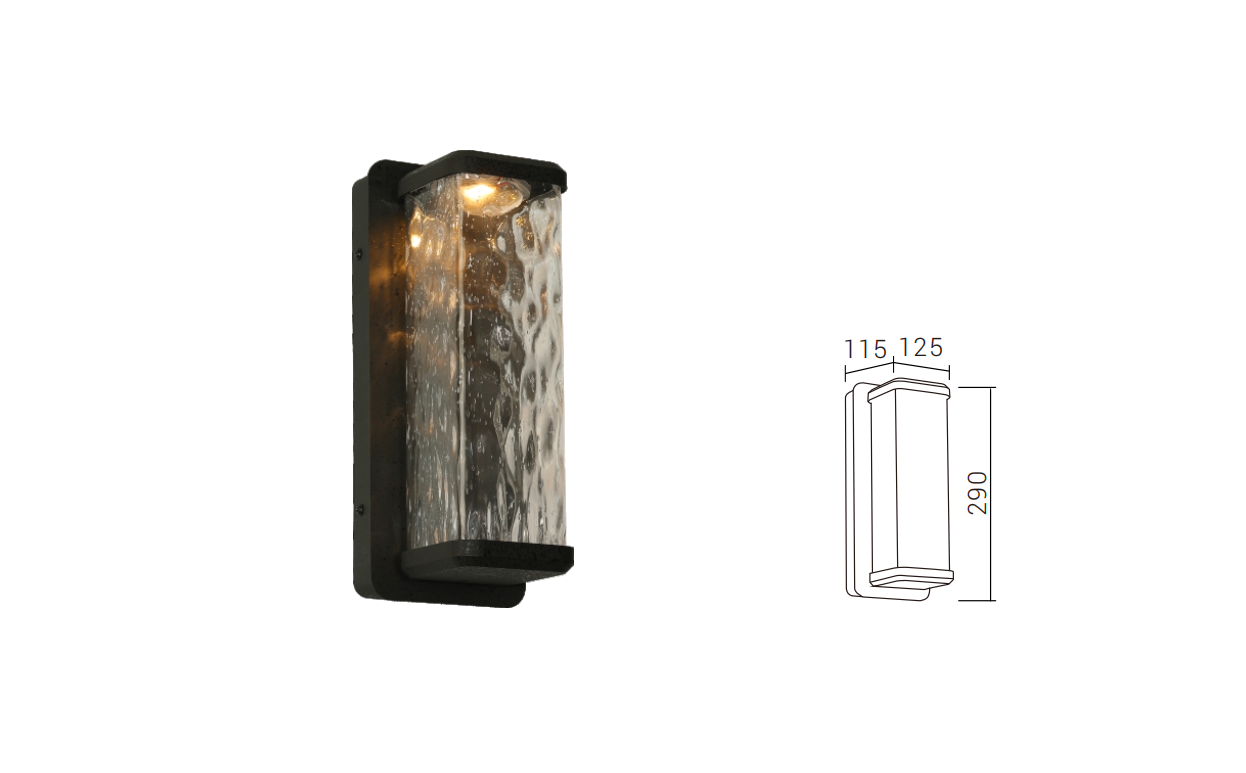

DFB-H9026
Aluminum+Glass
| Model | DFB-H9026 |
|---|---|
| Power / lamp rating | E27 MAX.60W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
| IP rating | IP65 |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
Click to enlarge

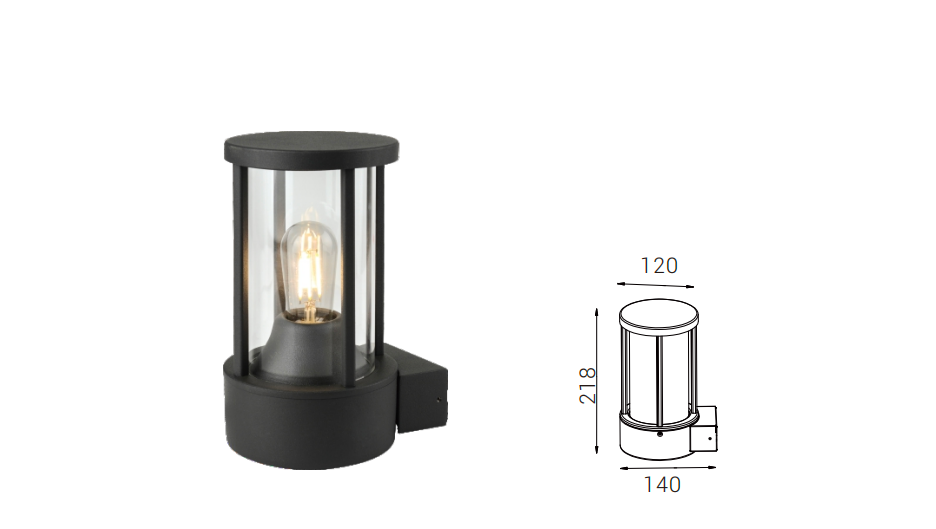

DFB-K231
Aluminum+Glass
| Model | DFB-K231 |
|---|---|
| Power / lamp rating | E27 MAX.60W |
| CCT (listed) | 3000K |
| CRI (listed) | 80 |
| Material | Aluminum+Glass |
| Voltage | AC100-240V |
| Finish codes | WH / GY / BK |
For E27/GU10 models, the maximum lamp rating is not a stated operating consumption. Confirm the supplied lamp and final light output.
03 / Specify with confidence
| Selection point | Collection information | What to confirm |
|---|---|---|
| Light source | Numeric power entries, E27 and GU10 lamp-rated models | Exact model, lamp inclusion and required output |
| Color and finish | 3000K; WH / GY / BK | Final finish sample and any custom color request |
| Adjustability | Adjustment is listed on eight models | Required aiming direction and clearance |
| Exposure | DFB-H9026 carries an IP65 marking in its supplied sheet | Model-specific IP rating for all other fixtures |
| Dimensions | Original dimension drawings are available in the image viewer | Drawing units, mounting centers and wall clearance |
04 / OEM & customization
VOC Lighting supports OEM and customized wall light inquiries. Share the reference model, target market, quantity and required changes so the team can review feasibility and prepare a quotation.
Include your preferred appearance, finish reference, electrical requirements, branding and packaging brief. Attach drawings or reference images when a standard catalogue model needs adaptation.
Customization options, minimum order quantities, sample arrangements, documentation, pricing and production lead time are confirmed for each project. Catalogue specifications remain the reference until a custom configuration is agreed.
05 / Your project, one quotation
Send model numbers, quantities, finish codes, installation location, delivery requirements and any OEM requests to VOC Lighting. For several models, list each model and quantity on a separate line.
Email opens your configured mail app. Add your project details and attachments before sending. Nothing is submitted automatically.
06 / Questions, answered
The VOC Lighting wall light collection shown here contains 33 distinct models. The repeated DFB-6216A source image is counted once, while DFB-6225S and DFB-6226L are listed separately.
The supplied wall light sheets list AC100-240V and 3000K. For E27 and GU10 models, confirm the lamp supplied and its final color temperature and CRI.
No collection-wide IP65 claim is made. The supplied DFB-H9026 sheet shows IP65; the other supplied sheets do not state an IP rating. Ask VOC Lighting to confirm the rating of the selected model.
DFB-6220RD, DFB-6220SQ, DFB-K585 and DFB-K586 list left/right adjustment. DFB-057, DFB-6225S and DFB-6226L list up/down adjustment. DFB-033C lists vertical adjustment of 90°.
E27 MAX.60W is the listed maximum lamp rating for that model, rather than a claim that every installed lamp consumes 60W. Confirm compatible lamps and lamp inclusion with your quotation.
VOC Lighting supports OEM and customization inquiries. Provide the model, quantities, market and requested changes. Feasibility, samples, minimum quantities and lead time are confirmed individually.
Click the product illustration to enlarge its original dimension drawing. Confirm the dimension unit and installation dimensions before finalizing a mounting layout.
Email sales@voclighting.com with each model, quantity and finish, or use the inquiry page. Include the installation environment, target delivery date and OEM requirements.
Technical source: the supplied VOC Lighting wall light catalogue images. Product values and source drawings are retained; unspecified ratings and project terms require confirmation.
