PRODUCT OVERVIEW

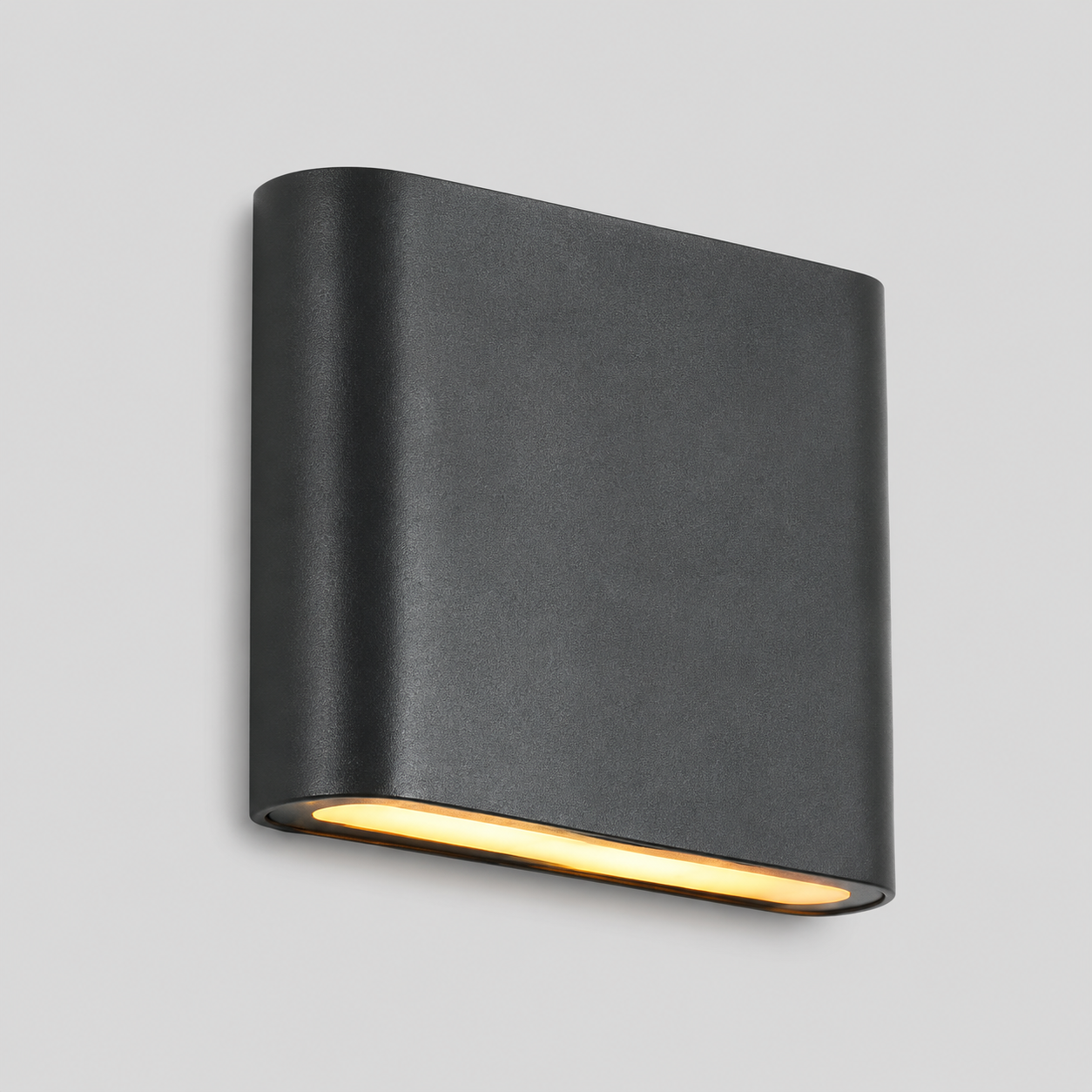

The MB16-053 Series is an IP54 outdoor LED wall light designed for exterior walls, façades, courtyards, villas, offices and commercial buildings. Its compact rectangular housing creates a clean architectural appearance with balanced up-and-down illumination.
The series is available in 6W and 10W versions with 420 lm and 700 lm output respectively. The built-in LED design, aluminum housing and glass diffuser provide a durable solution for decorative and general exterior wall lighting.
KEY FEATURES
- IP54 Outdoor Protection
Suitable for exterior walls, courtyards, villas, entrances and other sheltered outdoor environments. - Up & Down Light Distribution
Dual-direction illumination creates a balanced architectural wall-washing effect. - 6W / 10W Power Options
Two wattage choices provide flexible output for residential and commercial façade applications. - 420 / 700 lm Output
Delivers efficient decorative and general wall illumination. - Compact Architectural Design
Minimal rectangular form integrates well with modern exterior architecture. - Durable Aluminum Housing
Aluminum construction provides structural durability and reliable outdoor performance. - Glass Diffuser
Glass optical diffuser supports clean light transmission and stable outdoor use. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Power | Luminous Flux | Dimension (A×B×C) | CCT | PF | Voltage | CRI |
|---|
| MB16-053A | 2×3W (6W) | 420 lm | 115×90×28mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB16-053B | 2×5W (10W) | 700 lm | 175×90×28mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
TECHNICAL OPTIONS
- Protection Rating: IP54
- Power: 6W / 10W
- Luminous Flux: 420 lm / 700 lm
- Input Voltage: AC110-265V
- CCT: 2700K-6000K
- CRI: Ra80-90
- Power Factor: 0.6
- Housing Material: Aluminum
- Diffuser Material: Glass
- Operating Mode: Built-in LED
- Installation: Wall Mounted
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Exterior Walls & Façades
- Villa Entrances & Courtyards
- Residential Buildings
- Hotels & Resorts
- Office & Commercial Buildings
- Outdoor Corridors & Stair Areas
- Architectural Exterior Lighting
