Explore VOC Lighting’s 220V track lighting system. Compare track rails, LED spotlights and connection components for your layout, then share your selected models, quantities and control requirements for compatibility review and a project quotation.
Choose from two, three, four and six-wire track families, with surface-mounted and recessed profiles. Specifications vary by model; use the product cards below to compare dimensions, finishes and optics.
Confirm the input rating, conductor assignment, protective earthing and driver compatibility for the selected configuration before ordering.

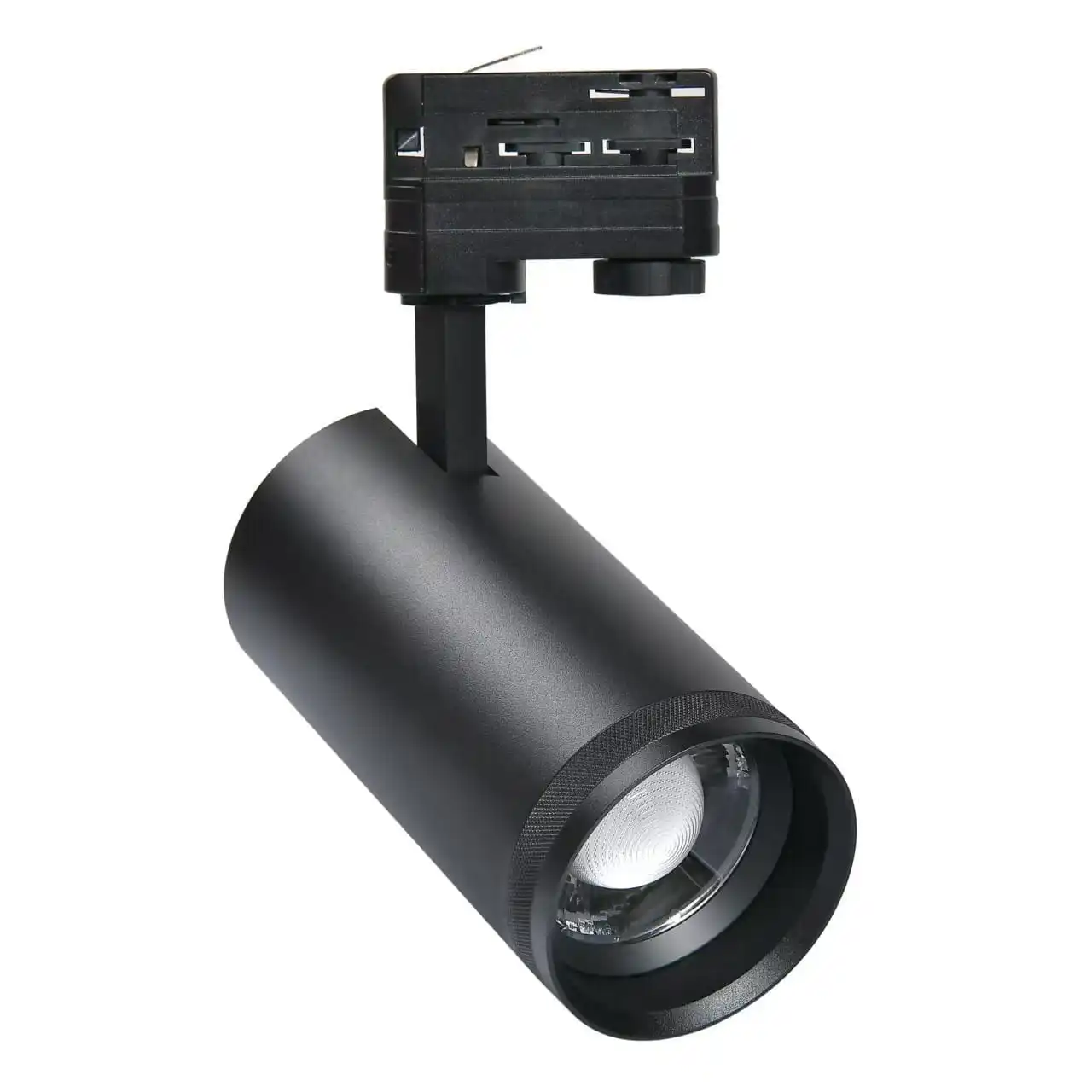

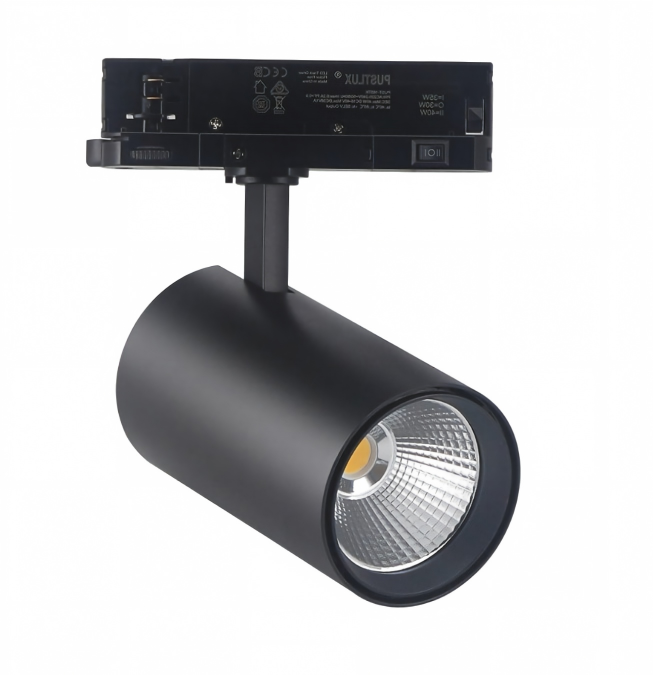

LTY-GD01 LED track spotlight · One of nine luminaire groups in this series.
Start with the mounting method and track profile. Wire count alone does not establish the number of independently controlled circuits, dimming support or compatibility with a luminaire adapter.
Swipe horizontally to compare the track families.
| Track family | Surface-mounted profiles | Recessed profiles | Check before ordering |
|---|---|---|---|
| Two-wire | T-shape | T-shape recessed | Adapter fit, conductor layout and earthing arrangement |
| Three-wire | A-shape | A-shape recessed | Conductor assignment and required switching zones |
| Four-wire | H-01, H-02, H-04 | H-03, H-05 | Exact profile, circuit arrangement and control package |
| Six-wire | JB-6-C | JB-6-B | Power / control conductor assignment and compatible drivers |
Check each model’s listed rail lengths, colours and dimensions below. Do not assume that every finish or length is available for every profile.
Compare the 20 product cards ↓Compare nine luminaire groups and eleven track profiles. Open a specification panel for model-level details, enlarge the product image, or add a model to your project brief.
20 product cards shown
20W to 50W · 80 × 100 to 105 × 155 mm
LED track luminaire
10W to 40W · 60 × 125 to 91 × 160 mm
LED track luminaire
15W to 36W · zoom 15° to 55°
LED track luminaire
30W to 40W · 91 × 125 to 105 × 130 mm
LED track luminaire
15W and 35W
LED track luminaire
15W to 35W · Φ68 to Φ93 mm
LED track luminaire
30W to 40W · 91 × 112 to 105 × 130 mm
LED track luminaire
30 / 35 / 40W · 140 × 88 × 68 mm
LED track luminaire
24W · 120 × 91 × 59 mm
LED track luminaire

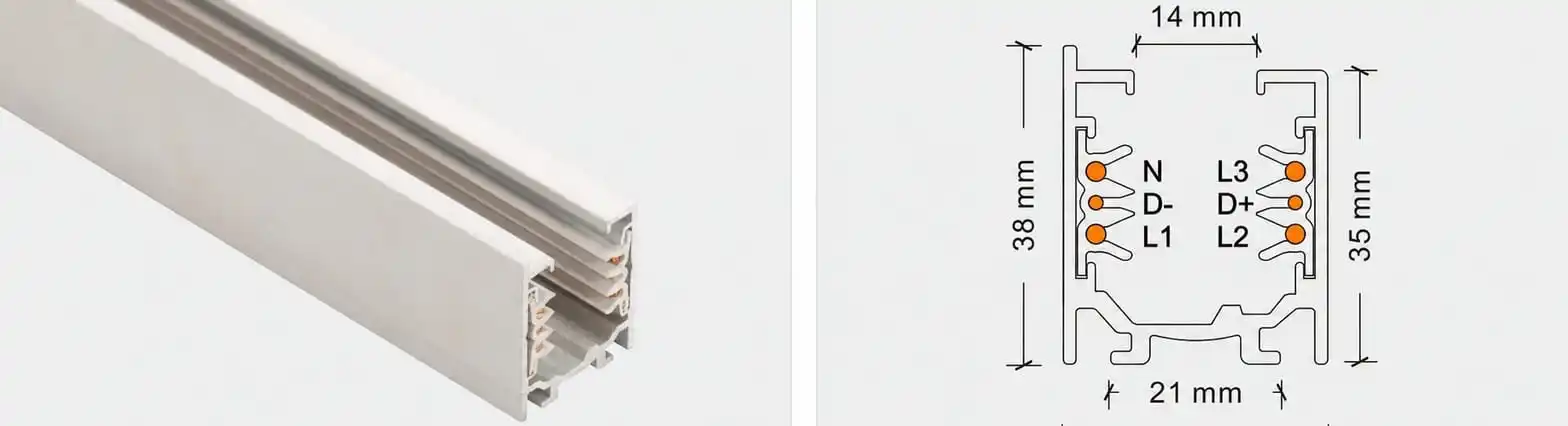

38 mm section height
Six-wire track

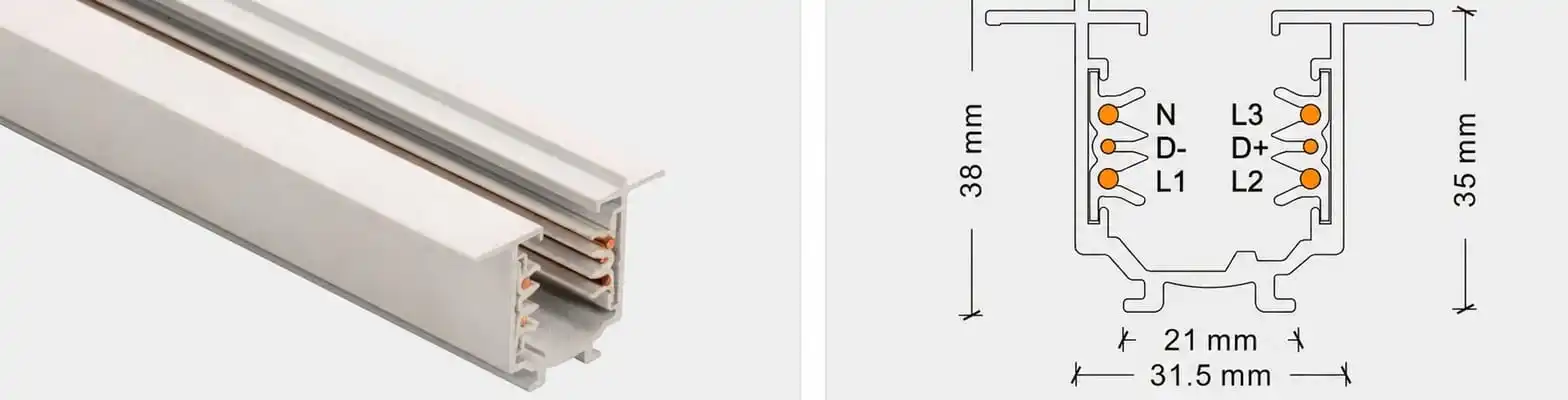

38 mm section height
Six-wire recessed track

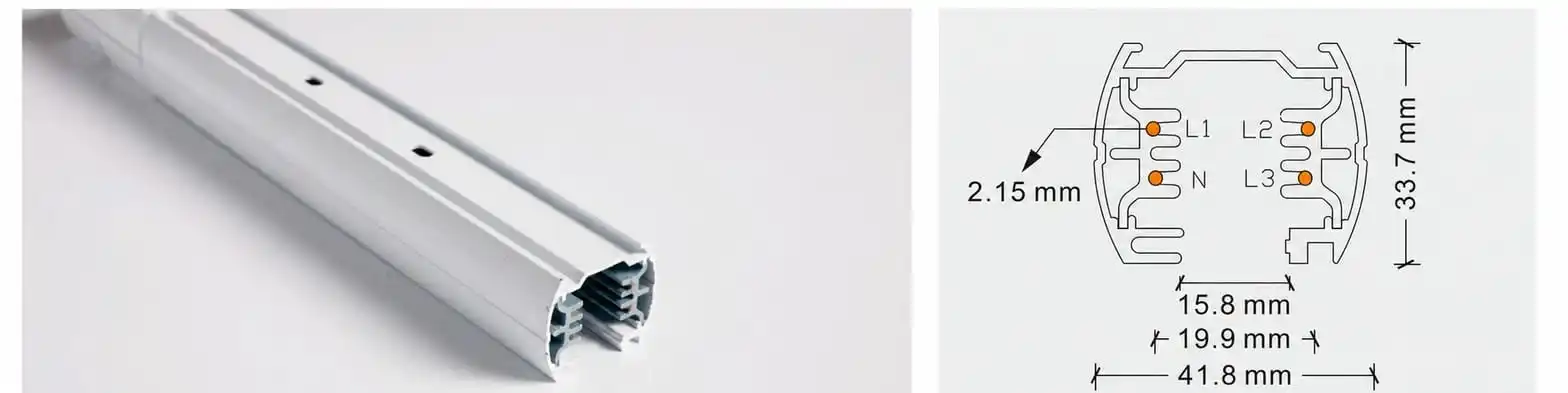

33.7 mm section height
Four-wire track

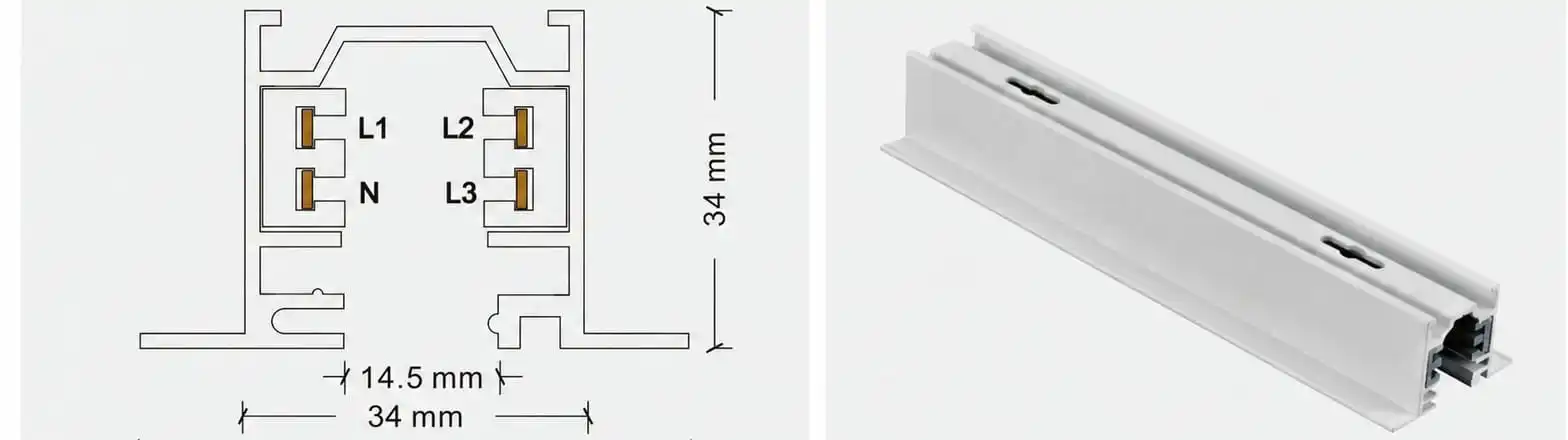

34 mm section height
Four-wire track
34 mm section height
Four-wire recessed track

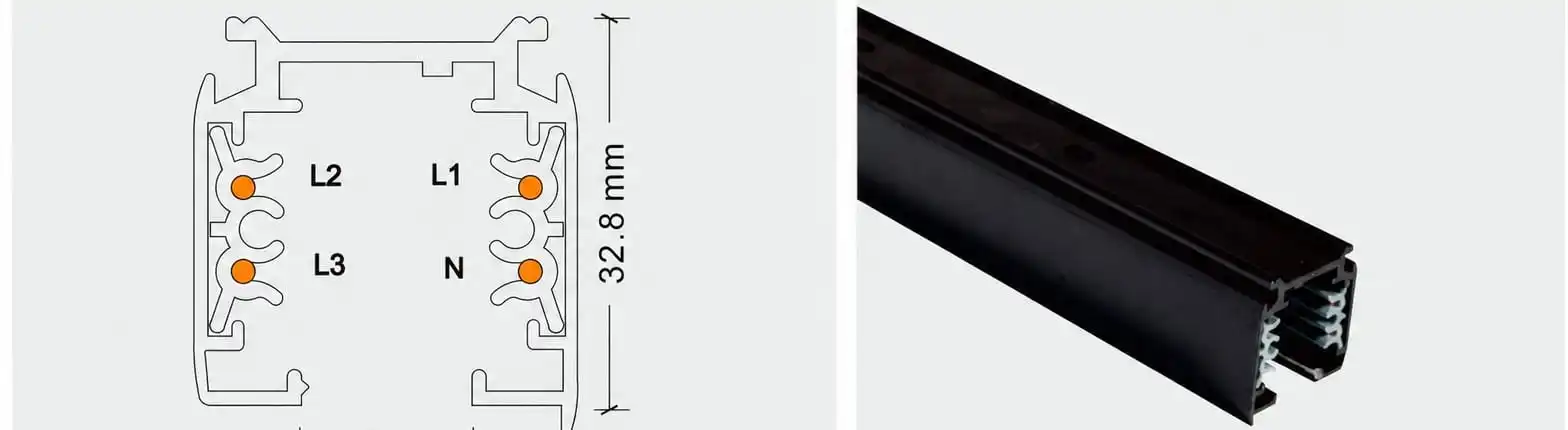

32.8 mm section height
Four-wire track

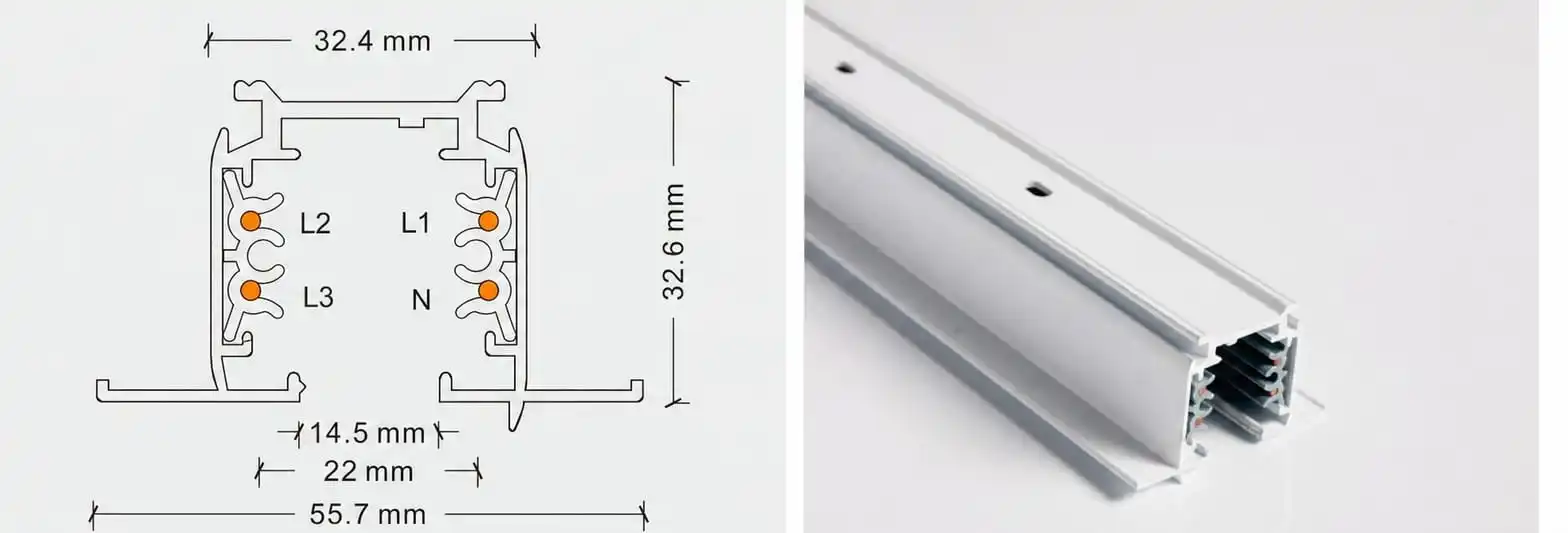

32.6 mm section height
Four-wire recessed track

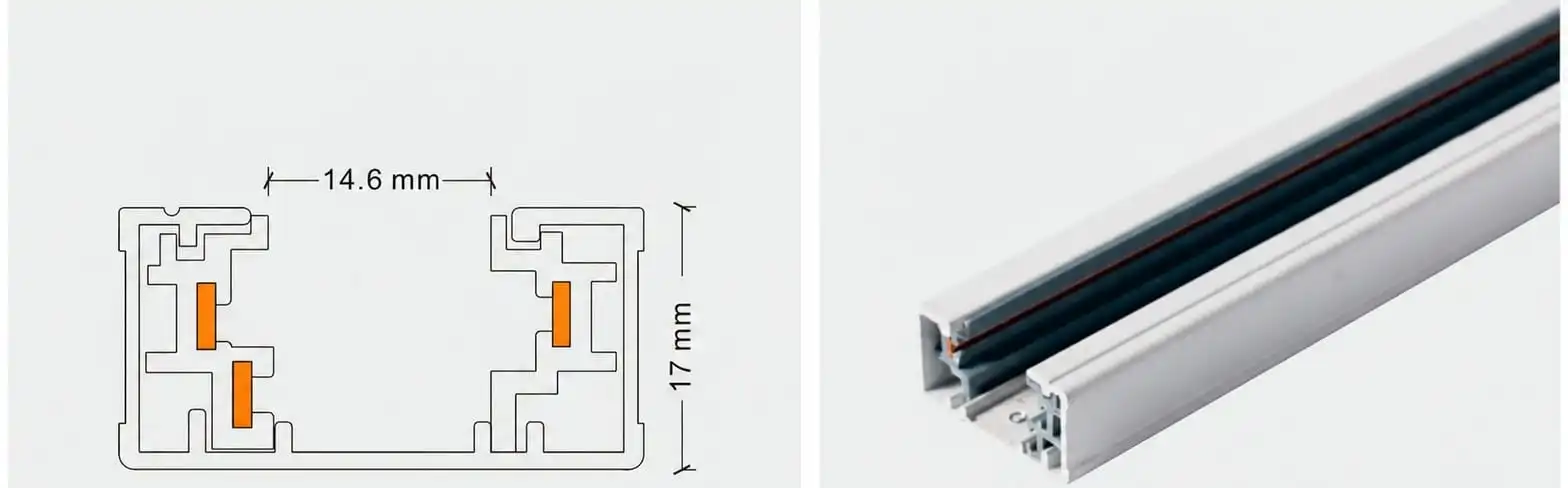

17 mm section height
Three-wire track

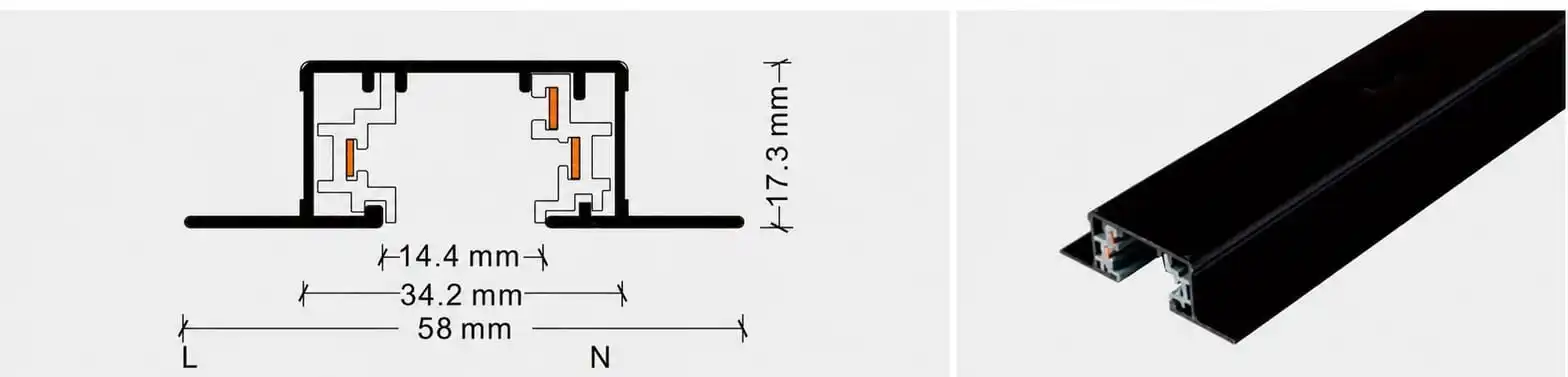

17.3 mm section height
Three-wire recessed track

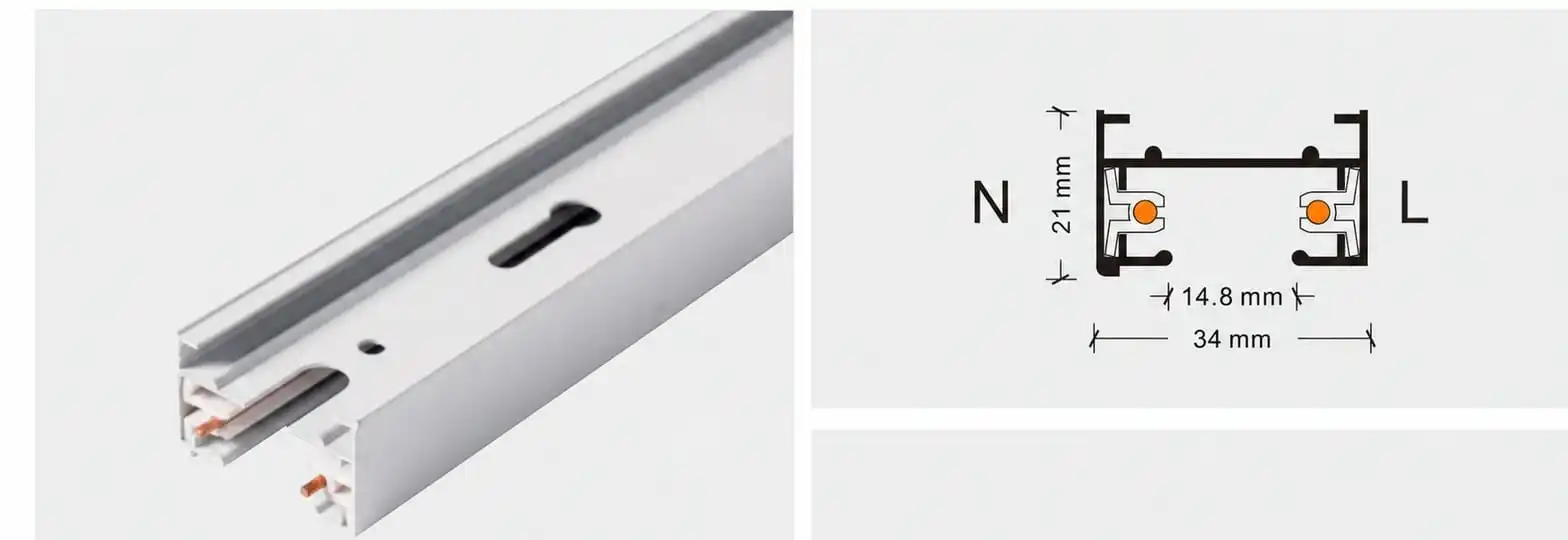

21 mm section height
Two-wire track

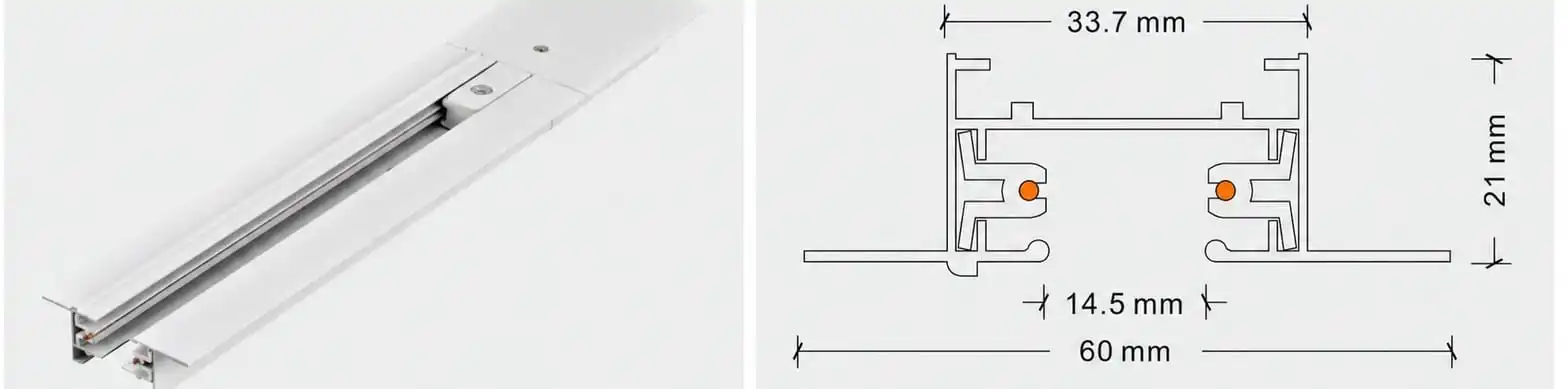

21 mm section height
Two-wire recessed track and connectors
Rails and luminaires are selected separately. Confirm the adapter, rail profile and electrical compatibility of your chosen models before ordering.
Plan track positions around displays and merchandise. Compare spotlight beam options, then confirm the required illumination and glare control for the layout.
Match the light distribution to the size and position of the exhibits. Specify colour temperature, colour rendering and any dimming requirements for model selection.
Define lighting zones for reception, circulation and feature areas. Share ceiling details and control requirements so that suitable rails, adapters and luminaires can be matched.
A 220V track lighting layout needs compatible rails, feeds, connectors, luminaire adapters and drivers. A matching wire count or nominal voltage alone does not establish compatibility across profiles or brands.
Tell us which lights must switch together and which need independent control. The final circuit arrangement must be checked against the selected rail’s wiring diagram and component ratings.
If your project requires DALI or phase-cut dimming, provide the controller or dimmer model. Availability must be confirmed for the selected luminaires, drivers and track configuration; it is not a standard feature of every model.
Before ordering, confirm the input voltage range, protective-earth arrangement, circuit loading, maximum run length and any control conductors. These values are not established by the product images alone.
Installation and commissioning must be carried out by a qualified electrician using the confirmed wiring documentation. Isolate power before installing, removing or changing components.
| Item | What to specify or confirm |
|---|---|
| System | 220V high-voltage track lighting; confirm the exact input rating for the supplied configuration. |
| Rails and installation | Model, mounting method, length, finish, quantity, ceiling detail and layout. |
| LED luminaires | Model, wattage, beam angle, colour temperature (CCT), colour rendering (CRI) and quantity. |
| Controls | Required zones, dimming method and existing controller or dimmer model. |
| MOQ and lead time | Request minimum order quantities and sample / production schedules for the selected models. |
| Certification documents | State the project country and required documents. Confirm their model coverage and scope before ordering. |
No single MOQ, delivery schedule, certification scope, CCT or CRI value is stated for the entire series. Confirm the required values in the quotation.
It is a high-voltage track lighting family combining compatible track profiles, LED luminaires and connection components. This page presents eleven track profiles and nine luminaire groups for project selection.
No. This 220V series is a separate product family. Do not interchange its rails, adapters, luminaires or power components with low-voltage magnetic track products.
Not reliably on its own. Confirm the conductor assignment, protective-earth arrangement and independent circuits from the wiring documentation for the selected profile.
Dimming depends on the selected luminaire, driver and control package. Provide your required dimming method and controller model for compatibility confirmation.

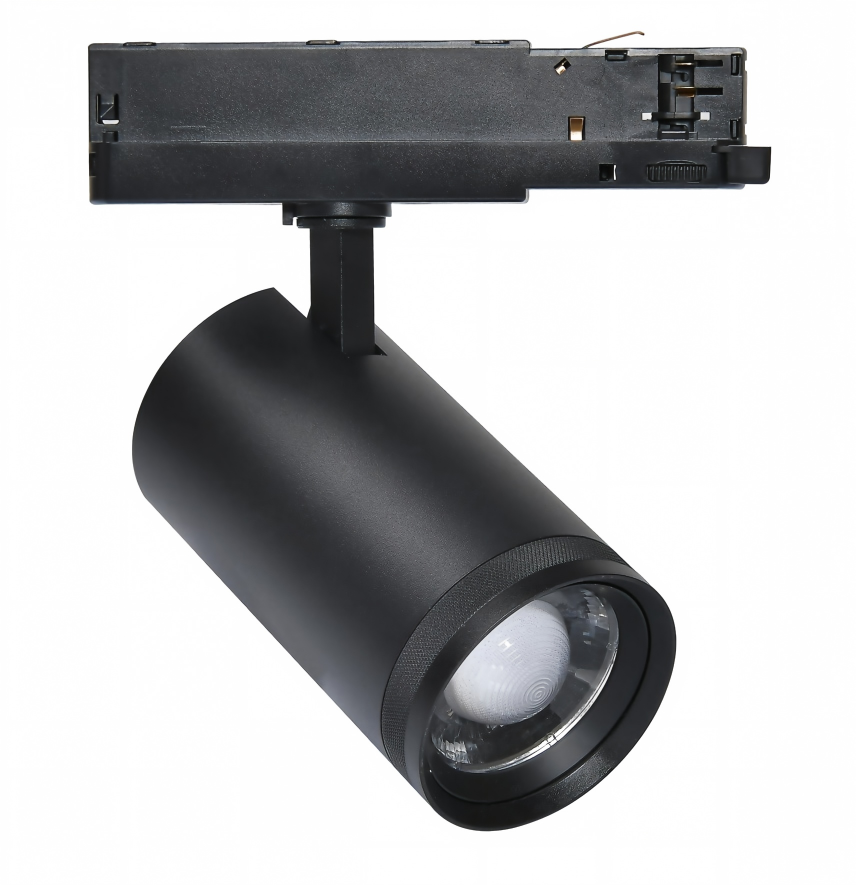

LTY-TJ003 lists a 15°–55° zoom range. Fixed beam options on other models are separate choices, not a continuous zoom range. Check the individual product card for the selected model.
Compatibility must be confirmed for the complete rail, adapter and connector combination. A shared voltage or wire count is not enough to confirm a fit.
The permitted run length depends on the rated components, connected load, feed arrangement and voltage drop. Request a layout-specific check; individual rail section lengths do not define the maximum run.
Send the models and quantities, rail layout, mounting method, project country and required delivery date. Include wattage, beam angle, CCT, CRI and control requirements where known.
No range-wide values are specified here. Request applicable certification documents, minimum order quantity and lead time for the exact models and configuration.
Choose your models, add quantities and project requirements, then open an email draft for VOC Lighting. You can also copy the brief into your preferred email service. Adding a model prepares a local brief; it does not submit an enquiry.
Selections express your requirements, not confirmed combinations. Beam options, finishes, lengths and compatibility must be checked for each model. Edit quantities in the brief below.
Choose a track profile or luminaire to prepare your brief.
Use the model selectors to prepare your project brief, or include model names and quantities in your email.
The email button opens your mail app; you review and send the message yourself. If no mail app is configured, copy the brief and email sales@voclighting.com.
