Series 2 / Complete inground collection
Recessed uplighting. Defined pathways. One coordinated collection.
Explore Series 2 LED recessed inground lights in round, square, half-covered, trimless and walk-over designs. Compare six size families, 2W–15W listed power and model-specific optics for gardens, facades, hotels and residential projects.
Select the model and cover together. Voltage, beam and installation requirements must match the chosen configuration.
01 / Understand the collection
Start with the visible cover and intended lighting effect, then compare the exact model, power supply and optical choices.

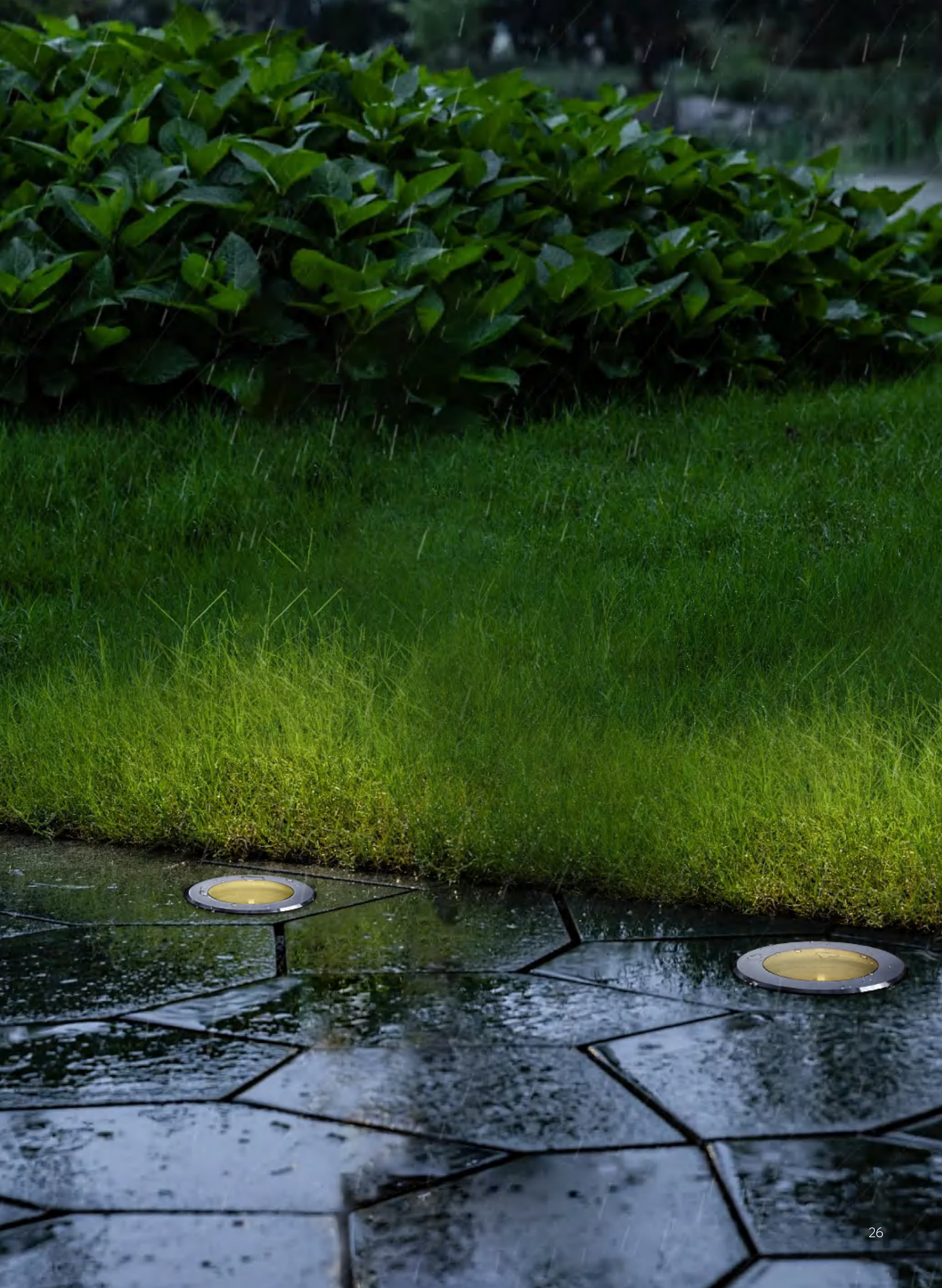

Round and square covers combine model-specific beams with recessed installation. Half-covered designs add a shielded face; check the chosen optic for your project.
Trimless entries provide a different face treatment. Their original dimension drawings remain separate from standard round models, even when the model code is shared.

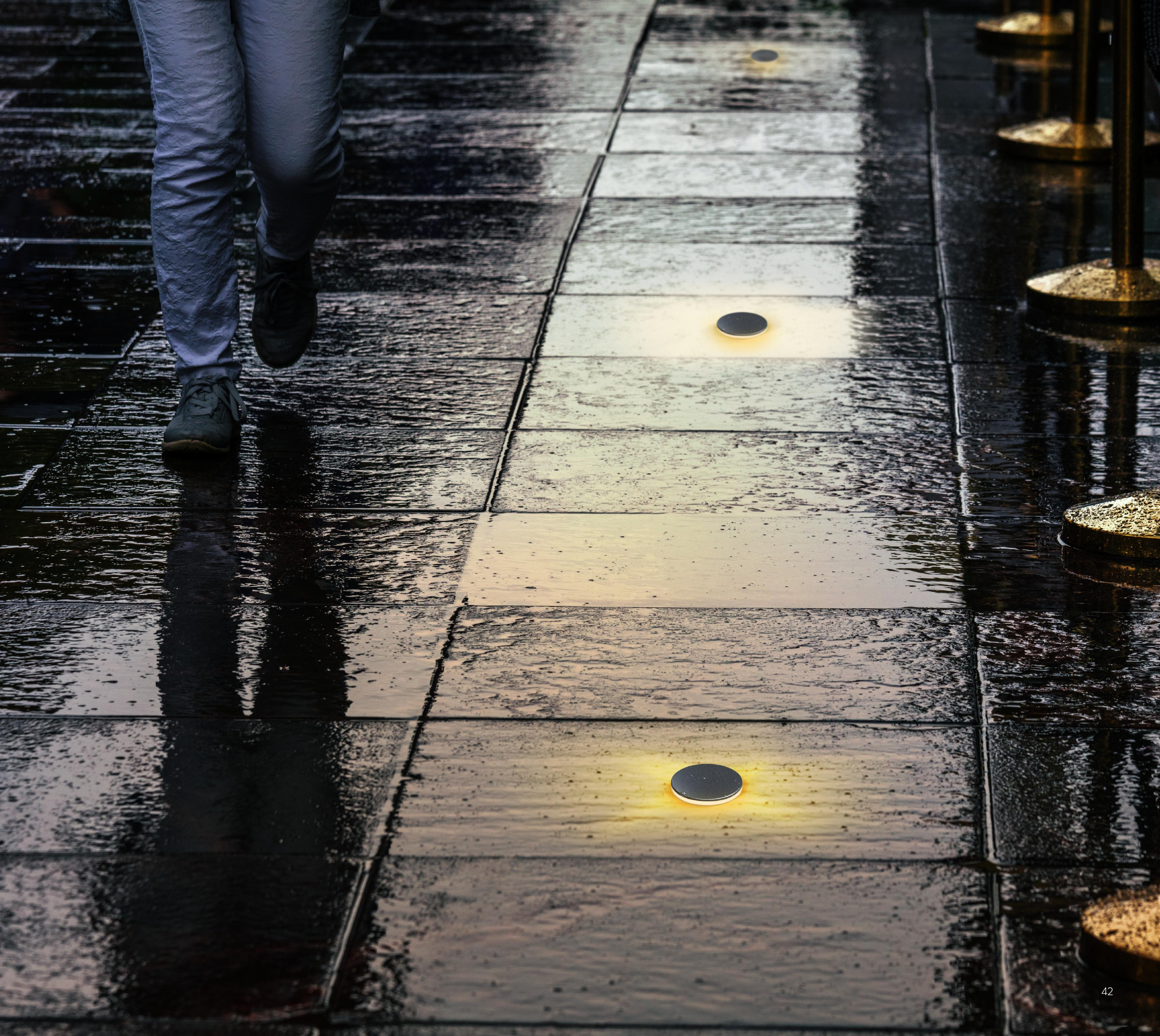

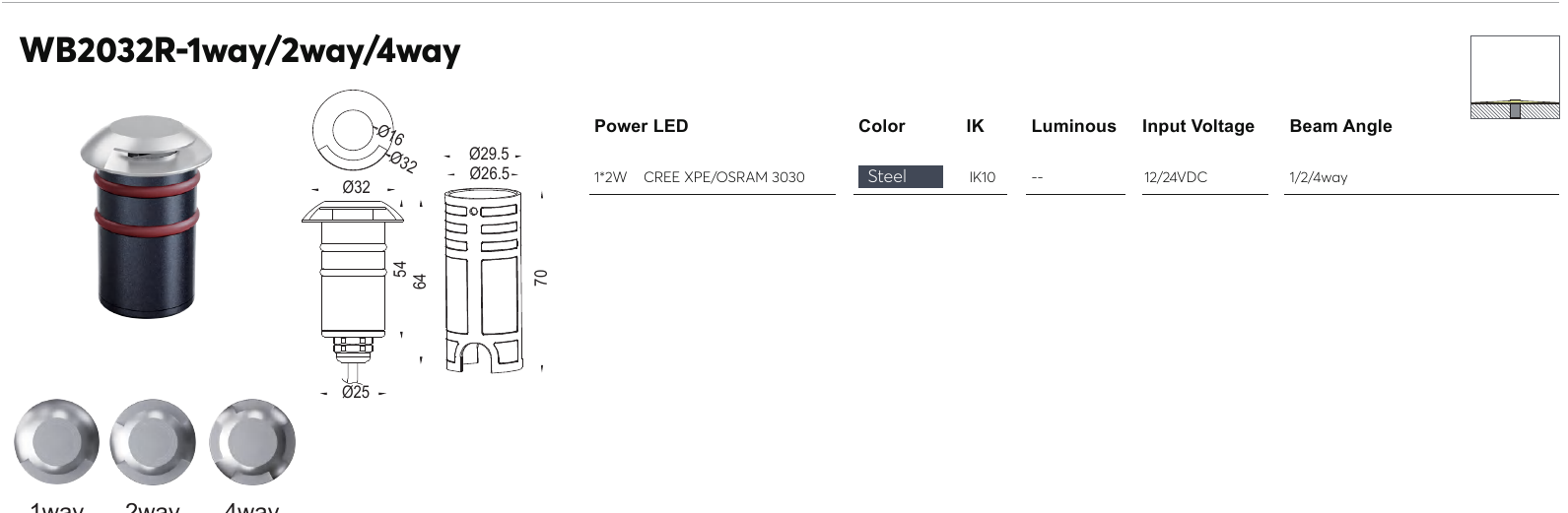

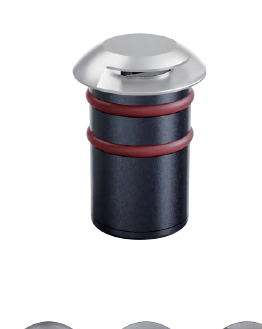

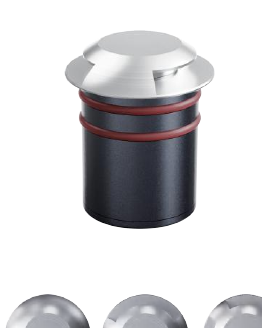

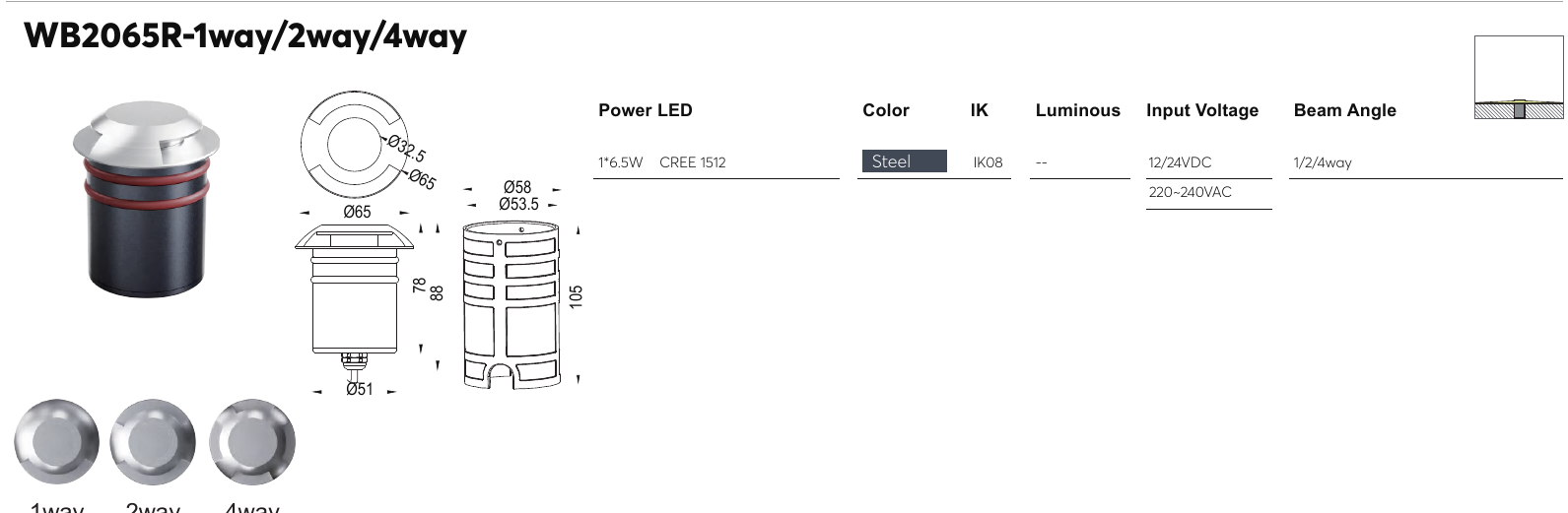

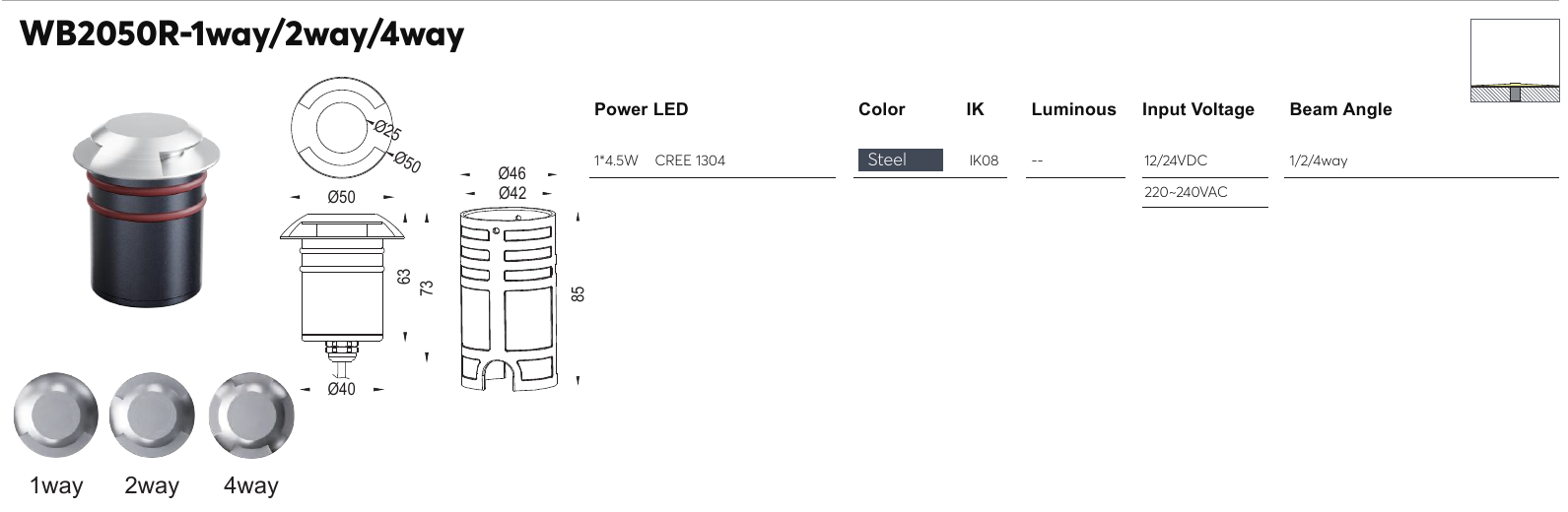

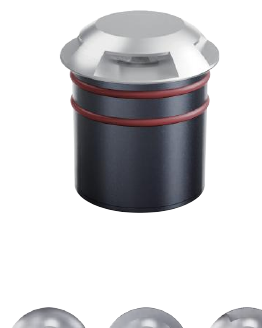

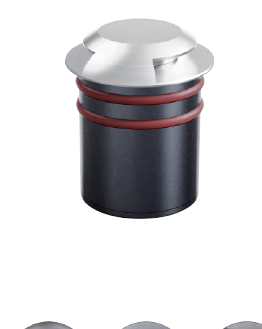

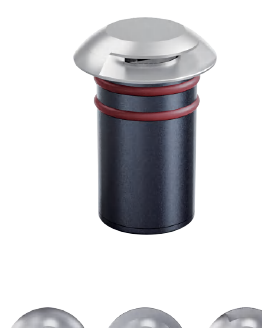

Choose the catalogue’s 360° walk-over design or the 1way, 2way and 4way sector design. These entries list no lumen value; output must be confirmed for the selected version.

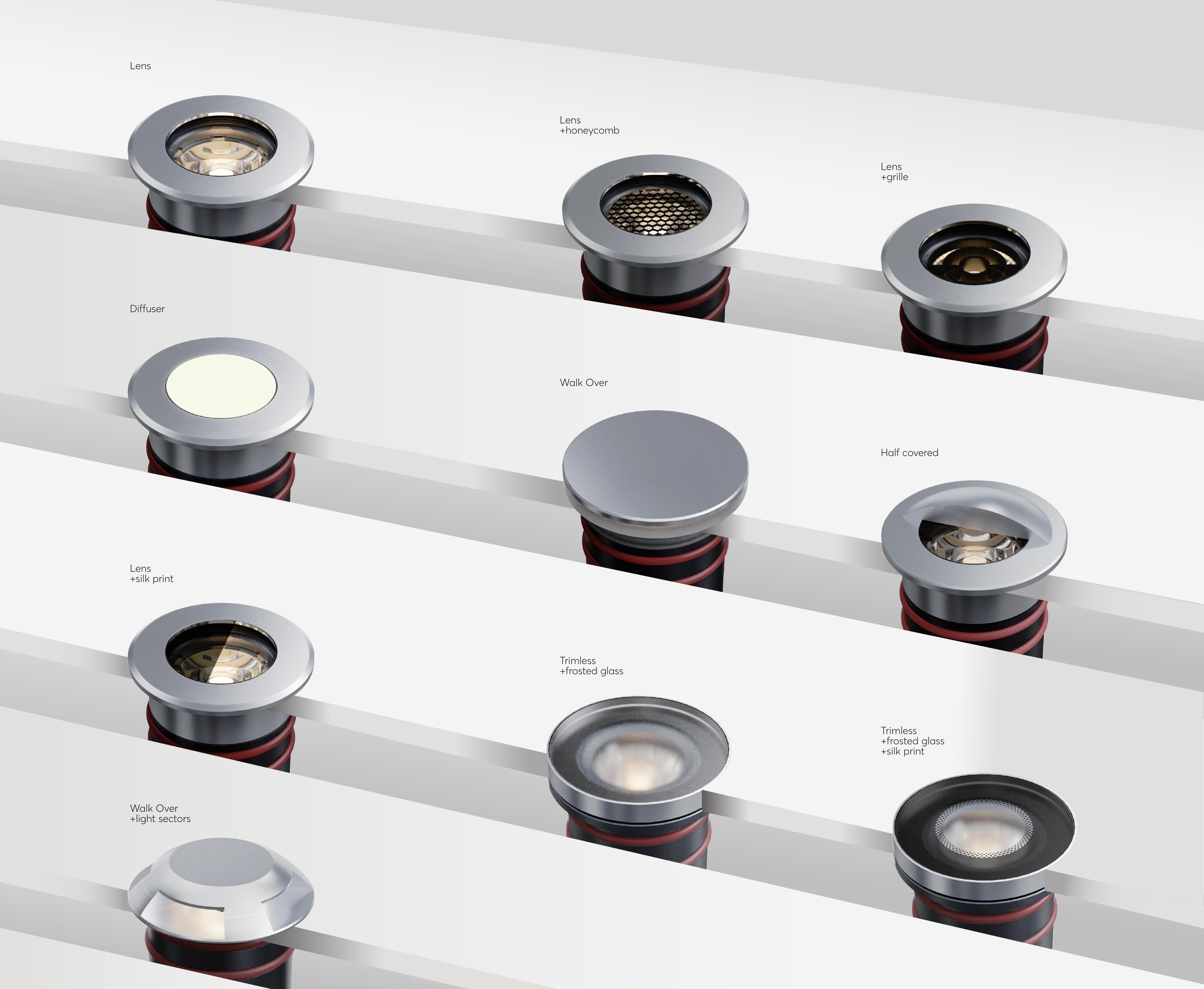

Cover & optical treatments
The catalogue illustrates lens, honeycomb, grille, diffuser, silk print, frosted glass and sector treatments. Ask for compatibility with your selected model rather than assuming every treatment fits every size.
Discuss your specification ↗02 / The complete collection
All 36 catalogue entries are shown below. Open specifications to compare the source values and original dimension drawing.
36 catalogue entries

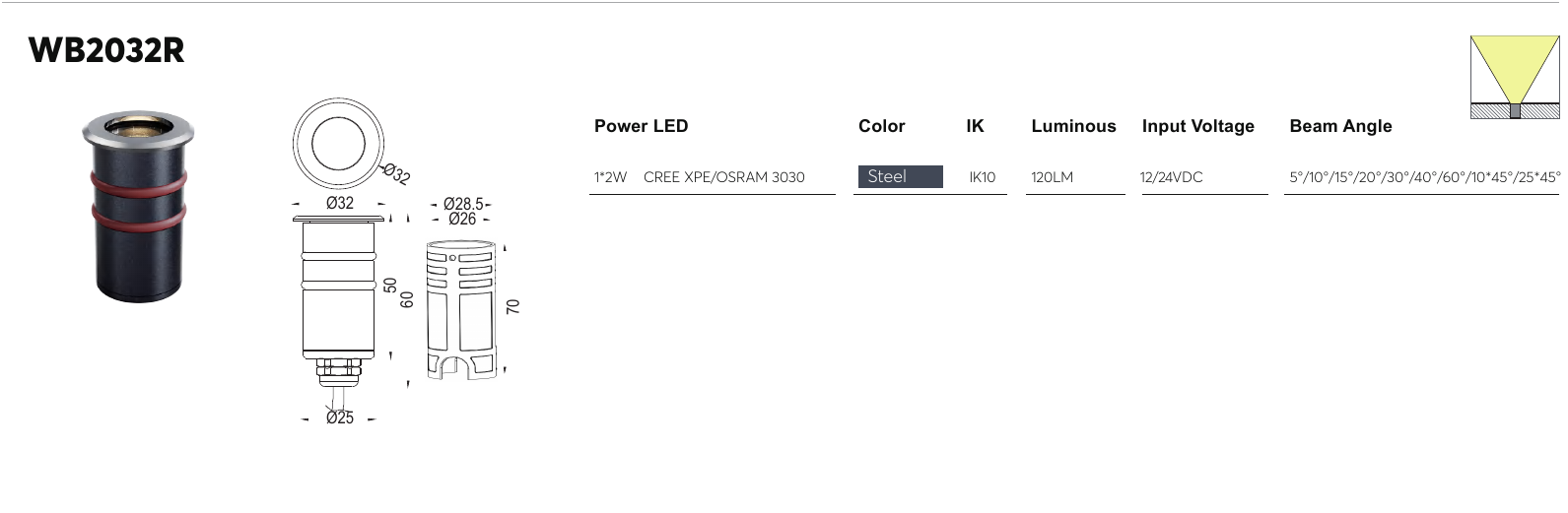

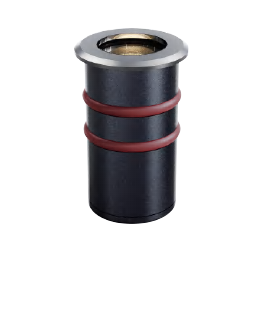

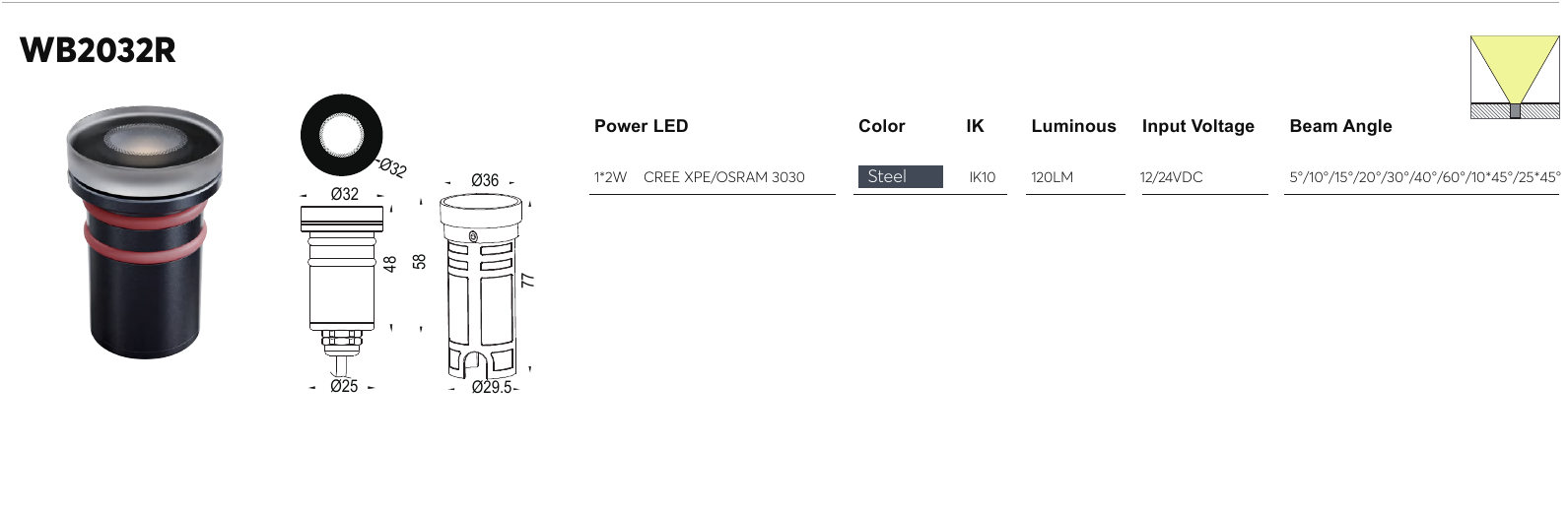

WB2032R
1*2W · IK10 · Steel
Size family 32 · 120LM| Model | WB2032R |
|---|---|
| Design | Round |
| Power | 1*2W |
| LED | CREE XPE/OSRAM 3030 |
| Color | Steel |
| IK | IK10 |
| Luminous | 120LM |
| Input voltage | 12/24VDC |
| Beam angle / distribution | 5° / 10° / 15° / 20° / 30° / 40° / 60° / 10*45° / 25*45° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

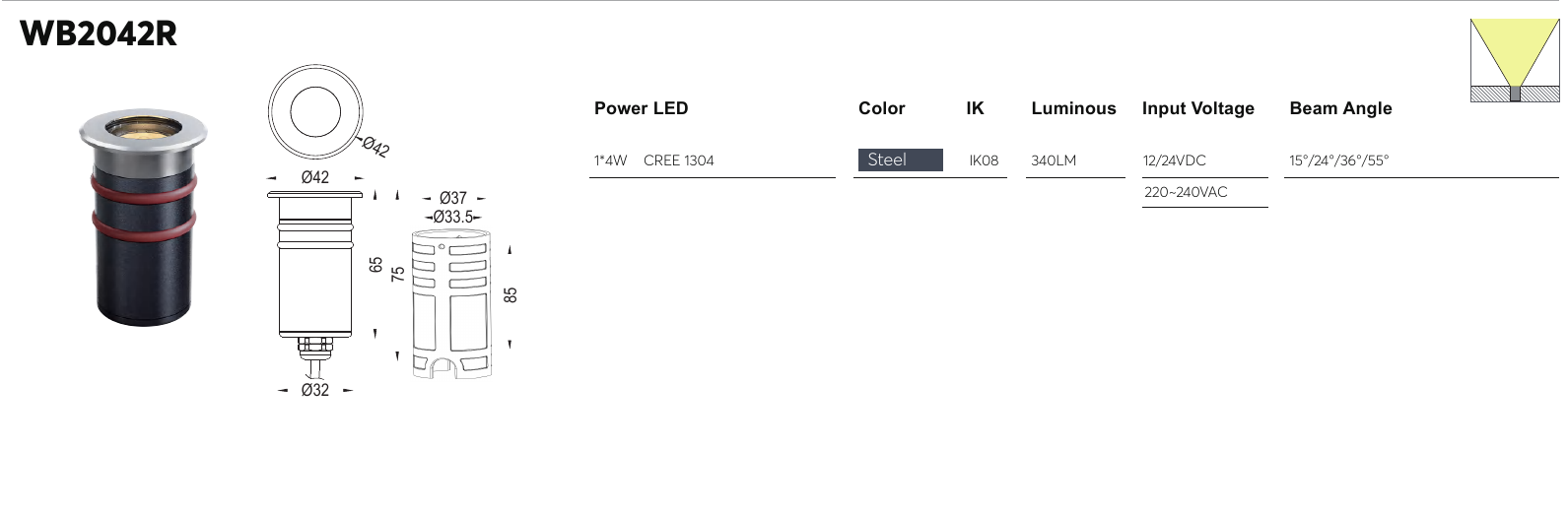

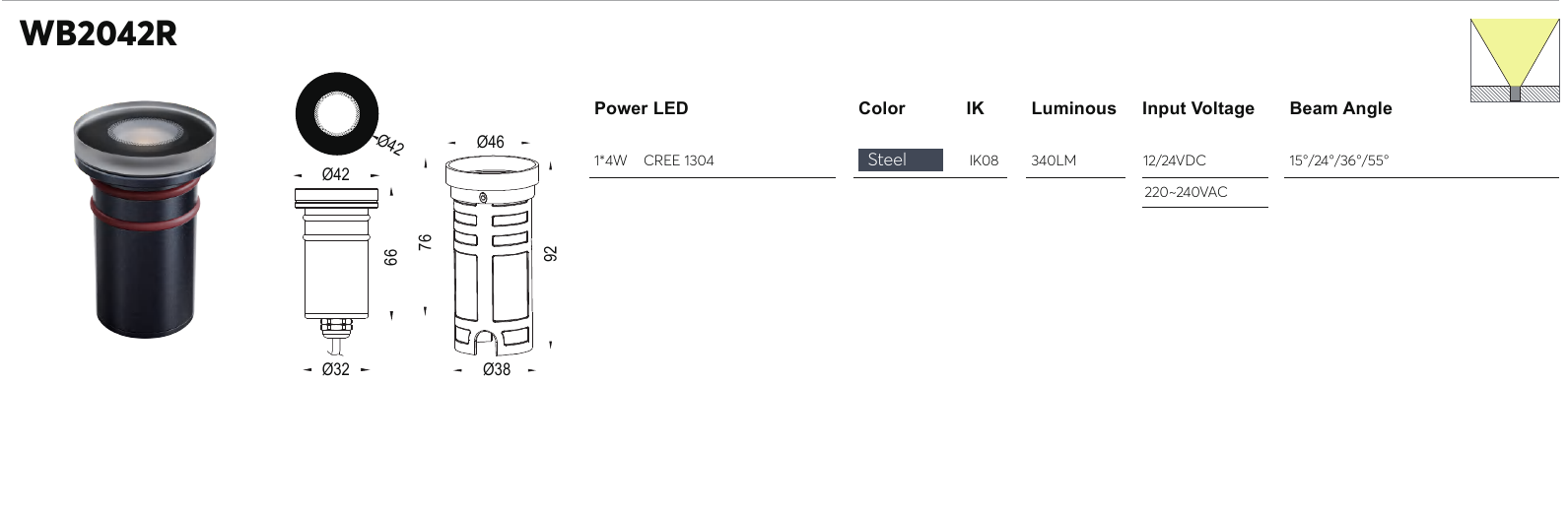

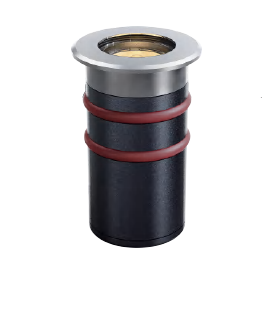

Source: Inground Light catalogue, printed pp. 33–34.WB2042R
1*4W · IK08 · Steel
Size family 42 · 340LM| Model | WB2042R |
|---|---|
| Design | Round |
| Power | 1*4W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 340LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 15° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

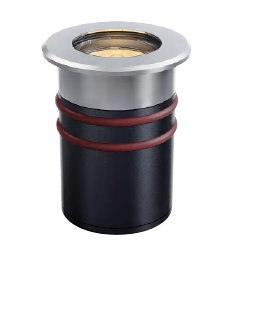

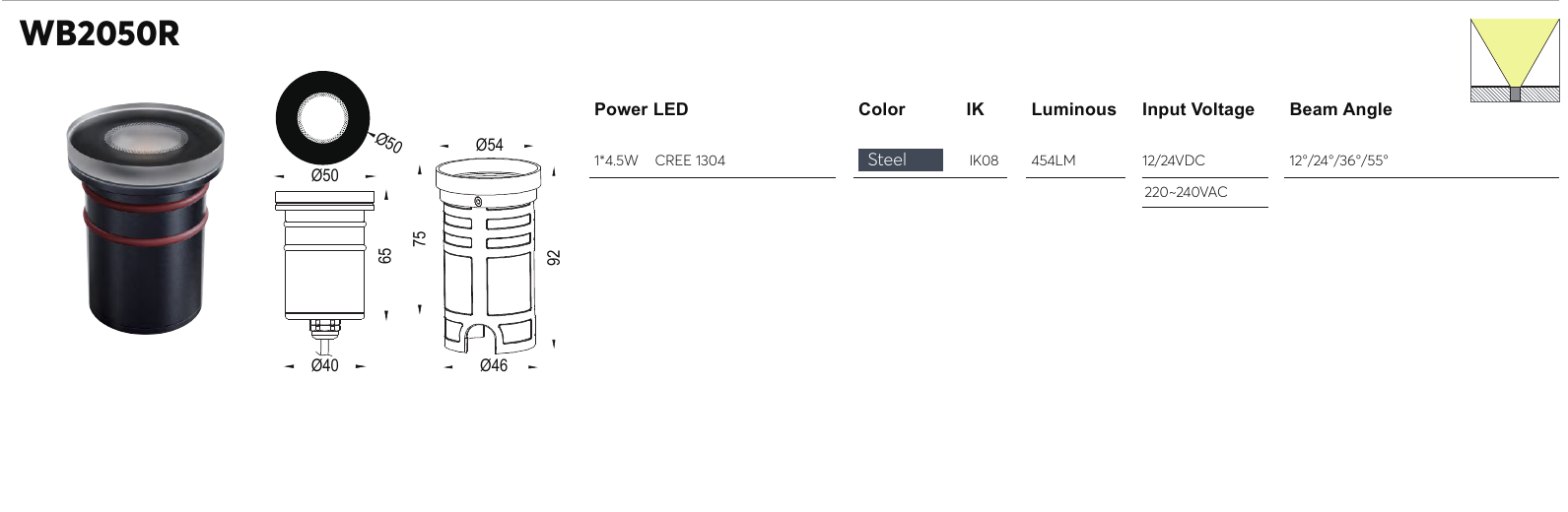

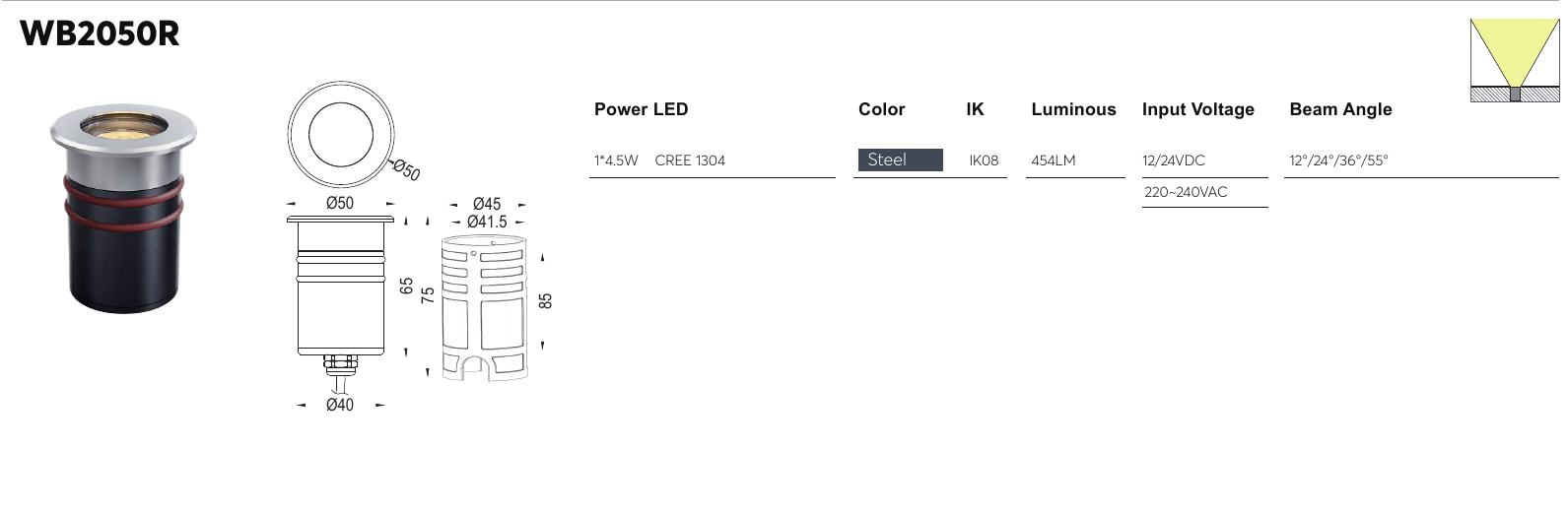

Source: Inground Light catalogue, printed pp. 33–34.WB2050R
1*4.5W · IK08 · Steel
Size family 50 · 454LM| Model | WB2050R |
|---|---|
| Design | Round |
| Power | 1*4.5W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 454LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

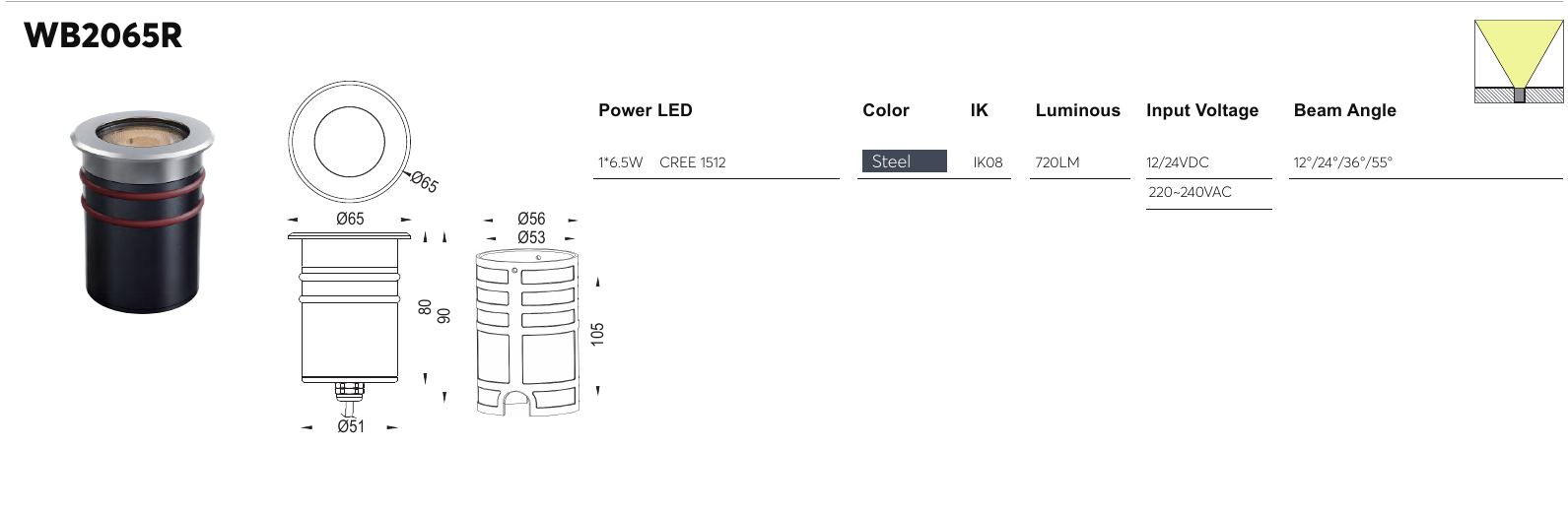

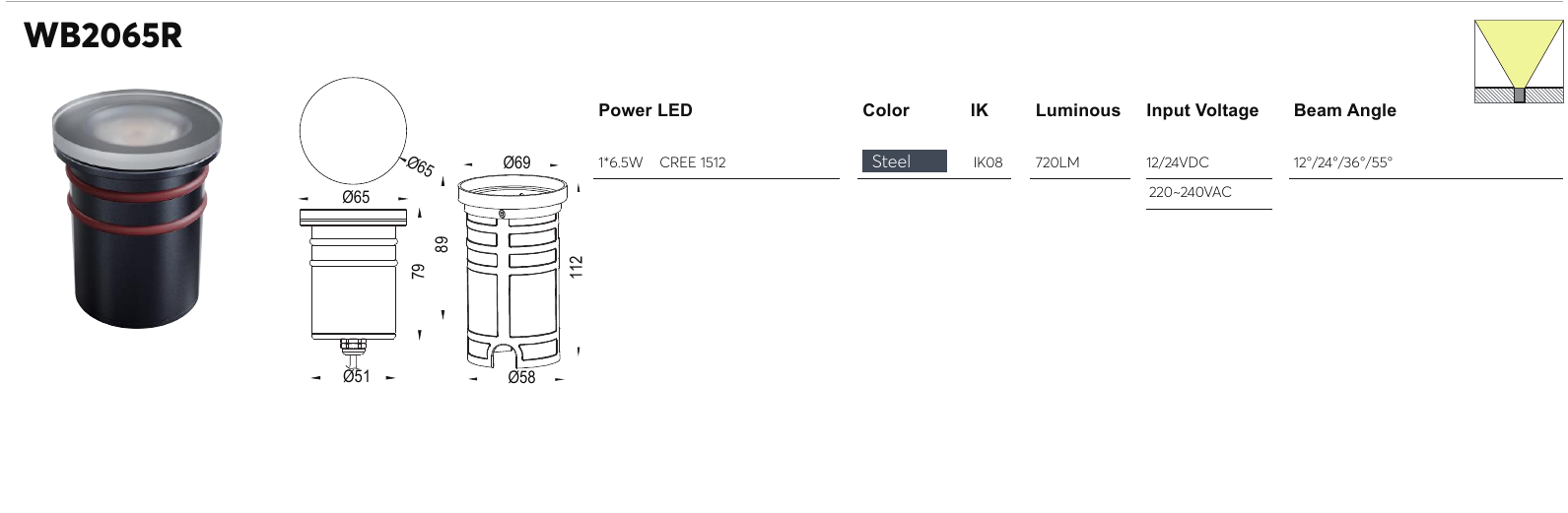

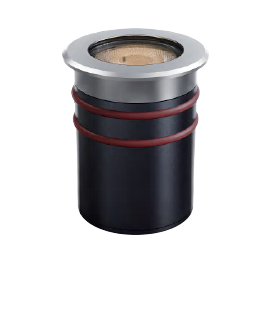

Source: Inground Light catalogue, printed pp. 33–34.WB2065R
1*6.5W · IK08 · Steel
Size family 65 · 720LM| Model | WB2065R |
|---|---|
| Design | Round |
| Power | 1*6.5W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 720LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

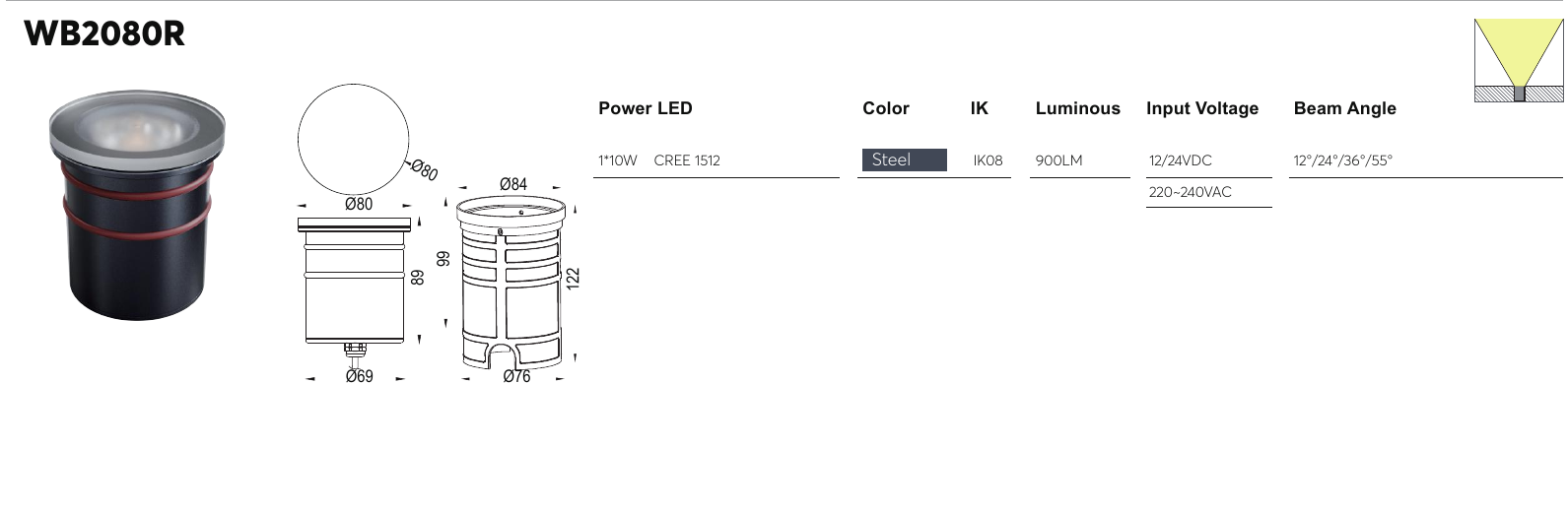

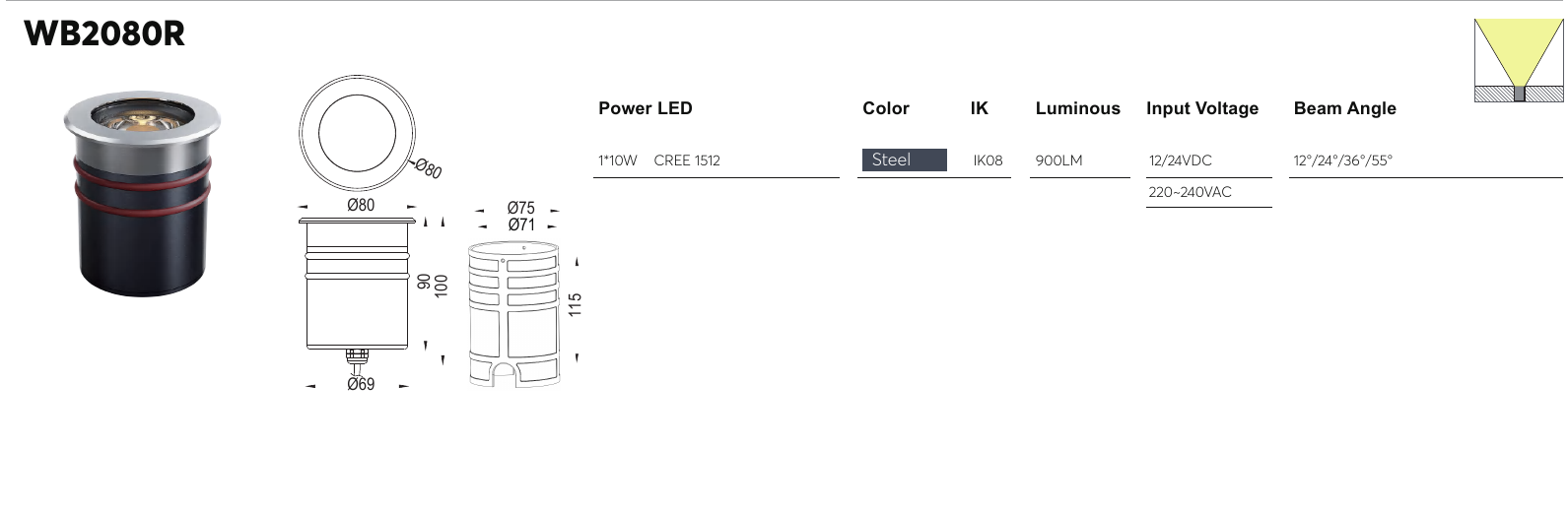

Source: Inground Light catalogue, printed pp. 33–34.WB2080R
1*10W · IK08 · Steel
Size family 80 · 900LM| Model | WB2080R |
|---|---|
| Design | Round |
| Power | 1*10W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 900LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

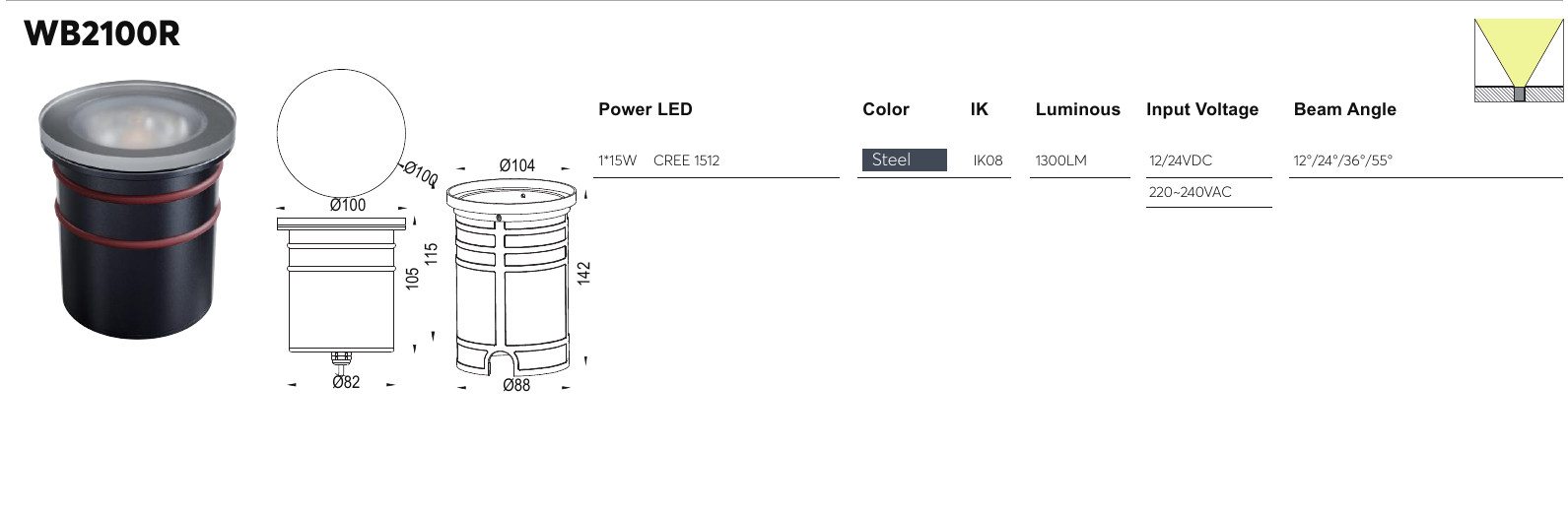

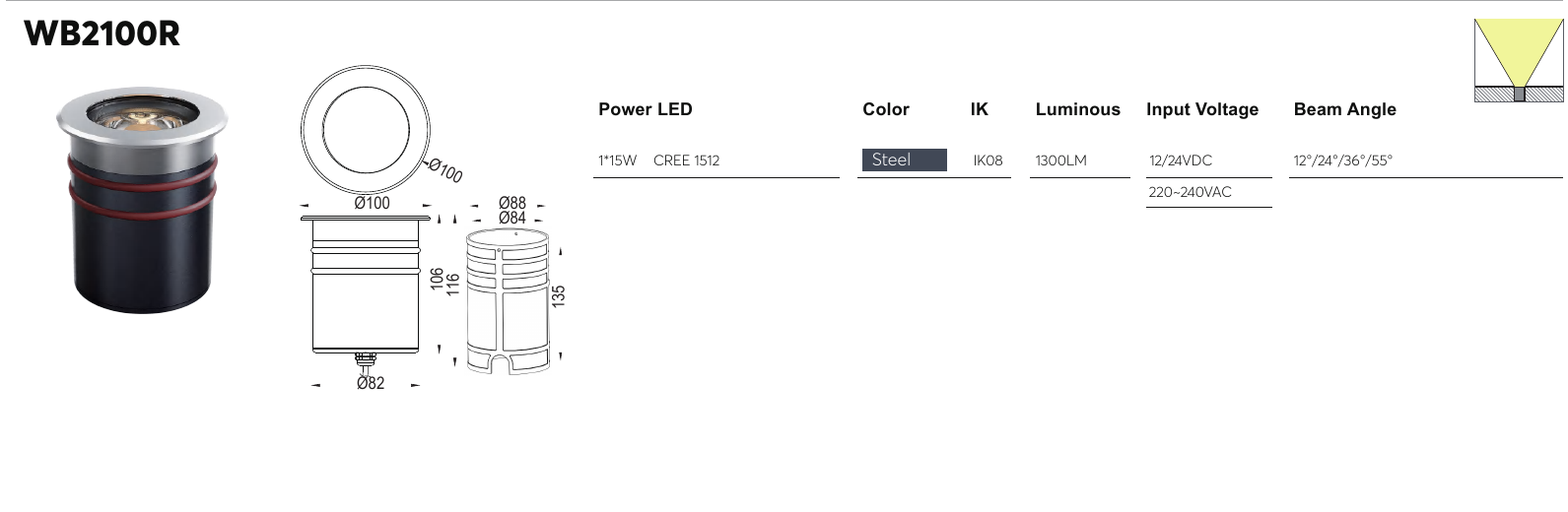

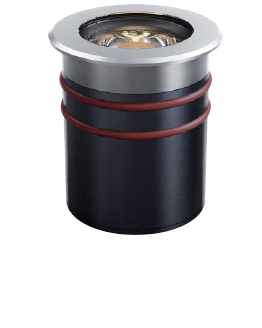

Source: Inground Light catalogue, printed pp. 33–34.WB2100R
1*15W · IK08 · Steel
Size family 100 · 1300LM| Model | WB2100R |
|---|---|
| Design | Round |
| Power | 1*15W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 1300LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

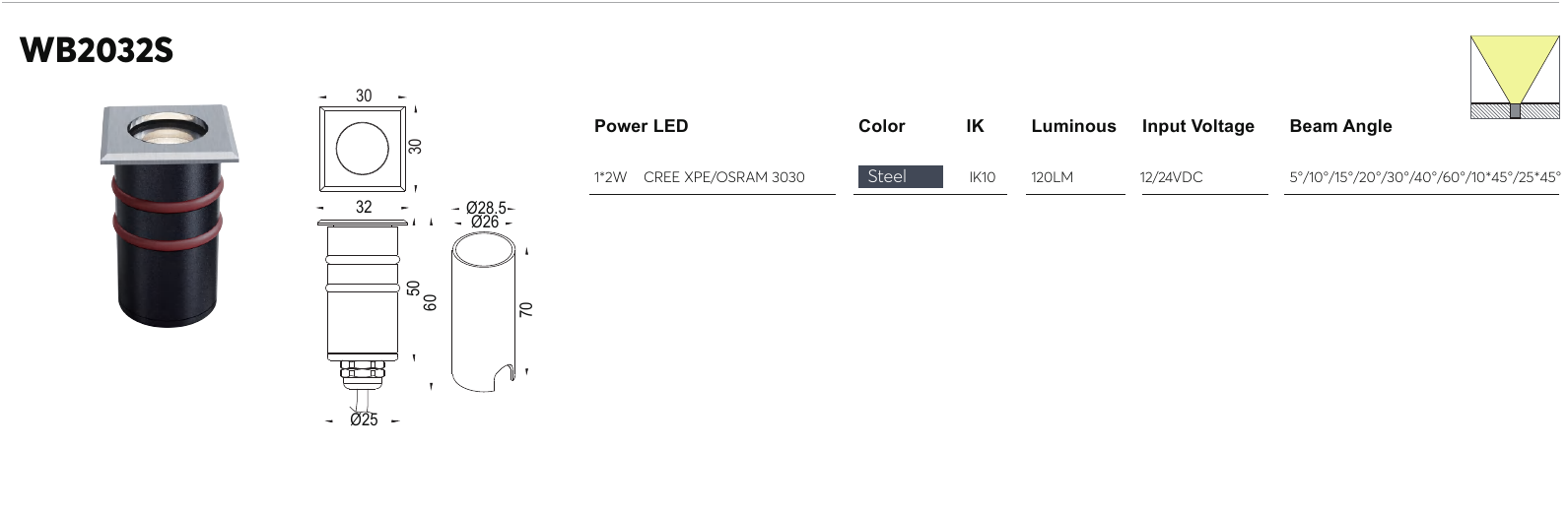

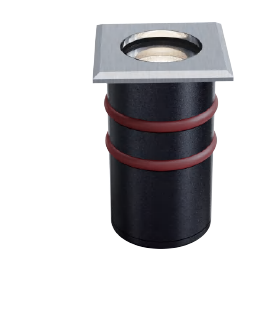

Source: Inground Light catalogue, printed pp. 33–34.WB2032S
1*2W · IK10 · Steel
Size family 32 · 120LM| Model | WB2032S |
|---|---|
| Design | Square |
| Power | 1*2W |
| LED | CREE XPE/OSRAM 3030 |
| Color | Steel |
| IK | IK10 |
| Luminous | 120LM |
| Input voltage | 12/24VDC |
| Beam angle / distribution | 5° / 10° / 15° / 20° / 30° / 40° / 60° / 10*45° / 25*45° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

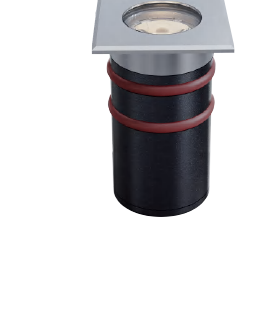

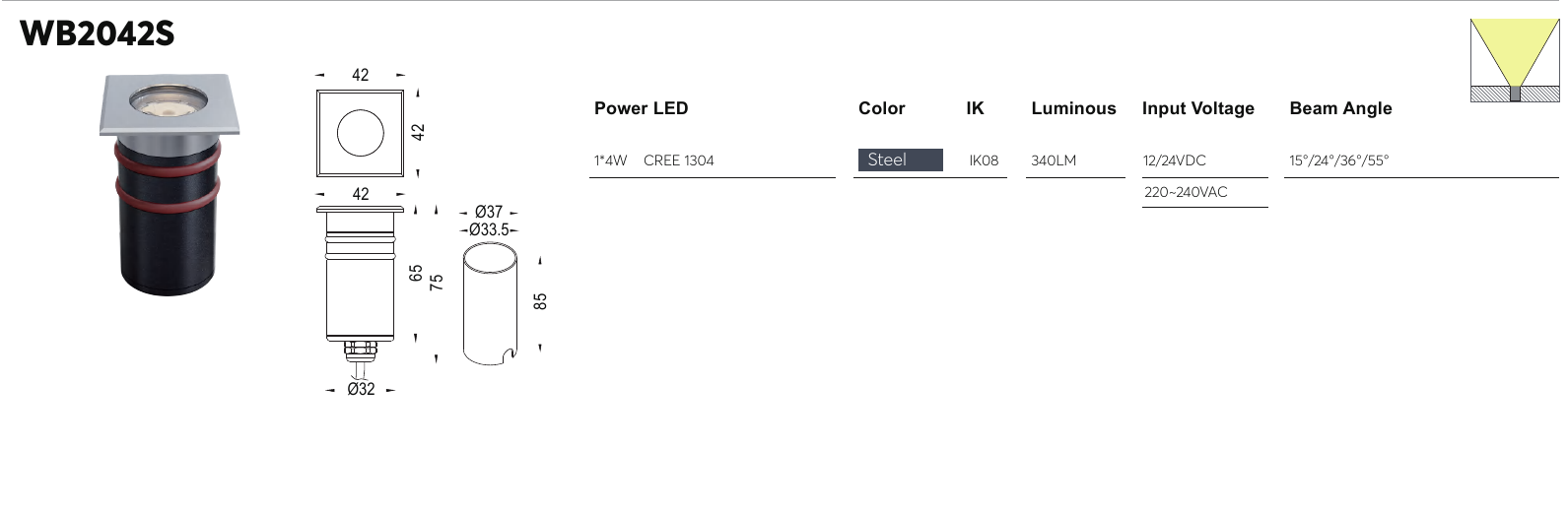

Source: Inground Light catalogue, printed pp. 35–36.WB2042S
1*4W · IK08 · Steel
Size family 42 · 340LM| Model | WB2042S |
|---|---|
| Design | Square |
| Power | 1*4W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 340LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 15° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

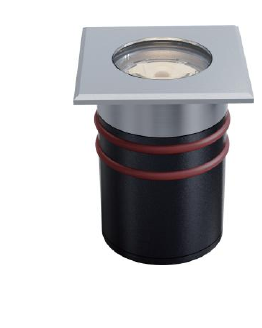

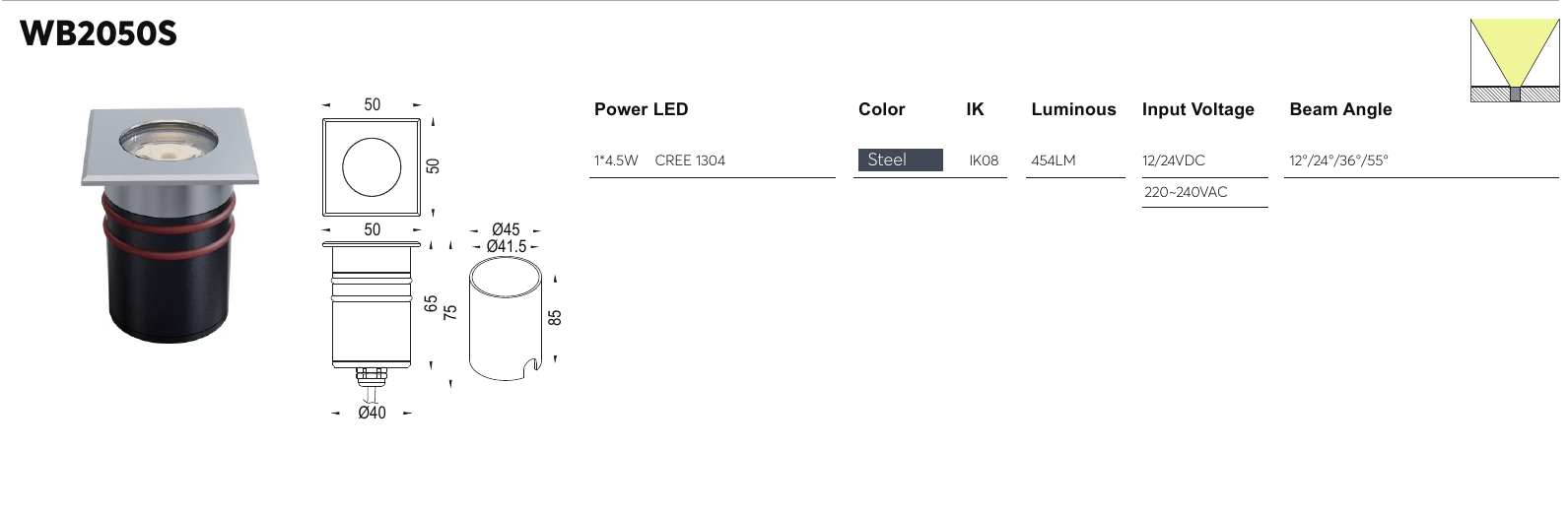

Source: Inground Light catalogue, printed pp. 35–36.WB2050S
1*4.5W · IK08 · Steel
Size family 50 · 454LM| Model | WB2050S |
|---|---|
| Design | Square |
| Power | 1*4.5W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 454LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

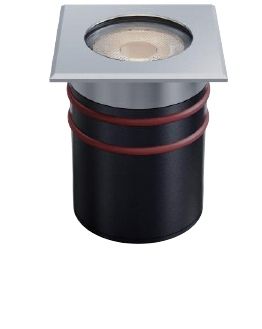

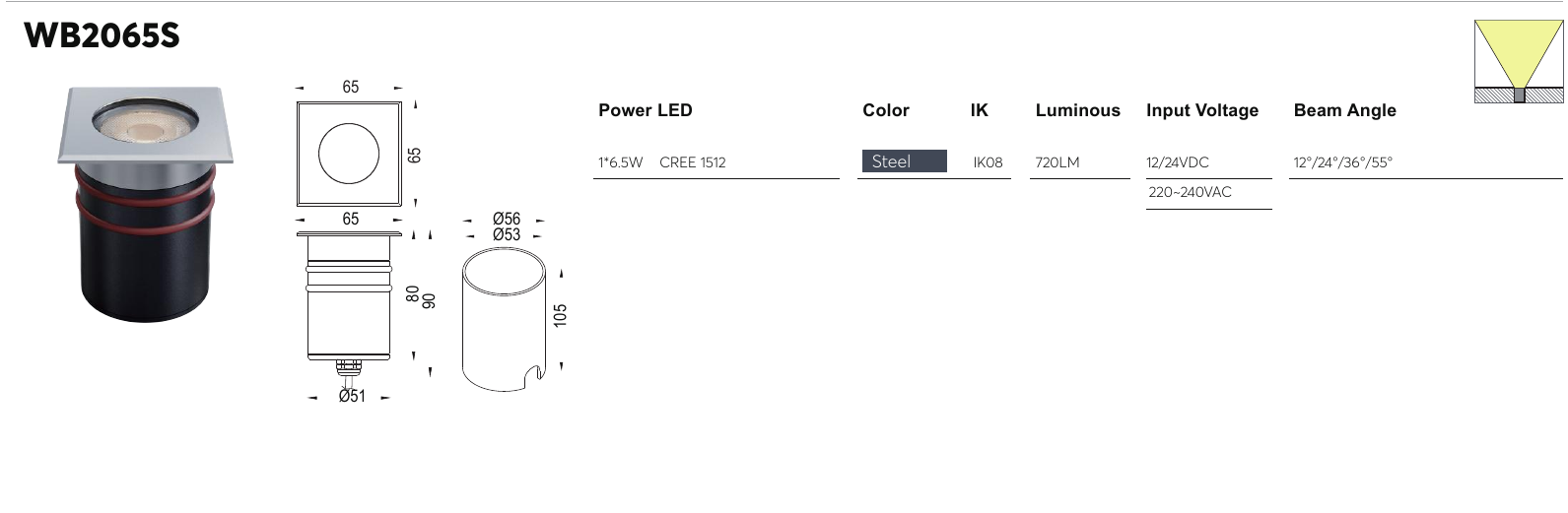

Source: Inground Light catalogue, printed pp. 35–36.WB2065S
1*6.5W · IK08 · Steel
Size family 65 · 720LM| Model | WB2065S |
|---|---|
| Design | Square |
| Power | 1*6.5W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 720LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

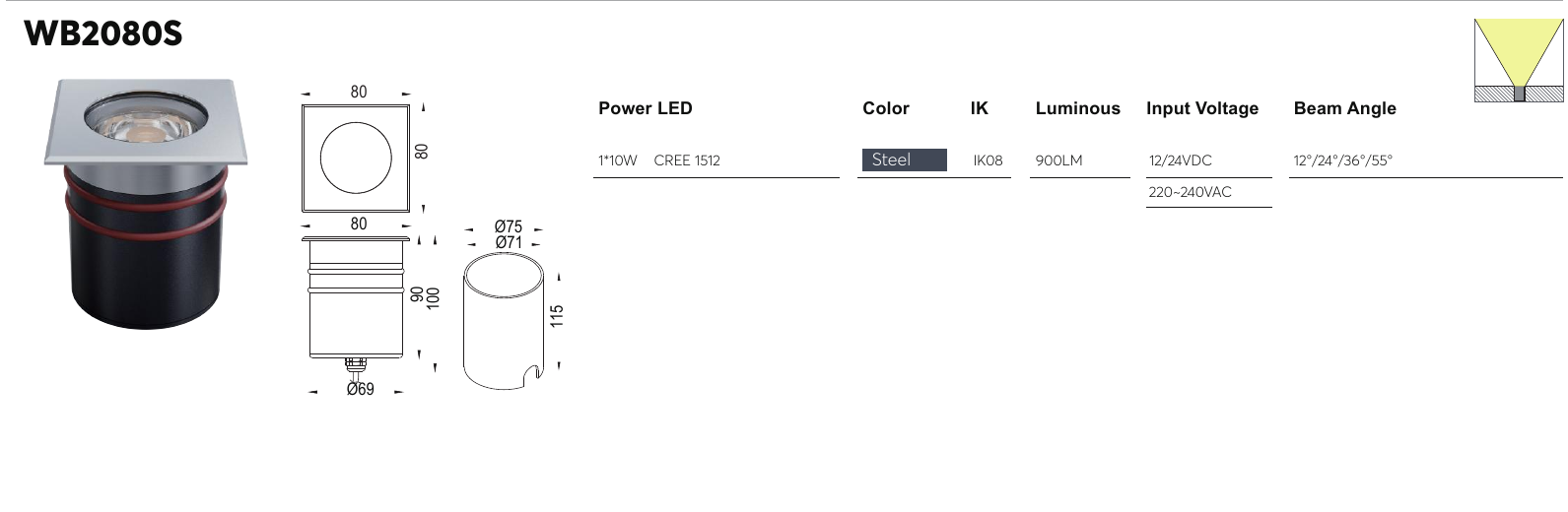

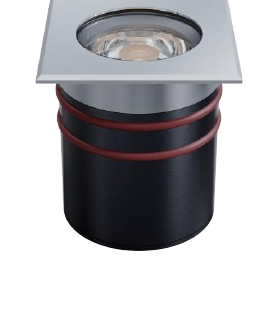

Source: Inground Light catalogue, printed pp. 35–36.WB2080S
1*10W · IK08 · Steel
Size family 80 · 900LM| Model | WB2080S |
|---|---|
| Design | Square |
| Power | 1*10W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 900LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

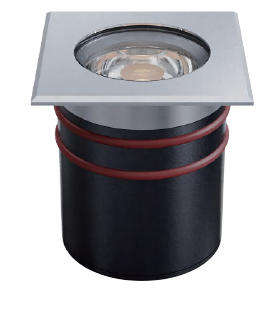

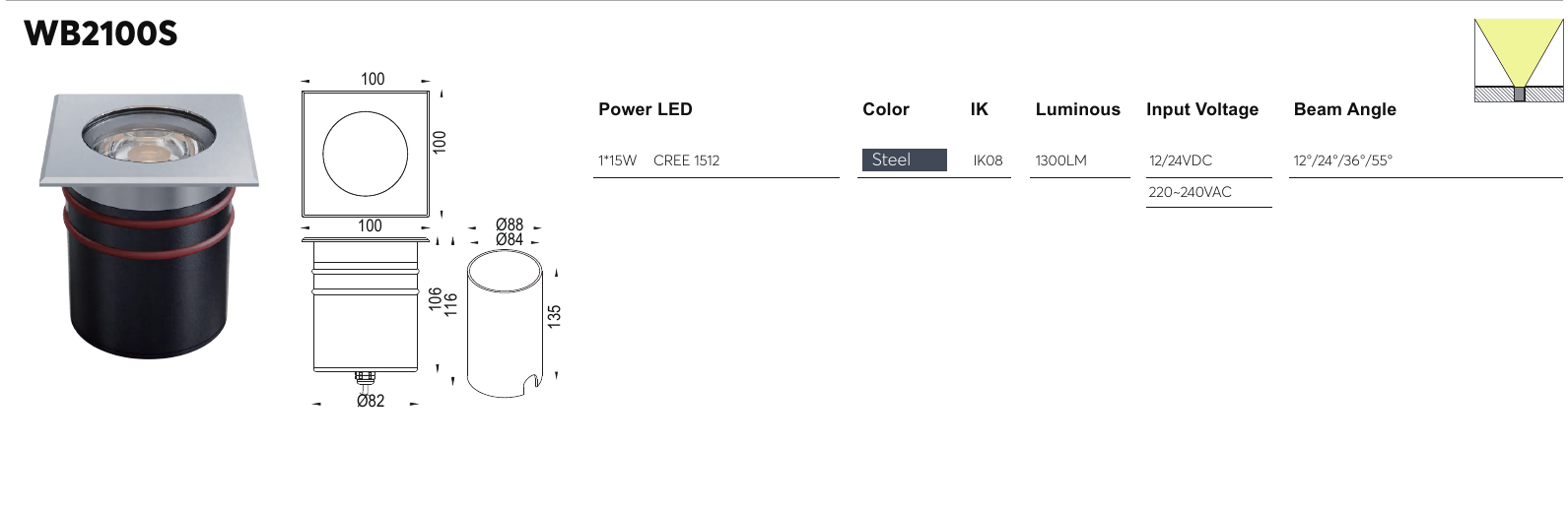

Source: Inground Light catalogue, printed pp. 35–36.WB2100S
1*15W · IK08 · Steel
Size family 100 · 1300LM| Model | WB2100S |
|---|---|
| Design | Square |
| Power | 1*15W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 1300LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

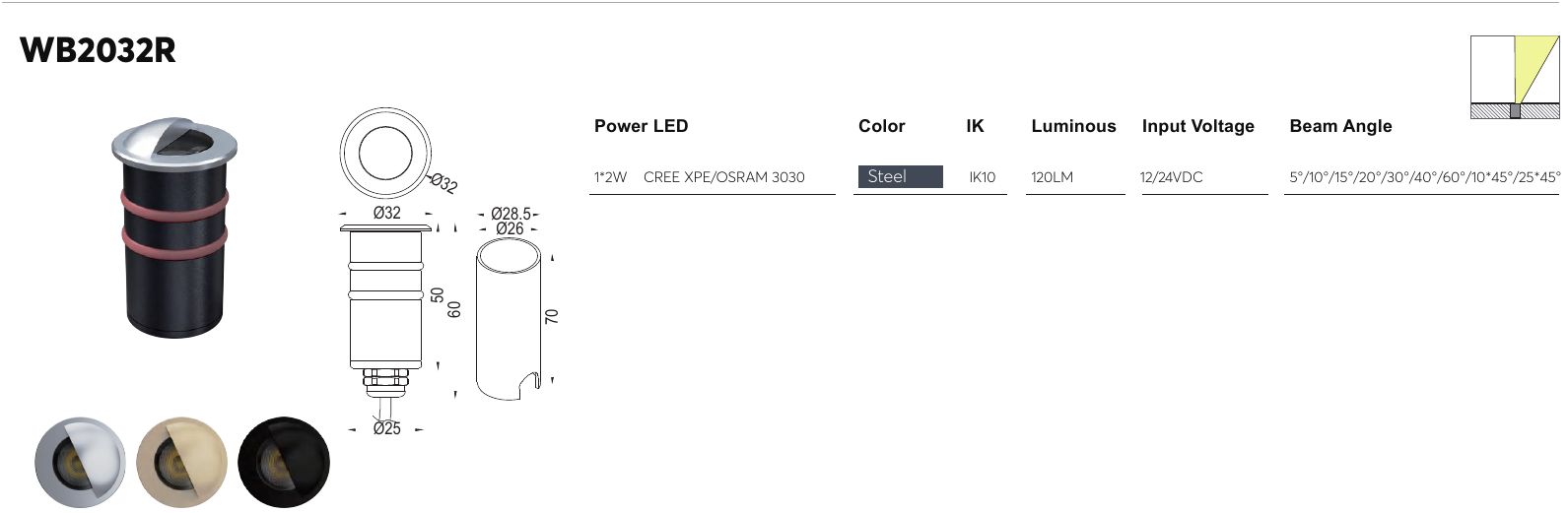

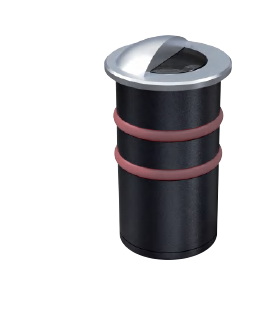

Source: Inground Light catalogue, printed pp. 35–36.WB2032R
1*2W · IK10 · Steel
Size family 32 · 120LM| Model | WB2032R |
|---|---|
| Design | Half covered |
| Power | 1*2W |
| LED | CREE XPE/OSRAM 3030 |
| Color | Steel |
| IK | IK10 |
| Luminous | 120LM |
| Input voltage | 12/24VDC |
| Beam angle / distribution | 5° / 10° / 15° / 20° / 30° / 40° / 60° / 10*45° / 25*45° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

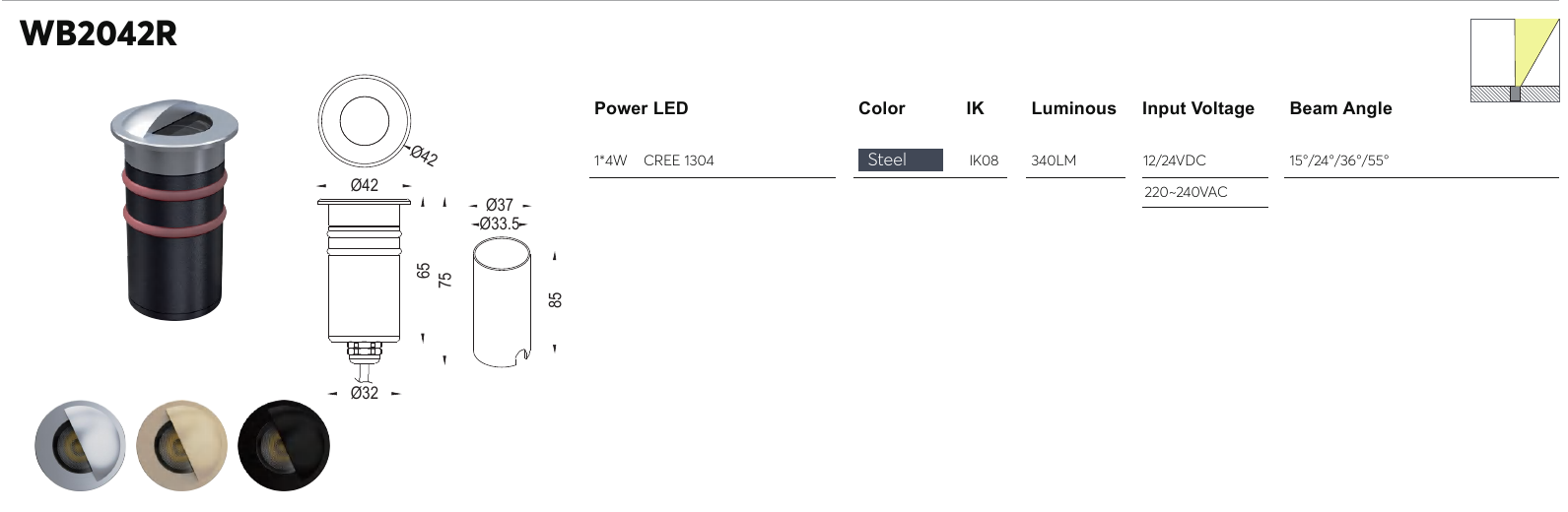

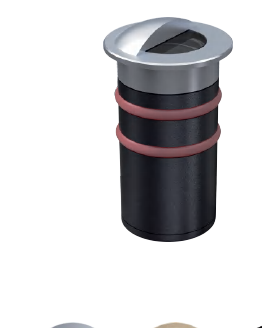

Source: Inground Light catalogue, printed pp. 37–38.WB2042R
1*4W · IK08 · Steel
Size family 42 · 340LM| Model | WB2042R |
|---|---|
| Design | Half covered |
| Power | 1*4W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 340LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 15° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

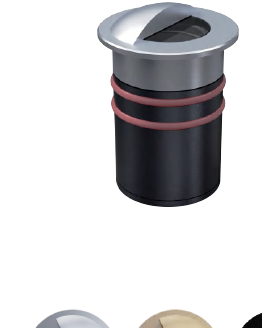

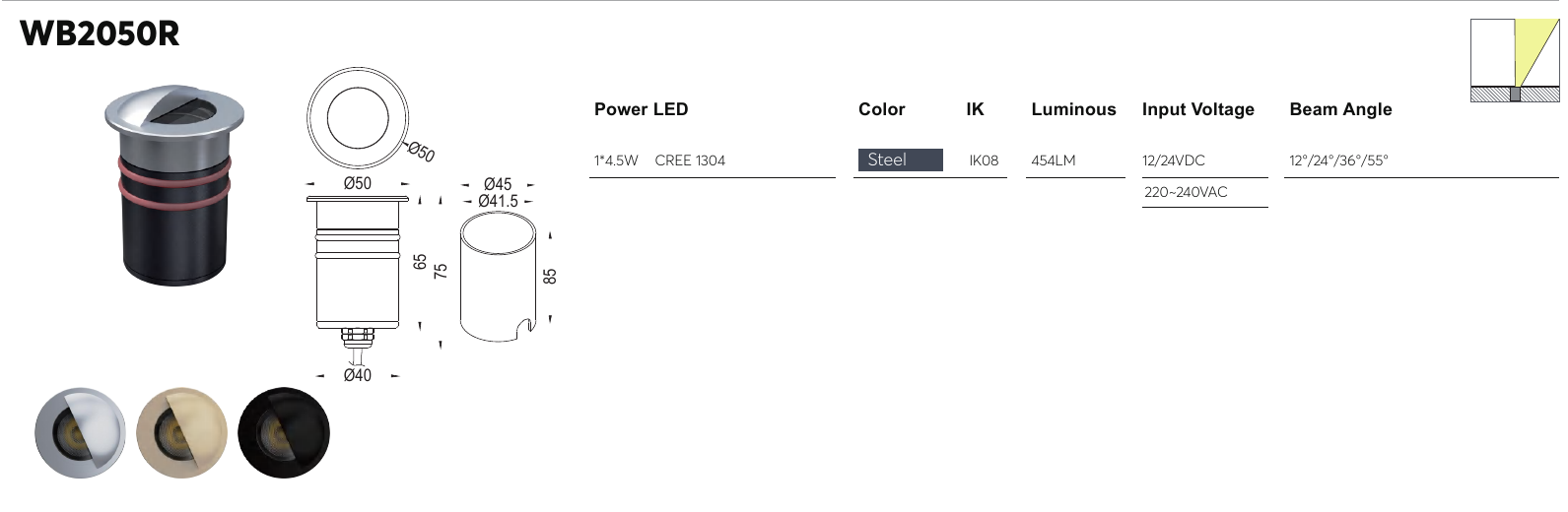

Source: Inground Light catalogue, printed pp. 37–38.WB2050R
1*4.5W · IK08 · Steel
Size family 50 · 454LM| Model | WB2050R |
|---|---|
| Design | Half covered |
| Power | 1*4.5W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 454LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

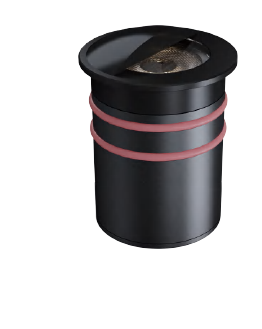

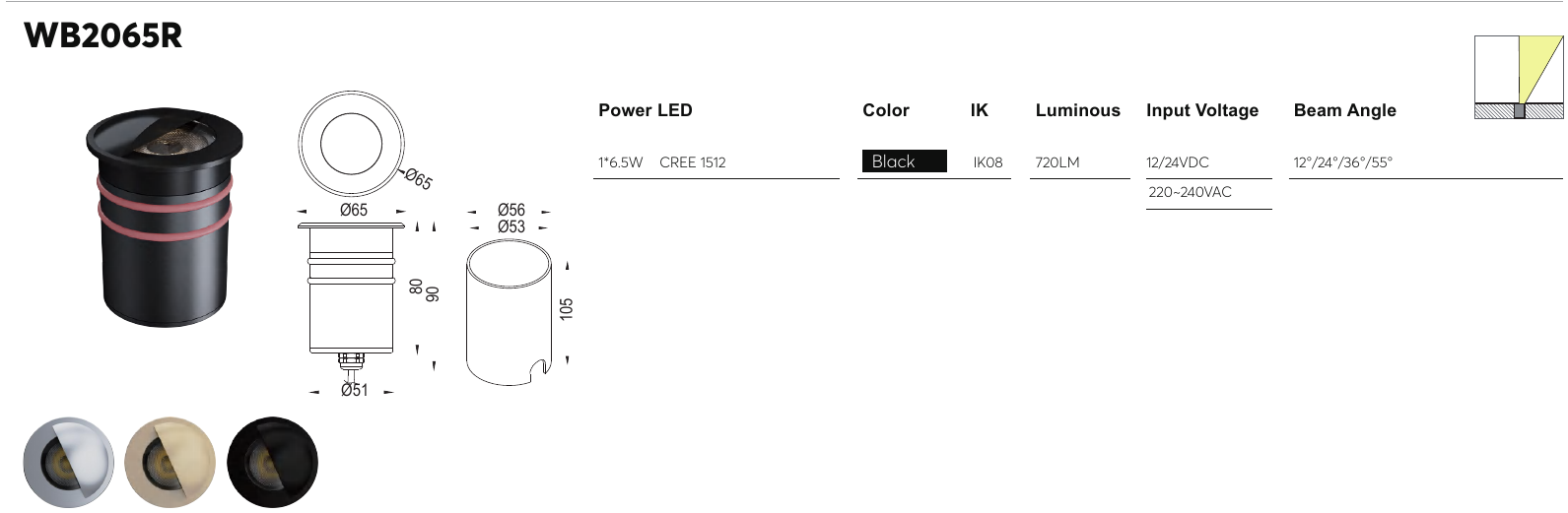

Source: Inground Light catalogue, printed pp. 37–38.WB2065R
1*6.5W · IK08 · Black
Size family 65 · 720LM| Model | WB2065R |
|---|---|
| Design | Half covered |
| Power | 1*6.5W |
| LED | CREE 1512 |
| Color | Black |
| IK | IK08 |
| Luminous | 720LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

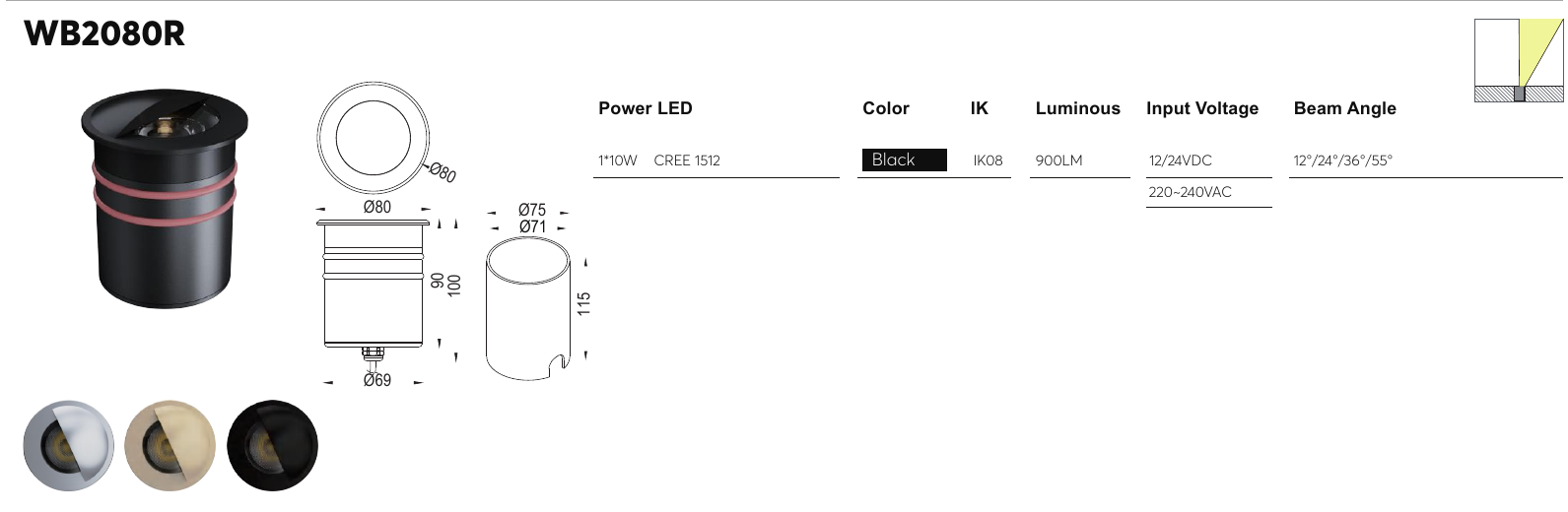

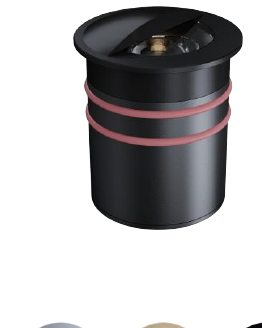

Source: Inground Light catalogue, printed pp. 37–38.WB2080R
1*10W · IK08 · Black
Size family 80 · 900LM| Model | WB2080R |
|---|---|
| Design | Half covered |
| Power | 1*10W |
| LED | CREE 1512 |
| Color | Black |
| IK | IK08 |
| Luminous | 900LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

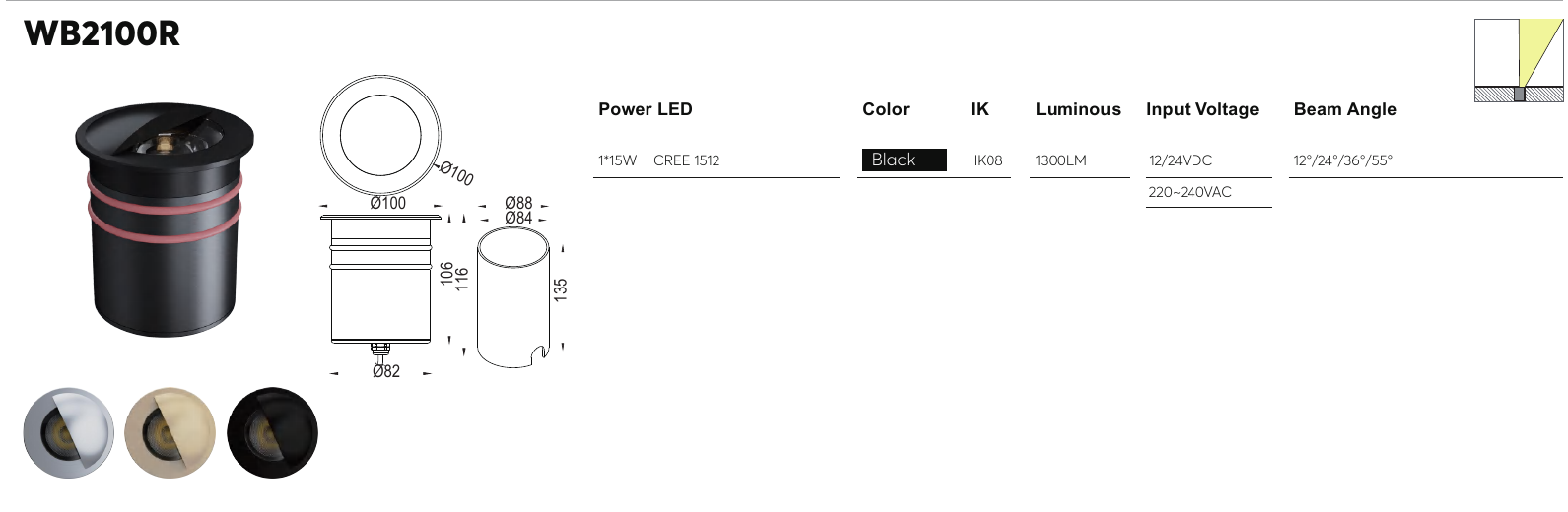

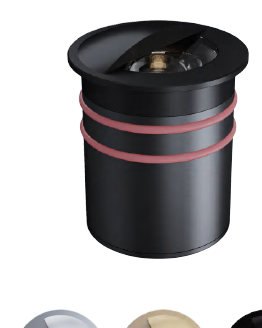

Source: Inground Light catalogue, printed pp. 37–38.WB2100R
1*15W · IK08 · Black
Size family 100 · 1300LM| Model | WB2100R |
|---|---|
| Design | Half covered |
| Power | 1*15W |
| LED | CREE 1512 |
| Color | Black |
| IK | IK08 |
| Luminous | 1300LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

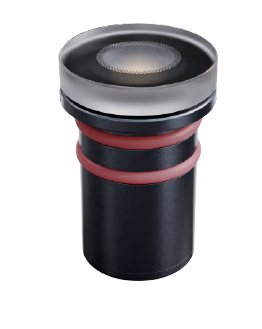

Source: Inground Light catalogue, printed pp. 37–38.WB2032R
1*2W · IK10 · Steel
Size family 32 · 120LM| Model | WB2032R |
|---|---|
| Design | Trimless |
| Power | 1*2W |
| LED | CREE XPE/OSRAM 3030 |
| Color | Steel |
| IK | IK10 |
| Luminous | 120LM |
| Input voltage | 12/24VDC |
| Beam angle / distribution | 5° / 10° / 15° / 20° / 30° / 40° / 60° / 10*45° / 25*45° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

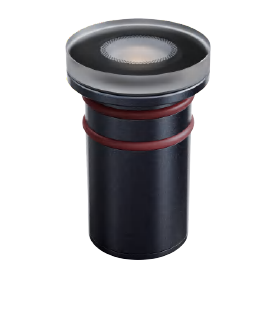

Source: Inground Light catalogue, printed pp. 39–40.WB2042R
1*4W · IK08 · Steel
Size family 42 · 340LM| Model | WB2042R |
|---|---|
| Design | Trimless |
| Power | 1*4W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 340LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 15° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

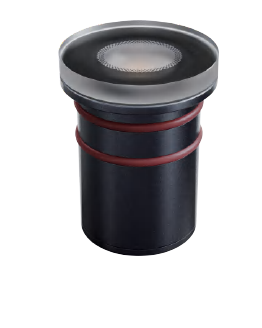

Source: Inground Light catalogue, printed pp. 39–40.WB2050R
1*4.5W · IK08 · Steel
Size family 50 · 454LM| Model | WB2050R |
|---|---|
| Design | Trimless |
| Power | 1*4.5W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | 454LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

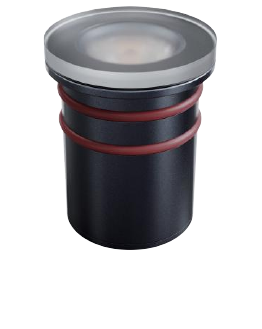

Source: Inground Light catalogue, printed pp. 39–40.WB2065R
1*6.5W · IK08 · Steel
Size family 65 · 720LM| Model | WB2065R |
|---|---|
| Design | Trimless |
| Power | 1*6.5W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 720LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

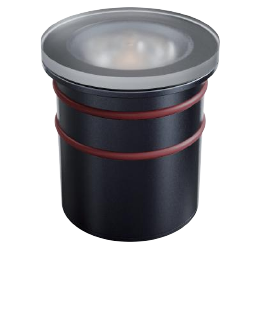

Source: Inground Light catalogue, printed pp. 39–40.WB2080R
1*10W · IK08 · Steel
Size family 80 · 900LM| Model | WB2080R |
|---|---|
| Design | Trimless |
| Power | 1*10W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 900LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

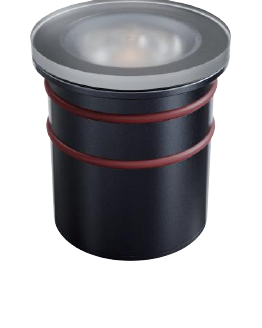

Source: Inground Light catalogue, printed pp. 39–40.WB2100R
1*15W · IK08 · Steel
Size family 100 · 1300LM| Model | WB2100R |
|---|---|
| Design | Trimless |
| Power | 1*15W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | 1300LM |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 12° / 24° / 36° / 55° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

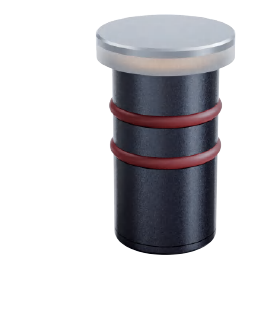

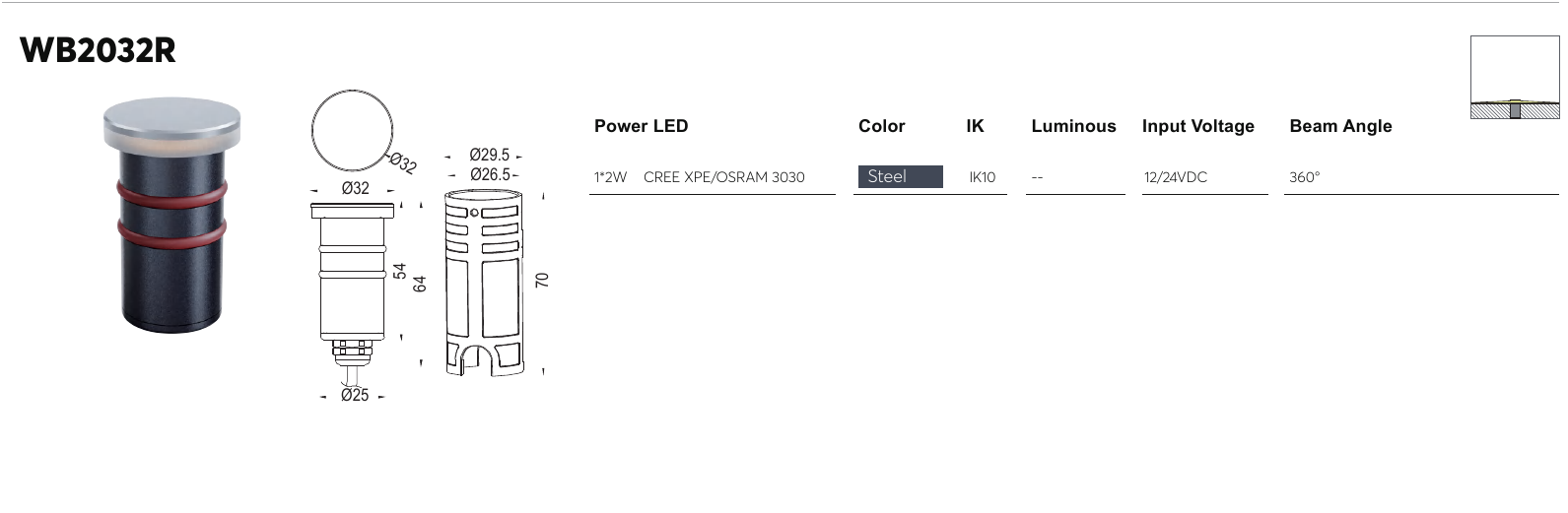

Source: Inground Light catalogue, printed pp. 39–40.WB2032R
1*2W · IK10 · Steel
Size family 32 · Lumen value not listed| Model | WB2032R |
|---|---|

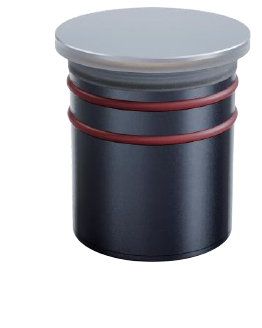

| Design | Walk over 360° |
| Power | 1*2W |
| LED | CREE XPE/OSRAM 3030 |
| Color | Steel |
| IK | IK10 |
| Luminous | -- |
| Input voltage | 12/24VDC |
| Beam angle / distribution | 360° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

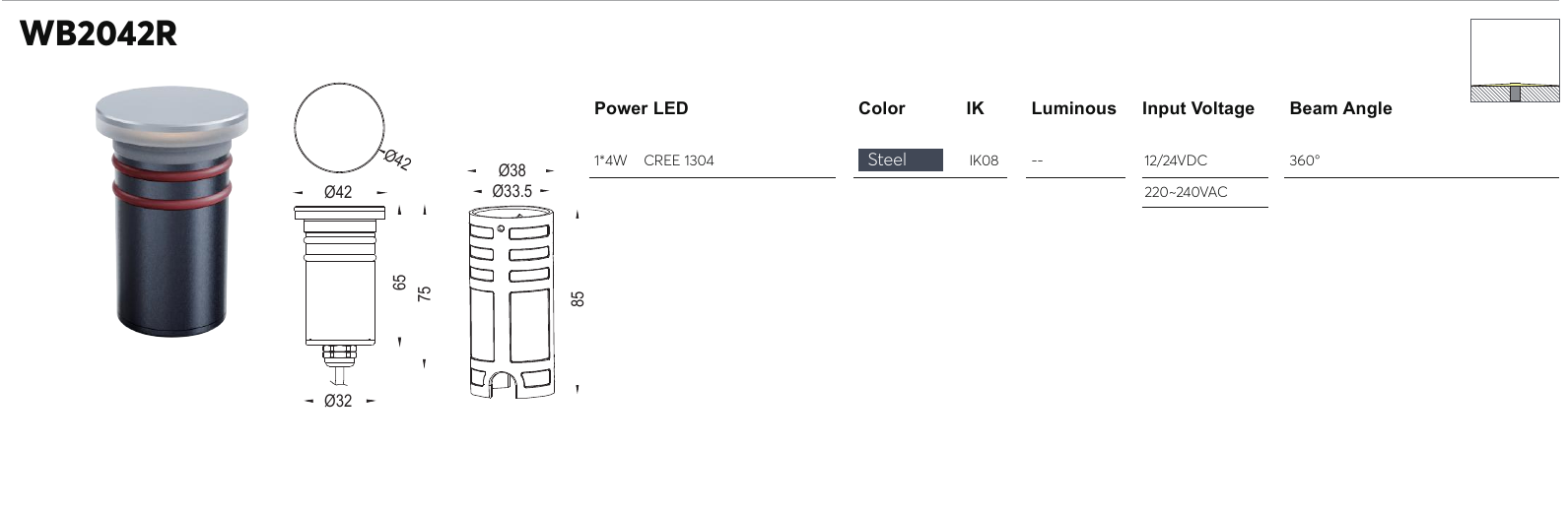

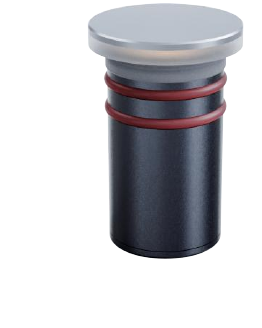

Source: Inground Light catalogue, printed pp. 45–46.WB2042R
1*4W · IK08 · Steel
Size family 42 · Lumen value not listed| Model | WB2042R |
|---|---|
| Design | Walk over 360° |
| Power | 1*4W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 360° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

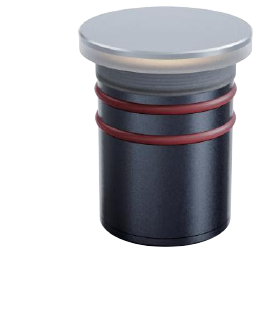

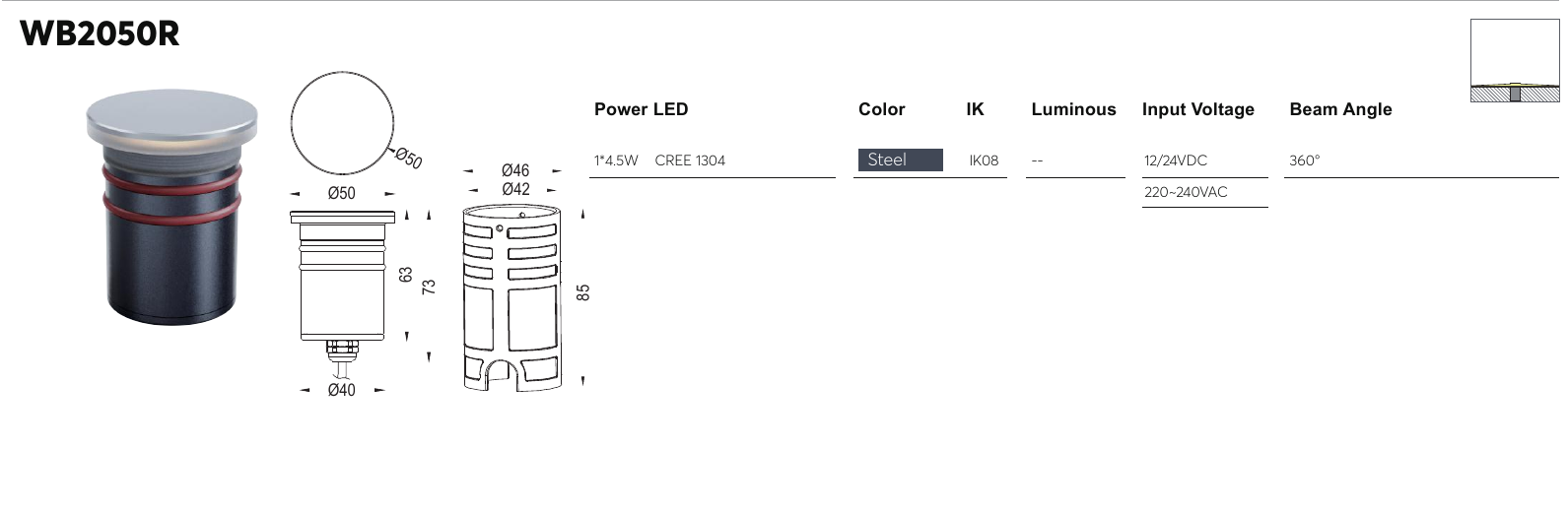

Source: Inground Light catalogue, printed pp. 45–46.WB2050R
1*4.5W · IK08 · Steel
Size family 50 · Lumen value not listed| Model | WB2050R |
|---|---|
| Design | Walk over 360° |
| Power | 1*4.5W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 360° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

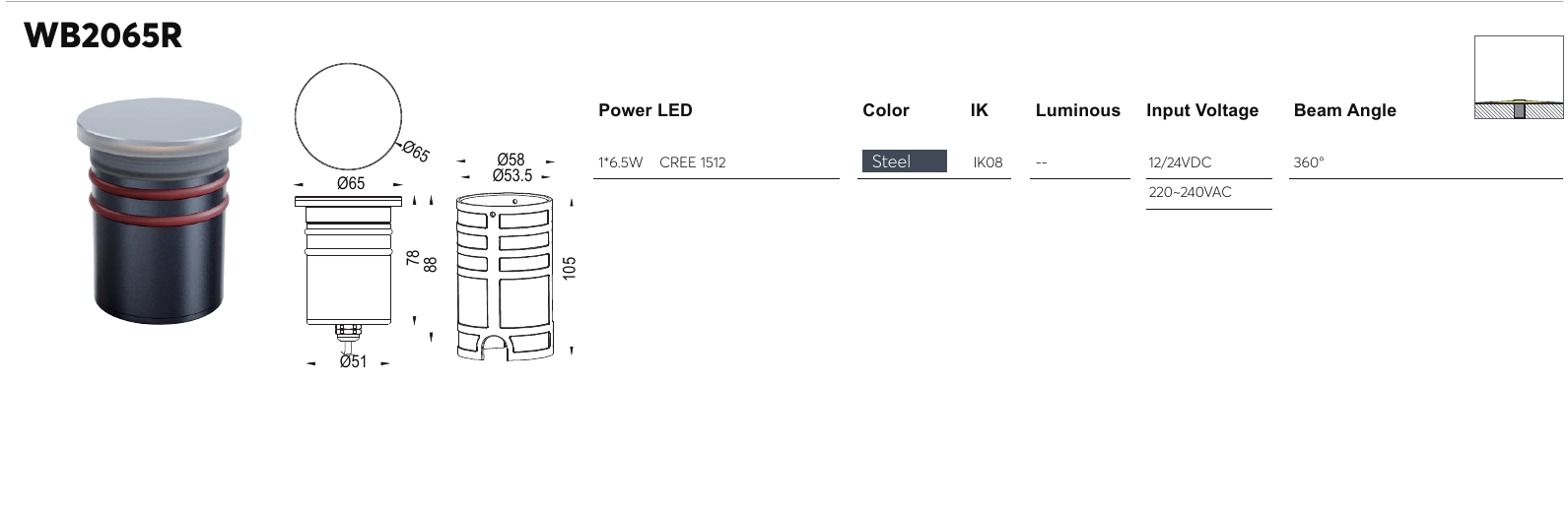

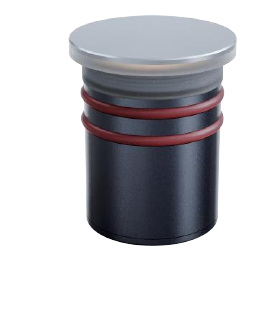

Source: Inground Light catalogue, printed pp. 45–46.WB2065R
1*6.5W · IK08 · Steel
Size family 65 · Lumen value not listed| Model | WB2065R |
|---|---|
| Design | Walk over 360° |
| Power | 1*6.5W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 360° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

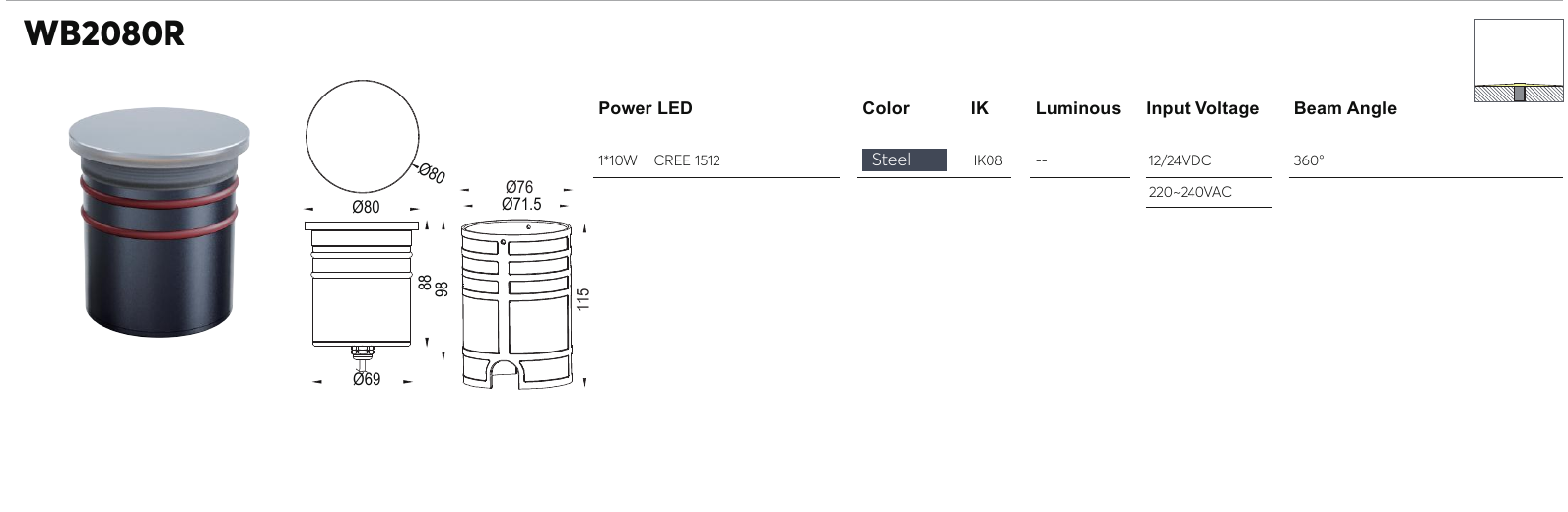

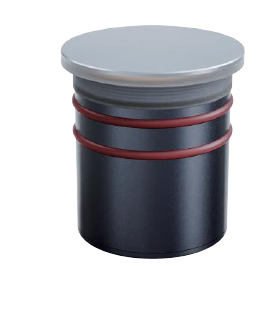

Source: Inground Light catalogue, printed pp. 45–46.WB2080R
1*10W · IK08 · Steel
Size family 80 · Lumen value not listed| Model | WB2080R |
|---|---|
| Design | Walk over 360° |
| Power | 1*10W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 360° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.
Source: Inground Light catalogue, printed pp. 45–46.WB2100R
1*15W · IK08 · Steel
Size family 100 · Lumen value not listed| Model | WB2100R |
|---|---|
| Design | Walk over 360° |
| Power | 1*15W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 360° |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.
Source: Inground Light catalogue, printed pp. 45–46.WB2032R-1way/2way/4way
1*2W · IK10 · Steel
Size family 32 · Lumen value not listed| Model | WB2032R-1way/2way/4way |
|---|---|
| Design | Walk over sectors |
| Power | 1*2W |
| LED | CREE XPE/OSRAM 3030 |
| Color | Steel |
| IK | IK10 |
| Luminous | -- |
| Input voltage | 12/24VDC |
| Beam angle / distribution | 1way / 2way / 4way |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

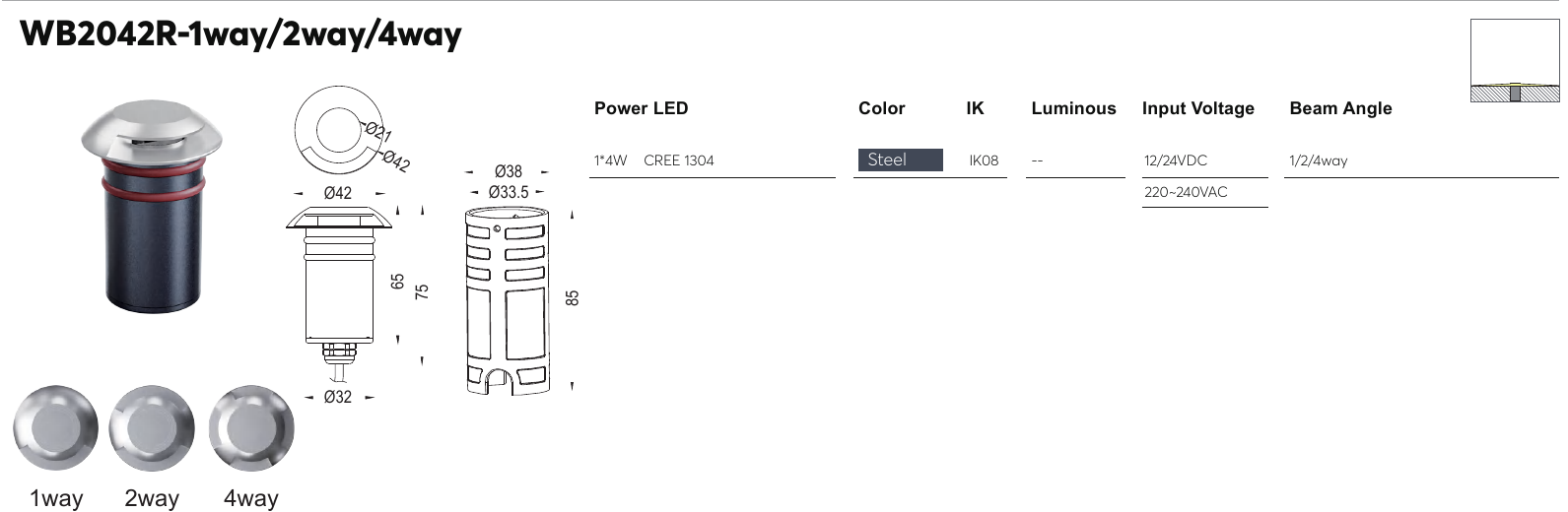

Source: Inground Light catalogue, printed pp. 49–50.WB2042R-1way/2way/4way
1*4W · IK08 · Steel
Size family 42 · Lumen value not listed| Model | WB2042R-1way/2way/4way |
|---|---|
| Design | Walk over sectors |
| Power | 1*4W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 1way / 2way / 4way |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.
Source: Inground Light catalogue, printed pp. 49–50.WB2050R-1way/2way/4way
1*4.5W · IK08 · Steel
Size family 50 · Lumen value not listed| Model | WB2050R-1way/2way/4way |
|---|---|
| Design | Walk over sectors |
| Power | 1*4.5W |
| LED | CREE 1304 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 1way / 2way / 4way |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.
Source: Inground Light catalogue, printed pp. 49–50.WB2065R-1way/2way/4way
1*6.5W · IK08 · Steel
Size family 65 · Lumen value not listed| Model | WB2065R-1way/2way/4way |
|---|---|
| Design | Walk over sectors |
| Power | 1*6.5W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 1way / 2way / 4way |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

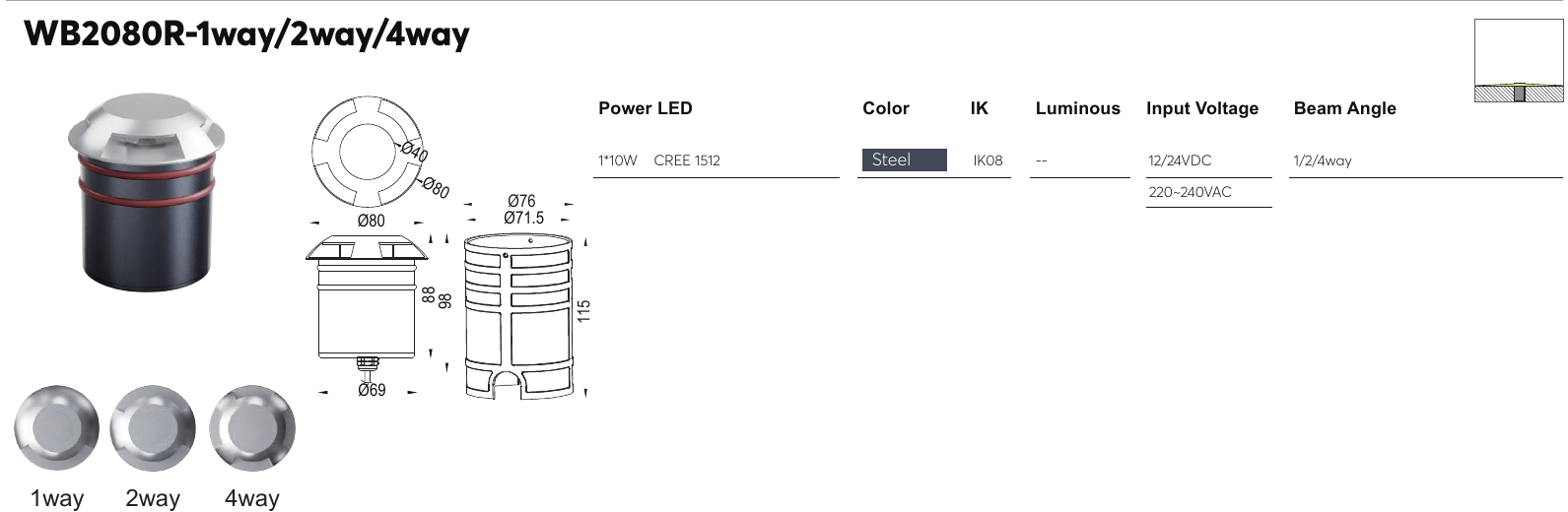

Source: Inground Light catalogue, printed pp. 49–50.WB2080R-1way/2way/4way
1*10W · IK08 · Steel
Size family 80 · Lumen value not listed| Model | WB2080R-1way/2way/4way |
|---|---|
| Design | Walk over sectors |
| Power | 1*10W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 1way / 2way / 4way |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.

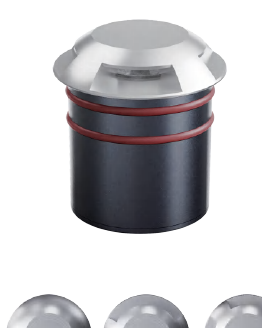

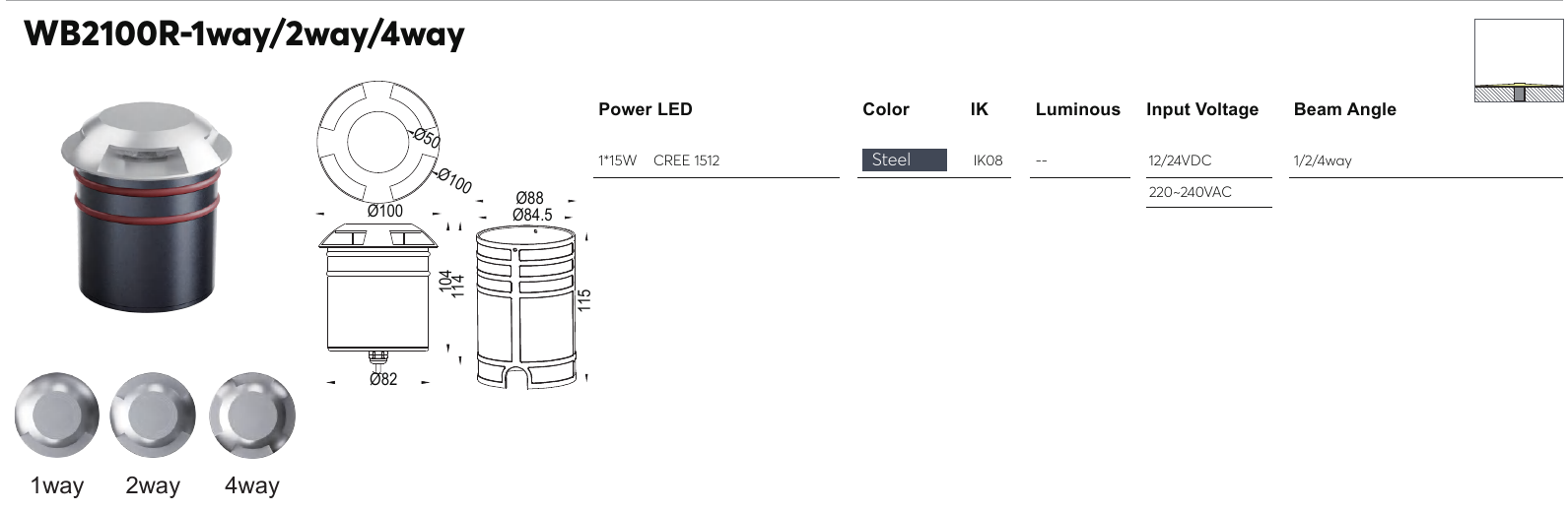

Source: Inground Light catalogue, printed pp. 49–50.WB2100R-1way/2way/4way
1*15W · IK08 · Steel
Size family 100 · Lumen value not listed| Model | WB2100R-1way/2way/4way |
|---|---|
| Design | Walk over sectors |
| Power | 1*15W |
| LED | CREE 1512 |
| Color | Steel |
| IK | IK08 |
| Luminous | -- |
| Input voltage | 12/24VDC · 220~240VAC |
| Beam angle / distribution | 1way / 2way / 4way |
Dimension labels are retained in the original drawing below. Size family is a catalogue grouping, not a cut-out specification.
Source: Inground Light catalogue, printed pp. 49–50.No matching products. Reset the filters to view the complete collection.
03 / Compare & specify
Use the shared electrical reference below, then check the cover-specific source drawing before planning a recess or mounting sleeve.
| Size family | Power | LED | IK | Input voltage | Listed luminous* |
|---|---|---|---|---|---|
| 32 | 1*2W | CREE XPE/OSRAM 3030 | IK10 | 12VDC / 24VDC | 120LM |
| 42 | 1*4W | CREE 1304 | IK08 | 12VDC / 24VDC / 220~240VAC | 340LM |
| 50 | 1*4.5W | CREE 1304 | IK08 | 12VDC / 24VDC / 220~240VAC | 454LM |
| 65 | 1*6.5W | CREE 1512 | IK08 | 12VDC / 24VDC / 220~240VAC | 720LM |
| 80 | 1*10W | CREE 1512 | IK08 | 12VDC / 24VDC / 220~240VAC | 900LM |
| 100 | 1*15W | CREE 1512 | IK08 | 12VDC / 24VDC / 220~240VAC | 1300LM |
*Luminous values above apply to the round, square, half-covered and trimless tables. Both walk-over tables show “--”. The 32 family lists DC input only. Use each product’s original drawing for all dimensions.

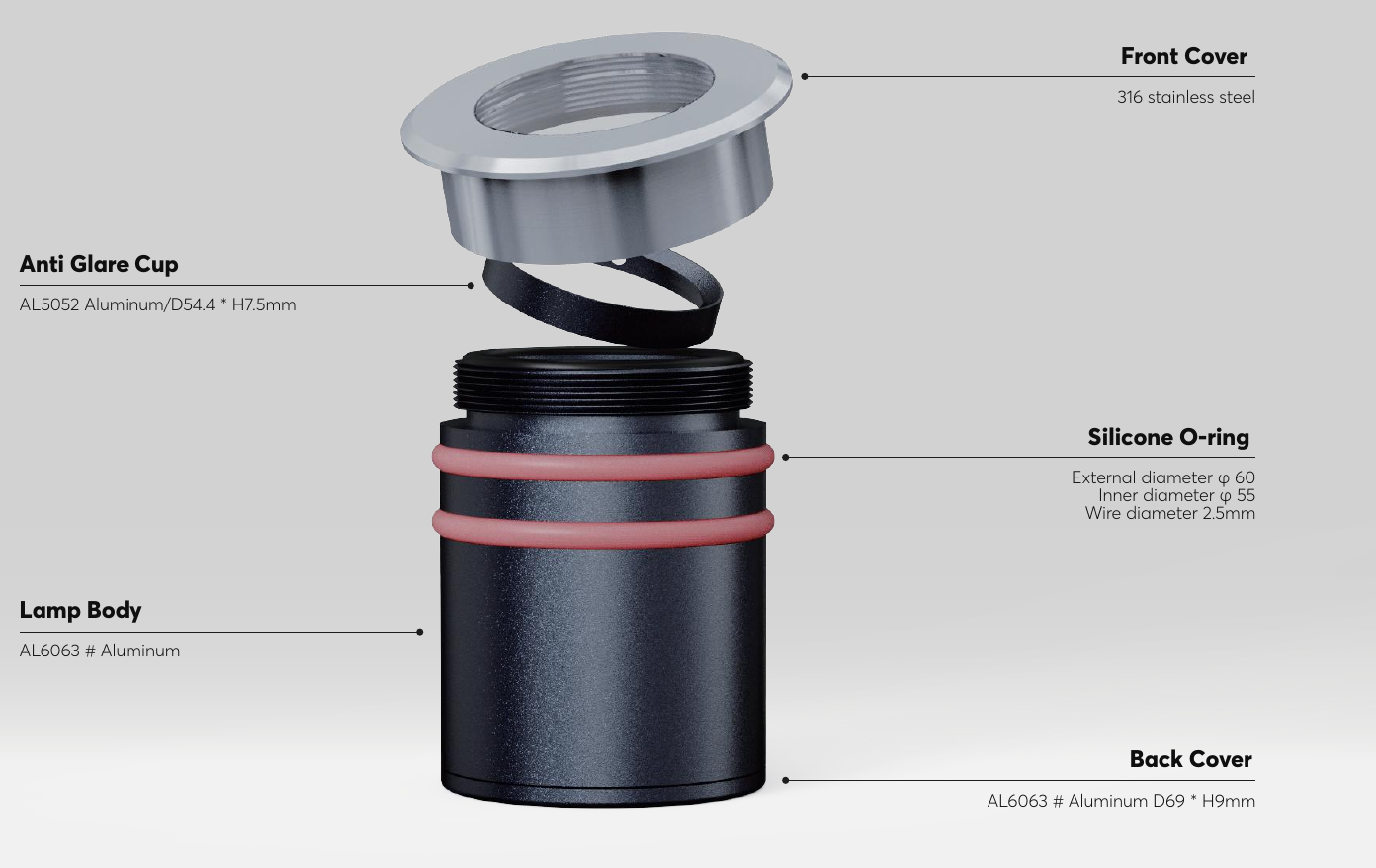

The overview describes an aluminium housing, stainless-steel front cover and tempered glass. Material descriptions vary between the overview and exploded drawing; confirm the exact bill of materials for your model.
Product spreads display an IP67 icon. Confirm the selected assembly, cable connection and installation requirements. The catalogue does not provide a numerical drive-over load rating.
Model tables list IK10 for the 32 family and IK08 for the larger families; the overview’s IK10 statement is not applied to every model.
Half-covered 65, 80 and 100 entries list Black. Other entries list Steel. Additional finish swatches are illustrated, but their ordering options need confirmation.
Control and color-mode icons appear at series level. CCT values and model-specific control combinations are not provided in the tables; add your requirements to the brief for confirmation.
Plan the installation
Share the surface build-up, recess dimensions, intended pedestrian or vehicle exposure, drainage conditions and power supply. Request the appropriate sleeve and installation drawing for the exact cover and model.
Build a project brief ↗04 / Your project, one quotation
Add products from the collection, review quantities and share your configuration requirements. Nothing is submitted automatically.
No products selected yet. Browse the collection or email your project requirements.
Ready for your inquiry
Copy or download your brief before opening the inquiry page.
Email opens your mail app. For long briefs, attach the downloaded TXT. The inquiry page opens separately; paste your brief into the message. Nothing is sent automatically.
Your draft is saved in this browser when storage is available. Download a copy to keep or share.
05 / Questions, answered
Direct answers based on the supplied Series 2 catalogue, with model differences made explicit.
Series 2 is a collection of recessed LED inground lights with round, square, half-covered, trimless, 360° walk-over and sector walk-over designs. The catalogue contains six size families and listed powers from 1*2W to 1*15W.
The 32 family lists 12/24VDC only. The 42, 50, 65, 80 and 100 families list 12/24VDC and 220~240VAC. These are ordering choices to confirm, not a claim that one unit accepts every listed voltage.
No. The model tables list IK10 for the 32 family and IK08 for the 42, 50, 65, 80 and 100 families across all six designs. Select using the model table, not the general overview statement.
For round, square, half-covered and trimless entries, the 32 family lists 5°/10°/15°/20°/30°/40°/60°/10*45°/25*45°; the 42 family lists 15°/24°/36°/55°; larger families list 12°/24°/36°/55°. Walk-over entries list 360° or 1/2/4way distributions.
The walk-over tables show “--” in the Luminous column. No lumen value has been copied from the uplight entries. Request photometric data for the exact walk-over configuration.
The catalogue reuses round model codes for multiple cover types. Always include the design family together with the model. The quotation brief keeps those combinations separate.
No. The catalogue groups the collection into 32, 42, 50, 65, 80 and 100 families, but original drawings contain separate face, body and sleeve dimensions. Use the design-specific drawing and request an installation detail before preparing the recess. The WB2032S drawing contains both 30 and 32 labels; neither has been silently replaced.
Model tables list Steel except for half-covered WB2065R, WB2080R and WB2100R, which list Black. Illustrated swatches do not establish all ordering combinations. Numerical CCT options are not provided; state the requested CCT and ask for confirmation.
The catalogue shows outdoor scenes and an IP67 icon, but it does not provide a numerical vehicle load rating or permanent-submersion specification. Request written confirmation of loading, drainage and installation suitability for the selected model and site.
Choose a design and model, select the listed voltage and beam or distribution, enter the quantity, and add it to your brief. Include site details and any CCT or control request, then copy or download the brief and open an email draft. Pricing, availability, accessories and configuration are confirmed by the sales team.
Specification source: Inground Light catalogue, Series 2, printed pages 21–50. Product photographs, drawings and source values are retained from the catalogue. Confirm the final configuration and supporting documents before ordering.
