IP67 Adjustable LED In-ground Light | WB2095R-WB2250R

Name: IP67 Adjustable LED In-ground Light | WB2095R-WB2250R
Brand: VOC Lighting
SKU: VOC-WB2095R-WB2250R

No.VOC-WB2095R-WB2250R

Professional IP67 adjustable LED in-ground light for architectural and landscape uplighting. Six sizes from Ø95mm to Ø250mm with IK10 impact resistance, adjustable beam direction, multiple optical distributions, white/RGB/RGBW options and corrosion-resistant SUS316L front ring.

Model

WB2095R / WB2130R / WB2160R / WB2180R / WB2210R / WB2250R

Power

1×2W-1×4W / 2×3W-2×4W / 4×2.5W-6×2W / 6×2.5W-9×2W / 9×2.5W-12×2W / 12×3W-18×2W

Dimension

Ø95×H116mm / Ø130×H133mm / Ø160×H153mm / Ø180×H162mm / Ø210×H181mm / Ø250×H190mm

Cut-out

Ø85mm / Ø119mm / Ø147mm / Ø165mm / Ø193mm / Ø223mm

Luminous Flux

Up to 157 / 465 / 920 / 1310 / 1850 / 2800 lm

LED

CREE / OSRAM; Single White / RGB 3-in-1 / RGBW 4-in-1

Protection

IP67 / IK10

Beam Direction

Adjustable

Beam Angle

3° / 5° / 8° / 12° / 15° / 25° / 40° / 60° / 10°×45° / 20°×65°

Input Voltage

12/24VDC / 220-240VAC depending on configuration

REQUEST A QUOTE

Add to Quote List View Quote List

Description

PRODUCT OVERVIEW

Professional IP67 adjustable LED in-ground light series for architectural façades, columns, landscapes and outdoor accent lighting.
Six sizes from Ø95mm to Ø250mm provide flexible output levels for small landscape features through large commercial projects.
Adjustable internal light direction allows precise aiming after recessed installation.

KEY FEATURES

Adjustable Beam Direction
Internal aiming can be adjusted for precise façade, column, tree and landscape illumination.
IP67 + IK10 Protection
Designed for demanding recessed outdoor installations with strong water and impact resistance.
Multiple Optical Distributions
Super narrow, narrow, medium, flood, wide flood and elliptical beam options support precision accent lighting and wall washing.
White / RGB / RGBW Options
Available with single-color white, RGB 3-in-1 and RGBW 4-in-1 LED configurations.
SUS316L Front Ring
Corrosion-resistant stainless steel trim is suitable for outdoor, coastal and high-humidity environments.
High-Transmittance Tempered Glass
Tempered safety glass provides high light transmission and strong impact resistance.

MODEL & SIZE OPTIONS

Model	Power Options	Face Diameter	Cut-out	Fixture Height	Max Luminous Flux
WB2095R	1×2W / 1×3W RGB / 1×4W RGBW	Ø95mm	Ø85mm	116mm	157 lm
WB2130R	2×3W / 3×2W / 2×3W RGB / 2×4W RGBW	Ø130mm	Ø119mm	133mm	465 lm
WB2160R	4×3W / 6×2W / 4×2.5W RGB / 4×3.5W RGBW	Ø160mm	Ø147mm	153mm	920 lm
WB2180R	6×3W / 9×2W / 6×2.5W RGB / 6×3.5W RGBW	Ø180mm	Ø165mm	162mm	1310 lm
WB2210R	9×3W / 12×2W / 9×2.5W RGB / 9×3.5W RGBW	Ø210mm	Ø193mm	181mm	1850 lm
WB2250R	12×3W / 18×2W / 12×3W RGB / 12×4W RGBW	Ø250mm	Ø223mm	190mm	2800 lm

OPTICAL OPTIONS

Beam Angles: 3° / 5° / 8° / 12° / 15° / 25° / 40° / 60°
Elliptical Optics: 10°×45° / 20°×65°
Light Distribution: Spot / Flood / Wide Flood / Elliptical / Wall Washing
Beam Direction: Adjustable

LED OPTIONS

LED Brands: CREE / OSRAM
Color Configuration: Single White / RGB 3-in-1 / RGBW 4-in-1
Maximum Series Output: Up to 2800 lm

TECHNICAL OPTIONS

Protection: IP67 / IK10
Input Voltage: 12/24VDC; selected white-light configurations support 220-240VAC
Dimming / Control: 1-10V / TRIAC / PWM / DALI options subject to configuration
Front Ring: SUS316L Stainless Steel
Housing: Die-cast Aluminum with Powder-coated Finish
Optical Cover: High-transmittance Tempered Safety Glass

RECOMMENDED APPLICATIONS

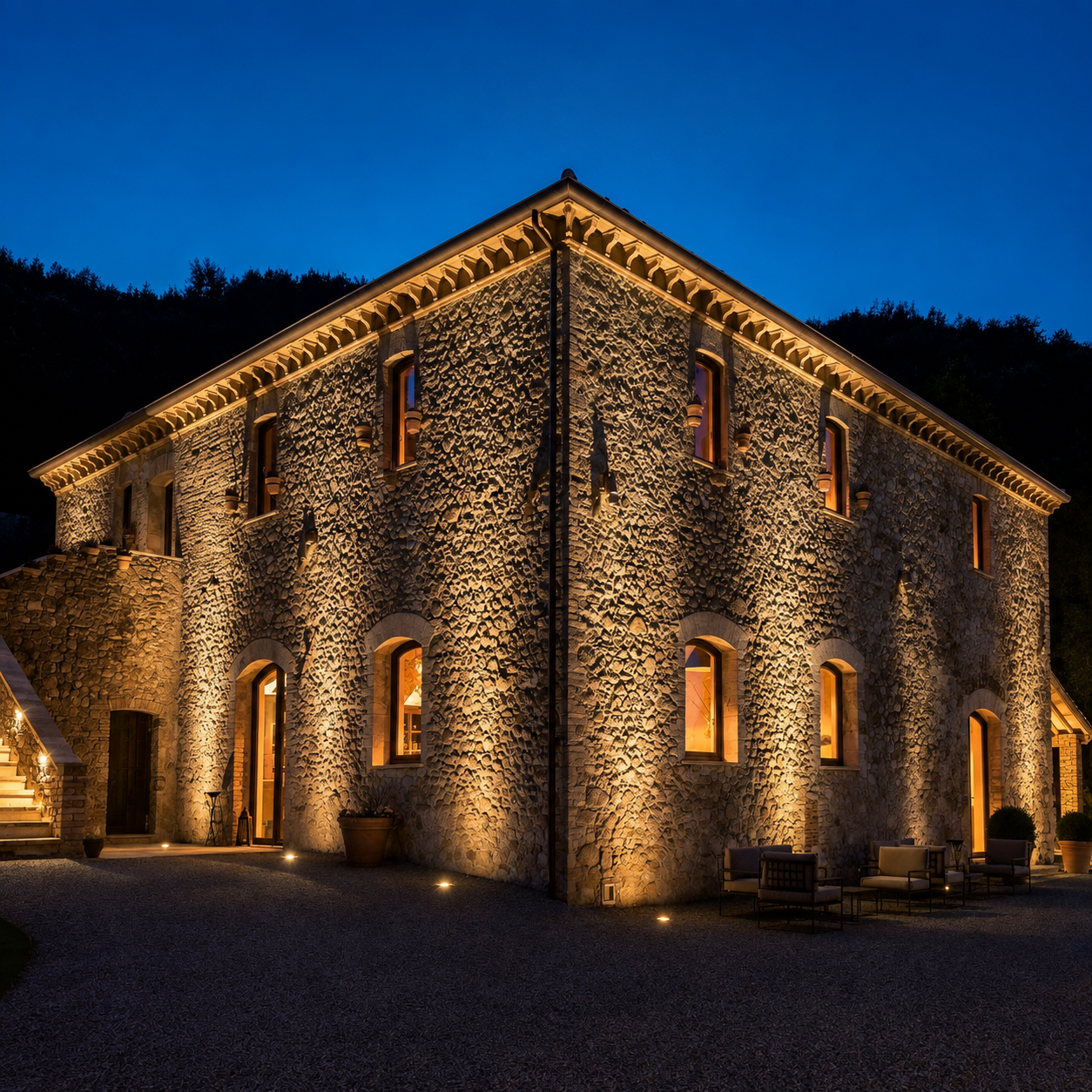

Building Façades & Architectural Uplighting
Columns & Structural Features
Landscape & Tree Lighting
Hotels, Villas & Commercial Projects
Pathways, Plazas & Public Spaces
Wall Washing & Accent Lighting
