Surface mounted / Architectural lighting
Surface downlights.
Designed around your space.
Explore VOC Lighting surface-mounted downlights in fixed, directional and folding designs. Compare 21 product groups with original model references and size-specific specifications, then discuss your project or OEM requirements.
Original product imagery · click collection images for a closer view
01 / The collection
Surface-mounted lighting, with the details that matter
The supplied range includes round and square housings, adjustable heads and multi-head options. Power, beam angle and dimensions vary by model. Use the specification tables to compare the exact configuration rather than applying one rating to the entire collection.
Fixed or directional
Choose fixed bodies for a consistent ceiling arrangement, or explore folding and adjustable designs when the light needs to be aimed. Confirm mounting clearance and adjustment limits for the chosen fixture.
A clear specification
Send the collection reference, original model or variant, quantity and project requirements. VOC Lighting can review the selected light source, beam, finish and electrical configuration with your quotation.
02 / Product collection
Compare surface downlight models
VOC-SD-01 to VOC-SD-21 are collection references assigned for this page. Original manufacturer model numbers, where supplied, remain in the tables.
Click to enlarge

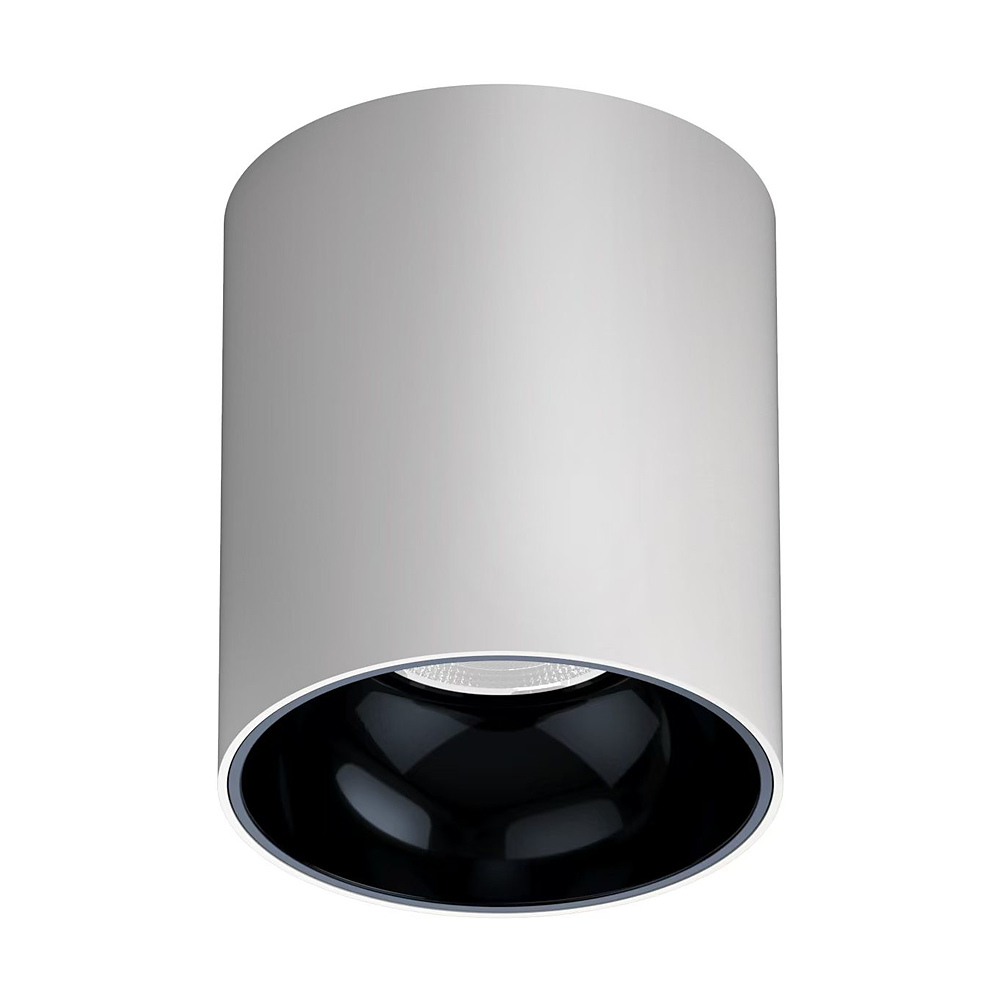

VOC-SD-01
IP65 deep-recessed round downlights
8 listed variants · IP65
Specifications & options
| Original model |
Power |
Diameter × height (mm) |
Beam angle |
| 2501M-A |
10W |
Ø75 × 100 |
20° / 40° / 60° |
| 2501M |
15W |
Ø75 × 152 |
20° / 40° / 60° |
| 3001M-A |
15W |
Ø95 × 100 |
20° / 40° / 60° |
| 3001M |
20W |
Ø95 × 152 |
20° / 40° / 60° |
| 4001M |
30W |
Ø115 × 152 |
20° / 40° / 60° |
| 5001M |
40–50W |
Ø140 × 162 |
20° / 40° / 60° |
| 6001M |
50–60W |
Ø170 × 182 |
20° / 40° / 60° |
| 8001M |
60–100W |
Ø205 × 212 |
20° / 30° / 40° / 60° |
IP65. Confirm the selected installation and electrical configuration with your quotation.
Request this model ↗
Click to enlarge

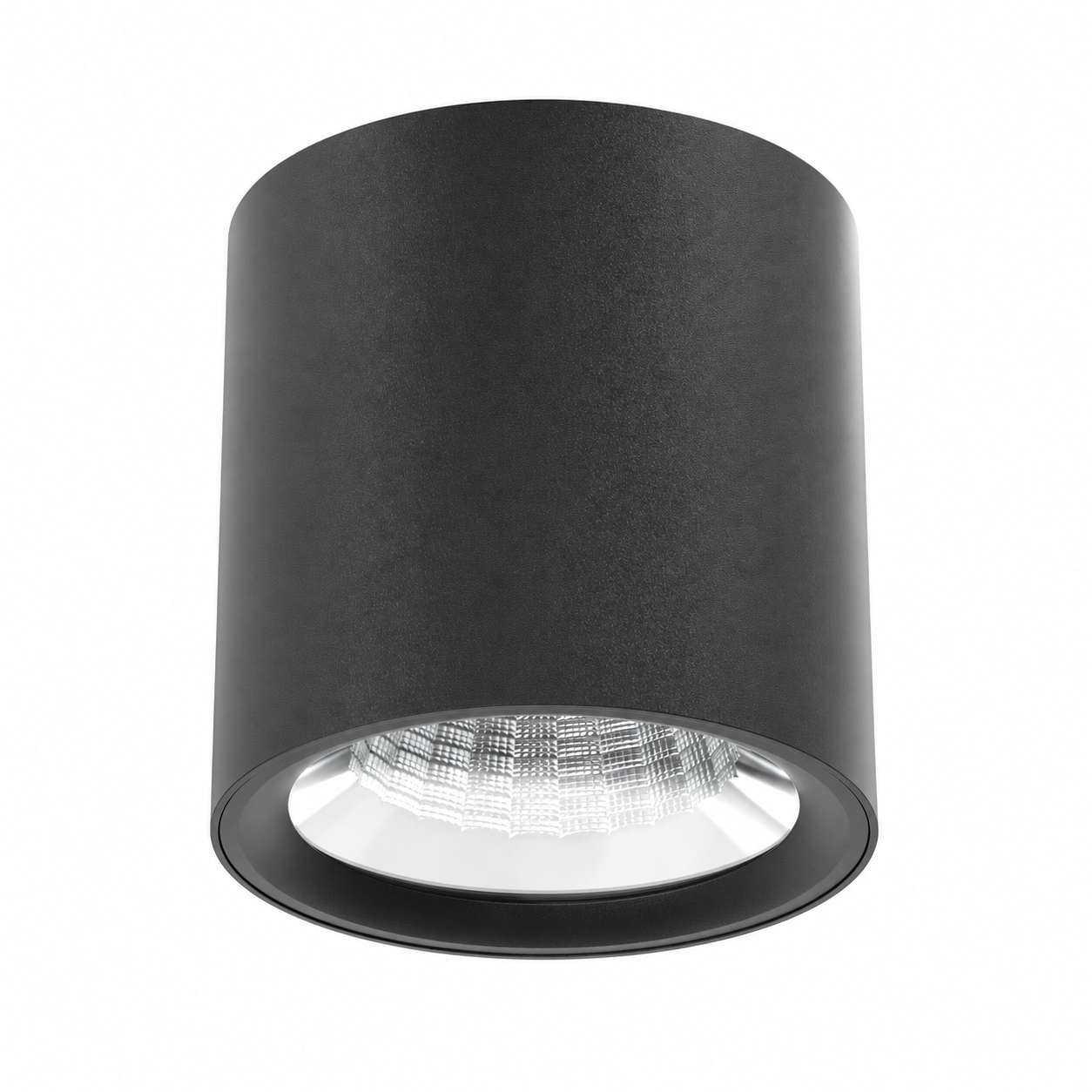

VOC-SD-02
Compact round downlights
5 listed variants
Specifications & options
| Original model |
Power |
Diameter × height (mm) |
Beam angle |
| JNS-2501K |
12W |
Ø74 × 75 |
20° / 40° / 60° |
| JNS-3001K |
15W |
Ø90 × 90 |
20° / 40° / 60° |
| JNS-4001K |
25W |
Ø111 × 110 |
20° / 40° / 60° |
| JNS-5001K |
35W |
Ø132 × 130 |
20° / 40° / 60° |
| JNS-6001K |
45W |
Ø171 × 170 |
20° / 40° / 60° |
Request this model ↗
Click to enlarge

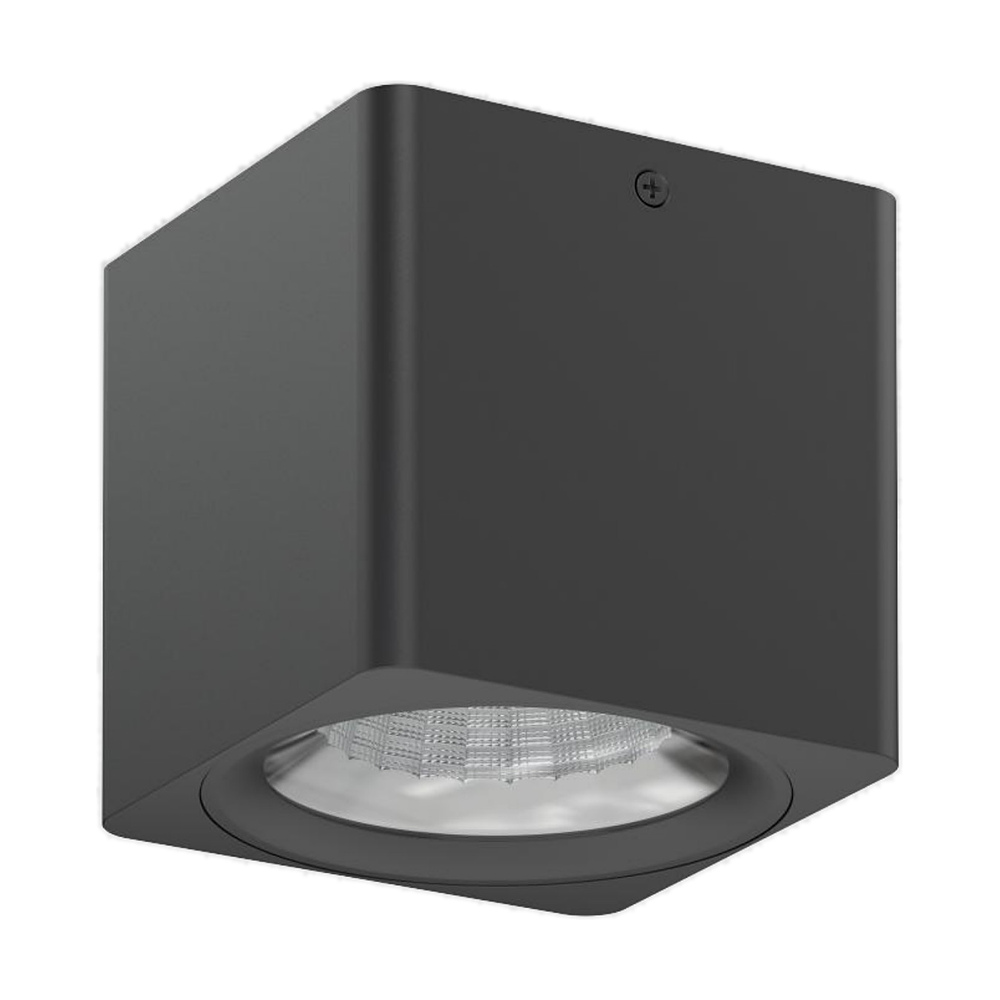

VOC-SD-03
Round & square fixed downlights
4 listed variants
Specifications & options
| Original model |
Power |
Body × height (mm) |
Beam angle |
| JNS-8001K |
55W |
Ø195 × 190 |
20° / 40° / 60° |
| JNS-2501K-1 |
15W |
74 × 74 × 75 |
20° / 40° / 60° |
| JNS-3001K-1 |
20W |
92 × 92 × 90 |
20° / 40° / 60° |
| JNS-4001K-1 |
28W |
113 × 113 × 110 |
20° / 40° / 60° |
Request this model ↗
Click to enlarge

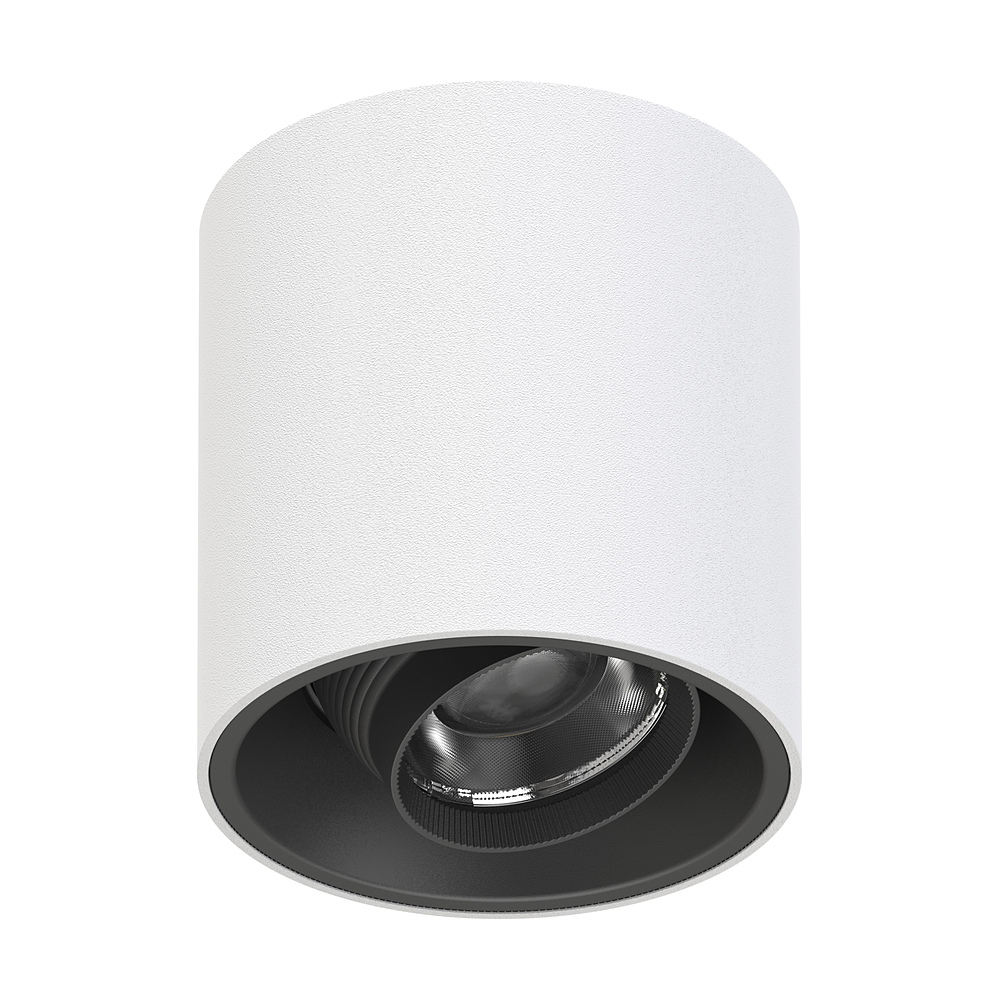

VOC-SD-04
Directional surface downlights
6 listed variants
Specifications & options
| Original model |
Power |
Body × height (mm) |
Beam angle |
| 2501W |
10W |
Ø74 × 75 |
15° / 24° / 36° |
| 3001W |
15W |
Ø90 × 90 |
15° / 24° / 36° |
| 4001W |
25W |
Ø111 × 110 |
15° / 24° / 36° |
| 2501W-1 |
12W |
73 × 73 × 75 |
15° / 24° / 36° |
| 3001W-1 |
18W |
92 × 92 × 90 |
15° / 24° / 36° |
| 4001W-1 |
28W |
113 × 113 × 100 |
15° / 24° / 36° |
The 2501W-1 source photograph appears round while its drawing specifies a square body. Confirm the final housing against the drawing when ordering.
Request this model ↗
Click to enlarge

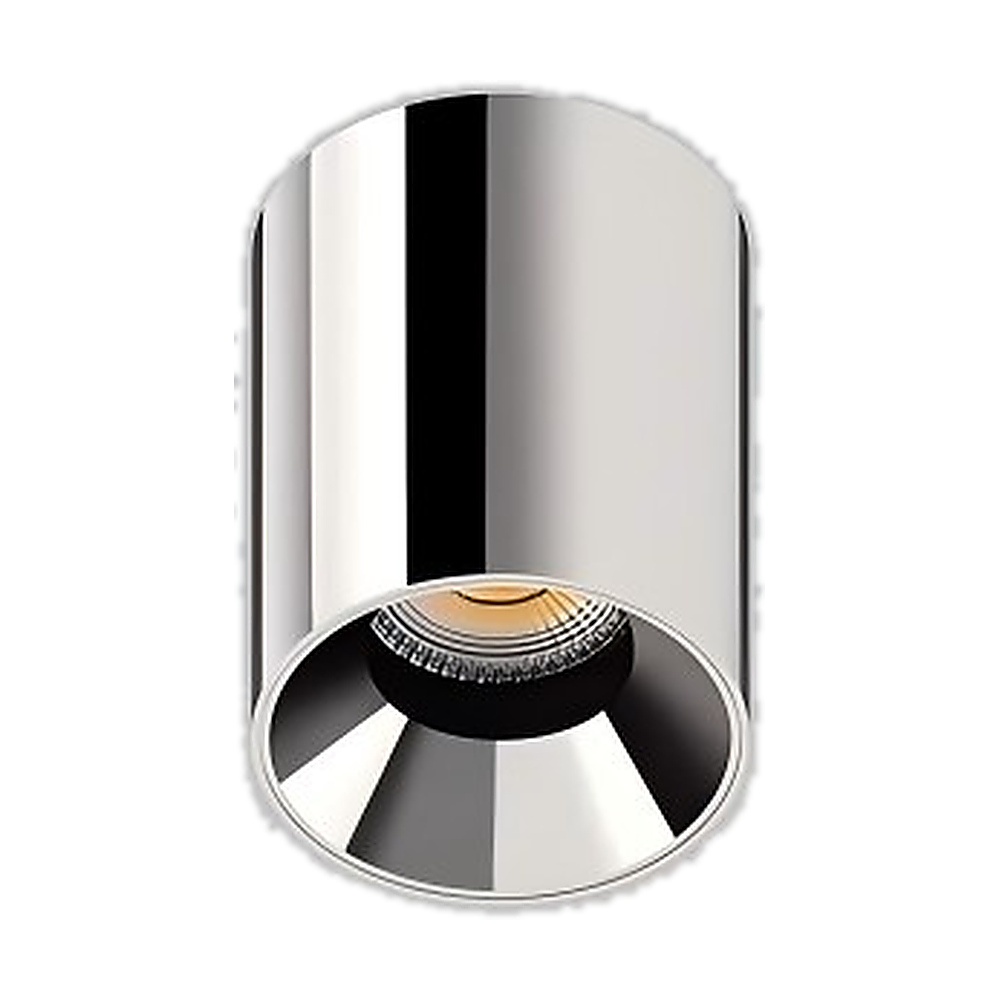

VOC-SD-05
Polished cylinder downlights
2 listed variants
Specifications & options
| Variant |
Power |
Dimensions (mm) |
Beam angle |
Source code |
| Small |
7W |
Ø64 × H67 |
24° / 36° / 55° |
1304 / 020 / 1507 |
| Medium |
12W |
Ø85 × H87 |
24° / 36° / 55° |
1304 / 020 / 1507 |
Request this model ↗
Click to enlarge

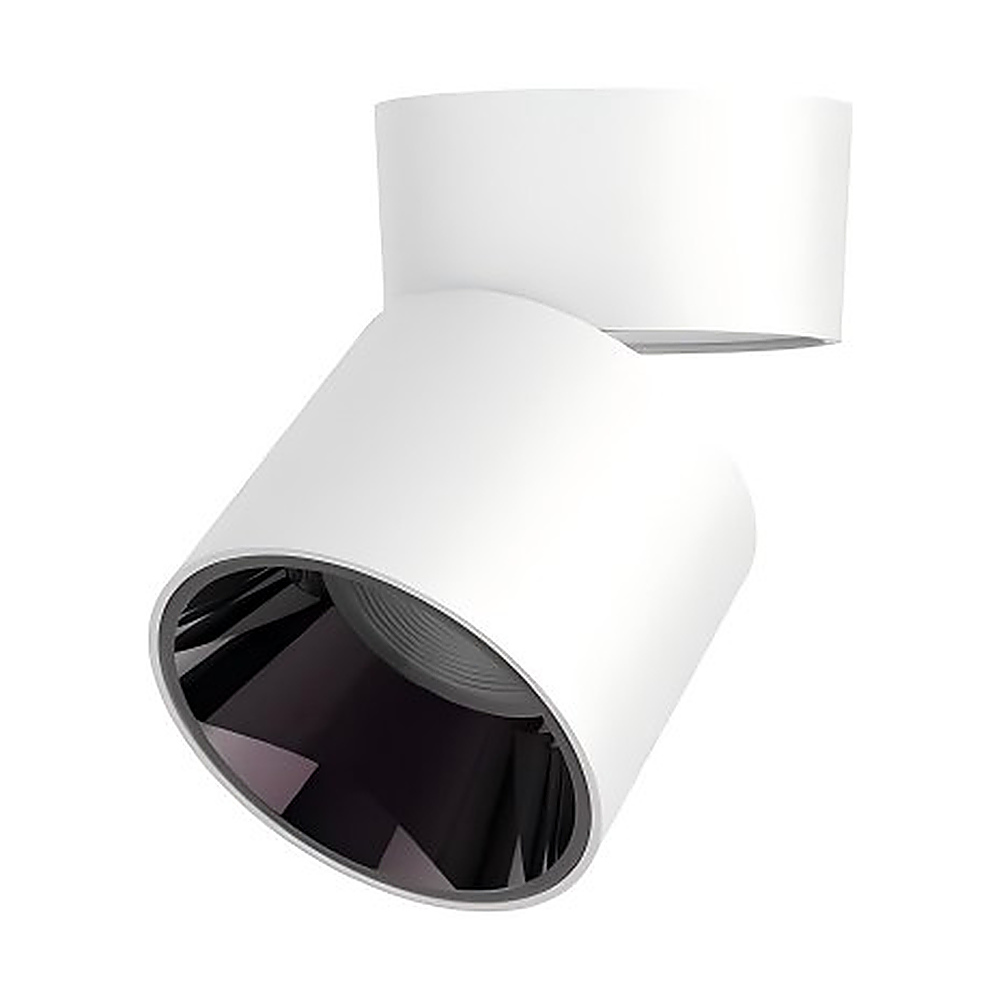

VOC-SD-06
Folding round & square downlights
4 listed variants
Specifications & options
| Variant |
Power |
Dimensions (mm) |
Beam angle |
Optics / code |
| Round S |
7W |
Ø59 × H77 |
15° / 24° / 36° |
Fresnel 100°; 020 (1304) |
| Round M |
12W |
Ø73 × H91 |
15° / 24° / 36° / 55° |
Fresnel 100°; 020 (1304), 1507 |
| Round L |
18W |
Ø88 × H106 |
15° / 24° / 36° / 55° |
Fresnel 100°; 1507, 020 |
| Square |
12W |
73 × 73 × H93 |
24° / 36° |
1507, 020 |
Round finish options: gloss white, gloss black, gunmetal, rose gold, matte white, matte black and bright silver. Square finish options: gloss white, gloss black and gunmetal. Fresnel 100° is retained separately from the listed beam options.
Request this model ↗
Click to enlarge

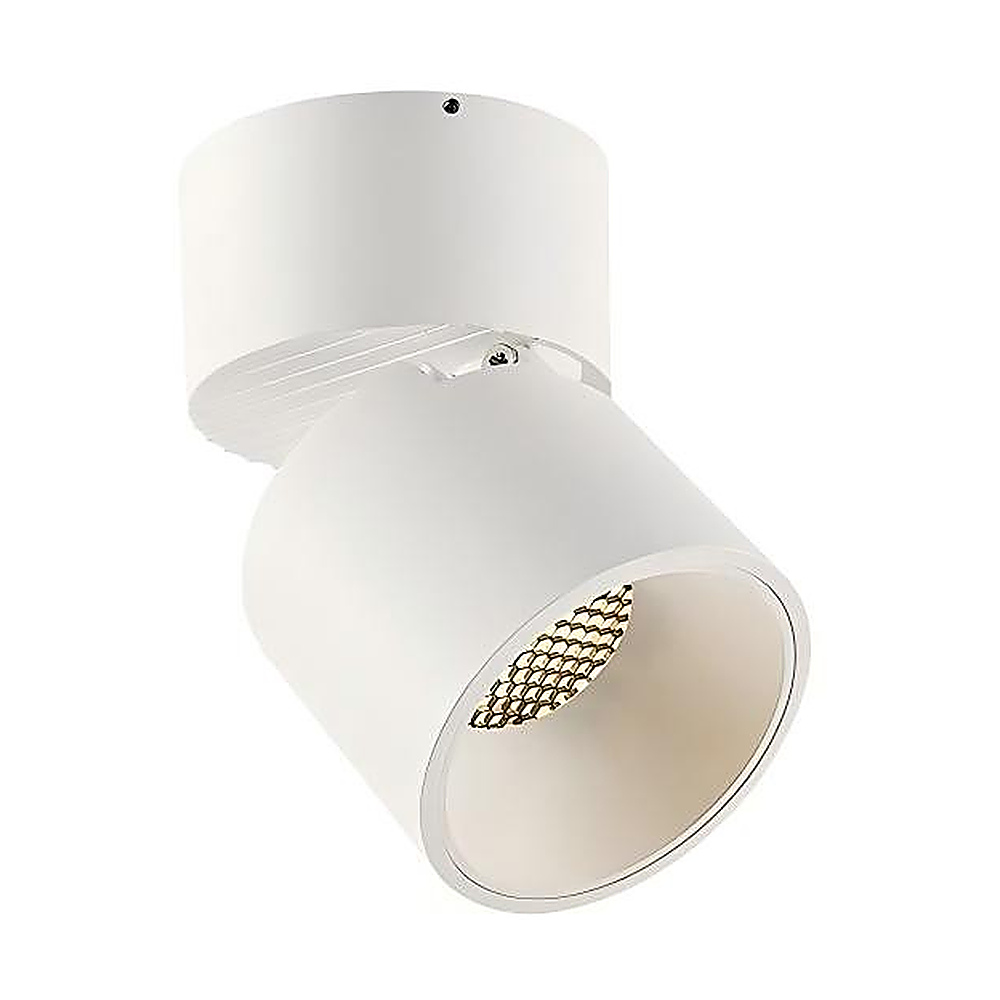

VOC-SD-07
Folding compact downlights
2 listed variants
Specifications & options
| Variant |
Power |
Dimensions (mm) |
Beam angle |
Source code |
| Round |
12W |
Ø79 × H110 |
12° / 24° / 36° / 60° |
1507 / 020 / 1304 |
| Square |
12W |
L80 × 80 × H110 |
12° / 24° / 36° / 60° |
1507 / 020 / 1304 |
Source availability note: the square white version is discontinued; limited black stock is listed. Confirm current availability before ordering.
Request this model ↗
Click to enlarge

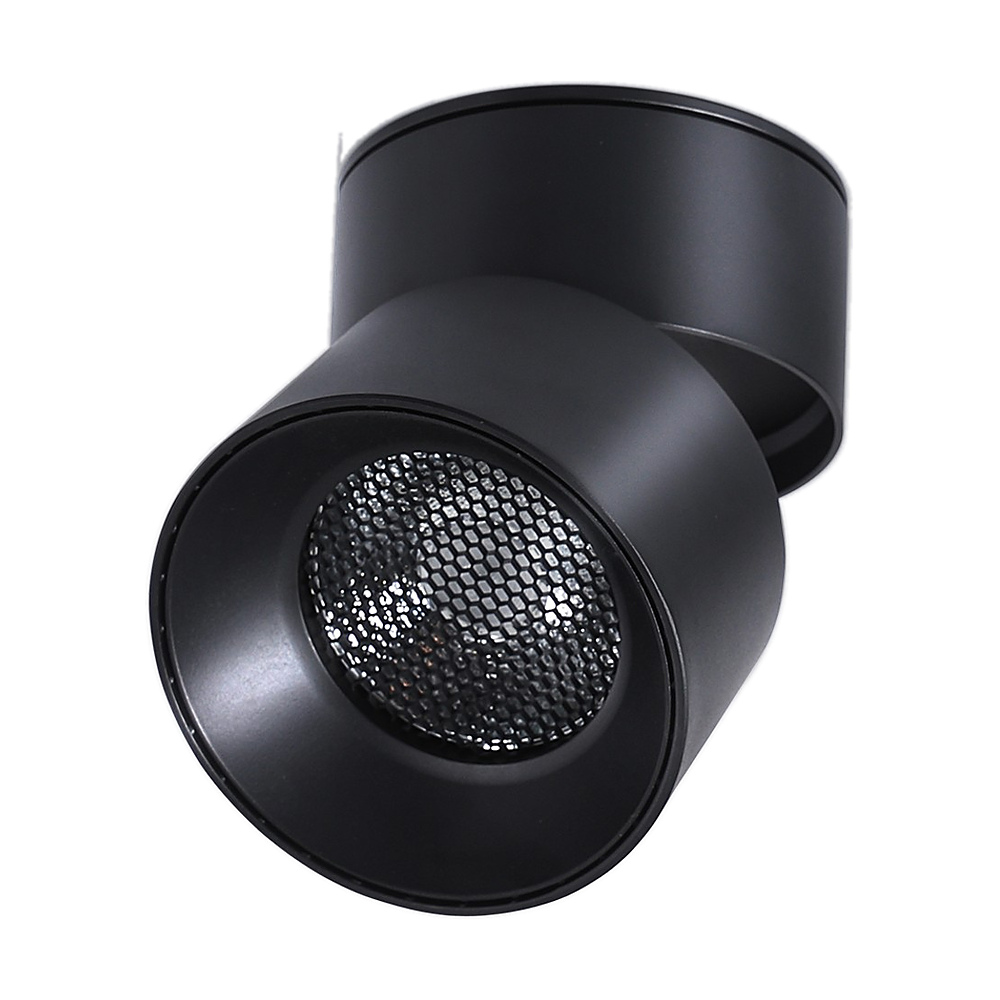

VOC-SD-08
Adjustable downlights · Generation 1
5 listed variants
Specifications & options
| Listed variant |
Power in specification |
Diameter × height (mm) |
Beam angle |
COB emitting surface |
| 7W |
7W |
Ø70 × 100 |
24° |
11 mm |
| 10W |
10–12W |
Ø70 × 100 |
10° / 20° / 30° |
11 mm |
| 20W |
20W |
Ø90 × 110 |
10° / 20° / 30°; standard 20° |
11 mm |
| 30W |
30W |
Ø110 × 115 |
10° / 20° / 30°; standard 20° |
17 mm |
| 40W |
30W in source specification |
Ø110 × 150 |
10° / 20° / 30°; standard 20° |
17 mm |
Textured black / textured white finishes. The row labelled 40W lists 30W in its specification cell; both source values are retained pending confirmation. Listed lens supports: 13 × 13 for 20W and 19 × 19 for 30W / 40W rows.
Request this model ↗
Click to enlarge

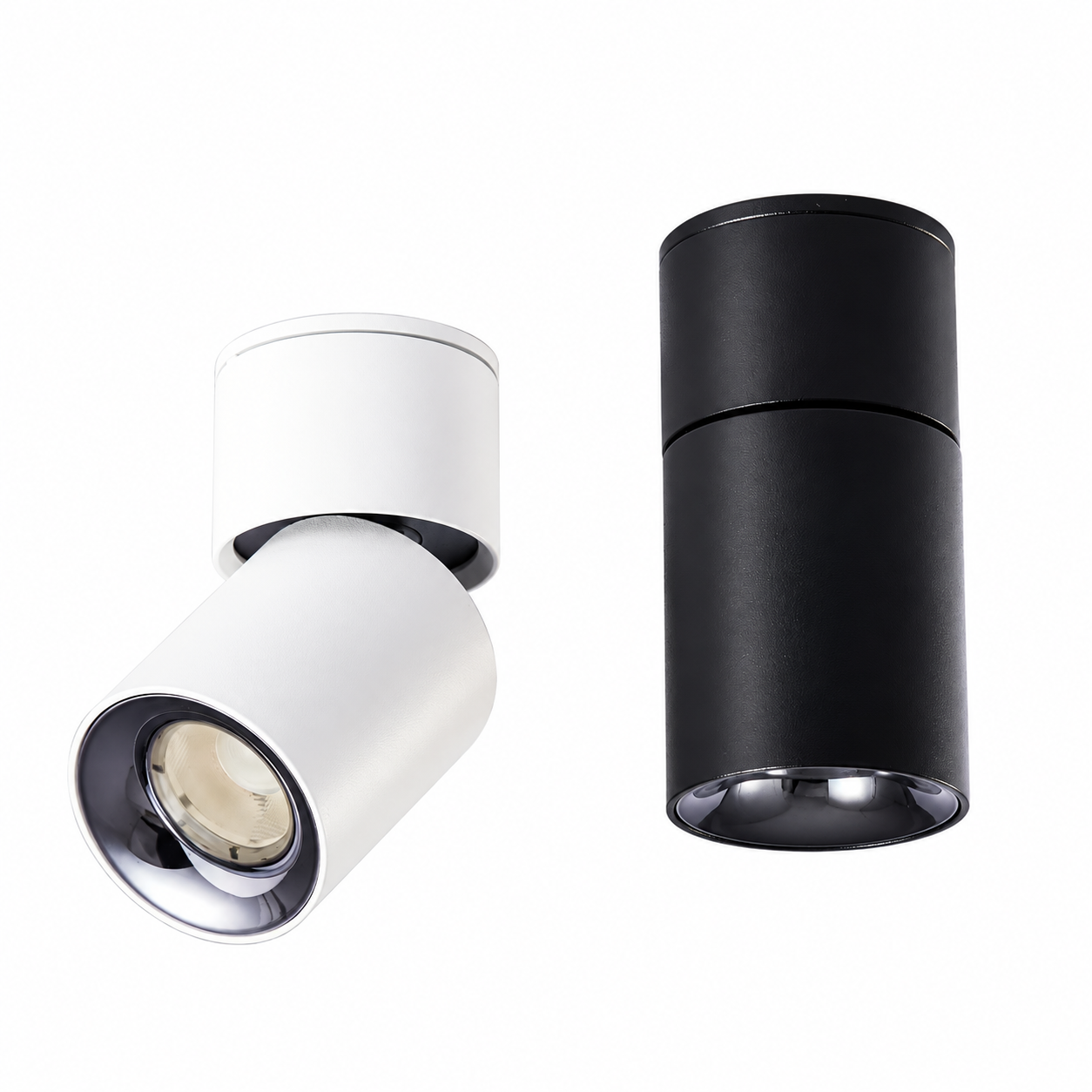

VOC-SD-09
Adjustable downlights · Generation 2
2 listed variants
Specifications & options
| Variant |
Dimensions (mm) |
Beam angle |
| 12W |
72 × 108 |
15° / 24° / 36° / 55° |
| 20W |
92 × 130 |
15° / 24° / 36° / 55° |
Body: textured black / textured white. Baffle: gunmetal, chrome silver, rose gold, matte white / matte black.
Request this model ↗
Click to enlarge
VOC-SD-10
G20 adjustable surface downlights
3 listed variants
Specifications & options
| Original model |
Power |
Diameter × height (mm) |
Driver space (mm) |
Lens angle |
Support codes |
| G20 |
3–5W |
Ø40 × H80 |
Ø36 × H20 |
15° / 24° / 36° / 55° |
1304–020 |
| G20 |
12–18W |
Ø60 × H150 |
Ø55 × H40 |
15° / 24° / 36° / 55° |
1304–020–1507–030 |
| G20 |
30W |
Ø80 × H180 |
Ø75 × H50 |
15° / 24° / 36° / 55° |
020–1507–030–1816 |
Reflector / baffle configuration listed: matte black / matte white; UV electroplated cover. Drawing component dimensions: Ø40 model — base height 30 mm, head length 50 mm; Ø60 model — base height 50 mm, head length 100 mm; Ø80 model — base height 60 mm, head length 120 mm. Confirm the selected configuration with your quotation.
Request this model ↗
Click to enlarge

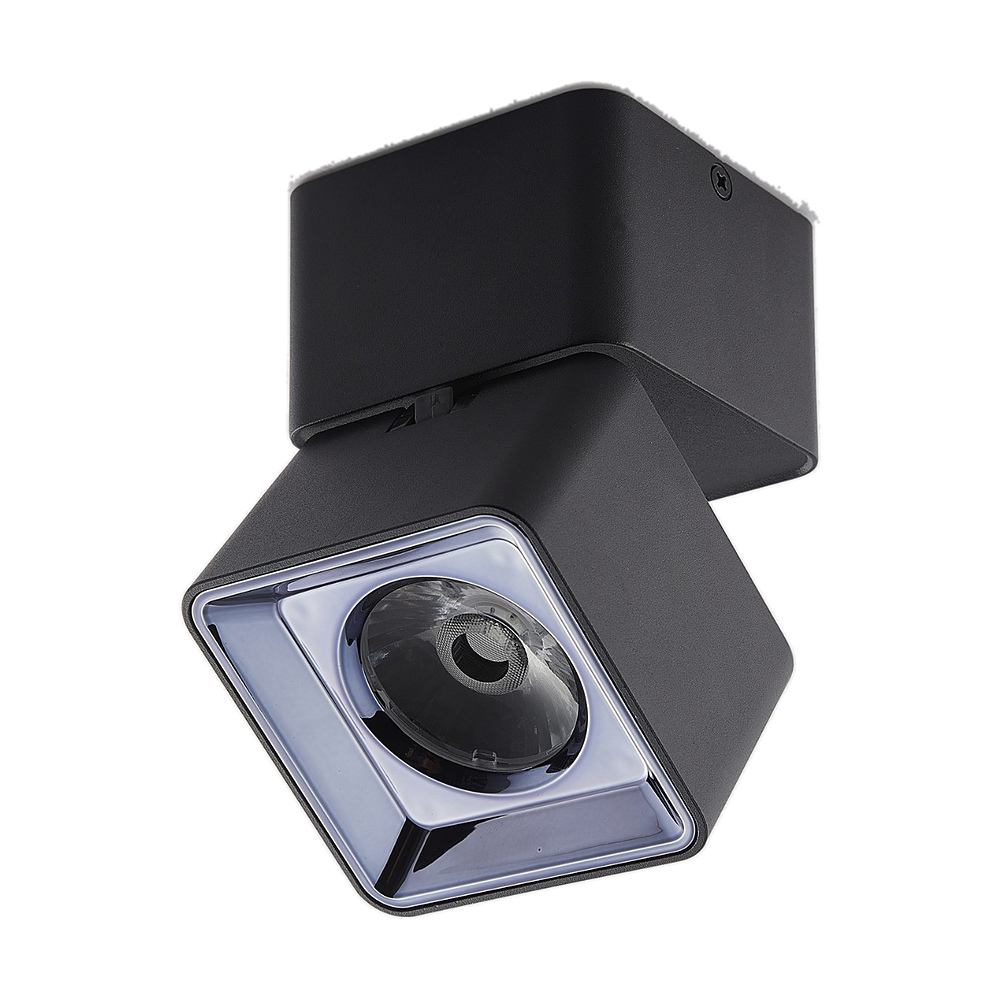

VOC-SD-11
Square adjustable downlights
2 listed variants
Specifications & options
| Variant |
Dimensions (mm) |
Body finish |
Baffle finish |
| 7W |
65 × 65 × 100 |
Textured white / black |
Gunmetal, chrome silver, rose gold, matte white / matte black |
| 15W |
85 × 85 × 115 |
Textured white / black |
Gunmetal, chrome silver, rose gold, matte white / matte black |
Request this model ↗
Click to enlarge
VOC-SD-12
Adjustable compact cylinders
3 listed variants
Specifications & options
| Variant |
Power |
Dimensions (mm) |
Beam angle |
Source support codes |
| Small |
5W |
62 × 70 |
15° / 24° / 36° / 55° |
1304, 020 |
| Medium |
7–10W |
85 × 100 |
15° / 24° / 36° / 60° |
1304, 020, 1507 |
| Large |
12–15W |
102 × 120 |
15° / 24° / 36° / 60° |
1304, 020, 1507 |
Finish options: textured white, textured black and white + black. Lens options vary by size; confirm the selected lens with VOC Lighting.
Request this model ↗
Click to enlarge

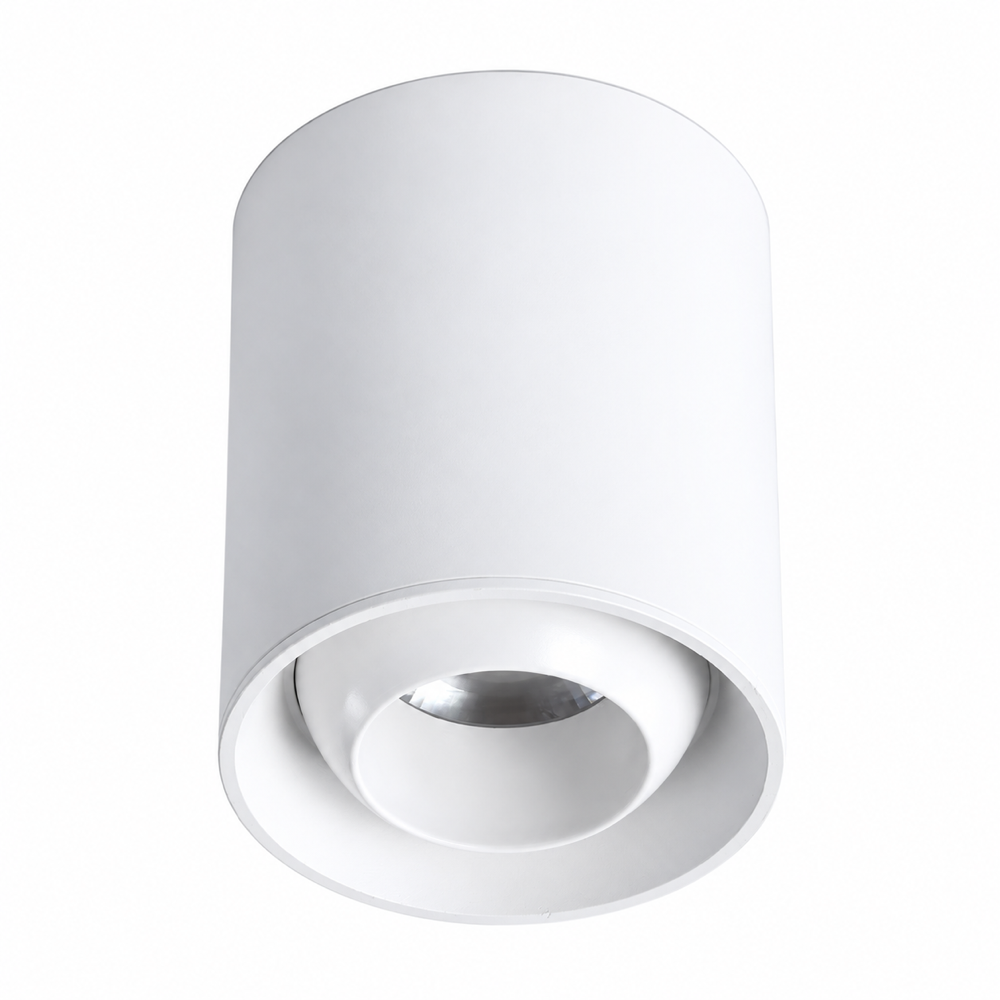

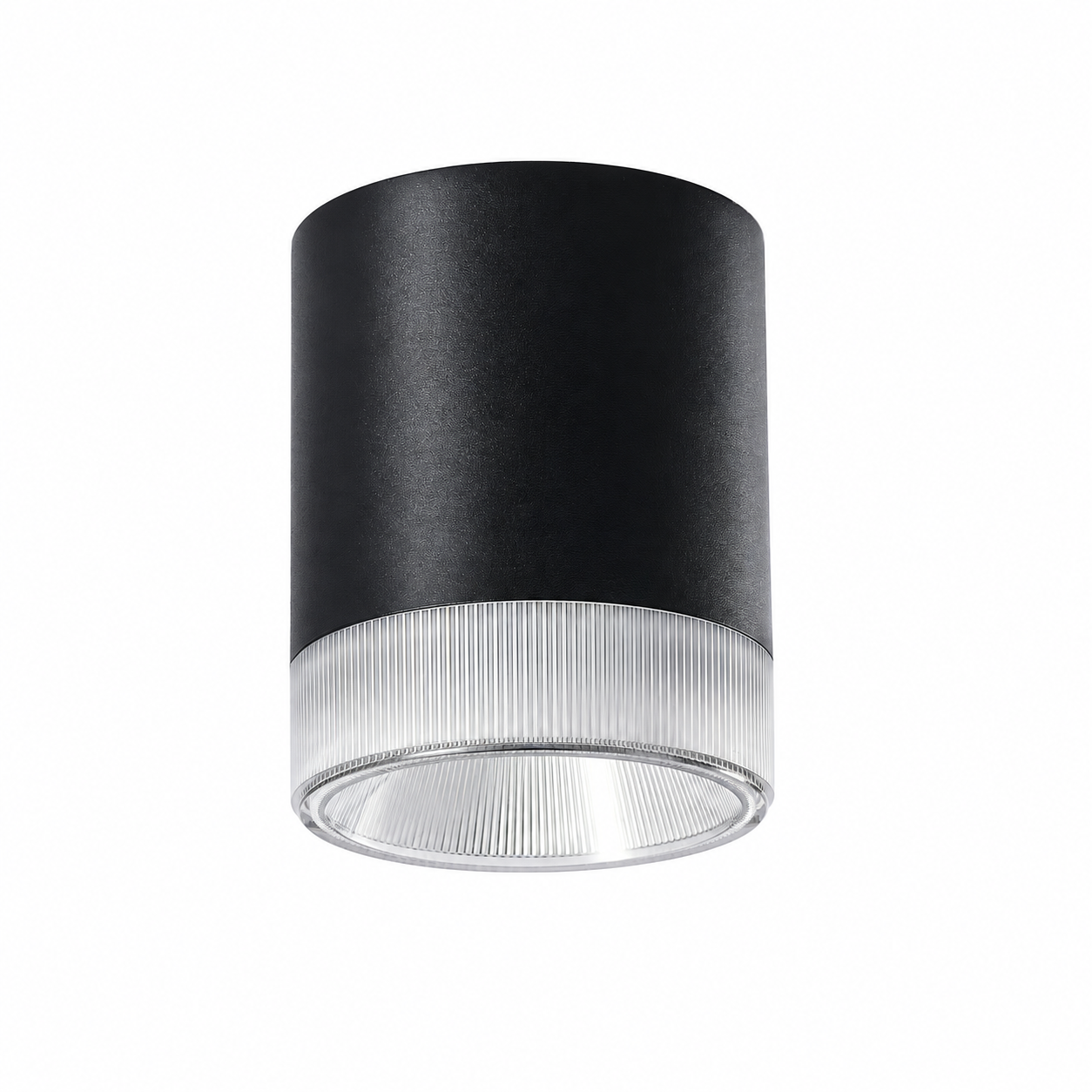

VOC-SD-13
Reflector surface downlights
5 listed variants
Specifications & options
| Size |
SMD power |
COB power |
Diameter × height |
Driver space |
Optic |
| 2 inch |
10W |
7W |
54 × 80 |
50 × H35 |
GLG-D |
| 2.5 inch |
20W |
15W |
74 × 100 |
64 × H35 |
GLG-D |
| 3.5 inch |
30W |
25W |
94 × 110 |
83 × H35 |
GLG-D |
| 4 inch |
50W |
40W |
114 × 140 |
102 × H45 |
GLG-D |
| 5 inch |
70W |
50W |
140 × 165 |
125 × H55 |
GLG-D |
Reflector options: transparent, metallic silver, matte gunmetal and matte rose gold. The source does not state a dimension unit in these column headings; confirm units. SMD and COB are separate configurations. No lumen-per-watt figure is supplied.
Request this model ↗
Click to enlarge

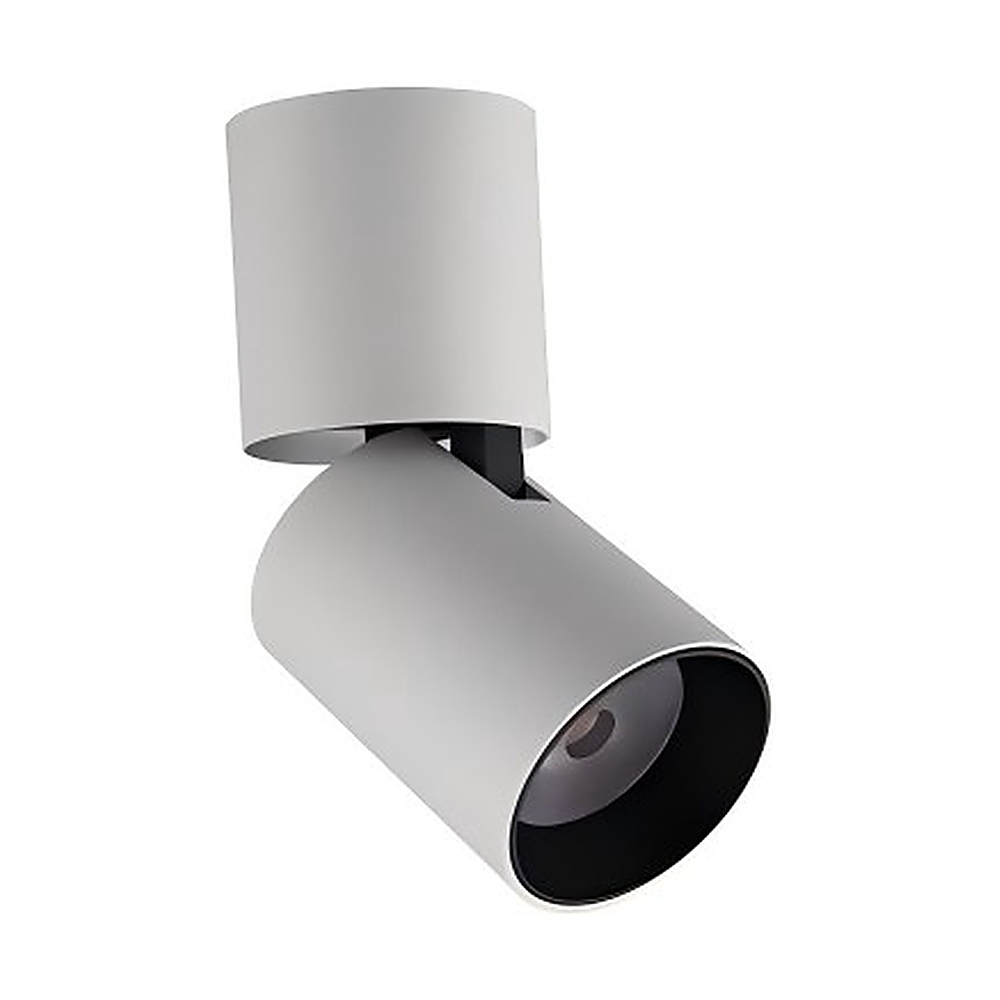

VOC-SD-14
M05 adjustable surface downlights
3 listed variants
Specifications & options
| Original model |
Diameter × height (source) |
Power |
Light-source support |
Beam angle |
| M05-MZ38 |
Ø38 × H188 |
6W |
1507 / 1816 / 1820; 020 / 030 |
12° / 24° / 38° |
| M05-MZ63 |
Ø63 × H150 |
12W |
1830 / 2520; 030 |
12° / 24° / 38° |
| M05-MZ80 |
Ø80 × H200 |
25W |
1830 / 2520; 030 |
12° / 24° / 38° |
Body finish: white / black. Baffle: textured black. Dimension values are retained as supplied; the column does not state a unit. Confirm units before installation.
Request this model ↗
Click to enlarge

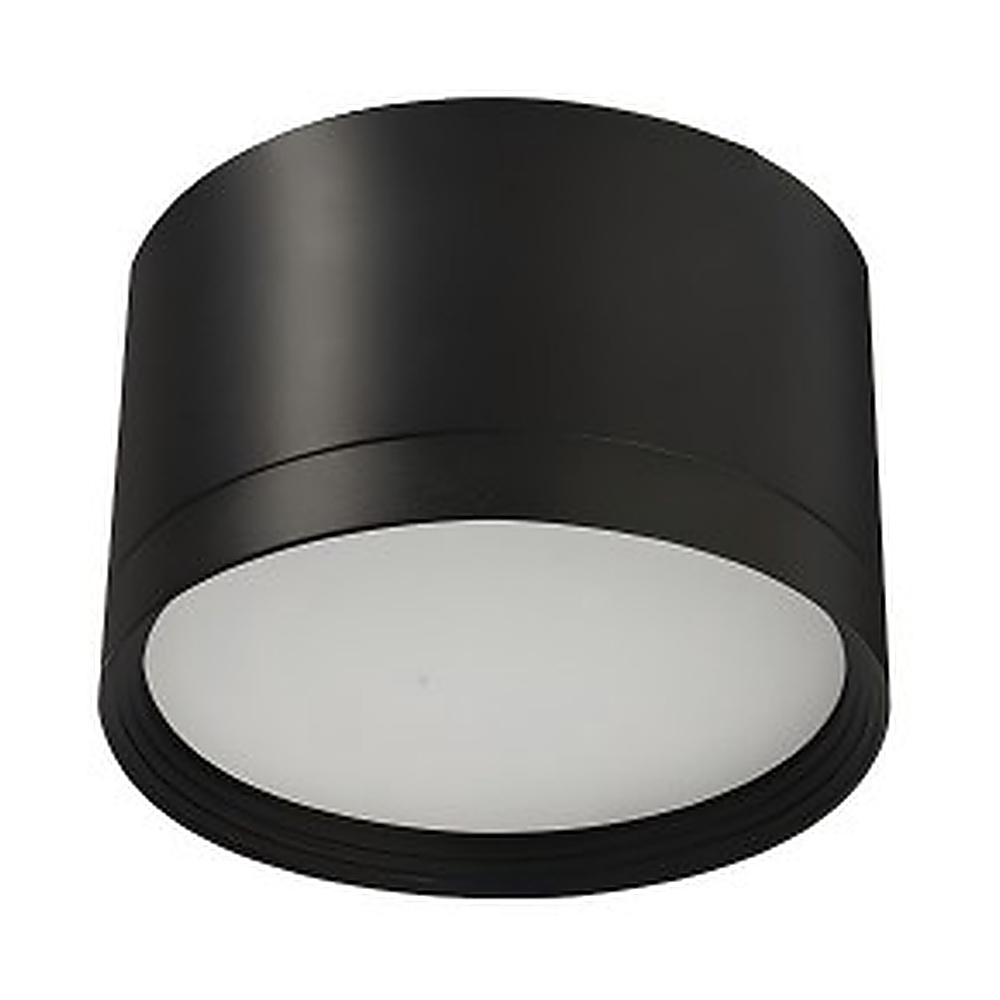

VOC-SD-15
CT-M07 fixed surface downlight kits
7 listed variants
Specifications & options
| Original model / size |
Diameter × height (source) |
Power |
SMD aluminum PCB |
PCB size |
| M07-2.5 inch |
Ø86 × H60 |
5W |
2835 / 5S2P |
40 mm |
| M07-3 inch |
Ø100 × H67 |
7W |
2835 / 7S2P |
50 mm |
| M07-4 inch |
Ø120 × H80 |
10W |
2835 / 10S2P |
65 mm |
| M07-5 inch |
Ø154 × H90 |
12–20W |
2835 / 15S2P |
85 mm |
| M07-6 inch |
Ø170 × H100 |
18–30W |
2835 / 18S2P |
100 mm |
| M07-8 inch |
Ø210 × H120 |
20–40W |
2835 / 24S2P |
110 mm |
| M07-10 inch |
Ø248 × H150 |
30–60W |
2835 / 24S2P |
165 mm |
Fixed angle, non-adjustable. White / black finish; the baffle column is marked “/”. Kit contents listed: precision-stamped body, injection-molded diffuser, reflective paper, ceiling bracket and screws. S/P denotes series/parallel LED layout. The illustrative photo labels 90 mm × 55 mm and 7W, which differs from the 7W table row (Ø100 × H67); use the table for comparison and confirm final dimensions. The diameter/height column does not state a unit; confirm units. LED board and driver inclusion require confirmation.
Request this model ↗
Click to enlarge

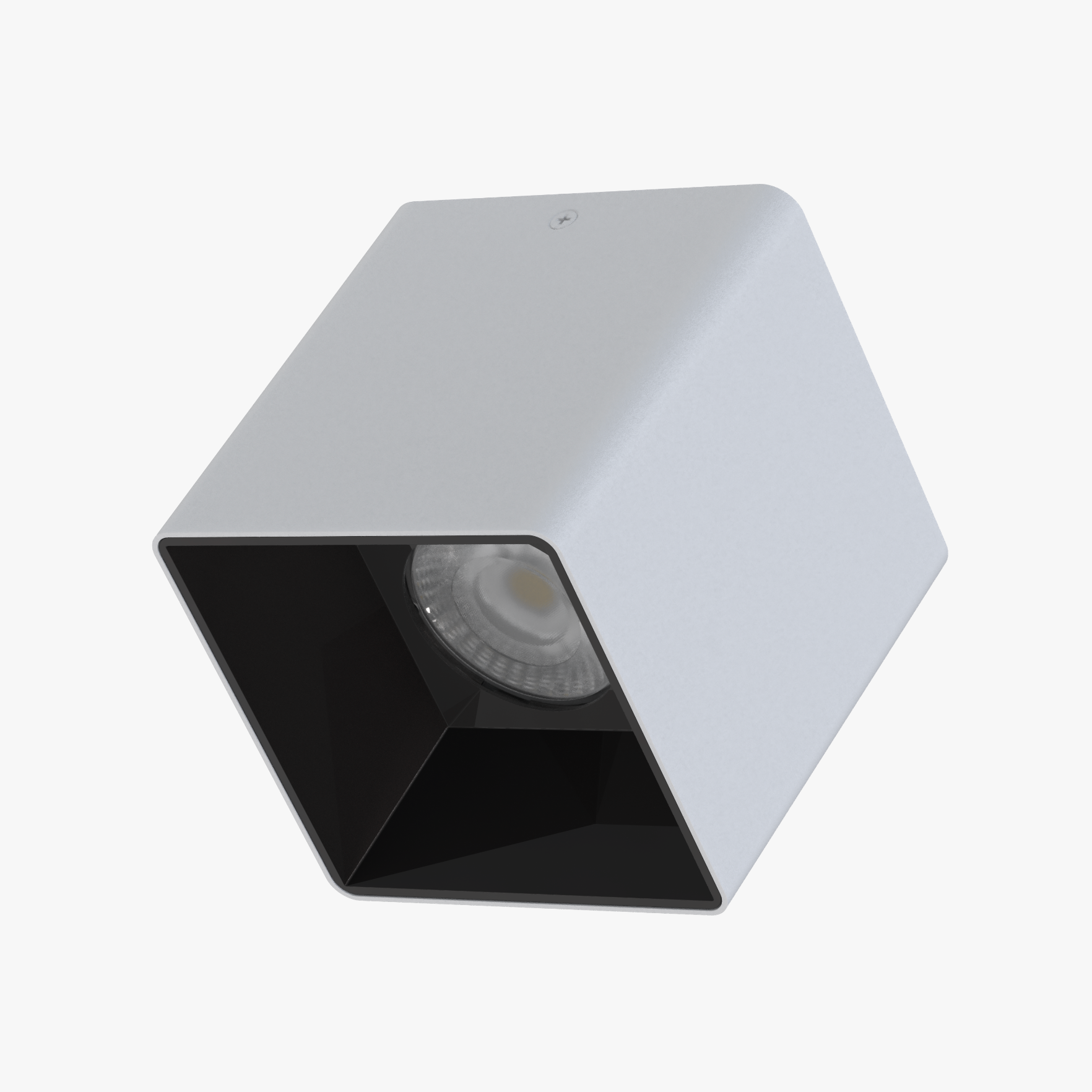

VOC-SD-16
M-1 IP65 square surface downlights
4 listed variants · IP65
Specifications & options
| Original model |
Power |
Body × height (mm) |
Beam angle |
IP rating |
| 2501M-1 |
15W |
74 × 74 × 90 |
15° / 24° / 36° / 55° |
IP65 |
| 3001M-1 |
25W |
92 × 92 × 100 |
15° / 24° / 36° / 55° |
IP65 |
| 4001M-1 |
35W |
113 × 113 × 120 |
15° / 24° / 36° / 55° |
IP65 |
| 5001M-1 |
45W |
130 × 130 × 140 |
15° / 24° / 36° / 55° |
IP65 |
Regular colors: white, black and chrome. Custom color options shown: golden, orange, pink, purple, blue and green. Confirm the final finish and configuration.
Request this model ↗
Click to enlarge

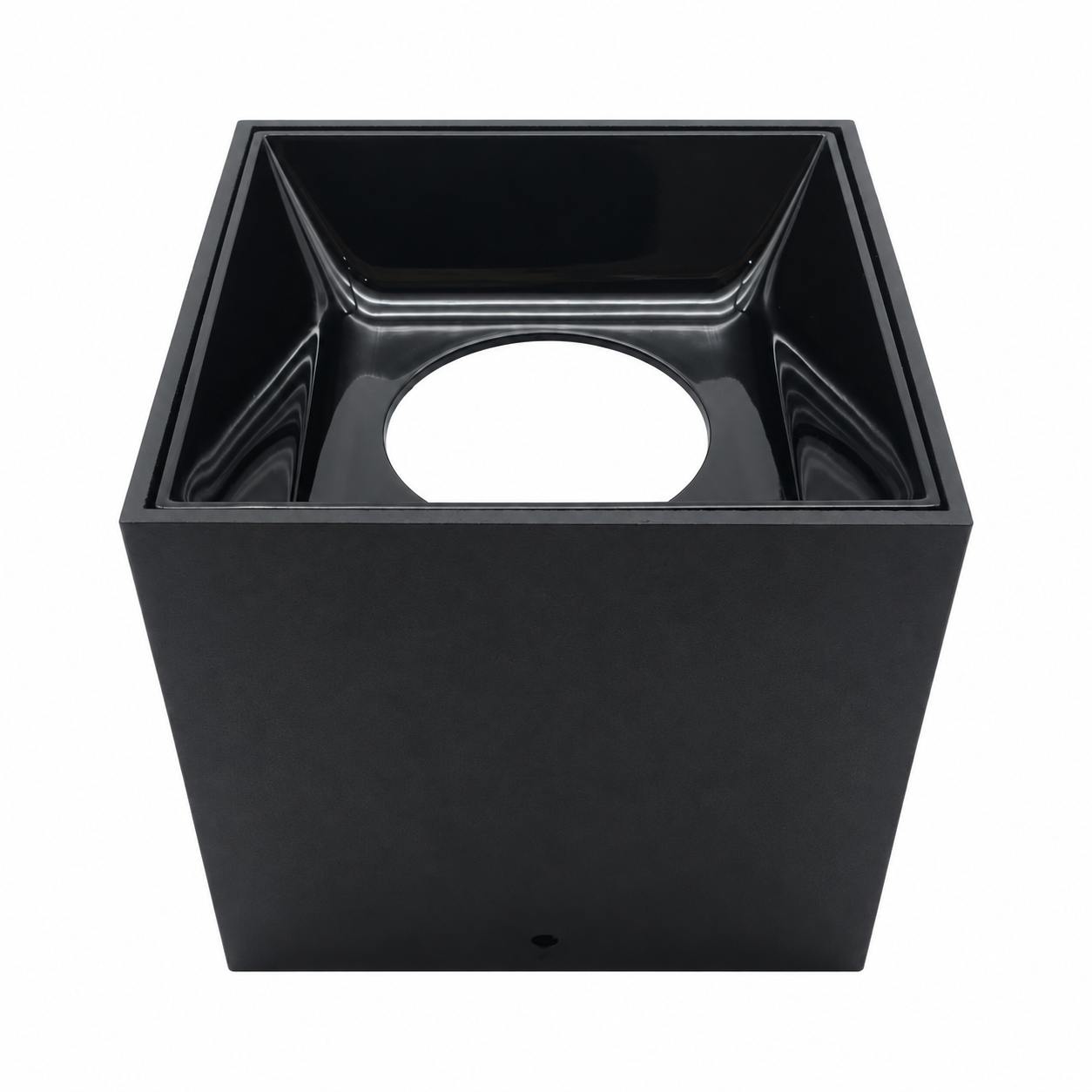

VOC-SD-17
Single-head aluminum surface downlights
3 listed variants
Specifications & options
| Variant |
COB power |
Dimensions (mm) |
Reflector |
| Mini |
1 × 7W |
55 × 55 × H80 |
Black or white |
| Small |
1 × 10W |
75 × 75 × H95 |
Black or white |
| Medium |
1 × 12W |
95 × 95 × H105 |
Black or white |
Aluminum housing. Select the size and reflector color in your inquiry.
Request this model ↗
Click to enlarge

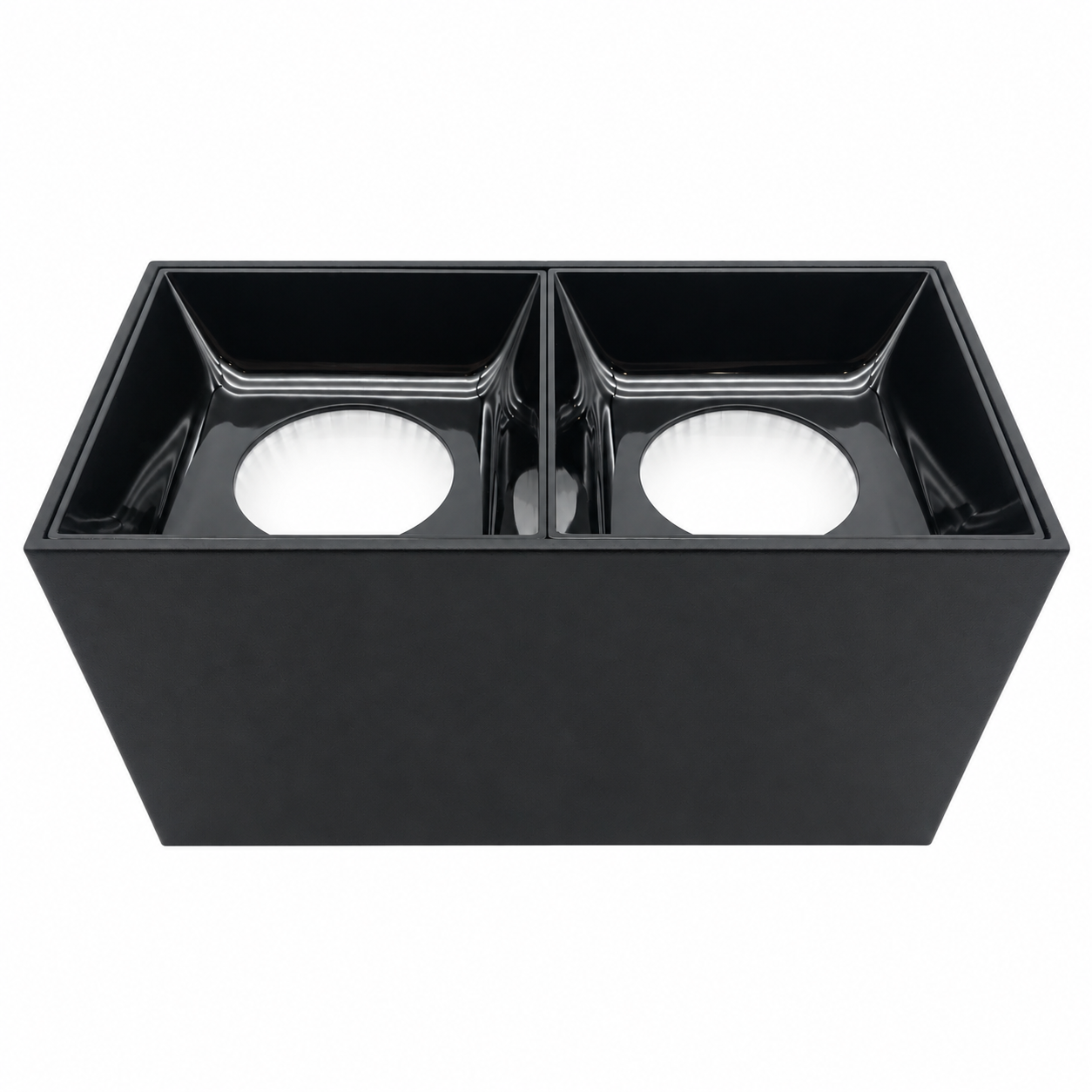

VOC-SD-18
Double-head aluminum surface downlights
3 listed variants
Specifications & options
| Variant |
COB power |
Dimensions (mm) |
Reflector |
| Mini |
2 × 7W |
103 × 55 × H80 |
Black or white |
| Small |
2 × 10W |
145 × 75 × H95 |
Black or white |
| Medium |
2 × 12W |
187 × 95 × H110 |
Black or white |
Aluminum housing. Power is listed per head, retaining the source notation.
Request this model ↗
Click to enlarge

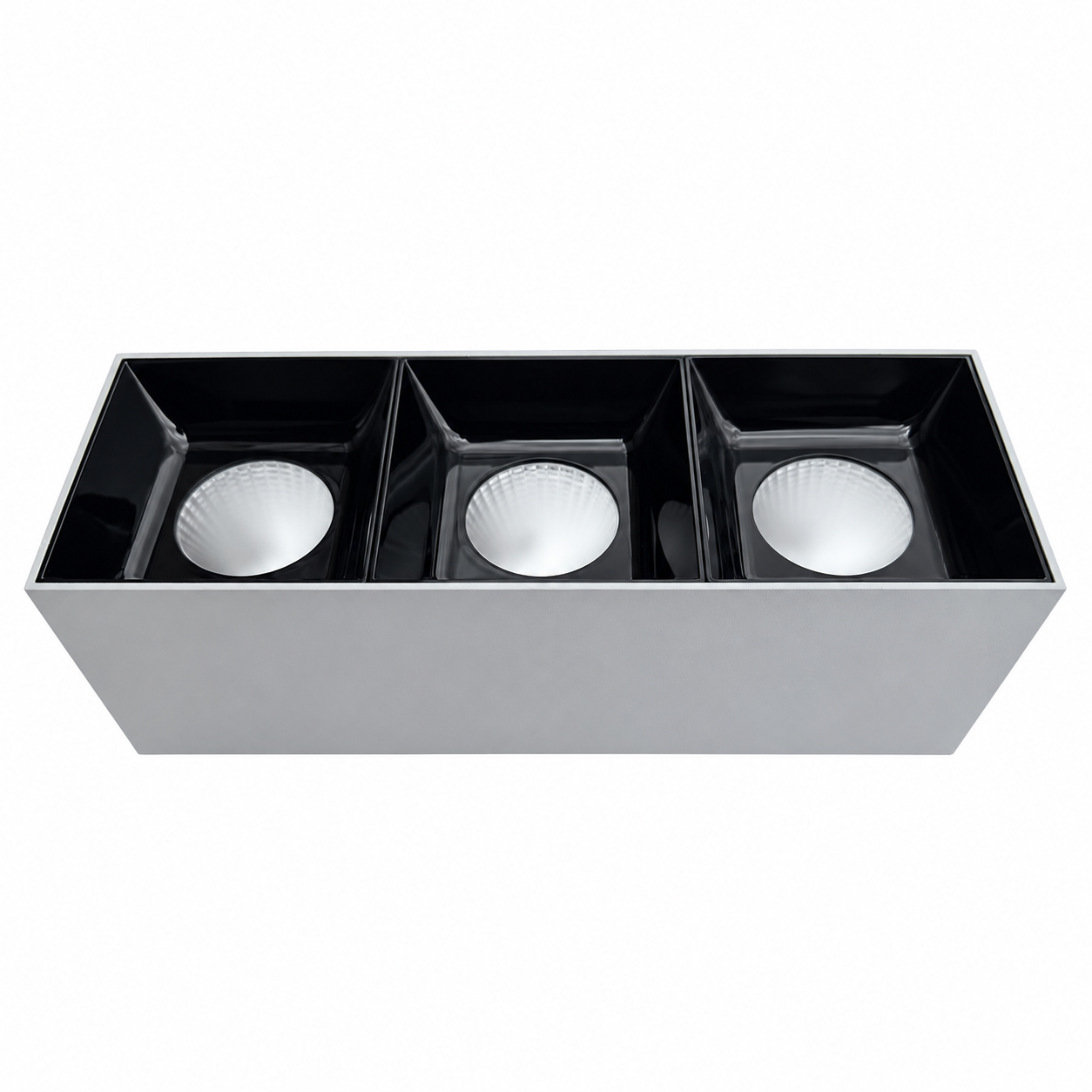

VOC-SD-19
Triple-head aluminum surface downlights
3 listed variants
Specifications & options
| Variant |
COB power |
Dimensions (mm) |
Reflector |
| Mini |
3 × 7W |
155 × 55 × H80 |
Black or white |
| Small |
3 × 10W |
215 × 75 × H95 |
Black or white |
| Medium |
3 × 12W |
275 × 95 × H110 |
Black or white |
Aluminum housing. Power is listed per head, retaining the source notation.
Request this model ↗
Click to enlarge

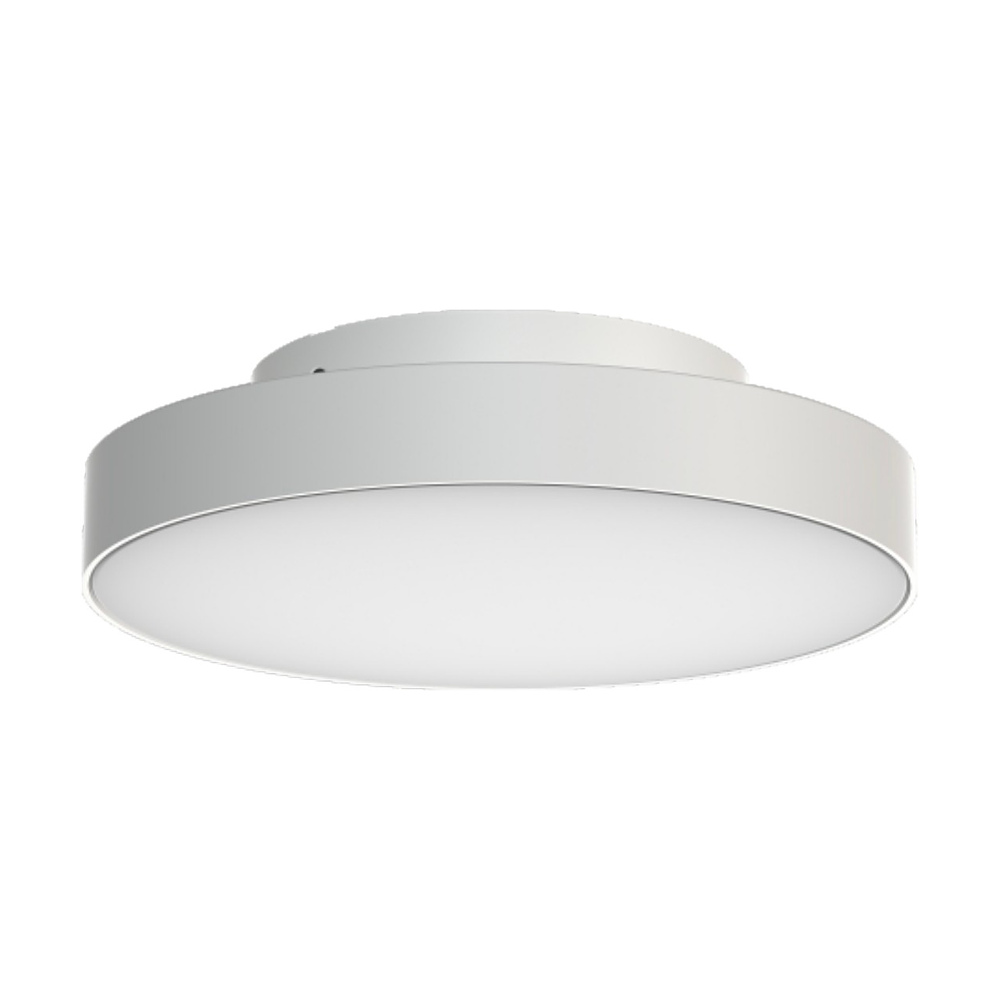

VOC-SD-20
DFB-6218B round ceiling light
1 listed variants
Specifications & options
| Original model |
Power |
CCT |
CRI |
Material |
Voltage |
| DFB-6218B |
18W |
3000K |
80 |
Aluminum+Glass |
AC100-240V |
Finish codes: WH / GY / BK. Original drawing: 250 × 250, height 66; the supplied drawing does not specify a dimension unit. Confirm units before installation.
Request this model ↗
Click to enlarge

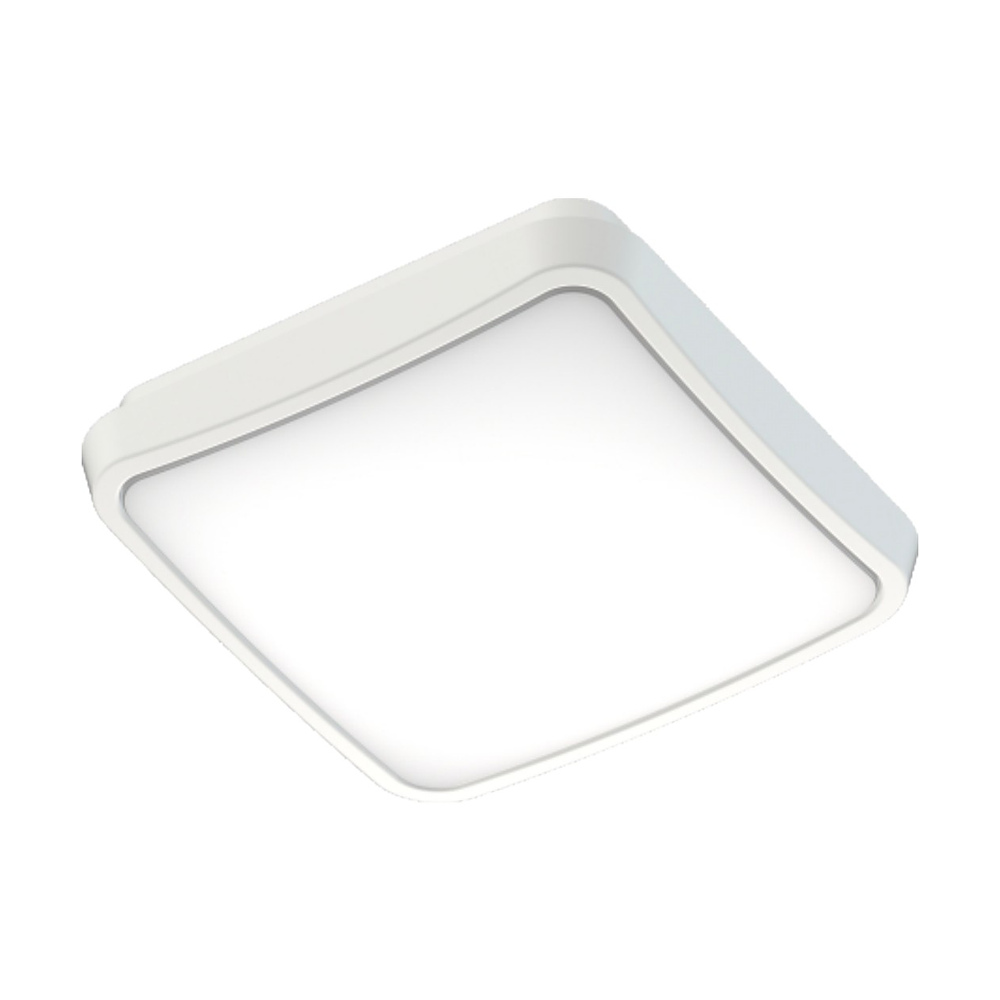

VOC-SD-21
DFB-6218C square ceiling light
1 listed variants
Specifications & options
| Original model |
Power |
CCT |
CRI |
Material |
Voltage |
| DFB-6218C |
15W |
3000K |
80 |
Aluminum+Glass |
AC100-240V |
Finish codes: WH / GY / BK. Original drawing: 220 × 220, height 54; the supplied drawing does not specify a dimension unit. Confirm units before installation.
Request this model ↗
03 / OEM & customization
Surface downlights for your OEM project
VOC Lighting supports OEM and customization inquiries. Share the product reference, target market, quantities, finish requirements and branding or packaging brief. The team will review feasibility before confirming a custom specification.
Prepare your brief
Include the installation location, desired beam, CCT, CRI, supply voltage, dimming requirements and delivery schedule. Attach drawings and reference finishes where relevant.
Confirm before ordering
Available options, minimum quantities, samples, documentation, price and lead time are confirmed for each project. Unlisted electrical or photometric values are not assumed.
04 / Start your project
Request a surface downlight quotation
List the collection reference and exact variant for each item. For multiple products, add quantities and finish requests on separate lines.
Email opens your configured mail app. Nothing is sent automatically.
05 / Questions, answered
Surface downlight FAQ
Are the VOC-SD numbers original factory model numbers?
VOC-SD-01 to VOC-SD-21 are sequential collection references created for this page. Original model numbers are retained in the relevant specification tables.
Do all models use the same beam angle?
Beam options vary by product and size. Check the exact row in the specification table and confirm the chosen optical configuration when ordering.
Are all models IP65?
VOC-SD-01 round downlights and VOC-SD-16 M-1 square downlights are IP65. This rating is not applied to other product groups; confirm the selected model rating for the installation.
What sizes are available for the G20 series?
VOC-SD-10 offers three G20 configurations: 3–5W at Ø40 × H80 mm, 12–18W at Ø60 × H150 mm, and 30W at Ø80 × H180 mm. Listed lens angles are 15°, 24°, 36° and 55°.
Can I request OEM customization?
VOC Lighting supports OEM inquiries. Provide the product reference, quantity, market and requested changes so feasibility, samples and commercial terms can be reviewed.
Which source details need confirmation?
The Generation 1 row labelled 40W lists 30W in its specification cell. The folding compact square model has a limited-availability note, and the 2501W-1 photo and drawing show different body shapes. These details are flagged in the corresponding product tables.
