PRODUCT OVERVIEW
The Waterproof Round Surface-Mounted Downlight is designed for commercial, hospitality and architectural projects requiring reliable IP65 protection, visual comfort and flexible optical configurations.

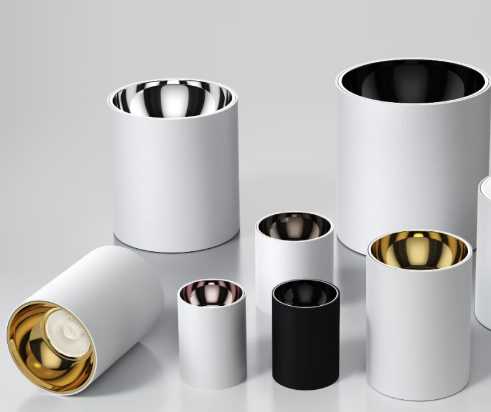

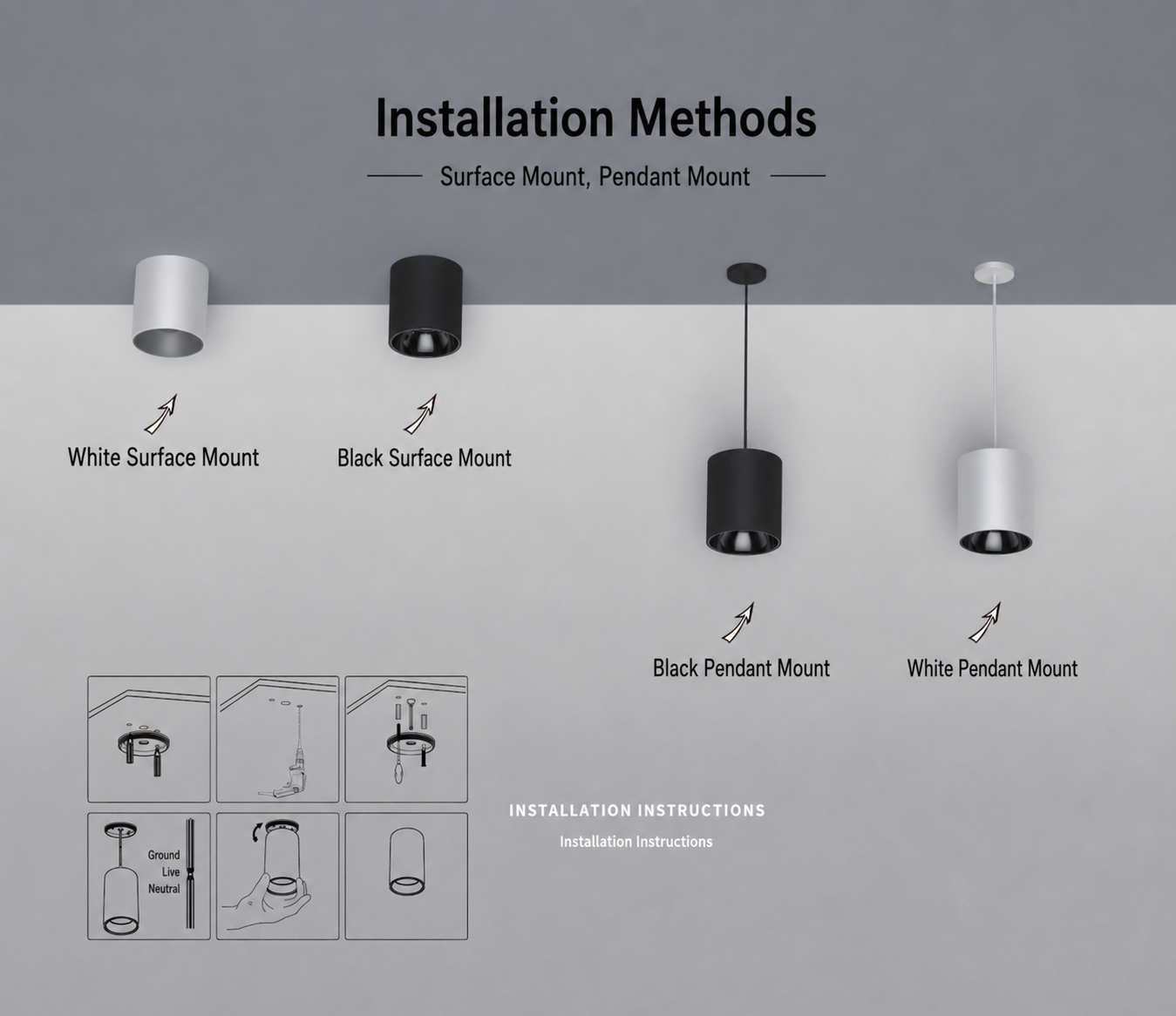

The series includes eight housing configurations from Ø75mm to Ø205mm, with power options from 10W up to 100W. Its surface-mounted construction requires no ceiling cut-out, making it suitable for both new installations and renovation projects.
MODEL & SIZE OPTIONS
| Model |
Dimension |
Power |
Light Aperture |
| 2501M-A |
Ø75×H100mm |
10W |
9 / 11mm |
| 2501M |
Ø75×H152mm |
15W |
9 / 11mm |
| 3001M-A |
Ø95×H100mm |
15W |
11 / 14mm |
| 3001M |
Ø95×H152mm |
20W |
11 / 14mm |
| 4001M |
Ø115×H152mm |
30W |
11 / 14 / 16 / 17mm |
| 5001M |
Ø140×H162mm |
40–50W |
11 / 14 / 16 / 17 / 20 / 24mm |
| 6001M |
Ø170×H182mm |
50–60W |
11 / 14 / 16 / 17 / 20 / 24mm |
| 8001M |
Ø205×H212mm |
60–100W |
16 / 17 / 20 / 24mm |
KEY FEATURES
- IP65 Protected Design — Suitable for commercial interiors and moisture-prone environments requiring enhanced dust and water protection.
- Controlled Optical System — Deep reflector optics provide precise light distribution with improved visual comfort.
- Flexible Product Family — Eight housing configurations cover compact 10W applications through high-output 100W project requirements.
- High Color Quality — Ra90+ color rendering supports accurate presentation of merchandise, materials and architectural finishes.

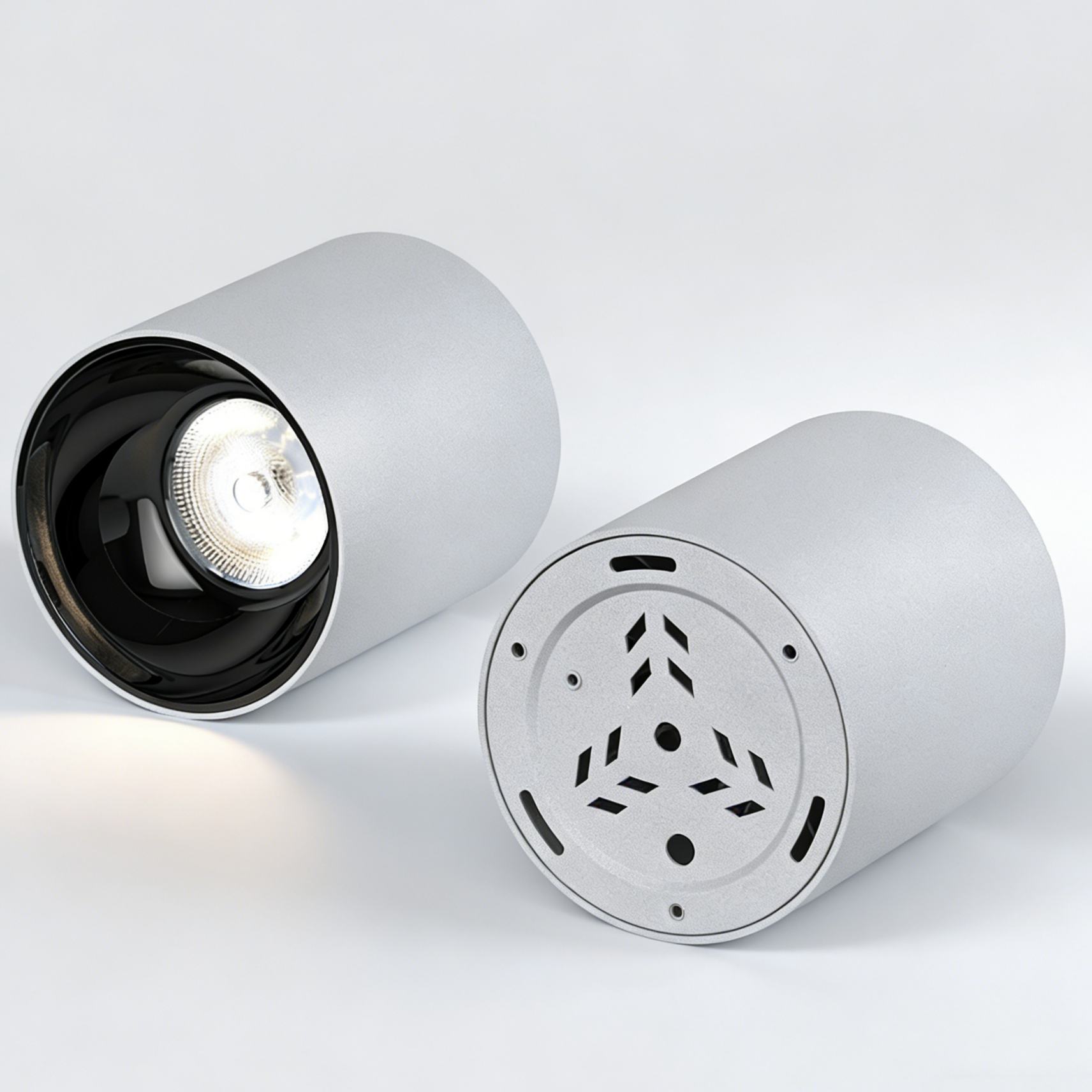

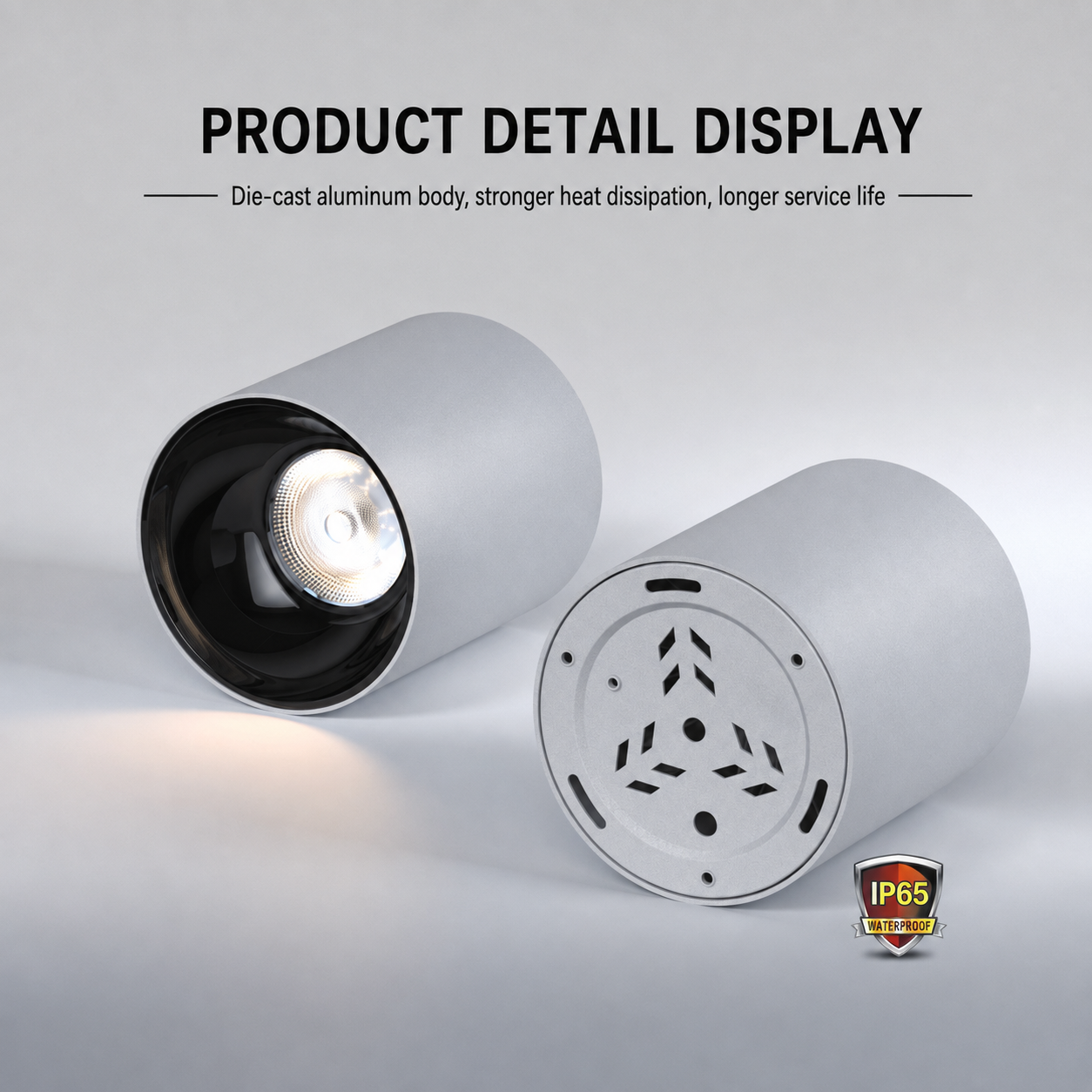

- Reliable Thermal Management — Aluminum alloy construction supports effective heat dissipation and long-term operation.
- Professional Lighting Control — Optional TRIAC, 0-10V and DALI configurations support different project control systems.
CONFIGURATION OPTIONS
- Optics: 20° / 40° / 60° Optional
- Color Temperature: 3000K / 4000K / 6000K
- Color Rendering: Ra90+
- LED Chip: Bridgelux / Cree Optional
- Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
- Dimming: TRIAC / 0-10V / DALI Optional

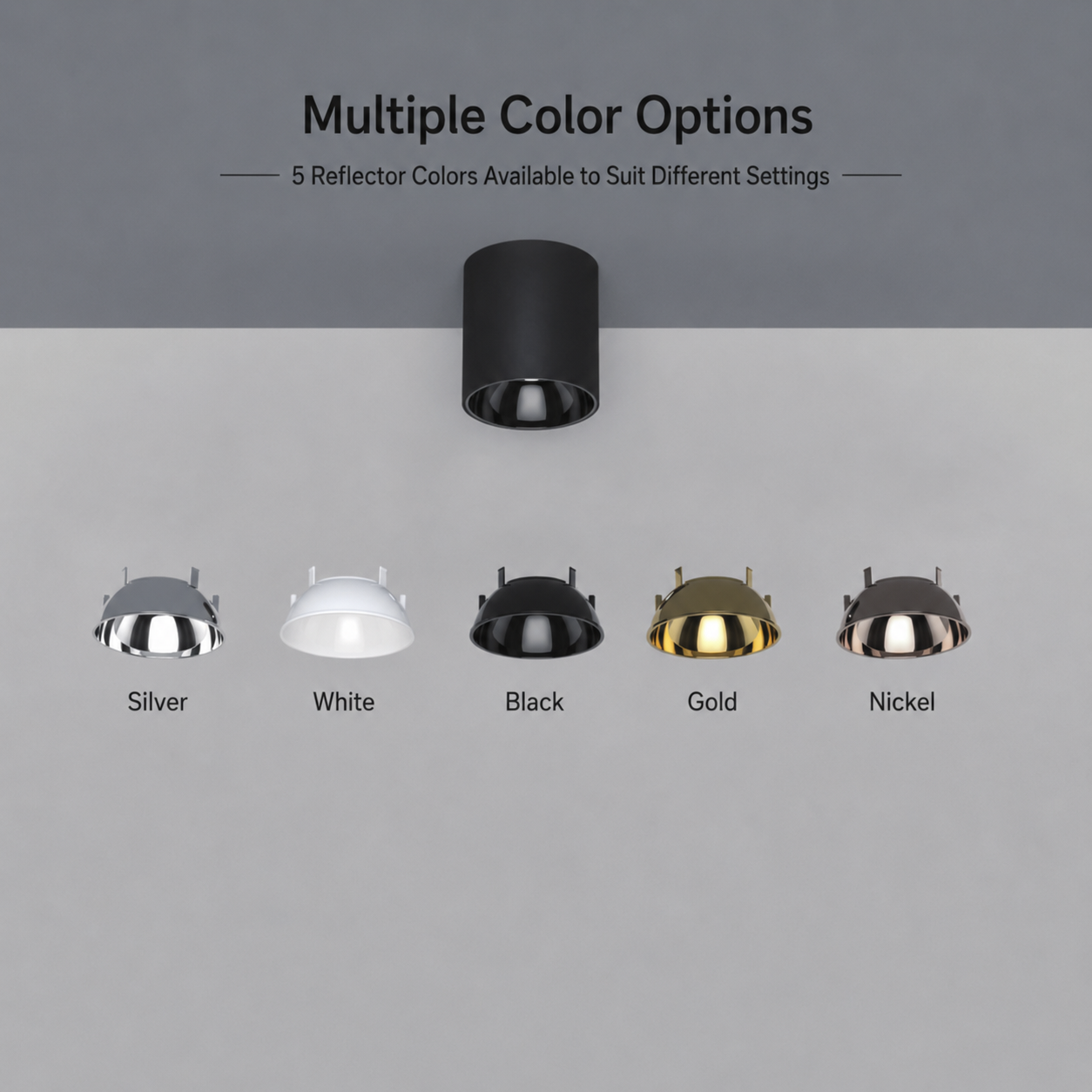

- Reflector Finish: Matte White / Matte Black / Matte Silver / Gun Black / Bright Silver / Champagne Gold / Bright White / Bright Black
RECOMMENDED APPLICATIONS
- Hotels & Hospitality Spaces
- Restaurants & Cafés
- Retail Stores & Showrooms
- Commercial Offices & Public Areas
- Bathrooms & Moisture-Prone Interiors
- Covered Architectural Areas
