PRODUCT OVERVIEW

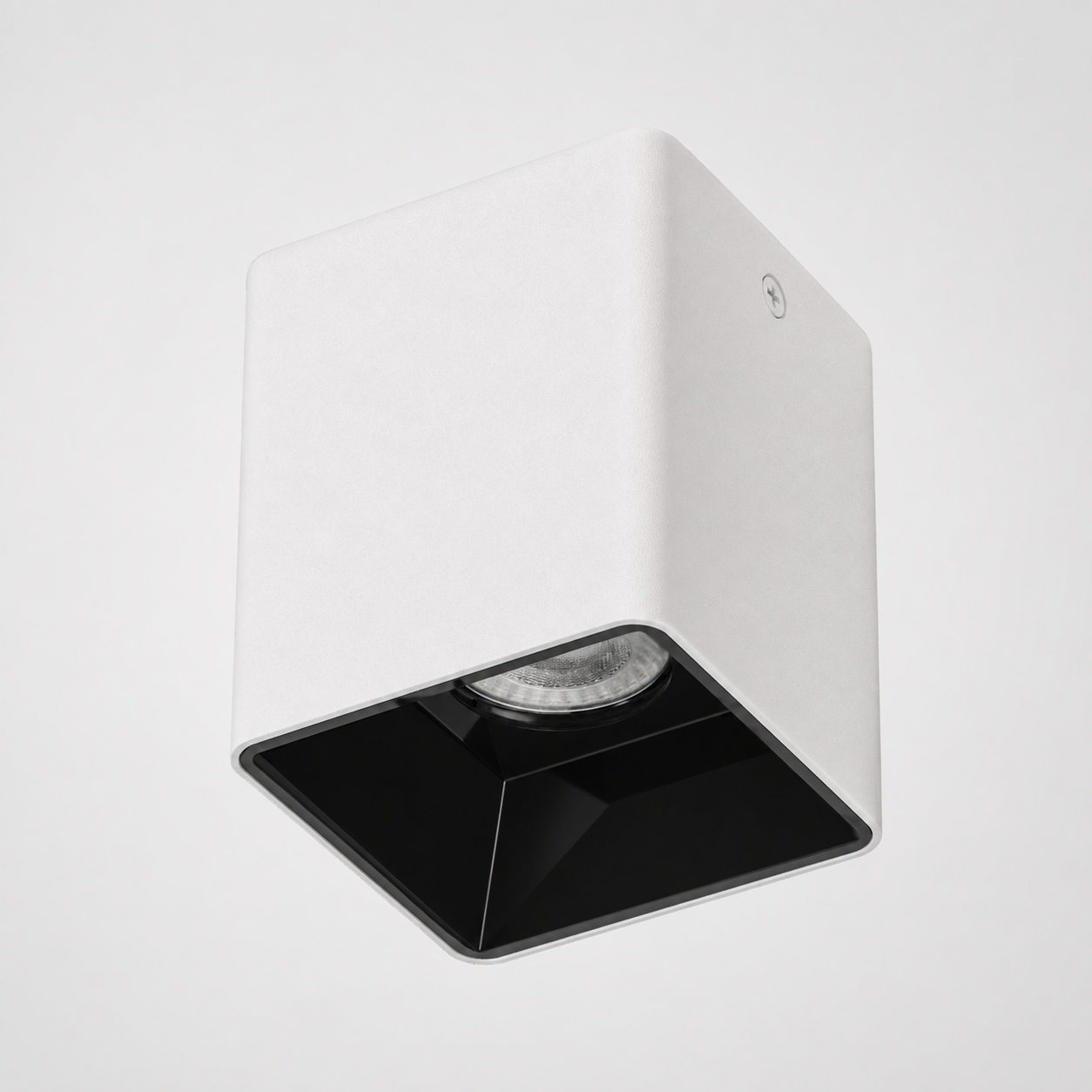

The Waterproof Square Surface-Mounted Downlight is designed for commercial and architectural lighting applications where recessed installation is not suitable. Featuring a clean square housing, IP-rated waterproof structure and UGR<19 anti-glare optical design, it provides comfortable and controlled illumination for professional lighting projects.
The series is available in 15W, 25W, 35W and 45W, with four housing sizes from 74×74mm to 130×130mm. Multiple beam angles and reflector finishes are available to meet different accent lighting and general lighting requirements.
KEY FEATURES
- UGR<19 Anti-Glare Design
Deep anti-glare optical structure helps reduce direct glare and improves visual comfort in commercial spaces.
- Square Surface-Mounted Design
Designed for direct ceiling installation without recessed cut-outs, suitable for concrete ceilings and projects with limited ceiling depth.
- Multiple Power & Size Options
Available in 15W, 25W, 35W and 45W with matching housing sizes for different lighting requirements.
- Flexible Beam Angles
Optional 15°, 24°, 36° and 55° beam angles support narrow accent lighting, medium beam illumination and wider general lighting applications.
- ADC12 Die-Cast Aluminum Housing
ADC12 die-cast aluminum housing provides efficient heat dissipation and reliable long-term performance.
- Multiple Reflector Finishes
Standard glossy black anti-glare reflector with optional customized reflector finishes including glossy white, glossy silver, matte white, matte black, matte silver and gunmetal black.
- Professional LED Platform
Compatible with selected Cree and Citizen LED holders for flexible project configuration.
- IP65 Waterproof Protection
Designed with IP65 protection against dust and water, suitable for commercial interiors, bathrooms, covered outdoor areas and other moisture-sensitive applications.
SIZE & POWER OPTIONS
- 74×74×H90mm — 15W
- 92×92×H100mm — 25W
- 113×113×H120mm — 35W
- 130×130×H140mm — 45W
TECHNICAL OPTIONS
- UGR: <19
- Beam Angle: 15° / 24° / 36° / 55°
- Surface Finish: Sand White / Sand Black
- Anti-Glare Reflector: Glossy Black
- Optional Reflector Colors: Glossy White / Glossy Silver / Matte White / Matte Black / Matte Silver / Gunmetal Black
- Material: Aluminum / ADC12 Integrated Die-Cast Housing
- LED Holder Options: Cree 1304 / 1507 / 1816 / 1830; Citizen 020 / 030
RECOMMENDED APPLICATIONS
- Retail Stores & Shopping Malls
- Hotels & Restaurants
- Offices & Commercial Spaces
- Showrooms & Galleries
- Corridors & Public Areas
- Architectural Lighting Projects
- Covered Semi-Outdoor Areas
