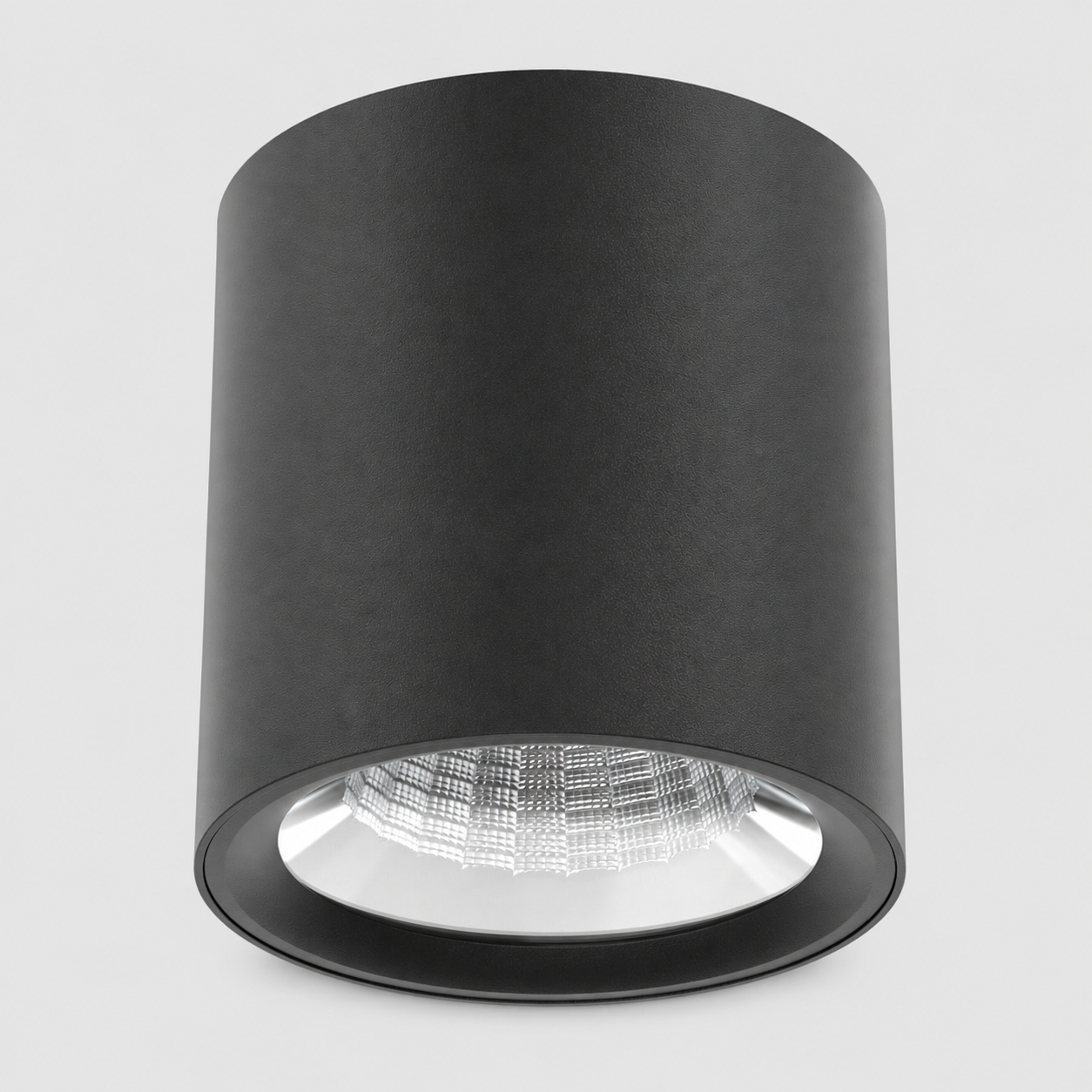

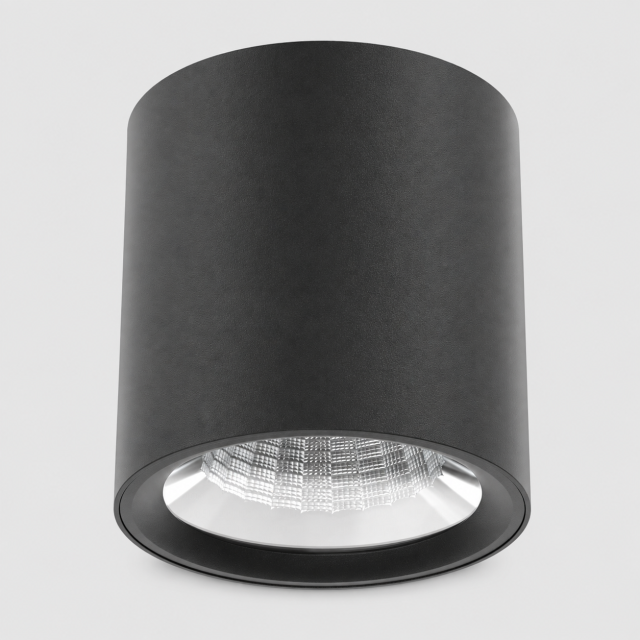

2501K–8001K Series Surface Mounted Cylinder LED Downlight

PRODUCT OVERVIEW

• The 2501K–8001K Series is a surface mounted cylinder LED downlight family designed for commercial and architectural interiors requiring a clean ceiling-mounted appearance and controlled glare.
• The series covers 10W to 50W with six housing sizes, making it suitable for different ceiling heights, lumen requirements and application areas.
• UGR<19 anti-glare optical design with 20° / 40° / 60° beam options supports precise accent, general and display lighting.
• Sand white and sand black finishes provide a minimal architectural appearance for modern commercial spaces.

KEY FEATURES

• UGR<19 Anti-Glare Design
  Controlled optical structure helps reduce direct glare and improves visual comfort in commercial interiors.
• 10W–50W Complete Power Range
  Six power and size options support different ceiling heights and illumination requirements.
• 20° / 40° / 60° Beam Options
  Multiple beam angles allow focused accent lighting, medium distribution and wider general illumination.
• ADC12 Integrated Die-Cast Aluminum
  One-piece die-cast housing provides structural stability and reliable heat dissipation.
• Surface Mounted Installation
  No ceiling cut-out is required, making the series suitable for solid ceilings and surface-mounted project applications.
• Sand White / Sand Black Finishes
  Neutral architectural finishes integrate easily with commercial and hospitality interiors.
• Ra90+ Color Rendering
  High color rendering supports retail, hospitality, showroom and display applications.
• Professional Driver & Dimming Options
  Optional Lifud, OSRAM, Eaglerise, Philips and Tridonic drivers with 0-10V, Phase Dimming, DALI and Tuya Zigbee control options.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• UGR: <19
• Beam Angle: 20° / 40° / 60°
• Light Distribution: Spot / Medium / Wide
• Housing Finish: Sand White / Sand Black

TECHNICAL OPTIONS

• Product Type: Surface Mounted Cylinder LED Downlight
• Models: 2501K / 3001K / 4001K / 5001K / 6001K / 8001K
• Power: 10W / 15W / 25W / 30W / 40W / 50W
• Material / Process: ADC12 Integrated Die-Cast Aluminum
• UGR: <19
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP20
• Installation: Surface Mounted
• Beam Angle: 20° / 40° / 60°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Luminous Efficiency: 80 lm/W
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Retail Stores & Shopping Malls
• Hotels & Restaurants
• Commercial Offices
• Showrooms & Galleries
• Reception & Lobby Areas
• Corridors & Public Areas
• Architectural Accent Lighting
• Commercial General Lighting
