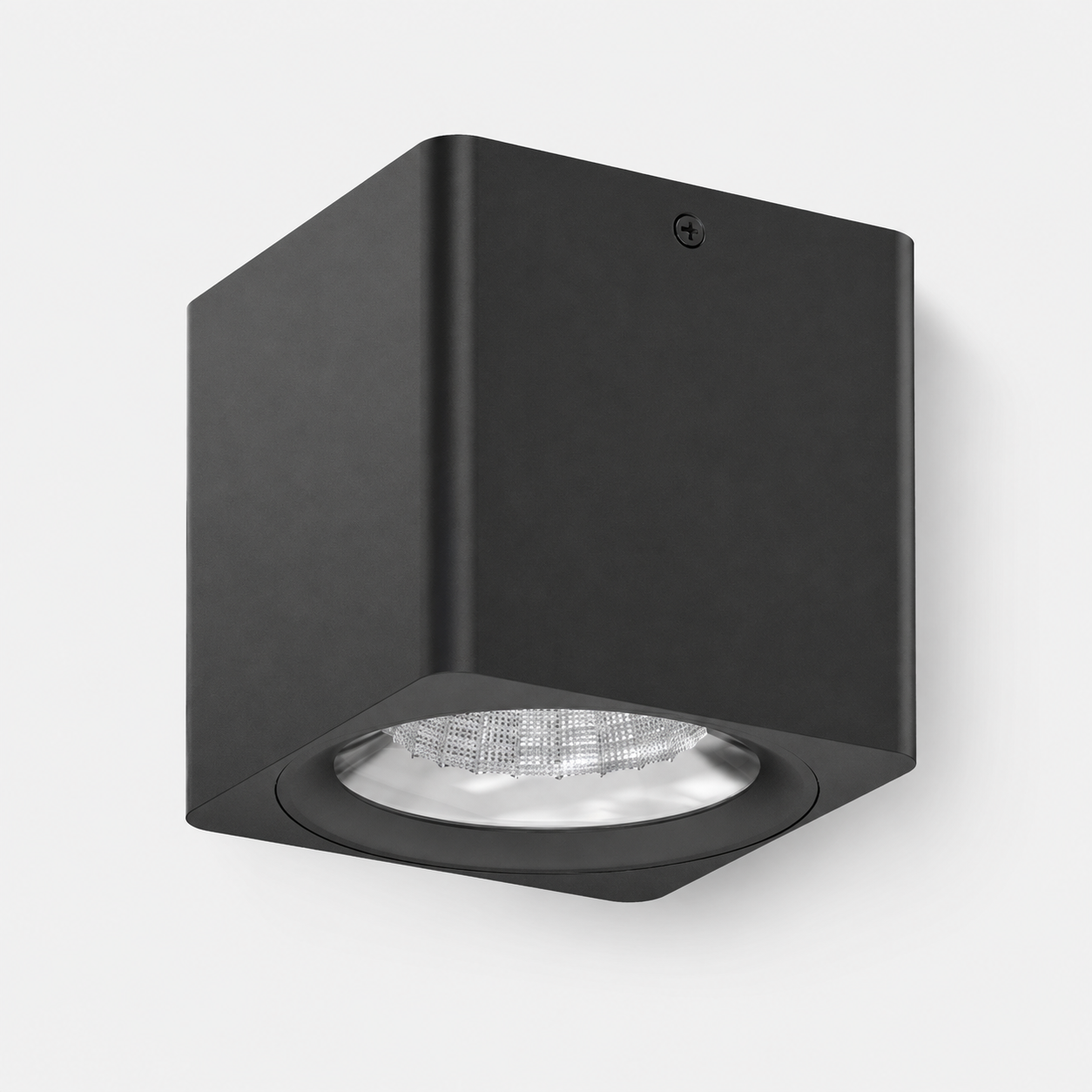

Anti-Glare Square Surface Mounted LED Downlight

PRODUCT OVERVIEW

• The 2501K-1–4001K-1 Series is a square surface mounted LED downlight designed for commercial and architectural interiors requiring a clean geometric appearance and controlled glare.
• The series includes 12W, 20W and 30W models with compact square housings for different ceiling heights and illumination requirements.
• UGR<19 anti-glare optics combined with 20° / 40° / 60° beam options support accent, display and general commercial lighting.
• Sand white and sand black finishes provide a minimal architectural appearance for modern interior projects.

KEY FEATURES

• UGR<19 Anti-Glare Design
  Controlled recessed optics help reduce direct glare and improve visual comfort in professional commercial spaces.
• Square Architectural Form
  Clean square housing provides a distinctive alternative to conventional round surface-mounted downlights.
• 12W / 20W / 30W Power Options
  Three sizes support different mounting heights and lighting requirements.
• 20° / 40° / 60° Beam Options
  Multiple beam angles support focused accent lighting, medium distribution and wider illumination.
• ADC12 Integrated Die-Cast Aluminum
  One-piece die-cast housing provides structural stability and efficient heat dissipation.
• Surface Mounted Installation
  No ceiling cut-out is required, making the luminaire suitable for solid ceilings and retrofit applications.
• Sand White / Sand Black Finishes
  Neutral architectural finishes integrate easily with retail, hospitality and office interiors.
• Professional Lighting Options
  Ra90+ CRI, multiple CCT choices and optional 0-10V, Phase Dimming, DALI and Tuya Zigbee controls support project requirements.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• UGR: <19
• Beam Angle: 20° / 40° / 60°
• Light Distribution: Spot / Medium / Wide
• Housing Finish: Sand White / Sand Black

TECHNICAL OPTIONS

• Product Type: Square Surface Mounted LED Downlight
• Models: 2501K-1 / 3001K-1 / 4001K-1
• Power: 12W / 20W / 30W
• Material / Process: ADC12 Integrated Die-Cast Aluminum
• UGR: <19
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP20
• Installation: Surface Mounted
• Beam Angle: 20° / 40° / 60°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Luminous Efficiency: 80 lm/W
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Retail Stores & Boutiques
• Hotels & Restaurants
• Commercial Offices
• Showrooms & Galleries
• Reception & Lobby Areas
• Corridors & Public Areas
• Architectural Accent Lighting
• Commercial General Lighting
