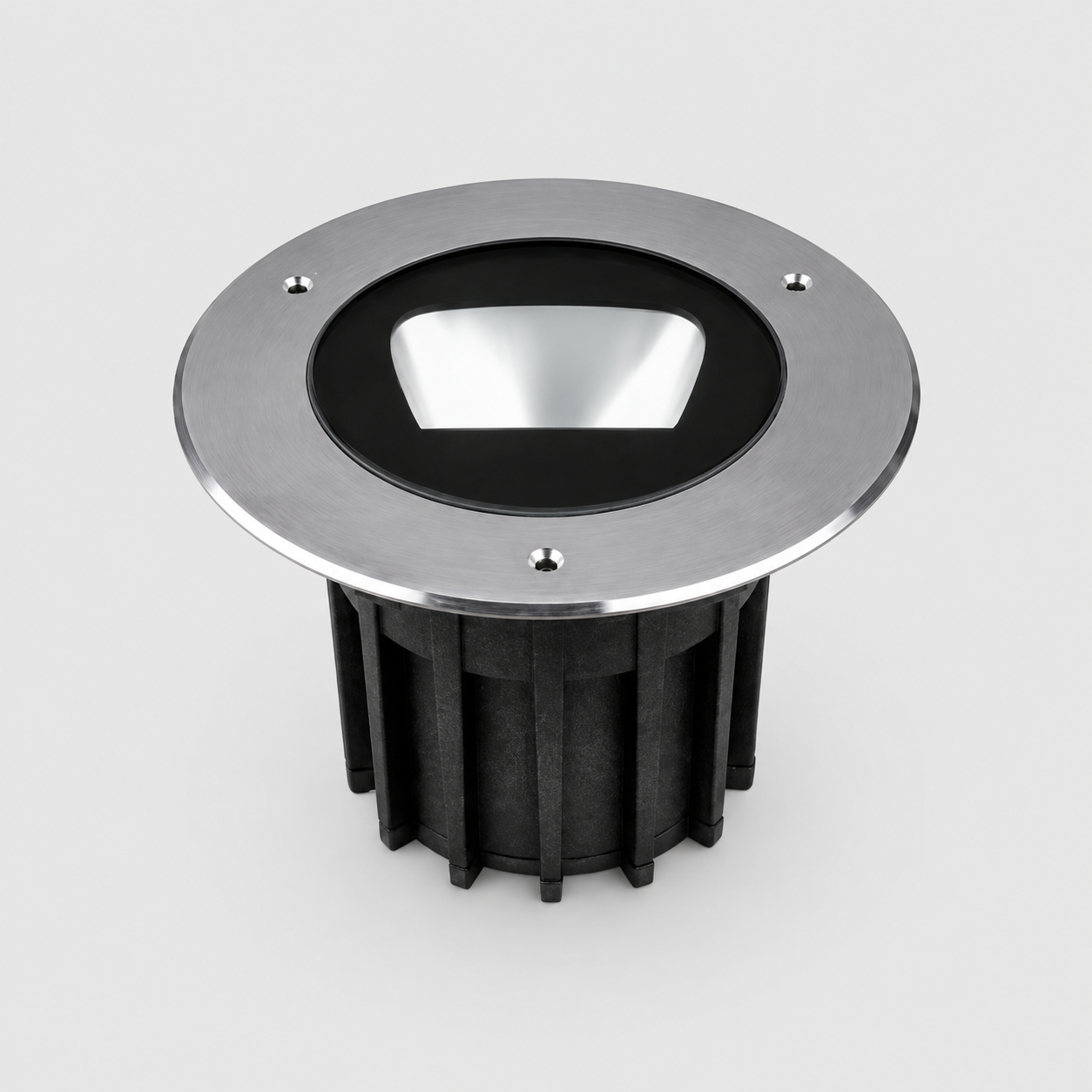

IP67 COB Asymmetric LED In-ground Light

PRODUCT OVERVIEW

• Professional COB asymmetric LED in-ground light series designed for façade, wall, column and landscape uplighting.
• Six models from Ø95mm to Ø250mm provide 3W-35W output for different architectural lighting scales.
• Asymmetric optics direct light toward vertical surfaces, improving usable light on façades while reducing wasted backward light.

KEY FEATURES

• Asymmetric Optical Distribution
  Purpose-built asymmetric optics project light toward walls and façades for controlled architectural uplighting.
• IP67 Outdoor Protection
  Suitable for recessed outdoor installation in landscape, façade and architectural environments.
• IK10 Impact Resistance
  High mechanical resistance supports demanding ground-level commercial applications.
• CREE COB LED
  Manufacturer-specified CREE LED source provides concentrated output for architectural accent lighting.
• Six Power & Size Options
  Available from 3W / Ø95mm to 35W / Ø250mm.
• 250-2600 lm Output Range
  Multiple luminous-output levels support small decorative details through larger façade applications.
• Low-Voltage & AC Options
  12/24VDC and 220-240VAC configurations are shown across the series.
• Professional Recessed Installation
  Designed for flush in-ground mounting in architectural and landscape projects.

MODEL & SIZE OPTIONS

TECHNICAL OPTIONS

• Product Type: IP67 COB Asymmetric LED In-ground Light
• Model: WB2095R1AB6Y / WB2130R1AB6Y / WB2160R1AB6Y / WB2180R1AB6Y / WB2210R1AB6Y / WB2250R1AB6Y
• Power: 3W / 6W / 13W / 20W / 25W / 35W
• Nominal Size: Ø95 / Ø130 / Ø160 / Ø180 / Ø210 / Ø250mm
• LED: CREE COB
• Luminous Flux: 250 / 450 / 980 / 1100 / 1900 / 2600 lm
• Protection Rating: IP67
• Impact Resistance: IK10
• CCT: Single CCT
• CRI: —
• Optics: Asymmetric
• Input Voltage: 12/24VDC / 220-240VAC
• Installation: Recessed In-ground

RECOMMENDED APPLICATIONS

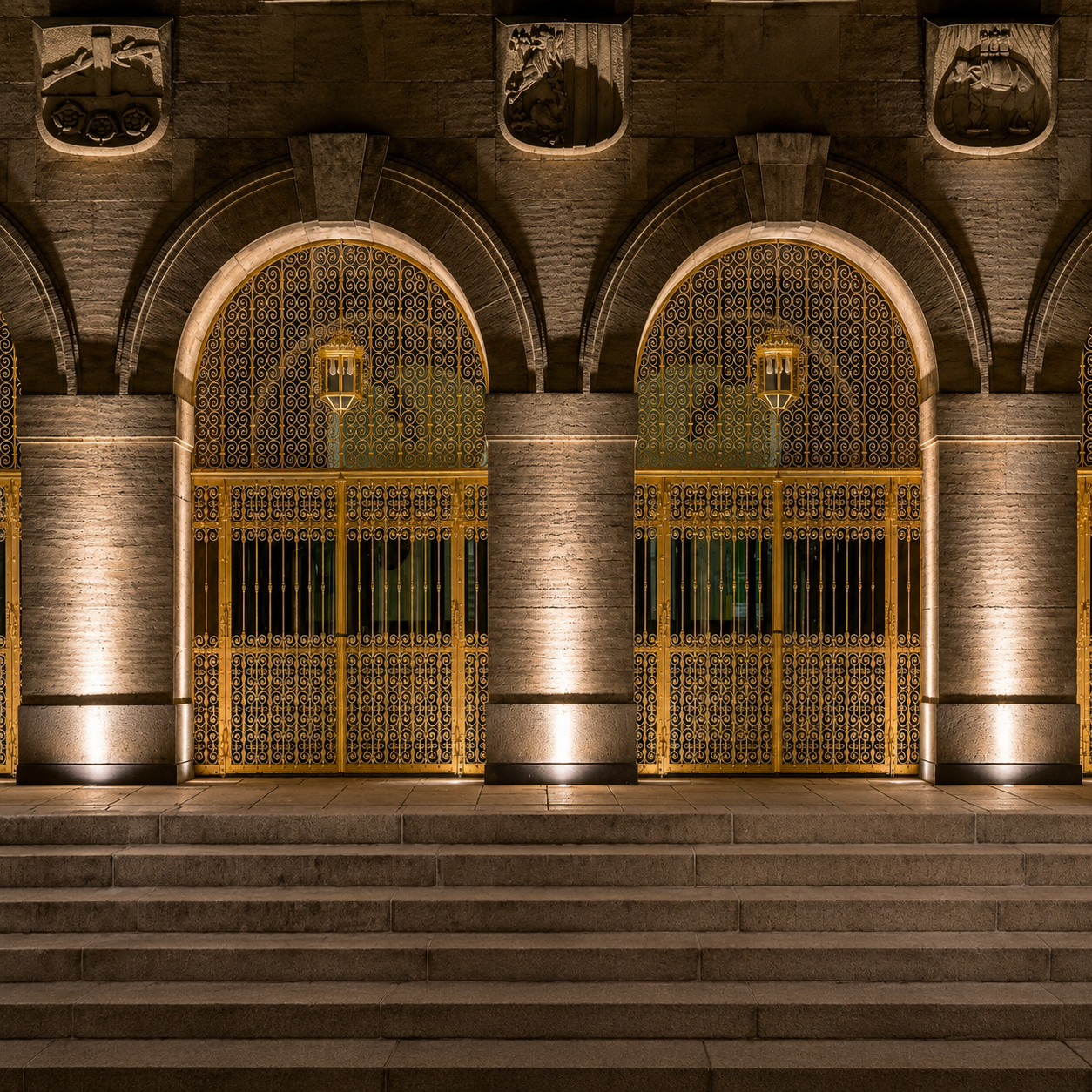

• Building Façade Uplighting
• Architectural Walls
• Columns & Vertical Features
• Hotels & Commercial Buildings
• Landscape Walls
• Courtyards & Plazas
• Public Architecture
• Outdoor Accent Lighting
