Series 2 IP67 Walk-Over LED In-ground Light

PRODUCT OVERVIEW

• Series 2 Walk-Over is a professional IP67 recessed LED in-ground light family designed for pathways, pedestrian areas, gardens, hotels, villas and architectural outdoor lighting.

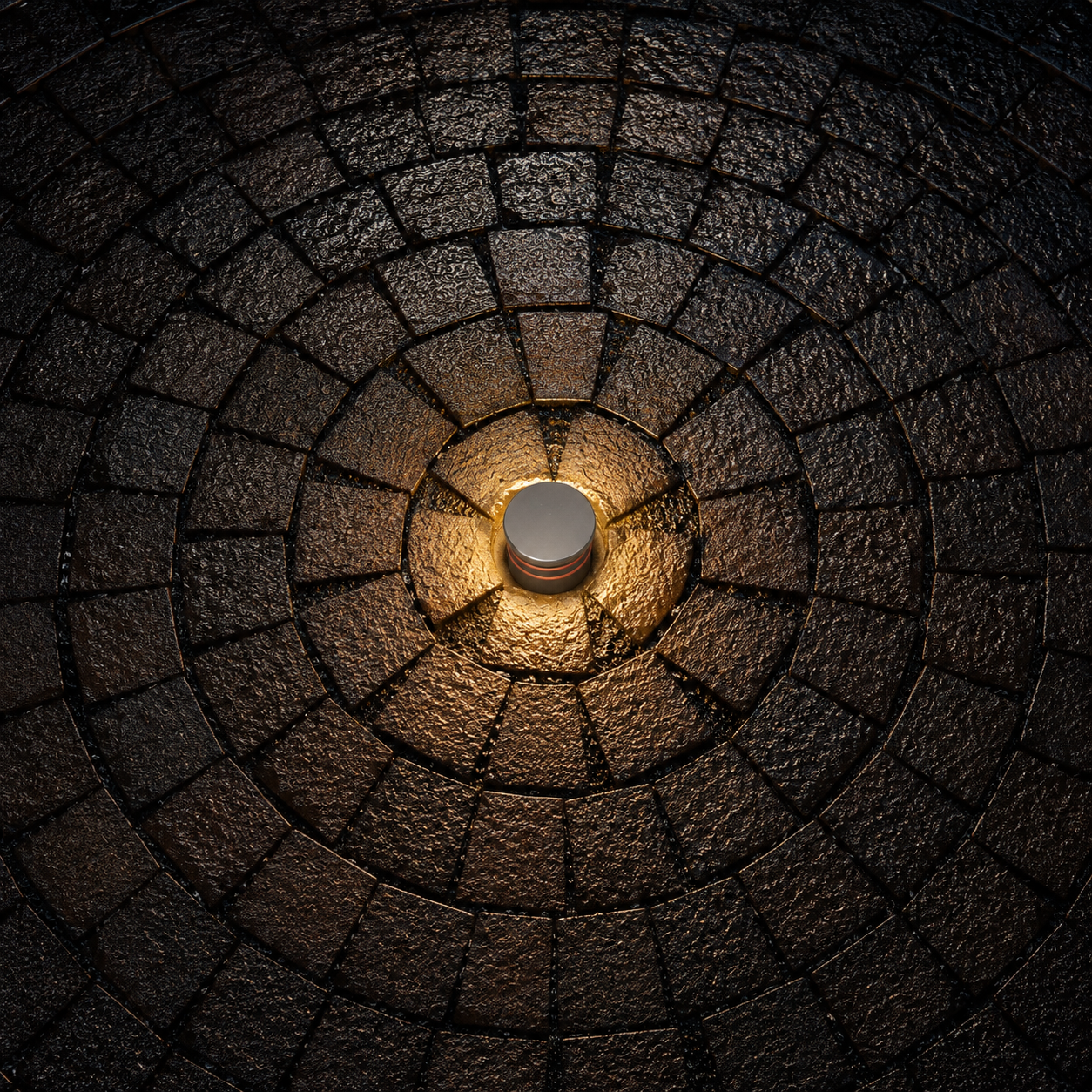

• The flat walk-over cover creates a low-profile ground installation with 360° light distribution for guidance, orientation and decorative landscape lighting.
• Six sizes from Ø32mm to Ø100mm cover compact marker-light applications through larger architectural ground-lighting projects.

KEY FEATURES

• 360° Walk-Over Light Distribution
  Ground-level circular light output provides visual guidance and decorative illumination around the fixture.
• IP67 Outdoor Protection
  Designed for recessed outdoor installation in pathways, courtyards, gardens and architectural environments.
• IK08 / IK10 Impact Resistance
  WB2032R reaches IK10, while the larger models are rated IK08 for demanding ground-level applications.

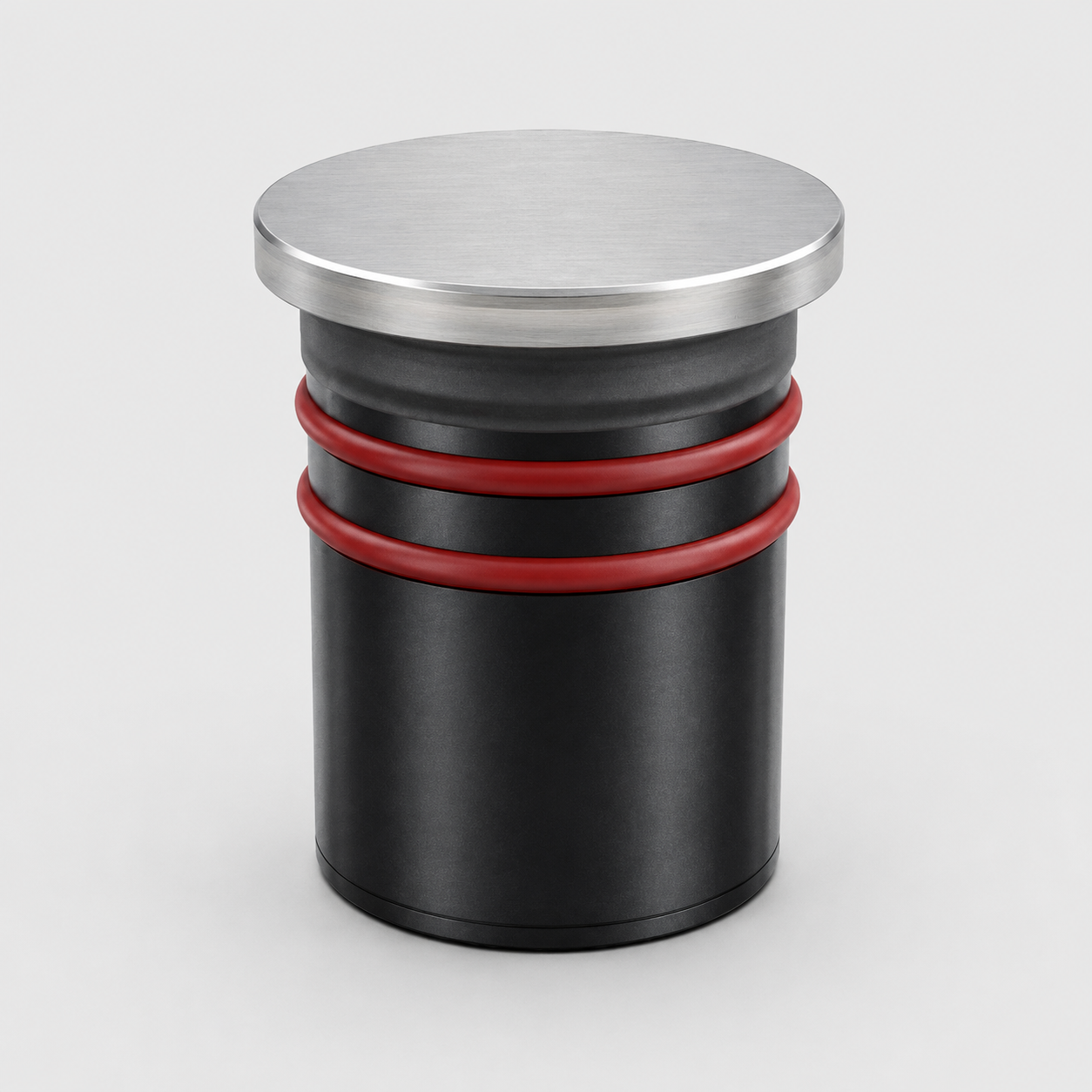

• Walk-Over Flat Cover Design
  Low-profile top construction reduces protrusion and is suitable for pedestrian areas.
• Stainless Steel Front Cover
  Durable metal trim provides a clean architectural finish and good resistance to outdoor exposure.
• Corrosion-Resistant Aluminum Housing
  Strong aluminum body supports efficient heat dissipation and long-term outdoor reliability.
• Six Size & Power Options
  Available from Ø32mm / 2W to Ø100mm / 15W for different installation spacing and project requirements.
• Flexible Voltage Options
  12/24VDC low-voltage configurations are available, with 220-240VAC options on larger models.
• Low Maintenance
  Simple recessed construction and robust materials support long-term commercial and landscape use.

MODEL & SIZE OPTIONS

TECHNICAL OPTIONS

• Product Type: IP67 Walk-Over LED In-ground Light
• Model: WB2032R / WB2042R / WB2050R / WB2065R / WB2080R / WB2100R
• Power: 2W / 4W / 4.5W / 6.5W / 10W / 15W
• Nominal Size: Ø32 / Ø42 / Ø50 / Ø65 / Ø80 / Ø100mm
• Protection Rating: IP67
• Impact Resistance: IK10 for WB2032R / IK08 for larger models
• CCT: 2700K / 3000K / 4000K / 5000K / 6000K
• CRI: —
• Light Distribution: 360°
• Input Voltage: 12/24VDC; 220-240VAC available on larger models
• Front Cover: Stainless Steel
• Housing: Corrosion-Resistant Aluminum
• Installation: Recessed In-ground / Walk-Over

RECOMMENDED APPLICATIONS

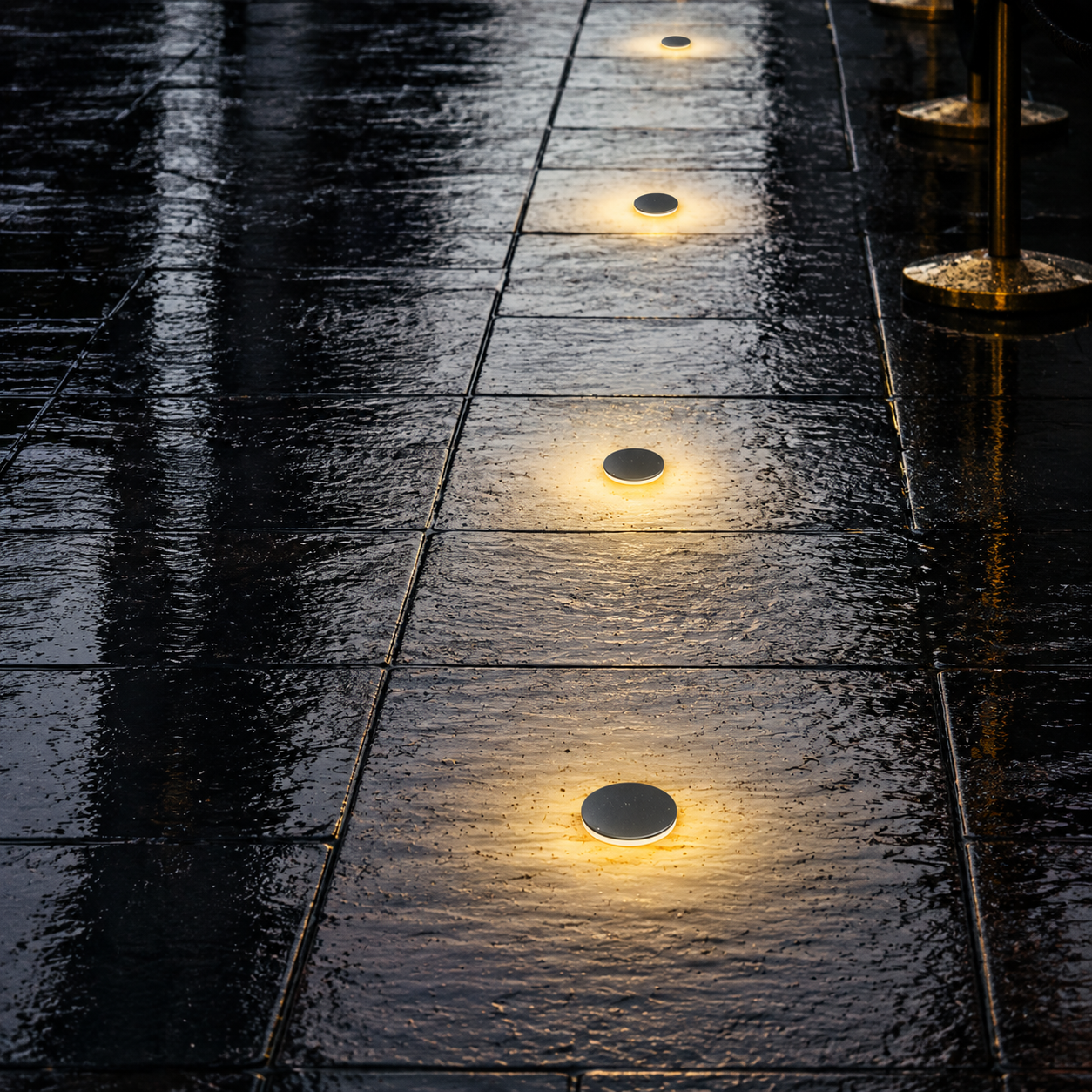

• Walkways & Pedestrian Areas
• Hotel Entrances
• Garden Paths
• Courtyards
• Villas & Residential Exteriors
• Public Plazas
• Landscape Guidance Lighting
• Building Perimeters
• Outdoor Decks
• Architectural Ground Marker Lighting
