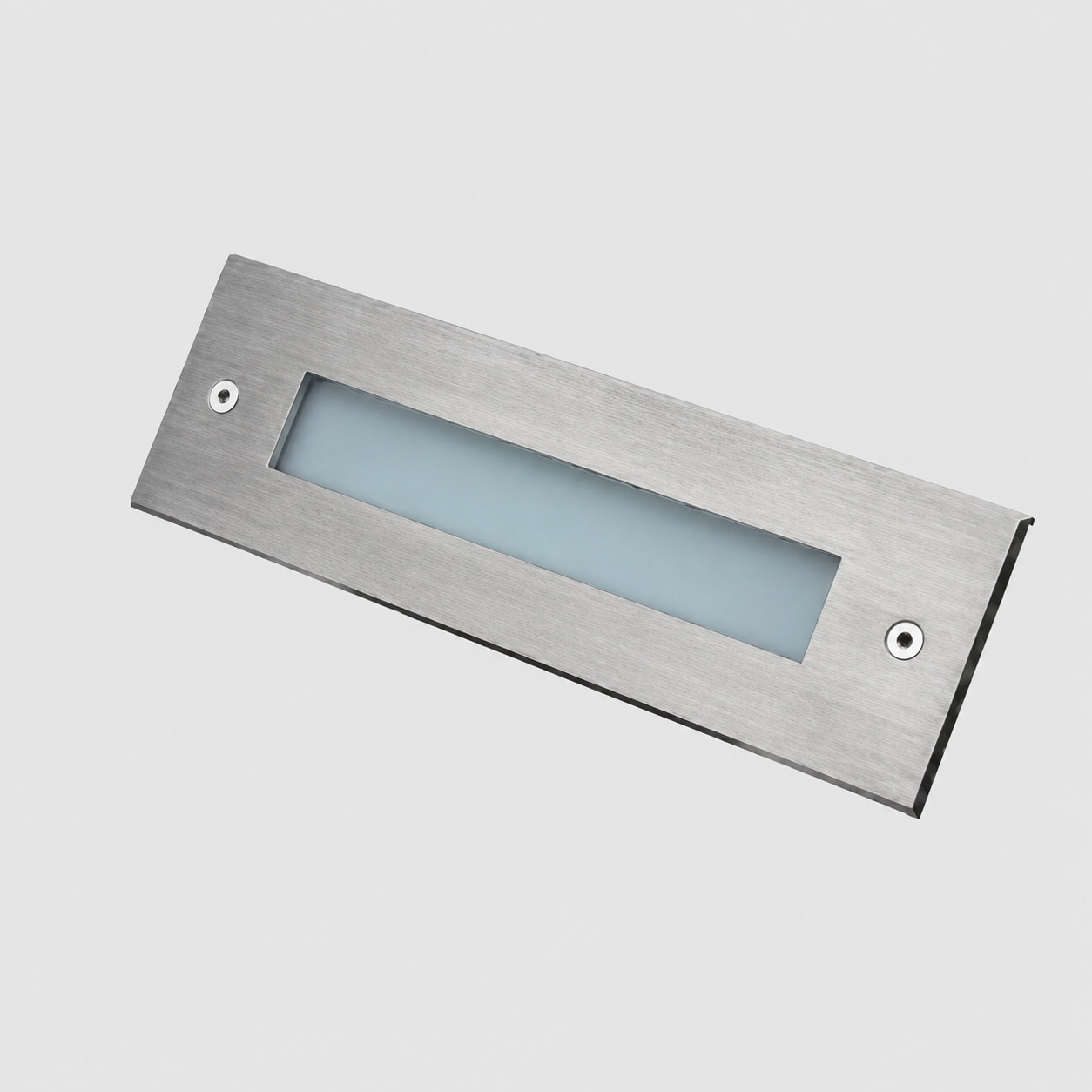

IP67 Linear LED In-ground Light | WB2063L4

Name: IP67 Linear LED In-ground Light | WB2063L4
Brand: VOC Lighting
SKU: VOC-WB2063L4

No.VOC-WB2063L4

Rectangular IP67 recessed LED in-ground light for pathways, courtyards and architectural landscape lighting. Available in 195mm and 328mm lengths with OSRAM LED, 120° wide beam, IK08 impact resistance and single-color or RGB 3-in-1 options.

Model

WB2063L4-0.195M / WB2063L4-0.328M

Power

2.2W / 3-6W

Dimension

195×63×H90mm / 328×63×H90mm

Cut-out

180×58mm / 313×58mm

Luminous Flux

25 lm / —

LED

OSRAM

Protection

IP67 / IK08

CCT / Color

Single Color / RGB 3-in-1

Beam Angle

120°

Input Voltage

12/24VDC / selected single-color versions 220-240VAC

Installation

Recessed In-ground

REQUEST A QUOTE

Add to Quote List View Quote List

Description

PRODUCT OVERVIEW

WB2063L4 is a slim rectangular IP67 recessed LED in-ground light for landscape, pathway and architectural guidance lighting.
Available in 195mm and 328mm lengths with a 63mm face width.
Single-color and RGB versions provide broad linear ground illumination.

KEY FEATURES

IP67 Outdoor Protection
Designed for recessed outdoor installation.
IK08 Impact Resistance
Suitable for demanding ground-level applications.
120° Wide Beam
Provides broad and soft linear illumination.
OSRAM LED
Reliable LED source for single-color and RGB configurations.
Two Size Options
195mm and 328mm lengths for different project requirements.

MODEL & SIZE OPTIONS

Model	Power	Dimension	Cut-out	Luminous Flux	Beam Angle
WB2063L4-0.195M	2.2W	195×63×H90mm	180×58mm	25 lm	120°
WB2063L4-0.328M	3-6W	328×63×H90mm	313×58mm	—	120°

TECHNICAL OPTIONS

LED: OSRAM
Protection: IP67 / IK08
Input Voltage: 12/24VDC; selected single-color versions support 220-240VAC
Beam Angle: 120°
Color Options: Single Color / RGB 3-in-1
Installation: Recessed In-ground

RECOMMENDED APPLICATIONS

Pathways & Walkways
Courtyards & Plazas
Landscape Guidance Lighting
Building Perimeters
Hotels & Commercial Projects
