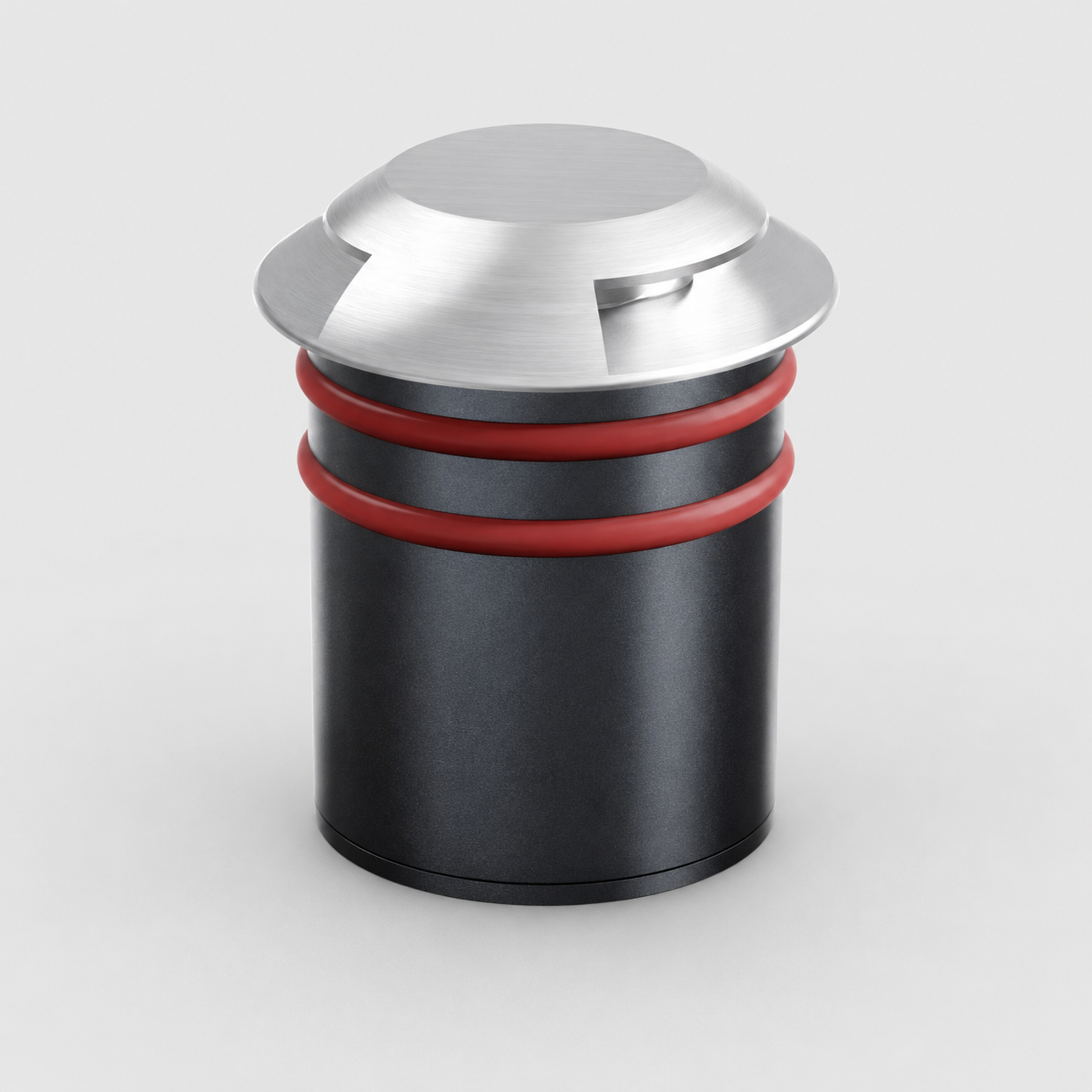

Series 2 IP67 1-Way / 2-Way / 4-Way LED In-ground Light

PRODUCT OVERVIEW

• Series 2 1-Way / 2-Way / 4-Way is a professional IP67 recessed LED in-ground marker-light family for pathways, gardens, plazas and architectural guidance lighting.
• Each size is available with directional 1-way, 2-way or 4-way cover configurations to create controlled ground-level light patterns.
• Six nominal sizes from Ø32mm to Ø100mm cover compact marker applications through larger landscape and commercial projects.

KEY FEATURES

• 1-Way / 2-Way / 4-Way Light Distribution
  Three directional cover options allow flexible pathway guidance, edge marking and decorative ground-lighting layouts.
• IP67 Outdoor Protection
  Designed for recessed outdoor installation in walkways, courtyards, gardens, hotels and architectural environments.
• IK08 / IK10 Impact Resistance
  WB2032R is rated IK10, while the larger models are IK08 for demanding ground-level applications.
• Six Size & Power Options
  Available from Ø32mm / 2W to Ø100mm / 15W for different project scales and installation spacing.
• Stainless Steel Front Cover
  Durable stainless steel trim provides a clean architectural finish and good resistance to outdoor exposure.
• Corrosion-Resistant Aluminum Housing
  Strong aluminum body supports heat dissipation and long-term outdoor reliability.
• Flexible Voltage Options
  12/24VDC low-voltage configurations are available, with 220-240VAC options on larger models.
• Low-Maintenance Ground Lighting
  Robust recessed construction is suitable for long-term landscape and commercial use.

MODEL & SIZE OPTIONS

TECHNICAL OPTIONS

• Product Type: IP67 Directional LED In-ground Marker Light
• Model: WB2032R / WB2042R / WB2050R / WB2065R / WB2080R / WB2100R
• Power: 2W / 4W / 4.5W / 6.5W / 10W / 15W
• Nominal Size: Ø32 / Ø42 / Ø50 / Ø65 / Ø80 / Ø100mm
• Protection Rating: IP67
• Impact Resistance: IK10 for WB2032R / IK08 for larger models
• CCT: 2700K / 3000K / 4000K / 5000K / 6000K
• CRI: —
• Light Distribution: 1-Way / 2-Way / 4-Way
• Input Voltage: 12/24VDC; 220-240VAC available on larger models
• Front Cover: Stainless Steel
• Housing: Corrosion-Resistant Aluminum
• Installation: Recessed In-ground

RECOMMENDED APPLICATIONS

• Pathways & Walkways
• Garden Paths
• Hotel Entrances
• Courtyards
• Public Plazas
• Building Perimeters
• Landscape Guidance Lighting
• Outdoor Decks
• Architectural Marker Lighting
