WB2063L2 IP67 LED Linear In-ground Light

Name: WB2063L2 IP67 LED Linear In-ground Light
Brand: VOC Lighting
SKU: VOC-WB2063L2

No.VOC-WB2063L2

Professional WB2063L2 IP67 linear LED in-ground light available in 195mm and 328mm lengths. White, RGB and RGBW versions use OSRAM LEDs with IK08 impact resistance, multiple beam angles and low-voltage or AC configurations for architectural façade, wall and landscape uplighting.

Product Type

IP67 LED Linear In-ground Light

Product Type

IP67 LED Linear In-ground Light

Model

WB2063L2-0.195M / WB2063L2-0.328M

Power

3×2W / 3×2.5W / 3×3.5W / 6×2W / 6×2.5W / 6×3.5W

Dimension

195×65×63mm / 328×65×63mm

LED

OSRAM

Luminous Flux

210 / 310 / 435 / 530 / 600 / 960 lm

Protection

IP67 / IK08

CCT / Color

Single Color / RGB 3-in-1 / RGBW 4-in-1

CRI

—

Beam Angle

8° / 12° / 25° / 40° / 60°

Input Voltage

12/24VDC / 220-240VAC Depending on Configuration

REQUEST A QUOTE

Add to Quote List View Quote List

Description

PRODUCT OVERVIEW

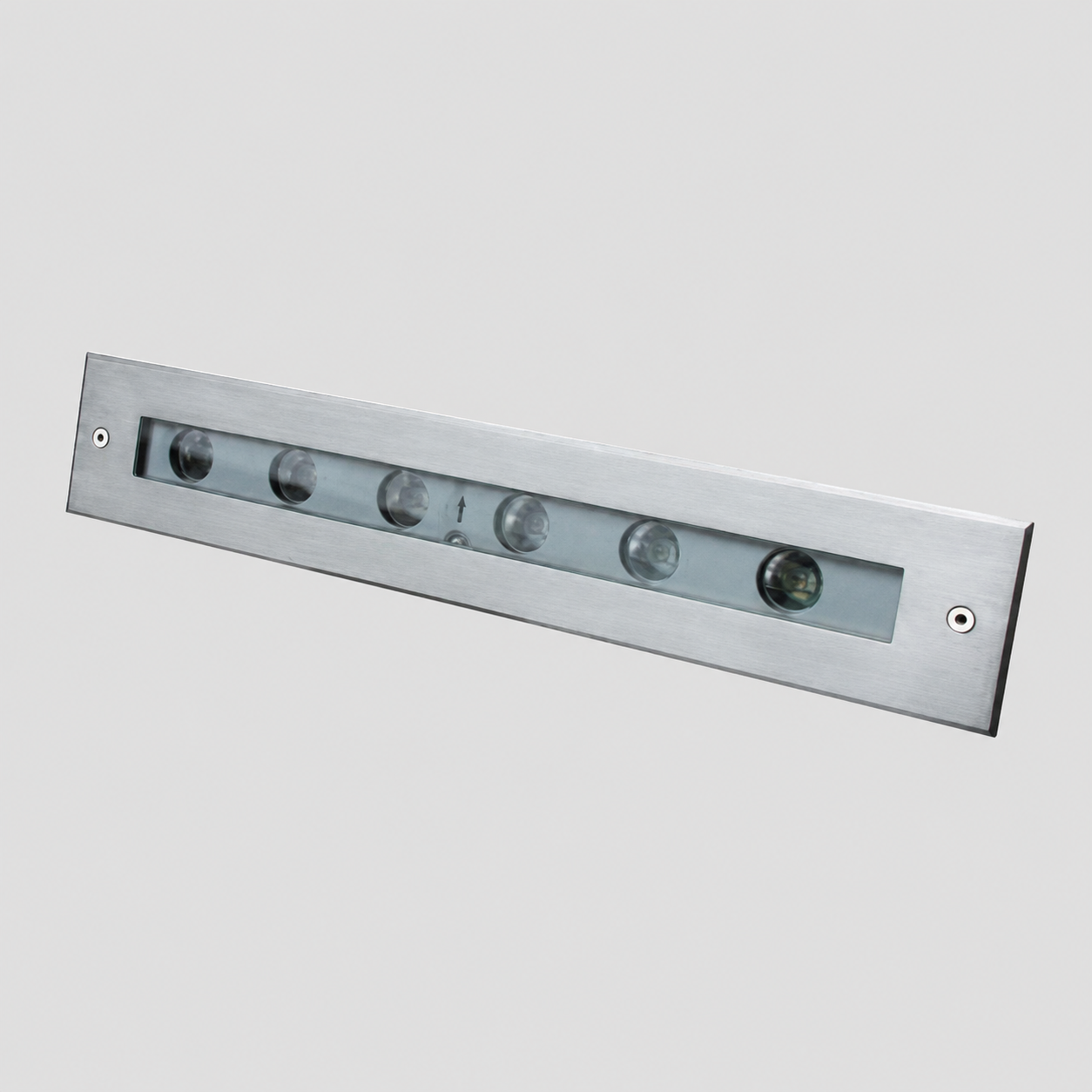

WB2063L2 is a professional IP67 linear LED in-ground light designed for architectural façade, wall, pathway and landscape lighting.
Two fixture lengths, 195mm and 328mm, provide compact and extended linear lighting options for different project layouts.
White, RGB 3-in-1 and RGBW 4-in-1 LED configurations are available with OSRAM light sources.

KEY FEATURES

Linear Recessed In-ground Design
Compact rectangular housing creates a clean flush-mounted architectural appearance.
195mm & 328mm Size Options
Two standard lengths support different façade, pathway and landscape applications.
White / RGB / RGBW Configurations
Available with single-color white, RGB 3-in-1 and RGBW 4-in-1 LED options.
OSRAM LED Source
Manufacturer-specified OSRAM LEDs provide reliable output for professional outdoor projects.
IP67 Outdoor Protection
Suitable for recessed outdoor installation in landscape and architectural environments.
IK08 Impact Resistance
Supports demanding ground-level commercial and landscape applications.
Multiple Beam Angles
Beam options from 8° to 60° support narrow accent through wider architectural illumination.
Flexible Voltage Options
12/24VDC configurations are available, with 220-240VAC shown for selected single-color versions.

MODEL & SIZE OPTIONS

Model	LED Configuration	Power	Luminous Flux	Input Voltage	Beam Angle
WB2063L2-0.195M	Single Color	3×2W	530 lm	12/24VDC / 220-240VAC	8° / 12° / 25° / 40° / 60°
WB2063L2-0.195M	RGB 3-in-1	3×2.5W	210 lm	12/24VDC	12° / 25° / 40° / 60°
WB2063L2-0.195M	RGBW 4-in-1	3×3.5W	310 lm	12/24VDC	12° / 25° / 40° / 60°
WB2063L2-0.328M	Single Color	6×2W	960 lm	12/24VDC / 220-240VAC	12° / 25° / 40° / 60°
WB2063L2-0.328M	RGB 3-in-1	6×2.5W	435 lm	12/24VDC	12° / 25° / 40° / 60°
WB2063L2-0.328M	RGBW 4-in-1	6×3.5W	600 lm	12/24VDC	12° / 25° / 40° / 60°

SIZE & INSTALLATION

WB2063L2-0.195M Fixture: 195×65×63mm
WB2063L2-0.195M Mounting Sleeve: 180×58×90mm
WB2063L2-0.328M Fixture: 328×65×63mm
WB2063L2-0.328M Mounting Sleeve: 313×58×90mm

TECHNICAL OPTIONS

Product Type: IP67 LED Linear In-ground Light
Model: WB2063L2-0.195M / WB2063L2-0.328M
LED: OSRAM
Color Options: Single Color / RGB 3-in-1 / RGBW 4-in-1
Protection Rating: IP67
Impact Resistance: IK08
Input Voltage: 12/24VDC / 220-240VAC depending on configuration
Beam Angle: 8° / 12° / 25° / 40° / 60° depending on configuration
Installation: Recessed In-ground

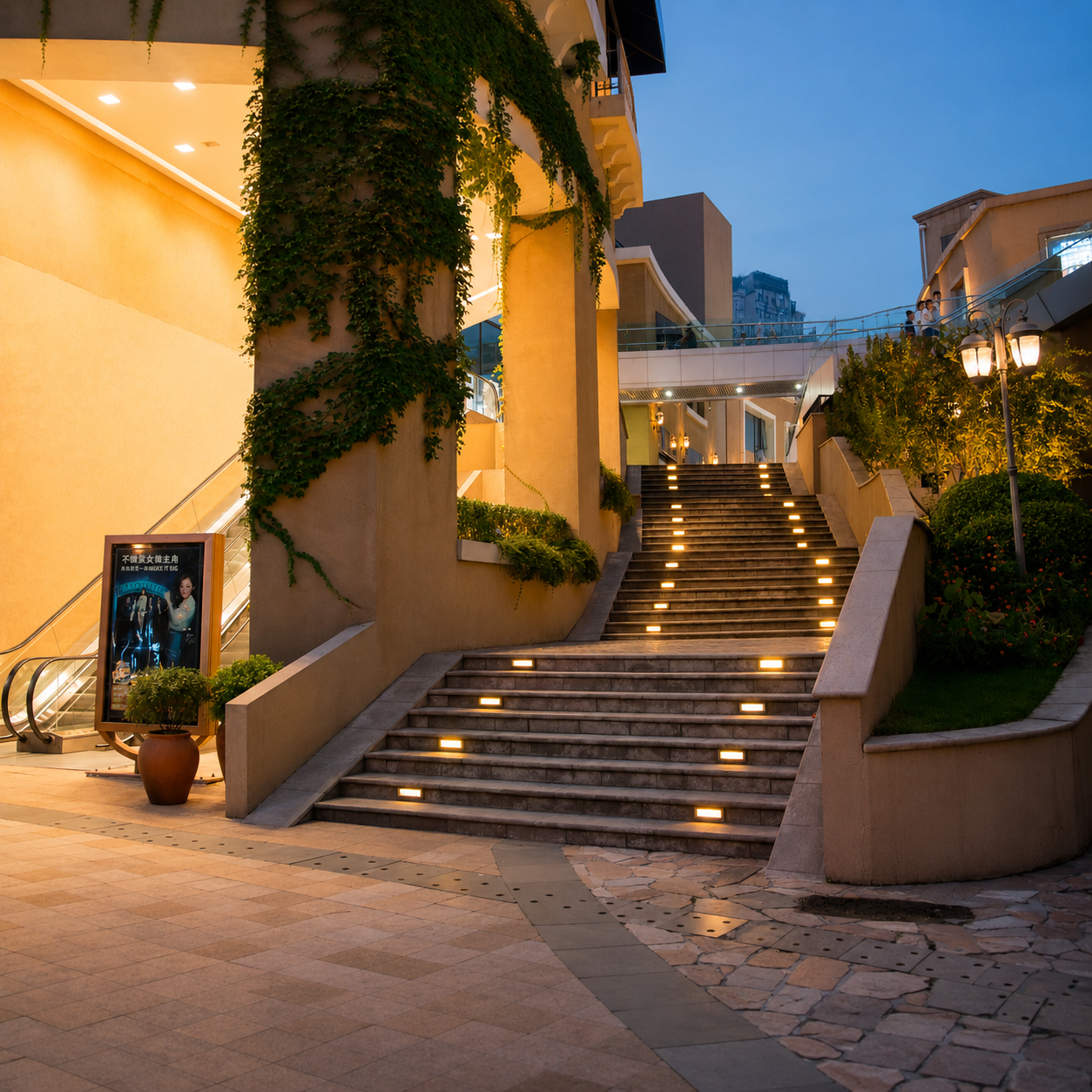

RECOMMENDED APPLICATIONS

Building Façade Lighting
Architectural Wall Uplighting
Pathways & Plazas
Hotels & Commercial Exteriors
Landscape Features
Courtyards & Gardens
Public Architecture
Linear Ground Accent Lighting
