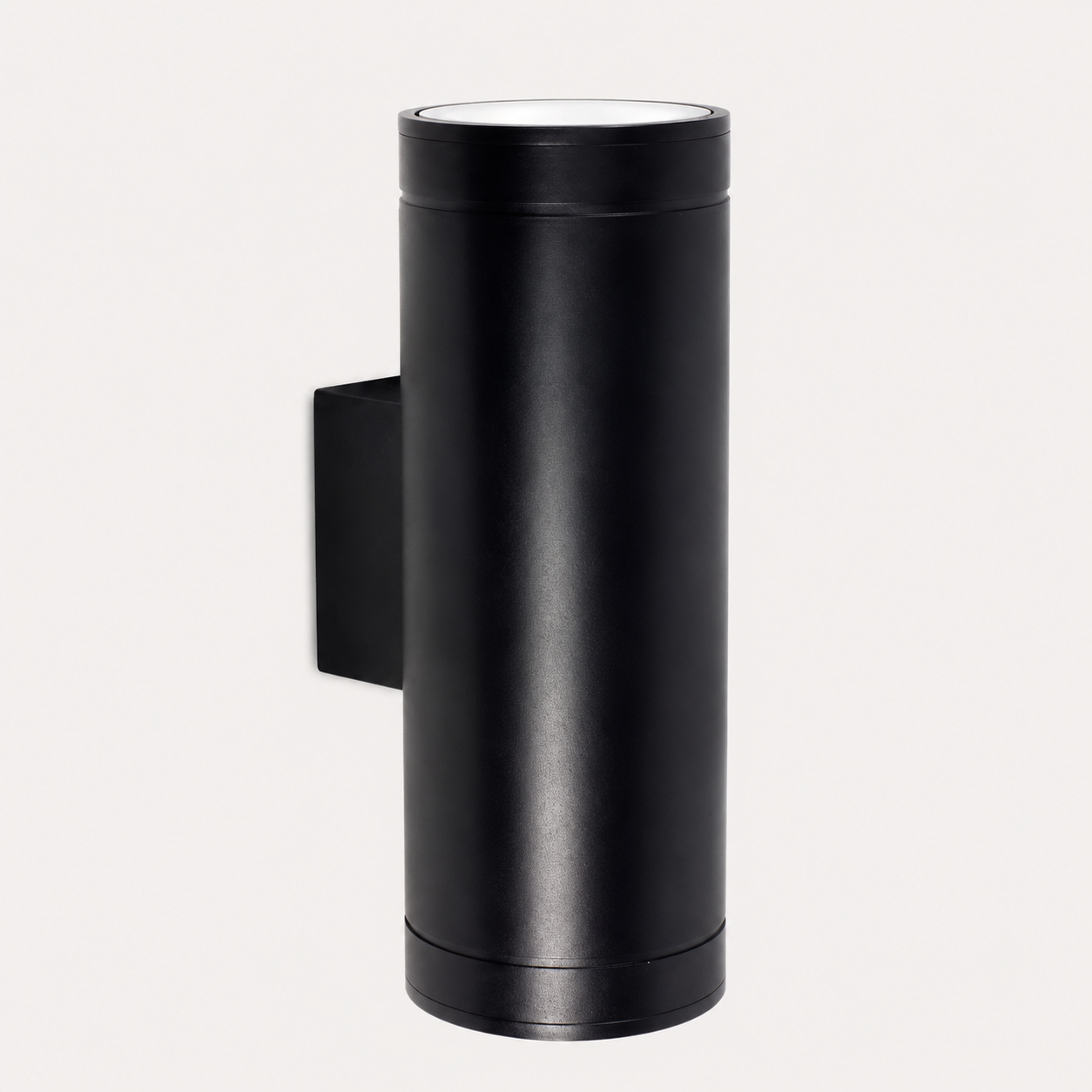

MB19-3002 IP54 Up & Down Outdoor LED Wall Light

PRODUCT OVERVIEW

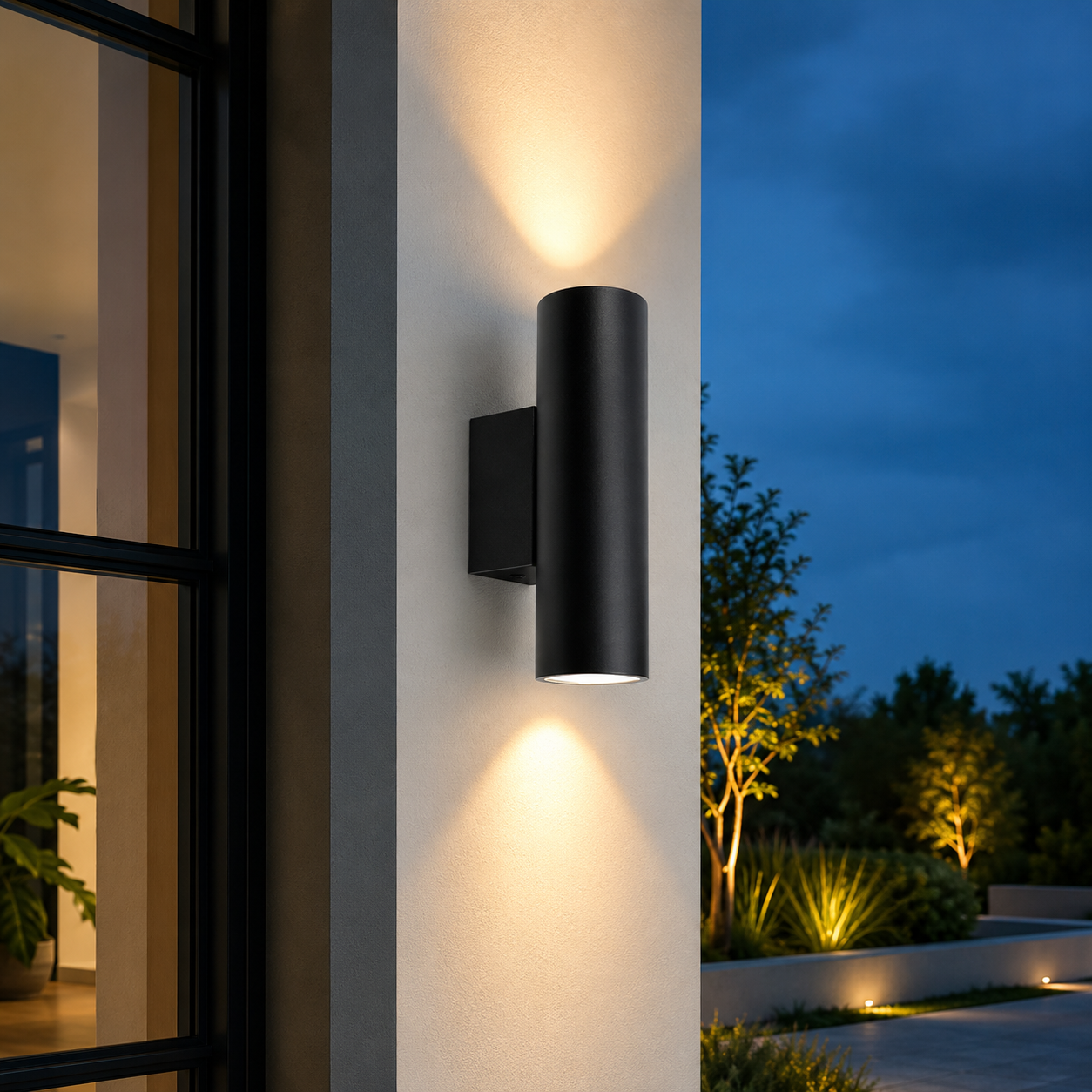

• MB19-3002 is an IP54 cylindrical up-and-down wall light designed for exterior walls, entrances, courtyards, commercial buildings and architectural façades.
• The dual-direction optical design projects light upward and downward to create balanced decorative wall-washing and accent effects.
• The series is available in 2×5W, 2×10W and 2×15W integrated LED versions, together with a GU10 configuration.

KEY FEATURES

• Up & Down Dual-Beam Design
  Dual light emission creates symmetrical architectural wall effects above and below the fixture.
• IP54 Protection
  Suitable for covered outdoor walls and indoor/outdoor architectural applications.
• Three Power & Size Options
  Available in 2×5W, 2×10W and 2×15W LED configurations with matching housing sizes.
• GU10 Option
  A GU10 lamp version is available for projects requiring a replaceable light source.
• Five Reflector Beam Angles
  15° / 24° / 38° / 45° / 60° reflector options support narrow accent beams through wider decorative wall illumination.
• Aluminum + Glass Construction
  Aluminum housing with glass diffuser provides a durable architectural finish.
• Wide CCT Range
  2700K-6000K supports warm, neutral and cool white project requirements.
• Multiple Body Finishes
  Available in black, dark gray and silver gray.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Light Distribution: Up & Down
• Beam Angle: 15° / 24° / 38° / 45° / 60°
• Optics: Reflector
• Lighting Effect: Dual-beam façade accent / decorative wall illumination

TECHNICAL OPTIONS

• Product Type: IP54 Up & Down Outdoor LED Wall Light
• Model: MB19-3002 Series
• Power: 2×5W / 2×10W / 2×15W / GU10
• Dimension: Ø65×97×200mm / Ø90×122×250mm / Ø108×140×250mm
• Material: Aluminum Housing + Glass Diffuser
• Installation: Wall Mounted
• Mounting Location: Wall
• Application Environment: Indoor / Outdoor
• Protection Rating: IP54
• Voltage: AC110-265V
• Power Factor: 0.6
• CCT: 2700K-6000K
• CRI: Ra80-90
• Luminous Flux: 700 lm / 1400 lm / 2100 lm
• Beam Angle: 15° / 24° / 38° / 45° / 60°
• Body Color: Black / Dark Gray / Silver Gray
• Control: On / Off

RECOMMENDED APPLICATIONS

• Building Façades
• Exterior Entrance Walls
• Courtyards & Residential Exteriors
• Commercial Buildings
• Office Building Exteriors
• Hotels & Hospitality Exteriors
• Parks & Public Areas
• Architectural Accent Lighting
