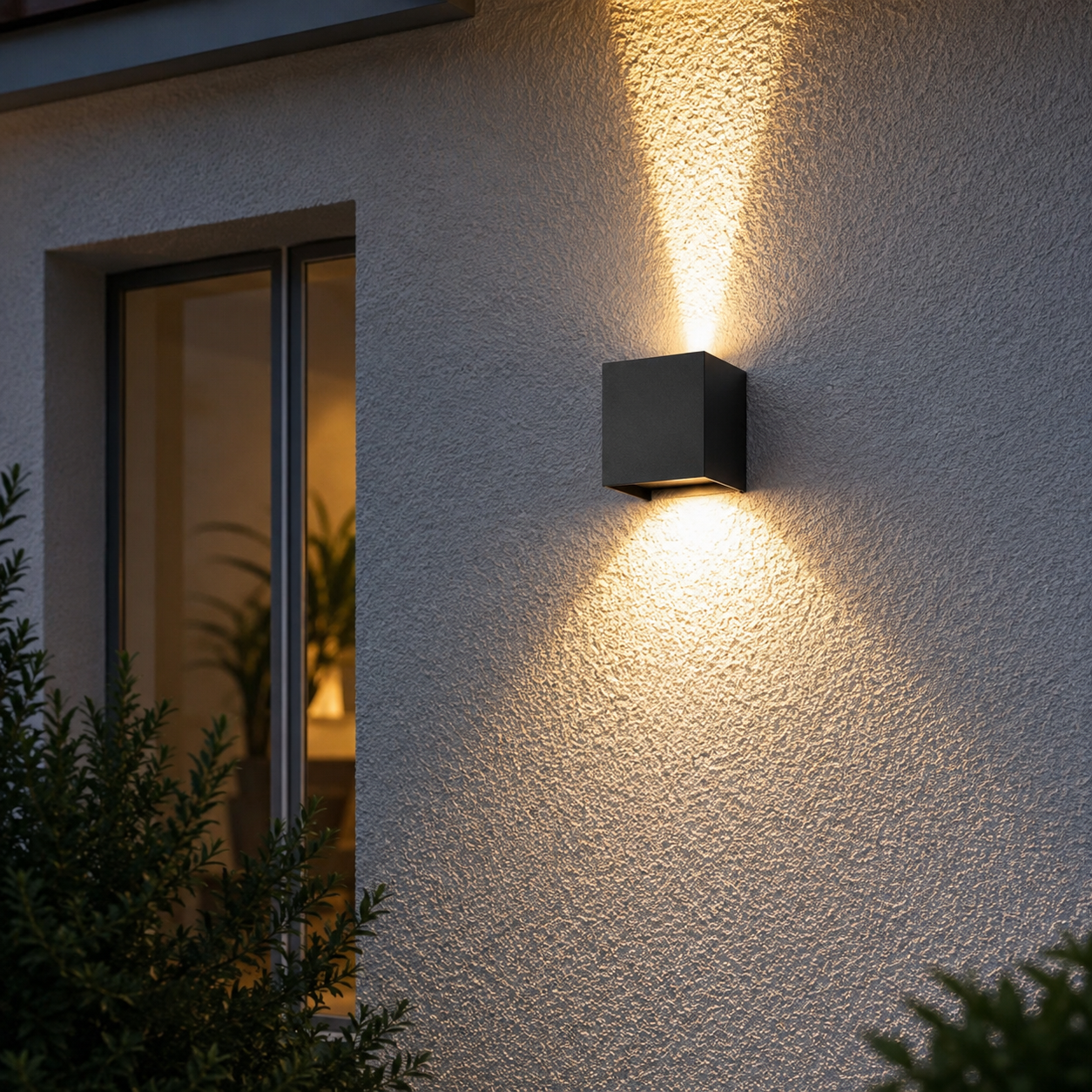

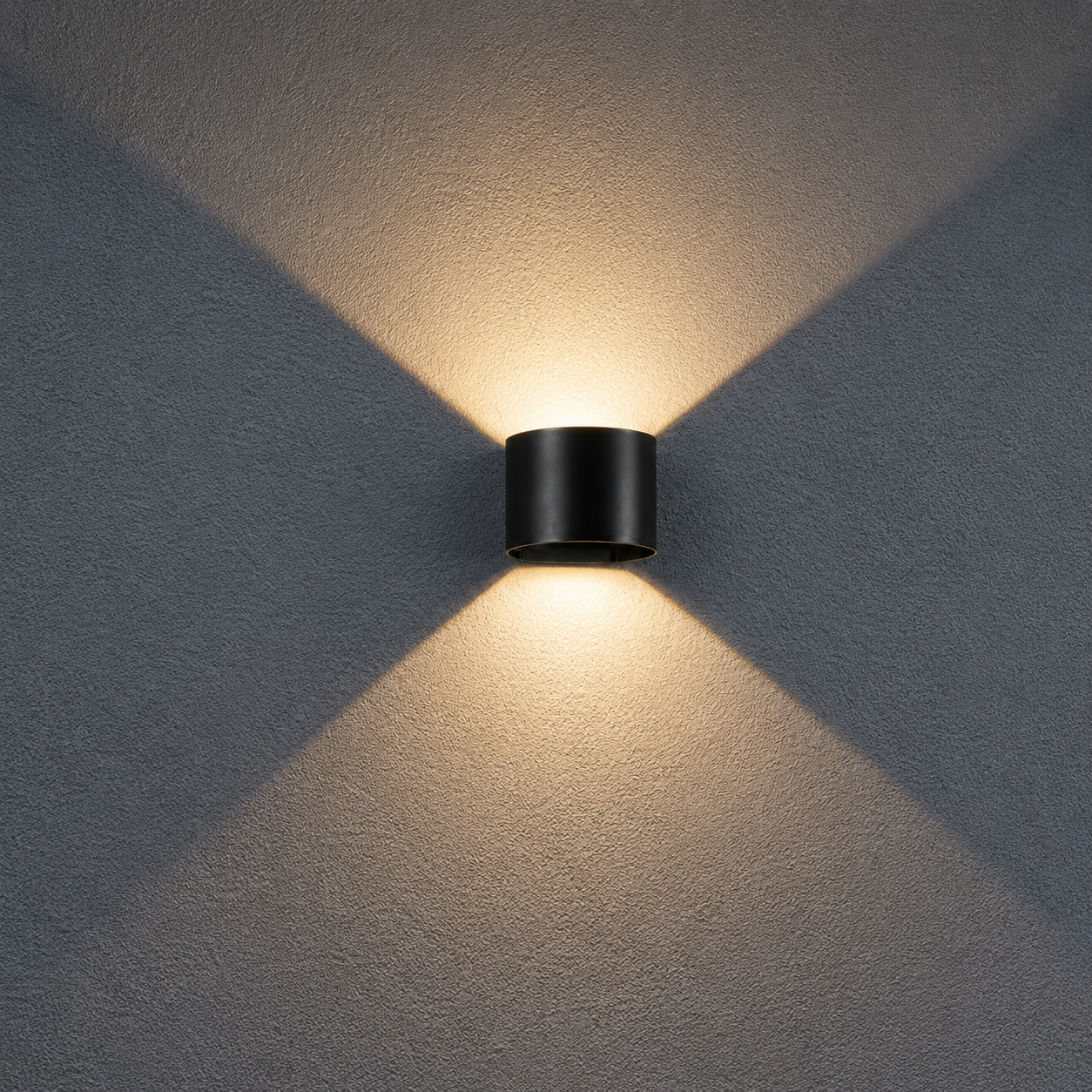

MB-C009 / MB23-0431 IP54 Up & Down LED Wall Light

PRODUCT OVERVIEW

• MB-C009 / MB23-0431 is an IP54 up-and-down wall-light series designed for exterior walls, entrances, courtyards, commercial buildings and architectural accent lighting.
• MB-C009 features a compact square housing, while MB23-0431 uses a curved architectural form for different façade and wall-design requirements.
• The series is available with integrated LED configurations and replaceable G9 lamp options.

KEY FEATURES

• Up & Down Light Distribution
  Dual-direction illumination creates decorative light patterns above and below the fixture.

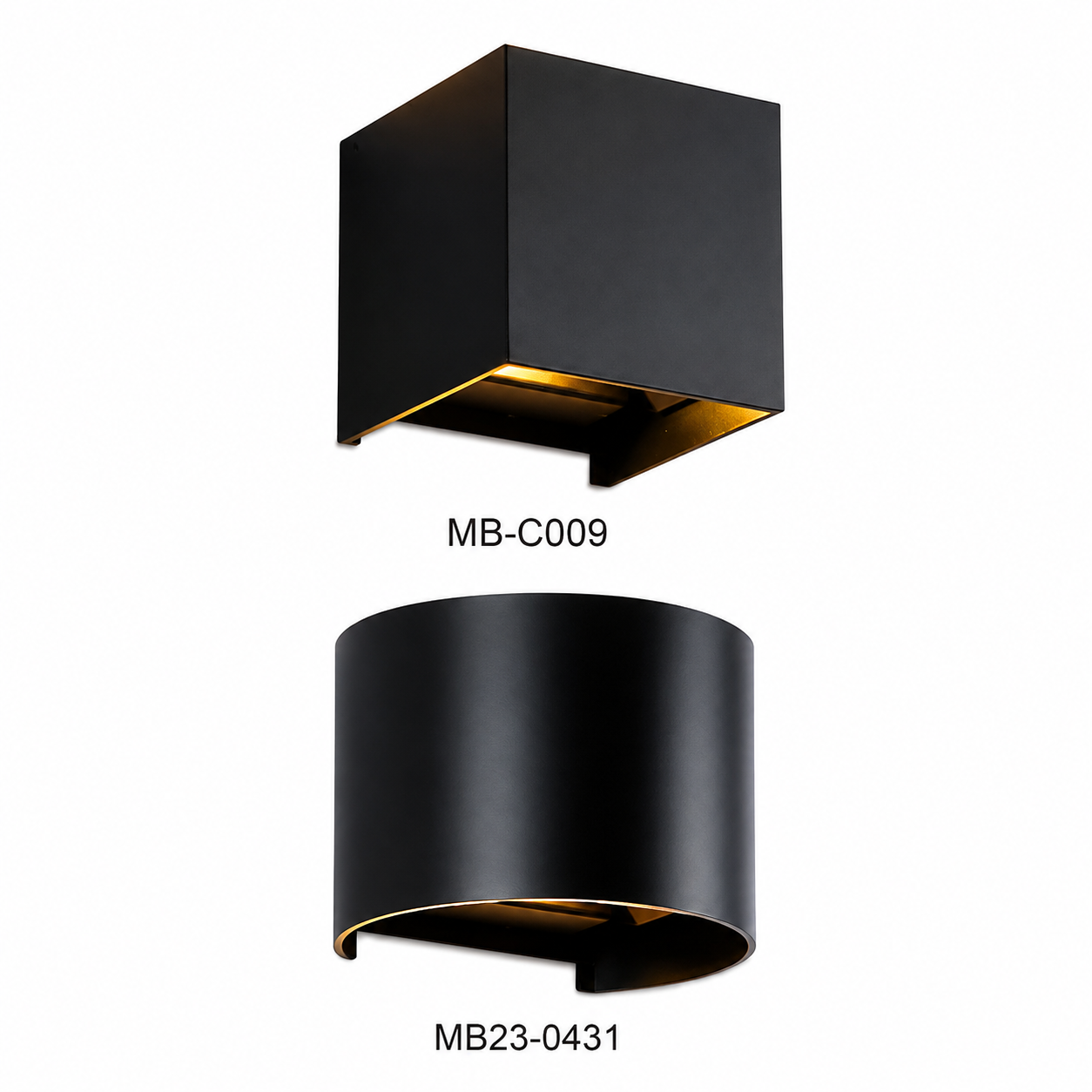

• Two Architectural Body Styles
  Square MB-C009 and curved MB23-0431 versions suit different exterior design concepts.
• IP54 Protection
  Suitable for covered outdoor walls and indoor/outdoor architectural applications.
• Integrated LED & G9 Options
  Choose integrated LED for efficient fixed-output lighting or G9 versions for replaceable lamp flexibility.
• 2×3W / 2×7W LED Options
  Multiple output levels cover compact decorative lighting through stronger architectural wall illumination.
• Aluminum + Glass Construction
  Aluminum housing with glass diffuser provides a durable architectural finish.
• Wide CCT Range
  2700K-6000K supports warm, neutral and cool white lighting requirements.
• Multiple Body Finishes
  Available in black, dark gray and silver gray.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Light Distribution: Up & Down
• Lighting Effect: Decorative wall pattern / architectural accent lighting
• Optical Material: Glass Diffuser

TECHNICAL OPTIONS

• Product Type: IP54 Up & Down Outdoor LED Wall Light
• Model: MB-C009 / MB-C009L / MB23-0431
• Power: 2×3W / 2×7W / G9 Lamp Dependent
• Dimension: 100×100×100mm / 120×120×120mm / 135×115×95mm
• Material: Aluminum Housing + Glass Diffuser
• Installation: Wall Mounted
• Mounting Location: Wall
• Application Environment: Indoor / Outdoor
• Protection Rating: IP54
• Voltage: AC110-265V (LED Version)
• Power Factor: 0.6 (LED Version)
• CCT: 2700K-6000K
• CRI: Ra80-90
• Luminous Flux: 420 lm / 980 lm
• Body Color: Black / Dark Gray / Silver Gray
• Control: On / Off

RECOMMENDED APPLICATIONS

• Exterior Building Walls
• Residential Entrances & Courtyards
• Commercial Buildings
• Office Building Exteriors
• Hotels & Hospitality Areas
• Fences & Boundary Walls
• Parks & Public Areas
• Architectural Accent Lighting
