MB-40237 / MB-40238 IP54 Outdoor LED Wall Light

PRODUCT OVERVIEW

• MB-40237 / MB-40238 is a compact IP54 wall-light series designed for exterior walls, entrances, courtyards, commercial buildings and architectural accent lighting.

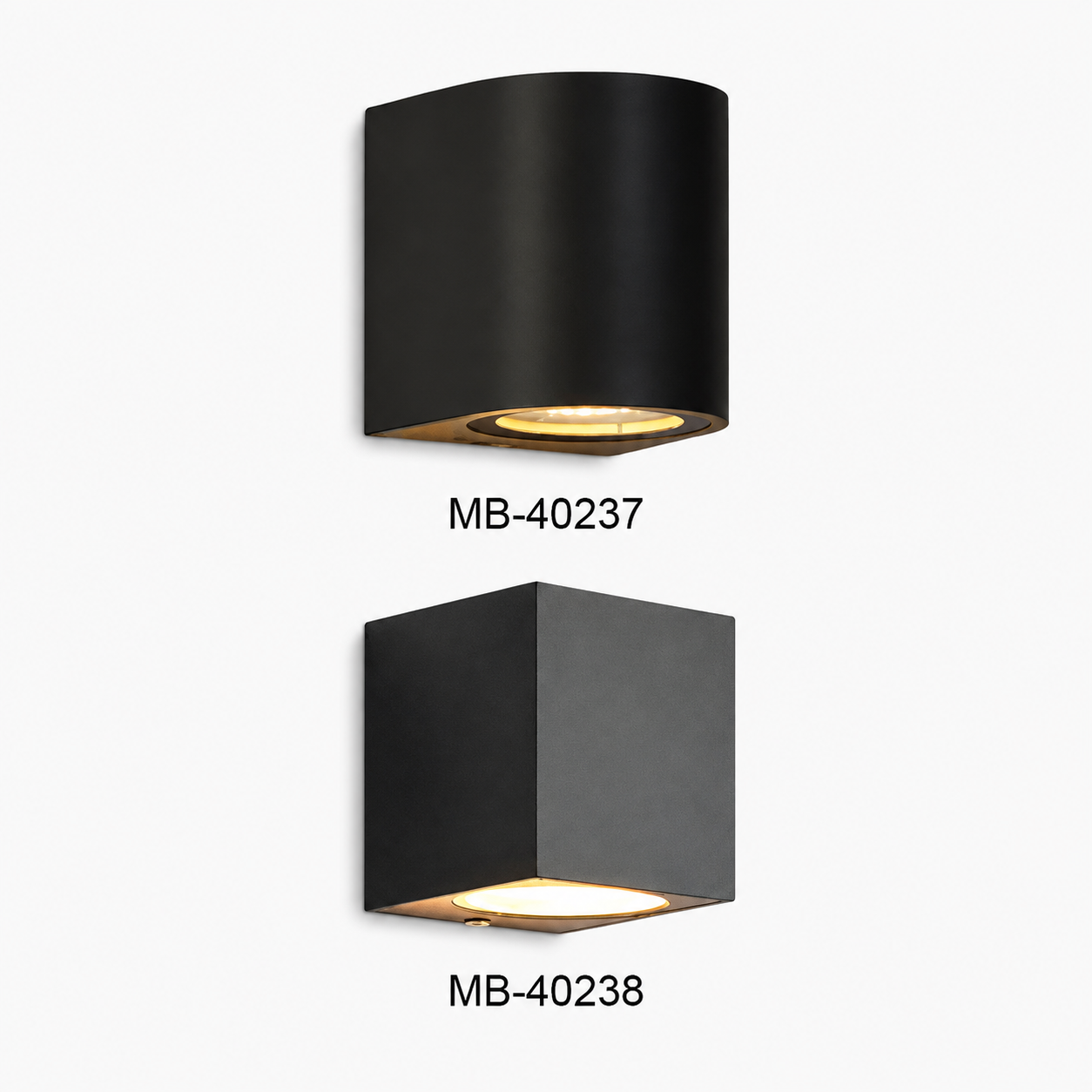

• MB-40237 features a softly curved housing, while MB-40238 uses a clean square geometric form, allowing different architectural styles to be matched within the same product family.
• The series is available in a 5W integrated LED version as well as GU10 / G5.3 lamp configurations.

KEY FEATURES

• Two Architectural Shapes
  Choose between the curved MB-40237 or square MB-40238 housing for different façade and wall-design requirements.
• IP54 Protection
  Suitable for covered exterior walls and indoor/outdoor architectural applications.
• 5W Integrated LED
  Compact 5W LED version delivers 350 lm for decorative and accent wall lighting.
• GU10 / G5.3 Option
  Replaceable lamp versions are available for projects requiring flexible light-source selection.
• Five Reflector Beam Angles
  15° / 24° / 38° / 45° / 60° reflector options support narrow accent beams through wider wall illumination.
• Aluminum + Glass Construction
  Aluminum housing with glass diffuser provides a durable architectural finish.
• Wide CCT Range
  2700K-6000K supports warm, neutral and cool white lighting requirements.
• Multiple Body Finishes
  Available in black, dark gray and silver gray.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Beam Angle: 15° / 24° / 38° / 45° / 60°
• Optics: Reflector
• Lighting Effect: Focused wall accent / decorative façade illumination

TECHNICAL OPTIONS

• Product Type: IP54 Outdoor Architectural LED Wall Light
• Model: MB-40237 / MB-40238
• Power: 5W / GU10 / G5.3
• Dimension: 65×80×80mm / 68×92×81mm
• Material: Aluminum Housing + Glass Diffuser
• Installation: Wall Mounted
• Mounting Location: Wall
• Application Environment: Indoor / Outdoor
• Protection Rating: IP54
• Voltage: AC110-265V (LED Version)
• Power Factor: 0.6 (LED Version)
• CCT: 2700K-6000K
• CRI: Ra80-90
• Luminous Flux: 350 lm (LED Version)
• Beam Angle: 15° / 24° / 38° / 45° / 60°
• Body Color: Black / Dark Gray / Silver Gray
• Control: On / Off

RECOMMENDED APPLICATIONS

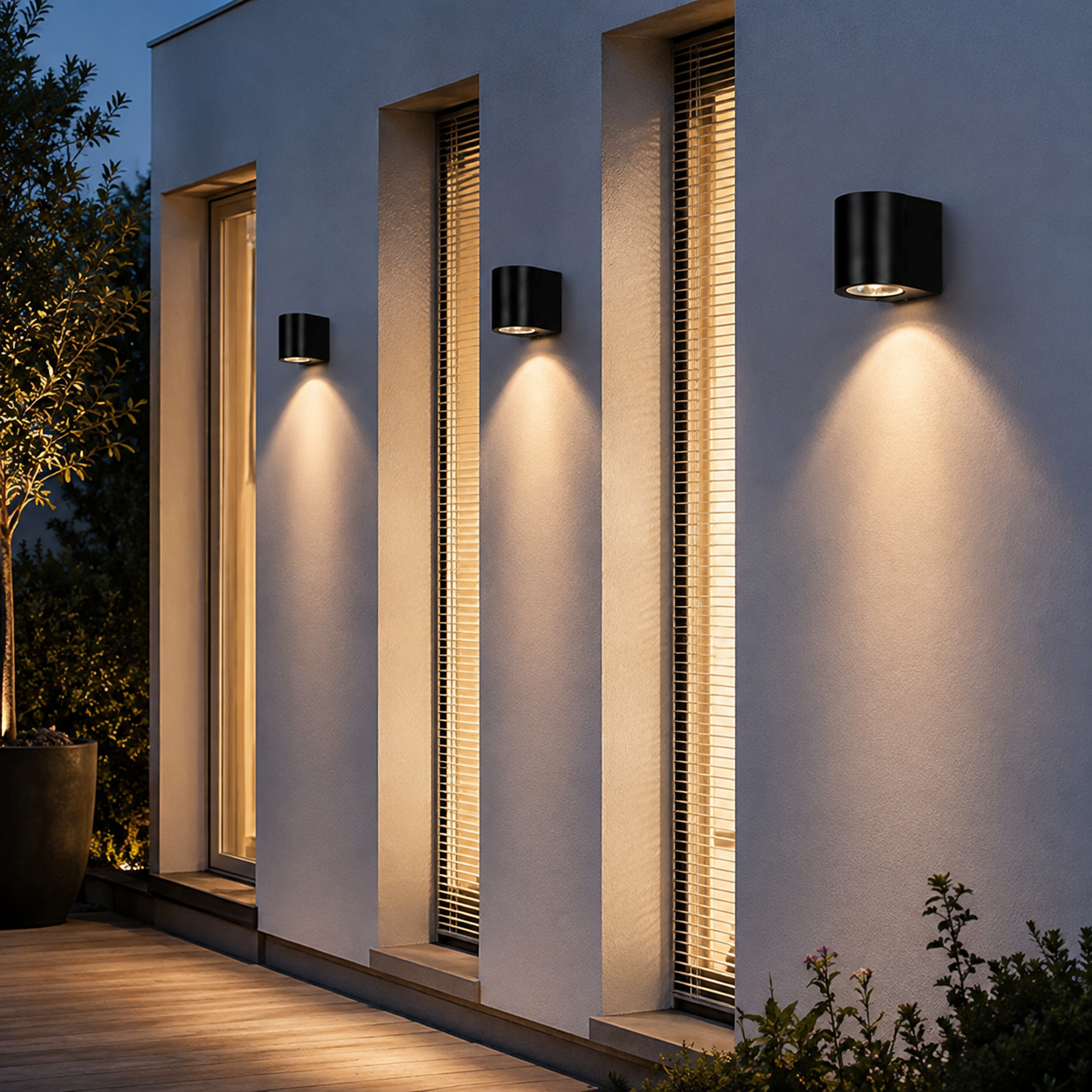

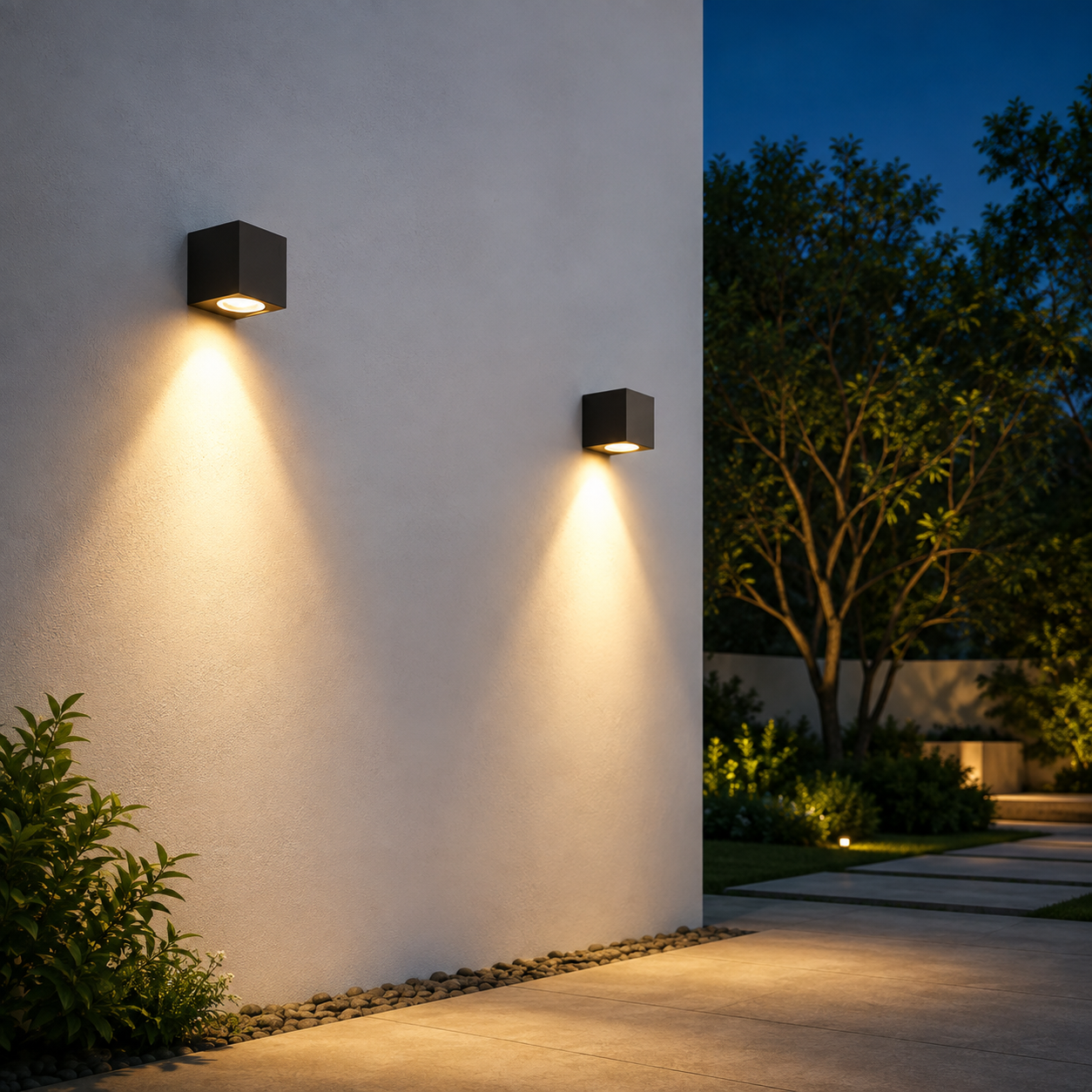

• Exterior Building Walls
• Residential Entrances & Courtyards
• Commercial Buildings
• Office Building Exteriors
• Hotels & Hospitality Areas
• Fences & Boundary Walls
• Parks & Public Areas
• Architectural Accent Lighting
