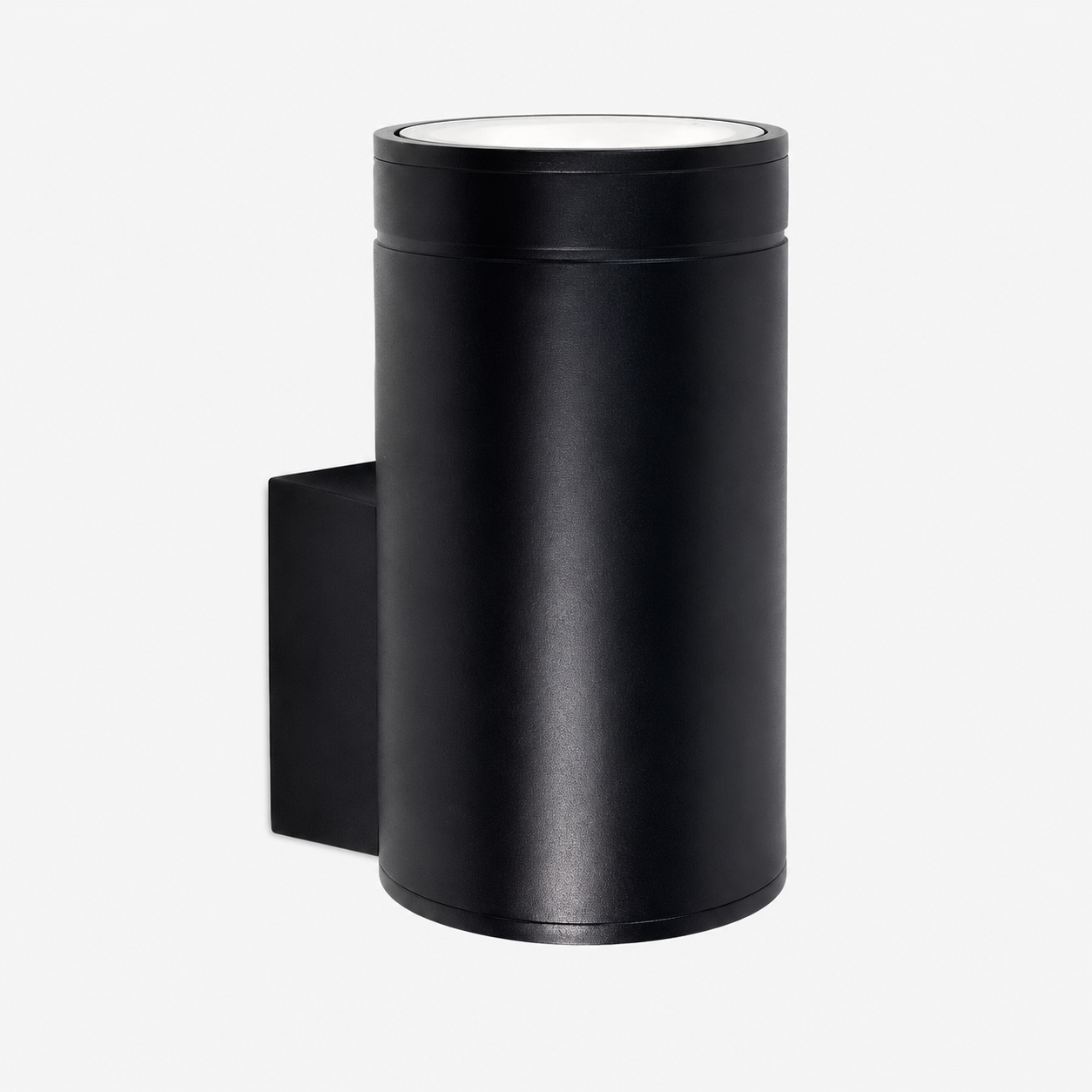

MB19-3001 IP54 Outdoor LED Wall Light

PRODUCT OVERVIEW

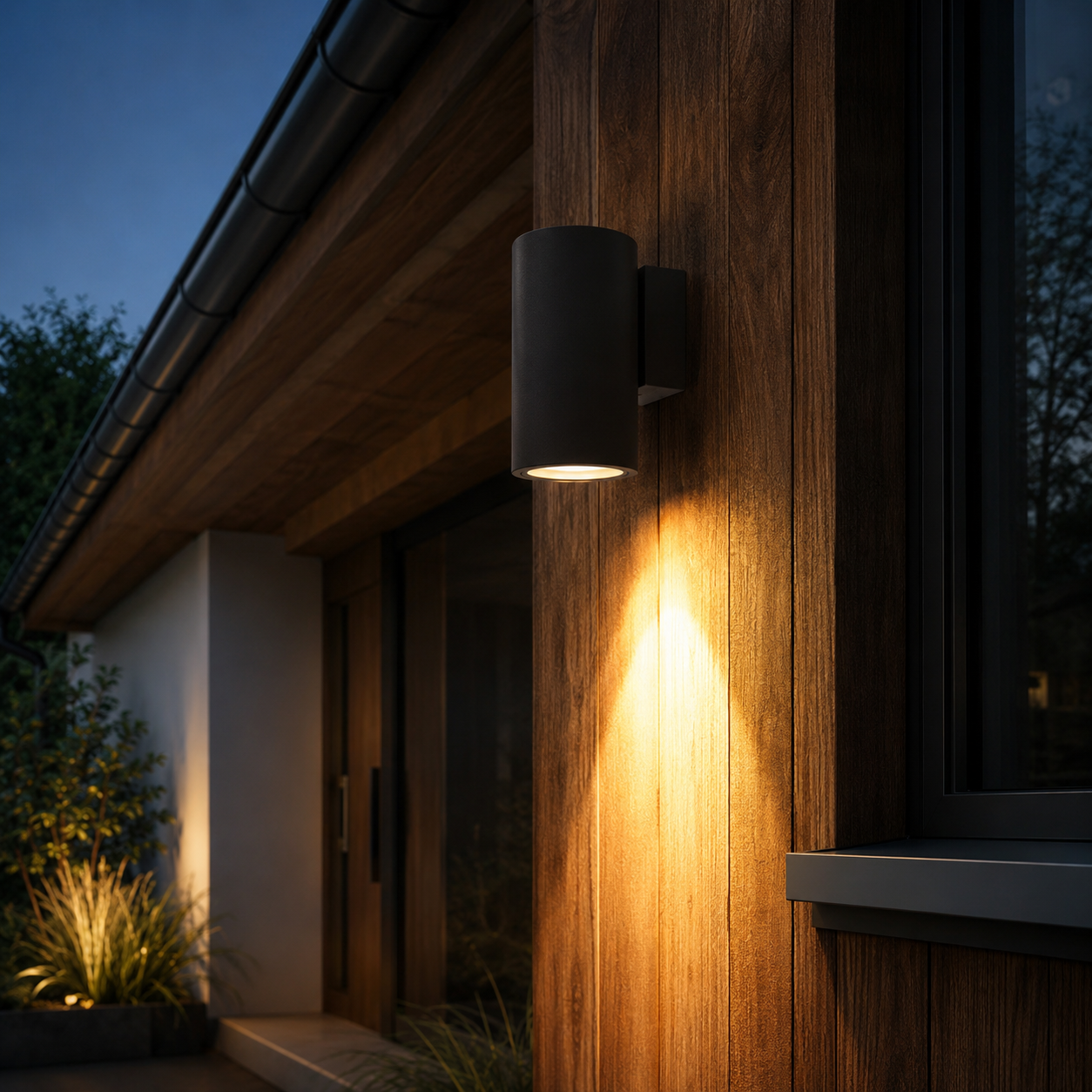

• MB19-3001 is an IP54 cylindrical wall-mounted luminaire designed for exterior walls, fences, courtyards, commercial buildings, office buildings and parks.
• The series is available in 5W, 10W and 15W integrated LED versions, together with a GU10 configuration.
• Multiple reflector beam angles allow the fixture to be used for general wall illumination or decorative architectural accent lighting.

KEY FEATURES

• IP54 Outdoor Protection
  Suitable for covered exterior walls and indoor/outdoor architectural applications.
• Multiple Power & Size Options
  5W, 10W and 15W integrated LED models are available in three housing diameters.
• GU10 Option
  A GU10 lamp configuration is available for projects requiring a replaceable light source.
• Five Beam Angle Options
  15° / 24° / 38° / 45° / 60° reflector options provide flexible accent and wall-lighting effects.
• Aluminum + Glass Construction
  Aluminum housing with glass diffuser provides a durable architectural finish.
• Wide CCT Range
  2700K-6000K supports warm to cool white lighting requirements.
• Multiple Body Finishes
  Black, dark gray and silver gray finishes are available.
• On/Off Control
  Simple built-in operating configuration for reliable wall-lighting applications.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Beam Angle: 15° / 24° / 38° / 45° / 60°
• Optics: Reflector
• Lighting Effect: Focused wall accent / general wall illumination

TECHNICAL OPTIONS

• Product Type: IP54 Outdoor Cylindrical LED Wall Light
• Model: MB19-3001 Series
• Power: 5W / 10W / 15W / GU10
• Dimension: Ø65×97×160mm / Ø90×122×160mm / Ø108×140×160mm
• Material: Aluminum Housing + Glass Diffuser
• Installation: Wall Mounted
• Mounting Location: Wall
• Application Environment: Indoor / Outdoor
• Protection Rating: IP54
• Voltage: AC110-265V
• Power Factor: 0.6
• CCT: 2700K-6000K
• CRI: Ra80-90
• Luminous Flux: 350 lm / 700 lm / 1050 lm
• Beam Angle: 15° / 24° / 38° / 45° / 60°
• Body Color: Black / Dark Gray / Silver Gray
• Control: On / Off

RECOMMENDED APPLICATIONS

• Exterior Building Walls
• Courtyards & Residential Exteriors
• Commercial Buildings
• Office Building Exteriors
• Parks & Public Areas
• Fences & Boundary Walls
• Architectural Accent Lighting
• Indoor Feature Walls
