PRODUCT OVERVIEW

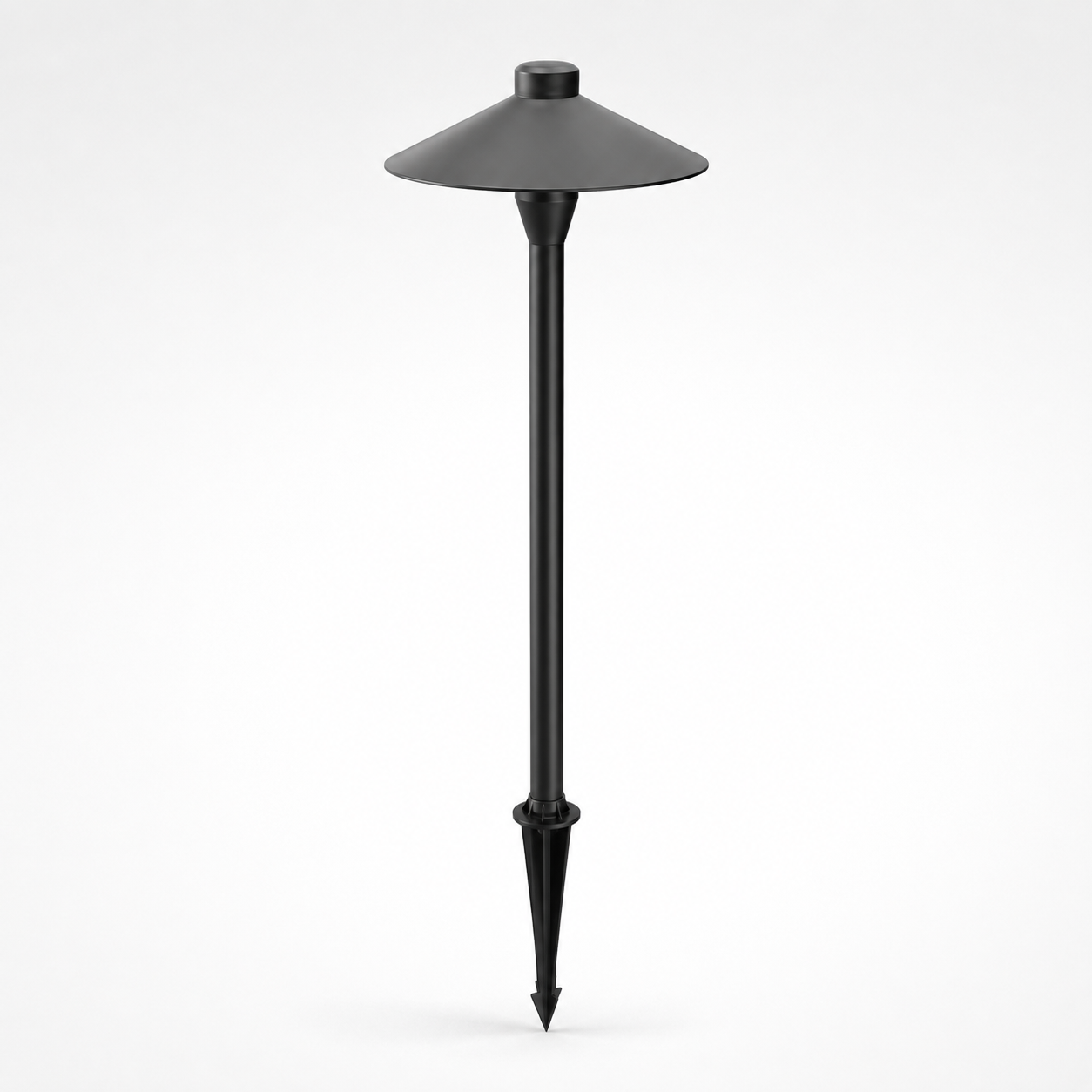

The MB19-C014 is an IP54 outdoor LED bollard light designed for pathways, parks, courtyards, villas, residential communities and architectural landscapes. Its slim post body and wide circular top create a distinctive contemporary profile with soft downward illumination.
The fixture is available in two electrical configurations: 7W with AC110-265V input and 490 lm output, or 5W with DC12/24V input and 350 lm output. Both versions use a 200mm top diameter and a 702mm body height for coordinated landscape lighting applications.
KEY FEATURES
- IP54 Outdoor Protection
Suitable for pathways, gardens, courtyards, parks and other exterior landscape environments. - 5W / 7W Power Options
Two power configurations support both low-voltage and mains-voltage landscape projects. - 350-490 lm Output
Provides soft guidance and ambient illumination for pedestrian and garden areas. - Wide-Cap Architectural Design
Ø200mm top creates a distinctive visual identity while directing light downward. - Durable Aluminum Housing
Aluminum construction provides structural durability and reliable outdoor performance. - PC Diffuser
PC optical diffuser supports even light transmission and outdoor durability. - Ground Insert Installation
Insert-type mounting allows installation in lawns, soil and landscaped areas. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Power | Luminous Flux | Top Diameter (A) | Body Height (B) | CCT | PF | Voltage | CRI |
|---|
| MB19-C014 | 7W | 490 lm | Ø200mm | 702mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB19-C014 | 5W | 350 lm | Ø200mm | 702mm | 2700K-6000K | 0.6 | DC12/24V | Ra80-90 |
TECHNICAL OPTIONS
- Protection Rating: IP54
- Power: 5W / 7W
- Luminous Flux: 350 lm / 490 lm
- Input Voltage: DC12/24V / AC110-265V
- CCT: 2700K-6000K
- CRI: Ra80-90
- Power Factor: 0.6
- Housing Material: Aluminum
- Diffuser Material: PC
- Operating Mode: Built-in LED
- Installation: Ground Insert
- Mounting Location: Underground / Soil
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Garden Paths & Walkways
- Villa Gardens & Courtyards
- Parks & Public Landscapes
- Residential Communities
- Pedestrian Areas
- Hotels & Resort Landscapes
- Architectural Landscape Lighting
