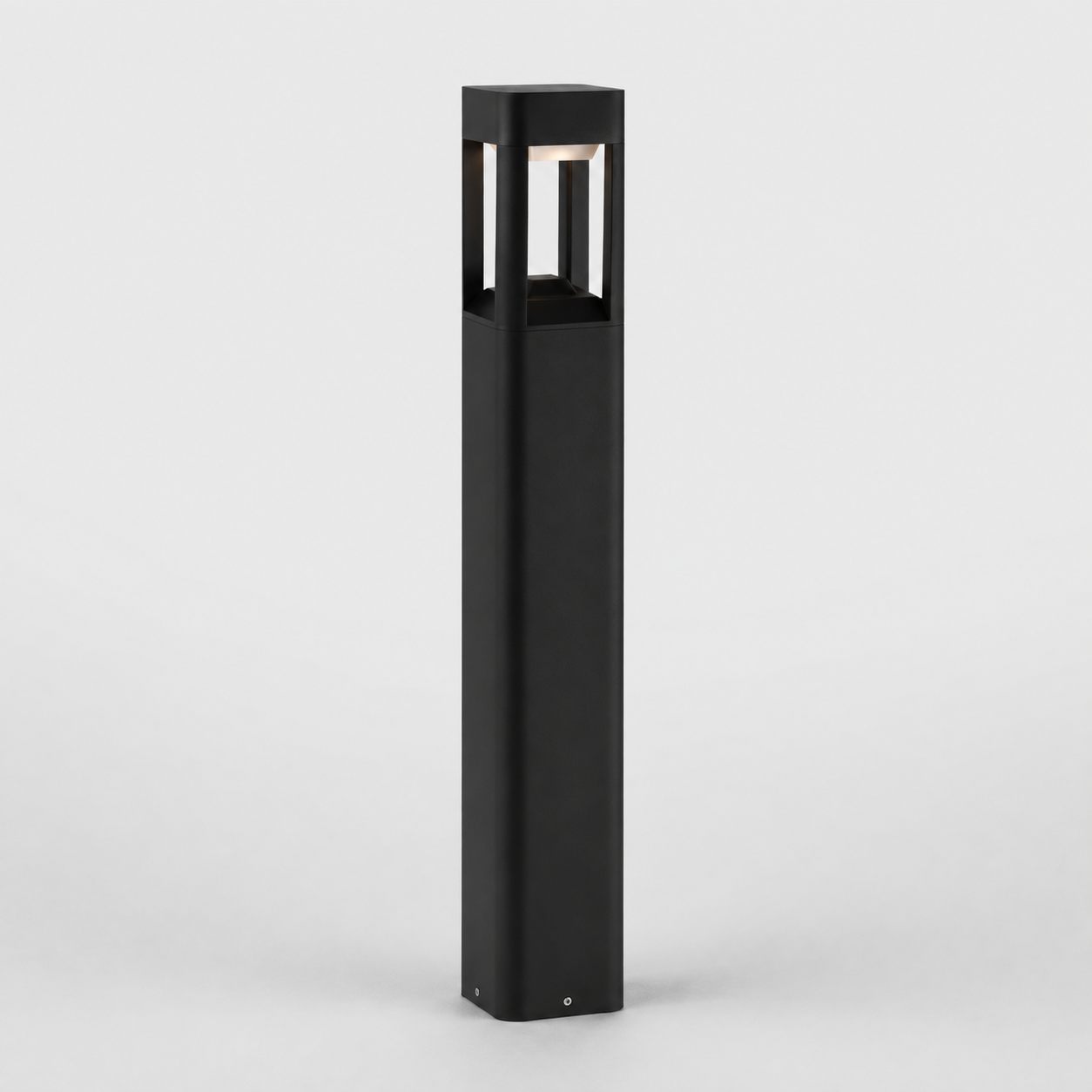

PRODUCT OVERVIEW
The MB19-C001 Series is an IP54 outdoor LED bollard light designed for gardens, pathways, parks, villas, pedestrian streets and architectural landscapes. Its square open-frame top section creates a distinctive four-direction decorative light effect while maintaining a clean contemporary appearance.
The series uses a built-in 10W LED light source with 700 lm output and is available in three overall heights: 300mm, 600mm and 900mm. This allows coordinated landscape lighting layouts across different zones while maintaining a consistent architectural design language.
KEY FEATURES
- IP54 Outdoor Protection
Suitable for gardens, pathways, parks, residential landscapes and other outdoor environments. - Four-Direction Decorative Lighting
Open square-frame optical structure creates a distinctive radial light pattern for pathways, lawns and landscape spaces. - Three Height Options
Available in 300mm, 600mm and 900mm heights for flexible landscape composition. - 10W Integrated LED
Built-in LED provides 700 lm output with consistent performance across all three sizes. - Modern Architectural Design
Minimal square geometry integrates well with villas, residential communities and commercial landscapes. - Durable Aluminum Housing
Aluminum construction provides structural durability and reliable outdoor performance. - PC Diffuser
PC optical diffuser supports even light transmission and outdoor durability. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Power | Luminous Flux | Width (A) | Body Height (B) | Overall Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB19-C001A | 10W | 700 lm | 120mm | 100mm | 300mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB19-C001B | 10W | 700 lm | 120mm | 400mm | 600mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB19-C001C | 10W | 700 lm | 120mm | 700mm | 900mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
TECHNICAL OPTIONS
- Protection Rating: IP54
- Input Voltage: AC110-265V
- Power: 10W
- Luminous Flux: 700 lm
- CCT: 2700K-6000K
- CRI: Ra80-90
- Power Factor: 0.6
- Housing Material: Aluminum
- Diffuser Material: PC
- Operating Mode: Built-in LED
- Installation: Surface Mounted
- Mounting Location: Above Ground
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray

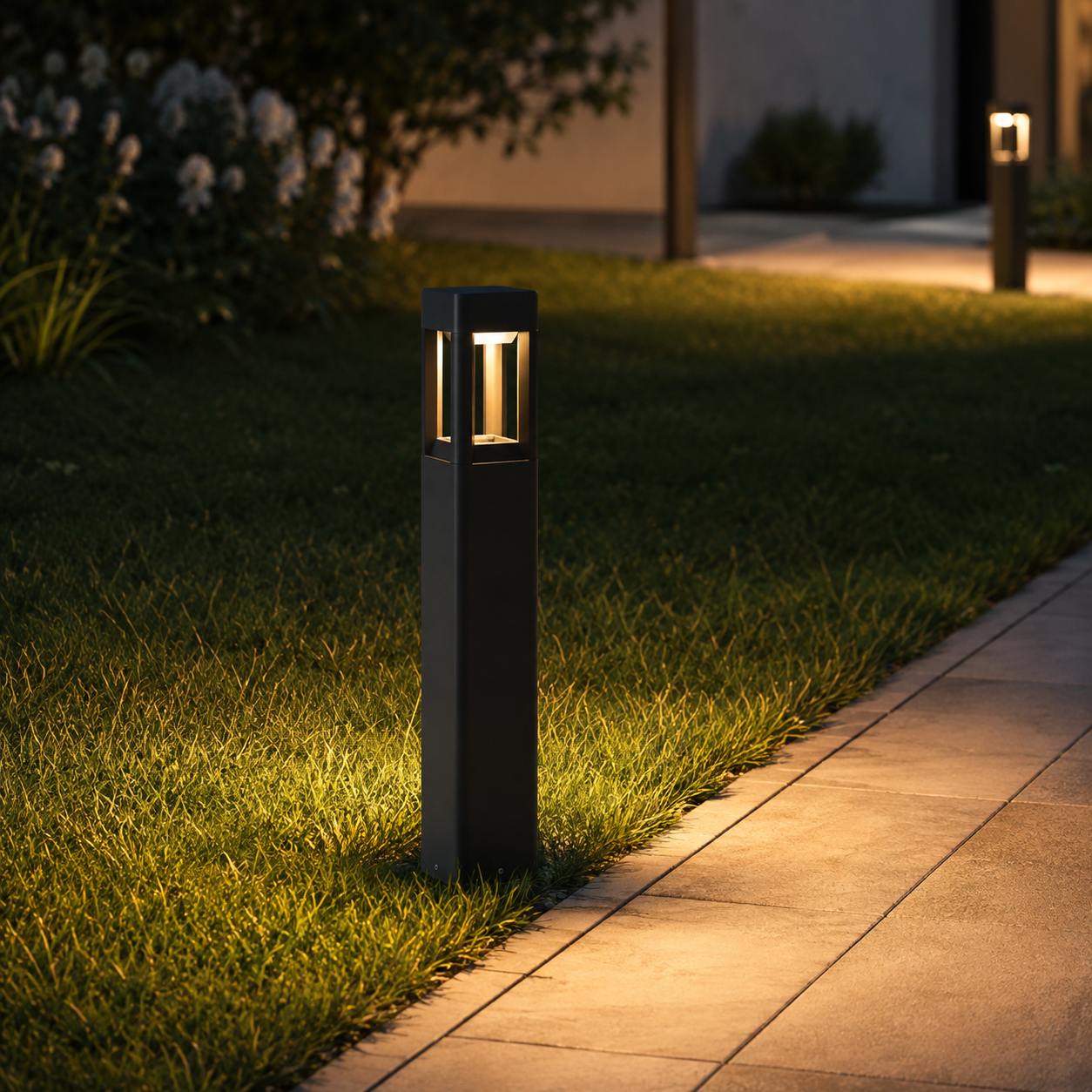

RECOMMENDED APPLICATIONS
- Garden Paths & Lawns
- Parks & Public Landscapes
- Villa Gardens & Courtyards
- Pedestrian Streets & Walkways
- Residential Communities
- Hotels & Resort Landscapes
- Architectural Landscape Lighting
