PRODUCT OVERVIEW

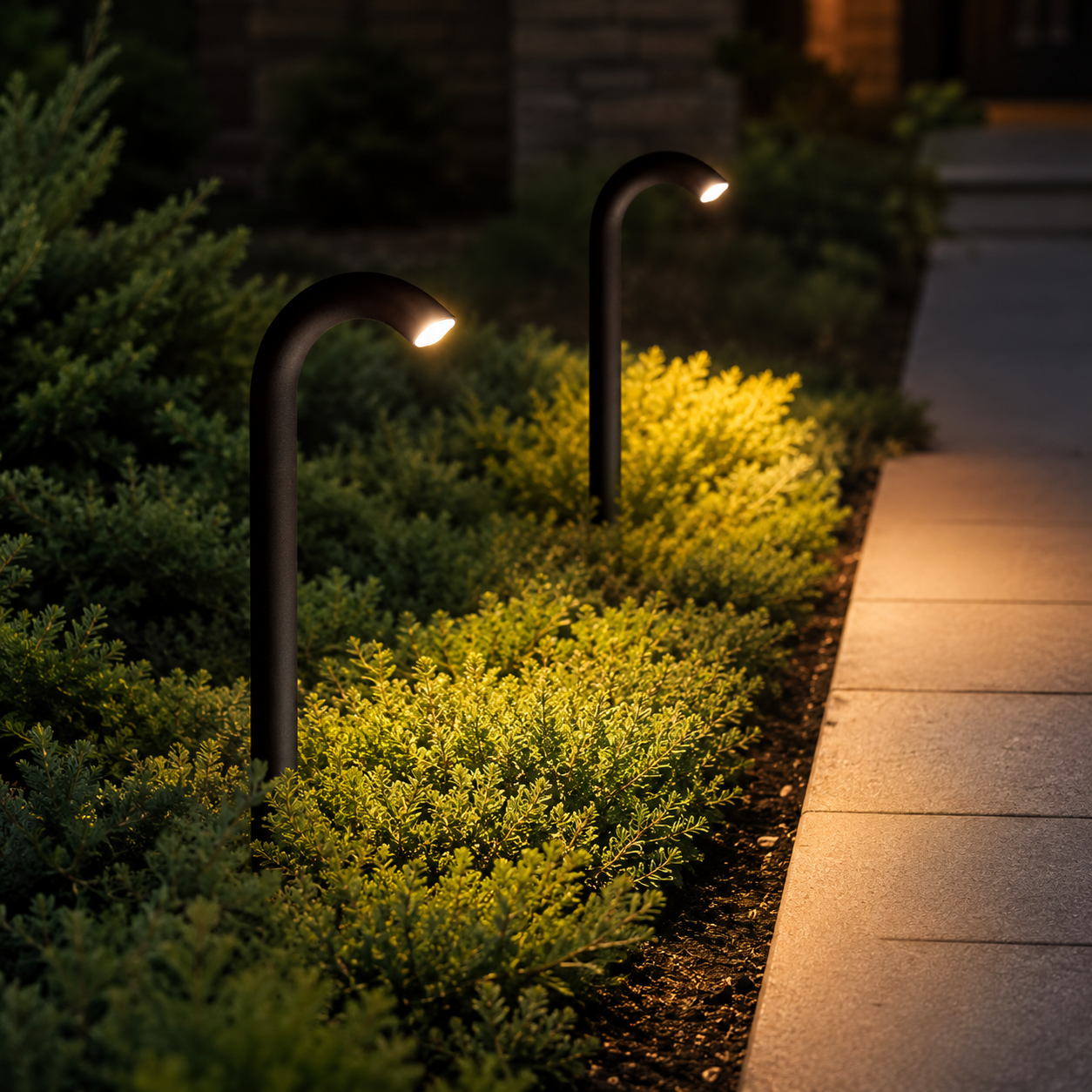

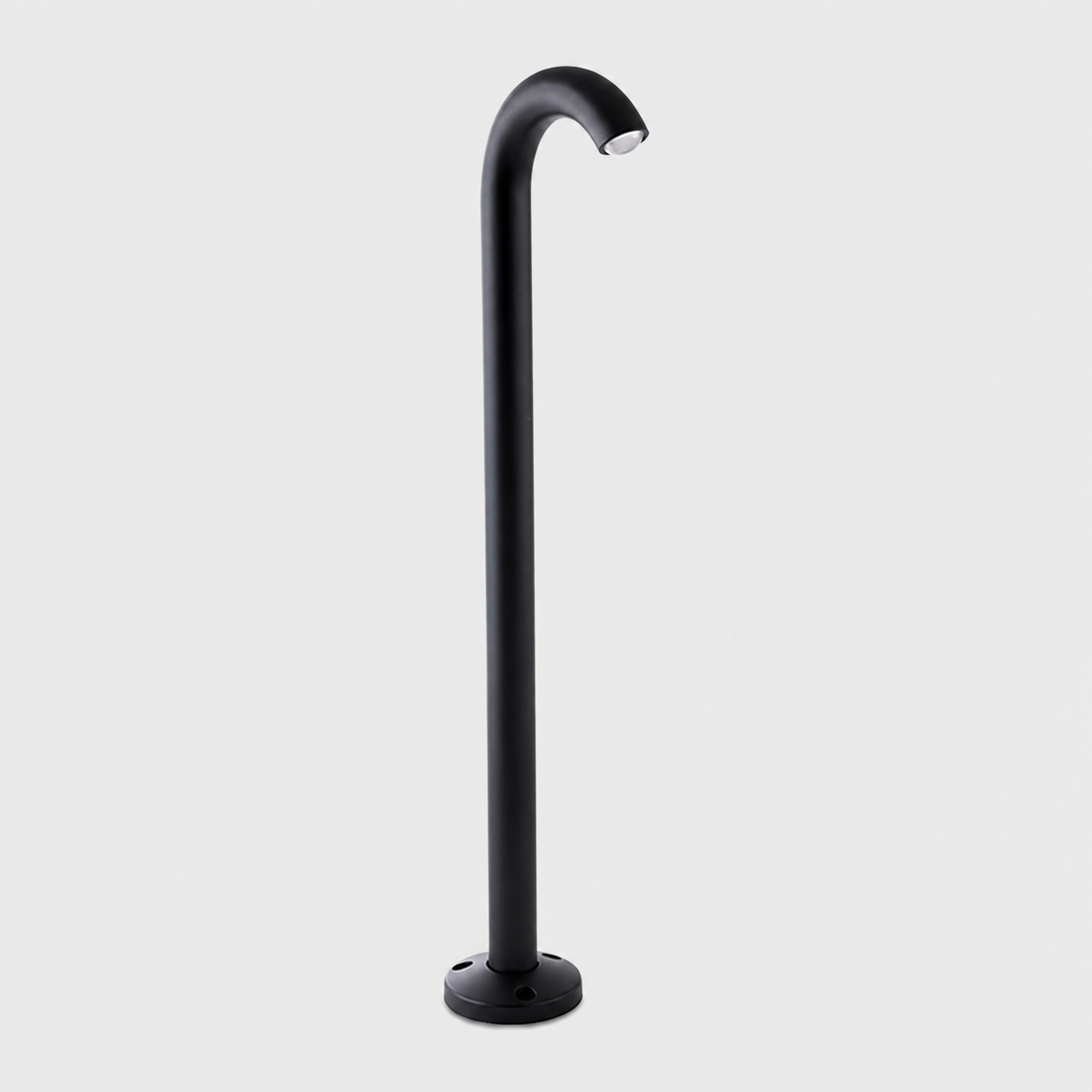

The MB18-C014 is an IP54 outdoor LED bollard light designed for pathways, gardens, parks, villas, residential communities and architectural landscapes. Its distinctive curved form directs light downward to create comfortable pathway illumination while reducing unnecessary upward glare.
The fixture uses a built-in 5W LED light source with 350 lm output, a 600mm overall height and a compact optical head. The aluminum housing and PC diffuser provide a durable solution for modern exterior landscape projects.
KEY FEATURES
- IP54 Outdoor Protection
Suitable for pathways, gardens, courtyards, parks and other exterior landscape environments. - Distinctive Curved Design
Unique hook-shaped profile adds an architectural element to modern landscape projects. - Directional Downlight Effect
Downward light distribution improves pathway visibility while creating a soft layered lighting effect. - 5W Integrated LED
Built-in LED provides 350 lm output for energy-efficient landscape and guidance lighting. - 600mm Bollard Height
Suitable for pathway edges, garden borders and pedestrian circulation areas. - Durable Aluminum Housing
Aluminum construction provides structural durability and reliable outdoor performance. - PC Diffuser
PC optical diffuser provides clean light transmission and outdoor durability. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Lamp Type | Power | Luminous Flux | A | B | Overall Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB18-C014 | LED | 5W | 350 lm | Ø30mm | Ø90mm | 600mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
TECHNICAL OPTIONS
- Protection Rating: IP54
- Input Voltage: AC110-265V
- Power: 5W
- Luminous Flux: 350 lm
- CCT: 2700K-6000K
- CRI: Ra80-90
- Power Factor: 0.6
- Housing Material: Aluminum
- Diffuser Material: PC
- Operating Mode: Built-in LED
- Installation: Surface Mounted
- Mounting Location: Above Ground
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Garden Paths & Walkways
- Villa Gardens & Courtyards
- Parks & Public Landscapes
- Residential Communities
- Pedestrian Areas
- Hotels & Resort Landscapes
- Architectural Landscape Lighting
