PRODUCT OVERVIEW

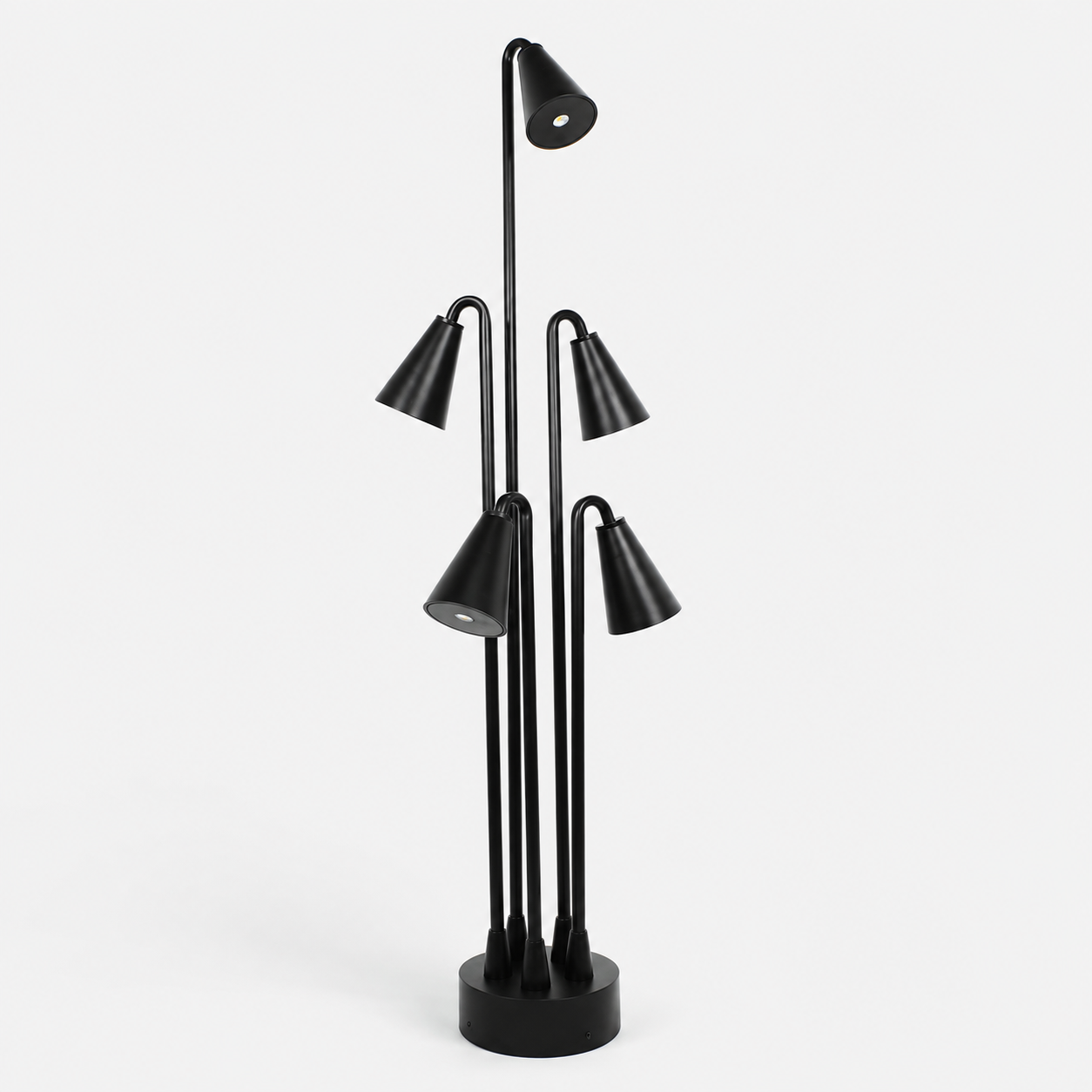

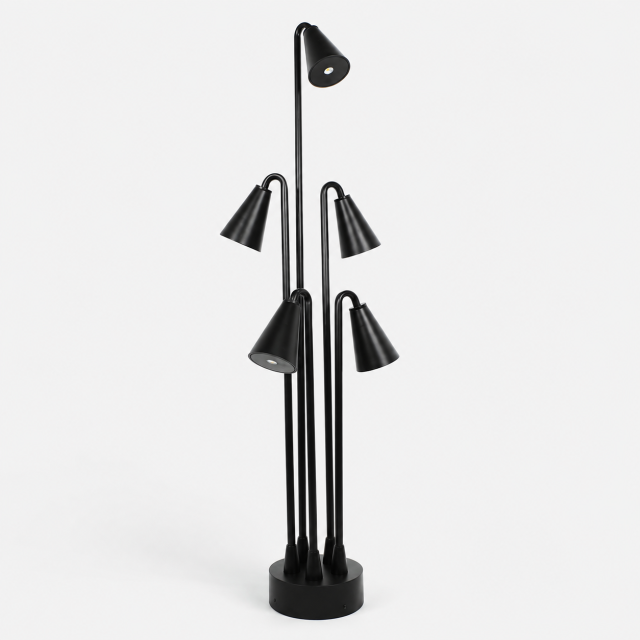

The MB23-0202 Series is an IP54 outdoor multi-head LED bollard light designed for gardens, pathways, lawns, villas, residential communities and architectural landscapes. Its slim vertical structure supports one, three or five adjustable spotlight heads, allowing flexible directional lighting within a consistent landscape design.
The series uses built-in LED light sources with 3W per head. Total system power ranges from 3W to 15W with 210-1050 lm output. Adjustable spotlight heads allow the light to be directed toward pathways, planting areas and landscape features.
KEY FEATURES
- IP54 Outdoor Protection
Suitable for pathways, gardens, lawns, courtyards and other exterior landscape environments. - 1 / 3 / 5 Adjustable Light Heads
Multiple configurations support different lighting layouts and landscape requirements. - 3W Per Head
Efficient built-in LED modules provide flexible total power from 3W to 15W. - 210-1050 lm Output
Different head quantities provide scalable illumination for small paths through wider garden zones. - Directional Accent Lighting
Adjustable spotlight heads allow precise illumination of pathways, plants and architectural features. - Durable Aluminum Housing
Aluminum construction provides structural durability and reliable outdoor performance. - Glass Diffuser
Glass optical covers provide clean light transmission and outdoor durability. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Configuration | Power | Luminous Flux | Head Size (A) | Base Diameter (B) | C1 | C2 | C3 | CCT | PF | Voltage | CRI |
|---|
| MB23-020201 | 1 Head | 1×3W | 210 lm | Ø75mm | Ø150mm | 600mm | - | - | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB23-020203 | 3 Heads | 3×3W | 630 lm | Ø75mm | Ø150mm | 600mm | 800mm | 1000mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB23-020205 | 5 Heads | 5×3W | 1050 lm | Ø75mm | Ø150mm | 600mm | 800mm | 1000mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
TECHNICAL OPTIONS
- Protection Rating: IP54
- Input Voltage: AC110-265V
- Power: 3W / 9W / 15W
- Luminous Flux: 210 lm / 630 lm / 1050 lm
- CCT: 2700K-6000K
- CRI: Ra80-90
- Power Factor: 0.6
- Housing Material: Aluminum
- Diffuser Material: Glass
- Operating Mode: Built-in LED
- Installation: Surface Mounted
- Mounting Location: Above Ground
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray

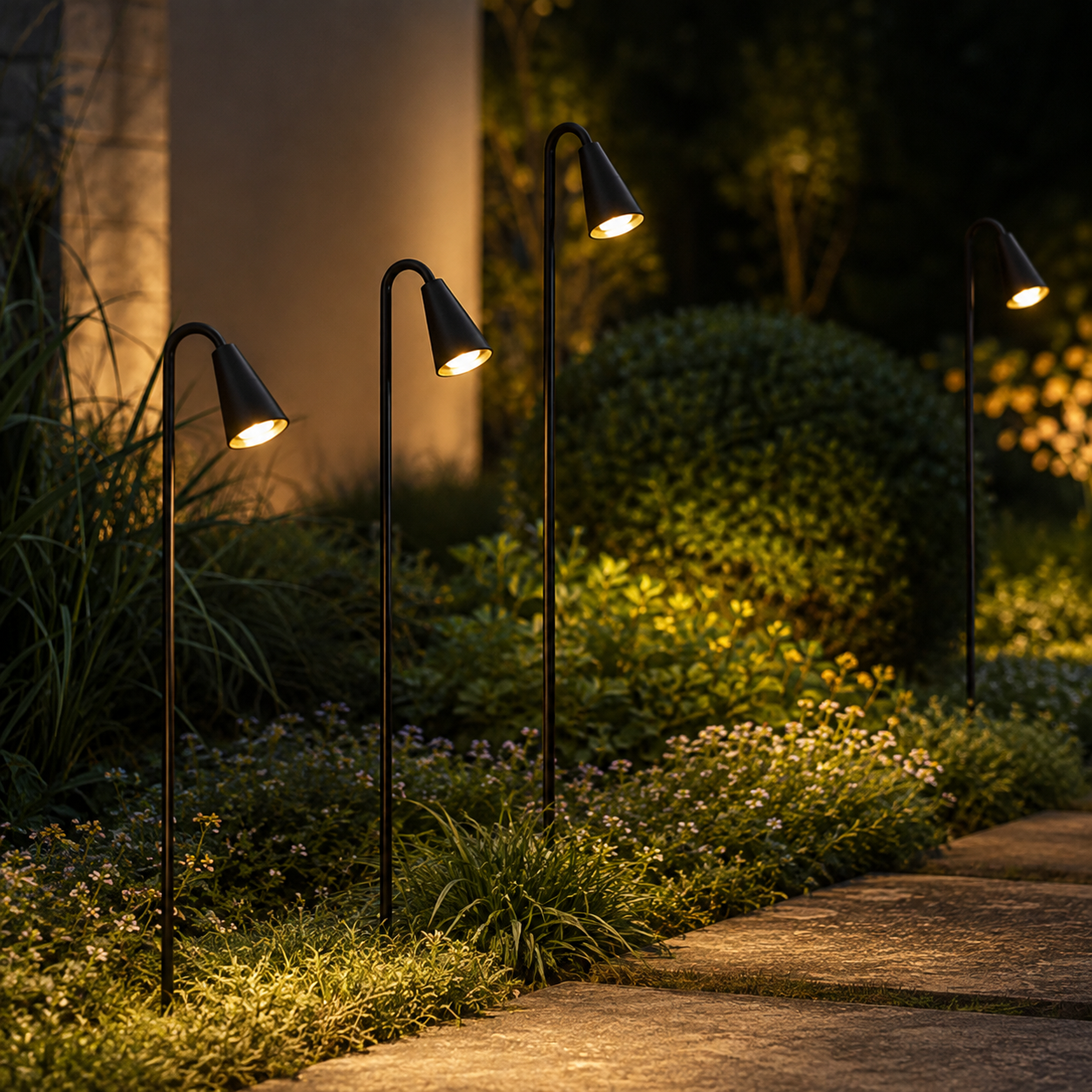

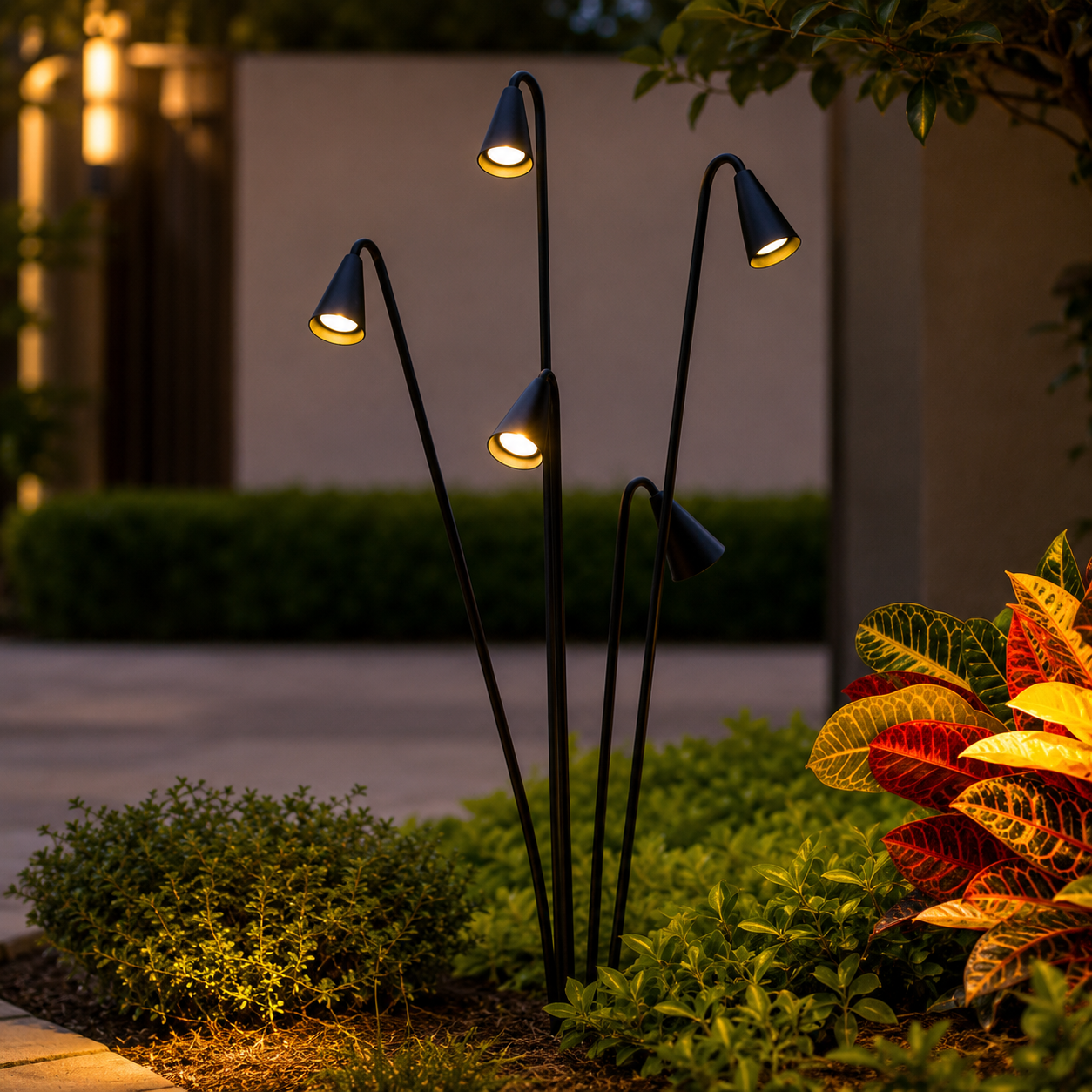

RECOMMENDED APPLICATIONS
- Garden Paths & Walkways
- Lawns & Planting Areas
- Villa Gardens & Courtyards
- Parks & Public Landscapes
- Residential Communities
- Hotels & Resort Landscapes
- Architectural Landscape Lighting
