PRODUCT OVERVIEW

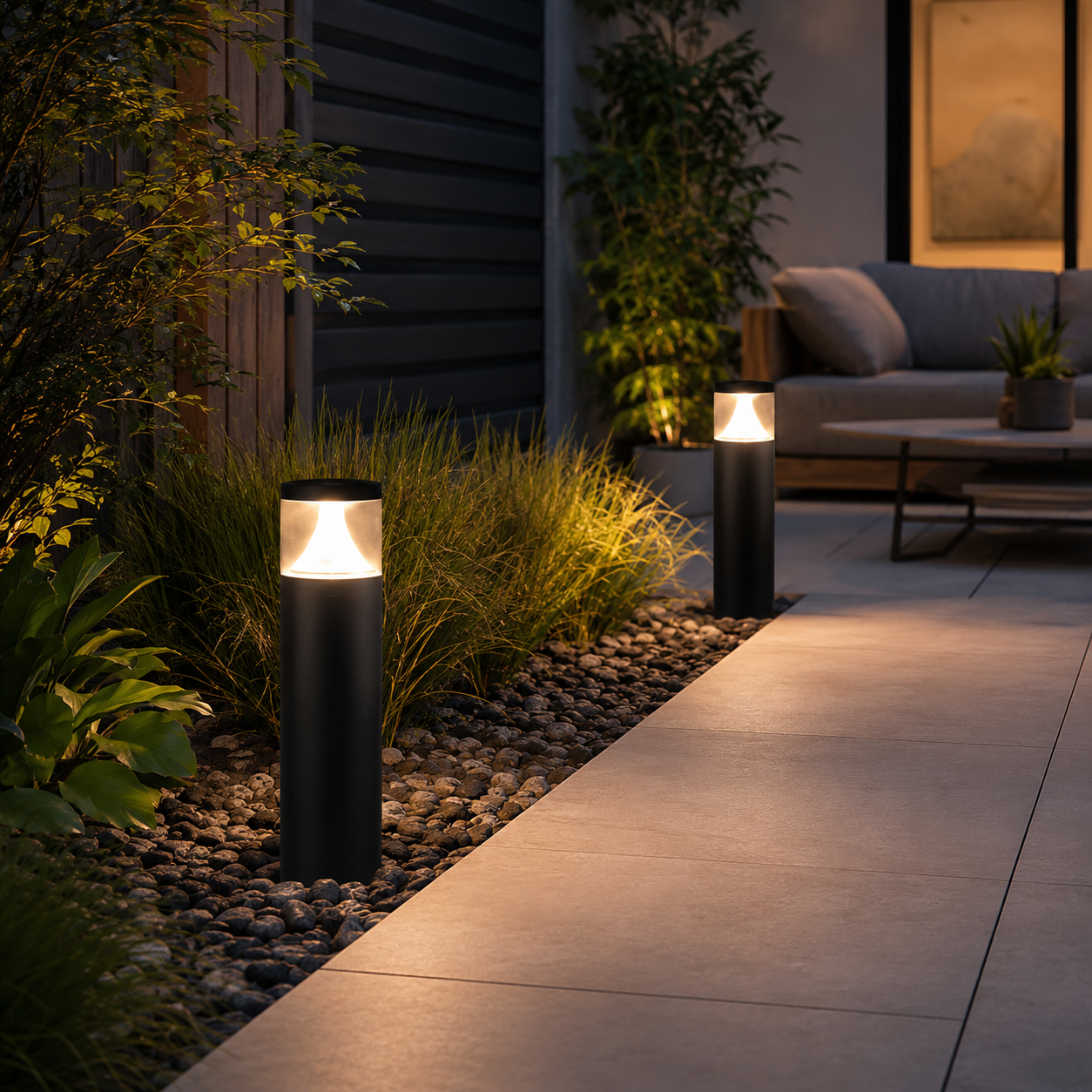

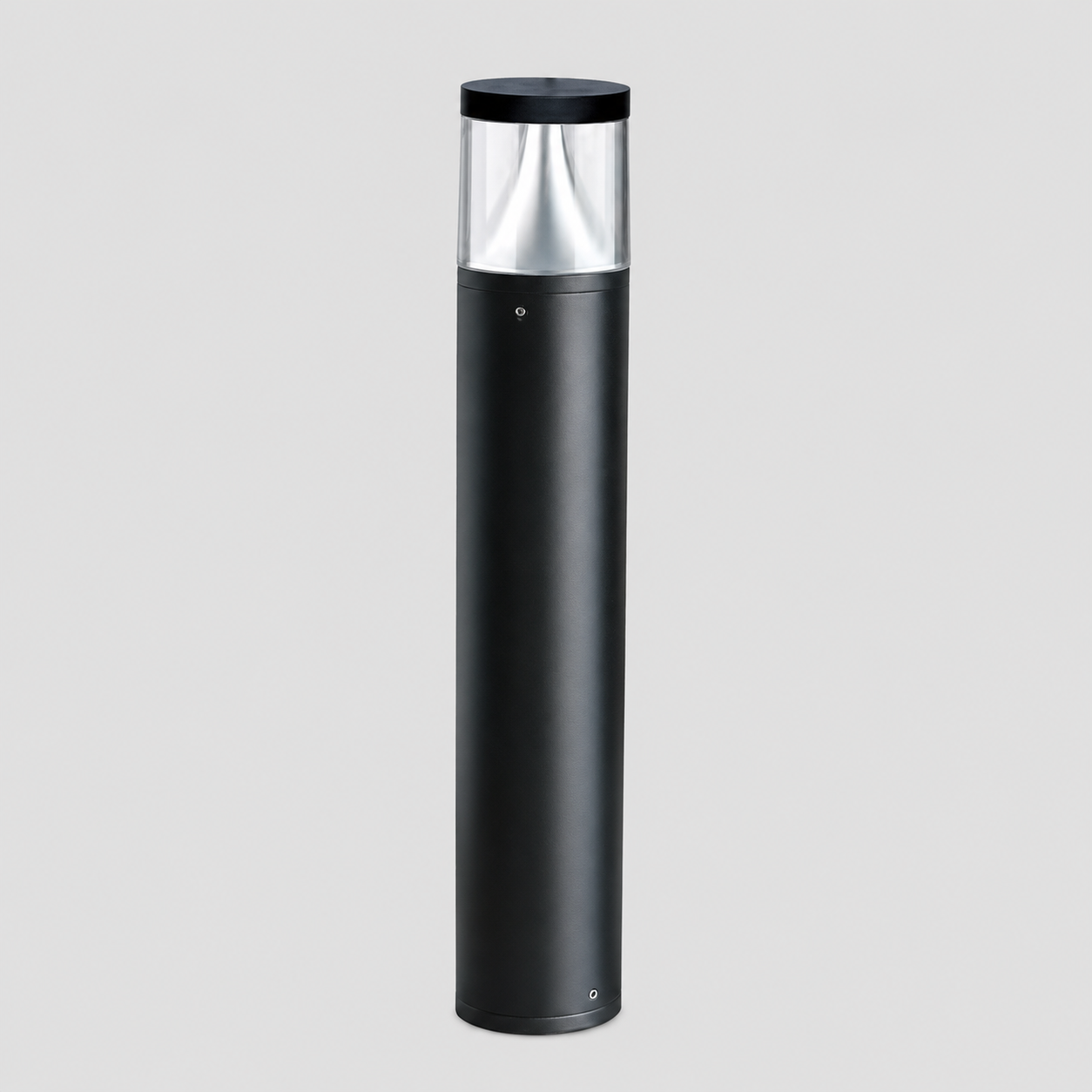

The MB18-C001 Series is an IP54 outdoor LED bollard light designed for gardens, pathways, parks, villas, pedestrian areas and architectural landscapes. Its cylindrical aluminum body and clear PC optical section create a clean modern appearance with comfortable decorative illumination.
The series is available in three body diameters and three height options. Power ranges from 6W to 12W with 420-840 lm output, allowing coordinated lighting layouts for different landscape scales while maintaining a consistent design language.
KEY FEATURES
- IP54 Outdoor Protection
Suitable for gardens, pathways, villas, parks and other exterior landscape environments. - 6W / 9W / 12W Power Options
Three power levels support different bollard diameters and landscape lighting requirements. - 300mm / 600mm / 900mm Heights
Multiple height configurations support flexible pathway and landscape planning. - 420-840 lm Output Range
Provides consistent ambient and guidance lighting across different models. - Durable Aluminum Housing
Aluminum construction provides structural durability and reliable outdoor performance. - PC Diffuser
PC optical diffuser supports even light transmission and outdoor durability. - Surface-Mounted Installation
Designed for installation on paved areas, landscape bases and above-ground surfaces. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Power | Luminous Flux | Diameter (A) | Body Height (B) | Overall Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB18-C001A-300 | 6W | 420 lm | Ø90mm | 180mm | 300mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001A-600 | 6W | 420 lm | Ø90mm | 480mm | 600mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001A-900 | 6W | 420 lm | Ø90mm | 780mm | 900mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001B-300 | 9W | 630 lm | Ø108mm | 175mm | 300mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001B-600 | 9W | 630 lm | Ø108mm | 475mm | 600mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001B-900 | 9W | 630 lm | Ø108mm | 775mm | 900mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001C-300 | 12W | 840 lm | Ø150mm | 155mm | 300mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001C-600 | 12W | 840 lm | Ø150mm | 455mm | 600mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-C001C-900 | 12W | 840 lm | Ø150mm | 755mm | 900mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
TECHNICAL OPTIONS
- Protection Rating: IP54
- Input Voltage: AC110-265V
- Power: 6W / 9W / 12W
- Luminous Flux: 420 lm / 630 lm / 840 lm
- CCT: 2700K-6000K
- CRI: Ra80-90
- Power Factor: 0.6
- Housing Material: Aluminum
- Diffuser Material: PC
- Operating Mode: Built-in LED
- Installation: Surface Mounted
- Mounting Location: Above Ground
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Garden Paths & Lawns
- Parks & Public Landscapes
- Villa Gardens & Courtyards
- Pedestrian Streets & Walkways
- Residential Communities
- Hotels & Resort Landscapes
- Architectural Landscape Lighting
