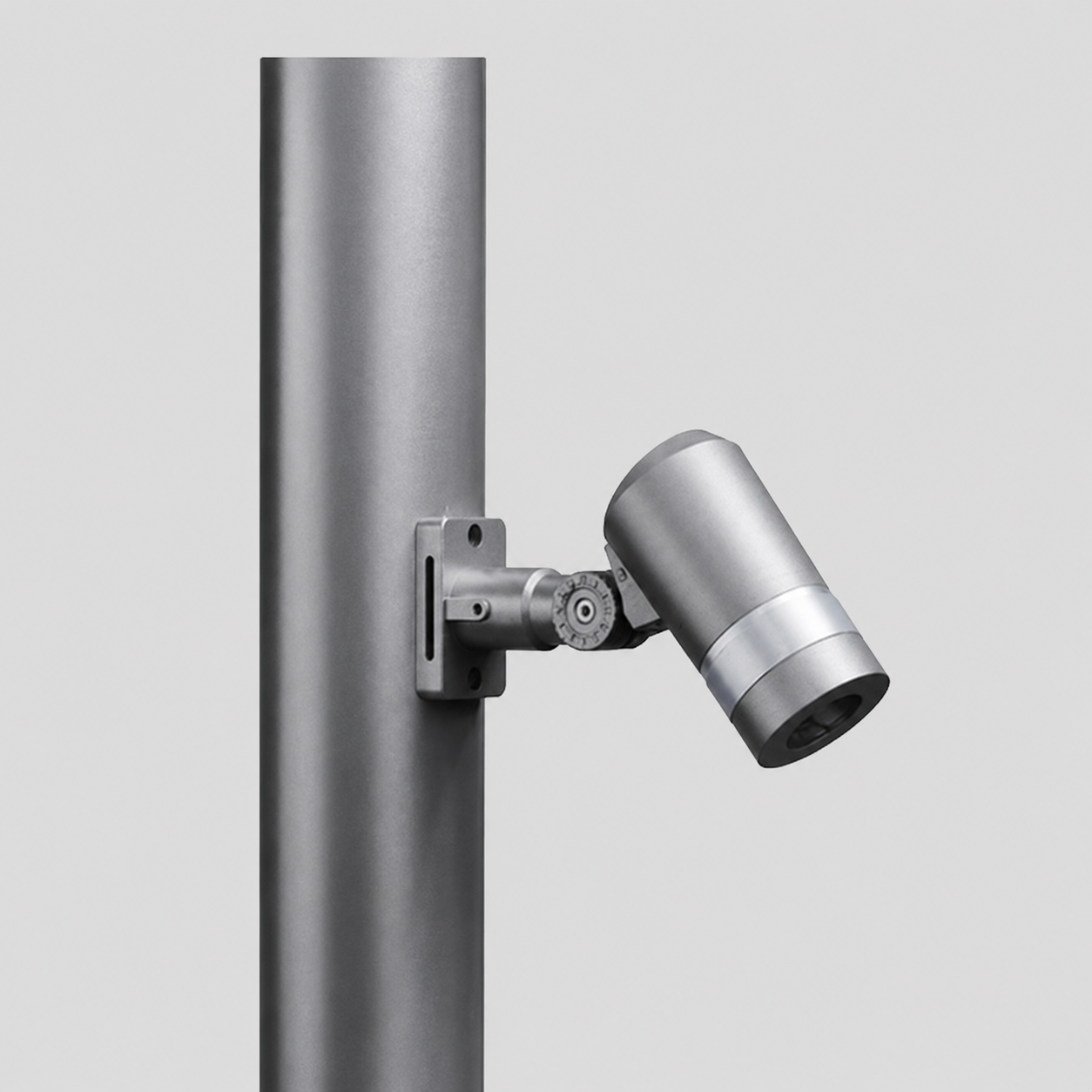

Zoomable LED Landscape Spot Light | WB3060R-WB3150R
No.VOC-WB3060R-WB3150R
Professional zoomable LED landscape spot light series for façade, garden and architectural accent lighting. Available in 6W, 12W, 20W and 40W with CREE COB LEDs, IP66 protection, IK05 impact resistance and adjustable 15°-60° beam control for precise outdoor illumination.
WB3060R / WB3080R / WB3100R / WB3150R is a professional zoomable LED landscape spotlight series for façade, garden and architectural accent lighting.
Four power levels from 6W to 40W provide flexible output for small landscape details through larger exterior architectural applications.
The adjustable optical system supports continuous beam control from approximately 15° to 60° for narrow accent or wider flood illumination.
KEY FEATURES
Zoomable 15°-60° Beam Adjustable optical system allows on-site beam tuning from focused spot lighting to wider accent illumination.
IP66 Outdoor Protection Designed for professional outdoor landscape, façade and architectural applications.
IK05 Impact Resistance Provides practical mechanical protection for exterior installations.
CREE COB LED High-intensity COB source provides concentrated output and stable optical performance.
6W-40W Complete Range Four sizes cover different throw distances, installation heights and landscape lighting requirements.
380-2500 lm Output Multiple lumen packages support decorative accent lighting through stronger façade illumination.
Adjustable Mounting Head Pivoting body enables accurate aiming after installation.
Low-Voltage & AC Options Low-voltage DC configurations and 220-240VAC options are available depending on model.
MODEL & SIZE OPTIONS
Model
Power
LED
Luminous Flux
Input Voltage
Beam Angle
WB3060R
6W
CREE COB
380 lm
12/24VDC / 220-240VAC
15°-60° Zoomable
WB3080R
12W
CREE COB
940 lm
24VDC / 220-240VAC
15°-60° Zoomable
WB3100R
20W
CREE
1420 lm
24VDC / 220-240VAC
15°-60° Zoomable
WB3150R
40W
CREE
2500 lm
24VDC / 220-240VAC
15°-60° Zoomable
TECHNICAL OPTIONS
Product Type: Zoomable LED Landscape Spot Light
Model: WB3060R / WB3080R / WB3100R / WB3150R
Power: 6W / 12W / 20W / 40W
LED: CREE COB / CREE
Luminous Flux: 380 / 940 / 1420 / 2500 lm
Protection Rating: IP66
Impact Resistance: IK05
CCT: 2700K / 3000K / 4000K / 5000K / 6000K
CRI: —
Beam Angle: 15°-60° Zoomable
Input Voltage: 12/24VDC / 24VDC / 220-240VAC depending on model
Installation: Surface / Pole / Architectural Mounting
RECOMMENDED APPLICATIONS
Landscape Accent Lighting
Garden & Tree Lighting
Building Façade Lighting
Architectural Feature Lighting
Hotels & Resorts
Villas & Residential Exteriors
Commercial Outdoor Spaces
Columns & Sculptures
