PRODUCT OVERVIEW

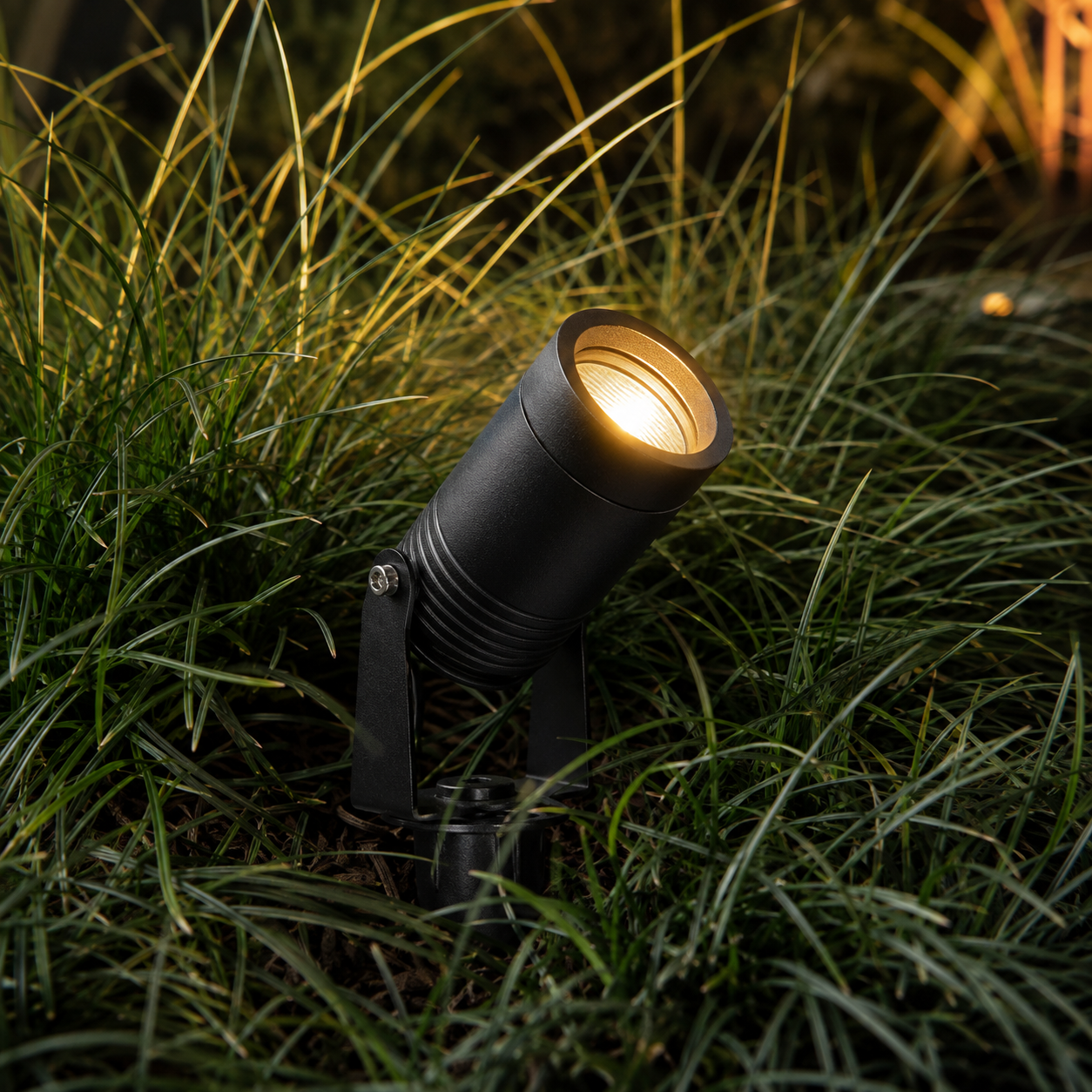

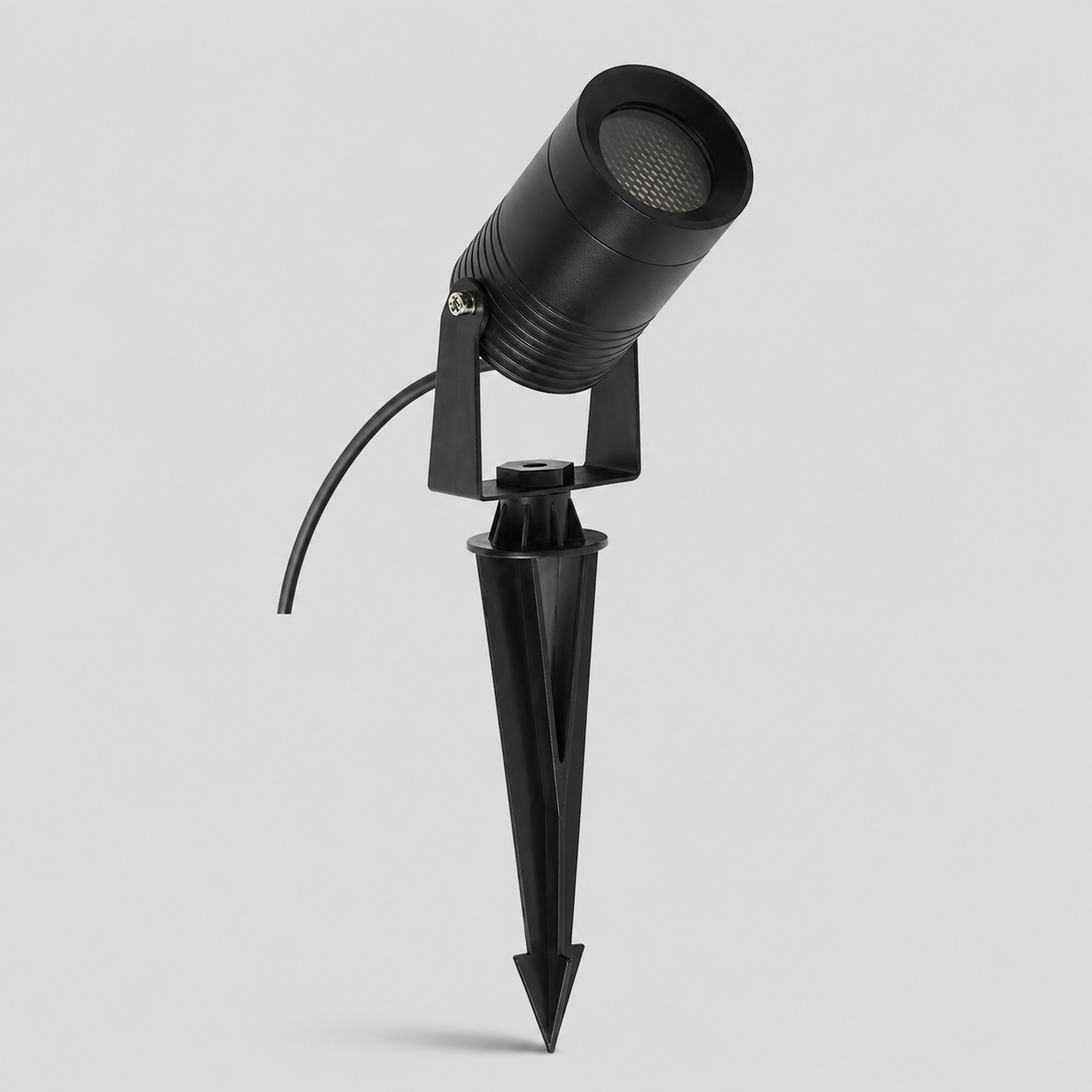

The MB18-612 Series is an IP65 outdoor LED spike spotlight designed for professional landscape and architectural accent lighting. Its adjustable head, aluminum housing and glass diffuser provide reliable outdoor performance for gardens, villas, courtyards, terraces, shrubs and trees.
The series covers 5W to 30W with five built-in LED sizes plus a GU10/G5.3 lamp-holder version. Multiple beam angles from 15° to 60° allow precise selection for narrow accent lighting, medium spot lighting and wider landscape illumination.
KEY FEATURES
- IP65 Outdoor Protection
Suitable for outdoor gardens, courtyards, terraces and landscape environments. - Adjustable Spotlight Head
Flexible aiming supports precise illumination of plants, pathways, façades and architectural details. - 5W-30W Complete Power Range
Five LED wattages support small planting areas through larger landscape features. - 15° / 24° / 38° / 45° / 60° Beam Options
Multiple reflector angles provide focused, medium and wide-beam landscape lighting. - Durable Aluminum Housing
Aluminum construction provides structural durability and effective heat dissipation for outdoor use. - Glass Diffuser
Glass optical cover provides a clean light exit surface and reliable weather resistance. - Ground Spike Installation
Insert-type spike mounting allows quick installation in lawns, soil and landscaped areas. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Lamp Type | Power | Luminous Flux | Size (A×B) | Overall Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB18-612S | LED | 5W | 350 lm | Ø50×94mm | 293mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-612M | LED | 10W | 700 lm | Ø64×105mm | 311mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-612L | LED | 15W | 1050 lm | Ø76×123mm | 371mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-612XL | LED | 20W | 1400 lm | Ø90×123mm | 398mm | 2700K-6000K | 0.95 | AC110-265V | Ra80-90 |
| MB18-612XXL | LED | 30W | 2100 lm | Ø108×146mm | 407mm | 2700K-6000K | 0.95 | AC110-265V | Ra80-90 |
| MB18-612M | GU10 / G5.3 | Optional Lamp | - | Ø60×94mm | 308mm | - | - | - | - |
OPTICAL OPTIONS
- Beam Angle: 15° / 24° / 38° / 45° / 60°
- Diffuser Material: Glass
- Adjustable head for directional landscape lighting
TECHNICAL OPTIONS
- Protection Rating: IP65
- Input Voltage: AC110-265V
- CCT: 2700K-6000K
- CRI: Ra80-90
- Housing Material: Aluminum
- Operating Mode: Built-in LED
- Switch: On / Off
- Mounting Type: Ground Spike / Insert
- Mounting Location: Ground / Soil
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Villa Gardens & Courtyards
- Residential Landscapes
- Terraces & Outdoor Paths
- Shrubs & Flower Beds
- Medium Tree Accent Lighting
- Hotels & Resort Landscapes
- Architectural Exterior Lighting
