PRODUCT OVERVIEW

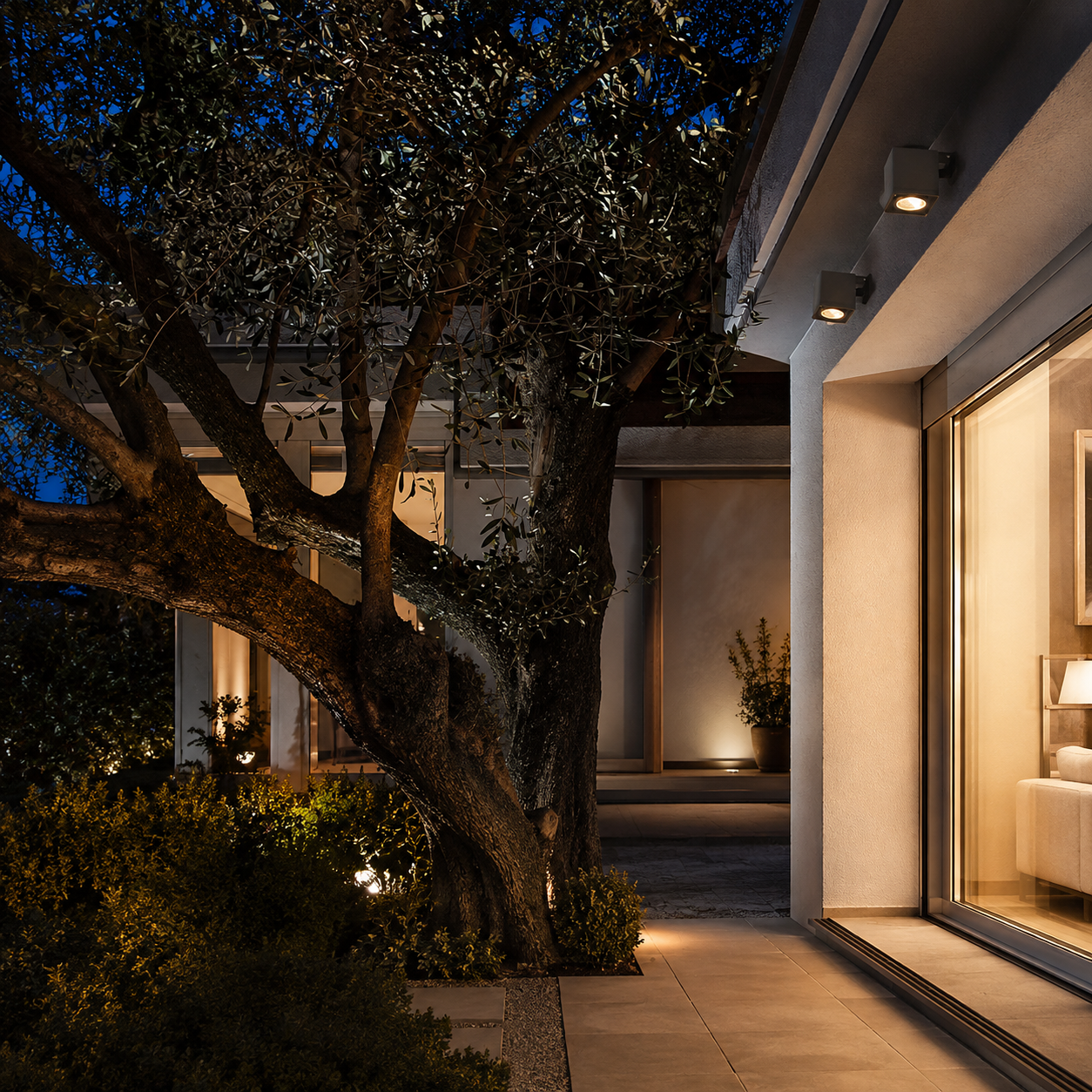

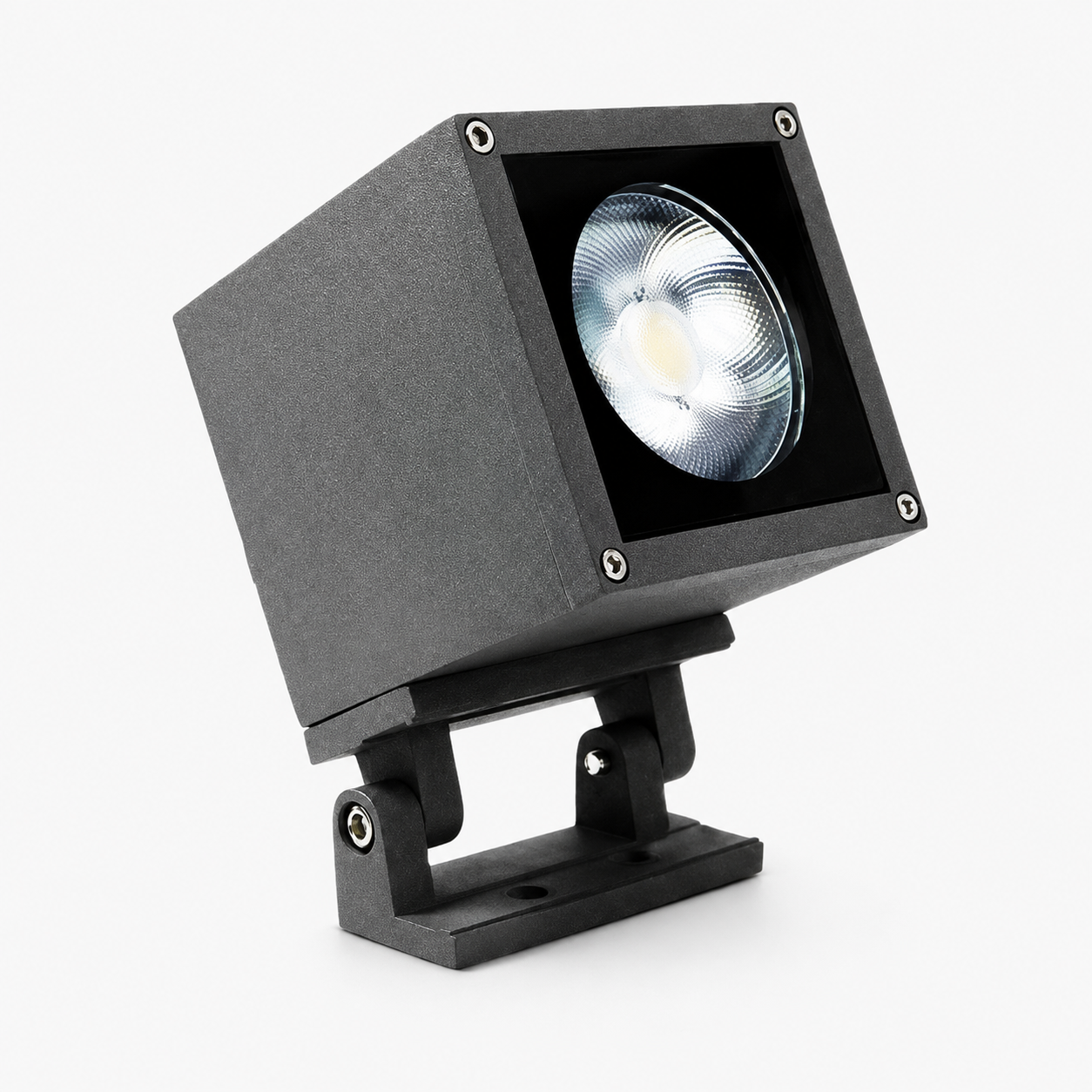

The MB23-0609 is an IP65 adjustable outdoor LED spotlight designed for landscape and architectural accent lighting. Its square aluminum housing, glass diffuser and adjustable bracket provide reliable outdoor performance for villas, courtyards, gardens, terraces and building exteriors.
The series is available in 15W and 20W with 90×90mm and 125×125mm housing sizes. Narrow and medium beam angles of 12°, 24° and 36° support precise accent lighting for trees, façades, pathways and landscape features.
KEY FEATURES
- IP65 Outdoor Protection
Suitable for gardens, villas, courtyards, terraces and professional exterior environments. - Adjustable Bracket Design
Flexible aiming allows precise illumination of walls, trees, pathways and architectural details. - 15W / 20W Power Options
Two wattages provide flexible selection for small and medium-scale landscape lighting projects. - 12° / 24° / 36° Beam Angles
Focused optical distributions support narrow accent lighting and controlled medium-beam illumination. - Durable Aluminum Housing
Aluminum construction provides structural durability and effective heat dissipation for outdoor use. - Glass Diffuser
Glass optical cover provides a clean light exit surface and reliable weather resistance. - Surface-Mounted Installation
Bracket-mounted construction supports installation on landscape bases, walls and architectural surfaces. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Lamp Type | Power | Luminous Flux | Dimension (A×B) | Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB23-060990 | LED | 15W | 1050 lm | 90×90mm | 140mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB23-0609125 | LED | 20W | 1400 lm | 125×125mm | 165mm | 2700K-6000K | 0.9 | AC110-265V | Ra80-90 |
OPTICAL OPTIONS
- Beam Angle: 12° / 24° / 36°
- Diffuser Material: Glass
- Adjustable bracket for directional outdoor accent lighting
TECHNICAL OPTIONS
- Protection Rating: IP65
- Input Voltage: AC110-265V
- CCT: 2700K-6000K
- CRI: Ra80-90
- Housing Material: Aluminum
- Operating Mode: Built-in LED
- Switch: On / Off
- Mounting Type: Surface Mounted
- Mounting Location: Above Ground / Wall / Landscape Surface
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Building Façades & Exterior Walls
- Villa Gardens & Courtyards
- Trees & Landscape Features
- Outdoor Paths & Terraces
- Hotels & Resort Landscapes
- Commercial Landscape Lighting
- Architectural Exterior Lighting
