LED Landscape Spot Light | Series LS

Name: LED Landscape Spot Light | Series LS
Brand: VOC Lighting
SKU: VOC-SERIES-LS

No.VOC-SERIES-LS

Professional Series LS LED landscape spot light with adjustable aiming, multiple beam distributions and white/RGB/RGBW configurations. Designed for façades, trees, gardens, hotels and commercial landscape lighting.

Model

WB3170S / WB3210S / WB3260S

Power

WB3170S: 6×4W / 12×2W / 2×10W / 12×2.5W RGB / 12×3.5W RGBW; WB3210S: 12×3.5W / 24×2W / 4×10W / 24×2.5W RGB / 24×3W RGBW; WB3260S: 18×3W / 36×1.5W / 4×13W / 36×2W RGB / 36×3W RGBW

Dimension

170mm / 210mm / 260mm body length

Overall Height

222mm / 257mm / 300mm

Luminous Flux

Up to 2400 lm / 3600 lm / 2400 lm

LED

CREE / OSRAM / CREE COB

Impact Resistance

IK05

Beam Angle

3° / 8° / 15° / 25° / 40° / 60° / 10°×60° / 20°×55°

Input Voltage

12/24VDC / selected 220-240VAC configurations

Installation

Surface Mounted

REQUEST A QUOTE

Add to Quote List View Quote List

Description

PRODUCT OVERVIEW

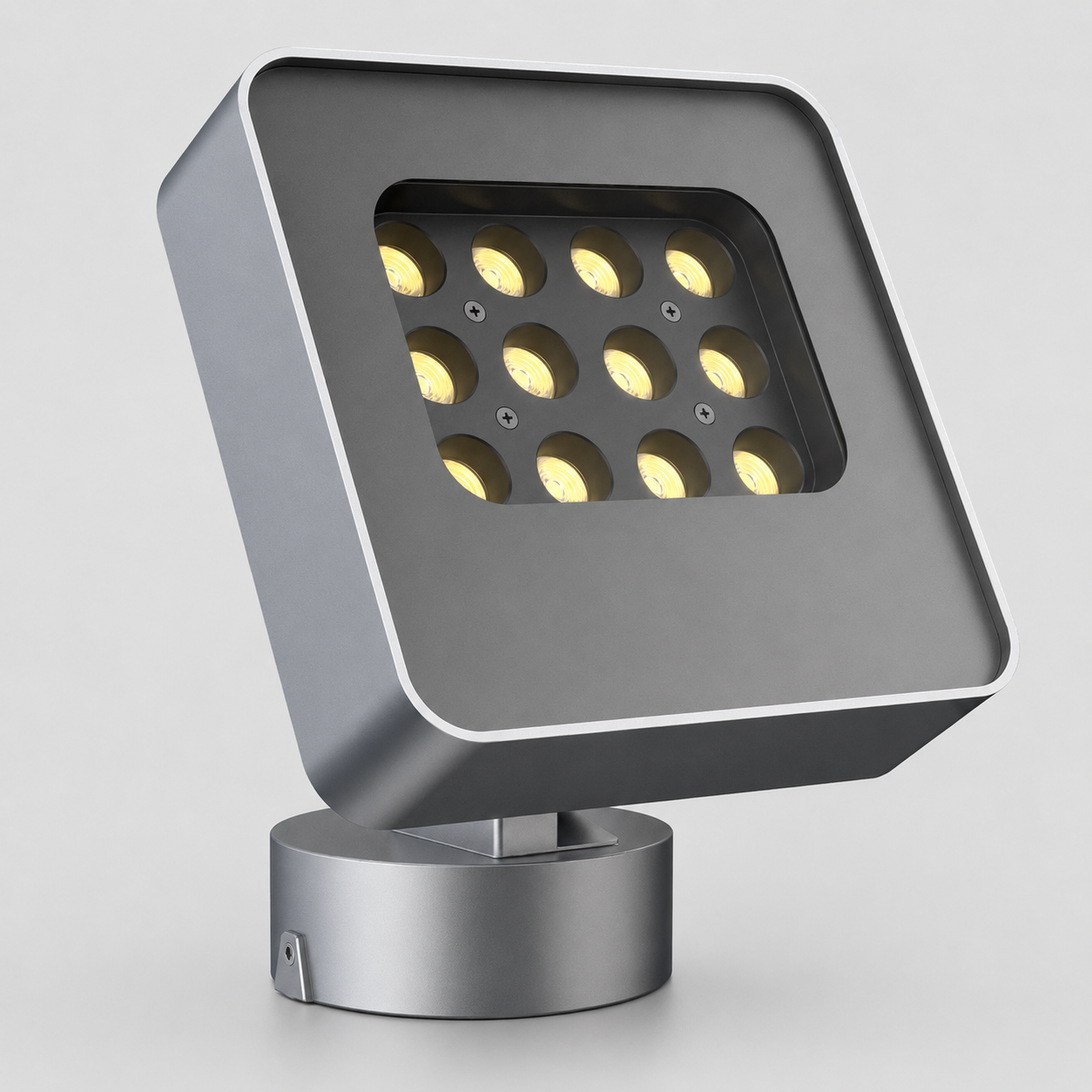

Series LS is a professional LED landscape spot light family for architectural and outdoor accent lighting.
Three body sizes—WB3170S, WB3210S and WB3260S—cover a wide range of power and output requirements.
Adjustable mounting allows precise aiming for façades, trees, landscape structures and architectural details.

KEY FEATURES

Multiple Power Configurations
Available in a broad range of LED arrangements from compact accent lighting to high-output landscape applications.
CREE / OSRAM LED Options
Multiple LED source configurations support project-specific performance and optical requirements.
White / RGB / RGBW Options
Single-color, RGB 3-in-1 and RGBW 4-in-1 configurations are available for static or dynamic landscape lighting.
Wide Optical Selection
Beam angles from narrow spot to wide flood support precise accent, façade and landscape illumination.
Adjustable Lighting Direction
Pivoting mounting structure allows flexible aiming after installation.

MODEL & SIZE OPTIONS

Model	Power Options	Luminous Flux	Fixture Size	Beam Angle
WB3170S	6×4W / 12×2W / 2×10W / 12×2.5W RGB / 12×3.5W RGBW	Up to 2400 lm	170mm body / 222mm overall height	3° / 8° / 15° / 25° / 40° / 60° / 10°×60° / 20°×55°
WB3210S	12×3.5W / 24×2W / 4×10W / 24×2.5W RGB / 24×3W RGBW	Up to 3600 lm	210mm body / 257mm overall height	3° / 8° / 15° / 25° / 40° / 60° / 10°×60° / 20°×55°
WB3260S	18×3W / 36×1.5W / 4×13W / 36×2W RGB / 36×3W RGBW	Up to 2400 lm	260mm body / 300mm overall height	3° / 8° / 15° / 25° / 40° / 60° / 10°×60° / 20°×55°

OPTICAL OPTIONS

Beam Angles: 3° / 8° / 15° / 25° / 40° / 60°
Elliptical Options: 10°×60° / 20°×55°
Light Distribution: Narrow Spot / Spot / Flood / Wide Flood / Elliptical

TECHNICAL OPTIONS

LED: CREE / OSRAM / CREE COB
Color Options: Single White / RGB 3-in-1 / RGBW 4-in-1
Impact Resistance: IK05
Input Voltage: 12/24VDC / selected 220-240VAC configurations
Installation: Adjustable Surface Mounted

RECOMMENDED APPLICATIONS

Building Façades

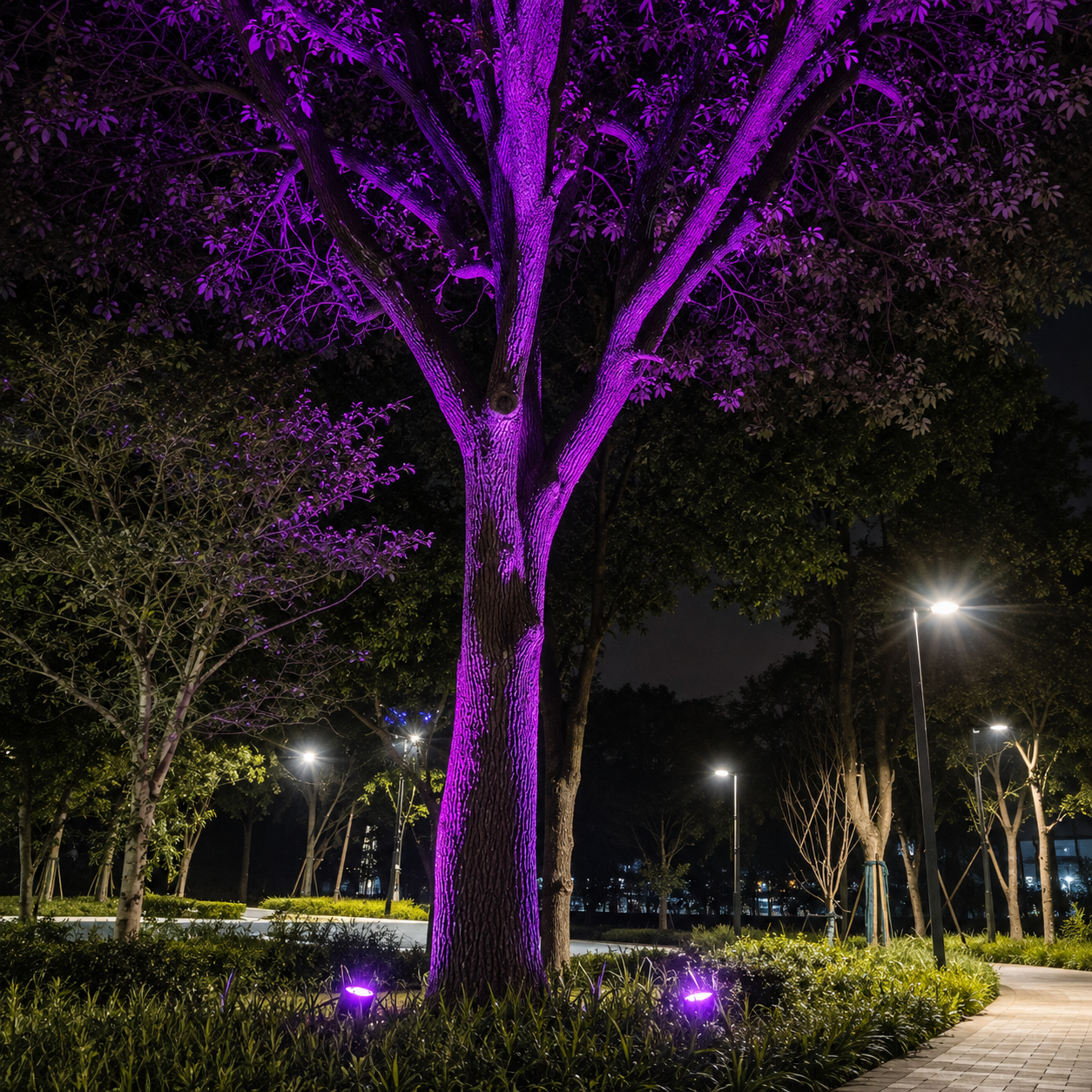

Tree & Plant Accent Lighting
Garden & Landscape Lighting
Hotels & Resorts
Architectural Features
Commercial Outdoor Projects
