PRODUCT OVERVIEW

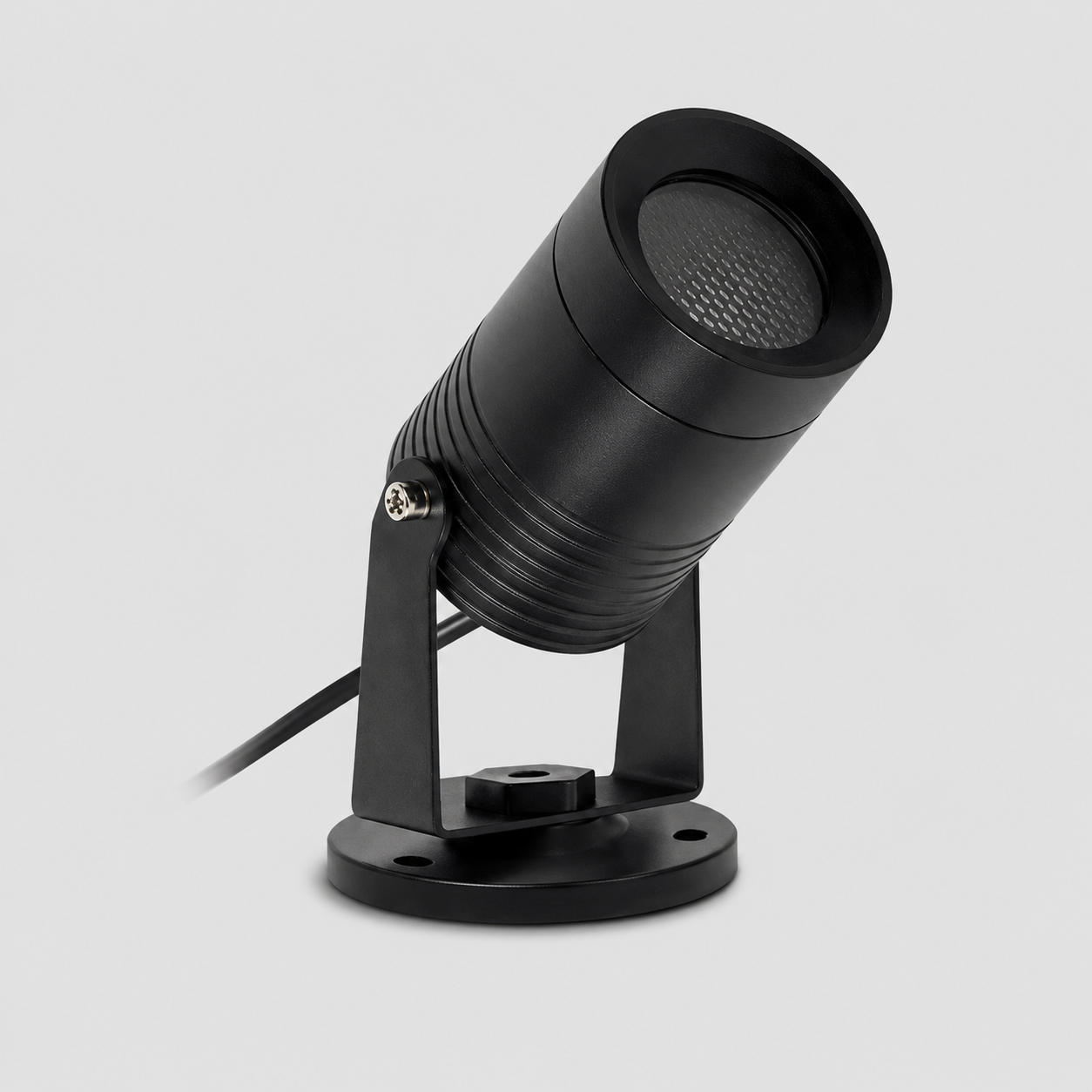

The MB18-613 Series is an IP65 adjustable outdoor LED spotlight designed for landscape and architectural accent lighting. Its compact cylindrical body, aluminum housing and glass diffuser provide reliable outdoor performance for villas, courtyards, terraces, gardens and building exteriors.
The series covers 5W to 30W in five built-in LED sizes, plus a GU10/G5.3 lamp-holder version. Multiple reflector beam angles from 15° to 60° support precise accent lighting, medium spot lighting and wider landscape illumination.
KEY FEATURES
- IP65 Outdoor Protection
Suitable for villas, gardens, courtyards, terraces and other outdoor landscape environments. - Adjustable Spotlight Head
Flexible aiming allows precise illumination of walls, plants, shrubs, façades and landscape features. - 5W-30W Complete Power Range
Five built-in LED wattages support small accent applications through larger architectural landscape projects. - 15° / 24° / 38° / 45° / 60° Beam Options
Multiple reflector angles provide narrow, medium and wide-beam lighting distributions. - Durable Aluminum Housing
Aluminum construction provides structural durability and effective heat dissipation for outdoor use. - Glass Diffuser
Glass optical cover provides a clean light exit surface and reliable weather resistance. - Surface / Wall Mounting
Base-mounted construction supports installation on walls, landscape structures and suitable outdoor surfaces. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Lamp Type | Power | Luminous Flux | Size (A×B) | Overall Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB18-613S | LED | 5W | 350 lm | Ø50×94mm | 94mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-613M | LED | 10W | 700 lm | Ø64×105mm | 114mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-613L | LED | 15W | 1050 lm | Ø76×123mm | 124mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-613XL | LED | 20W | 1400 lm | Ø90×123mm | 153mm | 2700K-6000K | 0.95 | AC110-265V | Ra80-90 |
| MB18-613XXL | LED | 30W | 2100 lm | Ø108×146mm | 162mm | 2700K-6000K | 0.95 | AC110-265V | Ra80-90 |
| MB18-613M | GU10 / G5.3 | Optional Lamp | - | Ø60×94mm | 111mm | - | - | - | - |
OPTICAL OPTIONS
- Beam Angle: 15° / 24° / 38° / 45° / 60°
- Diffuser Material: Glass
- Adjustable head for directional outdoor accent lighting
TECHNICAL OPTIONS
- Protection Rating: IP65
- Input Voltage: AC110-265V
- CCT: 2700K-6000K
- CRI: Ra80-90
- Housing Material: Aluminum
- Operating Mode: Built-in LED
- Switch: On / Off
- Mounting Type: Surface Mounted
- Mounting Location: Wall / Landscape Surface
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray

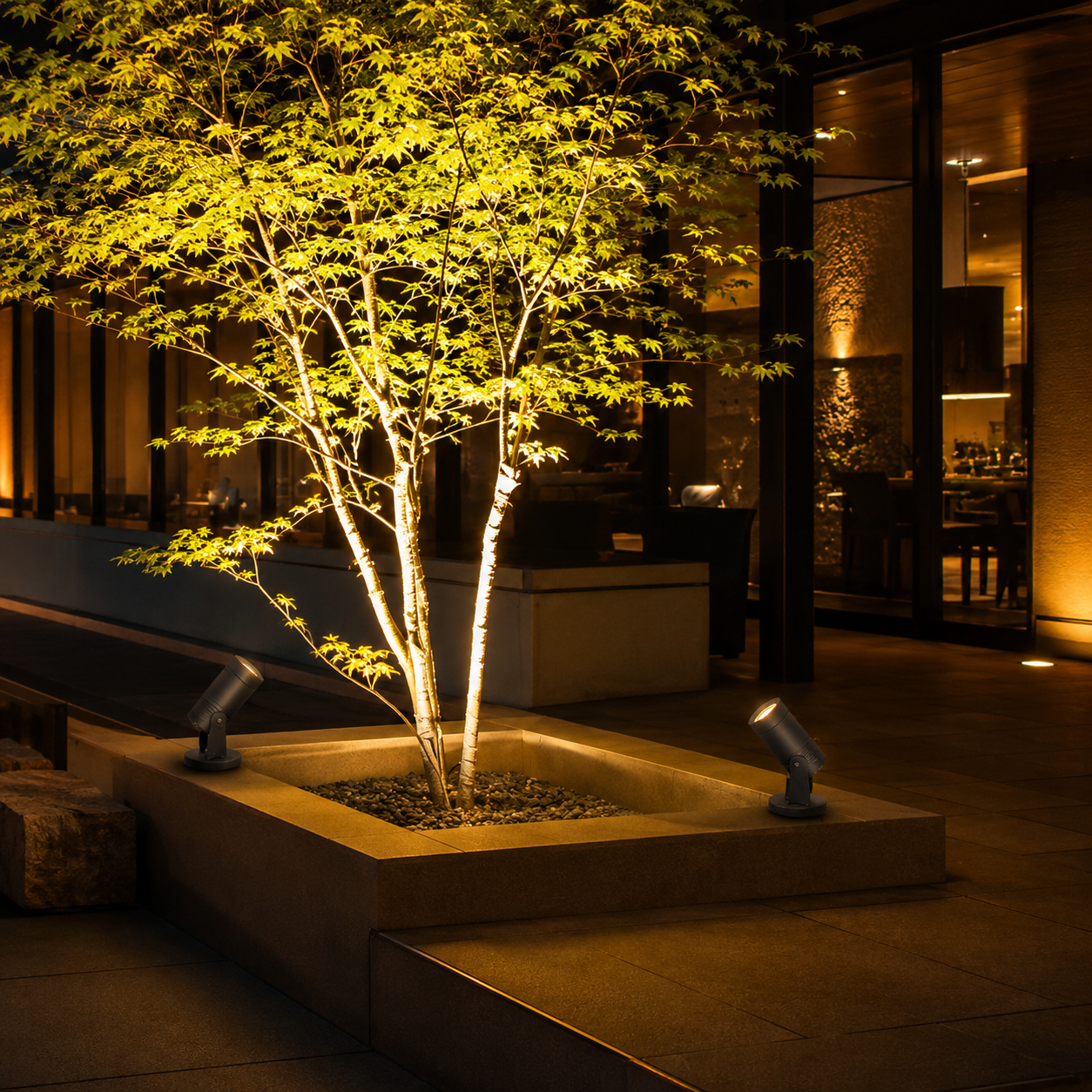

RECOMMENDED APPLICATIONS
- Villa Gardens & Courtyards
- Building Façades & Walls
- Residential Landscapes
- Terraces & Outdoor Paths
- Shrubs & Flower Beds
- Medium Tree Accent Lighting
- Hotels & Resort Landscapes
- Architectural Exterior Lighting
