PRODUCT OVERVIEW

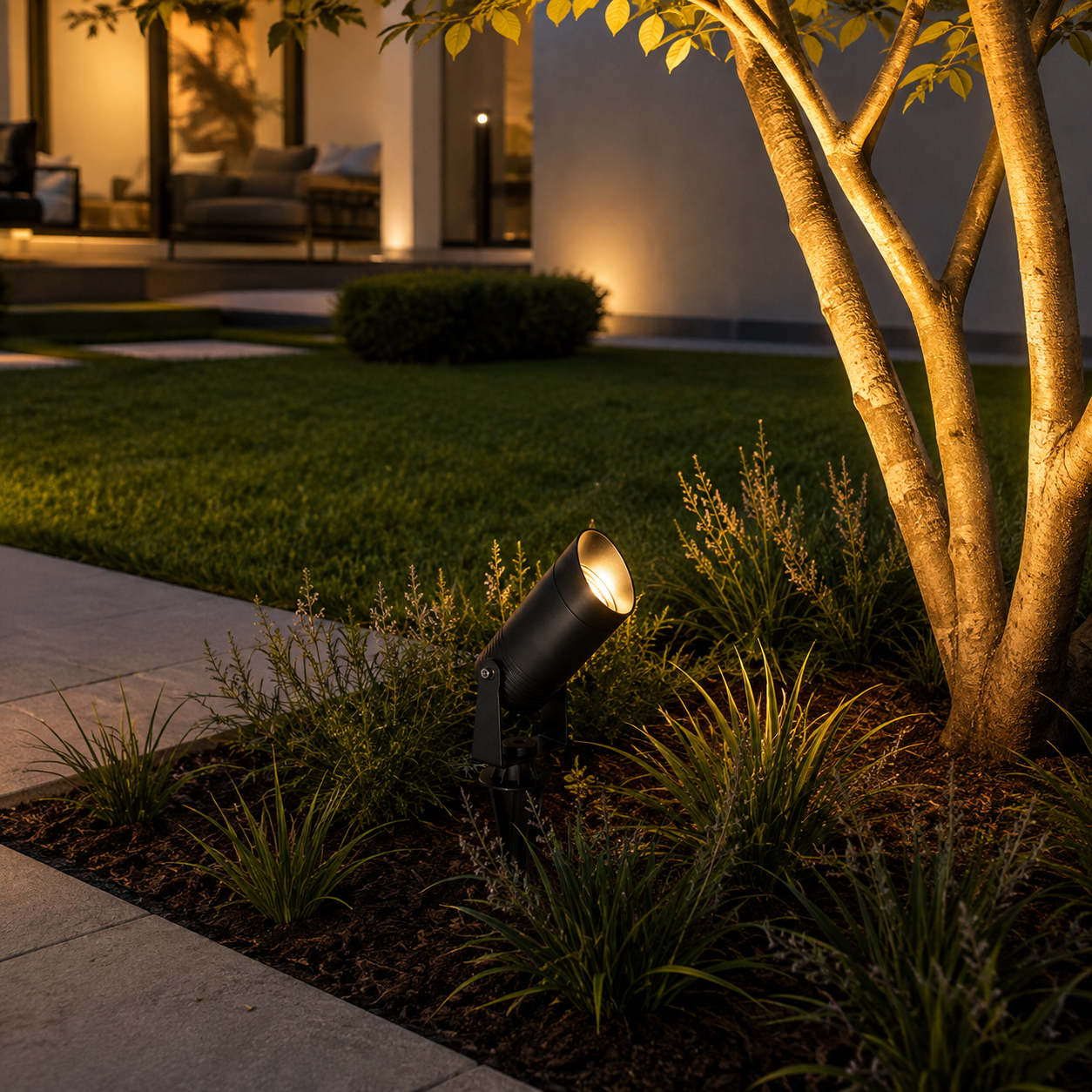

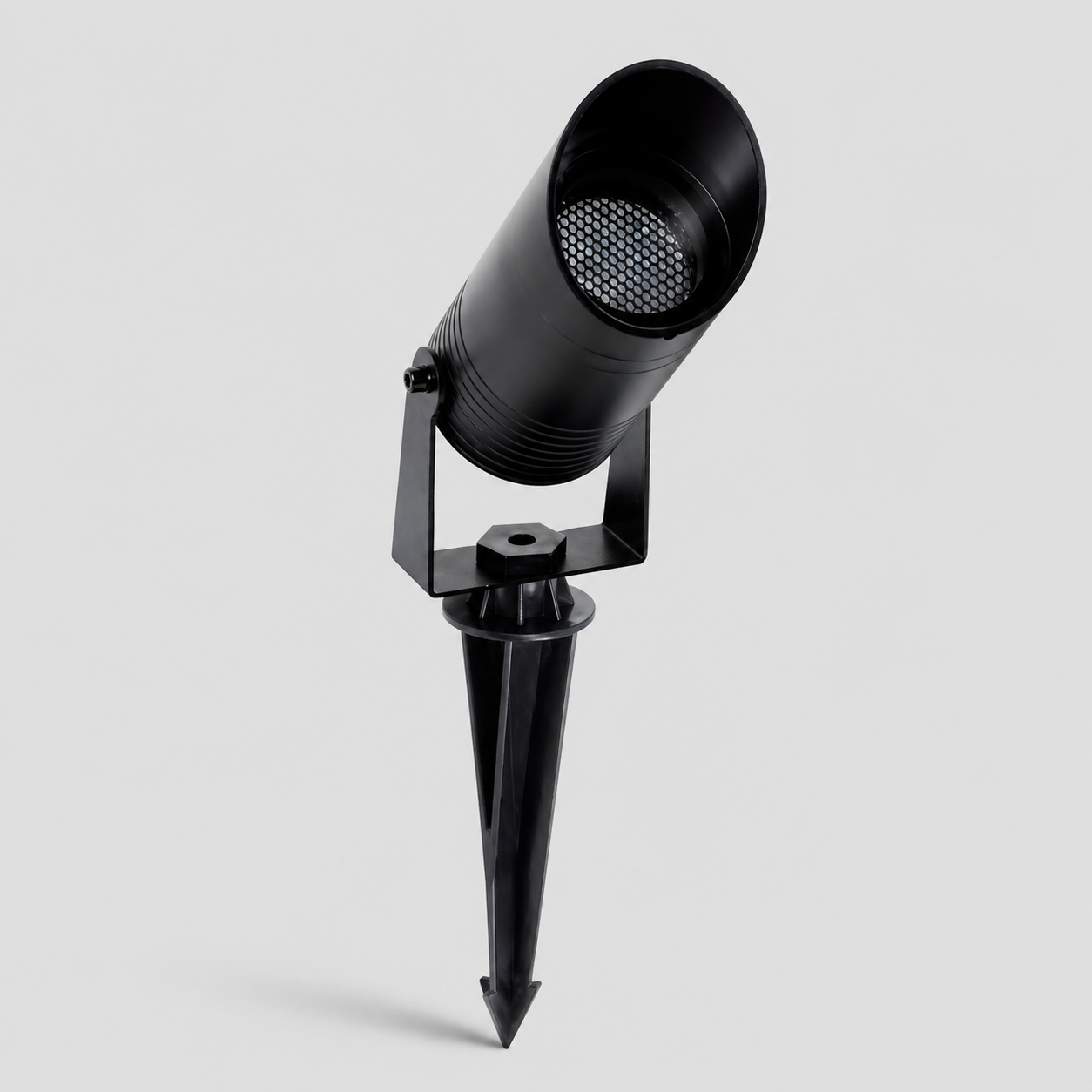

The MB18-614 Series is an IP65 outdoor LED spike spotlight designed for landscape and architectural accent lighting. Its elongated spotlight head, aluminum housing and glass diffuser provide reliable outdoor performance for gardens, villas, courtyards, terraces, shrubs and trees.
The series covers 5W to 30W in five built-in LED sizes, plus a GU10/G5.3 lamp-holder version. Multiple reflector beam angles from 15° to 60° allow precise selection for narrow accent lighting, medium spot lighting and wider landscape illumination.
KEY FEATURES
- IP65 Outdoor Protection
Suitable for gardens, courtyards, terraces and professional landscape environments. - Adjustable Spotlight Head
Flexible aiming allows precise illumination of plants, pathways, shrubs, trees and architectural details. - 5W-30W Complete Power Range
Five built-in LED wattages support small planting areas through larger landscape features. - 15° / 24° / 38° / 45° / 60° Beam Options
Multiple reflector angles provide narrow, medium and wide-beam lighting distributions. - Durable Aluminum Housing
Aluminum construction provides structural durability and effective heat dissipation for outdoor use. - Glass Diffuser
Glass optical cover provides a clean light exit surface and reliable weather resistance. - Ground Spike Installation
Insert-type spike mounting enables quick installation in soil, lawns and landscaped areas. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Lamp Type | Power | Luminous Flux | Size (A×B) | Overall Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB18-614S | LED | 5W | 350 lm | Ø50×127mm | 293mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-614M | LED | 10W | 700 lm | Ø64×146mm | 311mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-614L | LED | 15W | 1050 lm | Ø76×166mm | 371mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB18-614XL | LED | 20W | 1400 lm | Ø90×170mm | 398mm | 2700K-6000K | 0.95 | AC110-265V | Ra80-90 |
| MB18-614XXL | LED | 30W | 2100 lm | Ø108×215mm | 407mm | 2700K-6000K | 0.95 | AC110-265V | Ra80-90 |
| MB18-614M | GU10 / G5.3 | Optional Lamp | - | Ø60×144mm | 308mm | - | - | - | - |
OPTICAL OPTIONS
- Beam Angle: 15° / 24° / 38° / 45° / 60°
- Diffuser Material: Glass
- Adjustable head for directional landscape lighting
TECHNICAL OPTIONS
- Protection Rating: IP65
- Input Voltage: AC110-265V
- CCT: 2700K-6000K
- CRI: Ra80-90
- Housing Material: Aluminum
- Operating Mode: Built-in LED
- Switch: On / Off
- Mounting Type: Ground Spike / Insert
- Mounting Location: Ground / Soil
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS
- Villa Gardens & Courtyards
- Residential Landscapes
- Terraces & Outdoor Paths
- Shrubs & Flower Beds
- Medium Tree Accent Lighting
- Hotels & Resort Landscapes
- Architectural Exterior Lighting
