PRODUCT OVERVIEW

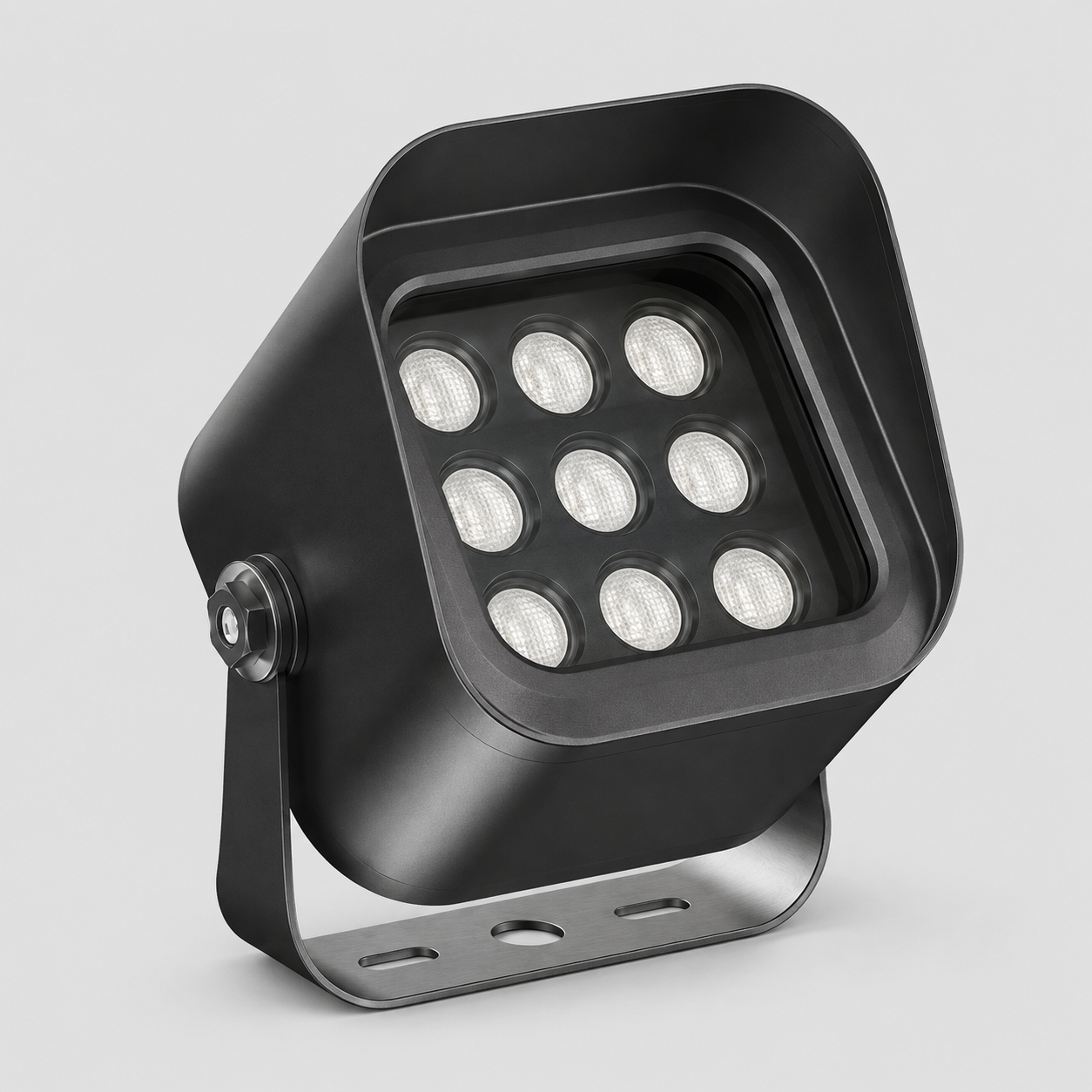

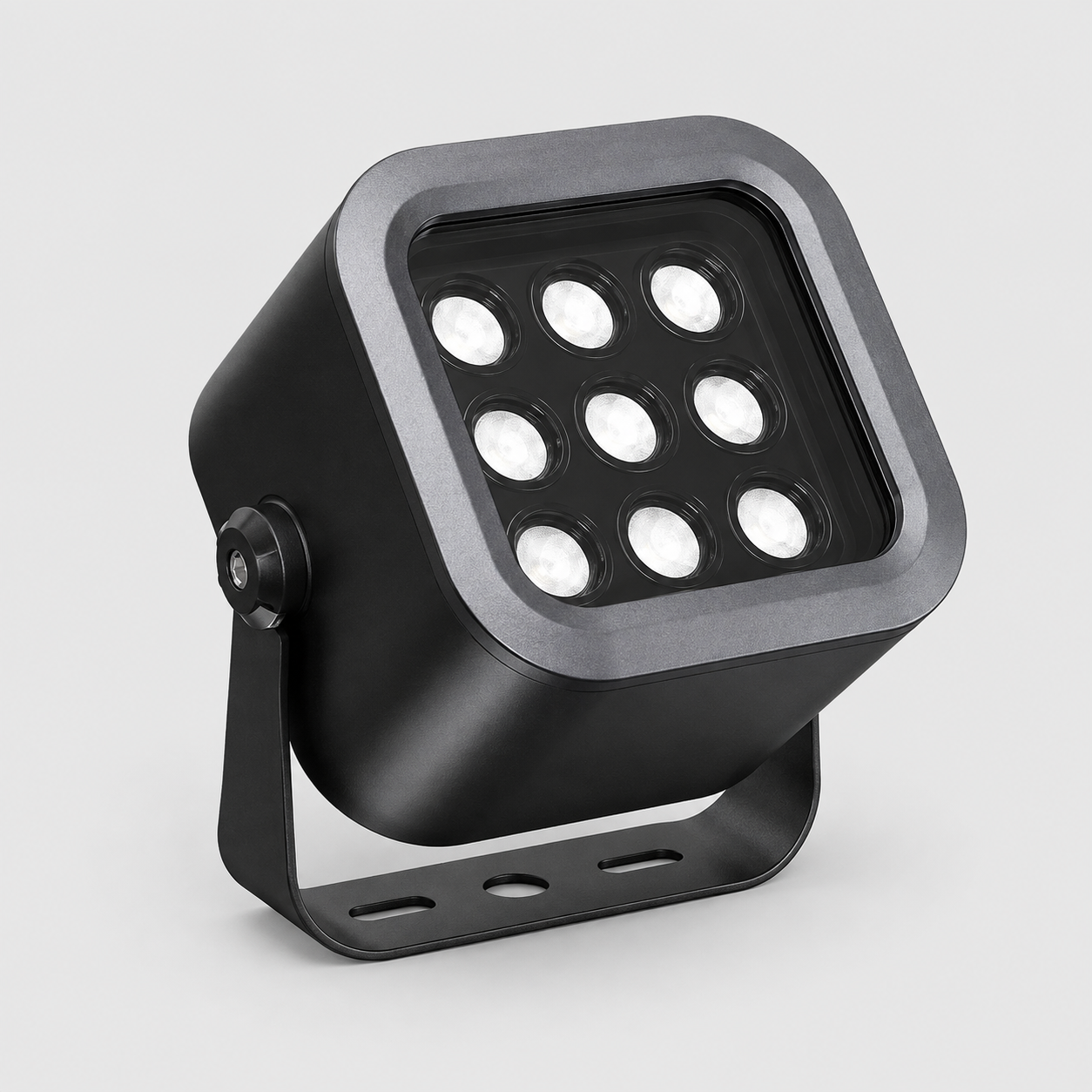

The MB23-0606 / MB23-0607 Series is an IP65 adjustable outdoor LED spotlight designed for landscape and architectural accent lighting. Its square aluminum housing, glass diffuser and adjustable bracket provide reliable outdoor performance for façades, villas, courtyards, gardens and landscape structures.
The series covers 8W, 18W, 32W and 72W with four housing sizes from 90×90mm to 200×200mm. Multiple beam angles from 15° to 60° support narrow accent lighting, medium spot lighting and wider architectural illumination.
KEY FEATURES
- IP65 Outdoor Protection
Suitable for façades, gardens, courtyards and professional exterior landscape environments. - Adjustable Bracket Design
Flexible aiming allows precise illumination of walls, trees, shrubs, pathways and architectural details. - 8W-72W Wide Power Range
Four wattage options support small accent applications through larger façade and landscape projects. - 15° / 25° / 30° / 45° / 60° Beam Options
Multiple reflector angles provide narrow, medium and wide-beam lighting distributions. - Durable Aluminum Housing
Aluminum construction provides structural durability and effective heat dissipation for outdoor use. - Glass Diffuser
Glass optical cover provides a clean light exit surface and reliable weather resistance. - Surface-Mounted Installation
Bracket-mounted construction supports installation on walls, landscape bases and architectural surfaces. - Multiple Body Colors
Black, Dark Gray and Silver Gray finishes are available.
MODEL & SIZE OPTIONS
| Model | Power | Luminous Flux | Dimension (A×B) | Height (C) | CCT | PF | Voltage | CRI |
|---|
| MB23-060690 | 8W | 560 lm | 90×90mm | 110mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB23-0606120 | 18W | 1260 lm | 120×120mm | 160mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB23-0606145 | 32W | 2240 lm | 145×145mm | 180mm | 2700K-6000K | 0.9 | AC110-265V | Ra80-90 |
| MB23-0606200 | 72W | 5040 lm | 200×200mm | 210mm | 2700K-6000K | 0.9 | AC110-265V | Ra80-90 |
| MB23-060790 | 8W | 560 lm | 90×90mm | 110mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB23-0607120 | 18W | 1260 lm | 120×120mm | 160mm | 2700K-6000K | 0.6 | AC110-265V | Ra80-90 |
| MB23-0607145 | 32W | 2240 lm | 145×145mm | 180mm | 2700K-6000K | 0.9 | AC110-265V | Ra80-90 |
| MB23-0607200 | 72W | 5040 lm | 200×200mm | 210mm | 2700K-6000K | 0.9 | AC110-265V | Ra80-90 |
OPTICAL OPTIONS
- Beam Angle: 15° / 25° / 30° / 45° / 60°
- Diffuser Material: Glass
- Adjustable bracket for directional outdoor accent lighting
TECHNICAL OPTIONS
- Protection Rating: IP65
- Input Voltage: AC110-265V
- CCT: 2700K-6000K
- CRI: Ra80-90
- Housing Material: Aluminum
- Operating Mode: Built-in LED
- Switch: On / Off
- Mounting Type: Surface Mounted
- Mounting Location: Above Ground / Wall / Landscape Surface
- Application Environment: Indoor / Outdoor
- Body Color: Black / Dark Gray / Silver Gray
RECOMMENDED APPLICATIONS

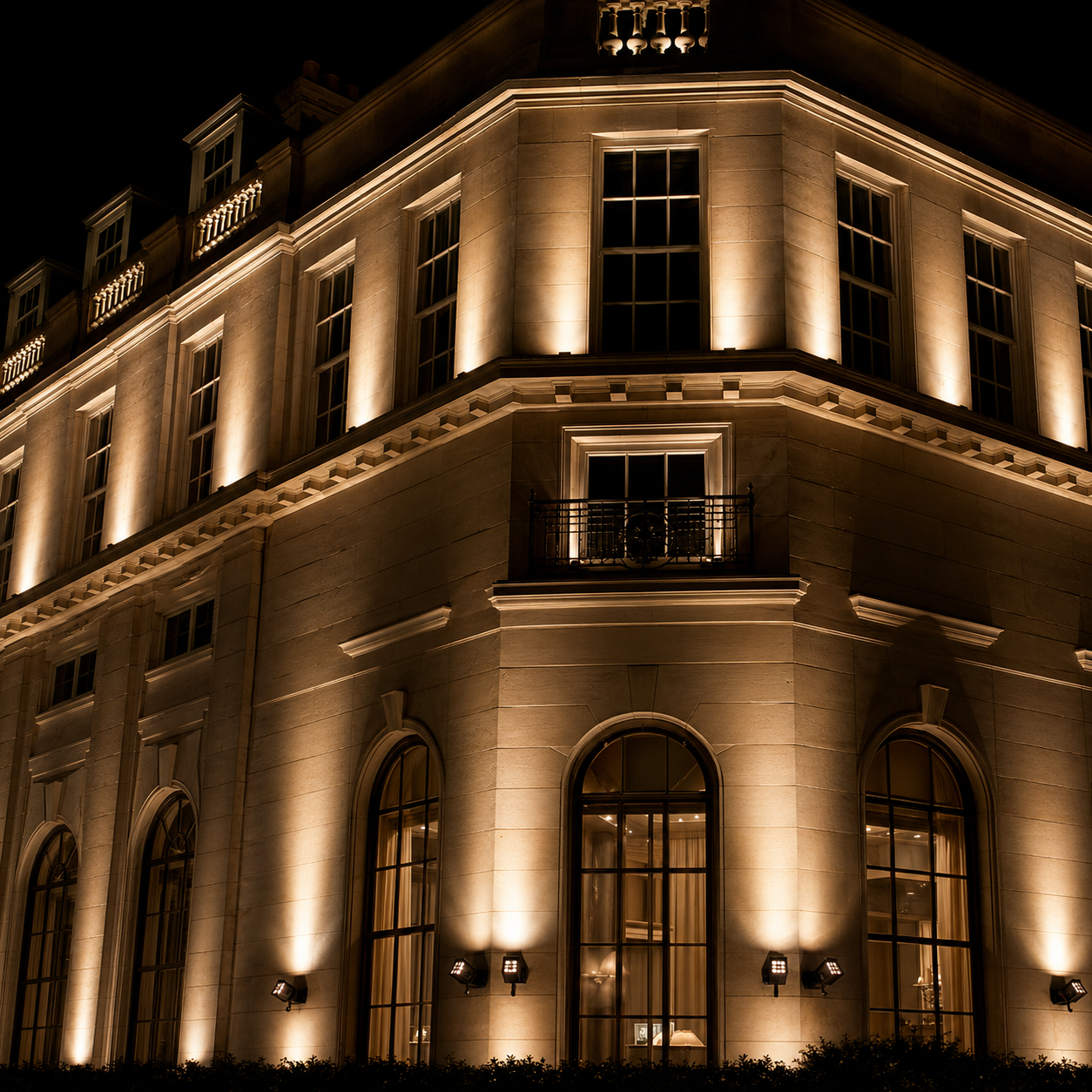

- Building Façades & Exterior Walls
- Villa Gardens & Courtyards
- Hotels & Resort Landscapes
- Trees & Architectural Features
- Outdoor Paths & Public Areas
- Commercial Landscape Lighting
- Architectural Exterior Lighting
