Ultra-slim 24V magnetic linear light with two optical configurations for flexible architectural lighting. Designed for ultra-narrow magnetic track systems, it combines a compact 18 × 5 mm profile with 6W and 10W output options for residential, retail, hospitality and commercial interiors.
Product Overview
The 24V Magnetic Linear Light is an ultra-slim lighting module designed for narrow magnetic track systems. With a compact 18 × 5 mm profile, it integrates discreetly into modern architectural interiors while providing clean and efficient linear illumination.

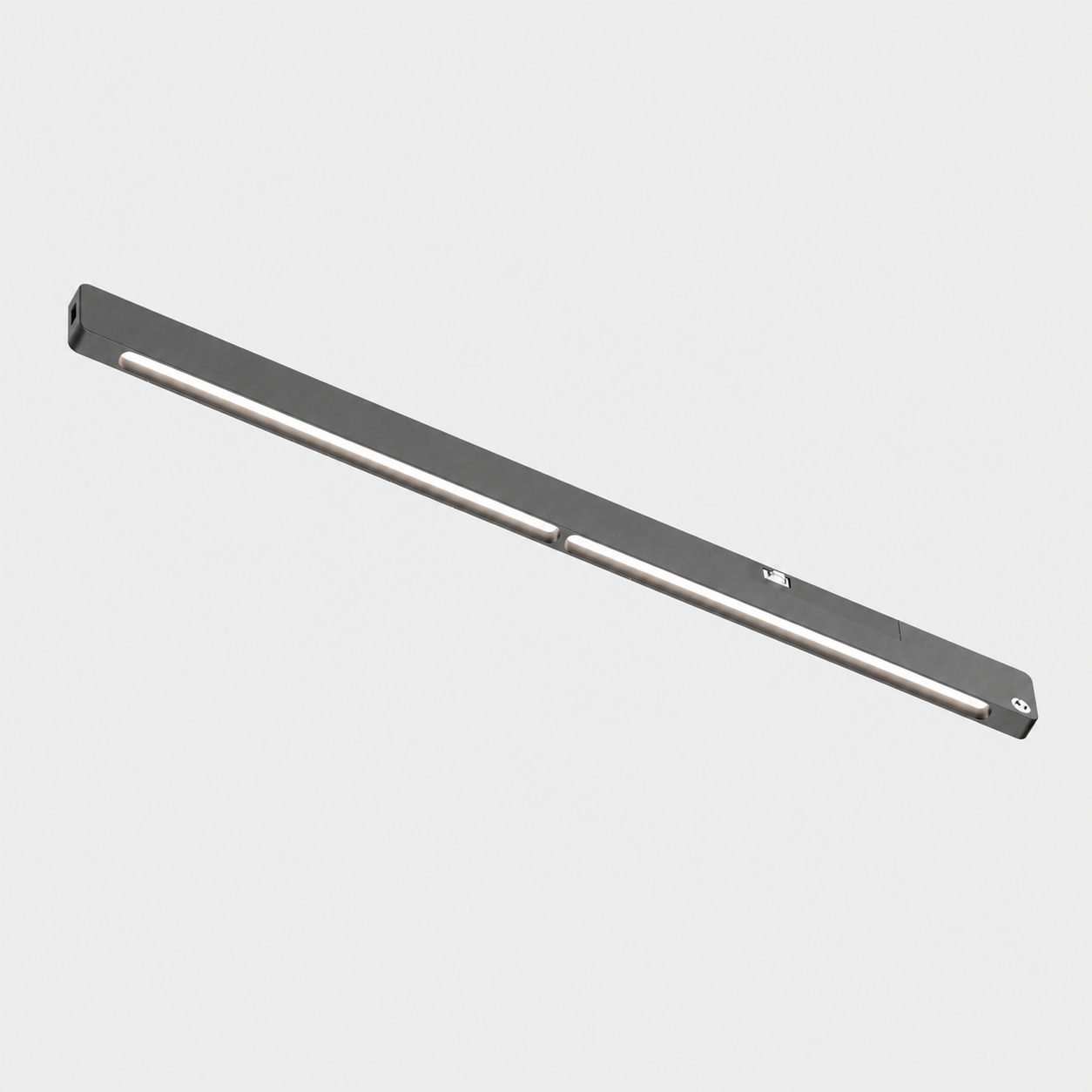

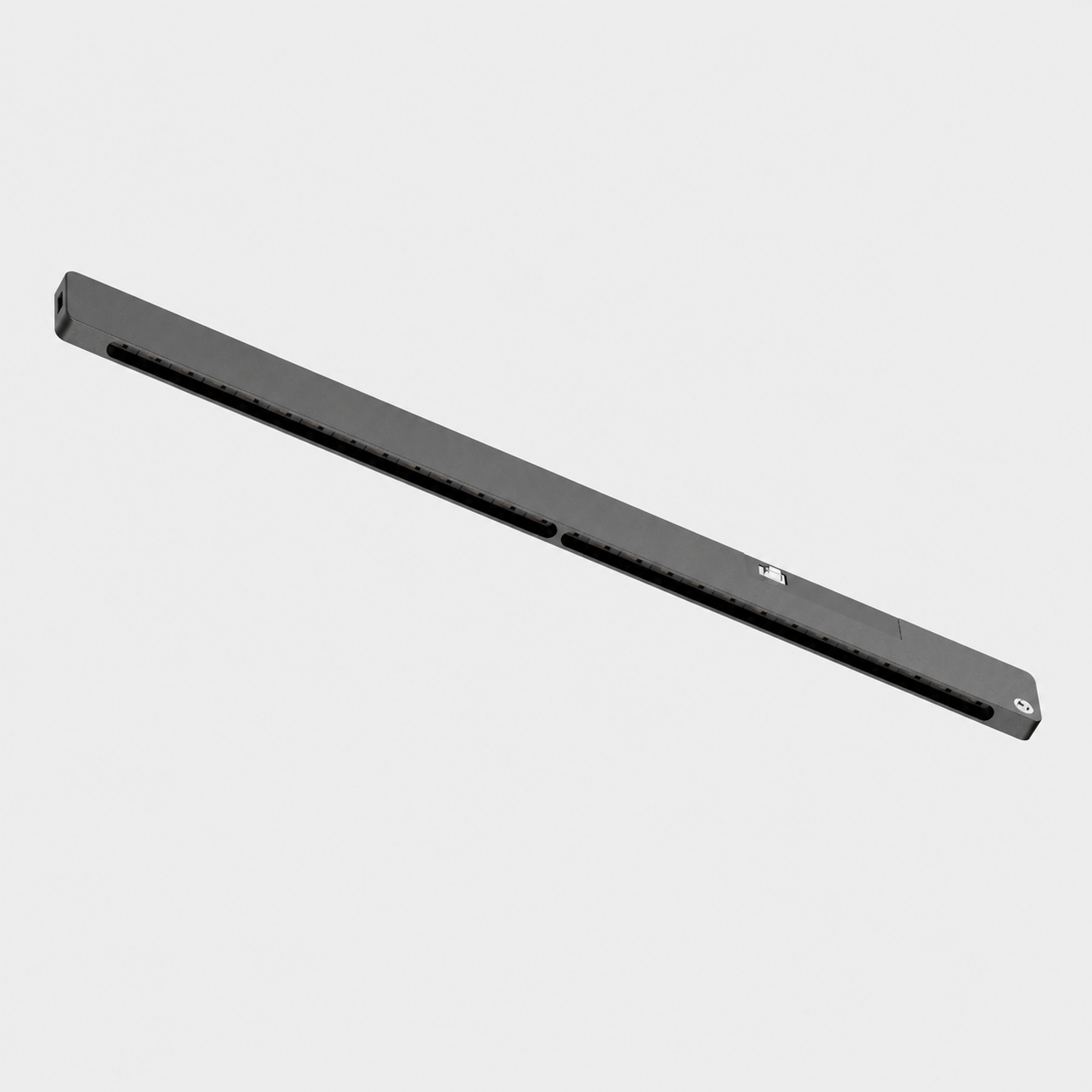

Two optical configurations are available. The GS version uses CSP light sources with a 50° beam angle for more controlled directional lighting, while the FG version uses SMD 2025 LEDs for a continuous linear lighting appearance.
Available in 6W and 10W versions with lengths of 220 mm and 320 mm, the fixture can be easily installed and repositioned along the magnetic track to suit different project layouts.
Key Features
Ultra-Slim 18 × 5 mm Profile
Compact construction integrates cleanly into minimalist magnetic track systems.
Two Optical Configurations
Choose GS with CSP optics for controlled illumination or FG with SMD 2025 LEDs for a continuous linear lighting effect.
6W & 10W Options
Available in 220 mm and 320 mm lengths for different lighting layouts.
High Color Rendering
CRI >90 provides accurate and natural color presentation.
Flexible Magnetic Installation
Quick magnetic mounting allows easy installation, removal and repositioning along the track.
Multiple CCT Options
Available in 3000K, 4000K and 6500K for different project requirements.
Recommended Applications
Retail Lighting
Suitable for shelves, display areas and general linear accent lighting.
Hospitality Lighting
Provides discreet architectural lighting for hotels, restaurants, corridors and reception spaces.

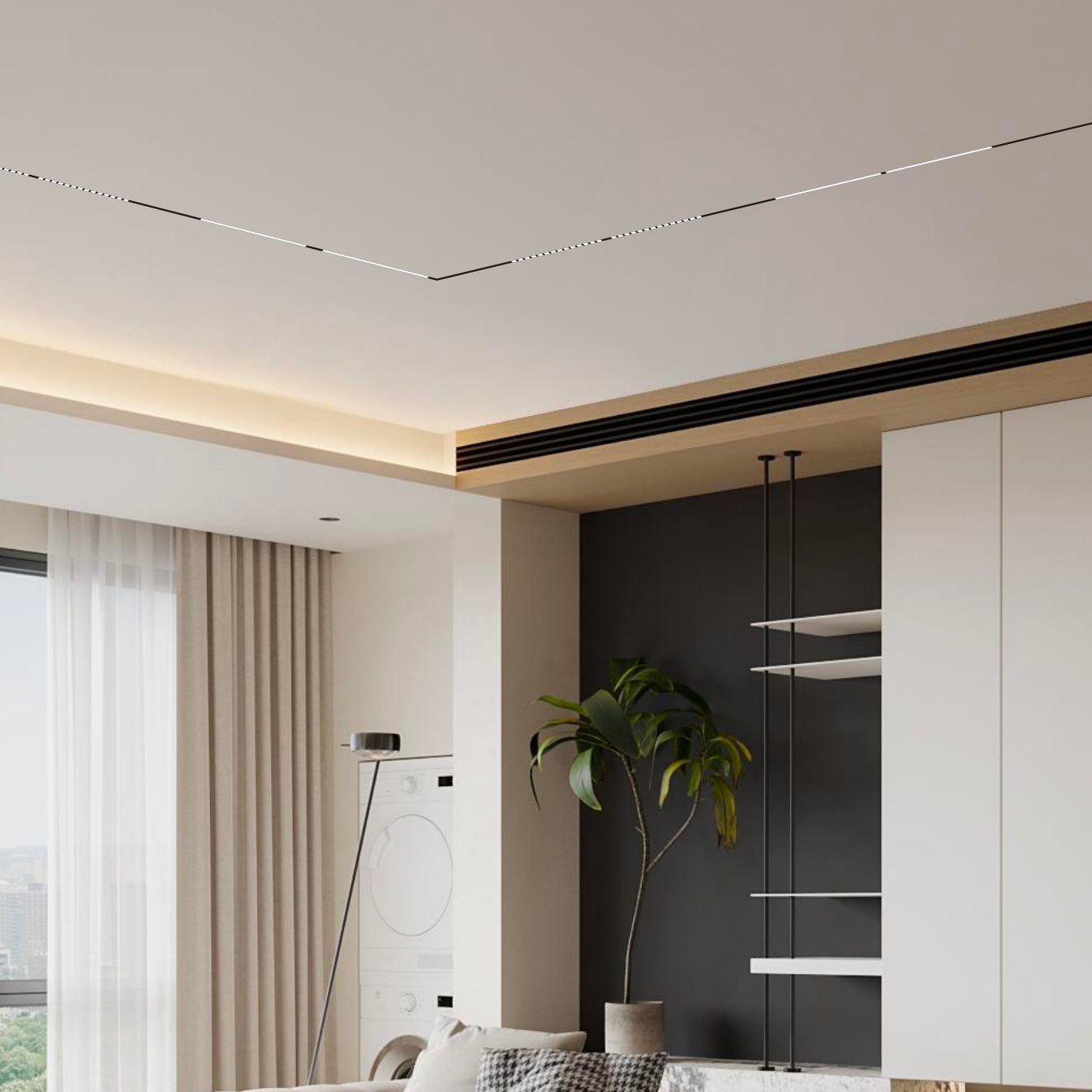

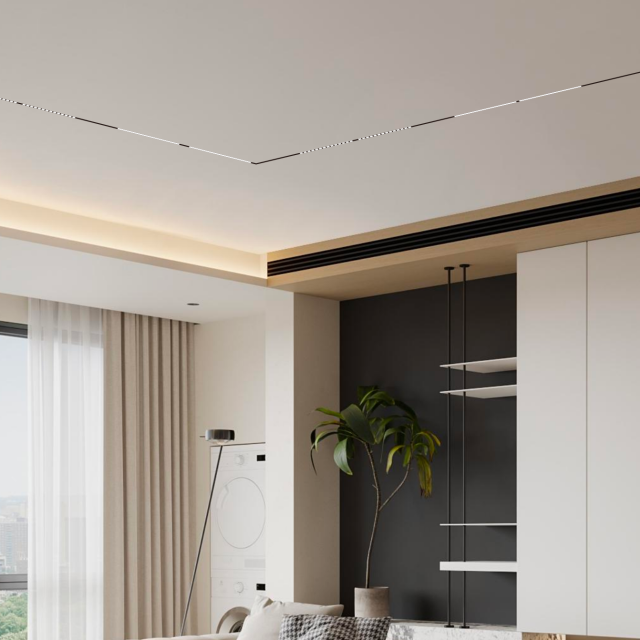

Residential Lighting
Suitable for living rooms, kitchens, corridors and modern minimalist interiors.
Commercial Interiors
Ideal for offices, showrooms and architectural spaces requiring compact linear lighting.
Variant Specifications
Available Configurations
| Model | Power | Light Source | Size | Beam Angle |
|---|---|---|---|---|
| DR5-GS-200-6W | 6W | CSP | 220×18×5 mm | 50° |
| DR5-GS-300-10W | 10W | CSP | 320×18×5 mm | 50° |
| DR5-FG-200-6W | 6W | SMD 2025 | 220×18×5 mm | — |
| DR5-FG-300-10W | 10W | SMD 2025 | 320×18×5 mm | — |
Compatible 24V Magnetic Track System
This linear light is designed as part of the VOC 24V ultra-narrow magnetic track lighting system and can be combined with compatible tracks, power supplies, connectors and other magnetic lighting modules.
Recessed, surface-mounted and suspended track configurations can be selected according to project requirements.
View 24V Magnetic Track Lighting System →
Project Configuration Support
Need help selecting fixtures for your magnetic track lighting project?
Send us your floor plan, lighting schedule, BOM or project requirements. VOC can assist with fixture selection, track configuration, power supplies and accessories.
For project selection or quotation support, contact VOC with your lighting plan, BOM or project requirements.
