24V 5mm Magnetic Track Lights

Modular magnetic track lighting with an ultra-narrow 5mm profile — free combination of grille, flood, spot, downlight and pendant modules, with mains-free installation and 24V low-voltage safety for indoor projects.

5mm ultra-narrow track — minimalist, thin-to-5mm design
Modular free combination — flood, grille, spot, downlight, pendant in one system
Mains-free installation — pre-lay the track on the top surface, no suspended ceiling needed
24V low voltage — safer power supply for any space
Bluetooth dimming — no flicker, 20,000H lifetime

Request a Quote Download Catalog

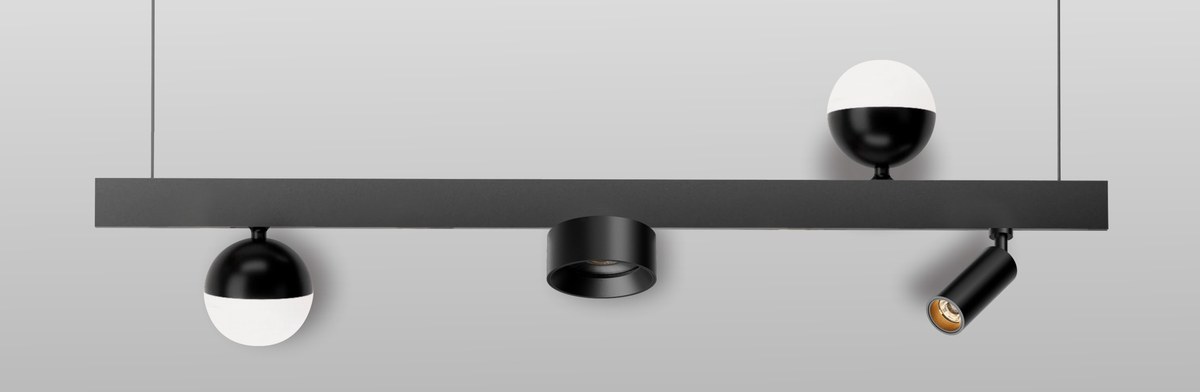

VOC 5mm magnetic track lighting system with spotlight, grille, globe and adjustable heads on black track

CE / RoHS
Certified

CRI >90
Across Series

MOQ 100 pcs
per Model

7–10 Day
Lead Time

In-house
Assembly

Full
OEM / ODM

Why Choose the 5mm Magnetic Track System

Ultra-Narrow 5mm
Thin to 5mm profile for a minimalist ceiling line.

Light DIY
Secure snap design — lamps suck up and take down in a second, no drop worry.

Free Left/Right Adjustment
Move lamps along the track anytime to adjust the layout.

Mains-free Design
No suspended ceiling required — pre-lay the track on the open or suspended top surface.

Safe & Efficient
24V low-voltage supply, energy-saving LED, easy replace and clean — replace only the single module when damaged.

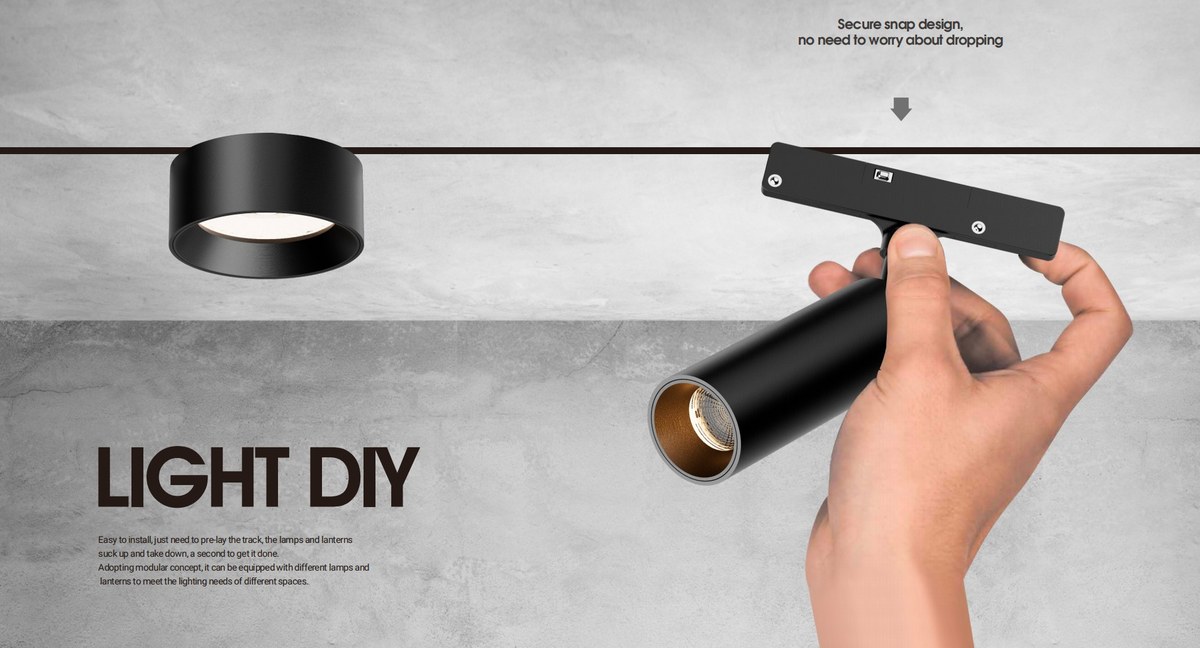

Easy DIY installation of VOC 5mm magnetic track lighting - secure snap design, lamps attach to the pre-laid track in seconds

Product Range & Specifications

Common specifications across the series: 24V DC · CCT 3000K / 4000K / 6500K · Indoor use · 20,000H lifetime · No flicker · Bluetooth dimming · Al+PC housing · Oxidation black finish.

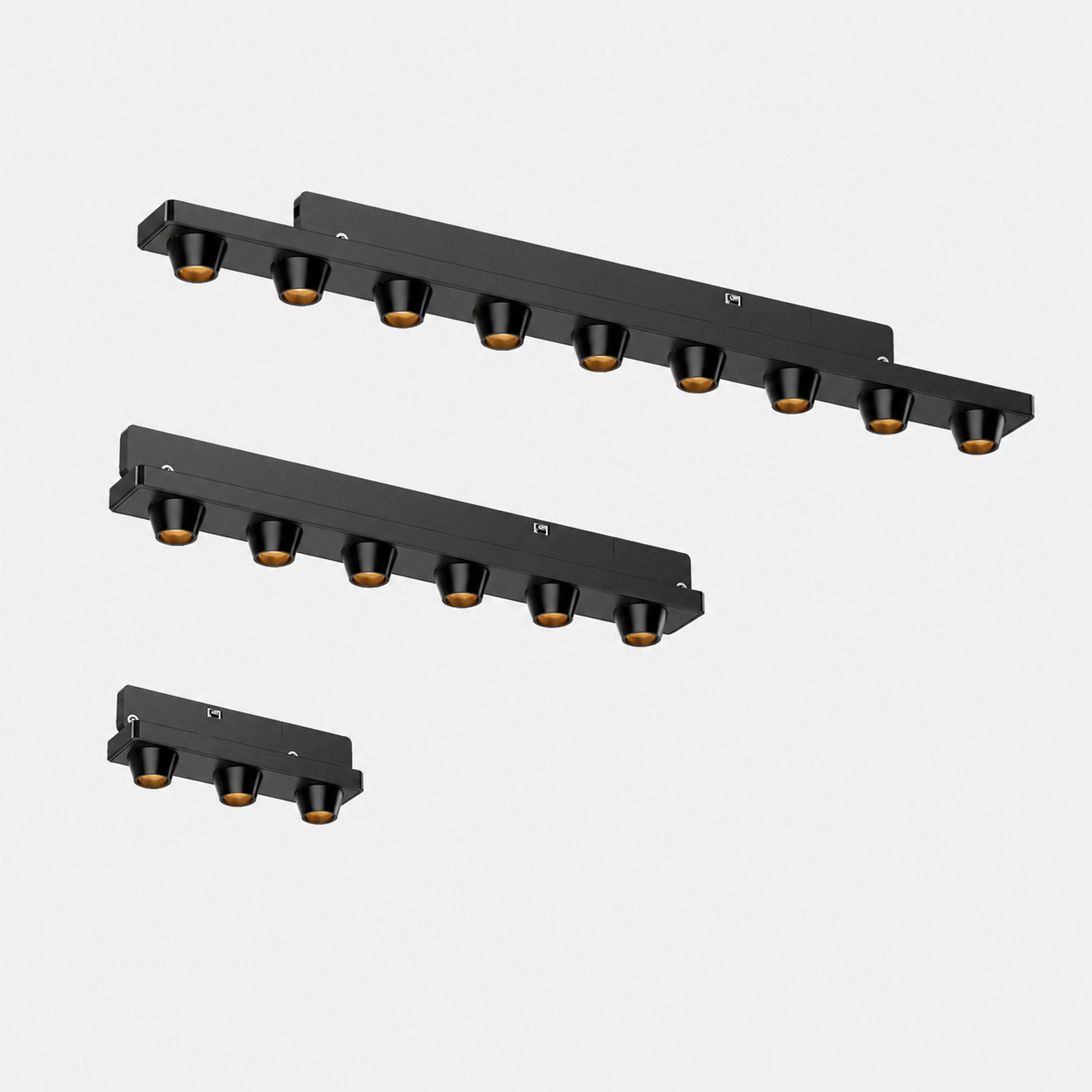

Grille Lights (DR5-GS)

Model	Wattage	Voltage	Chips	CRI	Size	Beam Angle
DR5-GS-3-6W	6W	24V	SMD 3030	>90	100×25×35mm	15° / 30° / 50°
DR5-GS-6-12W	12W	24V	SMD 3030	>90	220×25×35mm	15° / 30° / 50°
DR5-GS-9-18W	18W	24V	SMD 3030	>90	320×25×35mm	15° / 30° / 50°

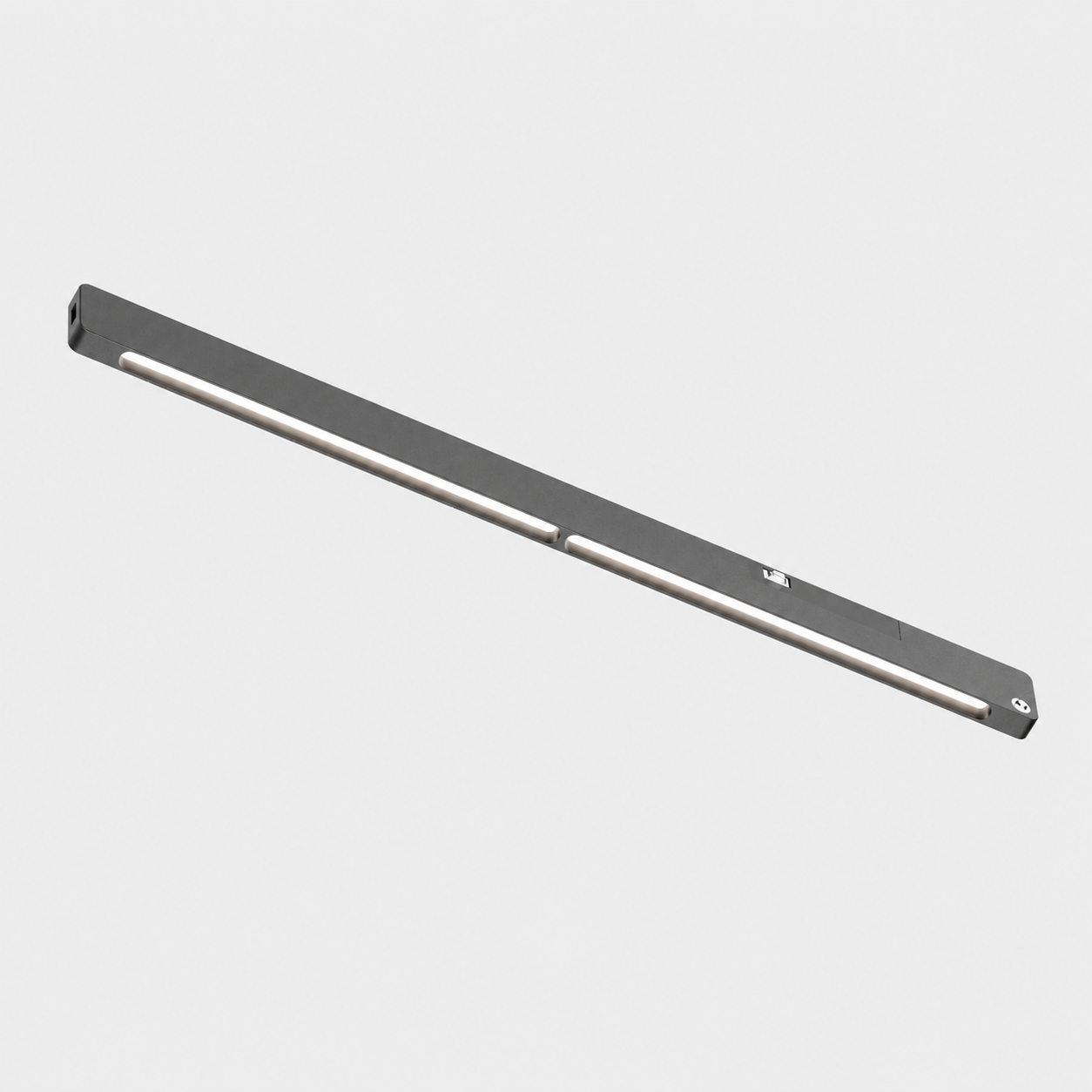

Flood Lights (DR5-FG)

	Model	Wattage	Voltage	Chips	CRI	Size	Beam Angle
	DR5-FG-200-6W	6W	24V	SMD 2025	>90	220×18×5mm	50°
	DR5-FG-300-10W	10W	24V	SMD 2025	>90	320×18×5mm	50°

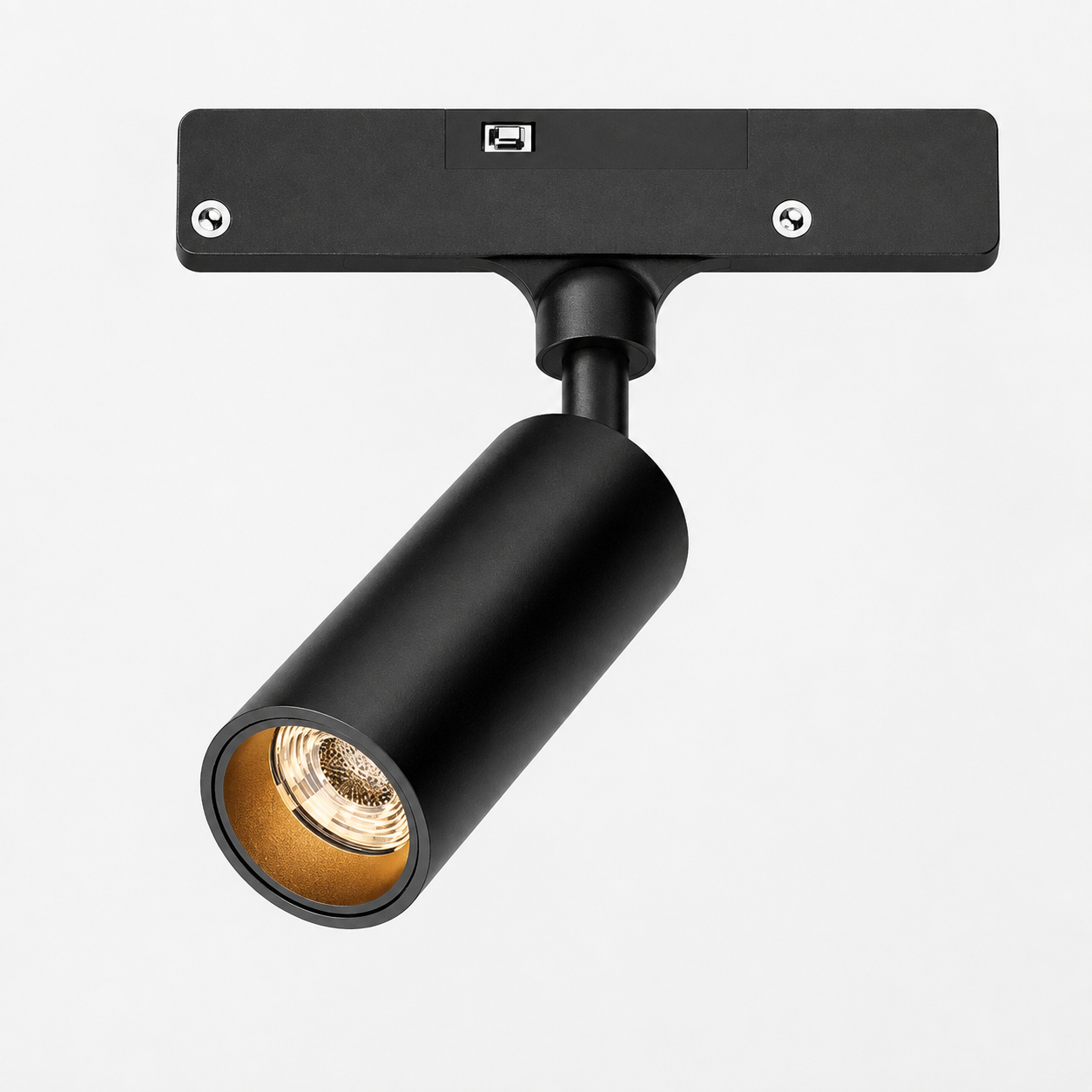

Spot Lights (DR5-SP)

Model	Wattage	Voltage	Chips	CRI	Size	Beam Angle
DR5-SP-5W	5W	24V	COB	>90	Ø25×60mm	24° / 36°
DR5-SP-7W	7W	24V	COB	>90	Ø35×90mm	24° / 36°
DR5-SP-12W	12W	24V	COB	>90	Ø45×110mm	24° / 36°

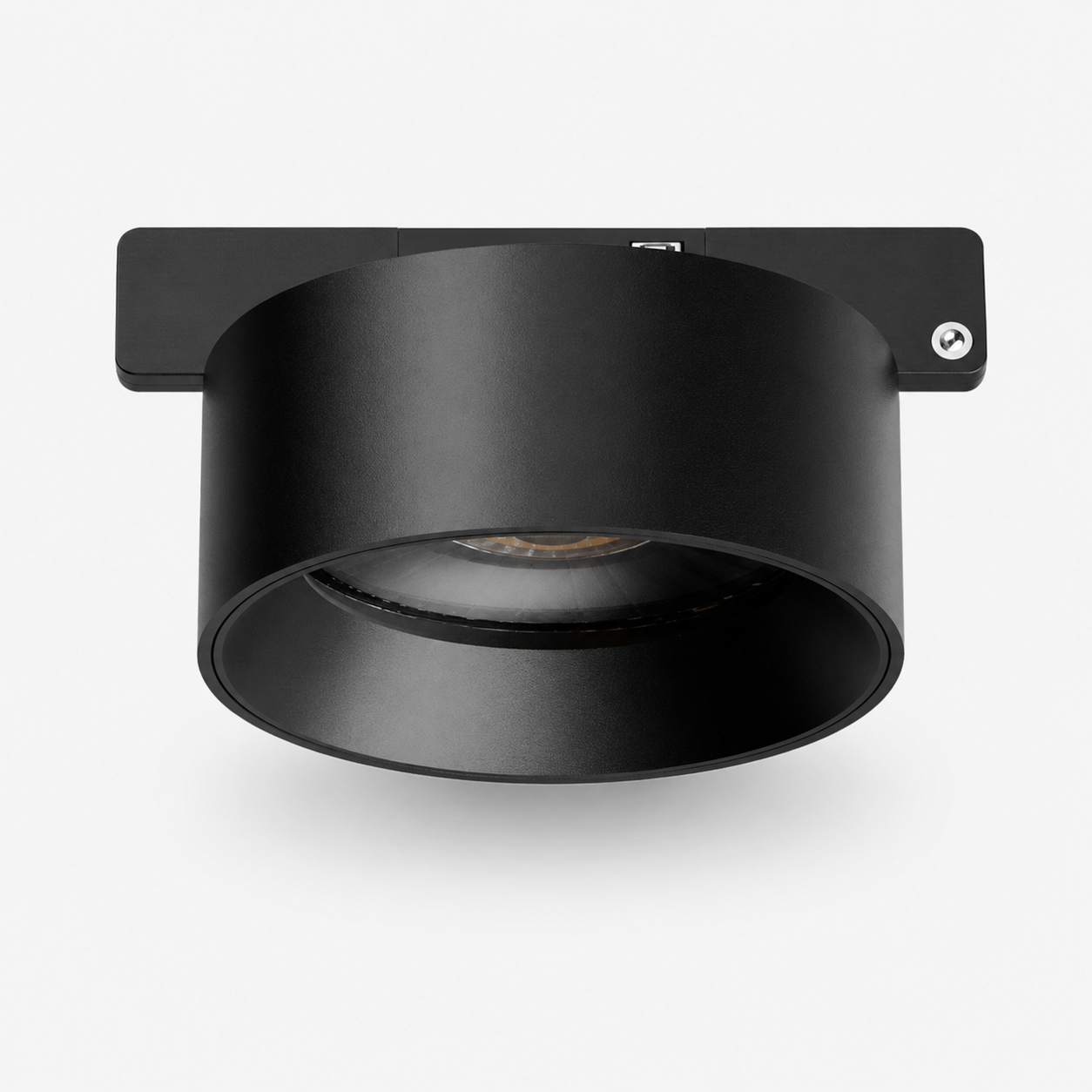

Downlights (DR5-D)

	Model	Wattage	Voltage	Chips	CRI	Size	Beam Angle
	DR5-D80-7W	7W	24V	SMD	>90	Ø80×50mm	120°
	DR5-D100-12W	12W	24V	SMD	>90	Ø100×55mm	120°

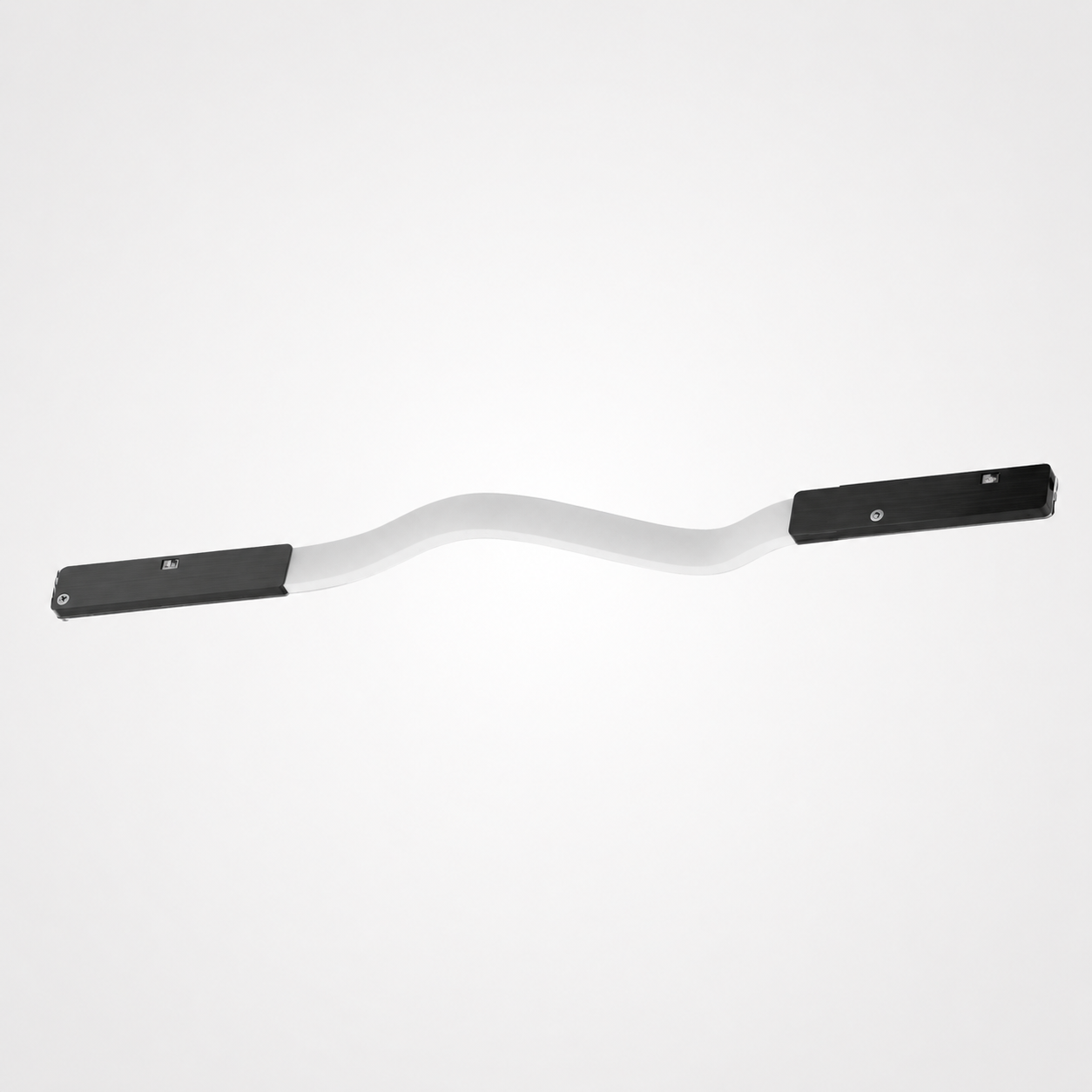

Linear Bars (DR5-1M)

	Model	Wattage	Voltage	Chips	CRI	Size	Note
	DR5-1M-7W	7W	24V	SMD 2835	>90	1000×5×18mm	1m, length customizable

Panel Lights (DR5-B / DR5-P)

	Model	Wattage	Voltage	Chips	CRI	Size
	DR5-B100-7W	7W	24V	SMD 2835	>90	Ø100×130mm
	DR5-P100-7W	7W	24V	SMD 2835	>90	100×100×130mm

Track Accessories

Model	Material	Size	Description
DR5-PW	Al+PC	68×5×18mm	Input module, wire 150mm
DR5-CO	Al+PC	68×5×18mm	Connect module, wire 40mm
DR5-CL	Al+PC	68×5×18mm	Corner connect module, wire 180mm
DR5-TP	Iron	85×9×2mm	Connector for recessed track
DR5-SX-TP	Iron	—	Upper & lower lifting connector for recessed track
DR5-TCR	Aluminum	50×50×23mm	Corner
DR5-WCR	Aluminum	50×50×45mm	Outside corner
DR5-SXD	Iron	—	Hanging wire set for suspended track
DR5-YD	Iron	—	Hanging wire set for round suspended track

Applications

Designed for indoor spaces: retail showrooms and boutiques, residential and apartment interiors, offices, hotels and restaurants, and commercial display areas — where adjustable, glare-controlled accent lighting is required.

Why Work with VOC Lighting

01
MOQ 100 pcs per model — low commitment for first orders

02
7–10 day production lead time after confirmation

03
CE / RoHS compliant luminaires for export

04
CRI >90 across the range — true colour rendering

05
Batch CCT customization — 1800K / 2700K single colour, 2700–6500K tunable dual colour

06
In-house assembly — flexible production and configuration

07
Full OEM/ODM — housing finish, optics, CCT, dimming, logo, packaging

08
Quality control — incoming inspection, aging tests, final QC before shipment

09
Project-level support — specification verification and order coordination

Frequently Asked Questions

What is the minimum order quantity (MOQ) for the 5mm magnetic track system?

The standard MOQ is 100 units per model. For mixed-model orders or repeat orders, our sales team can discuss flexible terms.

What is the production lead time?

Standard production takes 7 to 10 days after order confirmation, depending on order volume and customization level. A confirmed schedule is provided at quotation stage.

What certifications do the luminaires comply with?

VOC Lighting products comply with CE and RoHS standards, and the 5mm magnetic track series delivers CRI >90 across all modules.

What colour temperatures are available?

3000K, 4000K and 6500K are available as standard. For batch orders, VOC can customize single-colour CCTs such as 1800K and 2700K, as well as tunable dual-colour 2700K-6500K white.

Can the system be dimmed?

Yes, the series supports Bluetooth dimming. Additional dimming options can be configured on request for OEM projects.

Why is 24V low voltage used?

The 24V low-voltage power supply is safer to use than mains voltage, while the LED light source is energy-efficient with a long 20,000-hour lifetime.

Can the track be installed without a suspended ceiling?

Yes. The mains-free design allows the track to be pre-installed on the top surface for open or suspended installation, with no suspended ceiling required.

Does VOC Lighting support OEM/ODM customization?

Yes. As a full OEM/ODM manufacturer, VOC supports customization of housing finish, optics, CCT, dimming, logo and packaging under the partner's brand, from product development to quality control.

Where is the VOC Lighting factory located?

VOC Lighting is based in Foshan, China, with in-house assembly supporting flexible production, product configuration and order coordination.
