Product Overview
The 24V Magnetic Track System Components page brings together the key rails and accessories required to configure a complete ultra-narrow magnetic track lighting system.

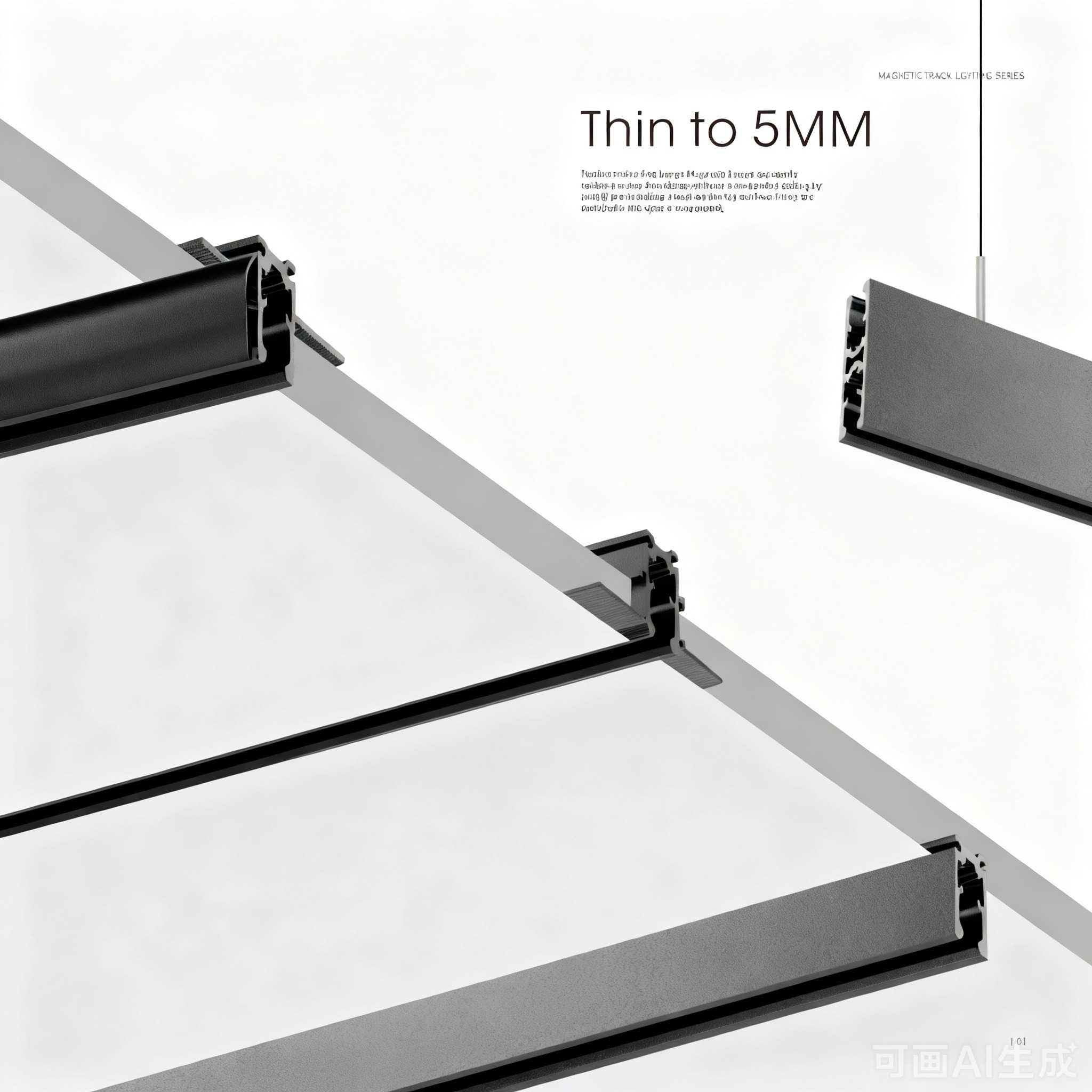

Available Track Types
Recessed Track — For concealed architectural installation.
Surface Mounted Track — For direct ceiling installation.
Suspended Track — For pendant track configurations.
Round Suspended Track — Round-profile suspended track option.
Available Connectors & Accessories
DR5-PW — Input Module, 68×5×18 mm, wire length 150 mm.
DR5-CO — Connect Module, 68×5×18 mm, wire length 40 mm.
DR5-CL — Corner Connect Module, 68×5×18 mm, wire length 180 mm.
DR5-PCR — Corner, 50×50×23 mm.
DR5-TCR — Corner, 50×50×45 mm.
DR5-WCR — Outside Corner, 50×50×45 mm.
DR5-TP — Connector for recessed track, 85×9×2 mm.
DR5-SXD — Hanging wire kit for suspended track.
DR5-YD — Hanging wire kit for round suspended track.
End Caps — Matching end caps for recessed, surface-mounted, round suspended and pendant track profiles.
System Configuration
These components work with compatible 24V magnetic lighting modules, track rails and power supplies to form a complete project lighting system.
Project Support
Send us your floor plan, lighting schedule, BOM or project requirements. VOC can assist with track selection, connector matching and system configuration.
