PRODUCT OVERVIEW
The CE-MD Series Anti-Glare Surface-Mounted LED Grille Light is designed for commercial and architectural interiors requiring compact dimensions, controlled glare and clean ceiling integration without recessed installation.
The family includes 4-cell, 6-cell and 12-cell configurations with 7W, 8W and 15W power options. Its multi-cell optical structure and optional anti-glare accessories help improve visual comfort for retail, hospitality and display-oriented lighting applications.
MODEL & SIZE OPTIONS
| Model |
Configuration |
Dimension |
Power |
| CE-MD-S04 |
4-Cell |
45.5×45.55×44mm |
7W |

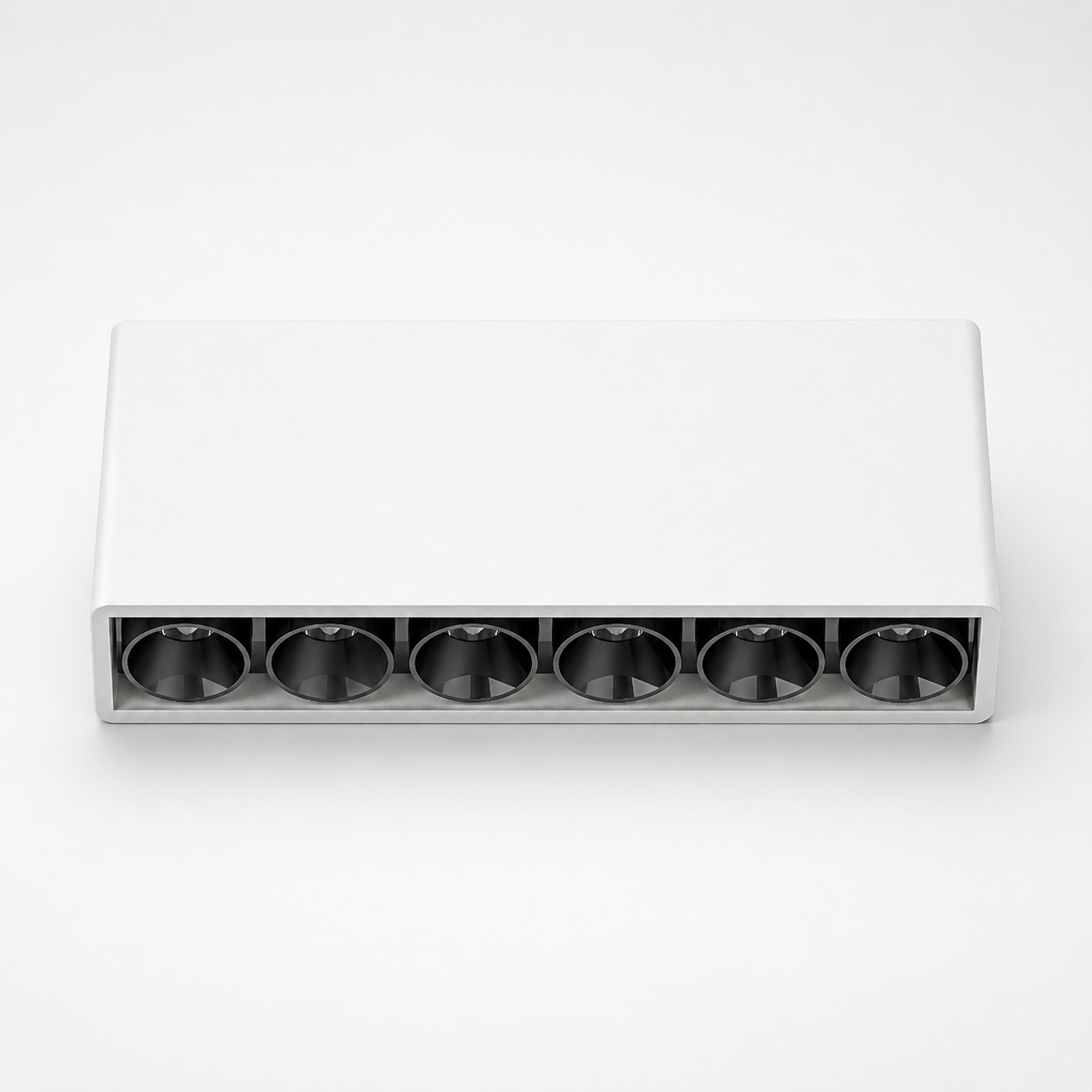

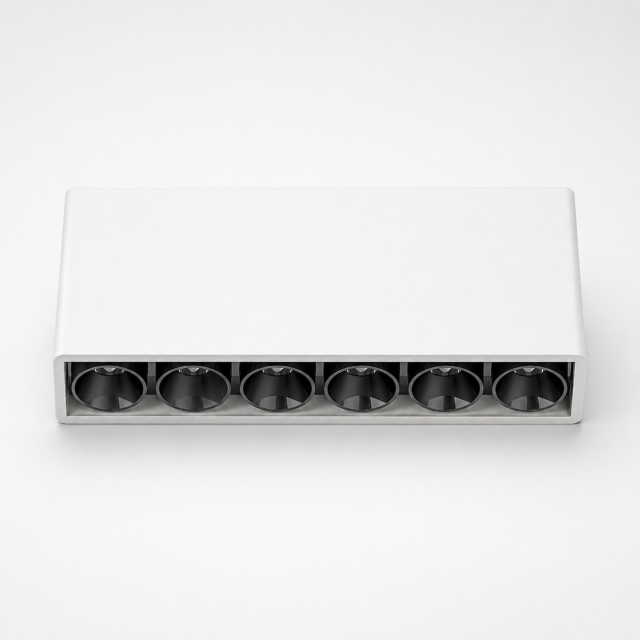

| CE-MD-S06 |
6-Cell |
119.5×24.5×42mm |
8W |
| CE-MD-S12 |
12-Cell |
233.5×24.5×42mm |
15W |
KEY FEATURES
- Anti-Glare Multi-Cell Design — Individual optical cells help shield the light source from direct view and improve visual comfort.
- Compact Surface-Mounted Form — Suitable for ceilings where recessed installation is unavailable or a clean surface-mounted appearance is preferred.
- Three Product Configurations — 4-cell, 6-cell and 12-cell versions provide flexible options for different commercial layouts.
- Optional Anti-Glare Accessories — Concave anti-glare covers and honeycomb configurations are available on applicable models.
- Multiple LED Source Options — Selected OSRAM 3030, Refond 3030, Cree 3535 and Lumileds 3535 LED configurations are available.
- Architectural Finish Options — Multiple body and anti-glare component finishes support different interior design schemes.
CONFIGURATION OPTIONS
- LED Type: SMD
- LED Source: OSRAM 3030 / Refond 3030 / Cree 3535 / Lumileds 3535 Optional
- Anti-Glare Cover: Concave Type Optional on Applicable Models
- Honeycomb: Optional on Applicable Models
- Color Temperature: 3000K / 4000K / 6000K
- Color Rendering: Ra90+
- Housing: Aluminum Alloy
- Body Finish: White / Black Optional
- Dimming: 0-10V / Phase Dimming / DALI Optional
RECOMMENDED APPLICATIONS
- Retail Stores & Display Areas
- Hotels & Hospitality Interiors
- Restaurants & Cafés
- Showrooms & Exhibition Spaces
- Commercial Corridors & Reception Areas
- Architectural Accent Lighting
