bar spotlight · lens
HS-CX003-6T
48V · 6W · lens 36° · Ra ≥90 · 112 mm · 90° tilt
A 112 mm body with a 36° lens — the smallest of the seven and the tightest of the two lens bars.
HS-CX003-6T
HS-CX003-12T
HS-CX003-6F
HS-CX003-12F
HS-CX003-5T
HS-CX003-10T

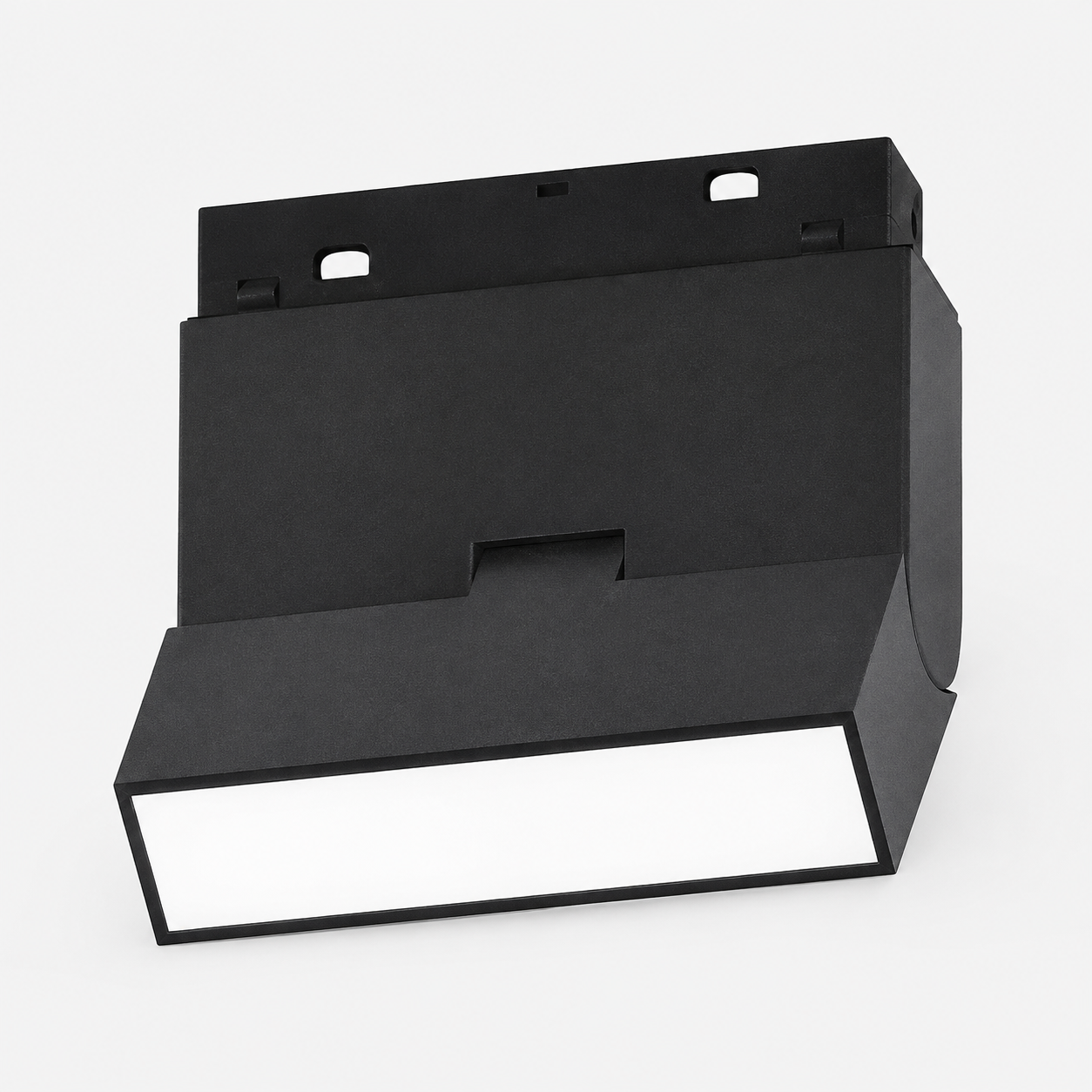

HS-CXM75Seven 48V magnetic track modules in black: four 22 mm bar bodies, two 35 mm bar bodies with reflective-cup optics, and the Ø75 mm cylinder spotlight. White finish available on all seven.
View the four original sheets & dimension drawings ↓This family covers seven VOC Lighting modules for the 48V magnetic track: the HS-CX003 bar bodies in two widths and three optics, plus the HS-CXM75 cylinder spotlight. Every model is listed at 48V with Ra ≥90 and 3000K / 4000K colour temperatures; beam angle, power and body size are what separate them, from a 6W 36° lens bar to a 24W 30° reflective-cup bar and a 9W Ø75 mm cylinder that rotates 359°.
Listed on the supplied sheets: 48V input · 6W / 9W / 12W / 24W · Ra ≥90 · 24° / 30° / 36° / 120° · 3000K / 4000K · black / white
The sheets also carry a “More..” entry in the CCT column, so colour temperatures beyond 3000K and 4000K require confirmation. Finish and CCT selections are carried into your quotation brief.
Two decisions separate the seven models: the optic that sets the light pattern, and the body that sets the module size. The tables below carry the listed values from the supplied sheets; the drawing dimensions follow in the second table, including the 90° tilt shown on every bar model and the 359° rotation shown on the cylinder.
| Model | Input | Power | Optic | CRI | Beam | CCT |
|---|---|---|---|---|---|---|
| HS-CX003-6T | 48V | 6W | Lens | Ra ≥90 | 36° | 3000K / 4000K |
| HS-CX003-12T | 48V | 12W | Lens | Ra ≥90 | 36° | 3000K / 4000K |
| HS-CX003-6F | 48V | 6W | PC | Ra ≥90 | 120° | 3000K / 4000K |
| HS-CX003-12F | 48V | 12W | PC | Ra ≥90 | 120° | 3000K / 4000K |
| HS-CX003-5T | 48V | 12W | Reflective cup | Ra ≥90 | 30° | 3000K / 4000K |
| HS-CX003-10T | 48V | 24W | Reflective cup | Ra ≥90 | 30° | 3000K / 4000K |
| HS-CXM75 | 48V | 9W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| Model | Body form | Module size (drawing) | Height & movement (drawing) |
|---|---|---|---|
| HS-CX003-6T | Bar, 22 mm wide | 112 mm long | 110 mm; 90° tilt |
| HS-CX003-12T | Bar, 22 mm wide | 220 mm long | 110 mm; 90° tilt |
| HS-CX003-6F | Bar, 22 mm wide | 112 mm long | 110 mm; 90° tilt |
| HS-CX003-12F | Bar, 22 mm wide | 220 mm long | 110 mm; 90° tilt |
| HS-CX003-5T | Bar, 35 mm wide | 135 mm long | 105 mm body + 25 mm track adapter; 90° tilt |
| HS-CX003-10T | Bar, 35 mm wide | 270 mm long | 105 mm body + 25 mm track adapter; 90° tilt |
| HS-CXM75 | Cylinder, Ø75 mm | 95 mm high | 90° tilt / 359° rotation |
| Listed on the supplied sheets | Requires confirmation |
|---|---|
| Model, input (48V), power (6W / 9W / 12W / 24W), optic (lens / PC / reflective cup), CRI (Ra ≥90), beam (24° / 30° / 36° / 120°), CCT (3000K / 4000K), black / white finish, and the drawing dimensions including 90° tilt and 359° rotation | Dimming method, driver and power supply, IP rating, body material, LED source, warranty and packing. The CCT column also carries a “More..” entry that is not itemised on the sheets |
No dimming protocol, driver reference or IP rating appears on these sheets, so none is stated here for any of the seven models.
Choose the group by the light pattern you need, then the size by the run you are lighting. Each drawing below is the version printed on the supplied sheet, with its own dimensions.

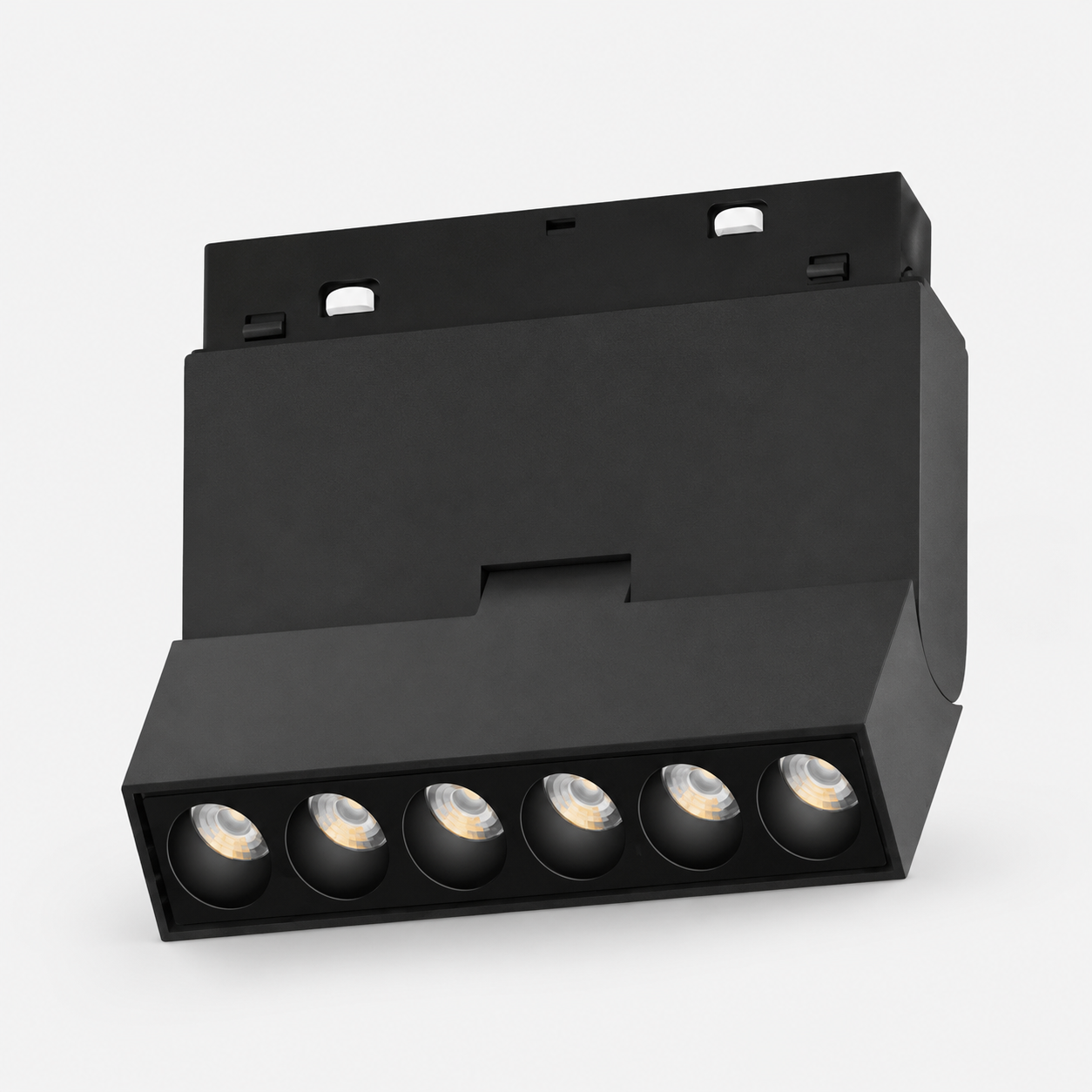

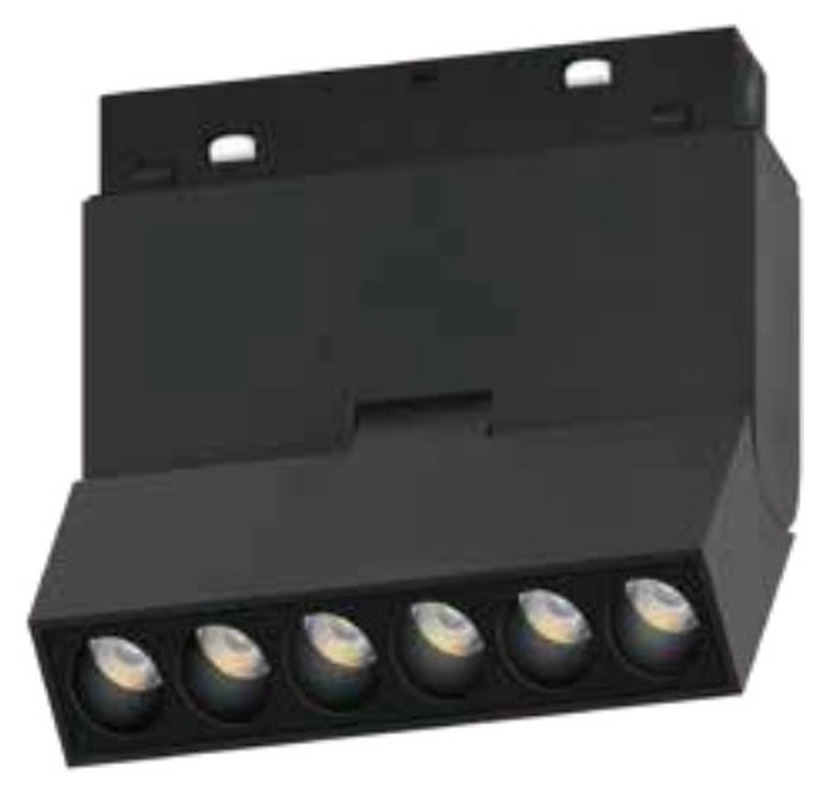

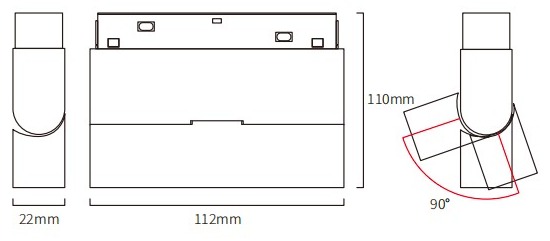

48V · 6W · lens 36° · Ra ≥90 · 112 mm · 90° tilt
A 112 mm body with a 36° lens — the smallest of the seven and the tightest of the two lens bars.

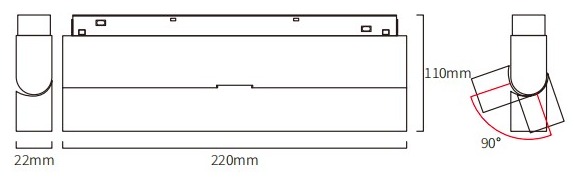

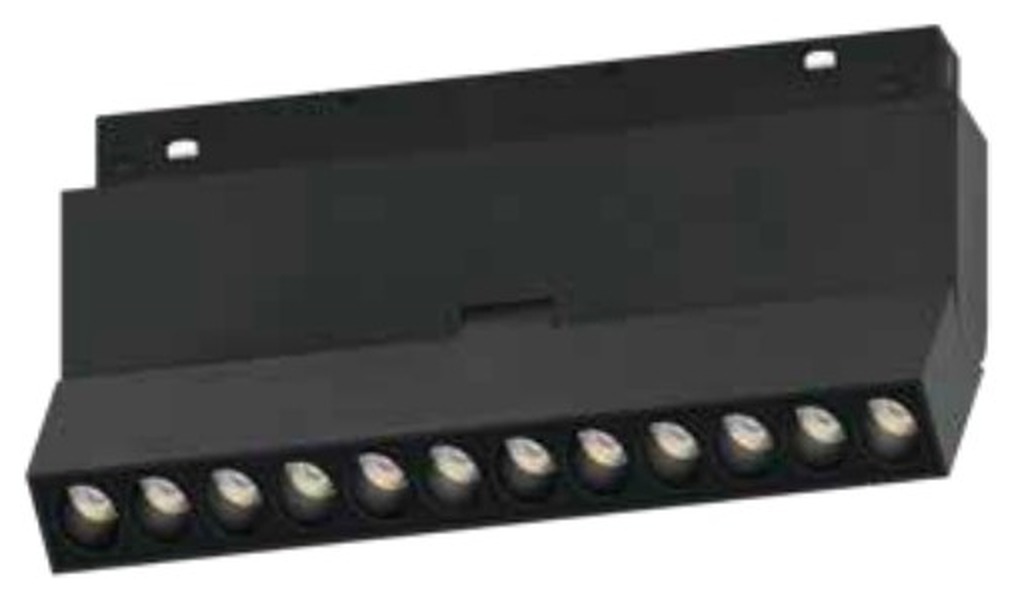

48V · 12W · lens 36° · Ra ≥90 · 220 mm · 90° tilt
The same 36° lens over a 220 mm body at 12W, for longer runs of narrow accent light.

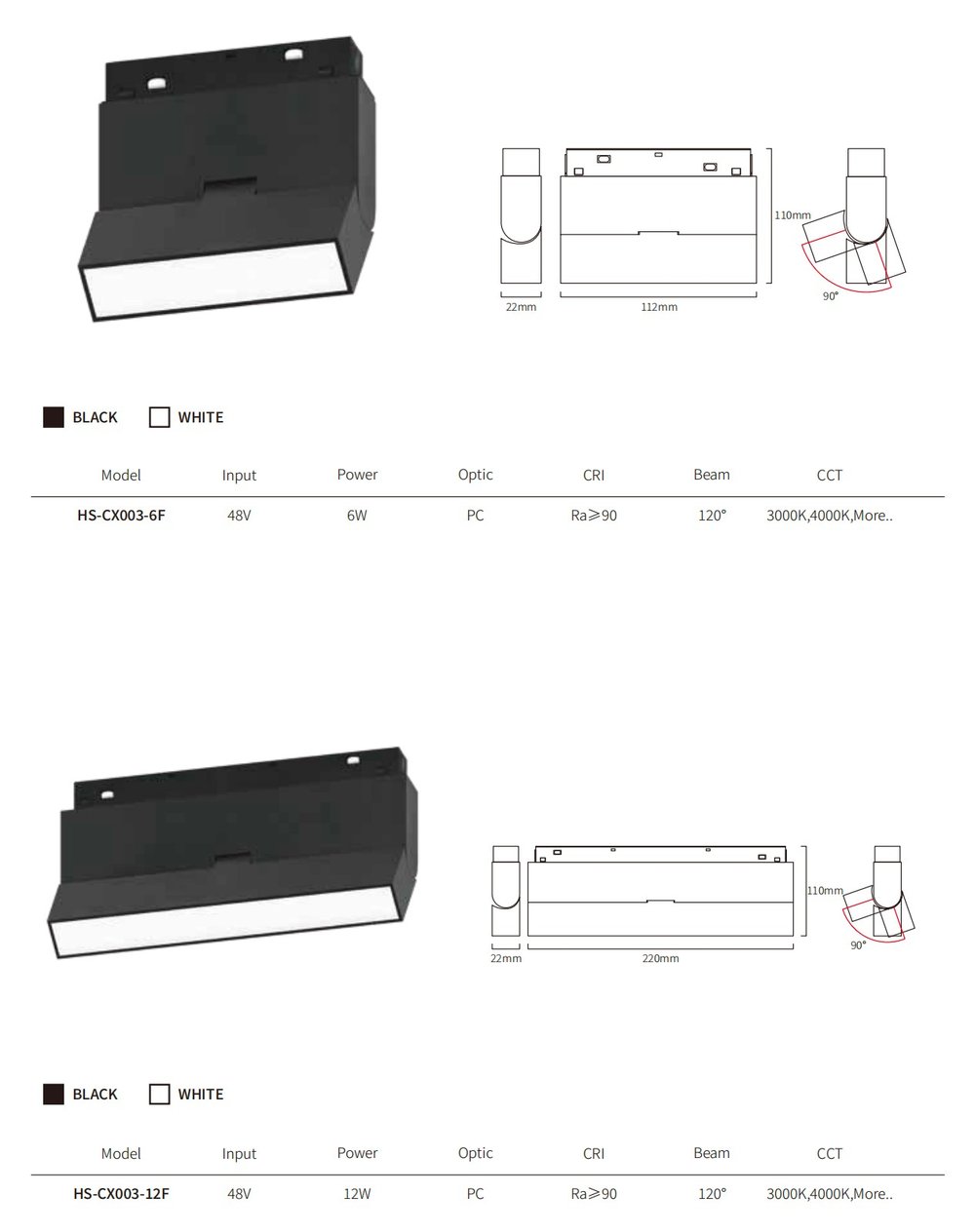

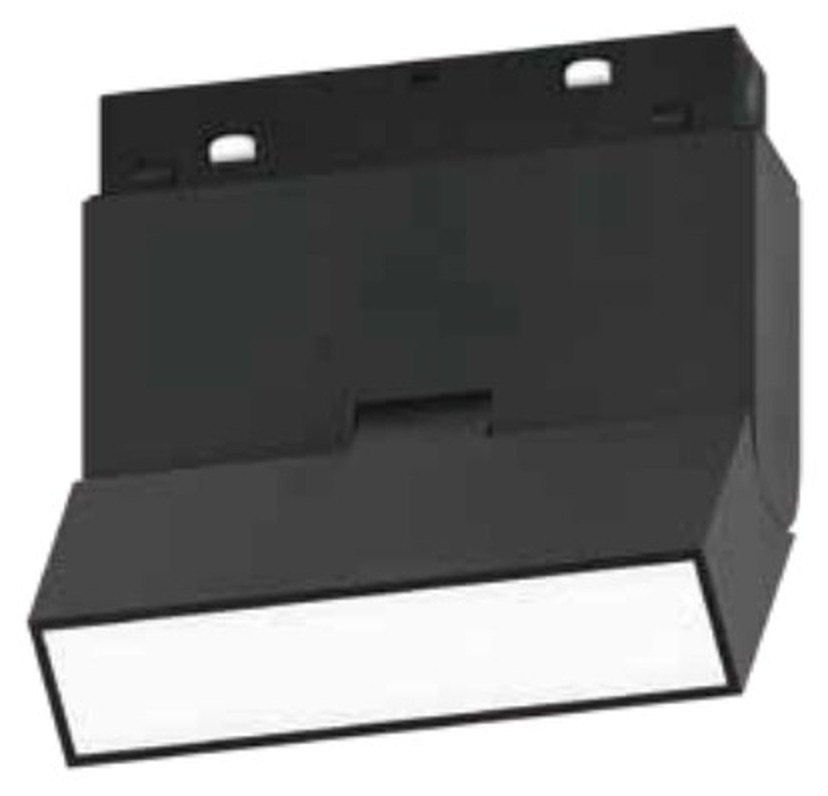

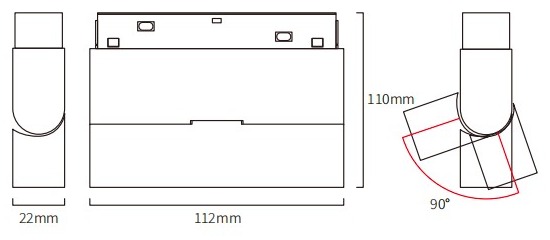

48V · 6W · PC 120° · Ra ≥90 · 112 mm · 90° tilt
Identical body and power to HS-CX003-6T, with a PC optic instead of a lens — a 120° face rather than a 36° beam.

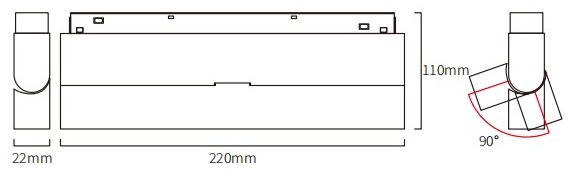

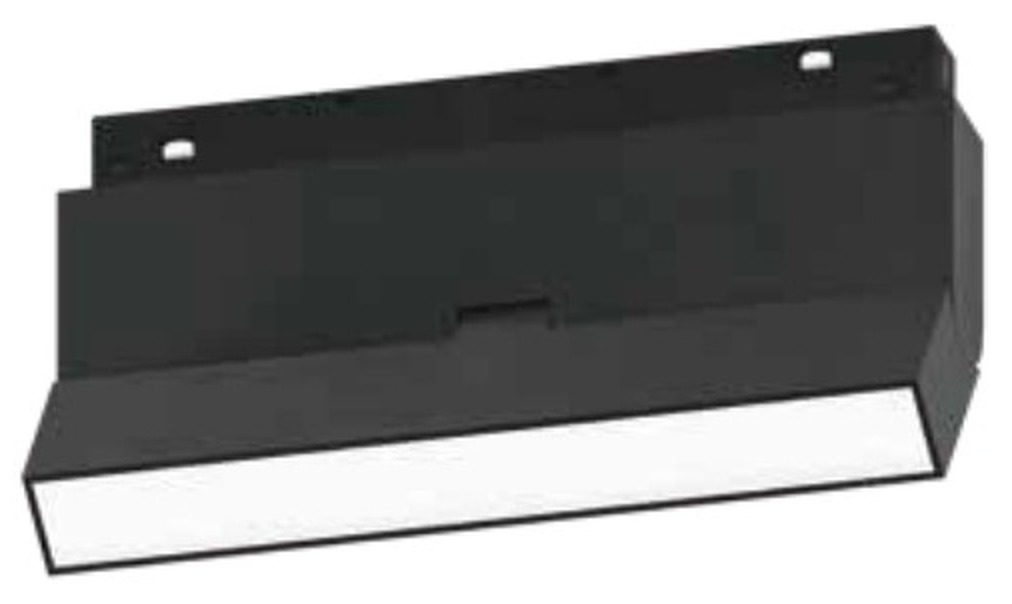

48V · 12W · PC 120° · Ra ≥90 · 220 mm · 90° tilt
The 220 mm body with the 120° PC optic, for a wide, even wash along the track.

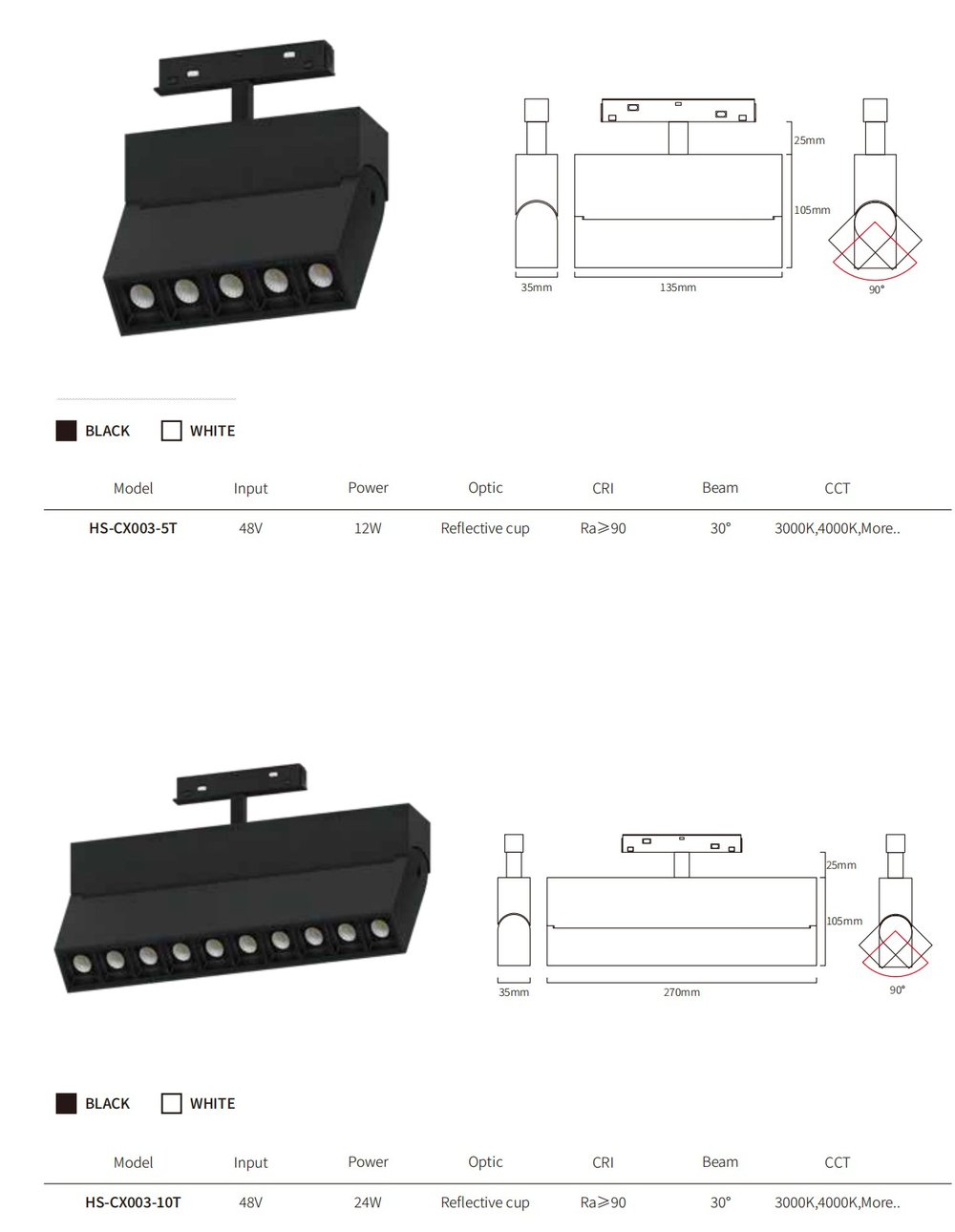

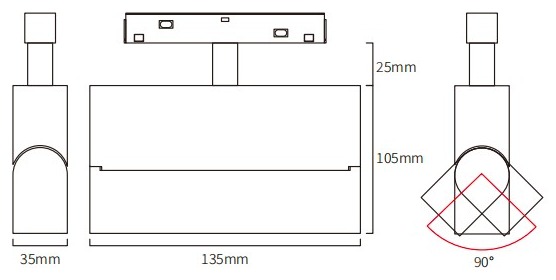

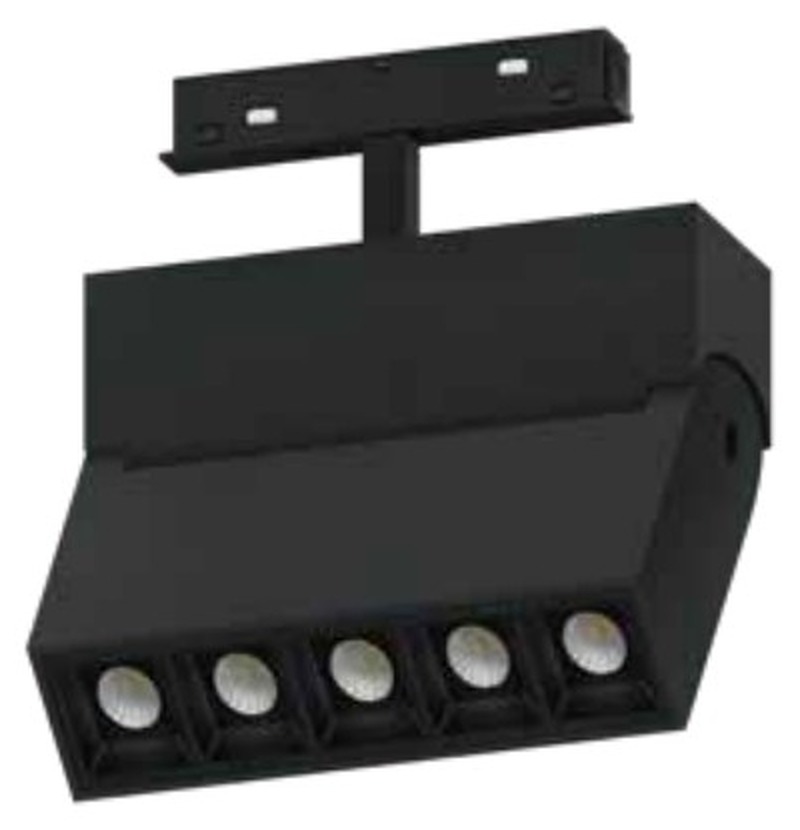

48V · 12W · reflective cup 30° · Ra ≥90 · 135 mm · 90° tilt
A wider 35 mm body with reflective-cup optics at 30°, drawn with a 25 mm track adapter above the 105 mm body.

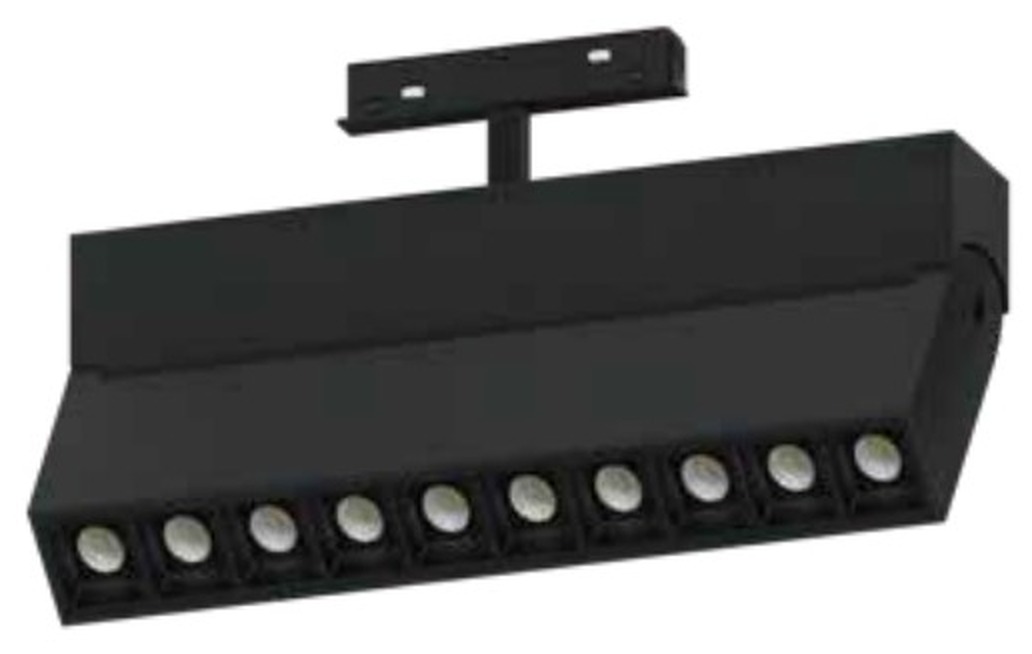

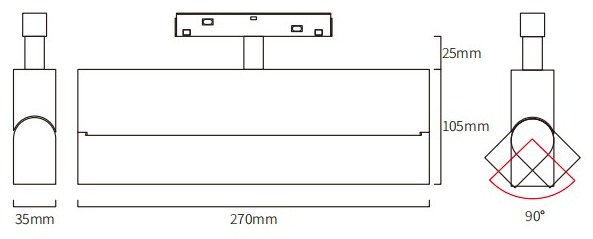

48V · 24W · reflective cup 30° · Ra ≥90 · 270 mm · 90° tilt
The highest listed power in the family at 24W over a 270 mm body, on the 30° reflective cup.

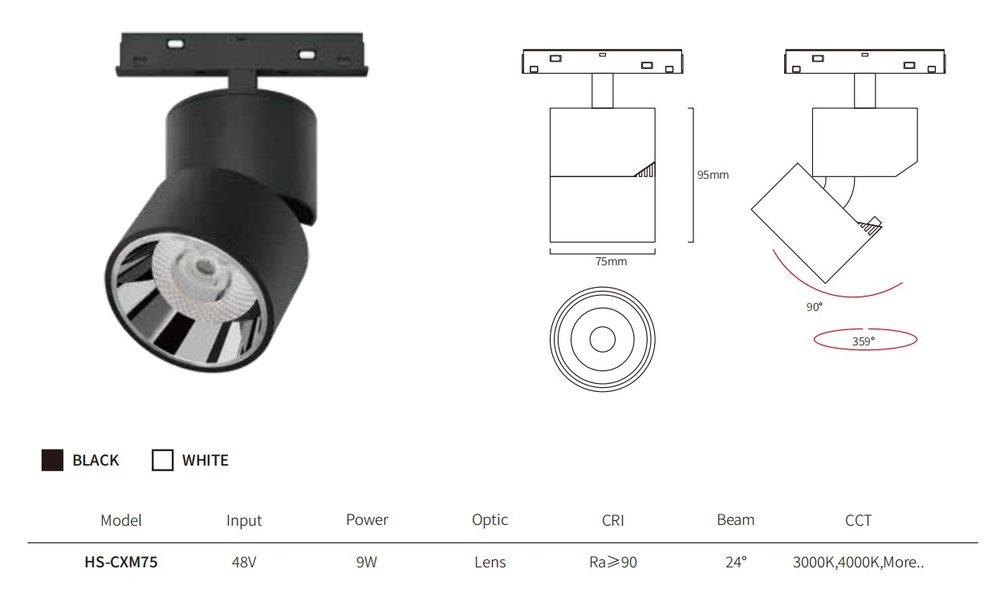

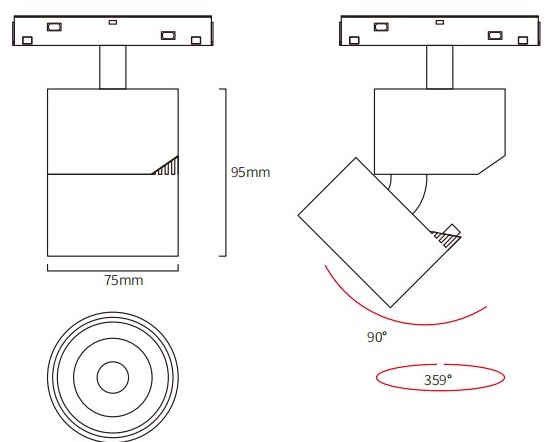

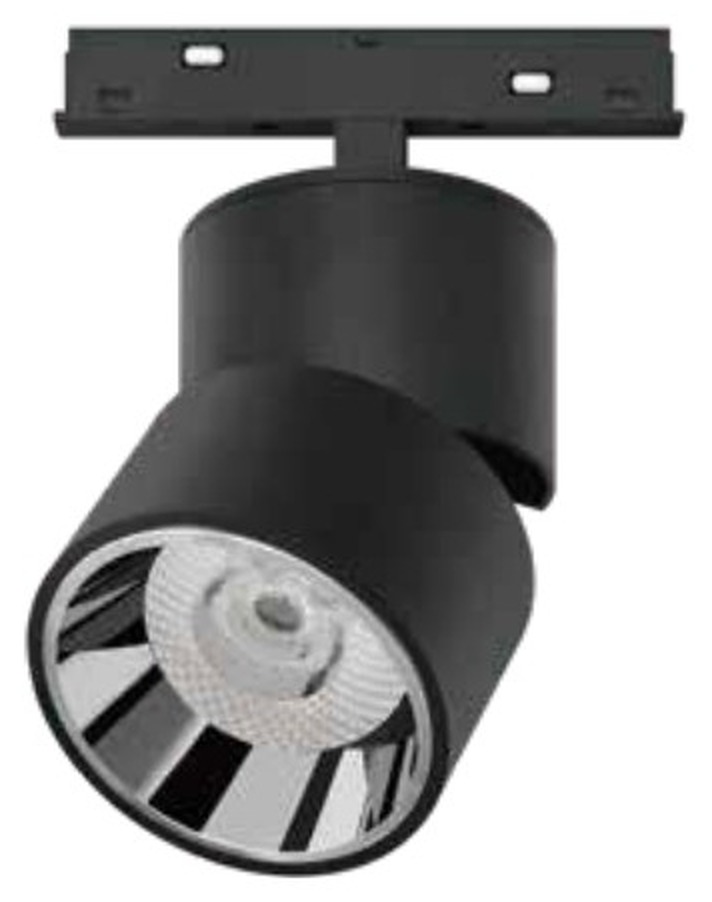

48V · 9W · lens 24° · Ra ≥90 · Ø75 mm · 90° tilt / 359° rotation
A single-aperture cylinder head rather than a bar: Ø75 mm, 95 mm high, with a 24° lens and 359° rotation for aiming individual accents.
Three optics are listed: a 36° lens on HS-CX003-6T and HS-CX003-12T, a 120° PC face on HS-CX003-6F and HS-CX003-12F, and a 30° reflective cup on HS-CX003-5T and HS-CX003-10T. HS-CXM75 uses a 24° lens. A lens and a PC face can share the same body and wattage, so optic — not size — is the first decision.
The lens and PC bars are 22 mm wide in 112 mm and 220 mm lengths; the reflective-cup bars are 35 mm wide in 135 mm and 270 mm lengths. HS-CXM75 is a Ø75 mm cylinder, 95 mm high. Body width changes the aperture count and the visual line on the track.
All six bar models show 90° of tilt in their drawings. HS-CXM75 shows 90° tilt plus 359° rotation. The 35 mm bodies are drawn with a 25 mm track adapter above a 105 mm body; the 22 mm bodies are drawn at 110 mm overall.
The supplied sheets list input, power, optic, CRI, beam, CCT and the black / white finish. They do not list a dimming protocol, a driver reference or the system voltage beyond the 48V input, so no control value is assumed here for any of the seven models.
Not listed on the sheets for HS-CX003-6T to HS-CXM75. Tell us whether you need a wired protocol or wireless control, and the matching driver is quoted with the modules you select.
Listed power runs from 6W to 24W per module. The driver and power supply must be sized against the number and mix of modules on the rail, so send the layout and the total load is confirmed.
Send the rail layout with the module list and the control requirement — VOC Lighting confirms the complete package, including driver sizing, in the quotation.

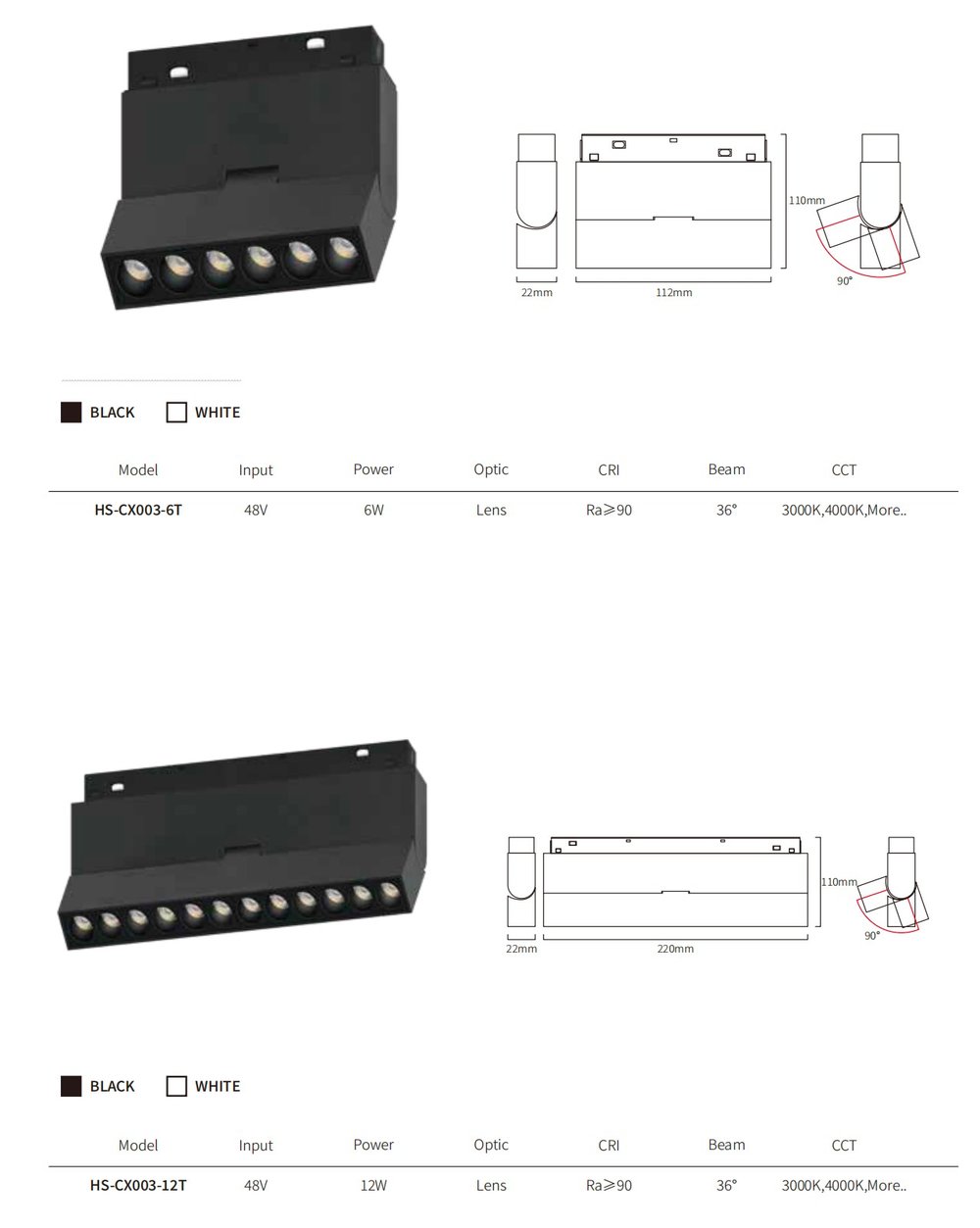

Each model arrived on its own sheet with a photograph, three drawing views, the black / white finish key and the listed specification row. The four sheets are reproduced below in the order HS-CX003-6T / 12T, HS-CX003-6F / 12F, HS-CX003-5T / 10T and HS-CXM75.
The sheets carry the listed values and the drawing dimensions only. Dimming, driver, IP rating, material and warranty do not appear on any of the four sheets and require confirmation.
It is the VOC Lighting 48V magnetic track spotlight family on these four sheets: HS-CX003-6T and HS-CX003-12T with a 36° lens, HS-CX003-6F and HS-CX003-12F with a 120° PC optic, HS-CX003-5T and HS-CX003-10T with a 30° reflective cup, plus the HS-CXM75 cylinder spotlight with a 24° lens.
No — they share the 22 mm × 112 mm body and the 6W, Ra ≥90 and 3000K / 4000K values, but the optic differs: HS-CX003-6T is listed with a lens at 36° and HS-CX003-6F with a PC optic at 120°.
The 22 mm bodies are 112 mm (6T / 6F) and 220 mm (12T / 12F) long and are drawn at 110 mm overall with a 90° tilt. The 35 mm bodies are 135 mm (5T) and 270 mm (10T) long and are drawn as a 105 mm body with a 25 mm track adapter above it, also with 90° tilt.
It is a different model code: HS-CXM75 is a Ø75 mm cylinder spotlight, 95 mm high, with a 24° lens and 359° rotation, where the HS-CX003 models are linear bar modules. All seven share the 48V magnetic track input.
HS-CX003-10T at 24W over a 270 mm body. The others are listed at 6W (HS-CX003-6T, HS-CX003-6F), 9W (HS-CXM75), 12W (HS-CX003-12T, HS-CX003-12F, HS-CX003-5T) — the sheet values, not a rule of thumb from the model number.
All seven are 48V magnetic track modules, so they can be specified together in a layout. Send the mix and the total load, and VOC Lighting confirms the driver and power supply sizing for the run.
The sheets do not list a dimming protocol for any of the seven models, so it is confirmed per project rather than assumed. Tell us the control system you use and the matching driver is quoted with the modules.
3000K and 4000K appear on every sheet, together with a “More..” entry in the CCT column. Additional colour temperatures require confirmation before quotation.
Send the model codes (HS-CX003-6T / 12T / 6F / 12F / 5T / 10T, HS-CXM75) with quantities, the rail layout, the finish, the colour temperature and the control requirement. VOC Lighting confirms driver sizing, total load, price and lead time in the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

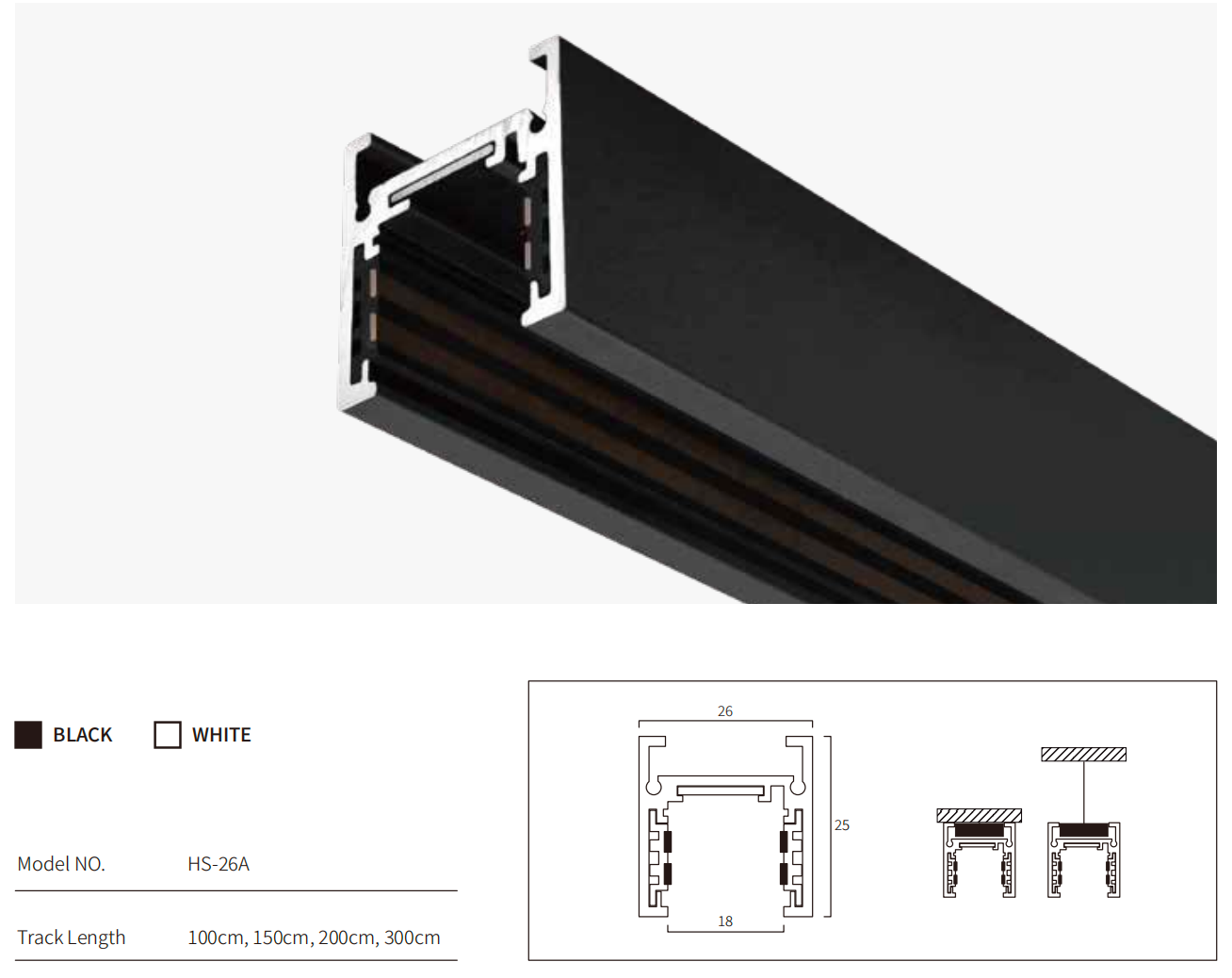

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

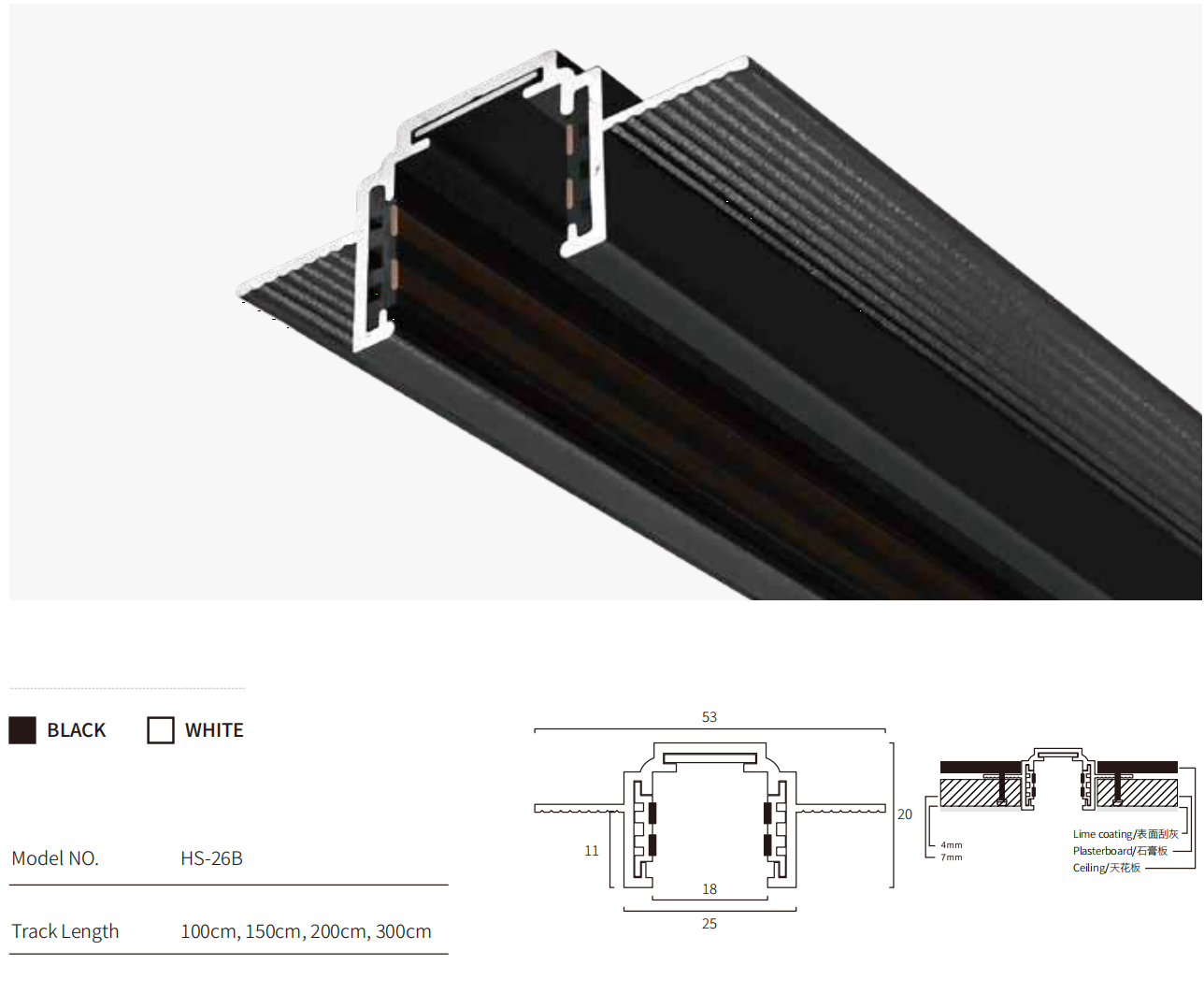

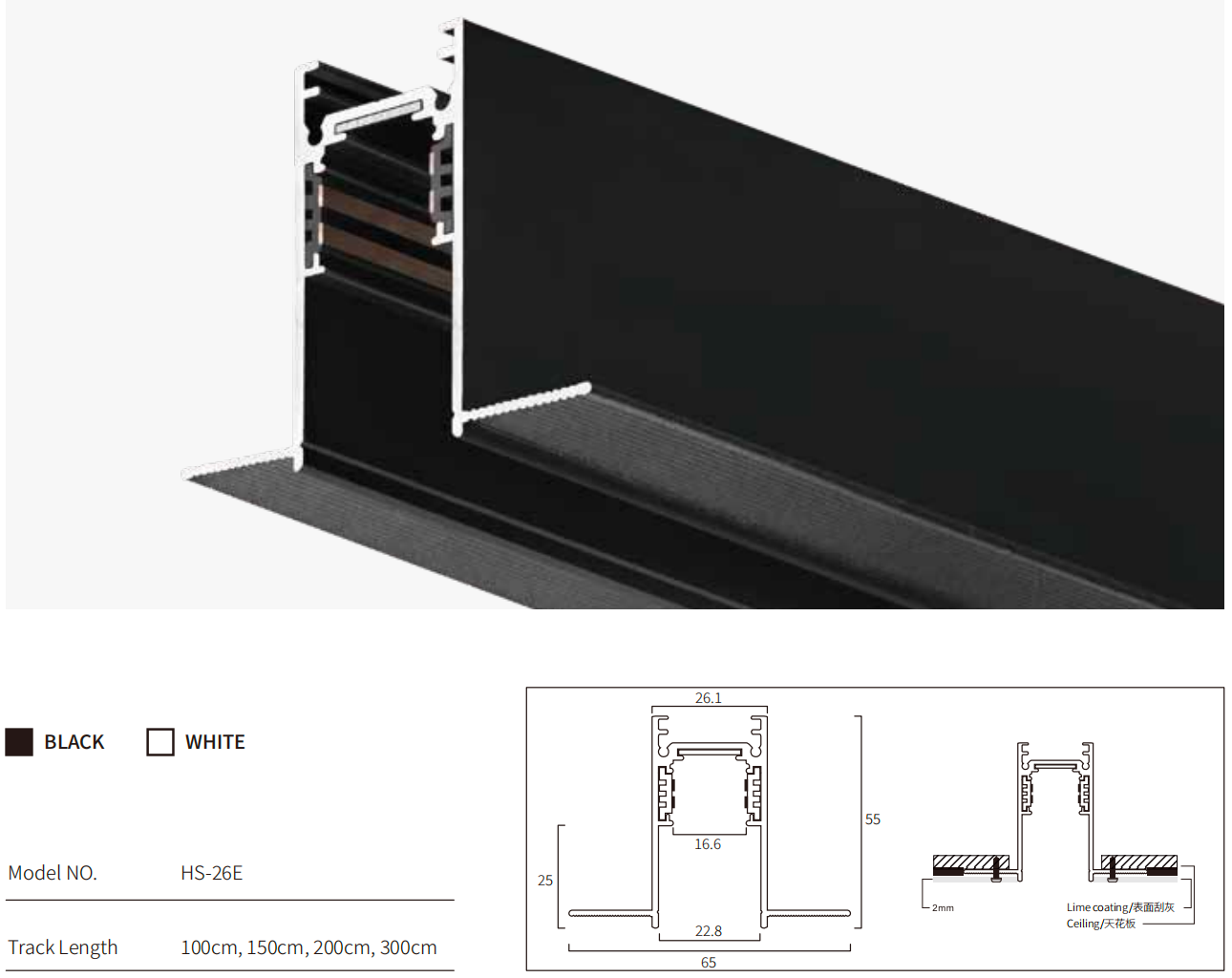

Recessed profile
100 / 150 / 200 / 300 cm; black / white

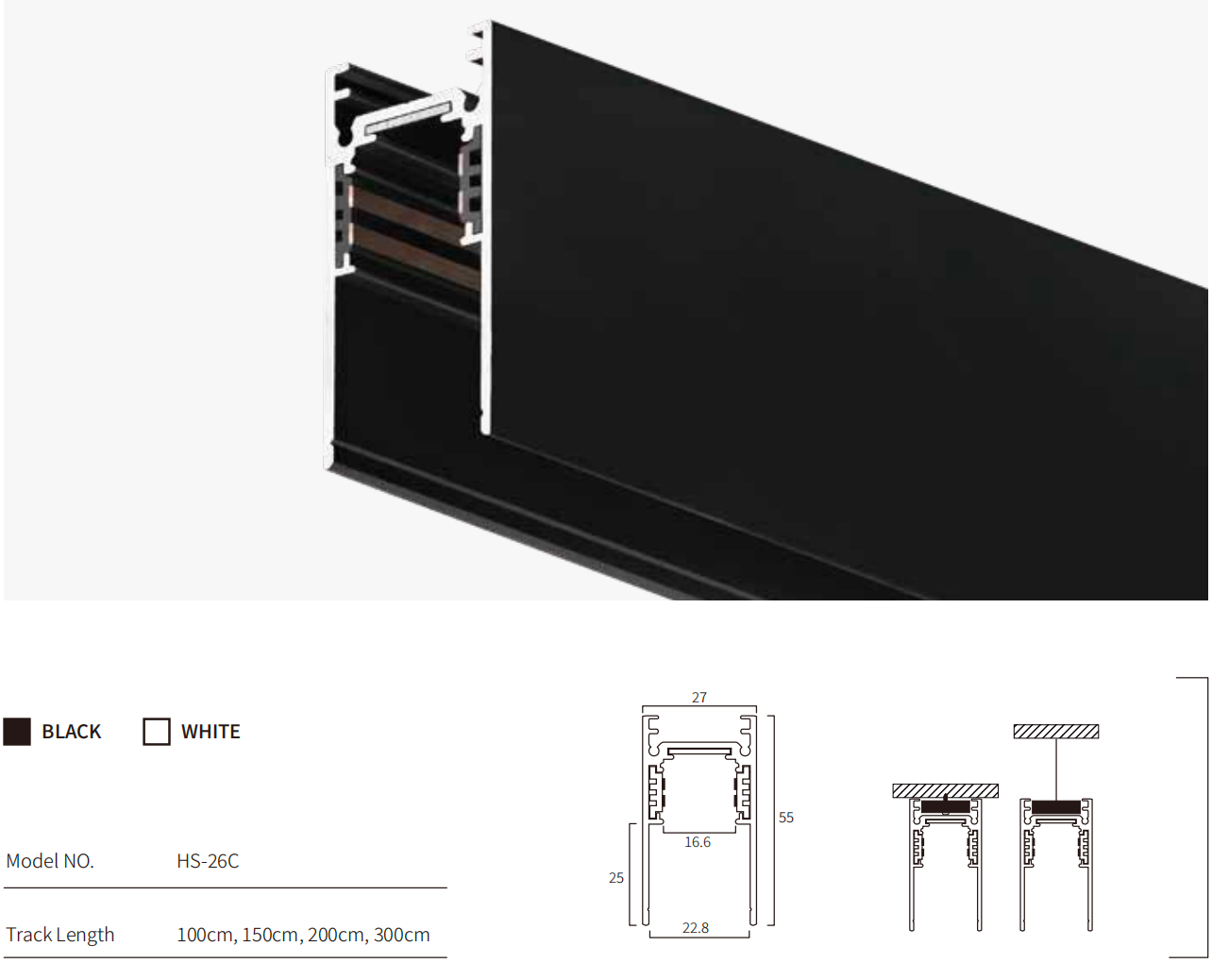

Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

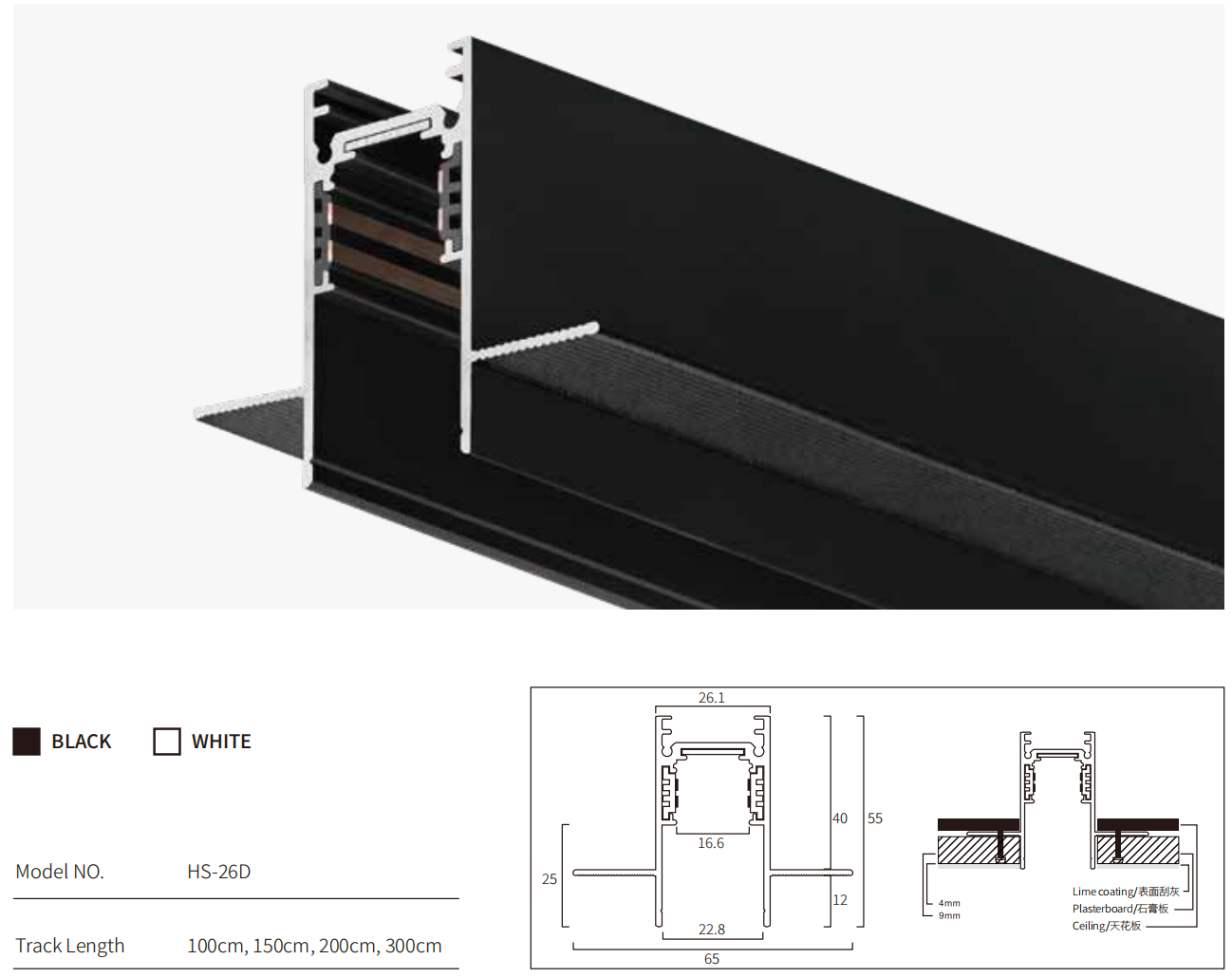

Recessed profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

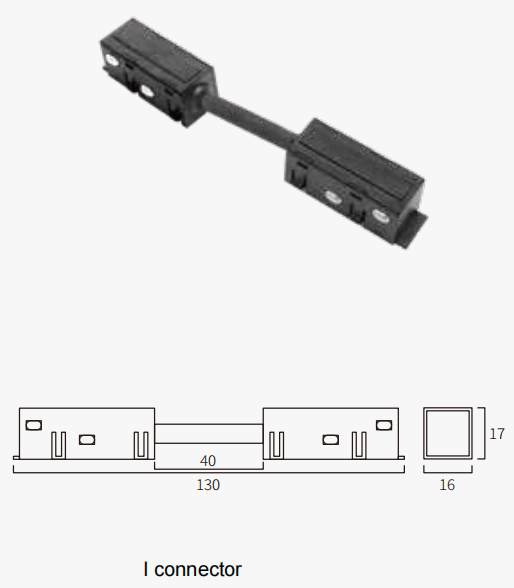

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

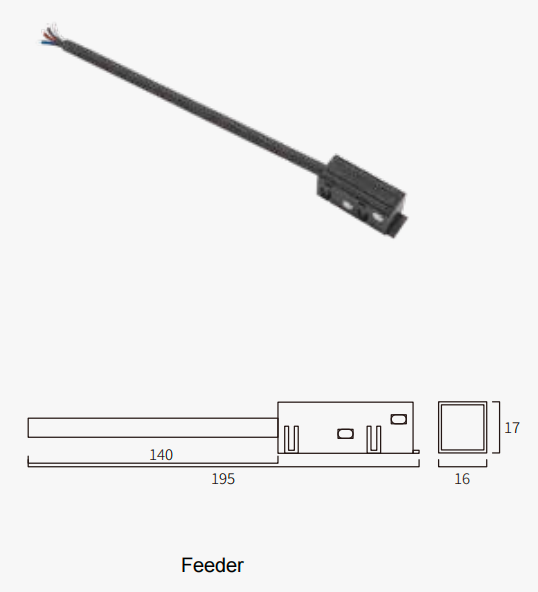

Track power feed
Overall 195 mm; section 16 × 17 mm

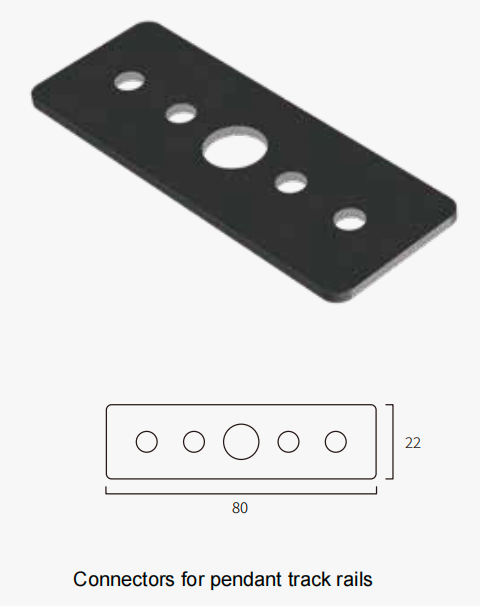

Mechanical connection plate
80 × 22 mm

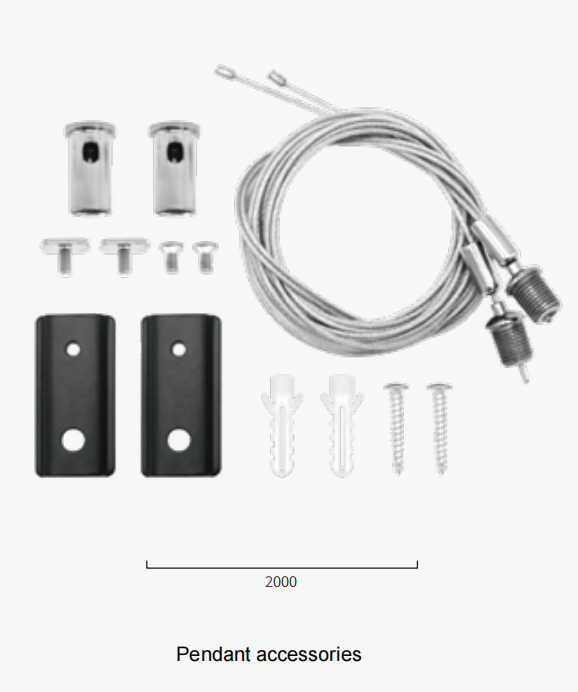

Suspension components
2000 mm as shown in supplied drawing

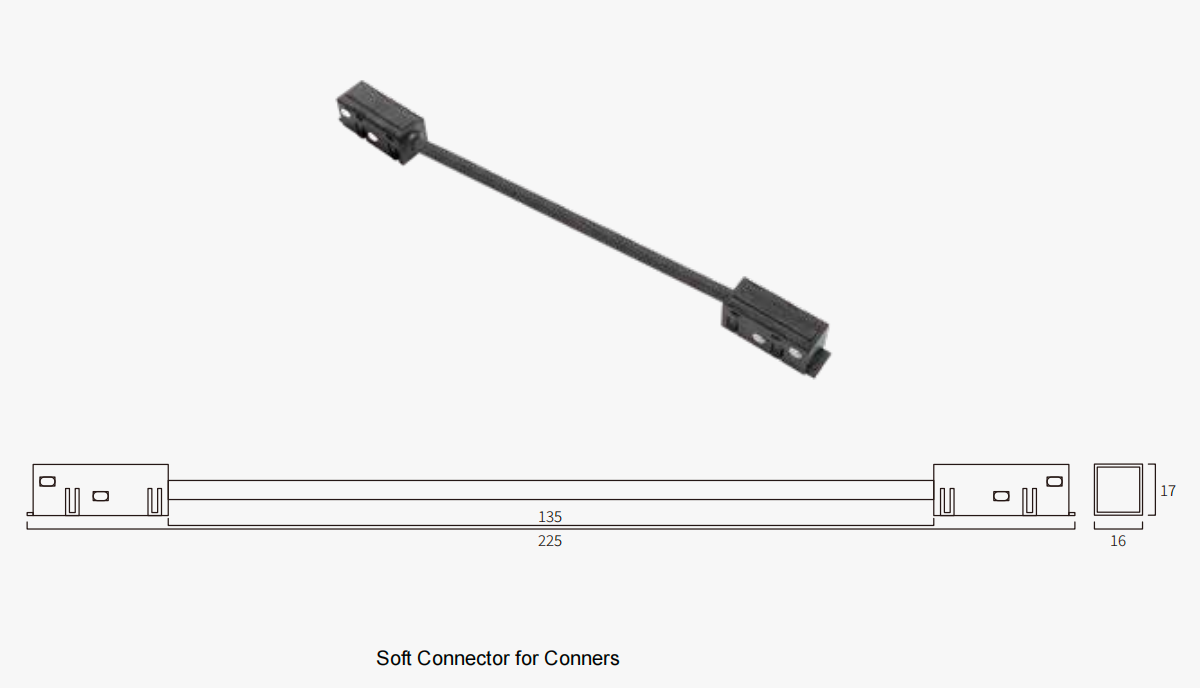

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

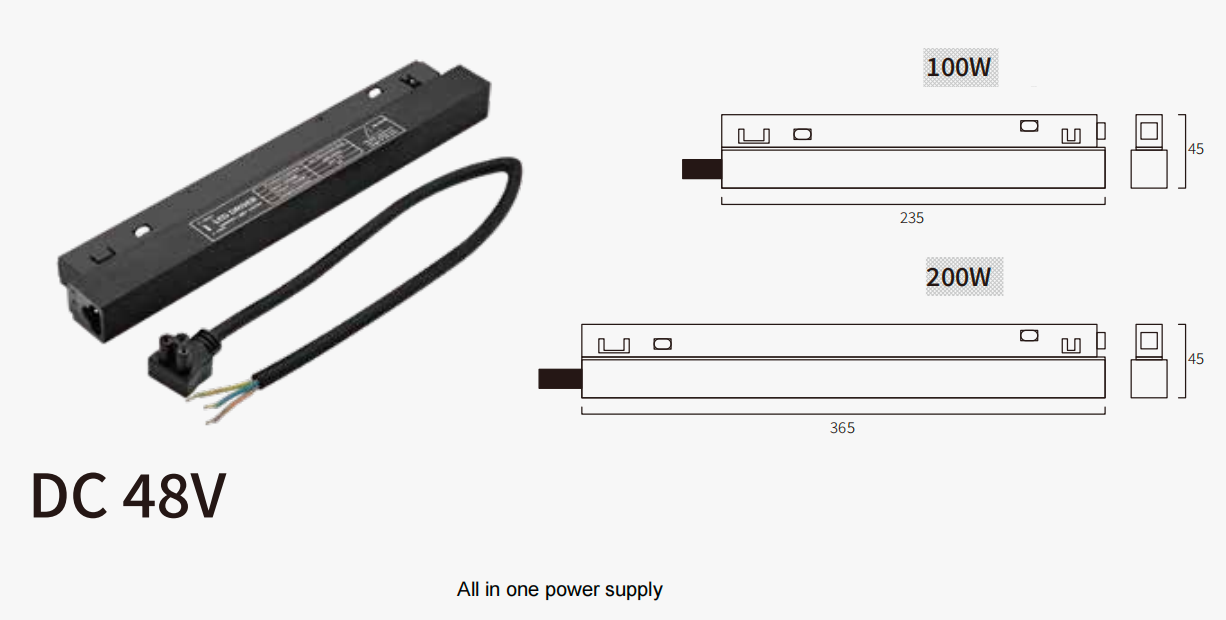

100W / 200W options
100W: 235 mm; 200W: 365 mm; section height 45 mm
Original images and drawing annotations are preserved. Click any image for a larger view. Mechanical mounting parts and electrical connectors serve different purposes. The pictured power supply is not automatically compatible with every dimming method.
Send the model codes and quantities, the rail run, the finish, the colour temperature and the control requirement. VOC Lighting confirms driver sizing, total load, price and lead time with your quotation.
