Product Overview

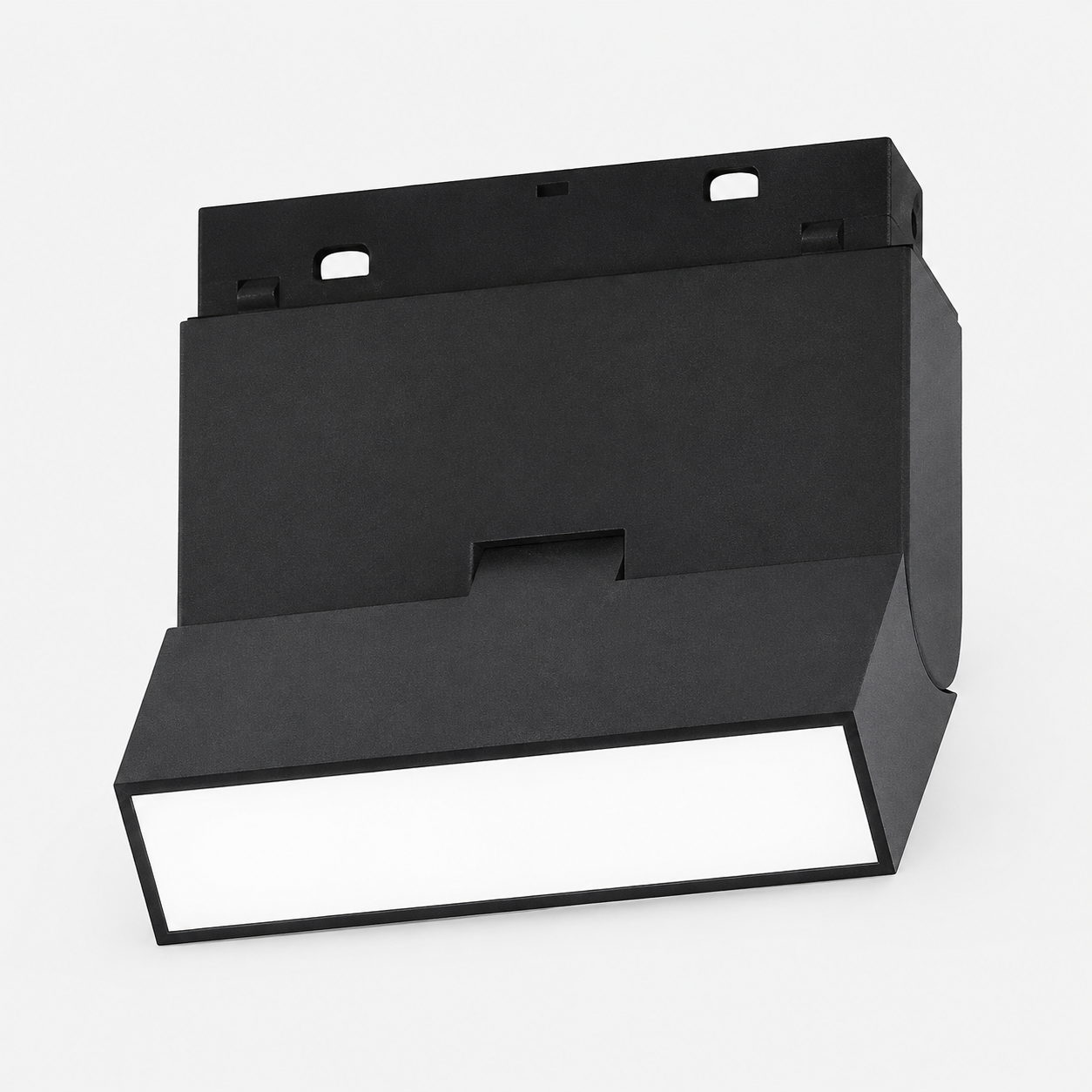

48V Magnetic Linear Light is a compact architectural LED module designed for modern magnetic track lighting systems. With a slim profile, wide beam distribution and adjustable design, it provides comfortable general illumination for various interior applications.
Available in 6W and 12W versions, this magnetic linear light offers flexible configuration and supports multiple smart lighting control solutions including 2.4G wireless, Tuya Zigbee, 0-10V, TRIAC and DALI dimming.
Key Features
- 90° Foldable Adjustable Design
The innovative folding structure allows the light module to rotate up to 90°, providing flexible beam direction adjustment for different lighting layouts and architectural applications.
- Flexible Light Direction Control
The foldable design enables users to adjust the illumination angle after installation, creating focused, indirect or directional lighting effects without changing the track position.
- Wide Beam Illumination
120° wide beam optical design provides soft and uniform light distribution, suitable for general lighting applications.
- Magnetic Track Installation
Compatible with 48V magnetic track systems, allowing quick installation, removal and repositioning.
- Multiple Smart Control Options
Supports various intelligent lighting solutions including 2.4G wireless control, Tuya Zigbee, 0-10V, TRIAC and DALI dimming.
- Minimal Architectural Design
Slim aluminum housing with modern appearance integrates seamlessly into residential, commercial and hospitality interiors.
Technical Specifications
- Input Voltage: DC 48V
- Power: 6W / 12W
- CRI: Ra≥90
- Beam Angle: 120°
- CCT: 3000K / 4000K / Customized
- Material: Aluminum + PC
- Finish: Black / White
- Installation: Magnetic Track Mounted
Recommended Applications
- Retail Stores
- Hotels and Restaurants
- Residential Interiors
- Offices
- Showrooms and Galleries
Smart Lighting Options
The 48V Magnetic Linear Light can be integrated with different smart lighting systems:
- 2.4G Wireless Control
- Tuya Zigbee Smart Home
- 0-10V Commercial Dimming
- TRIAC Wall Dimmer
- DALI Lighting Management System
