spot light / Ø35 mm
HS-CX035
Ø35 × 80 mm cylindrical head listed at 7W with a lens optic at Ra ≥90 and a 24° beam.
48V · 7W · lens · Ra ≥90 · 24°
Click the image to enlarge ↗

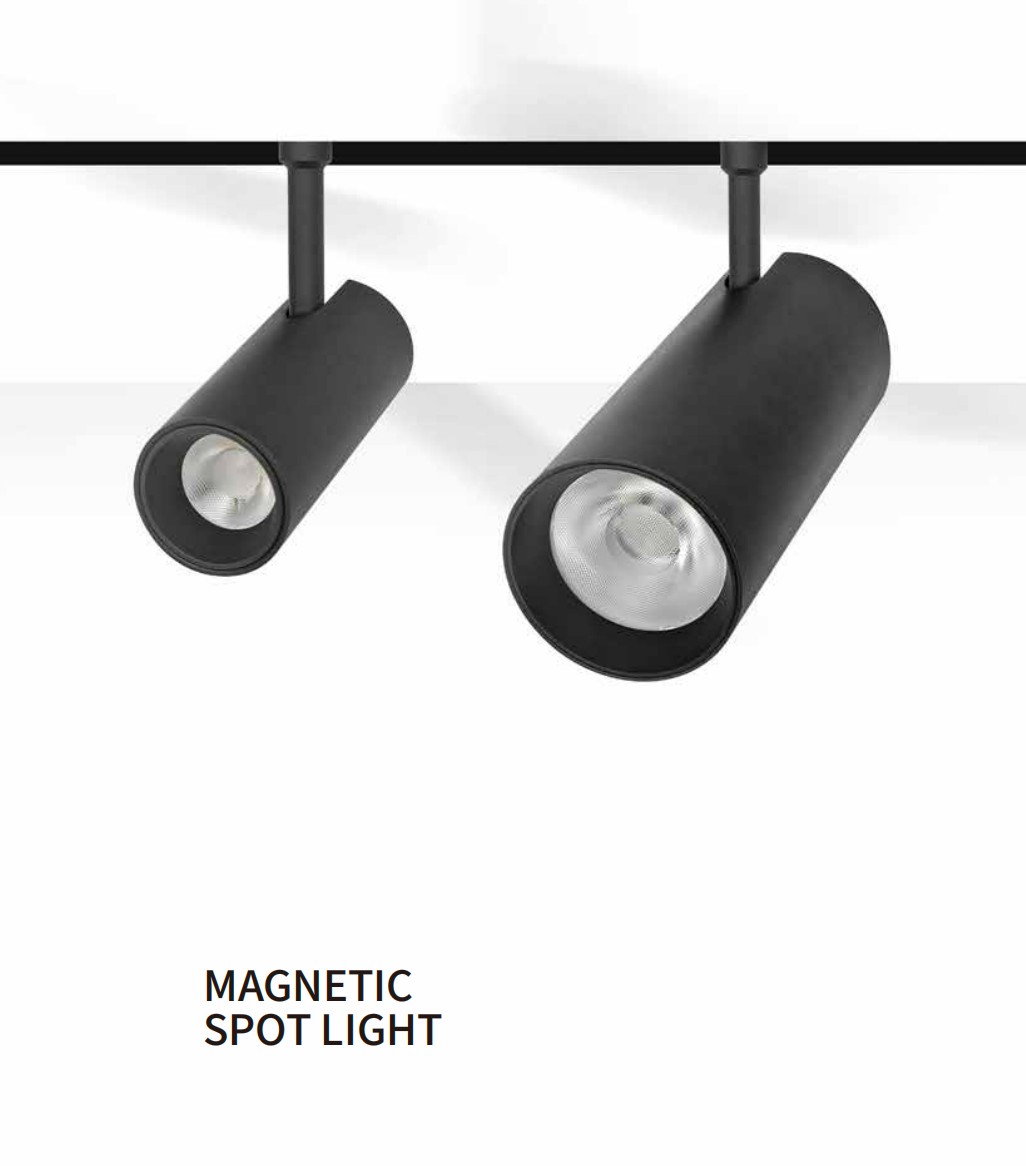

HS-CX magnetic spot lights — seven body sizes on the 48V magnetic track. See the reference sheets for dimensions.
View dimensions & the original spot light sheets ↓VOC Lighting’s HS-CX family puts seven 48V magnetic track spot lights on one system, from the 7W HS-CX035 to the 24W HS-CX070. Six models are listed with a lens optic and HS-CX040 with a reflective cup; all seven are listed at Ra ≥90 with a 24° beam. The cylindrical body is drawn from Ø35 × 80 mm up to Ø70 × 160 mm, each head aiming 90° and rotating 359° on the supplied drawings, and the body is offered in black or white.
Ø35–Ø70 mm bodies · 80–160 mm long · 7W–24W · lens or reflective cup · Ra ≥90 · 24° · 90° tilt / 359° rotation
Model, finish (BLACK / WHITE) and color temperature selection are carried into the quotation brief. The product photograph does not change with the selected configuration.
The supplied sheets list the same electrical and optical class for all seven VOC Lighting spot lights — 48V input, Ra ≥90, 24° beam — and separate them by body diameter, body length and wattage. Six models carry a lens optic and HS-CX040 a reflective cup. Wattage alone does not establish illuminance at the target surface, and the sheets list no dimming protocol, so the control package is confirmed separately per model.
| Model | Input | Power | Optic | CRI | Beam | Listed CCT |
|---|---|---|---|---|---|---|
| HS-CX035 | DC 48V | 7W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CX040 | DC 48V | 7W | Reflective cup | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CX045 | DC 48V | 12W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CX055 | DC 48V | 18W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CX060 | DC 48V | 18W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CX065 | DC 48V | 24W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| HS-CX070 | DC 48V | 24W | Lens | Ra ≥90 | 24° | 3000K / 4000K |
| Model | Body size | Aiming (per drawing) | Mounting |
|---|---|---|---|

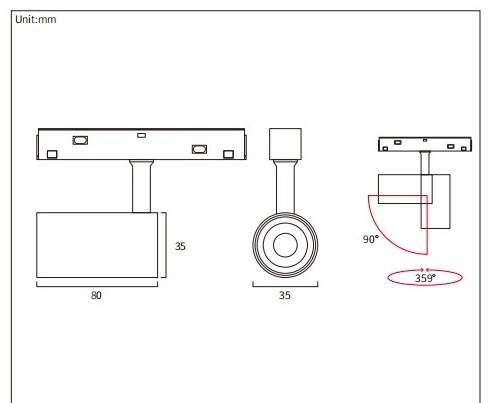

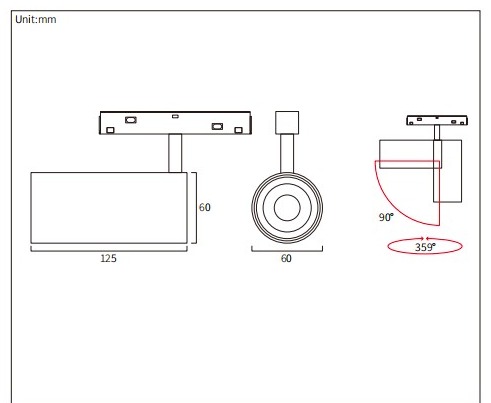

| HS-CX035 | Ø35 × 80 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |
| HS-CX040 | Ø40 × 120 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |

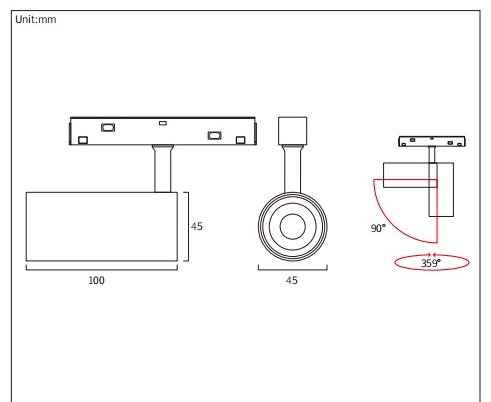

| HS-CX045 | Ø45 × 100 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |

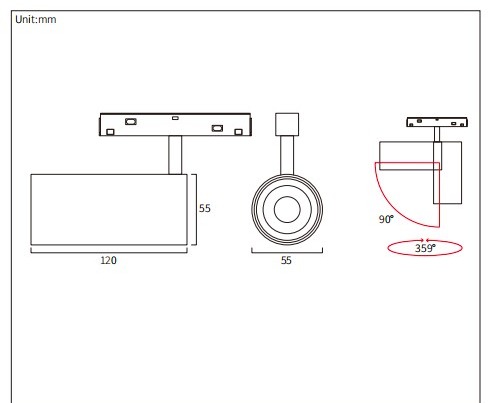

| HS-CX055 | Ø55 × 120 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |
| HS-CX060 | Ø60 × 125 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |
| HS-CX065 | Ø65 × 140 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |

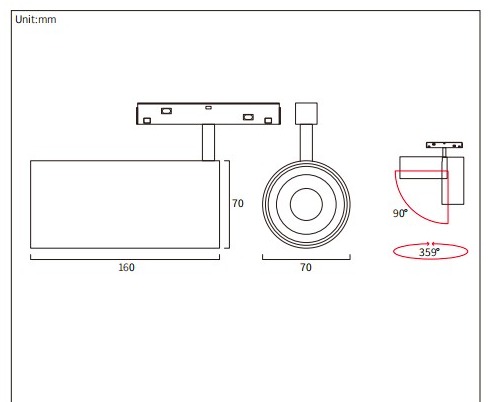

| HS-CX070 | Ø70 × 160 mm cylindrical head | 90° tilt / 359° rotation (drawing) | Magnetic track adapter plate (drawing) |
Body sizes above are the dimensions drawn on the supplied sheets; the track rail, adapter and mounting hardware are specified with the track system. The sheets also carry a “More..” entry in the CCT column: additional color temperatures, LED source brand, dimming protocol, warranty and packing details for these models require confirmation.

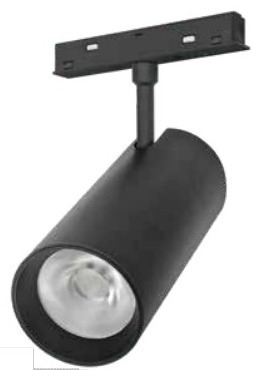

Size selection is the main decision that separates these VOC Lighting spot lights: Ø35 mm and Ø40 mm bodies are listed at 7W, Ø45 mm at 12W, Ø55 mm and Ø60 mm at 18W, and Ø65 mm and Ø70 mm at 24W. All seven share the 48V input, the Ra ≥90 rating and the 24° beam; HS-CX040 is the one model listed with a reflective cup instead of a lens. Each pair of images below is the product photograph and the dimension drawing supplied for that model.

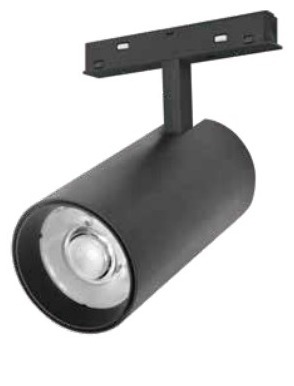

Ø35 × 80 mm cylindrical head listed at 7W with a lens optic at Ra ≥90 and a 24° beam.
48V · 7W · lens · Ra ≥90 · 24°

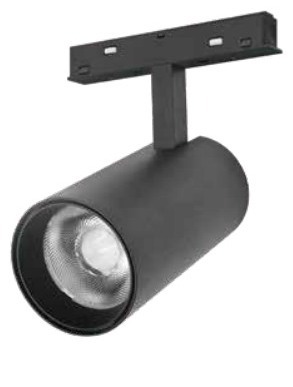

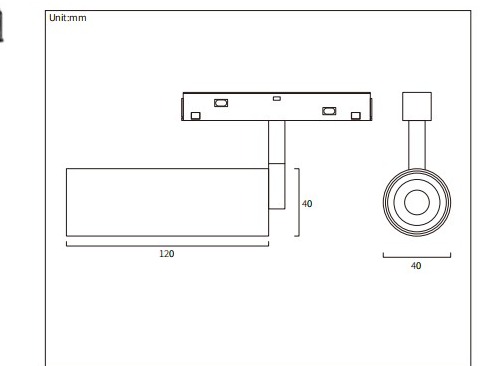

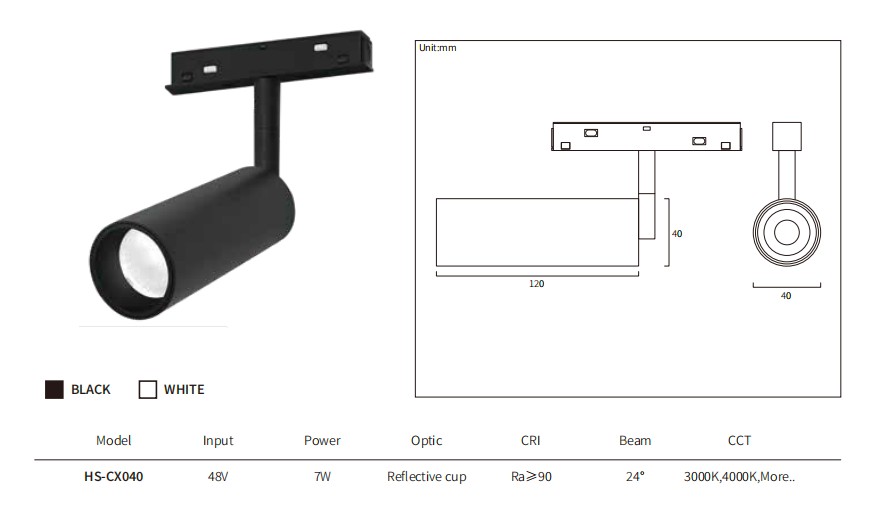

Ø40 × 120 mm cylindrical head listed at 7W with a reflective cup optic at Ra ≥90 and a 24° beam.
48V · 7W · reflective cup · Ra ≥90 · 24°
Ø45 × 100 mm cylindrical head listed at 12W with a lens optic at Ra ≥90 and a 24° beam.
48V · 12W · lens · Ra ≥90 · 24°

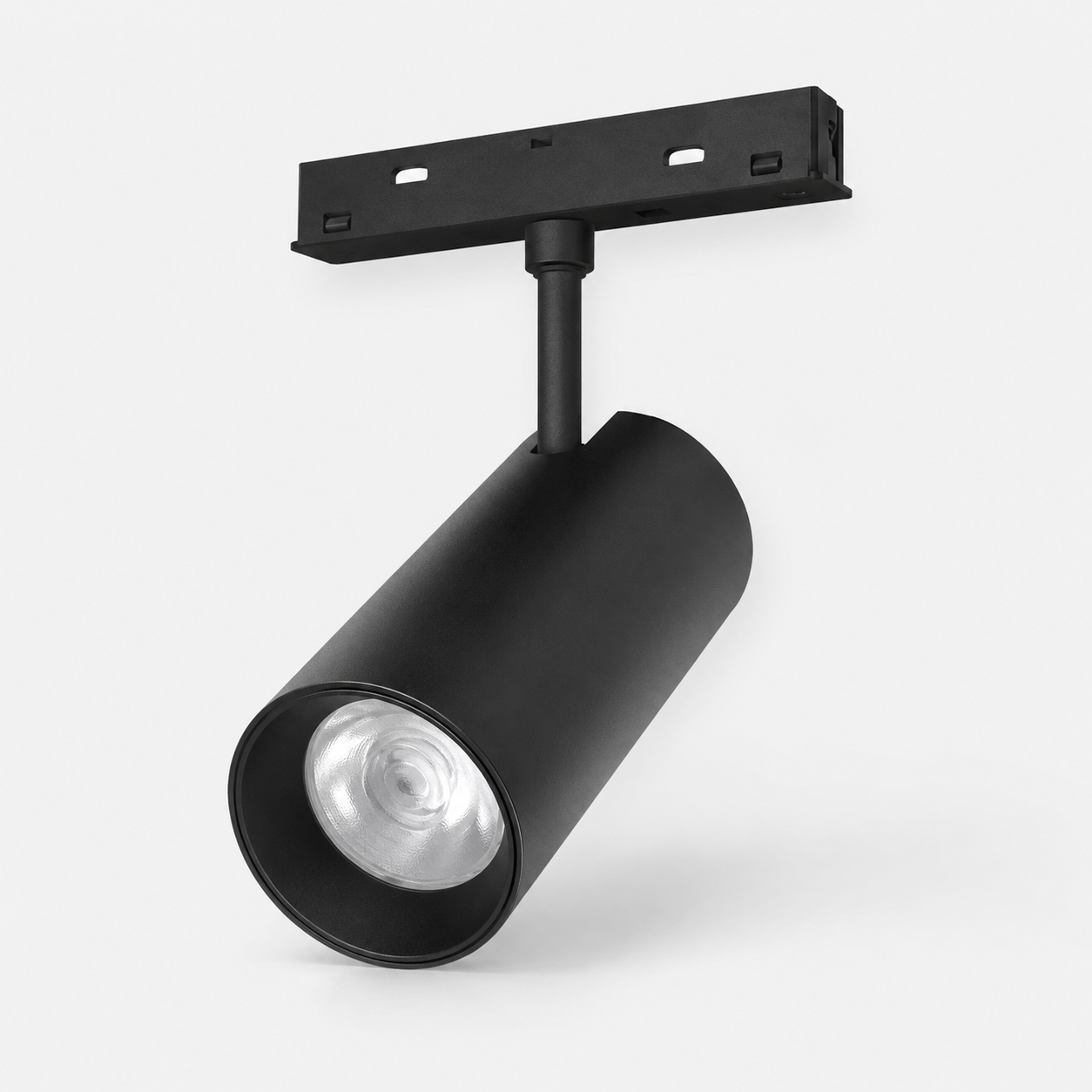

Ø55 × 120 mm cylindrical head listed at 18W with a lens optic at Ra ≥90 and a 24° beam.
48V · 18W · lens · Ra ≥90 · 24°
Ø60 × 125 mm cylindrical head listed at 18W with a lens optic at Ra ≥90 and a 24° beam.
48V · 18W · lens · Ra ≥90 · 24°

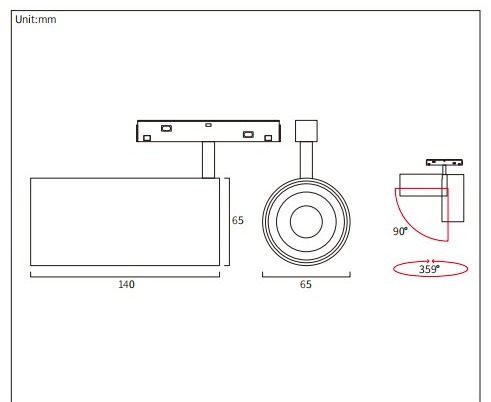

Ø65 × 140 mm cylindrical head listed at 24W with a lens optic at Ra ≥90 and a 24° beam.
48V · 24W · lens · Ra ≥90 · 24°
Ø70 × 160 mm cylindrical head listed at 24W with a lens optic at Ra ≥90 and a 24° beam.
48V · 24W · lens · Ra ≥90 · 24°
HS-CX035, HS-CX045, HS-CX055, HS-CX060, HS-CX065 and HS-CX070 are listed with a lens optic; HS-CX040 is listed with a reflective cup. All seven carry Ra ≥90 and a 24° beam. The supplied sheets do not name an LED source brand — confirm the source with your quotation.
The sheets dimension each head as Ø35 × 80, Ø40 × 120, Ø45 × 100, Ø55 × 120, Ø60 × 125, Ø65 × 140 and Ø70 × 160 mm. Higher wattage comes with the larger body, so the size choice also sets the brightness class for the run.
Every supplied drawing shows the head tilting 90° and rotating 359°, mounted on a magnetic track adapter plate. Confirm the rail variant, adapter and the number of heads for the run you are building.
Dimming for the HS-CX spot light family is specified separately from the light source. The supplied sheets for these seven models list input, power, optic, CRI, beam and CCT only — the dimming method, driver and control hardware require confirmation for each model and quantity.
Wired dimming is not specified on the supplied sheets for these models. Confirm the protocol, the driver and the control hardware for the method your project uses.
Wireless or smart dimming is likewise not specified on the sheets. Confirm the gateway, app and receiver requirements before the order is placed.
Each control method is specified with its own driver and hardware package. Confirm the exact combination for the model and quantity you are ordering.

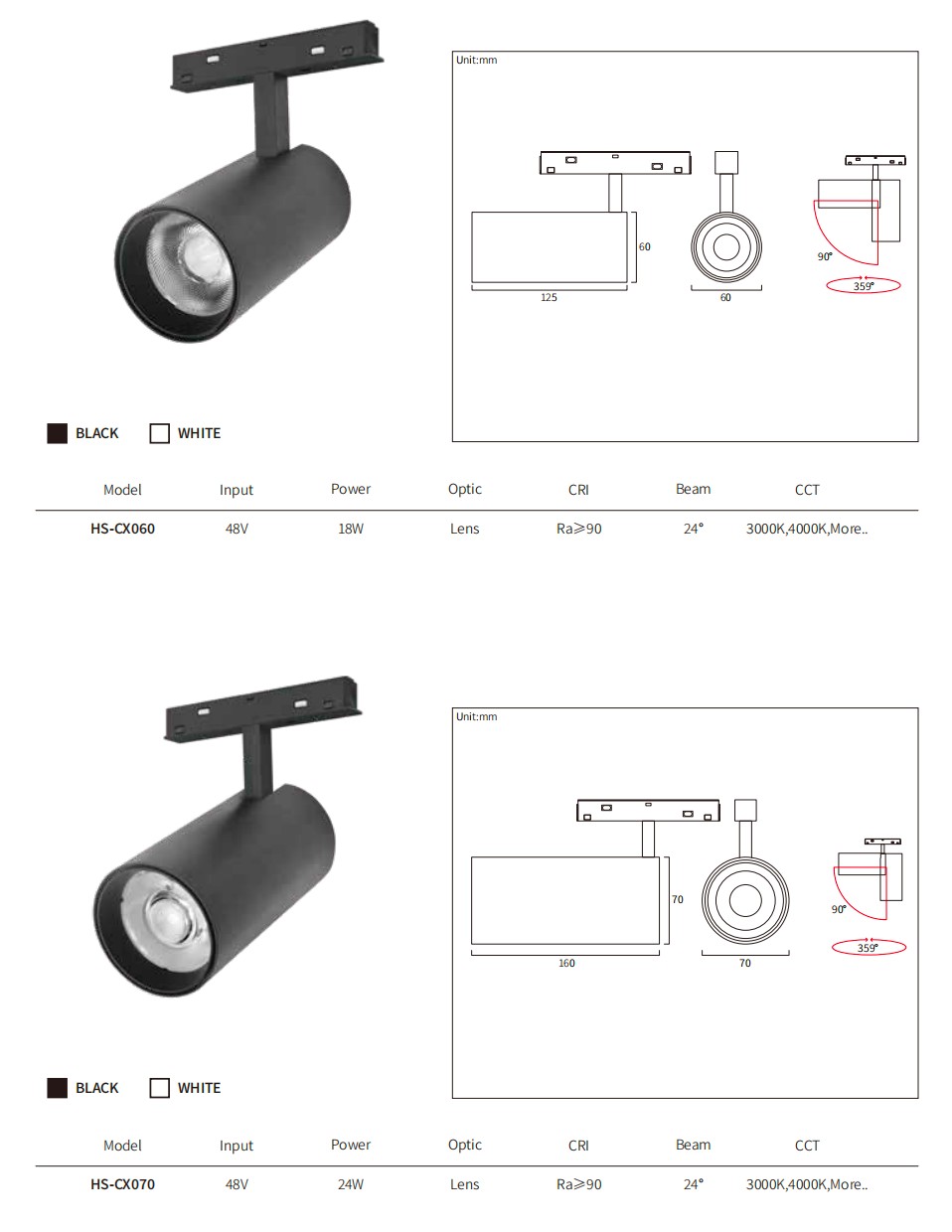

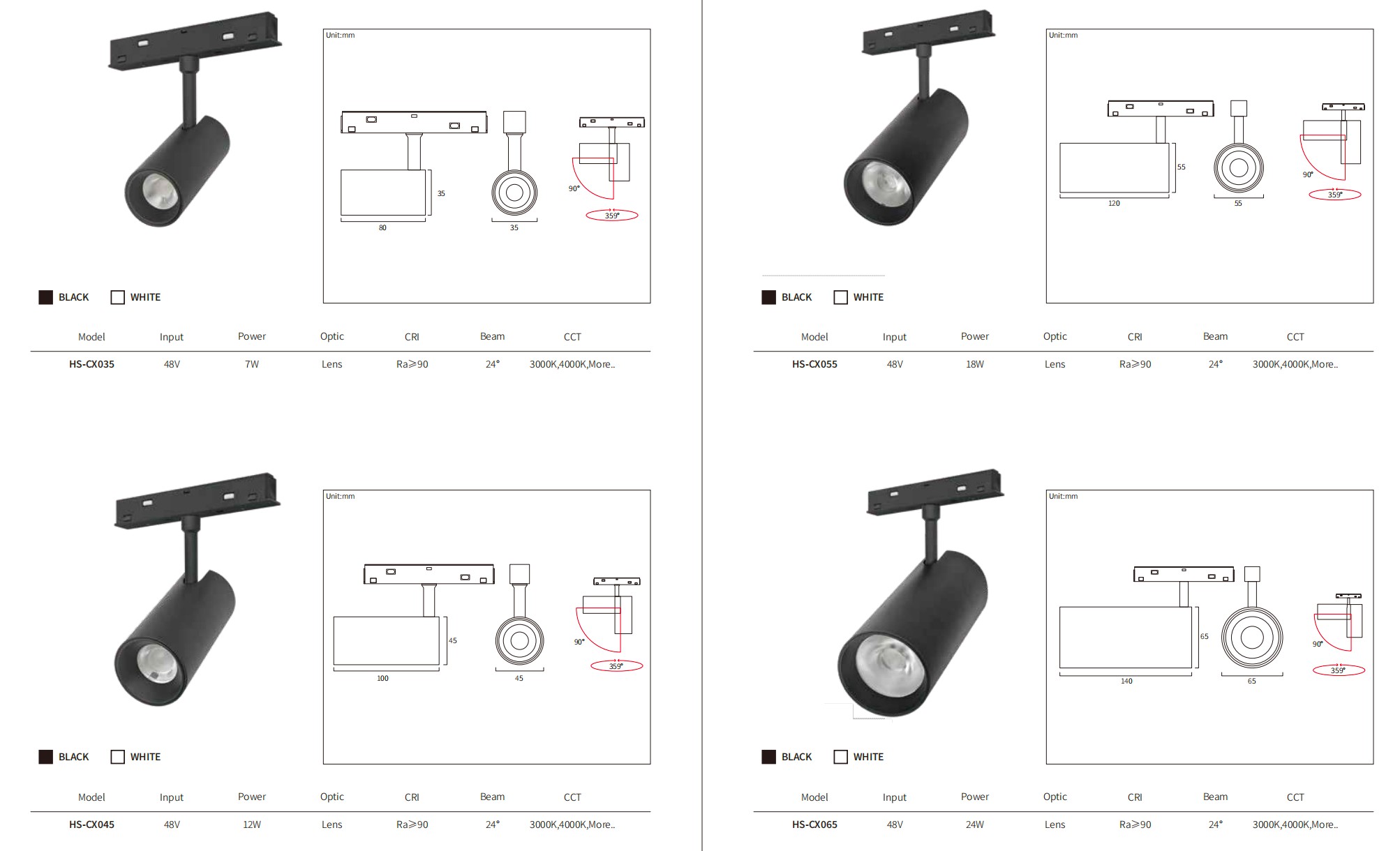

The supplied sheets cover all seven models — HS-CX035, HS-CX040, HS-CX045, HS-CX055, HS-CX060, HS-CX065 and HS-CX070 — each with its dimension drawing, the BLACK / WHITE finish key and the listed specification row. Refer to the tables above for searchable values.
Reference: spot light sheets supplied for this page. Click a sheet to download it. Request current technical drawings and model-specific documents for project approval.
The VOC Lighting HS-CX family is seven 48V magnetic track spot lights listed at Ra ≥90 with a 24° beam: the 7W HS-CX035 and HS-CX040, the 12W HS-CX045, the 18W HS-CX055 and HS-CX060, and the 24W HS-CX065 and HS-CX070.
Size and wattage are linked on the supplied sheets: Ø35 × 80 mm and Ø40 × 120 mm are listed at 7W, Ø45 × 100 mm at 12W, Ø55 × 120 mm and Ø60 × 125 mm at 18W, and Ø65 × 140 mm and Ø70 × 160 mm at 24W. Choose the body by the accent distance and the scale of the space, then confirm the quantity and the track load.
HS-CX040 is the only model in the family listed with a reflective cup instead of a lens optic. It shares the 48V input, the 7W rating, Ra ≥90 and the 24° beam with HS-CX035, and its body is drawn at Ø40 × 120 mm.
3000K and 4000K are listed on the supplied sheets, which also carry a “More..” entry in the CCT column. Additional color temperatures require confirmation before quotation.
No. Dimming is a separate specification from the light source. The supplied sheets list input, power, optic, CRI, beam and CCT only, so the dimming method, driver and control hardware require confirmation for each model.
Each supplied drawing shows the head tilting 90° and rotating 359°, mounted on a magnetic track adapter plate. Confirm the aiming range you require for the installation height and the display layout.
All seven are 48V magnetic track spot lights with the same adapter plate shown on the drawings, so a mixed layout is a track and load question. Confirm the rail, adapter, power supply and total connected load, and check compatibility against the rail and adapter design — a shared 48V input rating alone does not establish compatibility with another track system.
Specify the model codes (HS-CX035, HS-CX040, HS-CX045, HS-CX055, HS-CX060, HS-CX065 or HS-CX070), quantity, finish, color temperature, required dimming method and the track components needed. Include your track information and project country. Price, lead time, warranty terms and applicable documents are confirmed with the quotation.
Choose components to include in your project brief. Final rail, connection and power compatibility is confirmed against the selected lighting and control configuration.
11 components shown

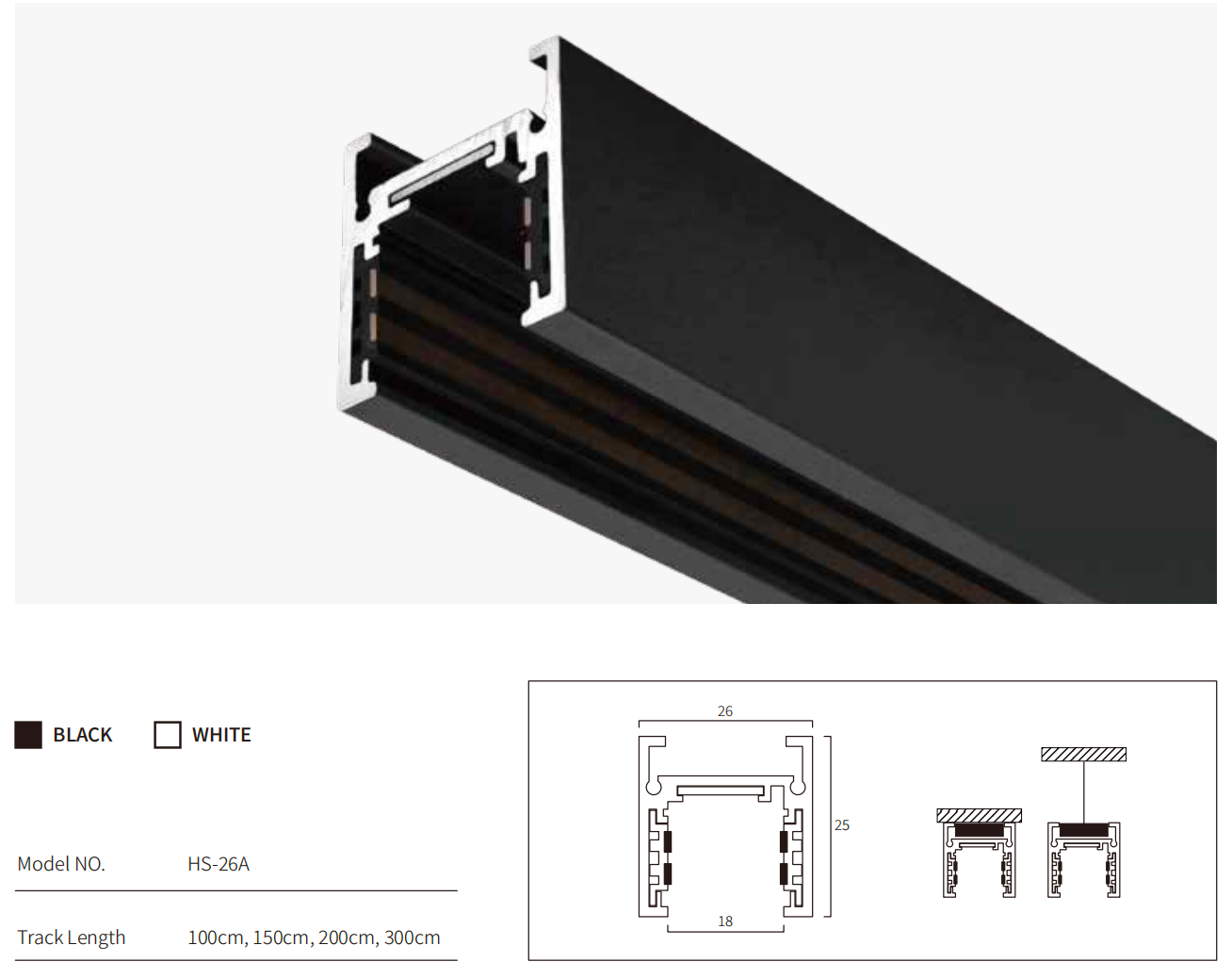

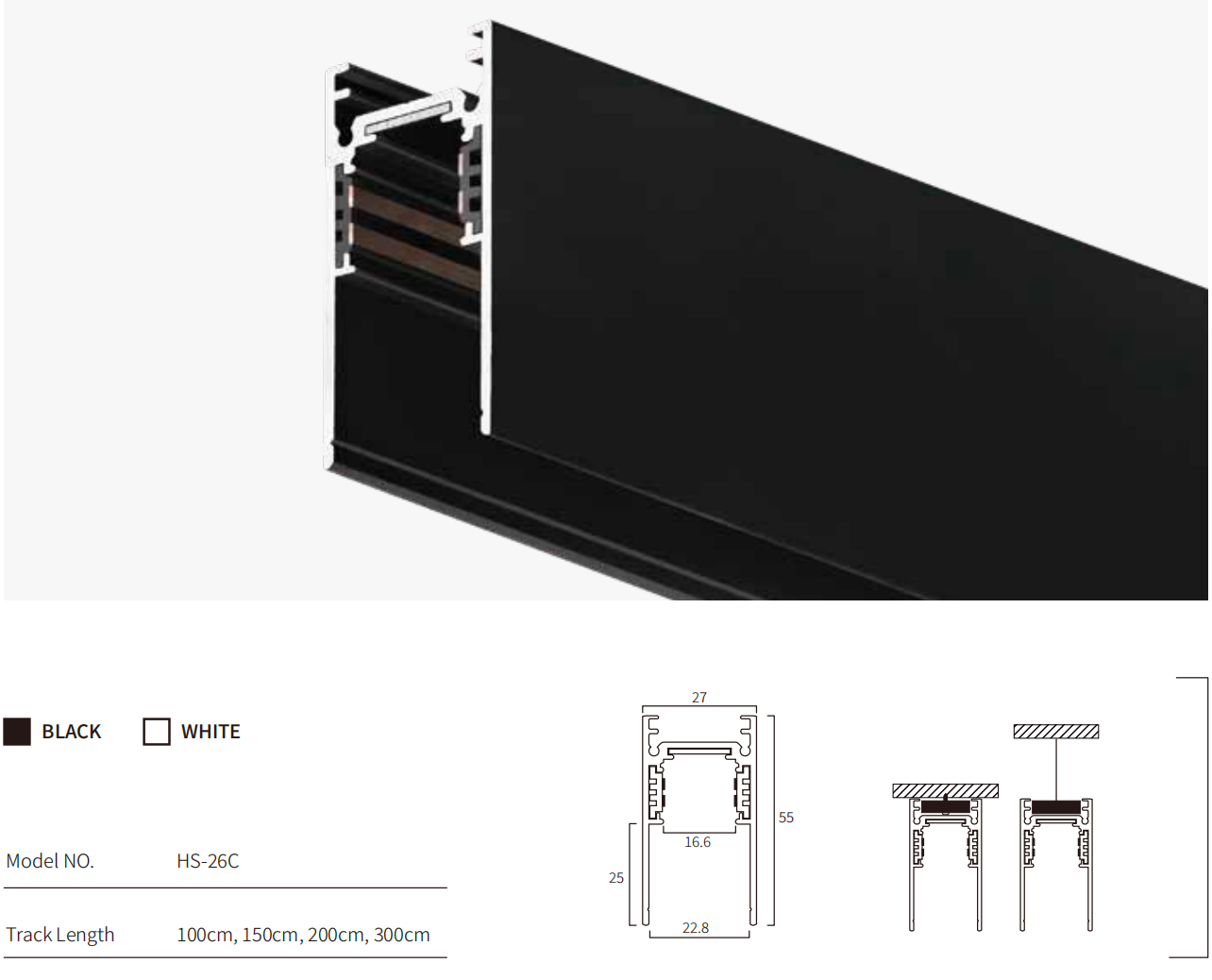

Surface / suspended profile
100 / 150 / 200 / 300 cm; black / white

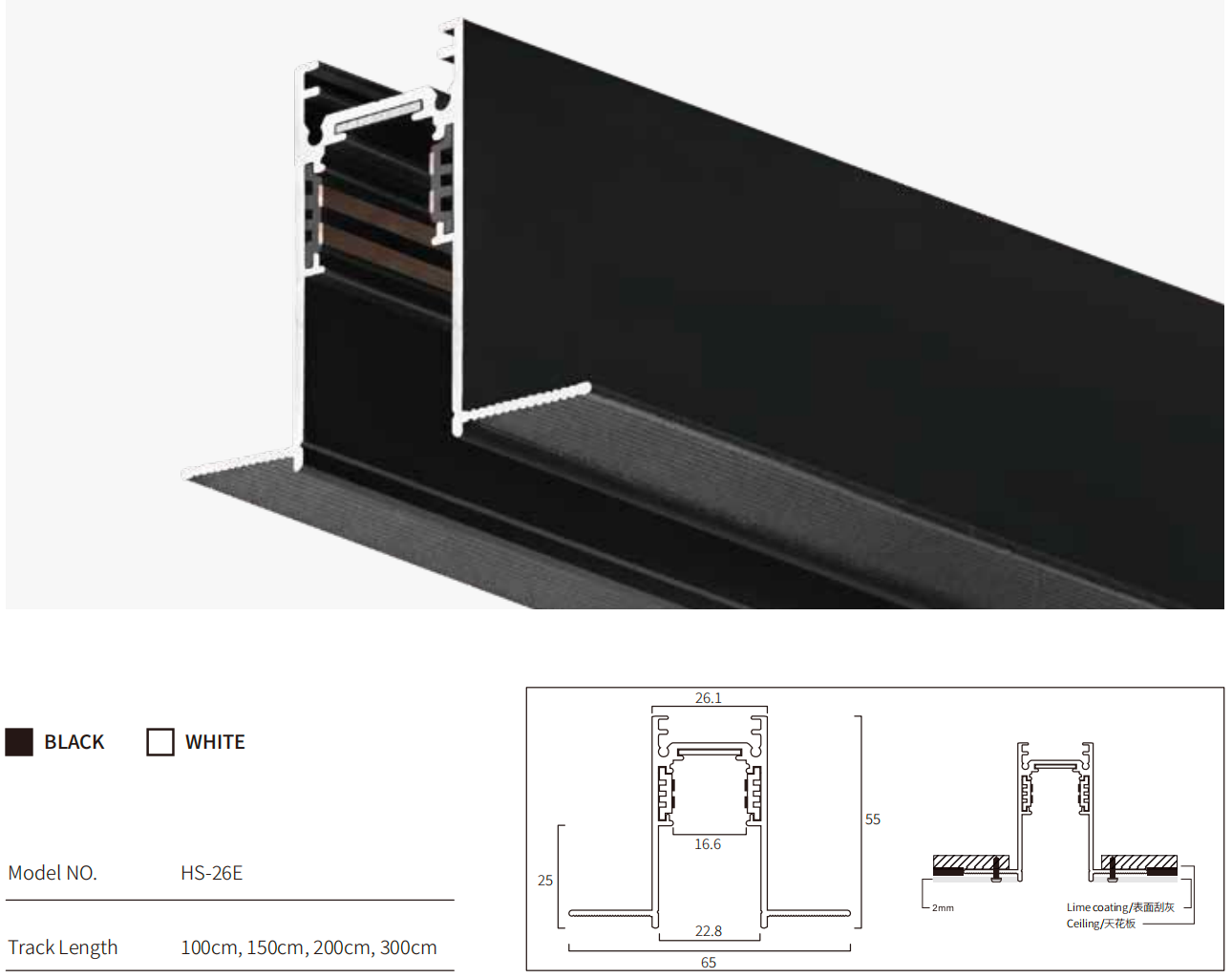

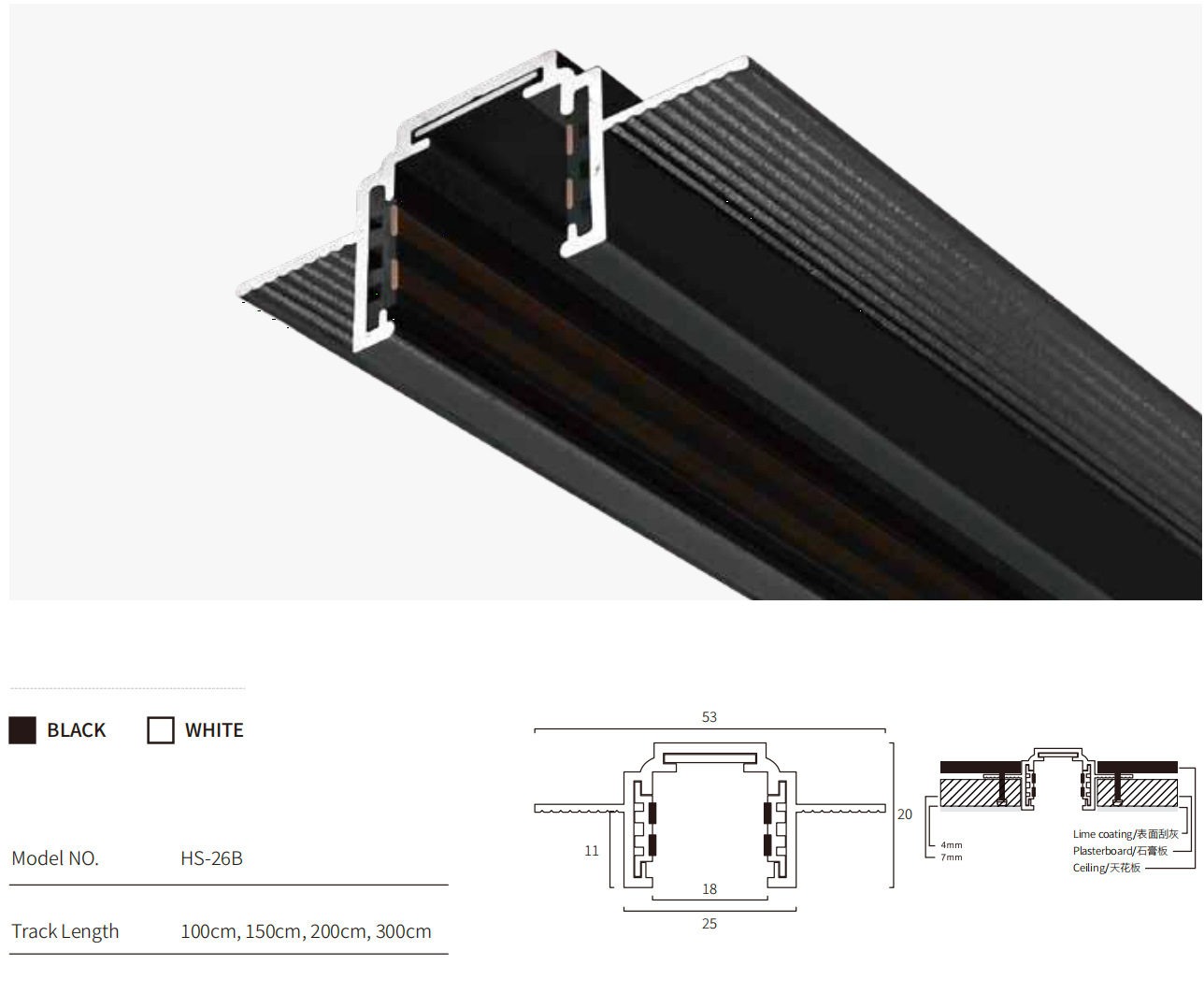

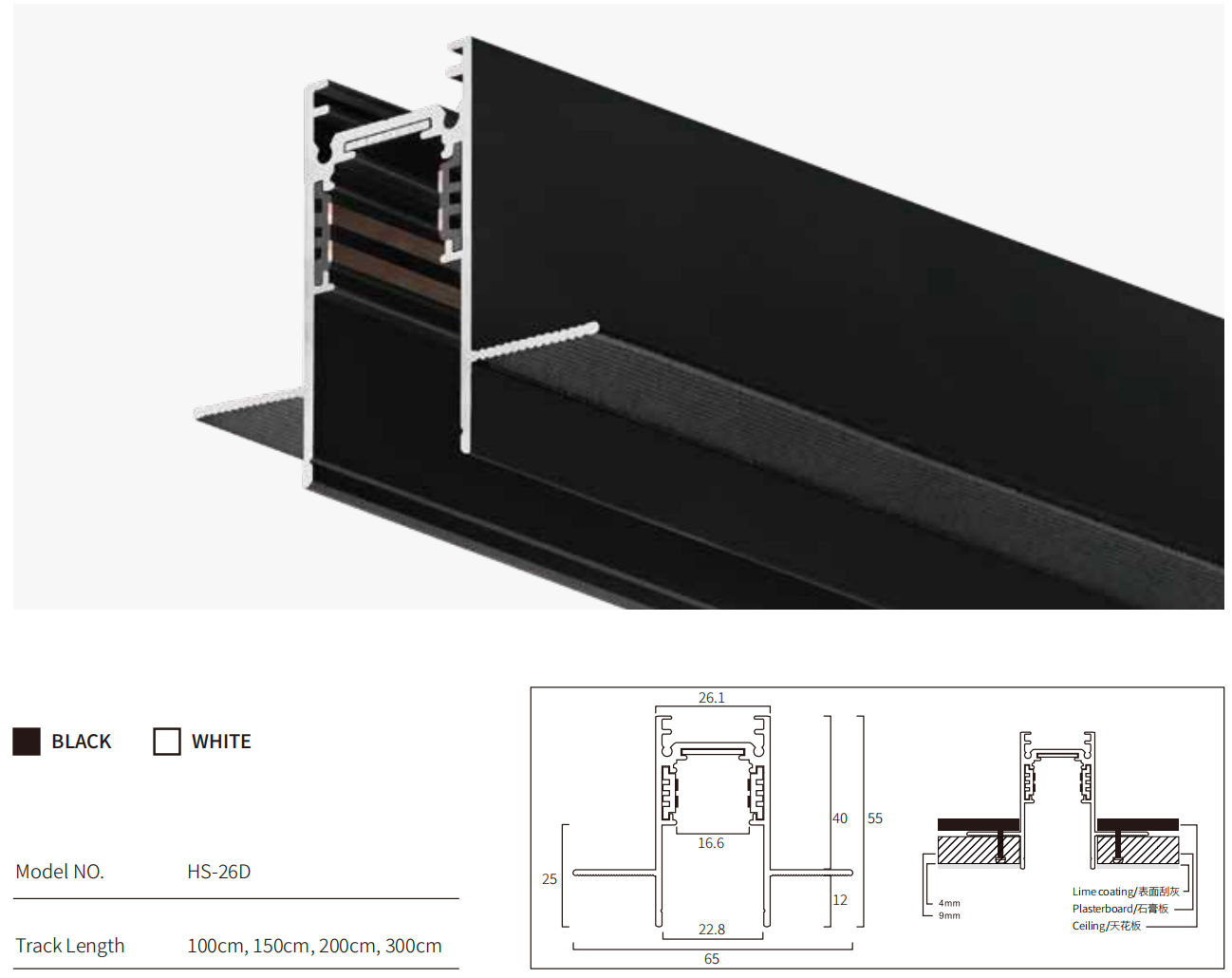

Recessed profile
100 / 150 / 200 / 300 cm; black / white
Deep surface / suspended profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white
Recessed profile
100 / 150 / 200 / 300 cm; black / white

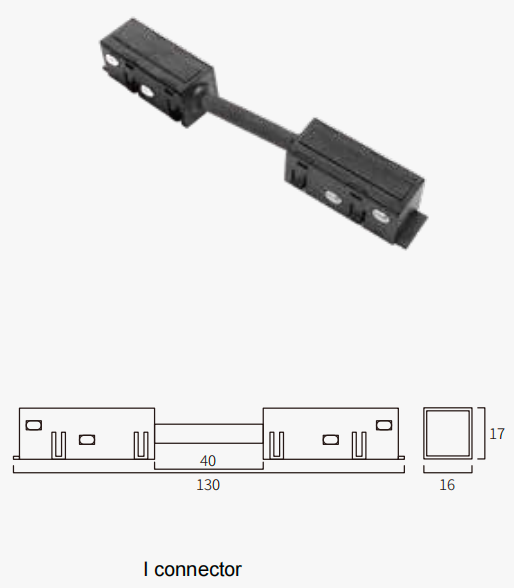

Straight electrical connection
Overall 130 mm; section 16 × 17 mm

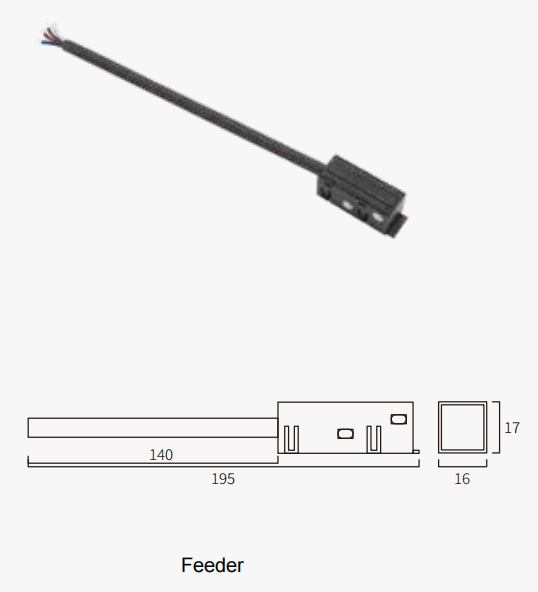

Track power feed
Overall 195 mm; section 16 × 17 mm

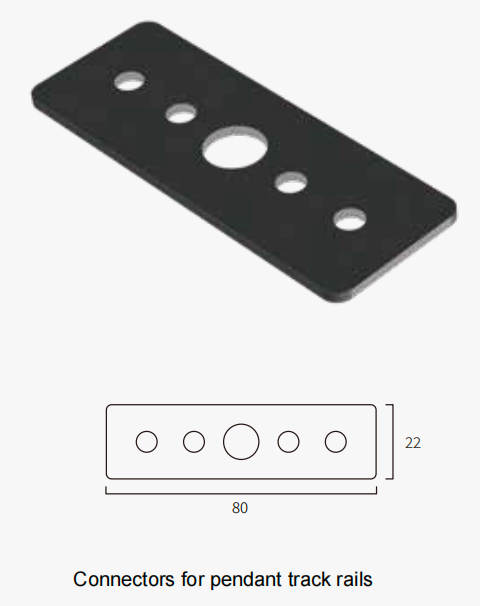

Mechanical connection plate
80 × 22 mm

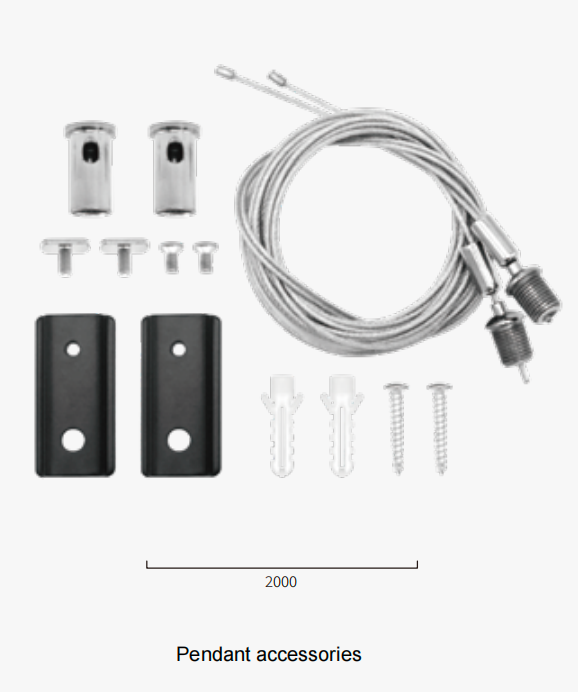

Suspension components
2000 mm as shown in supplied drawing

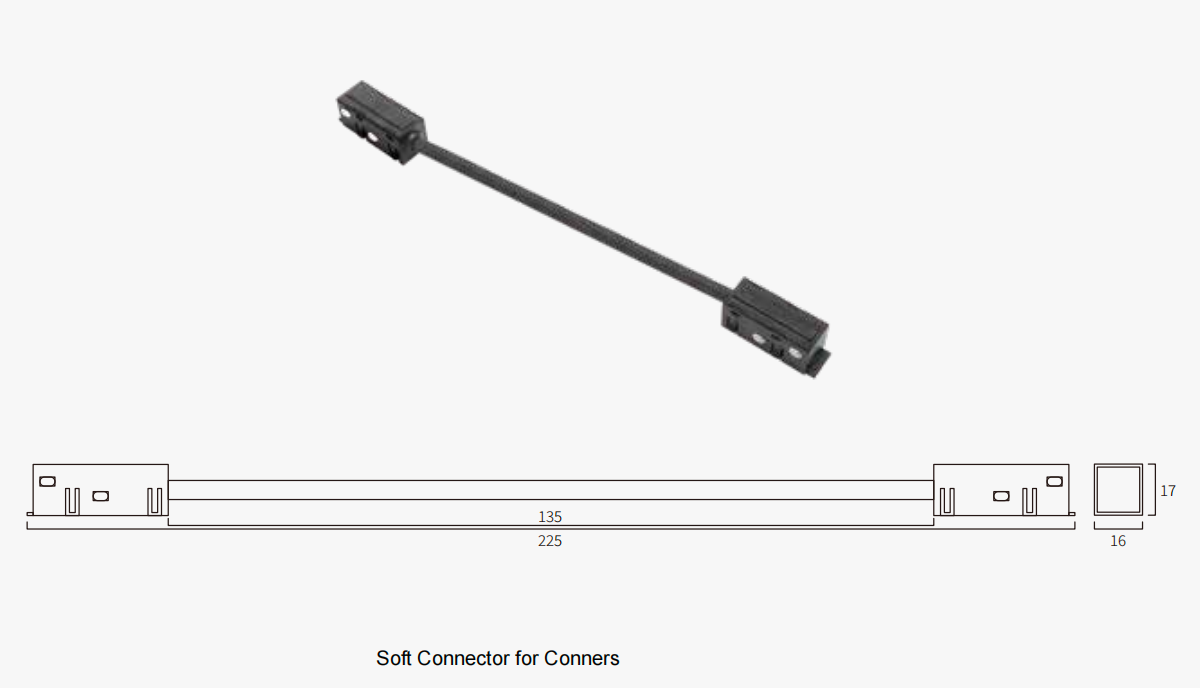

Flexible electrical connection
Overall 225 mm; section 16 × 17 mm

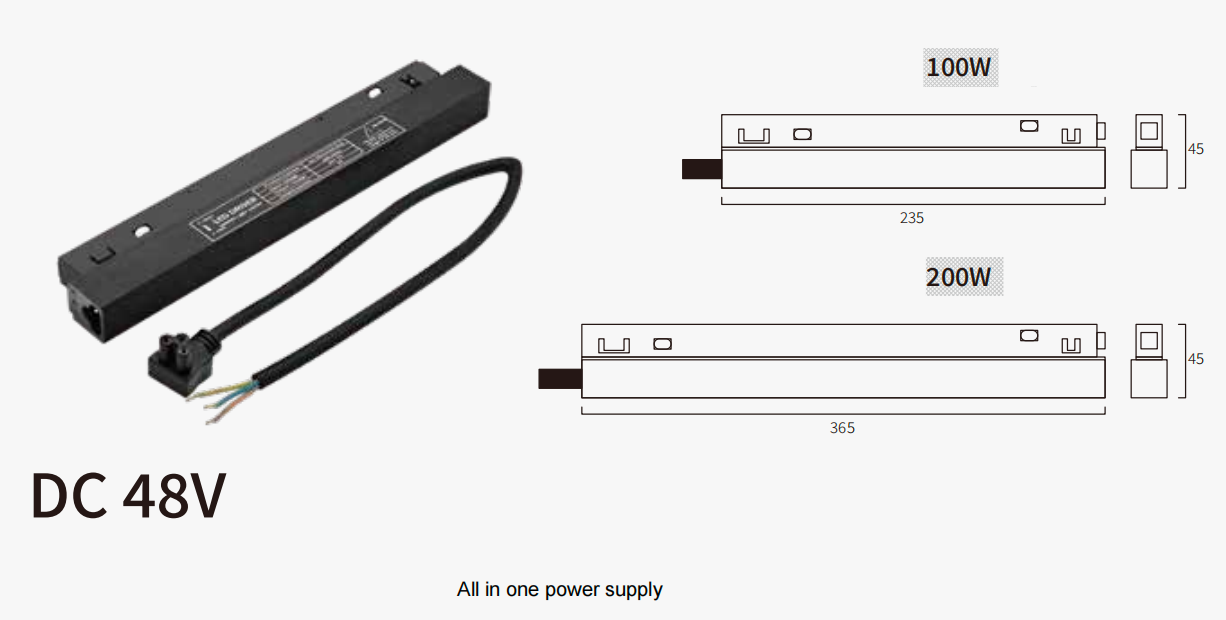

100W / 200W options
