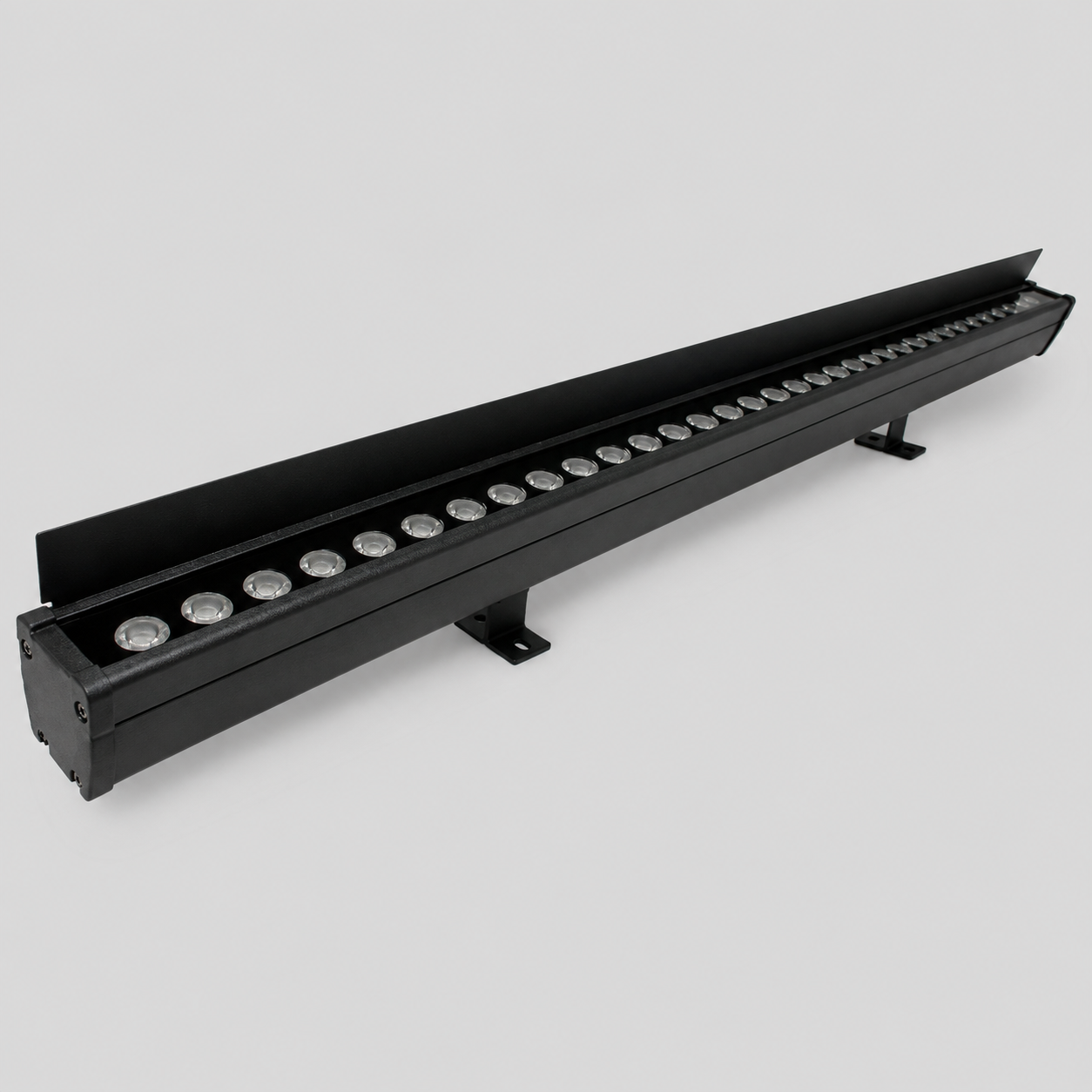

BB-4016 IP65 LED Wall Washer Light

Name: BB-4016 IP65 LED Wall Washer Light
Brand: VOC Lighting
SKU: VOC-BB-4016

No.VOC-BB-4016

BB-4016 professional 36W IP65 LED wall washer light with 1000mm linear aluminum housing and toughened glass. Multiple narrow, wide and elliptical beam options support precise façade washing, architectural highlighting and outdoor wall illumination.

Model

BB-4016

Power

36W

Dimension

1000×48×H125mm

Material / Process

Aluminum + Toughened Glass

Luminous Flux

Approx. 2880 lm

Luminous Efficiency

80 lm/W

Protection

IP65

CRI

Ra80

Beam Angle

5° / 10° / 15° / 24° / 30° / 45° / 60° / 90° / 10×60° / 15×45°

Input Voltage

AC85-265V / DC24V

REQUEST A QUOTE

Add to Quote List View Quote List

Description

PRODUCT OVERVIEW

BB-4016 is a 1000mm professional LED wall washer light designed for façade, wall and architectural exterior lighting.
The 36W linear fixture combines an aluminum housing with toughened glass and IP65 protection for outdoor applications.
A wide range of beam options supports narrow accent lighting, medium wall washing and wider architectural illumination.

KEY FEATURES

36W / 1000mm Linear Wall Washer
Long linear format provides continuous architectural illumination across walls and façades.
IP65 Outdoor Protection
Suitable for exterior building façades, landscape walls and other outdoor architectural applications.
Multiple Beam Angles
5° / 10° / 15° / 24° / 30° / 45° / 60° / 90° optics support different throw distances and wall-washing effects.
Elliptical Optics
10×60° and 15×45° options provide elongated distributions for linear façade and wall illumination.
Aluminum + Toughened Glass
Robust outdoor construction supports durability and heat dissipation.
80 lm/W Efficiency
36W input provides approximately 2880 lm calculated from the supplier-specified 80 lm/W efficacy.
Ra80 Color Rendering
Suitable for general commercial and architectural exterior lighting.
Wide Voltage Compatibility
AC85-265V and DC24V options support different project electrical systems.

MODEL & SIZE OPTIONS

Model	Power	Dimension	Protection	Input Voltage	Beam Angle
BB-4016	36W	1000×48×H125mm	IP65	AC85-265V / DC24V	5° / 10° / 15° / 24° / 30° / 45° / 60° / 90° / 10×60° / 15×45°

OPTICAL OPTIONS

Spot Beam: 5° / 10° / 15°
Medium Beam: 24° / 30° / 45°
Wide Beam: 60° / 90°
Elliptical Beam: 10×60° / 15×45°

TECHNICAL OPTIONS

Product Type: IP65 LED Wall Washer Light
Model: BB-4016
Power: 36W
Dimension: 1000×48×H125mm
Material: Aluminum + Toughened Glass
Protection Rating: IP65
Input Voltage: AC85-265V / DC24V
Luminous Efficiency: 80 lm/W
Calculated Luminous Flux: Approx. 2880 lm
CRI: Ra80
Beam Angle: 5° / 10° / 15° / 24° / 30° / 45° / 60° / 90° / 10×60° / 15×45°

RECOMMENDED APPLICATIONS

Building Façade Lighting
Architectural Wall Washing
Hotels & Commercial Buildings
Landscape Walls
Bridges & Structural Features
Public Architecture
Exterior Accent Lighting
Linear Architectural Illumination
