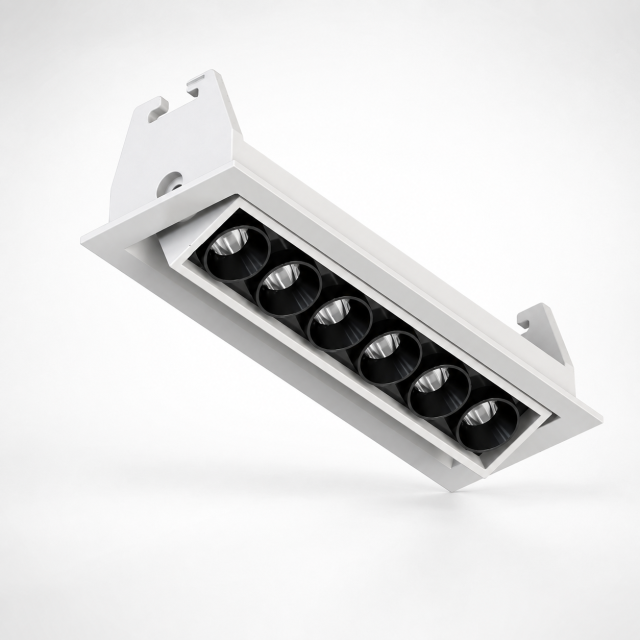

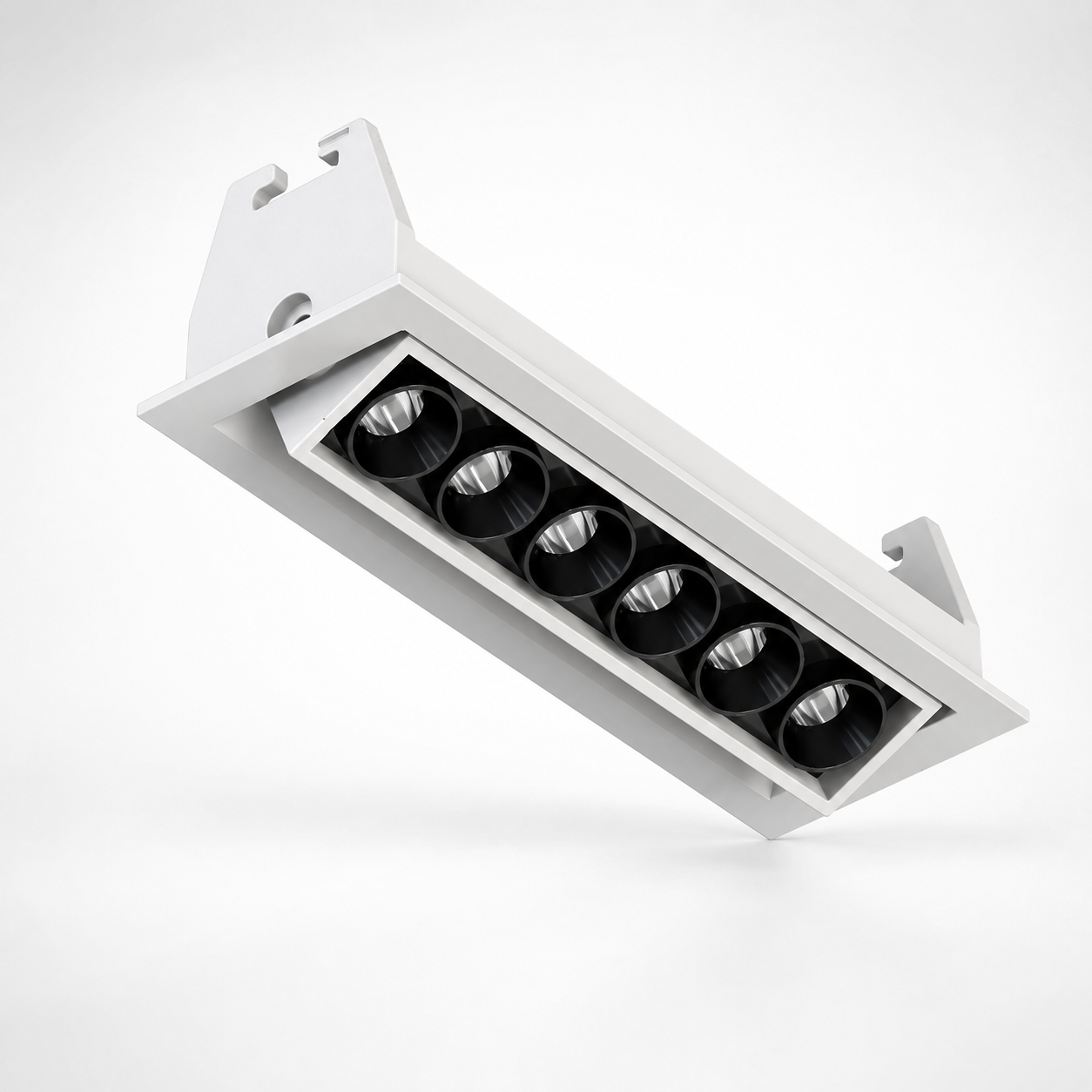

CE-GSD Series Adjustable Recessed Linear Grille LED Downlight

PRODUCT OVERVIEW

• The CE-GSD Series Adjustable Recessed Linear Grille LED Downlight is designed for commercial and architectural spaces requiring flexible light direction, controlled glare and precise accent illumination.
• The adjustable structure allows the lighting direction to be aimed toward merchandise, display walls, artwork and architectural features.
• Available in CE-GSD-S03, CE-GSD-S06 and CE-GSD-S12 configurations with 6W, 10W and 20W power options.
• Deep multi-cell optics combined with 26° / 38° beam options provide controlled illumination for retail, showroom and display applications.

KEY FEATURES

• Adjustable Lighting Direction
  Flexible aiming allows the light direction to be adjusted precisely toward merchandise, display areas, feature walls and architectural details.
• Deep Anti-Glare Multi-Cell Optics
  Recessed multi-cell optical structure helps reduce direct glare while maintaining controlled and precise illumination.
• 26° / 38° Beam Options
  Multiple beam-angle options support focused accent lighting and wider display illumination.
• 3 / 6 / 12 Cell Configurations
  Available in compact linear configurations with 6W, 10W and 20W power options.
• Multiple LED Source Options
  Compatible with OSRAM 3030, Refond 3030, CREE 3535 and Bridgelux 3535 LED sources.
• Optional Anti-Glare Accessories
  Recessed reflector and honeycomb louver configurations are available for enhanced glare control.
• ADC12 Die-Cast Aluminum
  Durable die-cast construction supports efficient heat dissipation and reliable commercial operation.
• Professional Lighting Control
  Optional 0-10V, Phase Dimming and DALI dimming configurations are available for project applications.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Beam Angle: 26° / 38°
• Optical Structure: Deep Multi-Cell Anti-Glare Grille
• Anti-Glare Options: Recessed reflector / Honeycomb louver configurations
• Reflector / Decorative Finishes: Black / Transparent / White-Black / White-Gold / Black-Gold options depending on configuration

LED OPTIONS

• OSRAM 3030 — 1–3W LED option
• Refond 3030 — 1–3W LED option
• CREE 3535 — 1–3W LED option
• Bridgelux 3535 — 1–3W LED option

TECHNICAL OPTIONS

• Product Type: Recessed Linear Grille LED Downlight

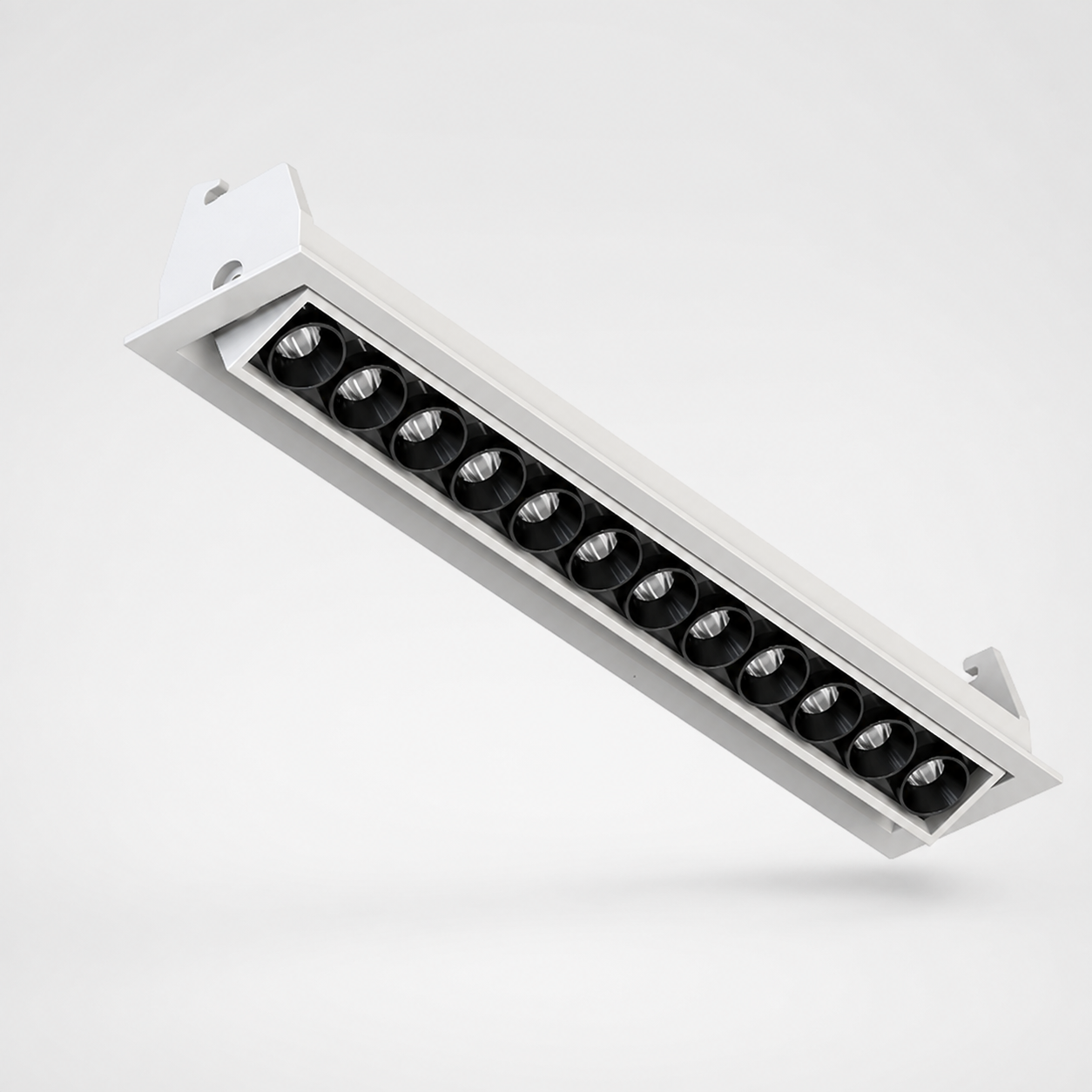

• Models: CE-GSD-S03 / CE-GSD-S06 / CE-GSD-S12
• Power: 6W / 10W / 20W
• Material / Process: ADC12 Die-Cast Aluminum
• UGR: <19 Optional
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP20
• Installation: Recessed
• Beam Angle: 26° / 38°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Luminous Efficiency: 80 lm/W
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming: 0-10V / Phase Dimming / DALI Optional

RECOMMENDED APPLICATIONS

• Retail Stores & Boutiques
• Display Shelves & Product Displays
• Shopping Malls
• Hotels & Restaurants
• Showrooms & Galleries
• Commercial Offices
• Reception & Lobby Areas
• Architectural Accent Lighting
