CE-XTD-B-S06 10W Trimless Anti-Glare Recessed Linear Grille Downlight

PRODUCT OVERVIEW

• CE-XTD-B Series is a trimless recessed anti-glare linear grille downlight designed for commercial and architectural accent lighting.
• The series is available in 3-cell, 6-cell and 12-cell configurations with 6W, 10W and 20W power options.
• Deep recessed optical cells help reduce direct glare while providing controlled and focused illumination.

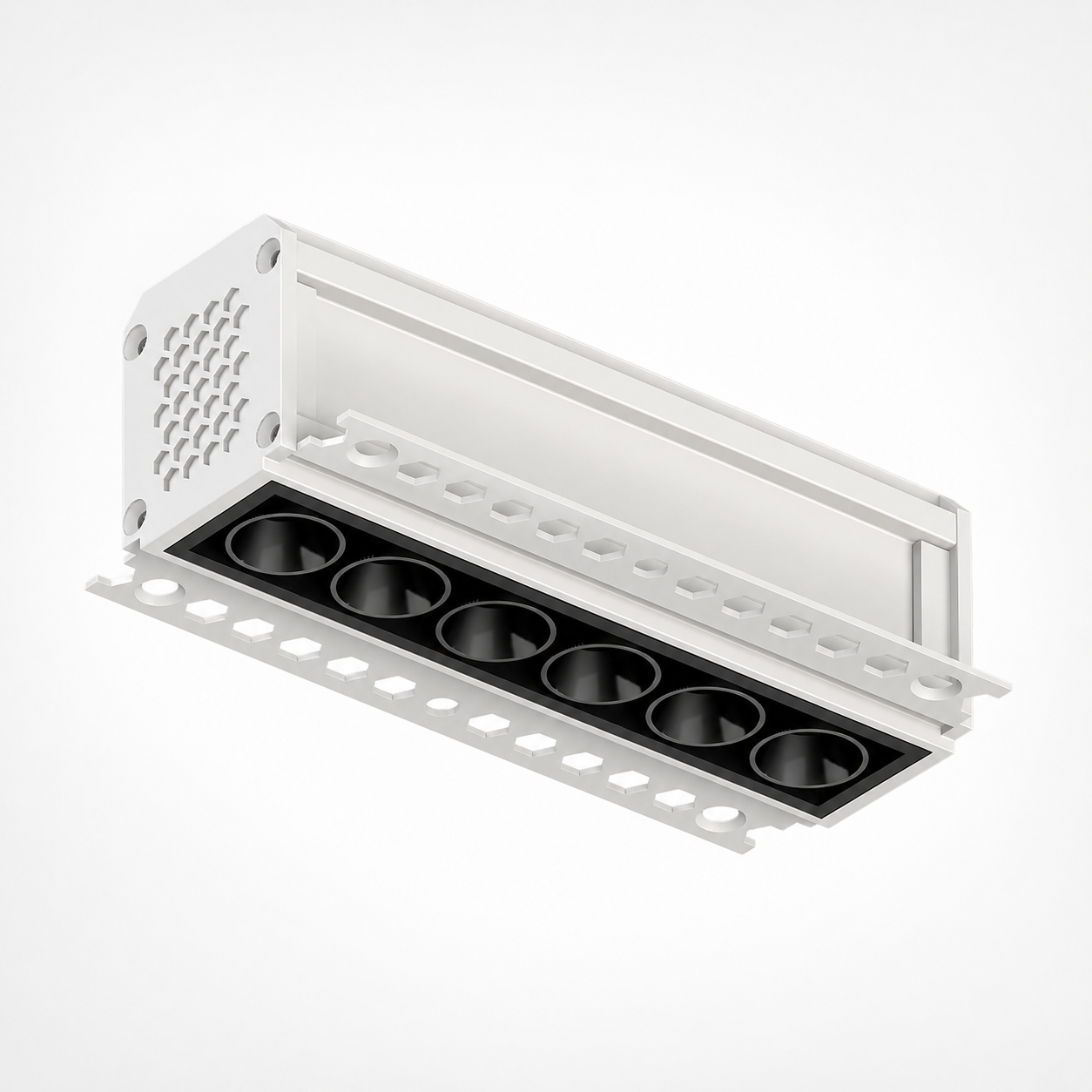

• The CE-XTD-B-S06 6-cell version delivers 10W output in a compact 125.6×60×43mm housing.

KEY FEATURES

• Deep anti-glare multi-cell optical structure for improved visual comfort.
• Linear recessed form for clean integration into commercial ceilings.
• 26° / 38° beam angle options for accent and general directional lighting.
• 3-cell / 6-cell / 12-cell configurations covering 6W / 10W / 20W.
• Multiple LED source options including OSRAM 3030, Refond 3030, CREE 3535 and Bridgelux 3535.
• Multiple anti-glare reflector and decorative insert color combinations available for project matching.
• Compact 43mm housing height suitable for ceilings with limited installation depth.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Beam Angle: 26° / 38°
• Optical Structure: Deep Anti-Glare Multi-Cell Grille
• Anti-Glare Insert / Reflector: Multiple color combinations available
• Recommended Distribution: Accent / Display / General Directional Lighting

LED OPTIONS

• OSRAM 3030 — 1–3W
• Refond 3030 — 1–3W
• CREE 3535 — 1–3W
• Bridgelux 3535 — 1–3W

TECHNICAL OPTIONS

• Product Type: Recessed Anti-Glare Linear Grille LED Downlight
• Series: CE-XTD-B
• Model: CE-XTD-B-S03 / CE-XTD-B-S06 / CE-XTD-B-S12
• Power: 6W / 10W / 20W
• Dimension: 68.6×60×43mm / 125.6×60×43mm / 239.6×60×43mm
• Cut-out: 69.5×37mm / 126.5×37mm / 240.5×37mm
• Installation: Recessed
• Beam Angle: 26° / 38°
• Material / Process: Die-Cast Aluminum
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP20
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Retail Stores & Boutiques
• Shopping Malls
• Hotels & Hospitality Spaces
• Showrooms & Galleries
• Restaurants & Cafés
• Commercial Offices
• Display Shelves & Product Displays
• Reception & Lobby Areas
• Architectural Accent Lighting
