CE-XTD Series Recessed Anti-Glare LED Downlight

PRODUCT OVERVIEW

• CE-XTD is a compact recessed anti-glare LED downlight family for commercial, retail, hospitality and architectural accent lighting.

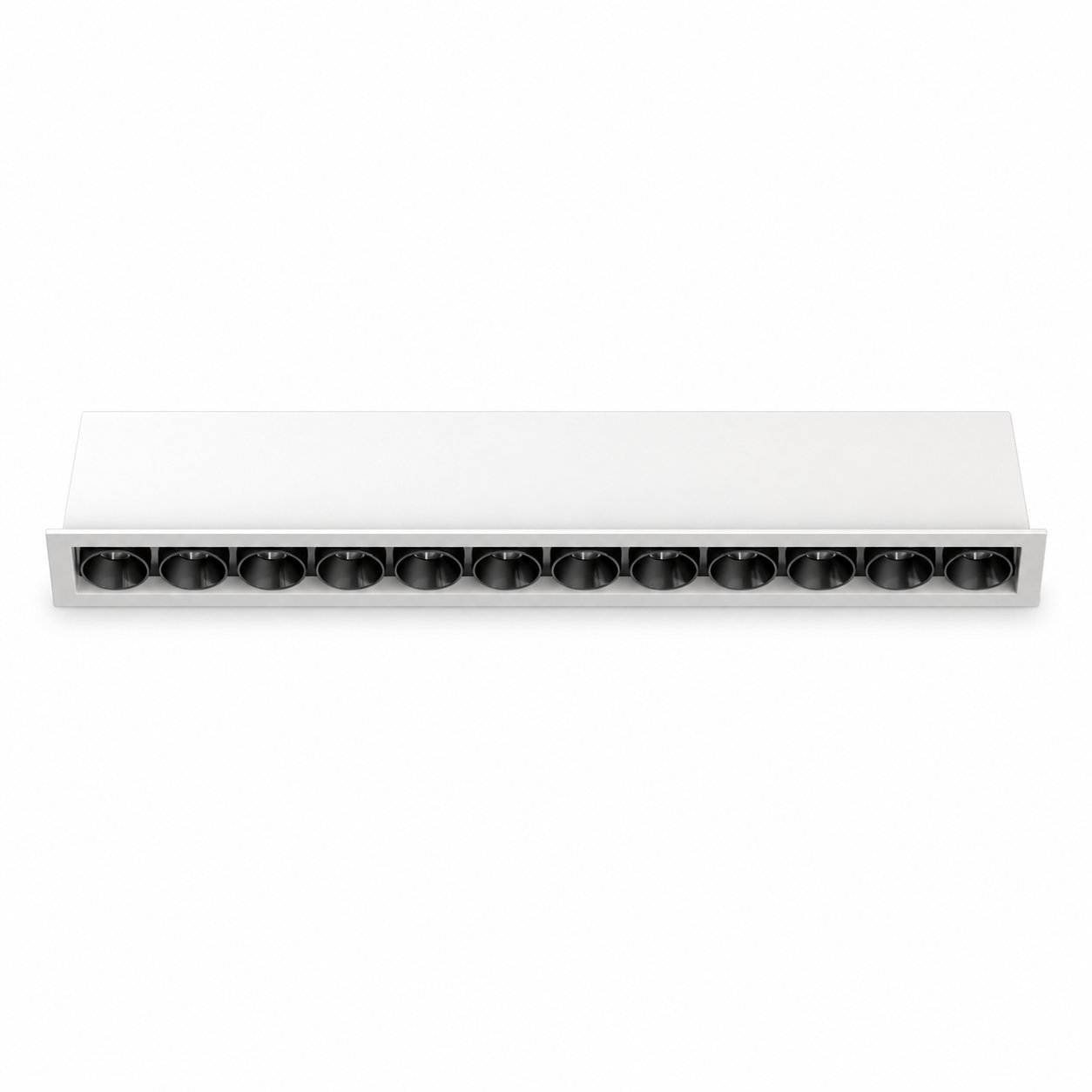

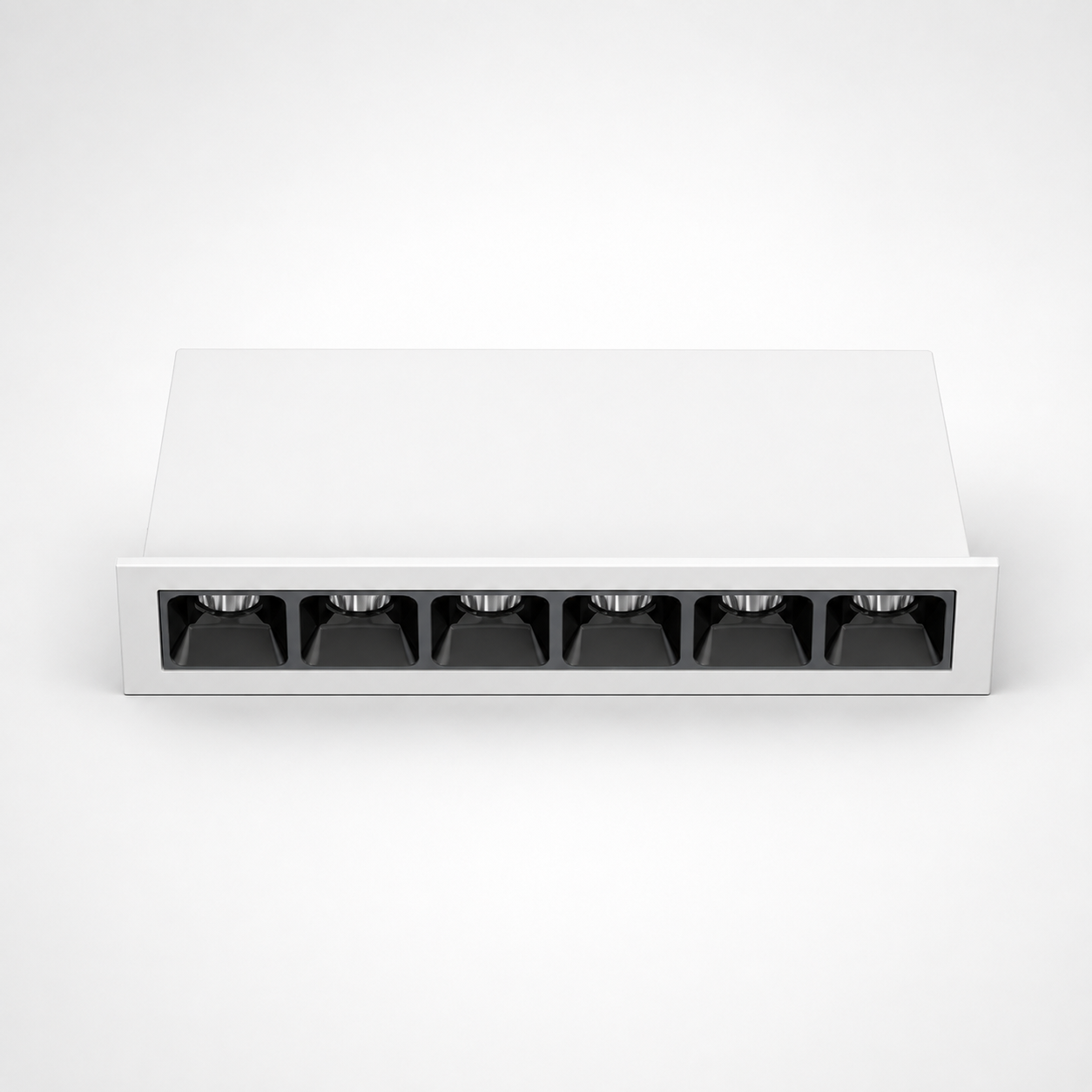

• The series includes mini round, mini square, 4-cell round, 4-cell square and linear 3-cell / 6-cell / 12-cell configurations.
• Power options range from 2W to 20W, allowing one optical family to cover small decorative accents through larger linear display-lighting applications.

KEY FEATURES

• Deep anti-glare optical structure for improved visual comfort and controlled light distribution.
• Seven models covering round, square and linear configurations.
• 2W / 6W / 8W / 10W / 20W power options.
• 26° / 38° beam angles for focused and medium accent lighting.
• SMD 3030 / 3535 LED options, including OSRAM, CREE and other compatible configurations.
• Compact recessed cut-outs from Ø25mm to 236×27mm.
• Multiple reflector and anti-glare cup combinations for different ceiling and interior styles.
• Die-cast aluminum housing for efficient heat dissipation and reliable commercial operation.
• Ra90+ color rendering option for retail, hospitality and display applications.
• Optional 0-10V, Phase Dimming, DALI and Tuya Zigbee control configurations.

MODEL & SIZE OPTIONS

OPTICAL OPTIONS

• Beam Angle: 26° / 38°
• Optical Structure: Deep Anti-Glare Reflector / Multi-Cell Grille
• Round & Square Models: Recessed accent-lighting optics
• Linear Models: 3-cell / 6-cell / 12-cell controlled grille optics
• Reflector / Anti-Glare Cup: Black / Transparent / Two-Tone options depending on model

LED OPTIONS

• LED Type: SMD
• LED Package: 3030 / 3535
• OSRAM 3030 Optional
• CREE 3535 Optional
• Other compatible 3030 / 3535 configurations available according to project requirements.

TECHNICAL OPTIONS

• Product Type: Recessed Anti-Glare LED Downlight
• Series: CE-XTD
• Power: 2W / 2W / 8W / 8W / 6W / 10W / 20W
• Material / Process: Die-Cast Aluminum
• LED: SMD 3030 / 3535
• Input Voltage: AC220V / AC110V Optional
• Protection Rating: IP20
• Installation: Recessed
• Beam Angle: 26° / 38°
• CCT: 3000K / 4000K / 6000K
• CRI: Ra90+
• Driver: Lifud / OSRAM / Eaglerise / Philips / Tridonic Optional
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional

RECOMMENDED APPLICATIONS

• Retail Stores & Boutiques
• Display Shelves & Product Displays
• Hotels & Hospitality Spaces
• Restaurants & Cafés
• Showrooms & Galleries
• Commercial Corridors
• Reception & Lobby Areas
• Residential Feature Lighting
• Architectural Accent Lighting
