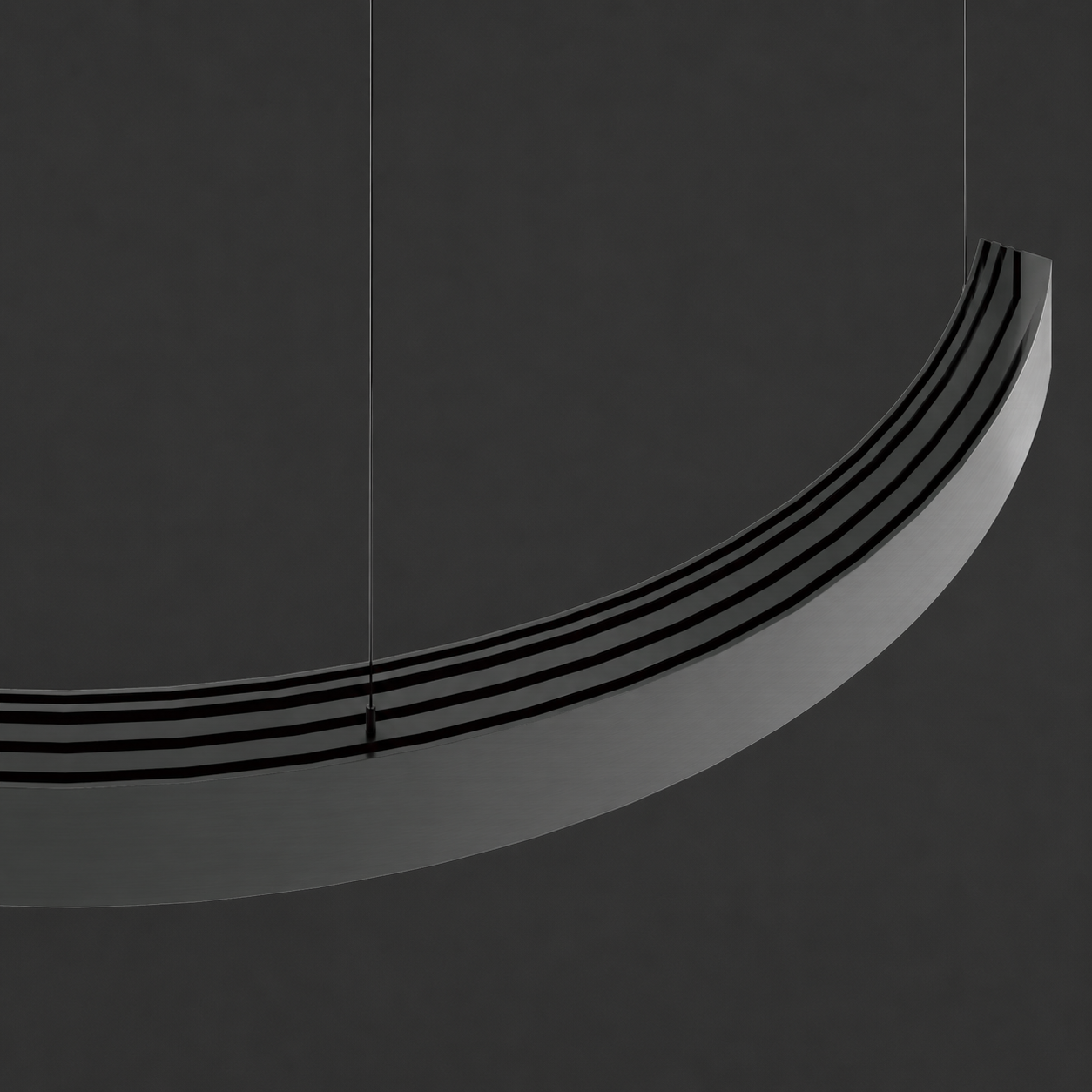

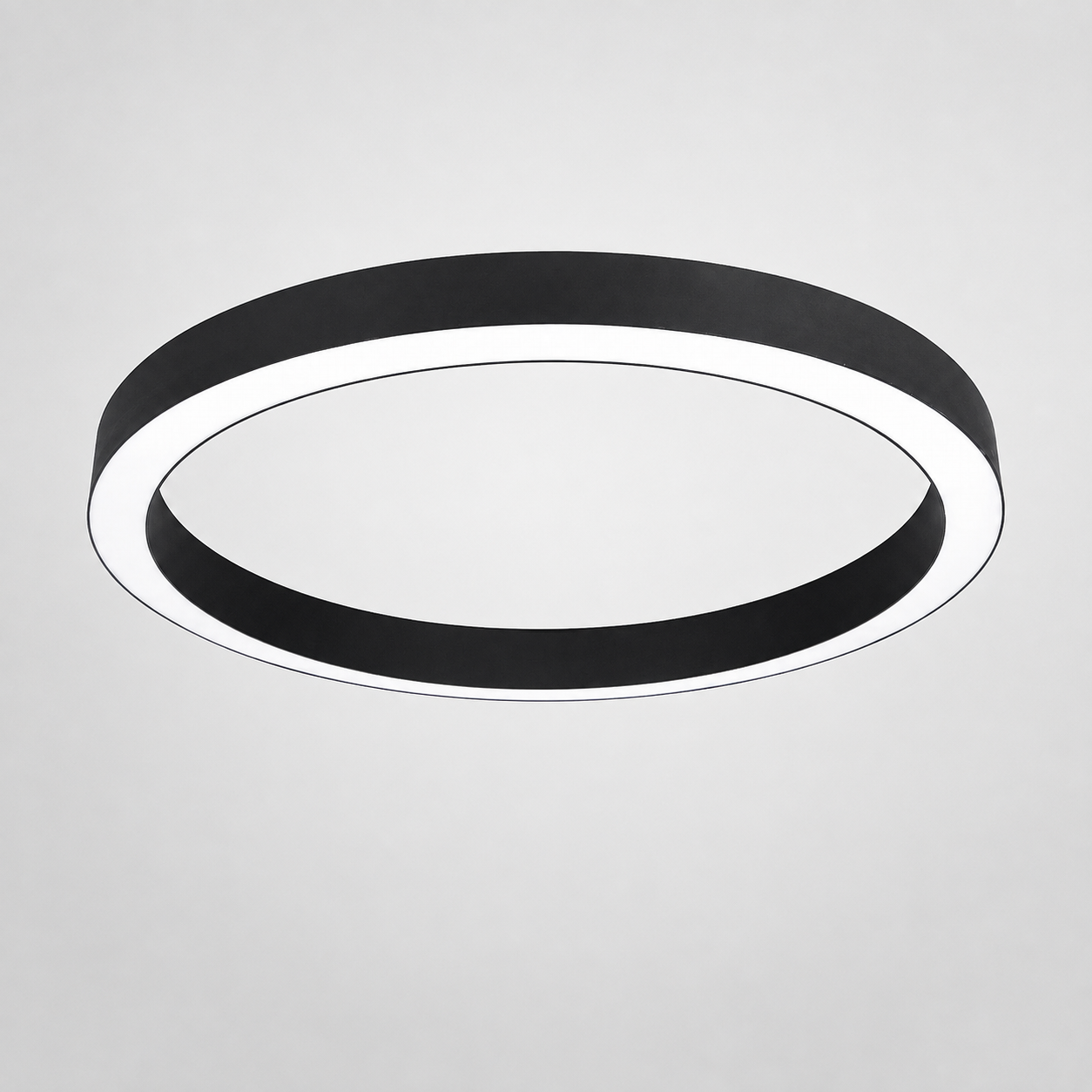

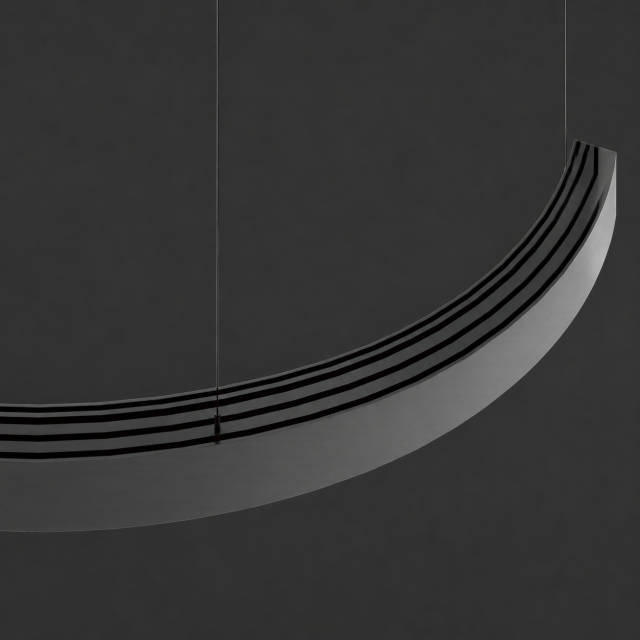

Circular LED Ring Pendant Light

PRODUCT OVERVIEW

• ZG-3528 / ZG-6575 is a circular LED linear ring light designed for modern offices, commercial interiors and architectural lighting projects.
• The continuous circular luminous surface provides clean and uniform illumination while creating a distinctive architectural ceiling feature.
• Multiple aluminum profile sizes, ring diameters and power configurations are available to meet different project requirements.
• The system supports both pendant and surface-mounted installation, making it suitable for spaces with different ceiling heights and interior layouts.

KEY FEATURES

• Circular Architectural Design
  Continuous ring-shaped illumination creates a modern decorative lighting feature for commercial and architectural interiors.
• Multiple Aluminum Profile Options
  Different profile sections are available for compact, medium and large ring-light configurations.
• Flexible Ring Diameter
  Standard ring diameters include Ø800mm, Ø1000mm, Ø1200mm, Ø1500mm and Ø2000mm, with customized sizes available.
• 10W/m – 25W/m Power Options
  Different aluminum profiles support 10W/m, 20W/m and 25W/m configurations according to fixture size and lighting requirements.
• 6063 Aluminum Construction
  High-quality 6063 aluminum provides good structural stability, heat dissipation and long-term reliability.
• Uniform Diffused Lighting
  Flexible silicone or PC diffuser options provide smooth continuous illumination and reduce visible LED points.
• Pendant or Surface Mounted
  Suitable for suspended decorative lighting or direct ceiling-mounted applications.
• Multiple Finish Options
  Silver oxide, white and black finishes are available for different interior design styles.
• Custom Project Configuration
  Ring diameter, profile size, power, suspension length, body finish and electrical configuration can be customized.
• Optional Lighting Control
  0-10V, Phase Dimming, DALI and Tuya Zigbee configurations are available for different commercial control systems.

SIZE & DIMENSIONS

PROFILE & DIMENSION DRAWING	MATERIAL	INSTALLATION	CRI	ELECTRICAL SYSTEM	RING DIAMETER	POWER

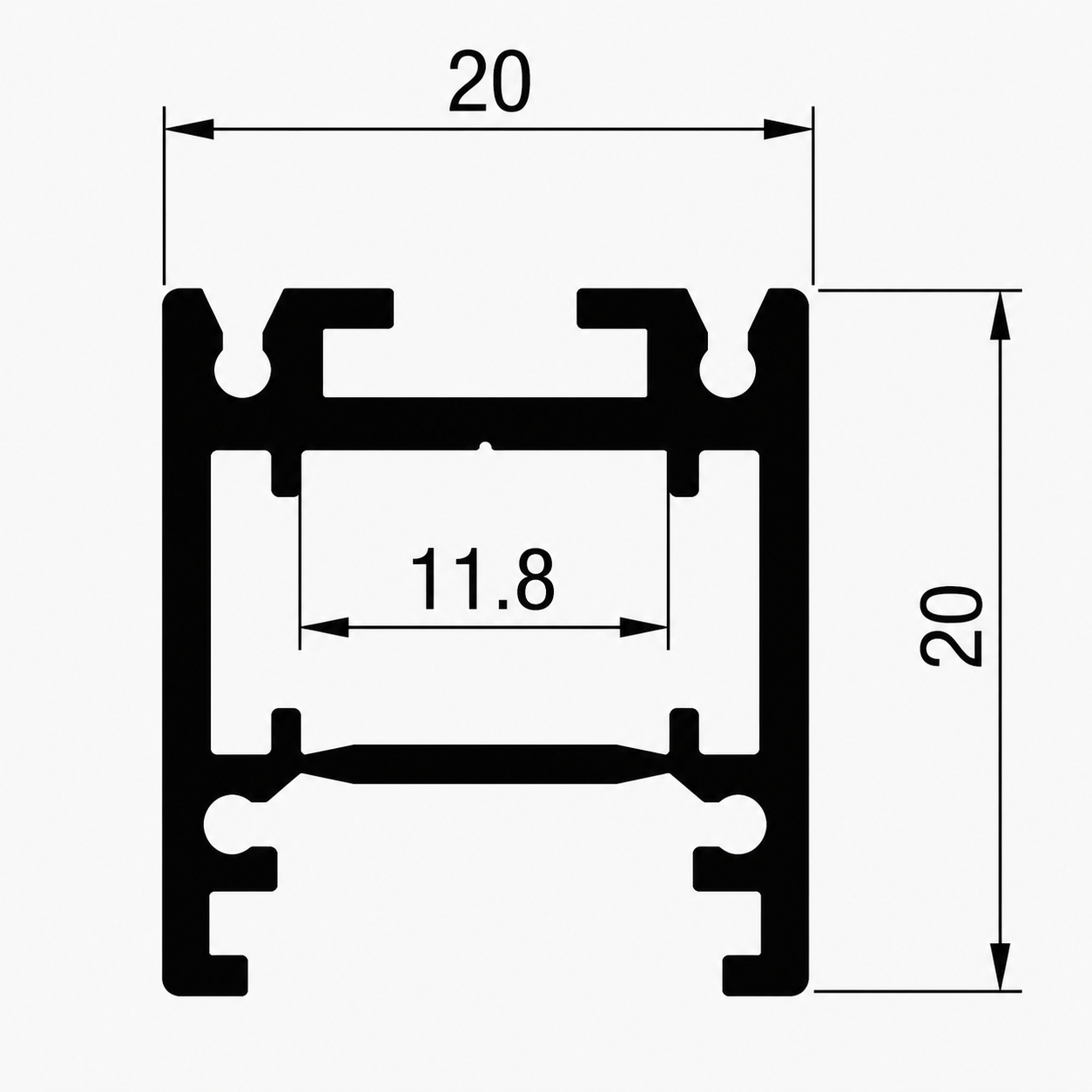

20×20mm Profile	6063 Aluminum + Flexible Silicone	Surface Mounted / Pendant	Ra≥82	Standard: Constant Current Optional: Constant Voltage	Ø800 / Ø1000 / Ø1200 / Ø1500 / Ø2000mm	10W/m

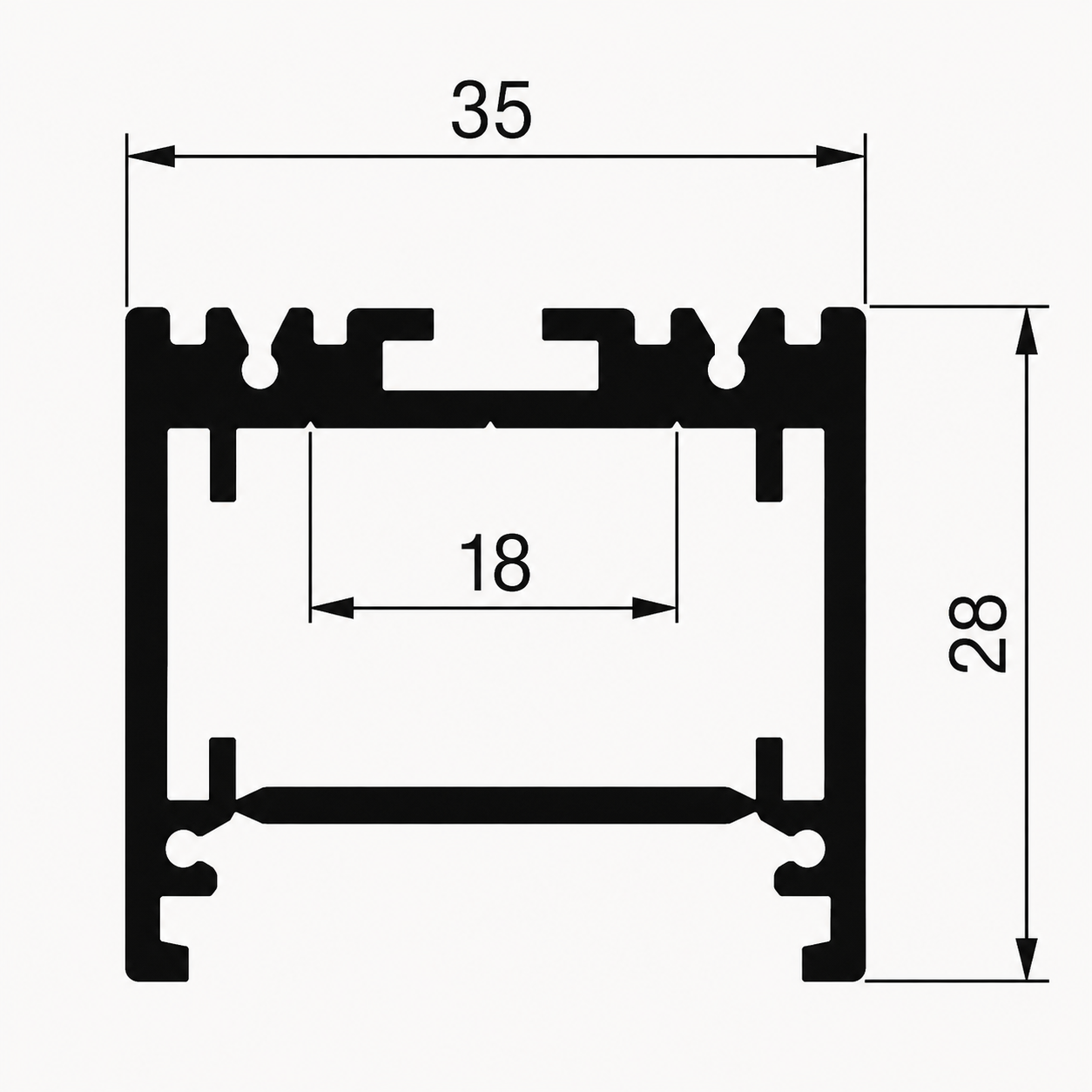

35×28mm Profile	6063 Aluminum + Flexible Silicone	Surface Mounted / Pendant	Ra≥82	Standard: Constant Current Optional: Constant Voltage	Ø800 / Ø1000 / Ø1200 / Ø1500 / Ø2000mm	20W/m

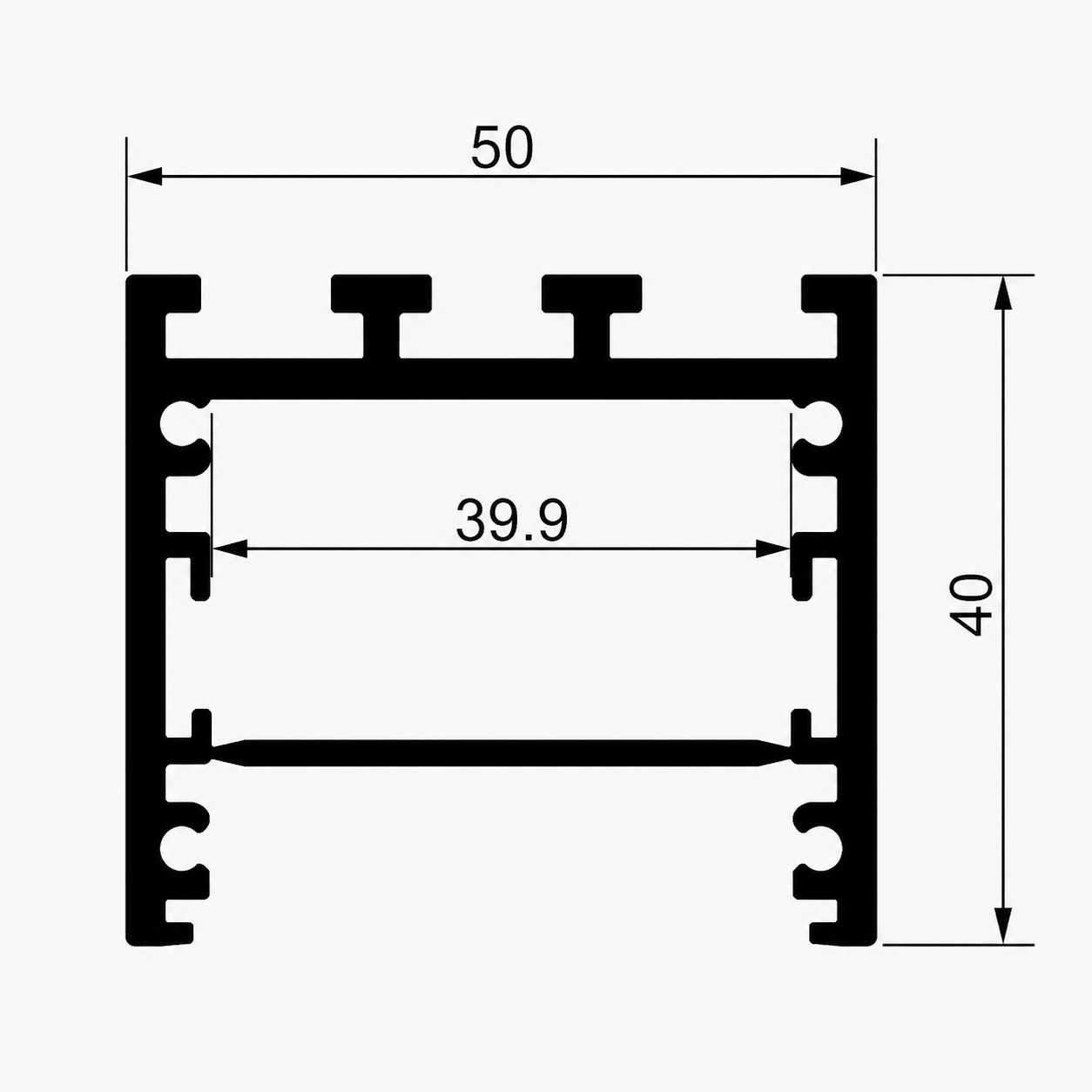

50×40mm Profile	6063 Aluminum + Flexible Silicone	Surface Mounted / Pendant	Ra≥82	Standard: Constant Current Optional: Constant Voltage	Ø800 / Ø1000 / Ø1200 / Ø1500 / Ø2000mm	25W/m

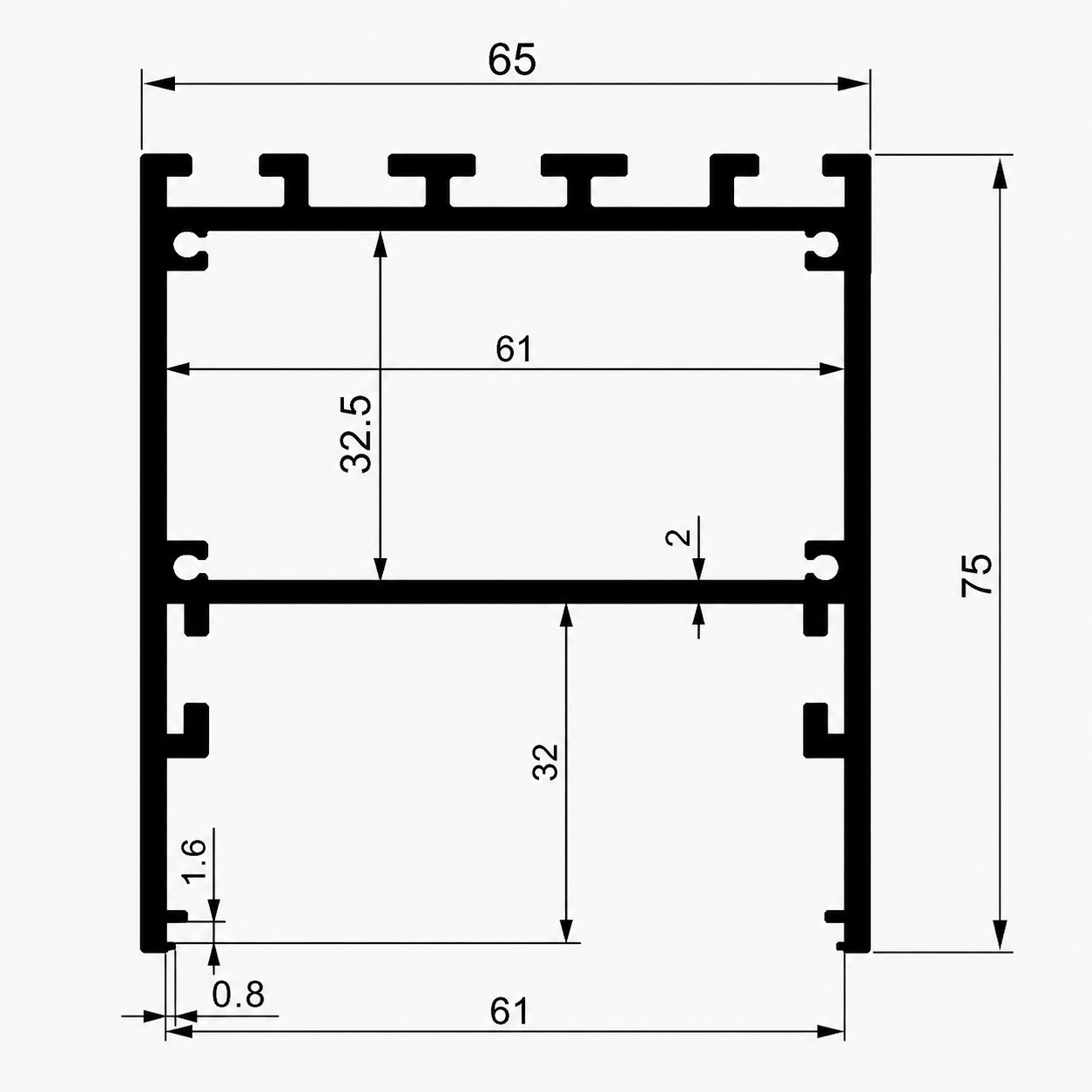

Large Profile	6063 Aluminum + Flexible Silicone	Surface Mounted / Pendant	Ra≥82	Standard: Constant Current Optional: Constant Voltage	Ø800 / Ø1000 / Ø1200 / Ø1500 / Ø2000mm	25W/m

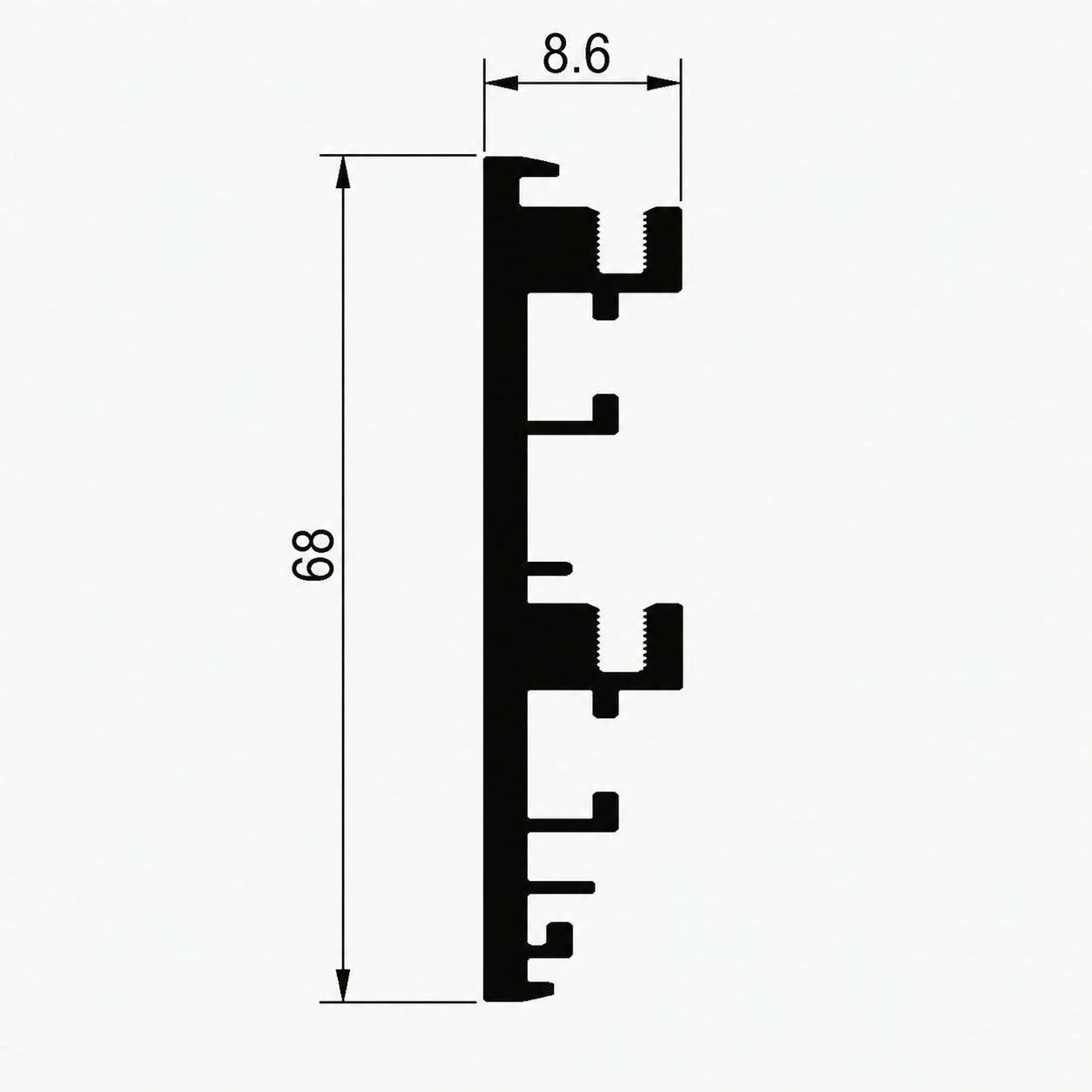

Side-Lighting Profile	6063 Aluminum + PC Diffuser	Surface Mounted / Pendant	Ra≥82	Standard: Constant Current Optional: Constant Voltage	Customized	Customized

LIGHTING OPTIONS

• Light Source: LED
• CCT: 3000K / 4000K / 6000K
• CRI: Ra≥82
• Light Distribution: Continuous Diffused Lighting
• Diffuser: Flexible Silicone / PC Diffuser
• Body Finish: Silver Oxide / White / Black

TECHNICAL OPTIONS

• Product Type: Circular LED Linear Ring Light
• Model: ZG-3528 / ZG-6575
• Profile Power: 10W/m / 20W/m / 25W/m / Customized
• Ring Diameter: Ø800 / Ø1000 / Ø1200 / Ø1500 / Ø2000mm / Customized
• Material: 6063 Aluminum
• Diffuser: Flexible Silicone / PC Diffuser
• Installation: Pendant / Surface Mounted
• Light Source: LED
• CCT: 3000K / 4000K / 6000K
• CRI: Ra≥82
• Body Color: Silver Oxide / White / Black
• Electrical System: Constant Current / Constant Voltage Optional
• Input Configuration: DC24V Constant Voltage / AC220V Constant Current Depending on Configuration
• Protection Rating: IP20
• Dimming / Control: 0-10V / Phase Dimming / DALI / Tuya Zigbee Optional
• Customization: Ring Diameter / Profile / Power / Suspension Length / Finish Available

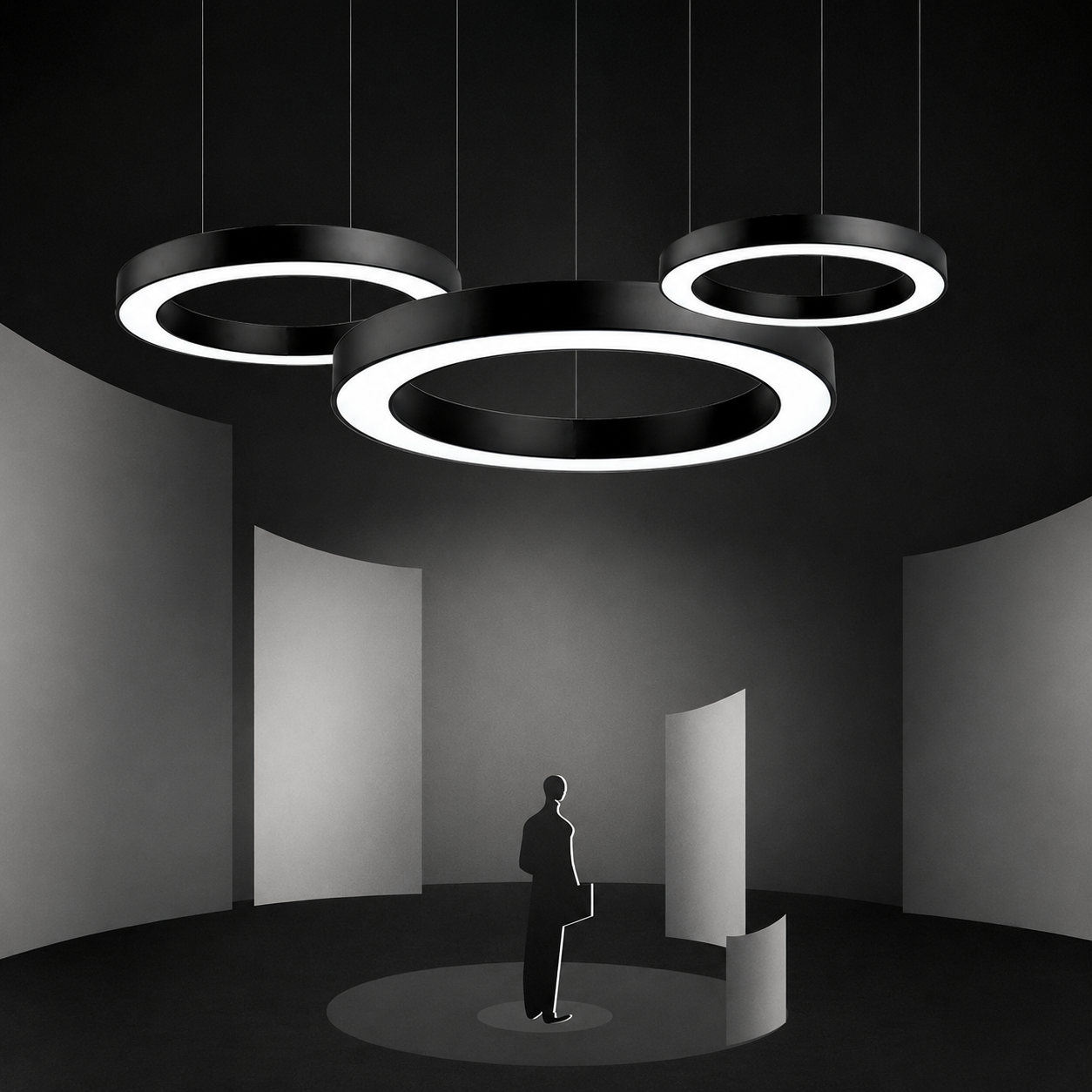

RECOMMENDED APPLICATIONS

• Modern Offices & Meeting Rooms
• Corporate Reception Areas
• Hotels & Hospitality Interiors
• Shopping Malls & Retail Spaces
• Restaurants & Cafés
• Showrooms & Galleries
• Large Lobbies & Atriums
• Commercial Public Areas
• Architectural Interior Lighting
